Kohler ENGLEFIELD EXCLUSIVE Series User manual

1199134-A02-H 28/11/2019
INSTALLATION
INSTRUCTIONS
SHOWER
Engleeld
EXCLUSIVE SERIES Round Sliding
Note: Tapware and accessories are not included.
Handles may dier from those pictured.
Englefield has a history
of making superb showers
and their popularity is
testament to their quality
and affordability.
It’s the details that Englefield
cares about - from pioneering
the latest technology, to
innovative design, it’s all to
make your showering
experience the very best it
can be.

Page 1
Before installing the shower please read these instructions carefully to familiarise
yourself with the required tools, materials and installation sequences. Please leave these
instructions for the consumer after installation. Refer to the separate care and maintenance
guide for important care and cleaning information.
Ensure that the shower tray and wall, if applicable, are completely finished prior to
installing your shower door and return. Follow all warnings, cautions and instructions
contained in this guide.
1. ENGLEFIELD strongly recommends that a minimum of TWO persons install this
enclosure due to the weight of the door panels.
2. Toughened safety glass cannot be cut. Risk of injury or product damage.
3. Wear protective footwear when lifting panels.
4. Wear safety glasses when drilling.
1. The wall retainers must be installed onto a waterproof, vertical and flat wall surface.
Failure to do so will result in an unsatisfactory seal, which may cause property damage.
The wall inclination (out of squareness) is recommended to be out by no more than
+/- 4mm/m.
2. Please install this door onto an ENGLEFIELD Quick - Fit shower tray only,
unless installing directly onto tiled walls and floor.
®
3. Care must be taken when drilling into walls and floors to avoid any hidden pipes or
wires.
4. It is the responsibility of the INSTALLER to ensure that the installation complies with
council and or local authority bylaws.
INSTALLATION INSTRUCTIONSRound Sliding
BEFORE YOU BEGIN
SAFETY
!
!ATTENTION
ENGLEFIELD
Instructions, drawings, and diagrams contained in this manual present information available at the time of printing. Although every
attempt has been made to keep them up-to-date, Engleeld reserves the right to implement product changes without further notice.
EXCLUSIVE SERIES

Wall Framing Rough-In
Page 2
INSTALLATION INSTRUCTIONS
ENGLEFIELD

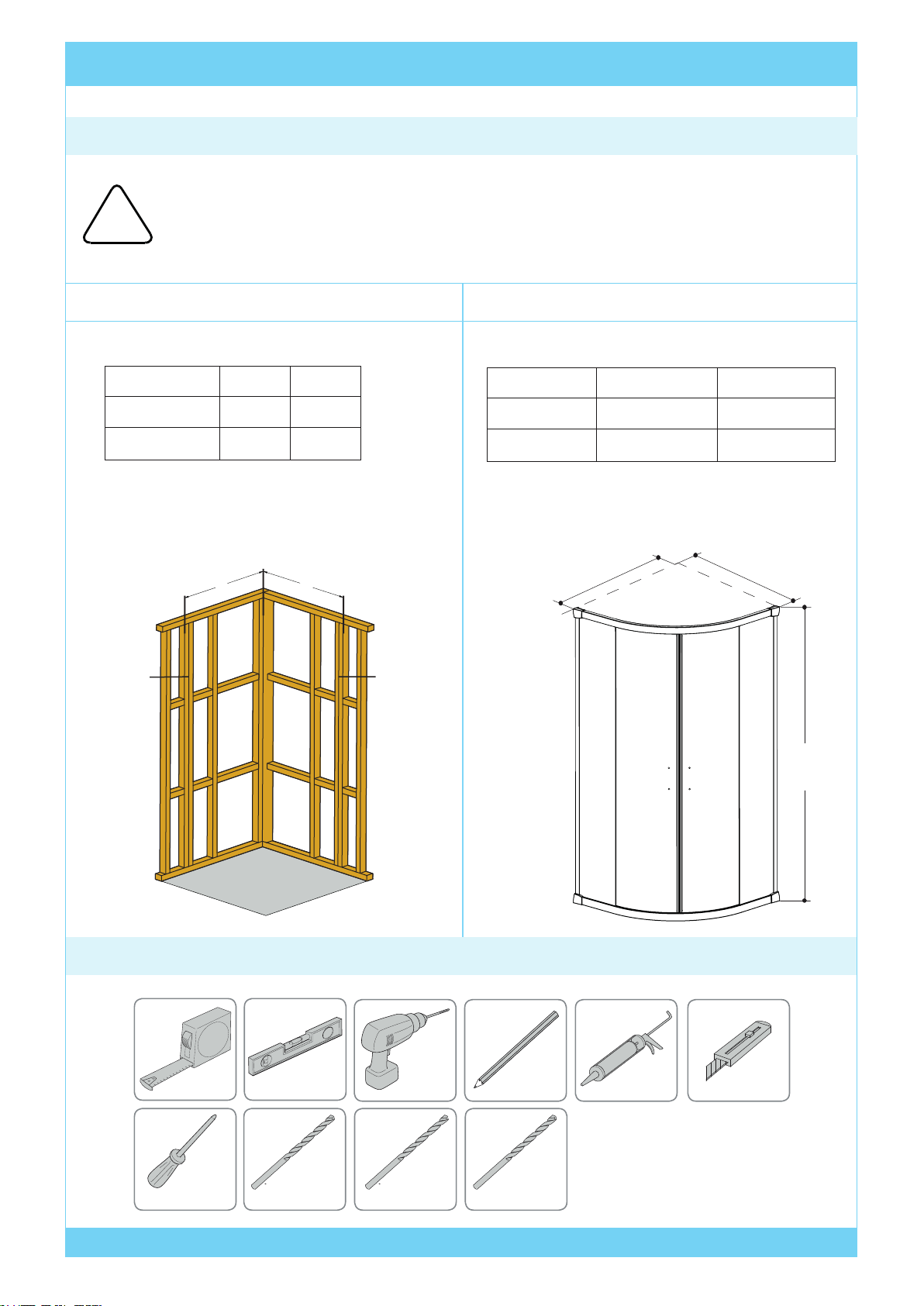

CONSTRUCTION REQUIREMENTS
Due to the weight of the shower system Englefield strongly recommends
constructing double studs (as below) to fix the wall retainers to.
!ATTENTION
TOOLS AND MATERIALS REQUIRED
3.0 mm 6.0 mm2.5 mm
Phillips
A
Double
studs
Double
studs
B
Size
For Acrylic tray/base
Dim ‘A’
900 x 900
NOTE: Based on the use of standard
10mm wall board
900
1000 x 1000 1000
Dim ‘B’
900
1000
Size Dim ‘A’ Dim ‘B’
900 x 900 872 ± 7.5mm
972 ± 7.5mm
872 ± 7.5mm
972 ± 7.5mm
1000 x 1000
B
1930
A
Round SlidingEXCLUSIVE SERIES

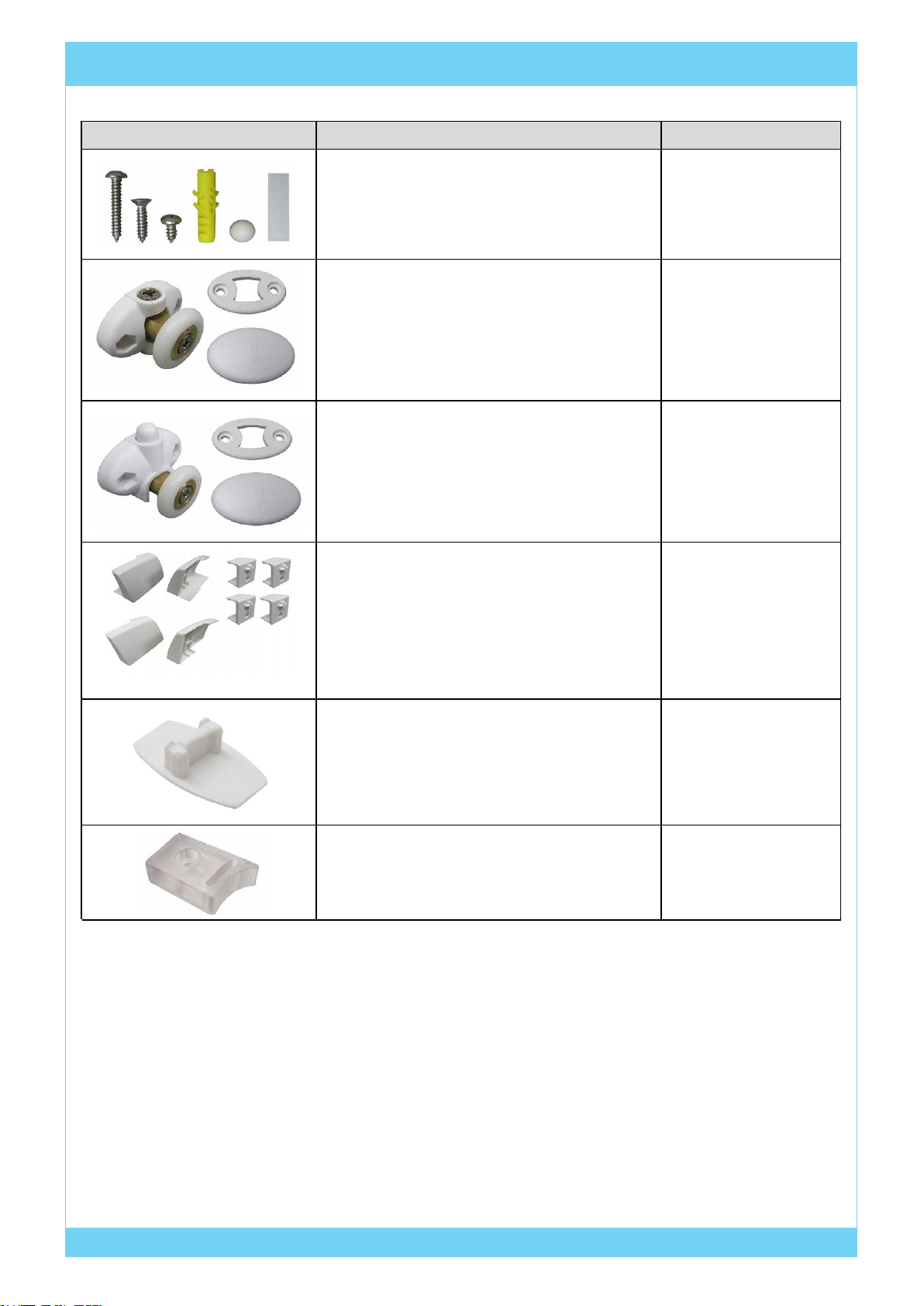

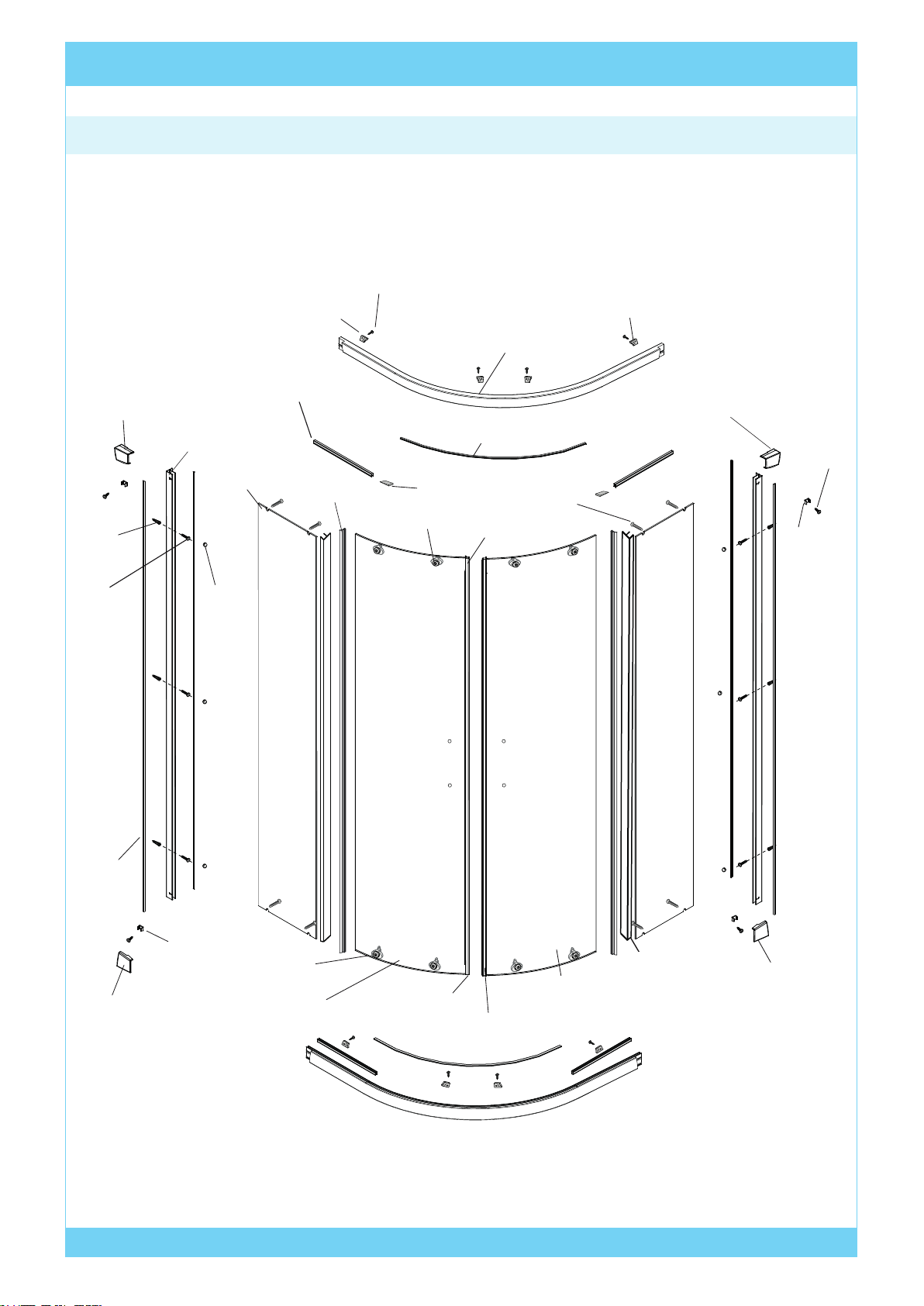

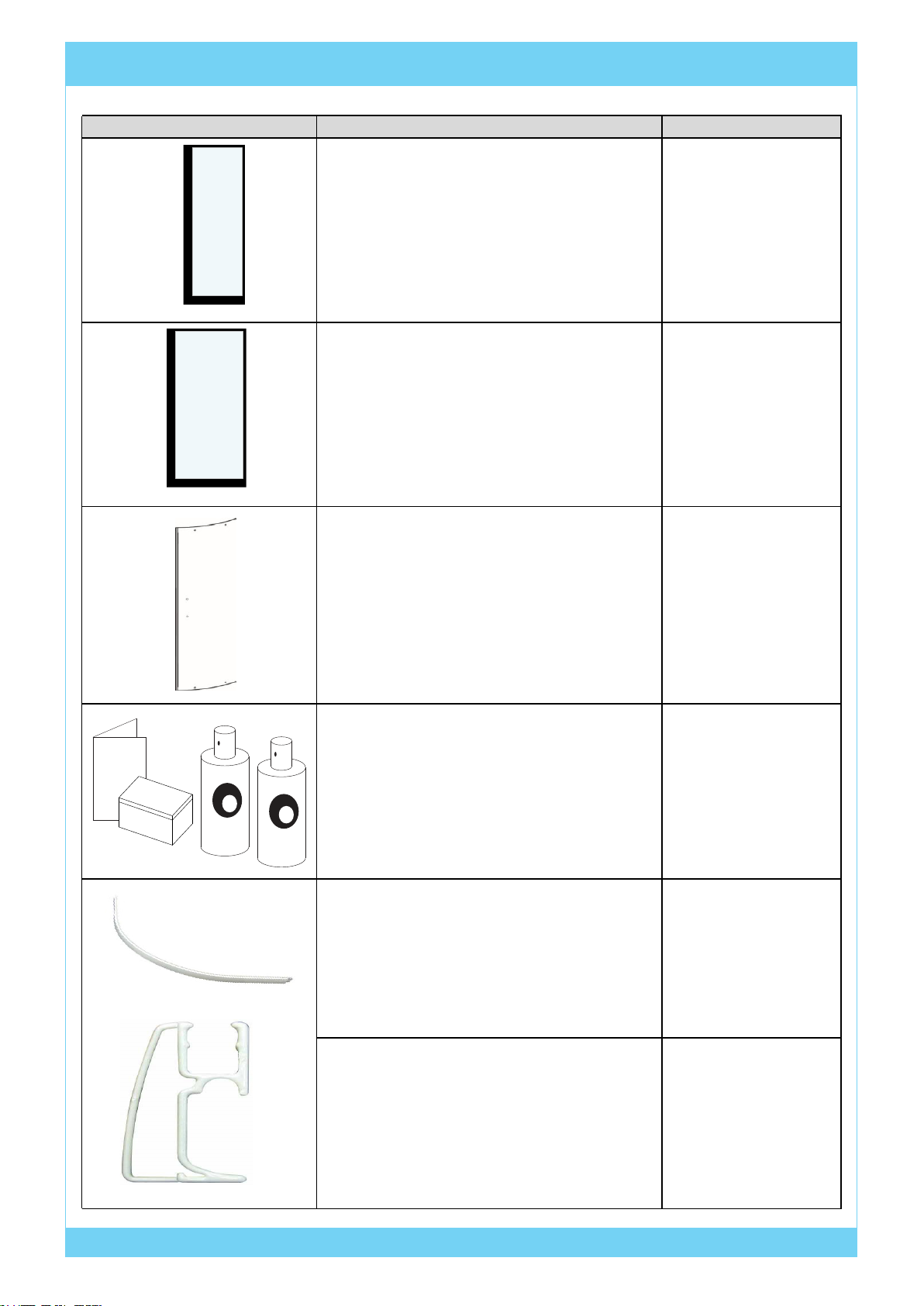

PARTS IDENTIFICATION
Page 3
INSTALLATION INSTRUCTIONS
ENGLEFIELD
Corner cover, top left
Screw
cover
Top and bottom
rail seal*
Door entry seal
Door Seal Wedge
Door edge extrusion
Top and bottom rail
Stopper Screw
ST 3.9 x 12mm
Left door stop
Infill glass
Right door stop
Corner
cover clip
Clip screw
ST 4.2
X 9.5 mm
Corner cover top right
Corner
cover clip
Wall
retainer
seal
Corner cover
bottom right
Infill glass screw
ST 4.2 X 16 mm
Corner cover
bottom left
Top roller sets*
Bottom
roller sets*
Door edge
cap Magnetic seal
Return seal
Door panel assy right
Door panel
assy left.
Wall
anchor
Wall
retainer
screw
ST 4.2
x 35mm
Wall retainer
Round SlidingEXCLUSIVE SERIES

872 ± 7.5
972 ± 7.5
B
Caution: Ensure tray/base or tiled
floor is level & walls are vertical &
square.
1 - INSTALLATION
Page 4
INSTALLATION INSTRUCTIONS
ENGLEFIELD
(e) Fix wall retainer to wall using 3 pan
screws(supplied).
(f) Repeat steps (b) to (e) for other wall
retainer.
3 mm
Profile
Tab faces
inwards
x3

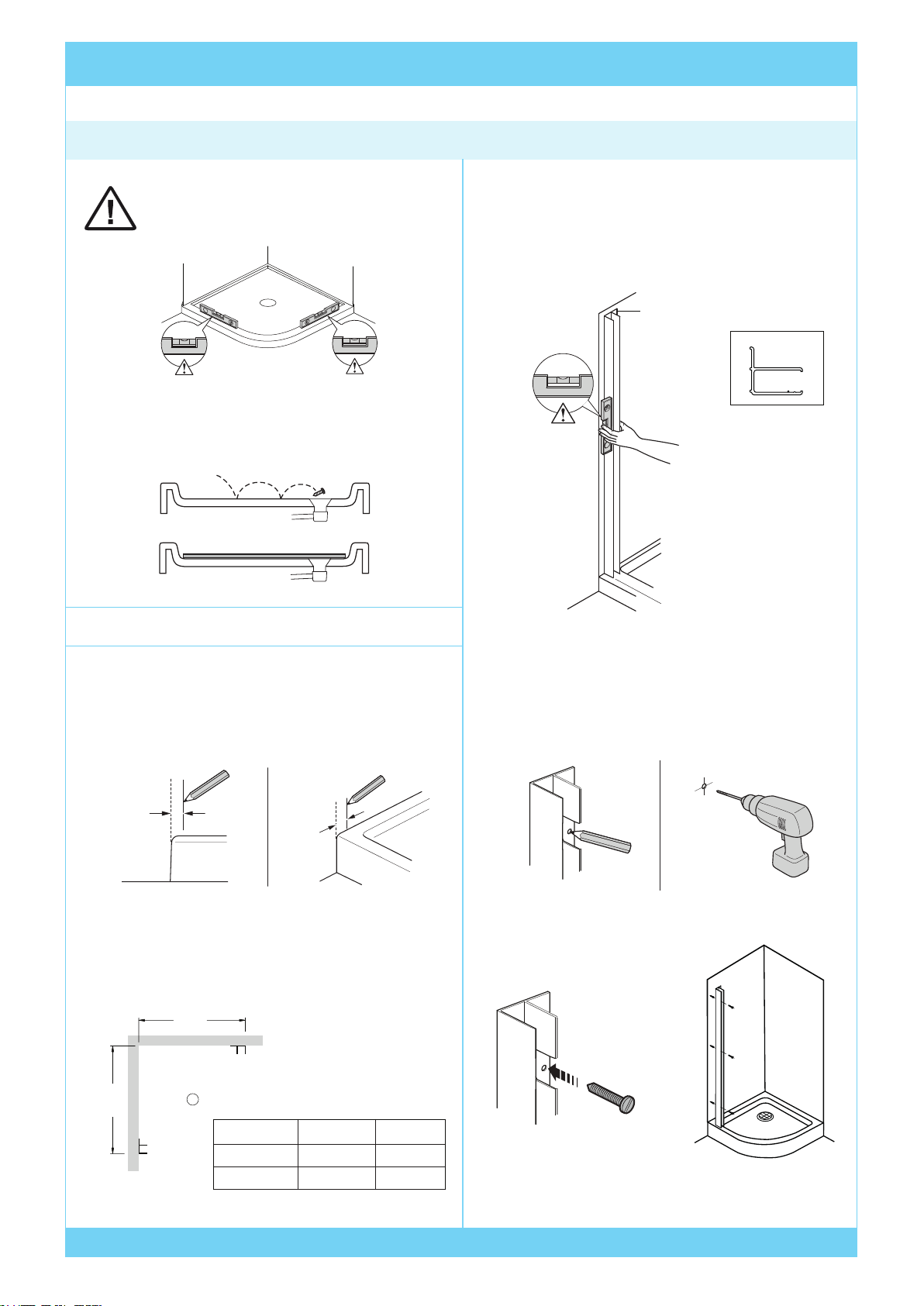

2.1 Wall Retainers
(a) Mark the locations of the wall retainers.
For acrylic tray/base option:
- Mark 15mm in from top edge of tray.
For tiled floor option:
- Mark from finished wall to outer edge
of retainer.
(b) Align a wall retainer with mark on tray/
base with tab facing inwards. Use a
level to make sure it is upright. (This is
critical to ensure correct operation of the
door).
(c) Mark position of fixing holes, then
remove wall retainer and drill holes
using an appropriate 3mm drill bit (not
supplied) or 6mm drill bit (not supplied) if using
wall anchors.
Tip: Cover the waste to prevent the loss of
small parts. If installing onto a tray protect
the tray surface during installation.
15 mm
15 mm
B
900 x 900
1000 x 1000
A
872 ± 7.5
972 ± 7.5
BSize
Ax 3
PAN
ST 4.2 x 35mm
± 0 mm
± 0 mm ± 0 mm
x3
Round SlidingEXCLUSIVE SERIES

Rail
Seal
Inside view
B
Wedge
1930
1930
1930
(a) Make sure there are seals in each end
of the top and bottom rails and that they
align with the end of the rails.
(d) Press fit the top rail to the top end of
both glass panels. NOTE: Make sure
that the glass panels align with
the end of the rails.
(e) Use a tape measure to make sure that
the rails are correctly fitted to the glass
panels. The total height of the
assembled product is 1930mm.
If higher, try pressing the top rail onto
the glass panels harder. If lower, insert
a wedge into the gap between the glass
panels and the top rail seal.
(b) Press fit the bottom rail into the wall
retainer on the tray/base.
(c) Press fit the return glass into the bottom
rail. NOTE: Make sure that the fixing
holes in the glass align with the holes
in the bottom rail.
Page 5
INSTALLATION INSTRUCTIONS
ENGLEFIELD
2.2 Return Glass
B
B
Round SlidingEXCLUSIVE SERIES

Soft edge
of seal
Soft edge
of seal
Wall
retainer
Return
Notch 3-5mm of rigid portion at bottom
of seals so that the flexible tab overlaps
the sill extrusion (right hand seal shown).
Seals
Seals Seals
COUNTERSUNK
ST 4.2 x 16mm
x 8
NOTE: Take care not to over tighten the screws.
Profile
2.3 Retainer / Return Panel Seals
(f) Fix the top and bottom rails to the glass
panels. Use a power drill on a low torque
setting to drive 8 countersunk screws
(supplied) into the top and bottom rails.
(b) Cut the return seals to length leaving a
3-5mm notch at the bottom so that the
fexible tab overlaps the curved still
extrusion.
(c) Press fit the return seals onto the
vertical edges of both return panels.
The flexible tab should face into the
shower.
(a) Press fit 2 retainer seals into each
wall retainer. Ensure the seals are fitted
with the soft edge in contact with the
glass face.
Page 6
INSTALLATION INSTRUCTIONS
ENGLEFIELD
Profile
Flexible tab

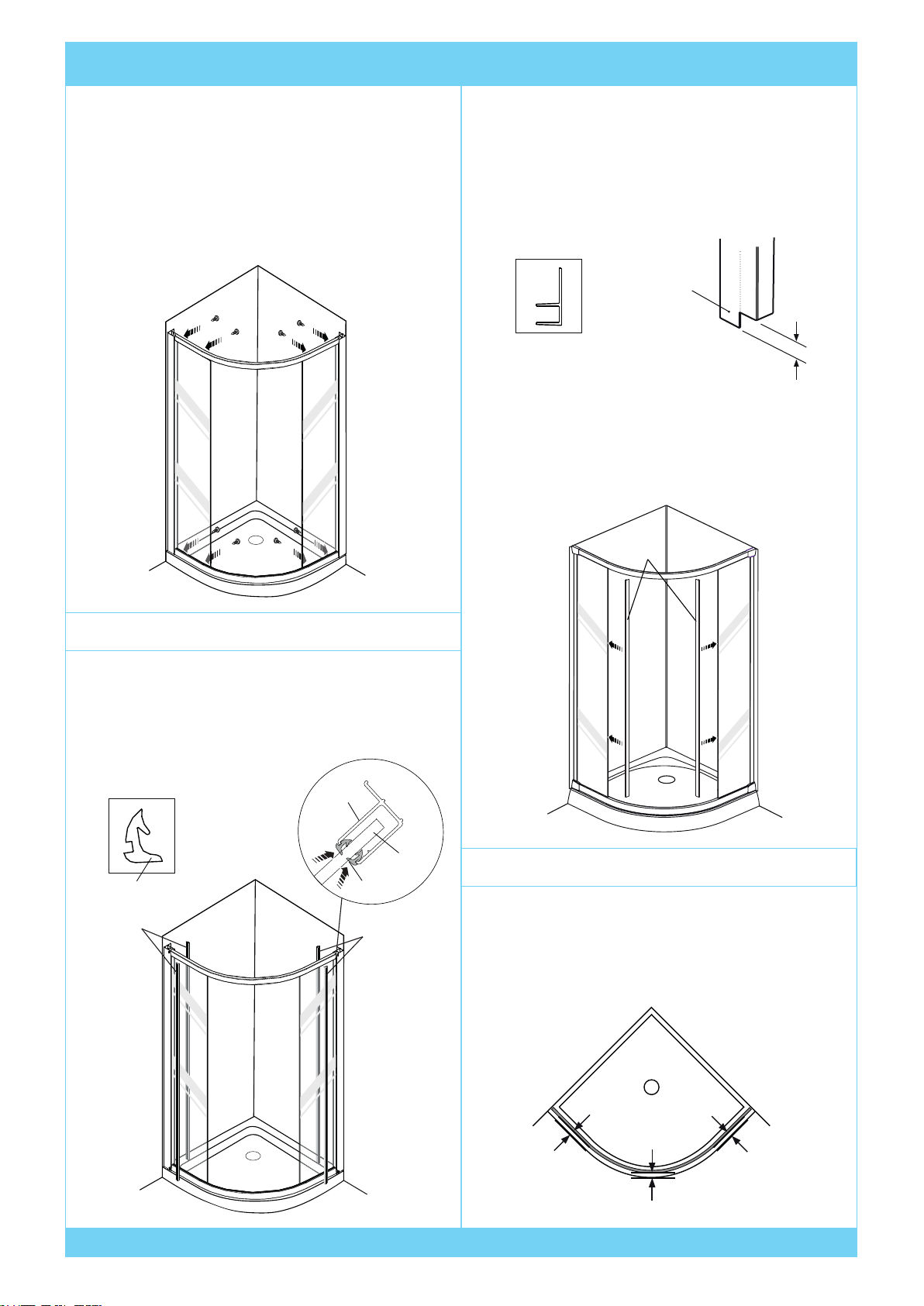

2.4 Frame Alignment & Cover Clips
(a) Move the bottom rail forward or
backward to make sure that the gap
between the bottom rail and the front
edge of the tray is even.
=
= =
Round SlidingEXCLUSIVE SERIES

!CAUTION
Be careful not to drill all the way
through the retainers.
PAN
ST 4.2 x 9.5mm
x 4
x 4
2.5 mm
± 0 mm
2.5 Door Panels
(a) Identify the door - Left or right hand.
(refer to handle location).
Note: The rollers on the top edge are
height adjustable.
(b) Hang the door panel on the top rail
from the inside of the shower.
(b) Make sure that the edges of the return
glass panels are vertical.
(c) Drill a 2.5mm hole through the 4 small
pre-drilled holes at the top and bottom
ends of the retainers, and into the top
and bottom rail.
(d) Fix the corner cover clips to the retainer
using 4 pan screws (supplied). Make sure
the pin on the back of the clip aligns with
the large hole at the top and bottom end
of the retainer.
Page 7
INSTALLATION INSTRUCTIONS
ENGLEFIELD
Bottom
rail
(c) Press the button on the bottom rollers
and latch the rollers into the bottom rail.
(d) If there are gaps between the doors,
raise or lower the doors by adjusting
the screws in the top rollers (clockwise
to raise the door). Adjust so that there
are no gaps between the doors, and
the top edges are level.
Clip
Round SlidingEXCLUSIVE SERIES

2.6 Door Seals
(a) Press fit the door seals onto the vertical
edges of the doors with the flap facing
outwards.
2.7 Handles
(a) Follow the instructions supplied with
the handles.
(a) Thoroughly clean all surfaces. Remove all dust, dirt or grease from the bottom rail,
retainers and shower tray. For best results apply masking tape to within 5mm of the
joints to be sealed.
(b) Apply sealant in accordance
with the sealant manufacturers
instructions along the outside
surfaces of the door frame only.
Apply a bead of sealant around the
outside of the door where:
1. The bottom rail meets the tray.
2. The retainers meet the wall and tray.
3. In and around the bottom corners
where the retainers meet the
bottom rail, and behind the corner
cover caps.
NOTE: Allow silicone to cure for 24 hours
before using shower.
Page 8
INSTALLATION INSTRUCTIONS
ENGLEFIELD

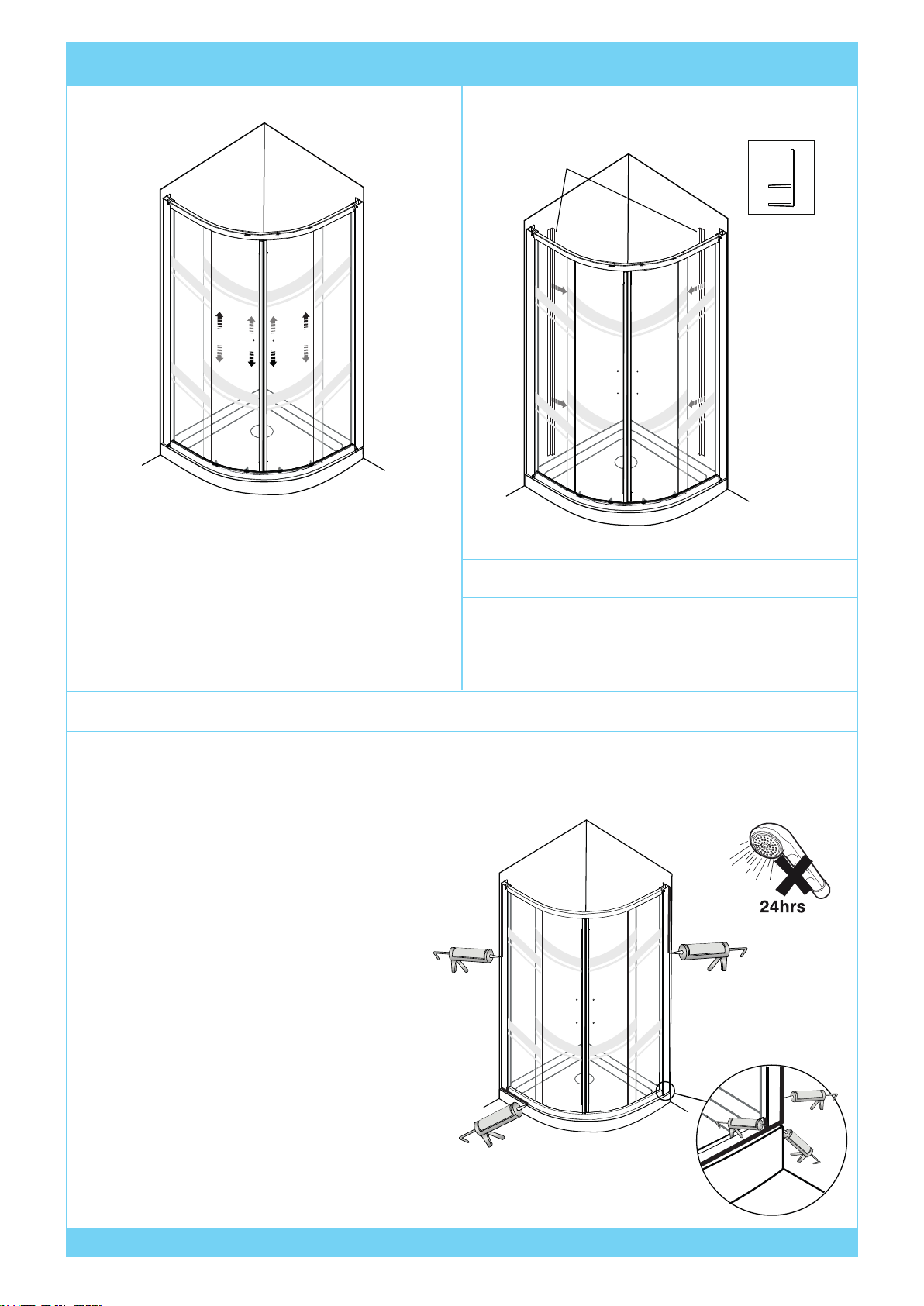

2.8 Shower Sealing
Seals
Profile
Round SlidingEXCLUSIVE SERIES

INSTALLATION COMPLETE
Seals
2.9 Door Entry Seals
(a) Press fit the door entry seals into the
channel in the top side of the bottom rail,
and the underside of the top rail.
2.10 Covers
(a) Press fit all 4 corner covers over the
corner cover clips.
(b) Press fit all 6 screw covers onto the
screws.
Page 9
INSTALLATION INSTRUCTIONS
ENGLEFIELD
Round SlidingEXCLUSIVE SERIES
