Kohler 97631-G9 Assembly instructions

Installation and Care Guide
Locker with Wall Panels
Français, page ″Français-1″
Español, página ″Español-1″
1248925-2-C

Table of Contents
Tools and Materials ............................................................... 2
Before You Begin ................................................................. 3
Plan the Installation ............................................................... 4
Prepare the Site ................................................................. 5
Measure Components ............................................................. 6
Trim the Locker and Walls .......................................................... 8
Dry Fit the Locker and Walls ........................................................ 9
Install the Corner Joints (Optional) ................................................... 10
Install the First Wall Panel ......................................................... 11
Prepare the Locker Unit ........................................................... 12
Install the Locker Unit ............................................................ 13
Install the Second Wall Panel ....................................................... 14
Check the Locker Unit Fit .......................................................... 15
Prepare the Corner Joints (Optional) .................................................. 16
Install the Sidewall Panels ......................................................... 17
Install the Edge Trim (Optional) ..................................................... 18
Seal the Enclosure ............................................................... 19
Complete the Installation .......................................................... 20
Care and Cleaning ............................................................... 20
Warranty ...................................................................... 20

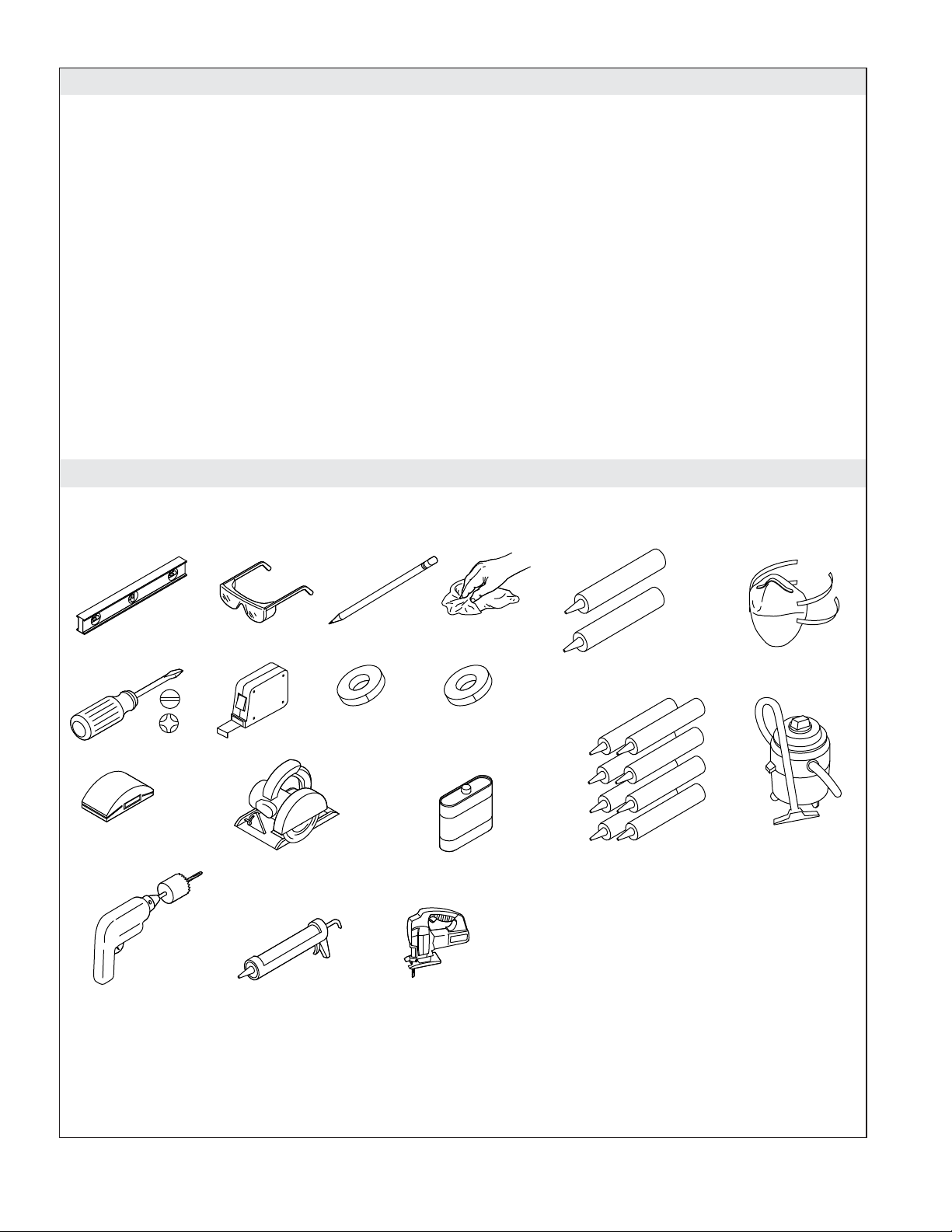

Tools and Materials
Jigsaw with
Grit Blade and
Fine Toothed Blade
Denatured Alcohol
Rags
Shop Vacuum
Breathing
Protection
Drill & Hole Saw
(size will vary)
Plus:
• Standard Woodworking Tools
• Spring Loaded Braces or Lumber
(to create bracing)
• Sawhorses
• Drop Cloth
Sanding Block
1-2 Tubes Color Matched
100% Silicone Sealant
Caulk Gun
7-1/4" Circular Saw
and Masonry Blade
8+ tubes Non-Solvent
Based Construction Adhesive
(Silicone Adhesive when installing over tile)
Masking
Tape
DENATURED
ALCOHOL
Duct
Tape
1248925-2-C 2 Kohler Co.

Before You Begin
WARNING: Risk of serious injury. When cutting walls and locker, take appropriate safety
measures including the use of breathing protection.
CAUTION: Risk of serious injury. Always wear safety glasses while cutting and drilling.
CAUTION: Risk of serious injury. If the ceiling will be covered with the wall material, the ceiling
must be installed prior to the wall panels. Allow sufficient time for the ceiling installation to cure
before installing the wall panels or the ceiling can fall during installation, causing injury.
CAUTION: Risk of product damage. The wall panels should be room temperature before cutting. Allow
the temperature to stabilize if the walls were in a cold environment.
IMPORTANT! Dust will be generated when cutting the wall panels and locker unit. Cutting the walls
and locker should be performed outside or in a well ventilated area.
IMPORTANT! For best results, cut the walls using a masonry blade. Do not use a blade with teeth.
IMPORTANT! Leave this manual for the end user.
Read these instructions before installing or using this product:
•The locker unit must only be trimmed in height. Do not cut down the sides.
•The existing rough walls must be within 3/8″(10 mm) of plumb.
•The locker unit must be braced using 2x4’s around the entire unit.
•Use color matched silicone sealant in the joints and around the locker unit.
•Check all joints, walls, and accessories for proper color before beginning installation.
•Cover the shower base with a drop cloth or other protective material to avoid damage.
•Follow the construction adhesive and silicone sealant instructions for application and curing time.
•Inspect all components for damage after unpacking, prior to installation.
•A router may be used to cut the walls and locker. The router bit will dull quickly.
•If the wall panels are being installed over existing tile, scuff the tile using 100 grit sandpaper for
better adhesive contact.
•If installing accessories, install 2x4 backing for handrails, shelves, and hooks.
Kohler Co. 3 1248925-2-C

Plan the Installation
NOTE: Determine which accessories will be installed and where before installing wallboard backing
material, as accessories may require wood bracing.
Install any required bracing.
2x4 bracing is required for the hook unless it is installed into the studding.
2x4 bracing is required for all handrails and shelves.
Accessories
Shelf
Shelf
Shelf
Hook
24" (610 mm) Handrail
36" (914 mm) Handrail
40" (1016 mm) Handrail
54" (1372 mm) Handrail
1248925-2-C 4 Kohler Co.

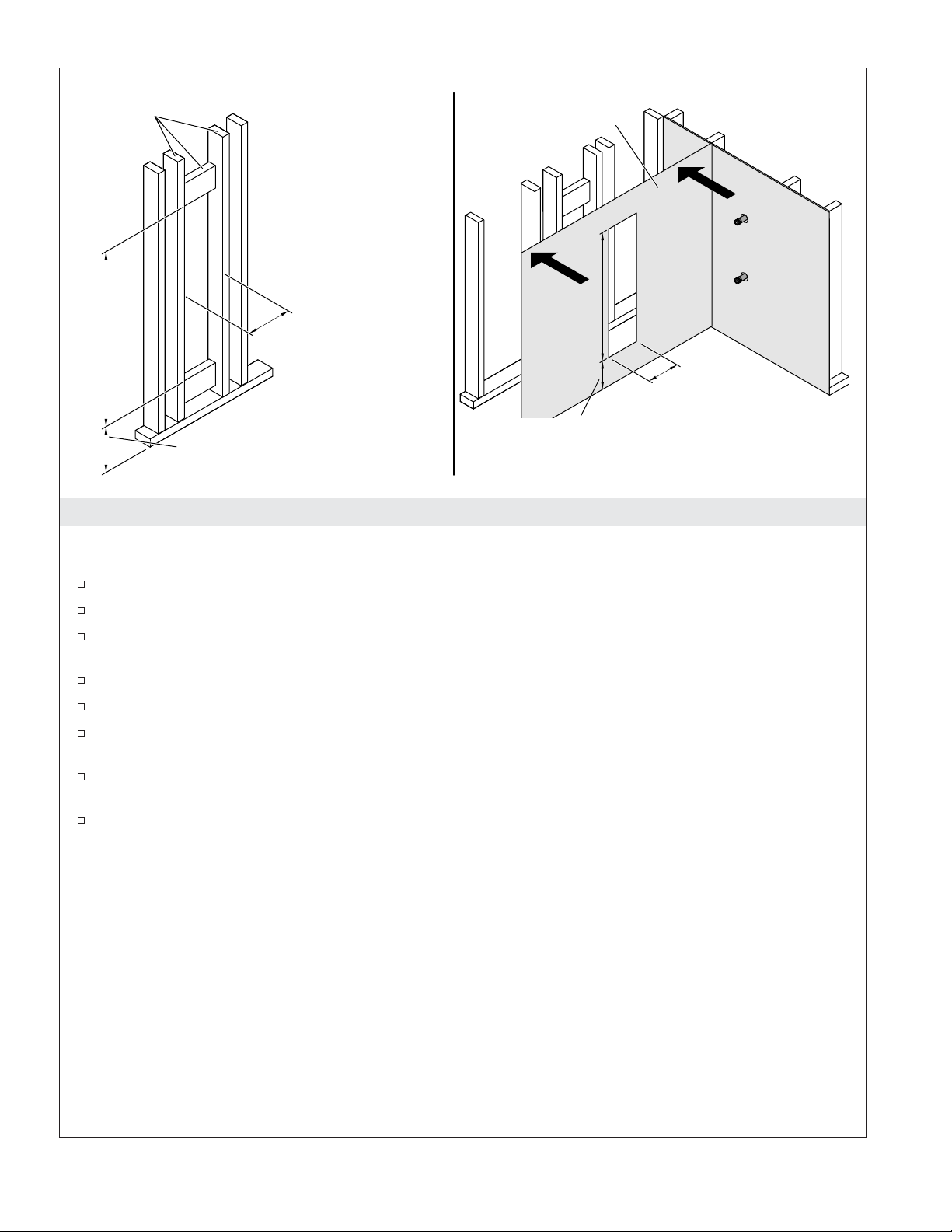

1. Prepare the Site
IMPORTANT! Water resistant wallboard backing material is recommended.
Install the rough plumbing for the bath and shower components.
Check the studs for plumb. Studs should be within 3/8″(10 mm) of plumb, shim if necessary.
The ledge of the locker unit can be used as a footrest. The recommended footrest height is 12” (305
mm) to 16” (406 mm), from the floor of the shower to the ledge of the locker unit.
Determine the height of the enclosure and the locker unit.
Install 2x4 bracing where the locker unit will be placed following the dimensions shown above.
To determine the height of the bottom bracing, subtract 1” (25 mm) from the desired height of the
footrest.
Install backing support for all accessories that require additional support. Refer to the installation
guides packed with each product for specific installation needs.
Install wallboard backing material over the locker unit opening with the same dimensions as the 2x4
bracing cut out.
65"
(1651 mm) K-97630: 9" (229 mm)
K-97631: 14-1/2" (368 mm)
2x4 Bracing
K-97630: 9" (229 mm)
K-97631: 14-1/2" (368 mm)
Wallboard
Backing
65"
(1651 mm)
11" (279 mm) Min
15" (381 mm) Max
11" (279 mm) Min
15" (381 mm) Max
Kohler Co. 5 1248925-2-C

2. Measure Components
Determine if edge trim will be installed.
Order optional edge trim as needed.
Back Wall Measurement
Measure the installation area to determine the cut dimensions for the wall panels.
Subtract half the total width of the locker unit from the width of each back wall panel.
If corner joints will be installed, subtract 1/16” (2 mm) from the width of the wall panels for each
corner joint.
Mark the cut lines on the back side of the back wall panels.
Sidewall Measurement
If corner joints will be installed, subtract 5/16” (8 mm) from the width of each wall panel before
cutting.
Record the location of the handle, showerhead, bath spout, and other components.
Mark the cut lines on the back side of the sidewall panels.
Optional: Installation with Ceiling Panels
CAUTION: Risk of injury. Install the ceiling panel prior to installing the wall panels. Allow the
adhesive to cure before installing the wall panels.
If the ceiling will be covered with the panel material, measure and cut the ceiling panel to size.
Construct bracing or use commercial bracing to hold the ceiling panel in place while it cures.
NOTE: Polyurethane based adhesive is recommended for the ceiling panel.
Apply construction adhesive to the ceiling material as shown in ″Install the First Wall Panel″
section.
With a partner, carefully lift the ceiling panel into place.
1248925-2-C 6 Kohler Co.

Measure Components (cont.)
Brace the ceiling panel tight against the ceiling and allow it to cure following the adhesive
instructions.
Kohler Co. 7 1248925-2-C

3. Trim the Locker and Walls
Cut Wall Placement
IMPORTANT! The cut edges of the wall panels MUST be positioned opposite the locker unit. The vertical
edge of the locker unit MUST mate to an uncut, bevel molded edge on the wall panels.
Cutting the Walls and Locker
IMPORTANT! It is recommended the wall panels be cut using a power saw and abrasive wheel or an
abrasive masonry blade.
IMPORTANT! Do not cut the sides of the locker unit. Only trim the top or bottom to fit your wall length.
IMPORTANT! The locker unit must be placed with the shelf grooves angled upward. If the locker unit is
placed upside down the shelves will fall out.
Position the back wall panel face down on a stand or sawhorses that have a protective material on
them.
Cut the back wall panel to the required dimensions. Use a jigsaw with a grit blade for contour cuts.
Repeat with the sidewall panels.
From the front side of the sidewall panel, use a hole saw to cut the holes for valving and other
shower components.
NOTE: Remove any protective films on the locker unit surface before cutting.
Cut the locker unit to the required height dimensions using a fine toothed blade.
IMPORTANT! It is critical the wall panels and locker unit are clean for a strong bond to be created by the
adhesive.
Remove excess material and sand any rough edges using a sanding block.
Clean the back of the wall panels and locker unit with denatured alcohol.
Back Side
Sanding Block
Cut Edge
Uncut Edge
Sidewall
Panel
Shower Valving
1248925-2-C 8 Kohler Co.

4. Dry Fit the Locker and Walls
Dry fit the corner joints to the back wall panels if they are being installed. See ″Install the Corner
Joints (Optional)″for correct orientation.
Dry fit the locker unit, back, and sidewall panels with shims to confirm fit. Adjust as needed.
Remove the wall panels and locker unit. Remove the corner joints.
Shim
Kohler Co. 9 1248925-2-C

5. Install the Corner Joints (Optional)
Measure the height of the back wall panel.
Cut the corner joint to the height of the back wall panel using a small rotary tool with a cutting
wheel.
Apply color matched sealant in the deep channel groove on the corner joint. Apply enough sealant
to fill 1/2 of the groove.
Install the deep channel of the corner joint on the side of the back wall panel.
Do Not apply sealant or install the second corner joint until you are ready to install the second back
wall panel.
Deep Channel
Sealant Shallow
Channel
Top View
Back Wall with Joints
Deep
Channel Shallow
Channel
Top View
1248925-2-C 10 Kohler Co.

6. Install the First Wall Panel
NOTE: Use silicone adhesive if the wall panels are being installed over tile. Use bath and shower
construction adhesive for all other applications.
Apply adhesive to the back wall panel in a circular pattern. The beads of adhesive should be 5” (127
mm) to 7” (178 mm) apart.
Apply a bead of construction adhesive along the top edge of the wall panel 3/4” (19 mm) from the
edge.
Move the wall panel into place at a slight angle with the corner joint, if installed, fully pressed into
the corner.
Push the wall panel against the rough wall. Press firmly and evenly across the entire wall panel.
The wall panel should contact the rough wall completely.
TIP: To remove excess adhesive, spray denatured alcohol on the area to be cleaned and onto your
finger. The denatured alcohol will help make the removal of the adhesive easier.
Remove the excess adhesive with your finger.
NOTE: Bracing may be needed to hold the wall panel in place depending on the rough wall material and
adhesive being used.
When installed over tile, use a temporary brace to secure each wall panel in place for 48 hours to
allow full adhesion.
Shims
Construction
Adhesive
Corner Joint
(optional)
Back Side
Kohler Co. 11 1248925-2-C

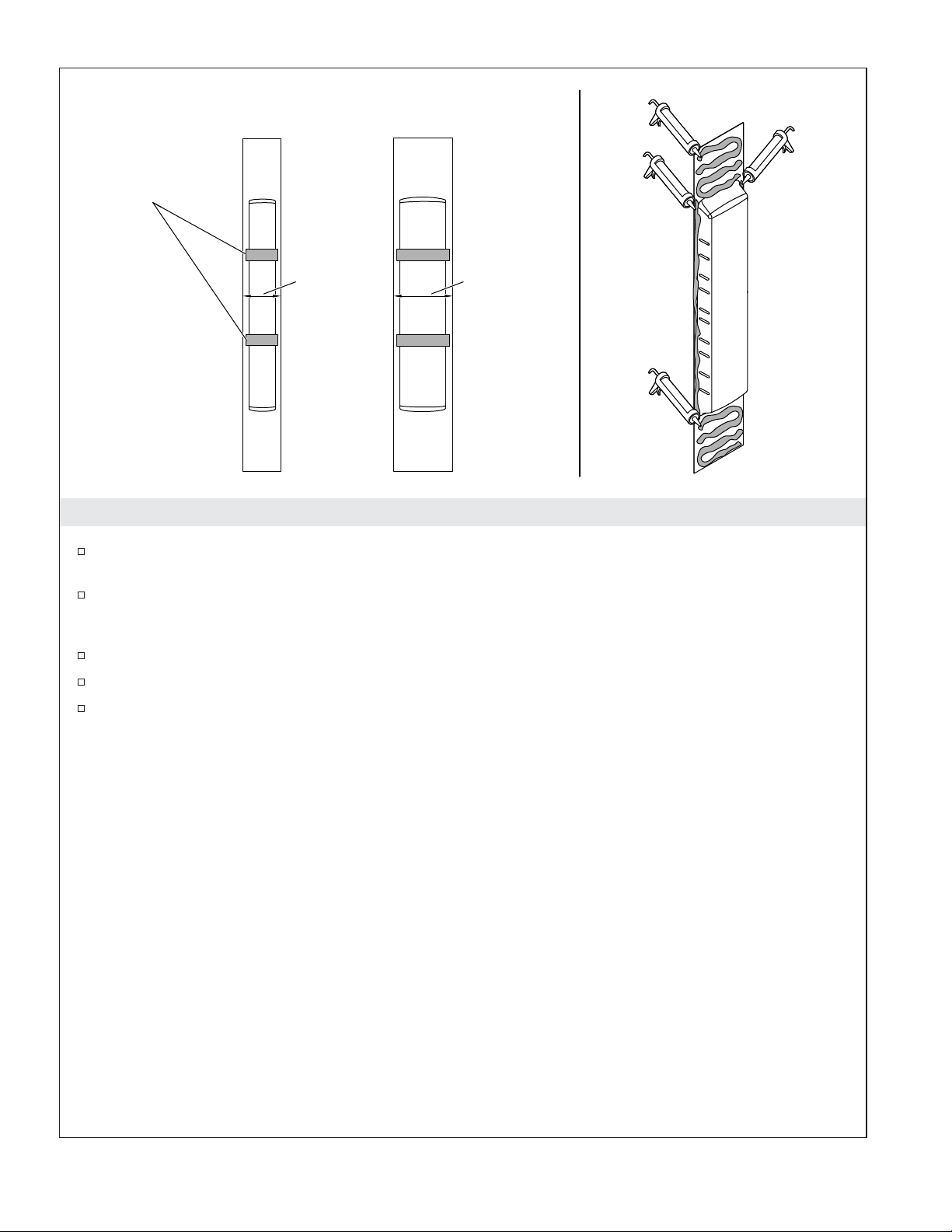

7. Prepare the Locker Unit
Run two pieces of duct tape across the front of the locker unit, pulling the sides in until the center
of the locker unit is at the dimensions shown above.
Test the shelf fit in the set of grooves just above and below the taped areas of the locker unit.
Ensure the shelf fits tight. If the fit of the shelf is loose, tighten the tape across the locker unit until a
snug fit is achieved.
Leave the tape in place until the final step of the installation.
TIP: Urethane based adhesive may be more effective for locker unit adhesion.
Generously apply bath and shower construction adhesive or silicone adhesive to the back of the
locker unit on the top, bottom, and sides.
9" (229 mm)
Locker 14-1/2" (368 mm) Locker
10-7/8"
(276 mm) 16-13/16" (427 mm)
Duct
Tape
1248925-2-C 12 Kohler Co.

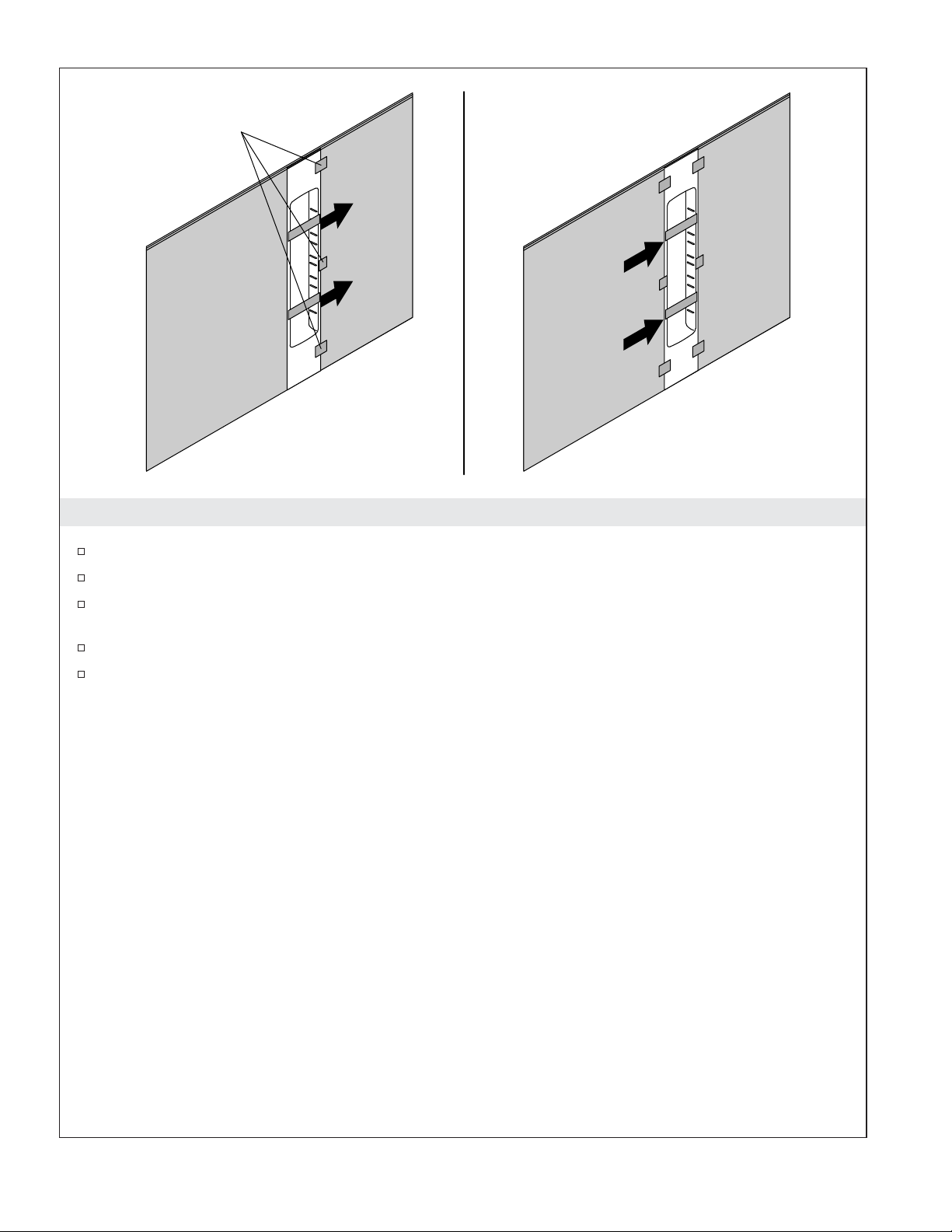

8. Install the Locker Unit
IMPORTANT! The locker unit must be placed with the shelf grooves angled upward. If the locker unit is
placed upside down the shelves will fall out.
Position the locker unit into place at a slight angle.
Push the locker unit against the installed wall panel and into the rough wall. Press firmly and
evenly across the entire locker unit.
Kohler Co. 13 1248925-2-C

9. Install the Second Wall Panel
NOTE: Use silicone adhesive if the panels are being installed over tile. Use bath and shower construction
adhesive for all other applications.
Apply construction adhesive or silicone adhesive to the back wall panel in the same manner as the
first wall panel. The beads of adhesive should be 5” (127 mm) to 7” (178 mm) apart.
Apply a bead of construction adhesive along the top edge of the wall panel 3/4” (19 mm) from the
edge.
Move the wall panel into place at a slight angle with the corner joint pressed into the corner, if
installed.
Push the wall panel against the installed locker unit and into the rough wall. Press firmly and
evenly across the entire wall panel. The wall panel should contact the rough wall along the entire
area.
Remove the excess adhesive with your finger.
NOTE: Bracing may be needed to hold the wall panel in place depending on the rough wall material and
adhesive being used.
When installed over tile, use a temporary brace to secure each wall panel in place for 48 hours to
allow full adhesion.
Construction
Adhesive
Corner Joint (optional)
Back Side
Corner
Joint
1248925-2-C 14 Kohler Co.

10. Check the Locker Unit Fit
Use masking tape to pull the locker unit into the first back wall panel to remove any gaps.
Ensure the locker unit is flush with the edge of the wall panel along the entire area.
Repeat with the second back wall panel. Use masking tape to pull the second back wall panel into
the locker unit to remove any gaps.
Ensure the wall panel is flush with the edge of the locker unit along the entire area.
Confirm the locker unit contacts the edges of both back wall panels along the entire area and no
gaps are present.
Masking Tape
Kohler Co. 15 1248925-2-C

11. Prepare the Corner Joints (Optional)
Apply color matched sealant in the shallow channel groove on the corner joint. Apply enough
sealant to fill 1/2 of the groove.
Do Not apply sealant to the second corner joint until you are ready to install the second sidewall
panel.
1248925-2-C 16 Kohler Co.

12. Install the Sidewall Panels
NOTE: Use silicone adhesive if the panels are being installed over tile. Use bath and shower construction
adhesive for all other applications.
Apply adhesive to the sidewall panel in a circular pattern. The beads of adhesive should be 5” (127
mm) to 7” (178 mm) apart.
Apply a bead of construction adhesive along the edges of the wall panel 3/4” (19 mm) from the
edge.
Move the wall panel into place at a slight angle, pressing the wall panel into the corner joint, if
installed.
Push the wall panel against the rough wall. Press firmly and evenly across the entire wall panel.
The wall panel should contact the rough wall along the entire area.
Remove the excess adhesive with your finger.
NOTE: Bracing may be needed to hold the wall panel in place depending on the rough wall material and
adhesive being used.
When installed over tile, use a temporary brace to secure each wall panel in place for 48 hours to
allow full adhesion.
Repeat these steps with the second side of the enclosure.
Kohler Co. 17 1248925-2-C

13. Install the Edge Trim (Optional)
If installing edge trim on the outside edges of the wall panel, measure the wall panel height.
Transfer the measurement to the edge trim.
Cut the edge trim.
Apply color matched silicone sealant to the edge trim channel.
Install the edge trim to the outside edge of the wall panel.
Repeat for the second side.
Remove the excess sealant with your finger.
Top View
Edge Trim
1248925-2-C 18 Kohler Co.

14. Seal the Enclosure
IMPORTANT! For better adhesion success, allow the wall panels and locker unit to cure 24 to 48 hours
before sealing. Sealing the top or bottom will restrict the air flow, resulting in a longer curing time.
Apply color matched silicone sealant to the top seams where the wall panels and locker unit meet
the rough wall.
Apply sealant to the bottom seams where the wall panels and locker unit meet the bath or shower
base.
NOTE: Wait 24 hours before showering or running water.
Remove the tape from the locker unit once the adhesive and sealant on the locker unit and wall
panels have cured.
Kohler Co. 19 1248925-2-C

15. Complete the Installation
Install all accessories following the installation instructions packed with them.
Prepare the shelves with accessories.
Press the hook into the shelf as shown above.
Press the basket into the shelf as shown above.
TIP: When preparing the two shelves, use water and soap to guide the hook and basket into the
shelves with ease.
Install the shelves into the locker unit.
Care and Cleaning
For best results, keep the following in mind when caring for your KOHLER product:
•Always test your cleaning solution on an inconspicuous area before applying to the entire surface.
Avoid using aerosol products.
•Wipe surfaces clean and rinse completely with water immediately after applying cleaner. Rinse and
dry any overspray that lands on nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring
pad to clean surfaces.
•The ideal cleaning technique is to rinse thoroughly and blot dry any water from the surface after
each use.
For detailed cleaning information and products to consider, visit www.kohler.com/clean. To order Care &
Cleaning information, call 1-800-456-4537.
Warranty
KOHLER
®
Limited Warranty – ChoreographTM Walls and Accessories
Kohler Co. warrants all ChoreographTM products (including ChoreographTM accessories) to be free of defects
in material and workmanship during normal residential use for ten (10) years from the date of sale. If a
ChoreographTM product or accessory is used commercially or is installed outside of the United States of
1248925-2-C 20 Kohler Co.
