Kohler Vanity K-2435 Assembly instructions

Homeowners Guide
Vanity
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (e.j.
K-12345M)
Français, page ″Français-1”
Español, pagina “Español-1”
K–2435 K–2436
K–2437
1059700-5-B

SAFETY INSTRUCTIONS
Read all instructions before using or installing this product.
When using this product, basic precautions should always be
followed including the following:
WARNING: Risk of electric shock. Grounding is required for
the outlets within the drawer(s). Connect only to a Class A
Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage
Circuit Breakers (ELCB’s) which protects against
line-to-ground shock hazard. Use 120 V, 20 A service.
WARNING: Risk of electric shock. Before using this product,
ensure a qualified service representative and a licensed
electrician installed this product and routed all electrical
wiring for the product. Improper installation will create an
electrical hazard and may not comply with local building and
electrical codes.
WARNING: Risk of electric shock. Connect the polarized
plug and the three-prong plug to a properly grounded outlet
only. Refer to the ″Connect the Plugs″section of this guide.
WARNING: Risk of electric shock. Unplug the polarized
plug and the three-prong plug from the grounded outlet
before moving, testing, cleaning, or repairing this product.
When unplugged, the electric cords will no longer be
electrically live, which will eliminate the risk of electric shock.
WARNING: Risk of electric shock. Turn electric personal
care appliances to the OFF position, then unplug the
appliance from the outlet. When turned off and unplugged,
the appliance will no longer be electrically live, which will
eliminate the risk of electric shock.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Store the cord of the electric personal care appliance
neatly inside the drawer before closing the drawer. This will
reduce the risk of the cord or plug becoming damaged.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Never operate this product if the cord or plug is
damaged, the cord or plug is not working properly, the
product has been dropped or damaged, or the product has
been dropped into water. For proper guidance to have this
product repaired, please call: 1-800-4-KOHLER from within
the USA, 1-800-964-5590 from within Canada, or
1059700-5-B 2 Kohler Co.

SAFETY INSTRUCTIONS (cont.)
001-877-680-1310 from within Mexico.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Do not use electric personal care appliances where
aerosol spray products are being used or where oxygen is
being administered.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Do not use this product outdoors. This product is
not weather-resistant.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Use this product only for its intended use. Do not
use attachments not recommended by the manufacturer.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Keep all electrical cords away from heated surfaces.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Never drop or insert any object into any opening.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Close supervision is necessary when this product is
used by or near children, invalids, or disabled persons.
Electrical equipment may be hazardous if misused.
CAUTION: Risk of property damage. Allow electric personal
care appliances with heating elements to cool completely
before storing them in the drawer(s). The heat from these
appliances can cause damage to property.
CAUTION: Risk of property damage. Do not place or use
video equipment, such as televisions or computer monitors,
on the product surface. The underside of such equipment
creates heat and can cause damage to property.
NOTICE: Follow all local building, electrical, and plumbing codes.
Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship
offers you a rare combination of proven performance and graceful
sophistication that will satisfy you for years to come. The
dependability and beauty of your Kohler product will surpass your
highest expectations. We’re very proud of our products here at Kohler
and we know you will be too.
Kohler Co. 3 1059700-5-B

Thank You For Choosing Kohler Company (cont.)
Please take a few minutes to study this Homeowners Guide. Pay
special attention to the care and cleaning instructions.
All information in this manual is based upon the latest product
information available at the time of publication. At Kohler, we
constantly strive to improve the quality of our products. We reserve
the right to make changes in product characteristics, packaging or
availability at any time without notice.
1059700-5-B 4 Kohler Co.

Your Kohler Furniture
This suite is designed to be functional and attractive as well as
adaptive to your room and wall space. The components can be
arranged into almost endless combinations to complement your style.
•Wall Storage - features a mirrored surface, swinging side doors,
integrated lights, and shelving for storage of toiletries. These units
may be joined together in the combination that best suits your
needs. The wall storage is available with or without openings for
a fountain-action faucet with a single-lever handle that projects a
flume of water into a lavatory.
•Vanities - are designed to be attached to a finished wall. Vanities
are available in 21″(53.3 cm), 60″(152.4 cm), and 69″(175.3 cm)
lengths. Vanities are made of natural ash or maple solids and
veneers with catalyzed polyurethane finish. Each vanity comes
equipped with integrated lighting, drawer(s), and integrated
electrical outlet(s) to plug in personal care items.
•Self-Rimming or Above-Counter Lavatories - marble or cast iron
lavatories may be mounted to vanity tops.
Kohler Co. 5 1059700-5-B

Your Kohler Furniture (cont.)
•Shelf - features openings for a fountain-action faucet with a
single-lever handle that projects a flume of water into a lavatory.
The generous 8″(20.3 cm) depth of the shelf accommodates
personal items and an angle-poise mirror, which may be
fix-mounted or free-standing to the shelf.
•Angle-Poise Mirror - may be fix-mounted or free-standing on
your vanity or shelf. Mirror provides 2X magnification with
swiveling reflective surface and post.
•Swivel Vanity Seat - is designed to complement the vanity.
Swivel vanity seat functions as a wastebasket with side access
and removable seat. The small footprint allows for storage
underneath the vanity.
1059700-5-B 6 Kohler Co.

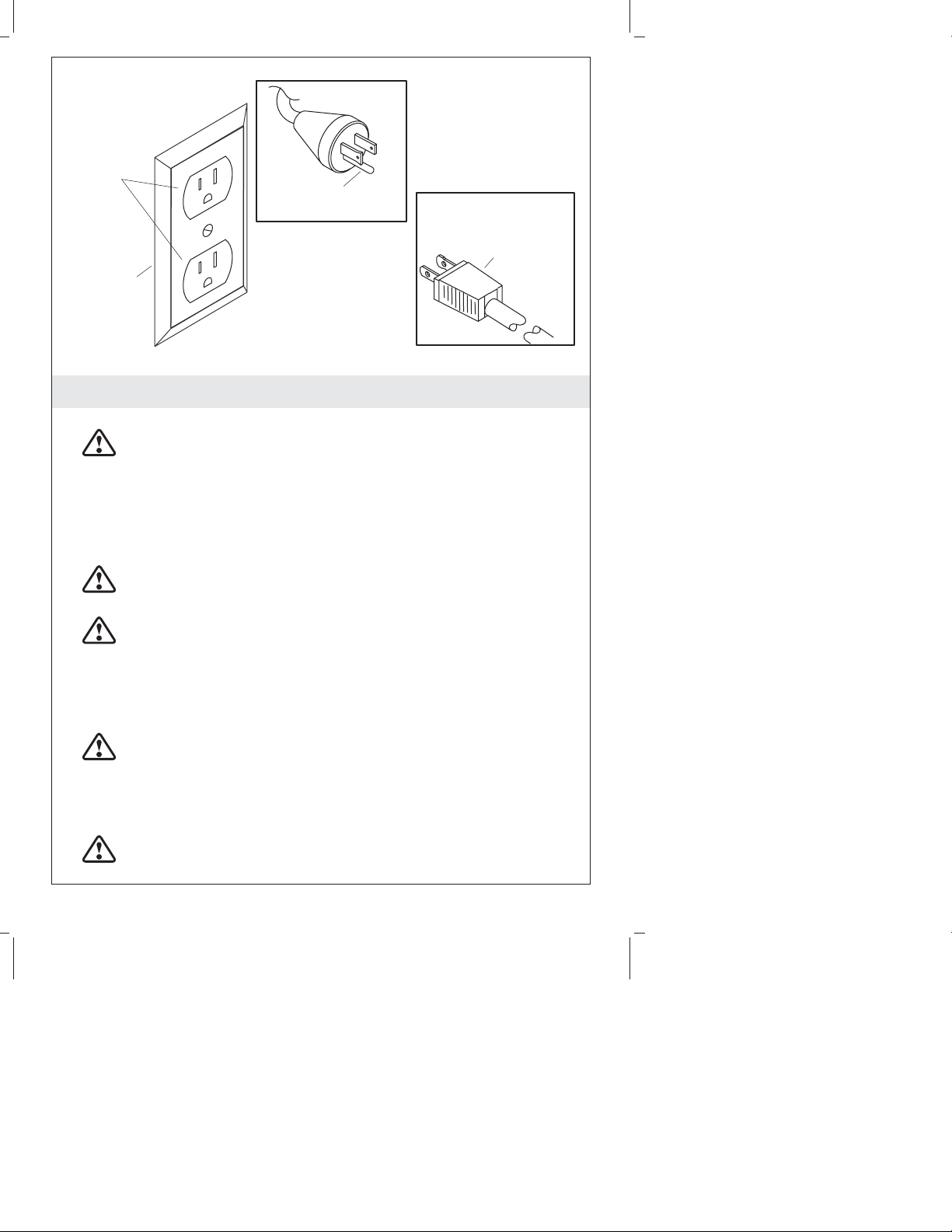

Connect the Plugs
Grounding Plug Requirements
WARNING: Risk of electric shock. Do not force the
three-prong plug into the grounded outlet, modify the
three-prong plug, or use a plug adapter. The product has a
three-prong plug (Figure 1), where the third prong on a plug
provides a path to ground for electricity that is straying or
leaking from a product. This helps protect the equipment and
can help prevent electric shock. This plug will fit in a
grounded outlet only one way.
WARNING: Risk of electric shock. Connect the polarized
plug and the three-prong plug to a properly grounded outlet
only.
WARNING: Risk of electric shock. Unplug the three-prong
plug from the grounded outlet before moving, testing,
cleaning, or repairing this product. When unplugged, the
electric cords will no longer be electrically live, which will
eliminate the risk of electric shock.
Polarized Plug Requirements
WARNING: Risk of electric shock. Do not force the
polarized plug into the polarized outlet, modify the polarized
plug, or use a plug adapter. The product has a polarized plug
(Figure 2), which means one blade of the plug is wider than
the other. This plug will fit in a polarized outlet only one
way.
WARNING: Risk of electric shock. Unplug the polarized
plug from the grounded outlet before moving, testing,
Grounded
Outlet
Polarized
Plug
Figure 2
Figure 1
Grounded
Outlet Box
Grounding
Pin
Kohler Co. 7 1059700-5-B

Connect the Plugs (cont.)
cleaning, or repairing this product. When unplugged, the
electric cords will no longer be electrically live, which will
eliminate the risk of electric shock.
•If the plug does not fit fully into the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician to install the
proper outlet. Do not change the plug in any way.
Connect the Plugs
NOTICE: This product is for use on a nominal 120-volt circuit and
has a grounding plug. Make sure that the plug is connected to an
outlet having the same configuration as the plug. No adapter should
be used with this product.
Connect each plug to the grounding outlet. Refer to the plug
requirements for proper connection.
1059700-5-B 8 Kohler Co.

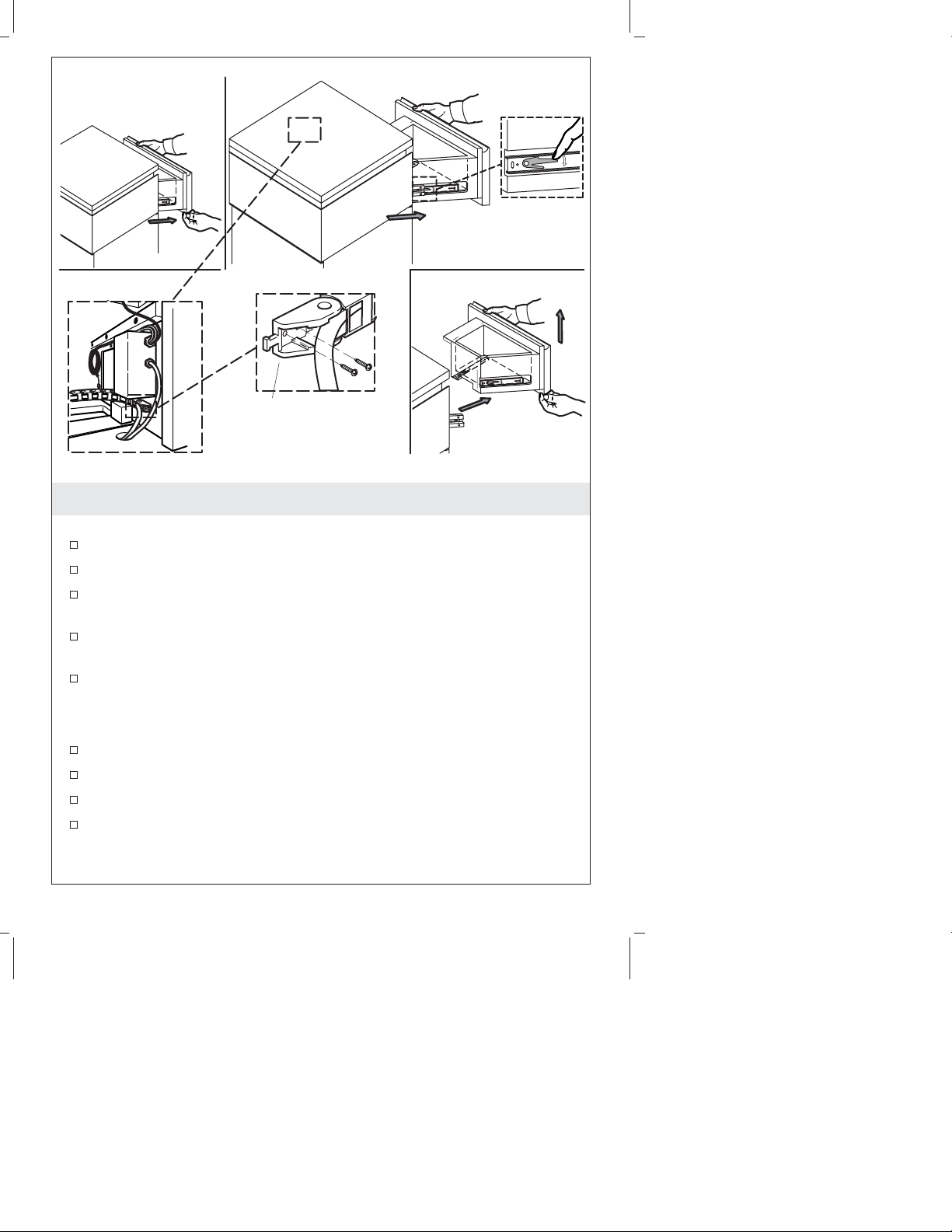

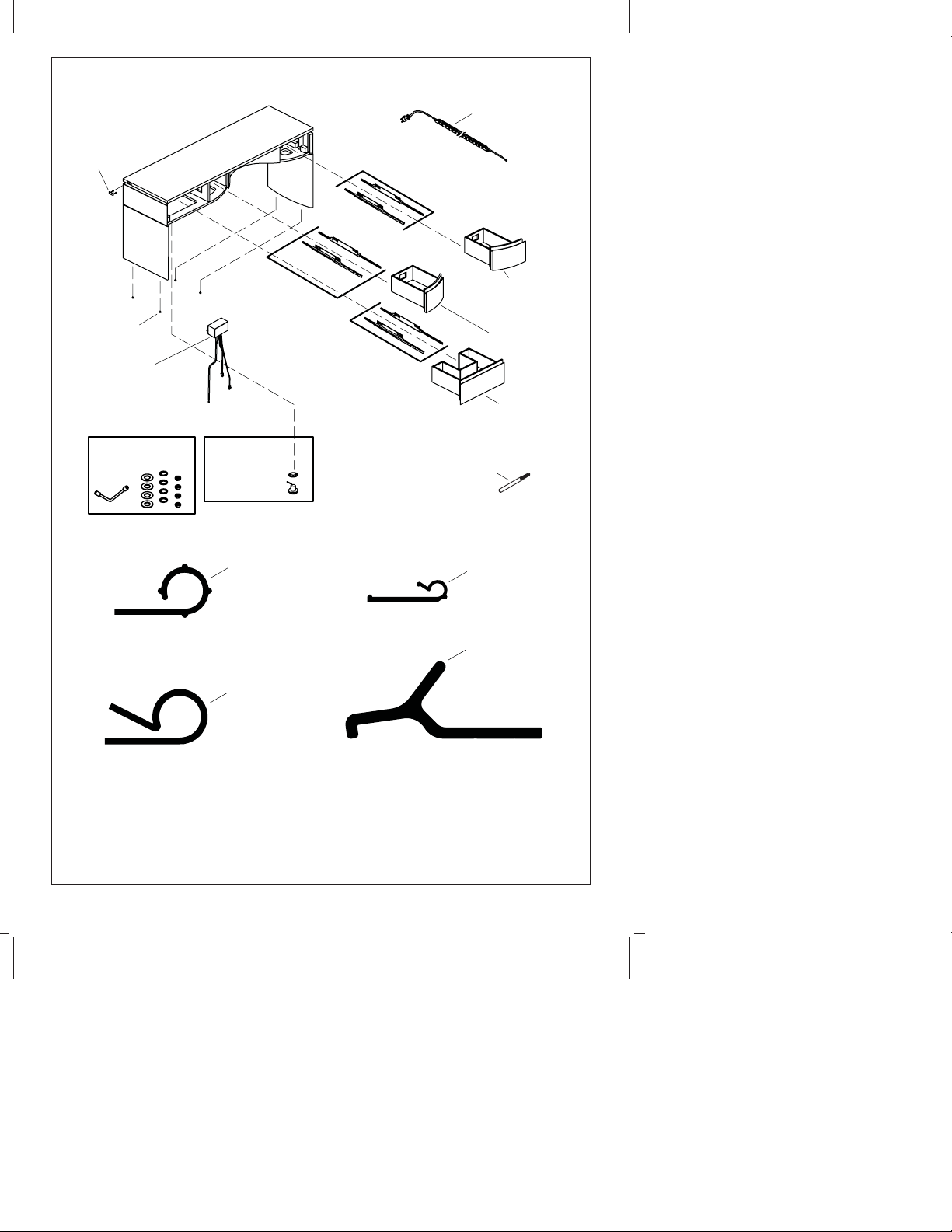

Drawer – K-2435
Remove
Unplug the electrical cord from the electrical outlet, if applicable.
Slide the drawer out on the rails until fully extended. (1)
Remove the electrical cord from the cable clips and pull the plug
end up through the access hole in the bottom of the vanity. (2a)
Disconnect the electrical track from the vanity by removing the
two screws holding the track in place. Retain the screws. (2c)
Pinch the release latches on each rail (2b) while pulling the
drawer away from the vanity. (3)
Reinstall
Slide the rails of the vanity out until fully extended.
Align and rest the rails of the drawer on the rails of the vanity.
Route the electrical cord through the drawer compartment.
With the rails still aligned, gently push the drawer into the vanity
until the rails ″snap″into place.
2
2a
2b
1
3
Disconnect track.
2c
Kohler Co. 9 1059700-5-B

Drawer – K-2435 (cont.)
Verify the drawer is properly engaged by lightly lifting each side
of the drawer upward. The drawer should stay in place on the
rails.
If the drawer lifts up, fully lift the drawer up off the rails of the
vanity. Repeat the ″Reinstall″procedure OR follow the
″Alternative Method.″
Alternative Method: Align and rest the rails of the drawer on the
rails of the vanity. Partially close the drawer, then pull the rails of
the vanity into the rails of the drawer. The rails will ″snap″into
place.
Fully extend the drawer.
Reconnect the electrical track to the vanity, then secure with the
two screws.
Route the plug end of the electrical cord through the access hole
in the bottom of the vanity.
Secure the electrical cord with the cable clips.
Slide the drawer in and out to confirm proper operation.
Plug the electrical cord into the electrical outlet.
1059700-5-B 10 Kohler Co.

Drawer – K-2436, K-2437
Remove
Unplug the electrical cord from the electrical outlet, if applicable.
Slide the drawer out on the rails until fully extended. (1)
Release the electrical cord from any accessible cable clips behind
the drawer. Pull the plug up through the access hole in the
bottom of the vanity.
Pull the release latches toward you while pulling the drawer out
just enough to disengage the slides and access the end of the
electrical track. DO NOT fully remove the drawer. (2)
Gently pull the tab on top of the track clip toward you, then
disconnect the electrical track behind the drawer. (3)
Release the electrical cord from the remaining cord clips, if
applicable. (4)
Lift the drawer off the rails to fully remove the drawer. (5)
Reinstall
Slide the rails of the vanity out until fully extended.
2
3
1
54
Disconnect track.
Drawer Height
Adjustment Wheel Release
Latch
Underside View
Rail Tab
Tab
Track Clip
Kohler Co. 11 1059700-5-B

Drawer – K-2436, K-2437 (cont.)
Rest the drawer on top of the rails, then properly route the
electrical cord into the drawer compartment.
Hold the drawer in place with one hand and secure the electrical
track to the track clip.
Route the plug end of the electrical cord through the access hole
in the bottom of the vanity.
Secure the electrical cord with the cable clips.
Align and rest the drawer on the rails of the vanity.
Hold the drawer in place with one hand and pull the tab on the
bottom front of one rail toward you with the other hand. The rail
will ″snap″into place.
Pull the tab on the bottom front of the other rail toward you. The
rail will ″snap″into place.
Ensure the drawer is properly engaged by lightly lifting each side
of the drawer upward. The drawer should stay in place on the
rails.
If the drawer lifts up, fully lift the drawer up off the rails of the
vanity. Slide the rails of the vanity out until fully extended.
Repeat the ″Reinstall″procedure above.
Slide the drawer in and out to confirm proper operation.
Plug the electrical cord into the electrical outlet.
Adjust
Slide the drawer out on the rails until fully extended. (1)
Turn the drawer height adjustment wheels to adjust the drawer
height. To lower the drawer, turn the wheel on the left side of the
drawer clockwise and/or the wheel on the right side of the
drawer counterclockwise. Turn the wheel(s) in the opposite
direction to raise the drawer. (2)
1059700-5-B 12 Kohler Co.

Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
Wood Furniture
•As with any smooth surface, avoid using abrasive cleaners as
they will scratch the surface. Wipe the wood surface regularly to
prevent buildup of soap and scum.
•To protect against scratches, use felt, leather, or cork under all
items placed on the wood surface. Do not expose wood furniture
to direct sunlight, drying heat sources, or dampness.
•Dust frequently with a soft cloth in the direction of the grain. Use
only products specifically made for cleaning wood. Avoid using
oily polishes or waxes, or products containing silicone. Blot spills
immediately with a soft, damp cloth.
•Every six months remove soil buildup by rubbing with a soft
cloth dampened in a 50/50 solution of warm water and an
ammonia-free detergent. Wipe clean with a cloth dampened in
warm water and then wipe dry.
•Consider the following cleaners for cleaning your wood furniture:
Orange GloTM Wood Cleaner and Polish, and Scott’s Liquid GoldTM
Wood Cleaner and Preservative.
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537 and press 1 for Kohler Products and then 3 for
Literature.
One-Year Limited Warranty
For the USA and Canada Only
KOHLER plumbing products are warranted to be free of defects in
material and workmanship for one year from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate
adjustment where Kohler Co. inspection discloses any such defects
occurring in normal usage within one (1) year after installation. Kohler
Co. is not responsible for removal or installation costs.
To obtain warranty service contact Kohler Co. either through your
Dealer, Plumbing Contractor, Home Center or E-tailer, or by writing
Kohler Co., Attn.: Customer Service Department, 444 Highland Drive,
Kohler, WI 53044, USA, or by calling 1-800-4-KOHLER from within the
Kohler Co. 13 1059700-5-B

One-Year Limited Warranty (cont.)
USA, 1-800-964-5590 from within Canada and 001-877-680-1310 from
within Mexico.
Implied warranties including that of merchantability and fitness for
a particular purpose are expressly limited in duration to the duration
of this warranty. Kohler Co. and/or seller disclaims any liability for
special, incidental or consequential damages.
Some states/provinces do not allow limitations on how long an
implied warranty lasts, or the exclusion or limitation of special,
incidental or consequential damages so these limitations and exclusions
may not apply to you. This warranty gives you specific legal rights.
You may also have other rights which vary from state/province to
state/province.
This is Kohler Co.’s exclusive written warranty.
One-Year Warranty
For Mexico Only
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1059700-5-B 14 Kohler Co.

One-Year Warranty (cont.)
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A.B. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
Troubleshooting Procedures
This troubleshooting guide is for general aid only. For warranty
service, contact your dealer or wholesale distributor.
Symptoms Probable Cause Recommended Action
1. Both LED
lights do
not
illuminate.
A. Capacitive switch
module is not powered. A. Make sure that the capacitive switch module
is powered up.
B. Capacitive switch plate
is disconnected. B. Make sure that the ring terminal is connected to
the capacitive switch
plate.
C. Capacitive switch
module does not work. C. Replace the capacitive switch module.
2. One LED
light does
not
illuminate.
A. LED light is
disconnected. A. Make sure the LED light is plugged in.
Kohler Co. 15 1059700-5-B

Troubleshooting Procedures (cont.)
Symptoms Probable Cause Recommended Action
B. LED light does not
work. B. Replace the LED light.
C. Capacitive switch
module does not work. C. Replace the capacitive switch module.
3. No power
at the
outlet.
A. Power is not being
drawn from the outlet. A. Plug the cord into the 110 V AC outlet.
1059700-5-B 16 Kohler Co.

Service Parts
1059698
Leveler
1059705**
Drawer, Right
1059703**
Drawer, Left
1059559
Drawer Slide (Pair)
1068100
Touch Plate
1067909
**Finish/color code must be specified when ordering.
1059560**
Touch-Up Marker
1059704
Hardware
1059725
LED Light Kit
Capacitive
Switch Module
1067870
1/8" Cable Clip
1073943
P Clip
1068107
Cable Track
1059559
Drawer Slide (Pair)
Kohler Co. 17 1059700-5-B

1059560**
Touch-Up Marker
1068100
Touch
Plate 1070134
Drawer Slide,
Right (Pair)
1070133
Drawer Slide,
Left (Pair)
**Finish/color code must be specified when ordering.
1059698
Leveler
1065552
Cable Track
1059725
LED Light Kit
1070134
Drawer Slide,
Center (Pair)
1059722**
Drawer, Left
1059726**
Drawer, Right
1059724**
Drawer, Center
1059704
Hardware
1067909
Capacitive
Switch Module
1067870
1/8" Cable Clip
1067871
3/8" Cable Clip
1073943
P Clip
1067908
Track Clip
1059700-5-B 18 Kohler Co.

1059560**
Touch-Up Marker
1059698
Leveler
1067909
Capacitive
Switch Module
1068100
Touch
Plate
1065552
Cable Track
1070133
Drawer Slide
(Pair)
1070133
Drawer Slide
(Pair)
1059712**
Drawer, Left
1059714**
Drawer, Right
**Finish/color code must be specified when ordering.
1059704
Hardware
1059725
LED Light Kit
1067870
1/8" Cable Clip
1067871
3/8" Cable Clip
1073943
P Clip
1067908
Track Clip
Kohler Co. 19 1059700-5-B

Guide du propriétaire
Meubles
INSTRUCTIONS DE SÉCURITÉ
Lire toutes les instructions avant d’utiliser ou d’installer ce produit.
Lors de l’utilisation ce produit, des précautions de base devraient
toujours être observées, incluant ce qui suit:
AVERTISSEMENT : Risque d’électrocution. La mise à la
terre est requise pour les prises dans le(s) tiroir(s). Raccorder
uniquement à des circuits protégés par un Disjoncteur de
Fuite de Terre (GFCI) de Classe A ou à un Disjoncteur de
Mise à la Terre (ELCB) qui protège contre tout risque
d’électrocution à terre. Utiliser un service de 120 V, 20 A.
AVERTISSEMENT : Risque d’électrocution. Avant d’utiliser
ce produit, s’assurer qu’un représentant de service qualifié et
un électricien agréé installent ce produit et le câblage. Une
installation incorrecte créera un risque d’électrocution et
pourrait ne pas être conforme aux codes locaux de bâtiment
et électriques.
AVERTISSEMENT : Risque d’électrocution. Connecter la
prise polarisée et la prise tiphasée à une prise proprement
mise à la terre uniquement. Se référer à la section ″Connecter
les prises″de ce guide.
AVERTISSEMENT : Risque d’électrocution. Débrancher la
fiche polarisée et la prise triphasée de la prise de terre avant
de déplacer, tester, nettoyer ou réparer ce produit. Lorsque
débranchés, les cordons électriques ne seront plus alimentés,
ce qui éliminera le risque d’électrocution.
AVERTISSEMENT : Risque d’électrocution. Éteindre les
appareils électriques d’entretien, puis débrancher l’appareil
de la prise. Lorsque débranché, l’appareil ne sera plus
alimenté, ce qui éliminera le risque d’électrocution.
AVERTISSEMENT : Risque de brûlures, d’incendie,
d’électrocution ou de blessures. Ranger le cordon électrique
d’appareil d’entretien personnel correctement à l’intérieur du
tiroir avant de le fermer. Ceci réduira le risque
d’endommagement du cordon ou de la prise.
Kohler Co. Français-1 1059700-5-B
