Kohler Vanity K-2435 User manual

Installation Guide
Vanity
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K–2435 K–2436
K–2437
1059700-2-B

SAFETY INSTRUCTIONS
Read all instructions before using or installing this product.
When using this product, basic precautions should always be
followed including the following:
WARNING: Risk of electric shock. Grounding is required for
the outlets within the drawer(s). Connect only to a Class A
Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage
Circuit Breakers (ELCB’s) which protects against
line-to-ground shock hazard. Use 120 V, 20 A service. Refer to
the ″Install the Grounding Outlet″section of this guide.
WARNING: Risk of electric shock. Connect this product to a
properly grounded outlet only. Refer to the ″Connect the
Plugs″section of this guide.
WARNING: Risk of electric shock. A qualified service
representative and a licensed electrician must install this
product and route all electrical wiring for the product.
Improper installation will create an electrical hazard and may
not comply with local building and electrical codes.
WARNING: Risk of electric shock. Unplug the polarized
plug and the three-prong plug from the grounded outlet
before moving, testing, cleaning, or repairing this product.
When unplugged, the electric cords will no longer be
electrically live, which will eliminate the risk of electric shock.
WARNING: Risk of electric shock. Turn electric personal
care appliances to the OFF position, then unplug the
appliance from the outlet. When turned off and unplugged,
the appliance will no longer be electrically live, which will
eliminate the risk of electric shock.
WARNING: Risk of property damage. Allow electric
personal care appliances with heating elements to cool
completely before storing them in the drawer(s).
WARNING: Risk of property damage. Do not place or use
video equipment, such as televisions or computer monitors,
on the product surface. The underside of such equipment
creates heat and may cause damage to property.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Do not use this product outdoors. This product is
not weather-resistant.
1059700-2-B 2 Kohler Co.

SAFETY INSTRUCTIONS (cont.)
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Store the cord of the electric personal care appliance
neatly inside the drawer before closing the drawer. This will
reduce the risk of the cord or plug becoming damaged.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Never operate this product if the cord or plug is
damaged, the cord or plug is not working properly, the
product has been dropped or damaged, or the product has
been dropped into water. For proper guidance to have this
product repaired, please call: 1-800-4-KOHLER from within
the USA, 1-800-964-5590 from within Canada, or
001-877-680-1310 from within Mexico.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Unplug cords from the outlet before putting on or
taking off parts from this product or from an electric personal
care appliance.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Close supervision is necessary when this product is
used by or near children, invalids, or disabled persons.
Electrical equipment may be hazardous if misused
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Use this product only for its intended use. Do not
use attachments not recommended by the manufacturer.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Keep all electrical cords away from heated surfaces.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Never drop or insert any object into any opening.
WARNING: Risk of burns, fire, electric shock, or injury to
persons. Do not use electric personal care appliances where
aerosol spray products are being used or where oxygen is
being administered.
NOTICE: Follow all local building, electrical, and plumbing codes.
Kohler Co. 3 1059700-2-B

Tools and Materials
Before You Begin
NOTICE: Risk of product damage. Siliconized acrylic caulk must be
used to secure the lavatory to the vanity. Do not use 100% silicone
sealant, which will damage the finish of the vanity.
The qualified service representative will need assistance
assembling and moving the product during the installation
process. The product is heavy.
Make sure the finished wall is straight and plumb, and the floor
is flat and perpendicular to the finished wall.
Remove the drawers from the vanity before beginning this
installation. Doing so will ease the installation process. Refer to
your model’s ″Drawer″section contained in this guide for proper
removal.
Install the electrical supplies before installing the vanity. Refer to
the vanity roughing-in information for proper locations.
If a vessel lavatory will be installed, install the water supply and
drain lines according to the roughing-in information. The water
supply nipples must extend 3” (7.6 cm) beyond the finished wall
material.
Select the type of fastener based on the wall material. A minimum
of 50 lbs (22.68 kg) load bearing fastener is recommended.
For model K-2435: To allow the drawers to fully extend, a
minimum of 8-1/8″(20.6 cm) of clearance is required on each side
of the vanity.
For models K-2436 and K-2437: To allow the user to access the
touch switch to activate the lighting, a minimum of 2″(5.1 cm) of
clearance is required on the far left side.
Pencil Tape Measure Siliconized
Acrylic Caulk
Safety Glasses Drill Level
Assorted
Screwdrivers
• Fasteners [Min 50 lb
(22.68 kg) Load Bearing]
• Framing Nails
• 2x6 Lumber
Plus:
1059700-2-B 4 Kohler Co.

Before You Begin (cont.)
Do not close the drawer(s) when electric personal care appliances
are in use.
Kohler Co. reserves the right to make revisions in the design of
products without notice, as specified in the Price Book.
Kohler Co. 5 1059700-2-B

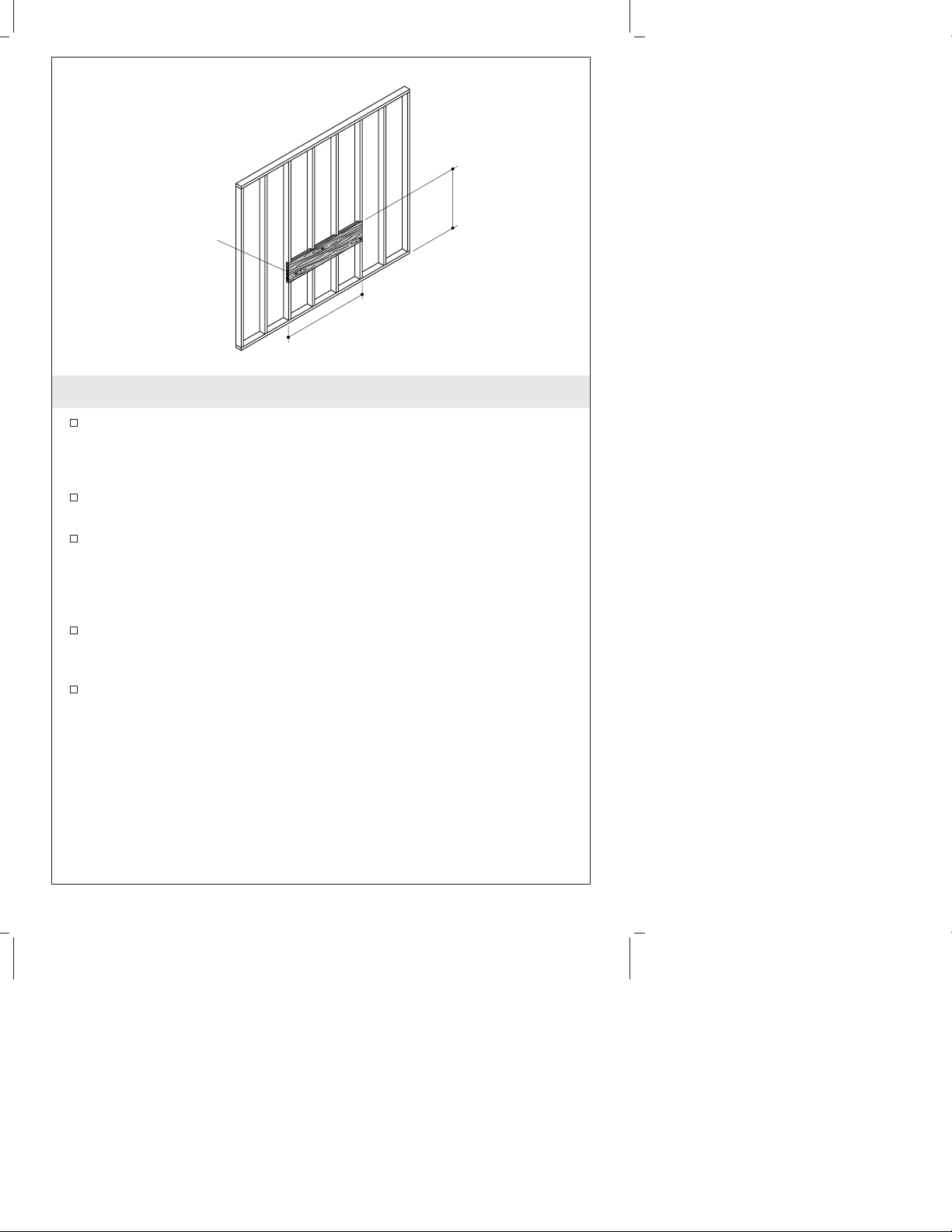

1. Prepare the Site
Measure and mark 33″(83.8 cm) up from the floor. This will be
the height from the top of the 2x6 material to the floor.
IMPORTANT! The 2x6 material should be the length of the vanity.
Notch the studs so the front of the 2x6 material will be flush with
the edge of the studs.
Secure the 2x6 material to the studs with framing nails.
NOTE: Plumbing will be exposed and visible once the vanity
installation is complete. Chrome plumbing fittings are
recommended.
Install the water supply according to the roughing-in information
provided with your lavatory. The water supply nipples must
extend at least 3″(7.6 cm) beyond the finished wall material.
If a lavatory will be installed on your vanity, install the drain
lines according to the vanity roughing-in information.
33" (83.8 cm)
Length varies with vanity size
2x6"
Material
1059700-2-B 6 Kohler Co.

2. Install the Grounding Outlet
NOTE: This product is equipped with two types of plugs: one
grounding plug (Figure 1) and one polarized plug (Figure 2.).
WARNING: Risk of electric shock. Grounding is required for
the outlets within the drawer(s). Connect only to a Class A
Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage
Circuit Breakers (ELCB’s) which protects against
line-to-ground shock hazard. Use 120 V, 20 A service.
WARNING: Risk of electric shock. Connect the polarized
plug and the three-prong plug to a properly grounded outlet
only.
Grounding Requirements
•This product must be grounded. If a malfunction or breakdown
occurs, grounding provides a path of least resistance for electric
current. This will reduce the risk of electric shock.
•This product is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
•This product is for use on a nominal 120-volt circuit. Make sure
that the plug is connected to an outlet having the same
configuration as the plug. Do not use a plug adapter with this
product.
Grounded
Outlet
Polarized
Plug
Figure 2
Figure 1
Grounded
Outlet Box
Grounding
Pin
Kohler Co. 7 1059700-2-B

Install the Grounding Outlet (cont.)
Install the Grounding Outlet
Locate the electrical connections according to the vanity
roughing-in information. Refer to the grounding requirements,
local codes, and ordinances for proper installation.
Complete the finished wall. Ensure the finished wall is straight
and plumb, and the floor is flat and perpendicular to the finished
wall.
Complete the electrical installation with an outlet and cover.
1059700-2-B 8 Kohler Co.

3. Install the Legs
WARNING: Risk of personal injury. The vanity is heavy and
cumbersome to move. Obtain sufficient help to carefully lift
or move the vanity.
Remove the drawers from the vanity base. Refer to your model’s
″Drawer″section contained in this guide for proper removal.
NOTE: Perform this procedure with two people.
NOTE: To protect the finished surface of the vanity, perform
assembly tasks on a flat, padded work surface.
Lay the vanity top down on a flat, padded surface.
Position one leg with the curved side facing the center of the
vanity.
Insert the studs on the legs through the mounting holes of the
base.
From the inside of the base of the vanity, slide a washer and nut
onto the studs.
Stud
Mounting Holes
Nut
Washer
Nut
Washer
Kohler Co. 9 1059700-2-B

Install the Legs (cont.)
Make sure the leg is vertically flush with the outer edge of the
vanity.
Using the wrench provided, tighten the nuts. Do not overtighten.
Repeat this procedure for the remaining leg.
Turn the vanity upright to rest on its legs.
1059700-2-B 10 Kohler Co.

4. Complete the Installation
Secure the Vanity
Move the vanity against the finished wall in the desired position.
Ensure the vanity is level. If the vanity is not level, rotate the
leveler(s).
NOTE: Select the type of fastener based on the wall material. A
minimum of 50 lbs (22.68 kg) load bearing fastener is recommended.
Using fasteners, attach the vanity to the finished wall at the 2x6
material location.
Install the Vessel
CAUTION: Risk of product damage. Siliconized acrylic caulk must
be used to secure the vessel to the vanity. Do not use 100% silicone
sealant, which will damage the finish of the vanity.
IMPORTANT! If instructed to apply silicone sealant, use siliconized
acrylic caulk instead. Allow the caulk to cure for at least 30 minutes
before proceeding with the vanity installation.
Install the vessel according to the lavatory manufacturer’s
instructions.
Connect the drain and supplies.
Leveler
2x6 Material
Finished Wall
Fastener
Sealant location
Kohler Co. 11 1059700-2-B

5. Connect the Plugs
Grounding Plug Requirements
WARNING: Risk of electric shock. Do not force the
three-prong plug into the grounded outlet, modify the
three-prong plug, or use a plug adapter. The product has a
three-prong plug (Figure 1), where the third prong on a plug
provides a path to ground for electricity that is straying or
leaking from a product. This helps protect the equipment and
can help prevent electric shock. This plug will fit in a
grounded outlet only one way.
WARNING: Risk of electric shock. Unplug the three-prong
plug from the grounded outlet before moving, testing,
cleaning, or repairing this product. When unplugged, the
electric cords will no longer be electrically live, which will
eliminate the risk of electric shock.
Polarized Plug Requirements
WARNING: Risk of electric shock. Do not force the
polarized plug into the polarized outlet, modify the polarized
plug, or use a plug adapter. The product has a polarized plug
(Figure 2), which means one blade of the plug is wider than
the other. This plug will fit in a polarized outlet only one
way.
WARNING: Risk of electric shock. Unplug the polarized
plug from the grounded outlet before moving, testing,
cleaning, or repairing this product. When unplugged, the
electric cords will no longer be electrically live, which will
eliminate the risk of electric shock.
Grounded
Outlet
Polarized
Plug
Figure 2
Figure 1
Grounded
Outlet Box
Grounding
Pin
1059700-2-B 12 Kohler Co.

Connect the Plugs (cont.)
•If the plug does not fit fully into the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician to install the
proper outlet. Do not change the plug in any way.
Connect the Plugs
NOTICE: This product is for use on a nominal 120-volt circuit and
has a grounding plug. Make sure that the plug is connected to an
outlet having the same configuration as the plug. No adapter should
be used with this product.
Connect each plug to the grounding outlet. Refer to the plug
requirements for proper connection.
Kohler Co. 13 1059700-2-B

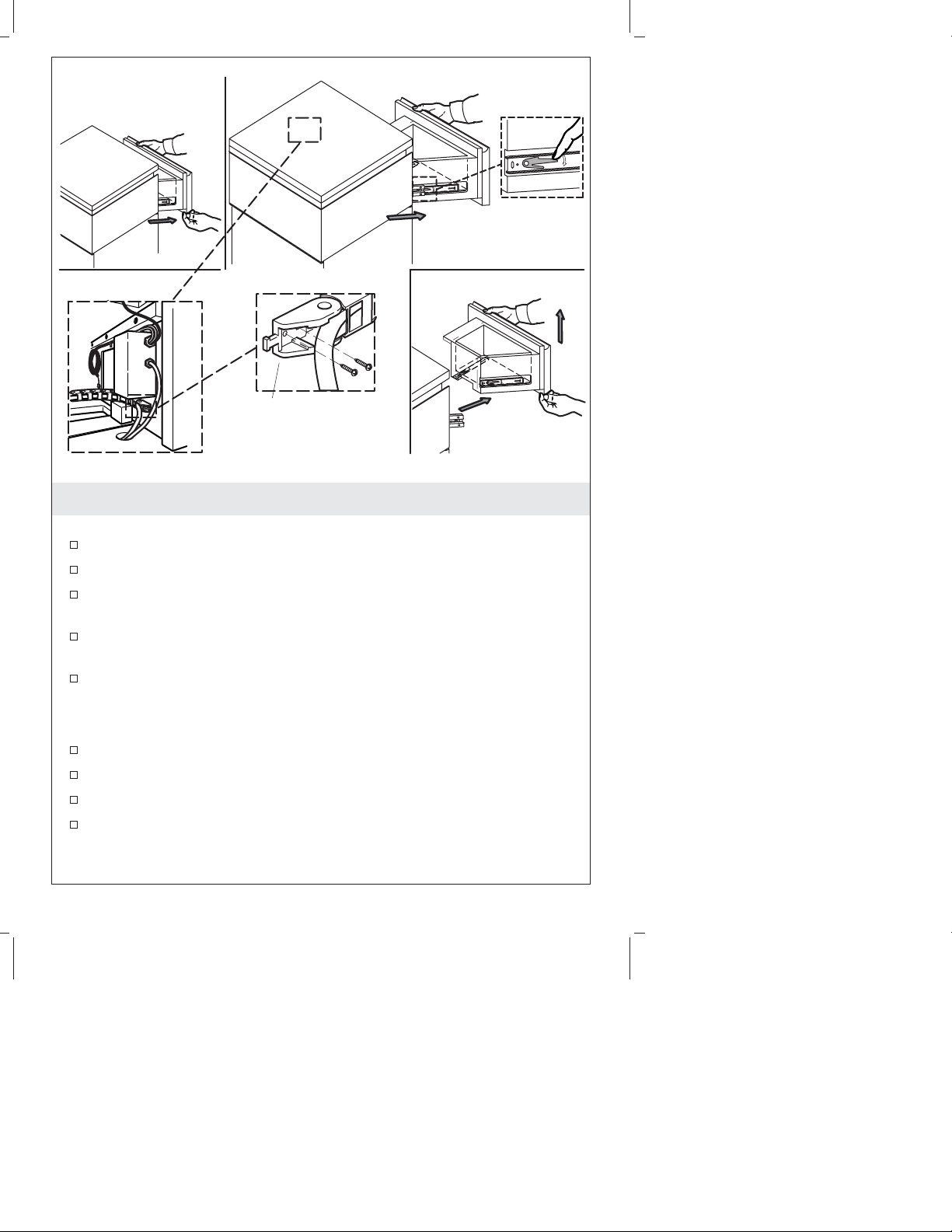

Drawer – K-2435
Remove
Unplug the electrical cord from the electrical outlet, if applicable.
Slide the drawer out on the rails until fully extended. (1)
Remove the electrical cord from the cable clips and pull the plug
end up through the access hole in the bottom of the vanity. (2a)
Disconnect the electrical track from the vanity by removing the
two screws holding the track in place. Retain the screws. (2c)
Pinch the release latches on each rail (2b) while pulling the
drawer away from the vanity. (3)
Reinstall
Slide the rails of the vanity out until fully extended.
Align and rest the rails of the drawer on the rails of the vanity.
Route the electrical cord through the drawer compartment.
With the rails still aligned, gently push the drawer into the vanity
until the rails ″snap″into place.
2
2a
2b
1
3
Disconnect track.
2c
1059700-2-B 14 Kohler Co.

Drawer – K-2435 (cont.)
Verify the drawer is properly engaged by lightly lifting each side
of the drawer upward. The drawer should stay in place on the
rails.
If the drawer lifts up, fully lift the drawer up off the rails of the
vanity. Repeat the ″Reinstall″procedure OR follow the
″Alternative Method.″
Alternative Method: Align and rest the rails of the drawer on the
rails of the vanity. Partially close the drawer, then pull the rails of
the vanity into the rails of the drawer. The rails will ″snap″into
place.
Fully extend the drawer.
Reconnect the electrical track to the vanity, then secure with the
two screws.
Route the plug end of the electrical cord through the access hole
in the bottom of the vanity.
Secure the electrical cord with the cable clips.
Slide the drawer in and out to confirm proper operation.
Plug the electrical cord into the electrical outlet.
Kohler Co. 15 1059700-2-B

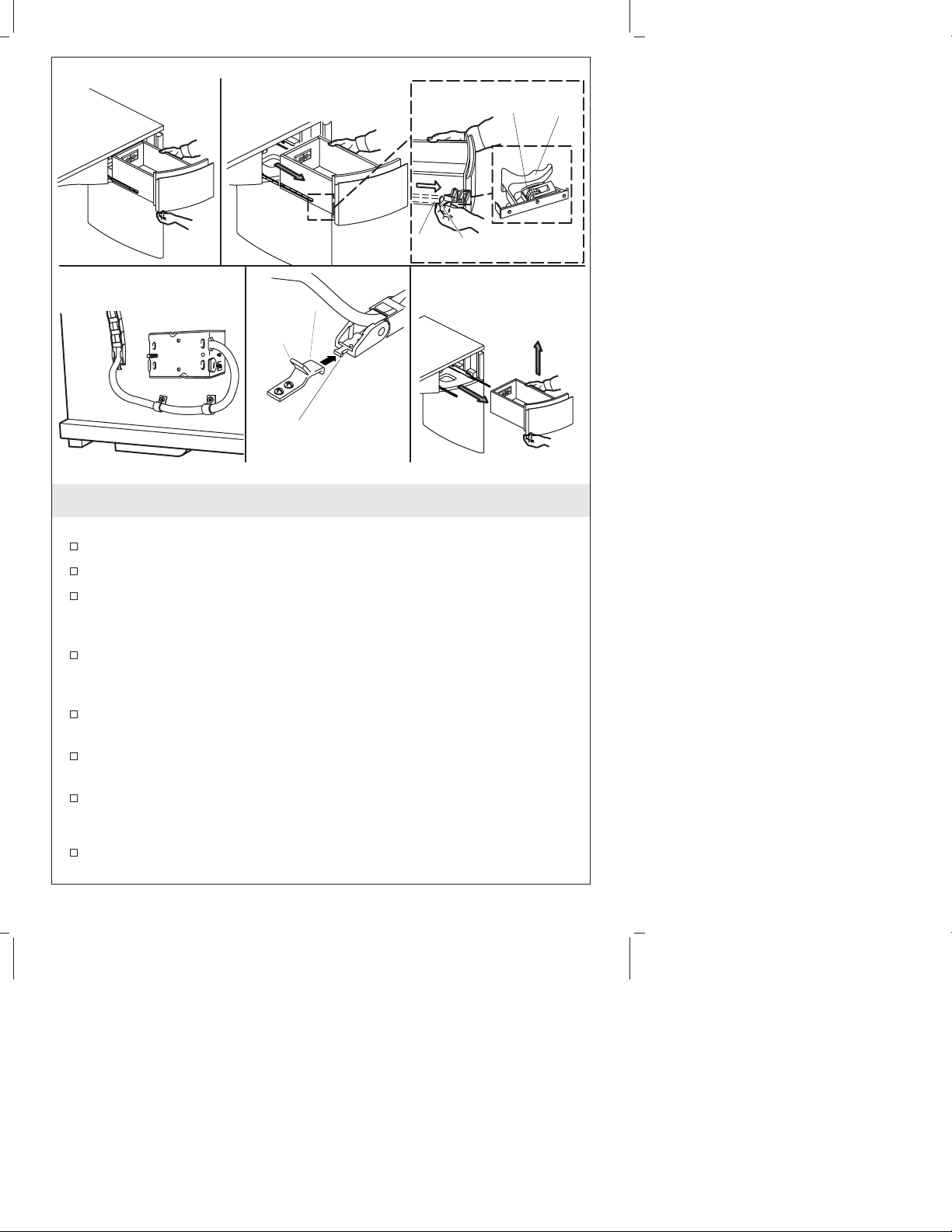

Drawer – K-2436, K-2437
Remove
Unplug the electrical cord from the electrical outlet, if applicable.
Slide the drawer out on the rails until fully extended. (1)
Release the electrical cord from any accessible cable clips behind
the drawer. Pull the plug up through the access hole in the
bottom of the vanity.
Pull the release latches toward you while pulling the drawer out
just enough to disengage the slides and access the end of the
electrical track. DO NOT fully remove the drawer. (2)
Gently pull the tab on top of the track clip toward you, then
disconnect the electrical track behind the drawer. (3)
Release the electrical cord from the remaining cord clips, if
applicable. (4)
Lift the drawer off the rails to fully remove the drawer. (5)
Reinstall
Slide the rails of the vanity out until fully extended.
2
3
1
54
Disconnect track.
Drawer Height
Adjustment Wheel Release
Latch
Underside View
Rail Tab
Tab
Track Clip
1059700-2-B 16 Kohler Co.

Drawer – K-2436, K-2437 (cont.)
Rest the drawer on top of the rails, then properly route the
electrical cord into the drawer compartment.
Hold the drawer in place with one hand and secure the electrical
track to the track clip.
Route the plug end of the electrical cord through the access hole
in the bottom of the vanity.
Secure the electrical cord with the cable clips.
Align and rest the drawer on the rails of the vanity.
Hold the drawer in place with one hand and pull the tab on the
bottom front of one rail toward you with the other hand. The rail
will ″snap″into place.
Pull the tab on the bottom front of the other rail toward you. The
rail will ″snap″into place.
Ensure the drawer is properly engaged by lightly lifting each side
of the drawer upward. The drawer should stay in place on the
rails.
If the drawer lifts up, fully lift the drawer up off the rails of the
vanity. Slide the rails of the vanity out until fully extended.
Repeat the ″Reinstall″procedure above.
Slide the drawer in and out to confirm proper operation.
Plug the electrical cord into the electrical outlet.
Adjust
Slide the drawer out on the rails until fully extended. (1)
Turn the drawer height adjustment wheels to adjust the drawer
height. To lower the drawer, turn the wheel on the left side of the
drawer clockwise and/or the wheel on the right side of the
drawer counterclockwise. Turn the wheel(s) in the opposite
direction to raise the drawer. (2)
Kohler Co. 17 1059700-2-B

Guide d’installation
Meuble
INSTRUCTIONS DE SÉCURTITÉ
Lire toutes les instructions avant d’utiliser ou d’installer ce produit.
Lors de l’utilisation ce produit, des précautions de base devraient
toujours être observées, incluant ce qui suit:
AVERTISSEMENT : Risque d’électrocution. La mise à la
terre est requise pour les prises dans le(s) tiroir(s). Raccorder
uniquement à des circuits protégés par un Disjoncteur de
Fuite de Terre (GFCI) de Classe A ou à un Disjoncteur de
Mise à la Terre (ELCB) qui protège contre tout risque
d’électrocution à terre. Utiliser un service de 120 V, 20 A. Se
référer à la section ″Installer la prise de terre″de ce guide.
AVERTISSEMENT : Risque d’électrocution. Connecter ce
produit à une prise correctement mise à la terre uniquement.
Se référer à la section ″Connecter les prises″de ce guide.
AVERTISSEMENT : Risque d’électrocution. Un représentant
de service qualifié et un électricien agréé installent ce produit
et le câblage électrique pour ce produit. Une installation
incorrecte créera un risque d’électrocution et pourrait ne pas
être conforme aux codes locaux de bâtiment et électriques.
AVERTISSEMENT : Risque d’électrocution. Débrancher la
fiche polarisée et la prise triphasée de la prise de terre avant
de déplacer, etster, nettoyer ou réparer ce produit. Lorsque
débranchés, les cordons électriques ne seront plus alimentés,
ce qui éliminera le risque d’électrocution.
AVERTISSEMENT : Risque d’électrocution. Éteindre les
appareils électriques d’entretien, puis débrancher l’appareil
de la prise. Lorsque débranché, l’appareil ne sera plus
alimenté, ce qui éliminera le risque d’électrocution.
AVERTISSEMENT : Risque d’endommagement du matériel.
Laisser refroidir complètement les appareils électriques
d’entretien personnel avec élémants de chauffage avant de les
ranger dans le (les) tiroir(s).
Kohler Co. Français-1 1059700-2-B

INSTRUCTIONS DE SÉCURTITÉ (cont.)
AVERTISSEMENT : Risque d’endommagement du matériel.
Ne pas placer ou utiliser d’équipement vidéo, tels que postes
de télevision ou moniteurs d’ordinateur, sur la surface de
produit. La base de tels équipements crée de la chaleur et
pourrait causer des dommages.
AVERTISSEMENT : Risque de brûlures, d’incendie,
d’électrocution ou de blessures. Ne pas utiliser ce produit à
l’extérieur. Ce produit n’est pas hydro-résistant.
AVERTISSEMENT : Risque de brûlures, d’incendie,
d’électrocution ou de blessures. Ranger le cordon électrique
d’appareil d’entretien personnel correctement à l’intérieur du
tiroir avant de le fermer. Ceci réduira le risque
d’endommagement du cordon ou de la prise.
AVERTISSEMENT : Risque de brûlures, d’incendie,
d’électrocution ou de blessures. Ne jamais opérer ce produit
si le cordon ou la prise sont endommagés, ou défectueux, ou
si le produit est tombé ou a été endommagé, ou que le
produit a été immergé dans l’eau. Pour une bonne assistance
dans la réparation de ce produit, veuillez appeler:
1-800-4-KOHLER à partir des É.U., le 1-800-964-5590 à partir
du Canada, ou le 001-877-680-1310 à partir du Mexique.
AVERTISSEMENT : Risque de brûlures, d’incendie,
d’électrocution ou de blessures. Débrancher les cordons de la
prise avant de mettre ou retirer des pièces de ce produit ou
d’un appareil d’entretien personnel.
AVERTISSEMENT : Risque de brûlures, d’incendie,
d’électrocution ou de blessures. Une surveillance attentive
est nécessaire lorsque ce produit est à proximité ou utilisé par
des enfants ou des personnes invalides. L’équipement
électrique pourrait être dangereux si il est mal utilisé
AVERTISSEMENT : Risque de brûlures, d’incendie,
d’électrocution ou de blessures. N’utiliser ce produit que
pour l’usage destiné. Ne pas utiliser des fixations non
recommandées par le fabricant.
AVERTISSEMENT : Risque de brûlures, d’incendie,
d’électrocution ou de blessures. Tenir les cordons électriques
loin des surfaces chaudes.
Kohler Co. Français-2 1059700-2-B

INSTRUCTIONS DE SÉCURTITÉ (cont.)
AVERTISSEMENT : Risque de brûlures, d’incendie,
d’électrocution ou de blessures. Ne jamais faire tomber ou
insérer d’objet quelconque dans les ouvertures.
AVERTISSEMENT : Risque de brûlures, d’incendie,
d’électrocution ou de blessures. Ne pas utiliser les appareils
d’entretien personnel à l’extérieur dans des endroits où l’on
utilise des produits aérosols ou bien où de l’oxygène est
administré.
AVIS : Suivre tous les codes de plomberie, d’électricité et de
bâtiment locaux.
Outils et matériels
Avant de commencer
AVIS : Risque d’endommagement du produit. Mastic à l’acrylique
siliconéedoit être utilisé pour sécuriser le lavabo au meuble. Ne pas
utiliser du mastic à la silicone à 100%, celà endommagera la finition
du meuble.
Le représentant qualifié en service aura besoin d’assistance pour
l’assemblage ou le déplacement du produit durant le processus
d’installation. Le produit est lourd.
S’assurer que le mur fini soit droit et d’aplomb, que le sol soit
plat et perpendiculaire au mur fini.
Retirer les tiroirs du meuble avant de commencer cette
installation. Ceci facilitera le processus d’installation. Se référer à
la section du modèle de ″tiroir″contenue dans ce guide pour un
démontage correct.
Crayon à papier Mètre ruban Mastic acrylique
siliconé
Lunettes
de protection
Perceuse Niveau à bulle
Tournevis
assortis
• Vis à bois
• Clous de cadrage
• Contreplaqué de 3/4"
Plus:
1059700-2-B Français-3 Kohler Co.
