Kohler K-19909 Assembly instructions

Homeowners Guide
Single-Control Lavatory Faucet
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (e.j.
K-12345M)
Français, page ″Français-1″
Español, pagina ″Español-1″
K-19909
1079092-5-A

Thank You For Choosing Kohler Company
Thank you for choosing Kohler Company. Your Kohler Company
product reflects the true passion for design, craftsmanship, artistry, and
innovation Kohler Company stands for. We are confident its
dependability and beauty will surpass your highest expectations,
satisfying you for years to come.
All information in this guide is based upon the latest product
information available at the time of publication. At Kohler Company,
we strive to fulfill our mission of improving the level of gracious living
for each person who is touched by our products and services. We
reserve the right to make changes in product characteristics, packaging,
or availability at any time without notice.
Please take a few minutes to review this guide. Pay special attention to
the care and cleaning instructions.
Your Kohler Lavatory Faucet
Your new lavatory faucet blends elegant styling and beauty with
exceptional performance and reliability. Each faucet is precision
engineered and constructed of premium quality materials to provide
trouble-free operation even under the hardest water conditions.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
•Use a mild detergent such as liquid dishwashing soap and warm
water for cleaning. Do not use abrasive cleaners that may scratch
or dull the surface.
•Carefully read the cleaner product label to ensure the cleaner is
safe for use on the material.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Do not allow cleaners to sit or soak on the surface.
•Wipe surfaces clean and rinse completely with water immediately
after cleaner application. Rinse and dry any overspray that lands
on nearby surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
1079092-5-A 2 Kohler Co.

Care and Cleaning (cont.)
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537 and press 1 for Kohler Products and then 3 for
Literature.
Kohler Co. 3 1079092-5-A

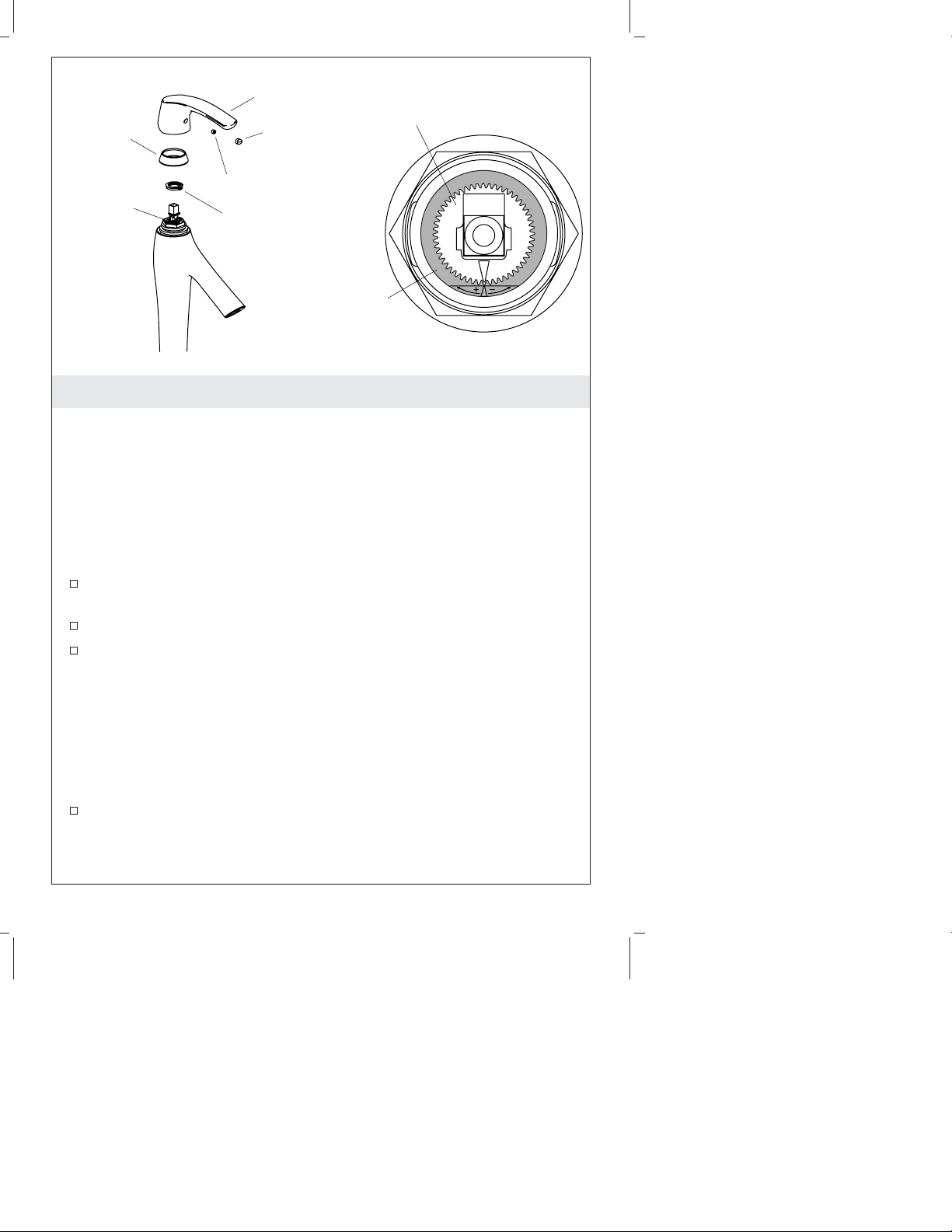

Optional Temperature Limiting Adjustment
NOTE: Your faucet has the capability to limit the range of
temperatures controlled by lever position. Setting the position of the
locking ring will reduce the quantity of either hot water flow or cold
water flow. If the supplied hot water is higher than is comfortable or
safe, the quantity of cold water flow can be increased relative to the
hot water flow.
Use the following procedure to adjust the limit-temperature locking
ring:
Pry off the plug button using a small flat-blade screwdriver or
equivalent tool
Using a hex wrench, loosen the setscrew and remove the handle.
Turn the bonnet counterclockwise to unthread and remove.
NOTE: The inner and outer rings have location arrows. These
arrows are aligned with one another when the assembly is shipped.
If the outer ring is rotated clockwise in respect to the inner ring,
cold water flow will be restricted. If the outer ring is rotated
counterclockwise in respect to the inner ring, hot water flow will be
restricted. The handle can still be used to adjust temperature within
the limited range.
Note the position of the outer locking ring relative to the inner
geared ring.
Setscrew
Plug Button
Handle
Bonnet
Inner
Geared
Ring
Inner Geared
Ring
Locking
Ring
Outer
Locking
Ring
1079092-5-A 4 Kohler Co.

Optional Temperature Limiting Adjustment (cont.)
NOTE: Pry the outer locking ring up equally at either side in order
to remove it from the valve.
Using a small flat-blade screwdriver, pry up the outer locking
ring.
Rotate the position of the locking ring relative to the inner geared
ring as desired.
Align the geared teeth and slide the locking ring back into
position.
Reinstall the bonnet.
Place the handle back onto the assembly.
If desired, test the setting and repeat these steps in order to make
further adjustments.
When all adjustments are complete, secure the handle by
tightening the setscrew with a hex wrench.
Place the plug button in place.
Lifetime Limited Warranty
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his/her home. *If the faucet should
leak or drip during normal use, Kohler will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working
condition.
Kohler also warrants all other aspects of the faucet, except gold finish,
to be free of defects in material and workmanship during normal
residential use for as long as the original consumer purchaser owns
his/her own home. If a defect is found in normal residential use,
Kohler Co. will, at its election, repair, provide a replacement part or
product, or make appropriate adjustment. Damage to a product caused
by accident, misuse, or abuse is not covered by this warranty. Proof of
purchase (original sales receipt) must be provided to Kohler with all
warranty claims. Kohler Co. is not responsible for labor charges,
installation, or other consequential costs. In no event shall the liability
of Kohler exceed the purchase price of the faucet.
If the faucet is used commercially, Kohler warrants the faucet to be free
from defects in material and workmanship for one (1) year from the
date the product is installed, with all other terms of this warranty
applying except duration.
Kohler Co. 5 1079092-5-A

Lifetime Limited Warranty (cont.)
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Seller disclaims any liability for special, incidental or consequential
damages. Some states/provinces do not allow limitations of how long
an implied warranty lasts or the exclusion or limitation of such
damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also
have other rights that vary from state/province to state/province. This
warranty is to the original consumer purchaser only, and excludes
product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer.
This is our exclusive written warranty.
*Trend
®
faucets, MasterShowerTM Tower, polished gold finish, all items
within the ″Fixture Related″section of the KOHLER Faucets Price
Book, drains, Duostrainer
®
sink strainers, soap/lotion dispensers and
faucets used in commercial settings are covered by Kohler’s one-year
limited warranty.
One-Year Warranty
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
1079092-5-A 6 Kohler Co.

One-Year Warranty (cont.)
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A.B. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
Kohler Co. 7 1079092-5-A

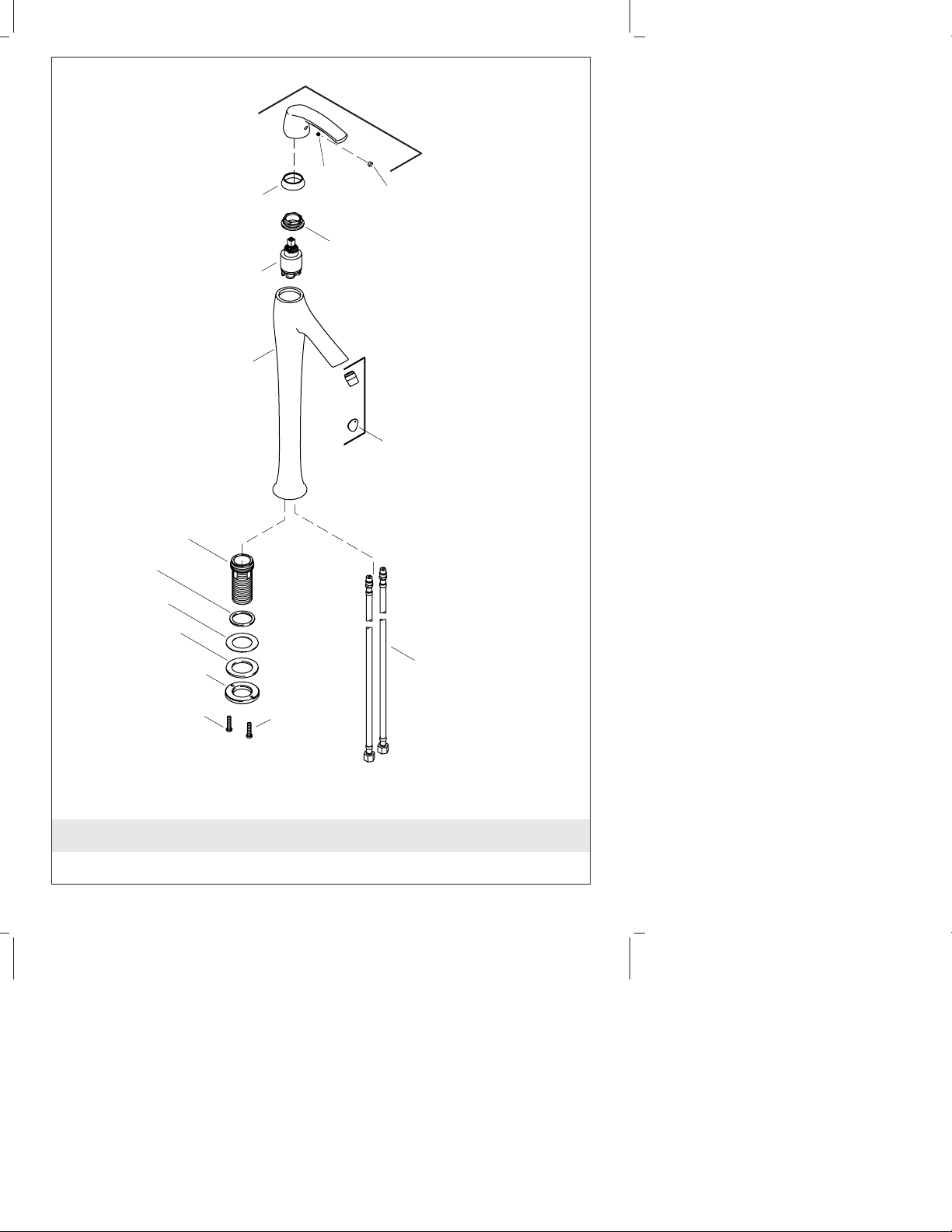

Service Parts
1046017**
Aerator
836939
Plug
833438
Screw
1046018**
Handle
865222**
Bonnet
865221**
Nut
1017426
Valve
837224
Key
831587 831587
3002510
Shank
871306
22352
78617
3002530
Threaded Ring
Washer
Washer
Washer
Screw Screw
Not Available as
a Service Part
3006979
Supply Hose
**Finish/color code must be specified when ordering.
1079092-5-A 8 Kohler Co.

Guide du propriétaire
Robinet de lavabo mono-contrôle
Merci d’avoir choisi la compagnie Kohler
Merci d’avoir choisi la compagnie Kohler. Votre produit de la
compagnie Kohler reflète la véritable passion du design, d’artisanat,
d’art et d’innovation représentant la compagnie Kohler. Nous sommes
confiants que sa fiabilité et beauté surpasseront vos exigences les plus
élevées, vous satisfaisant pendant les années à venir.
Toute information contenue dans ce guide est basée sur l’information
la plus récente du produit disponible au moment de la publication. A
la compagnie Kohler, nous aspirons à remplir notre mission
d’améliorer le niveau de vie gracieux pour chaque individu affecté par
nos produits et services. Nous nous réservons le droit d’apporter
toutes modifications aux caractéristiques, emballages ou disponibilités
des produits, et ceci à tout moment et sans préavis.
Veuillez prendre s’il vous plaît quelques minutes pour étudier ce
guide. Prêter une attention toute particulière aux instructions
d’entretien et de nettoyage.
Votre robinet pour lavabo Kohler
Votre nouveau robinet combine un style élégant et une beauté avec une
performance et une fiabilité exceptionnelles. Chaque robinet est conçu
avec précision et fabriqué avec des matériaux de haute qualité, pour
garantir un fonctionnement sans problème, même dans des régions aux
conditions d’eau extrêmes.
Entretien et nettoyage
Pour de meilleurs résultats, prendre ce qui suit en considération lors de
l’entretien de votre produit KOHLER:
•Utiliser un détergent doux tel que liquide pour vaisselle et de
l’eau chaude pour nettoyer. Ne pas utiliser de nettoyants abrasifs
car ils pourraient rayer ou abîmer la surface.
•Lire attentivement l’étiquette du produit de nettoyage pour
vérifier qu’il soit adéquat à utiliser sur le matériau.
•Toujours tester la solution de nettoyage sur une surface la moins
évidente avant de l’appliquer sur la totalité de la surface.
Kohler Co. Français-1 1079092-5-A

Entretien et nettoyage (cont.)
•Ne pas permettre aux nettoyants de reposer sur la surface.
•Essuyer les surfaces et rincer complètement avec de l’eau
immédiatement après l’application du nettoyant. Rincer et sécher
tout éclaboussement sur les surfaces avoisinantes.
•Utiliser une éponge ou un chiffon doux et humide. Ne jamais
utiliser de matériau abrasif tel que brosse ou éponges à récurer
pour nettoyer les surfaces.
Pour l’information détaillée de nettoyage et des produits à considérer,
visiter www.kohler.com/clean. Pour commander des informations
d’entretien et de nettoyage, composer le 1-800-456-4537 puis presser 1
pour les produits Kohler et 3 pour littérature.
1079092-5-A Français-2 Kohler Co.
