IS15 as NMEA Repeater
20221263A 3
This manual is intended as a reference guide for operating and
correctly installing the Simrad IS15 Rudder instrument.
Please take time to read the manual to get a thorough
understanding of the operation and installation.
Other documentation material that is provided with your system
includes a ‘bridge card’, and Terms of Warranty.
Document revisions
Rev Date Written by Checked by Approved by
A 021002
Document history
Rev. A First edition

IS15 Rudder Manual
420221263A
Contents
1 INTRODUCTION...............................................................5
1.1 Stand alone IS15 Rudder ............................................5
1.2 Equipment supplied ....................................................6
2 OPERATION OF IS15 RUDDER.....................................7
2.1 General Description....................................................7
2.2 Powering Up ...............................................................8
2.3 Display backlighting...................................................9
2.4 The Heading Display..................................................9
2.5 Alarm Sounding........................................................11
3 TECHNICAL SPECIFICATIONS..................................12
4 INSTALLATION ..............................................................14
4.1 Mounting of Instrument head ...................................14
4.2 Installing RF300 Rudder Feedback ..........................15
4.3 Cabling......................................................................18
5 SETTING UP THE RUDDER INSTRUMENT.............22
5.1 First time turn on.......................................................22
5.2 Installation and Calibration Menu ............................24
6 FAULT FINDING.............................................................31
7 MAINTENANCE ..............................................................33
7.1 General Maintenance................................................33
7.2 Annual Maintenance.................................................33
7.3 Removal of Instruments............................................33
7.4 Return for Service.....................................................33
7.5 Local Master Reset ...................................................34
8 SPARE PARTS LIST........................................................35

Introduction
20221263A 5
1INTRODUCTION
1.1 Stand alone IS15 Rudder
The IS15 Rudder instrument may be used as a stand-alone rudder
indicator shown in Figure 1-1. More instruments (max 3 units
with Roblink Power cable) may be added to the system by using
single cables in a “daisy chain”. Instructions for installing the
rudder feedback unit are found in chapter 4.2.
IS15 Rudder may also be integrated in an IS15 instrument
system and Simrad X-series autopilot systems (AP11, AP20,
AP35).
Please study the different system configurations in section 4.3.
for more information.

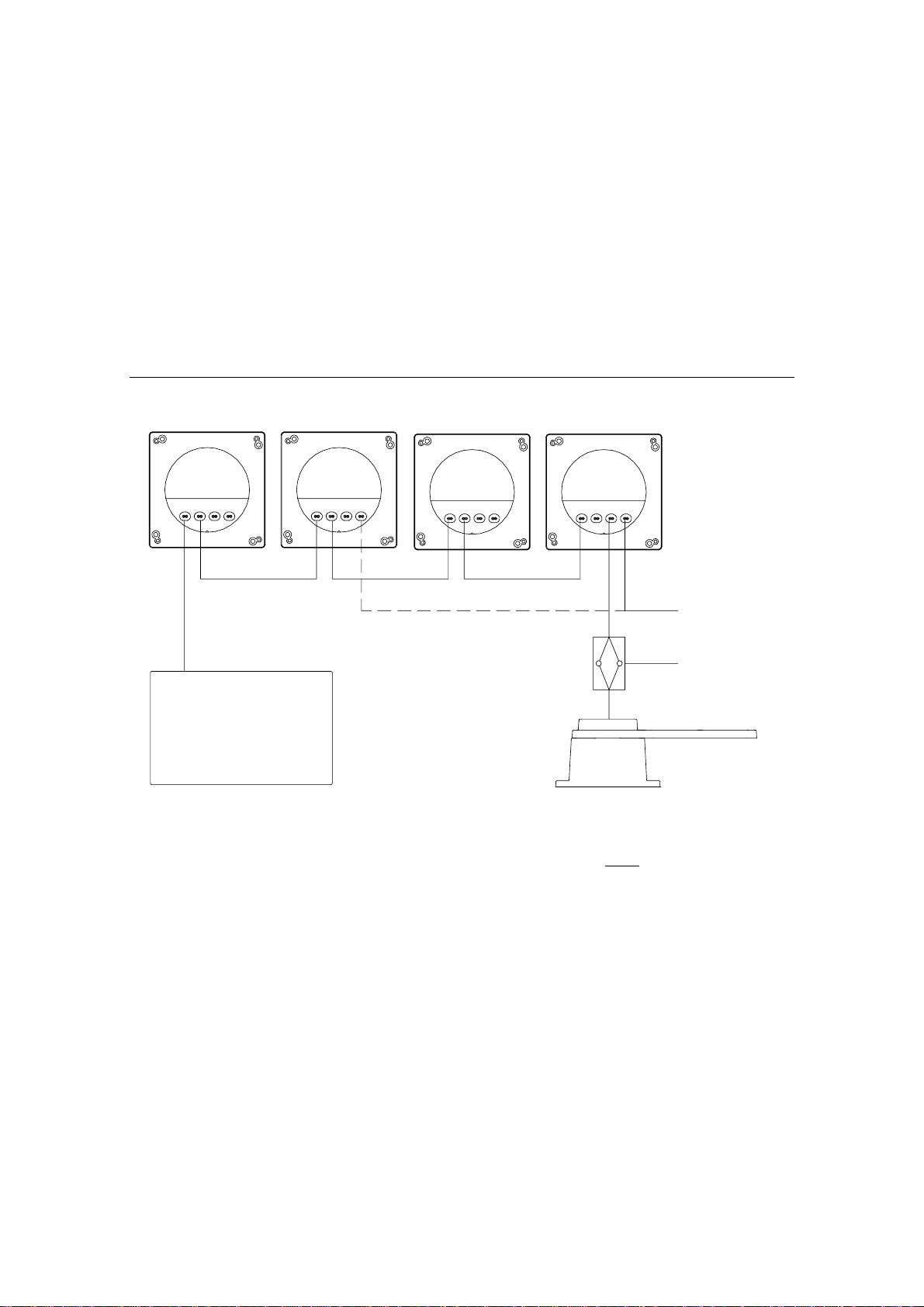

12/24V
RF300
IS15 RUDDER IS15 RUDDER
IS15 Power cable
Figure 1-1 Stand alone IS15 Rudder

IS15 Rudder Manual
620221263A
1.2 Equipment supplied
Each IS15 Rudder Instrument is supplied with the following
parts:
•IS15 Roblink cable 0,3 m
•IS15 Roblink Power Cable 2,5 m
•IS15 Rudder Manual
•IS15 Rudder Quick Reference Guide
•Mounting kit
•Weather cover

Operation
20221263A 7
2OPERATION OF IS15 RUDDER
0
11
1/2 1/2
PORT STBD
oraabo
LOCKHDG

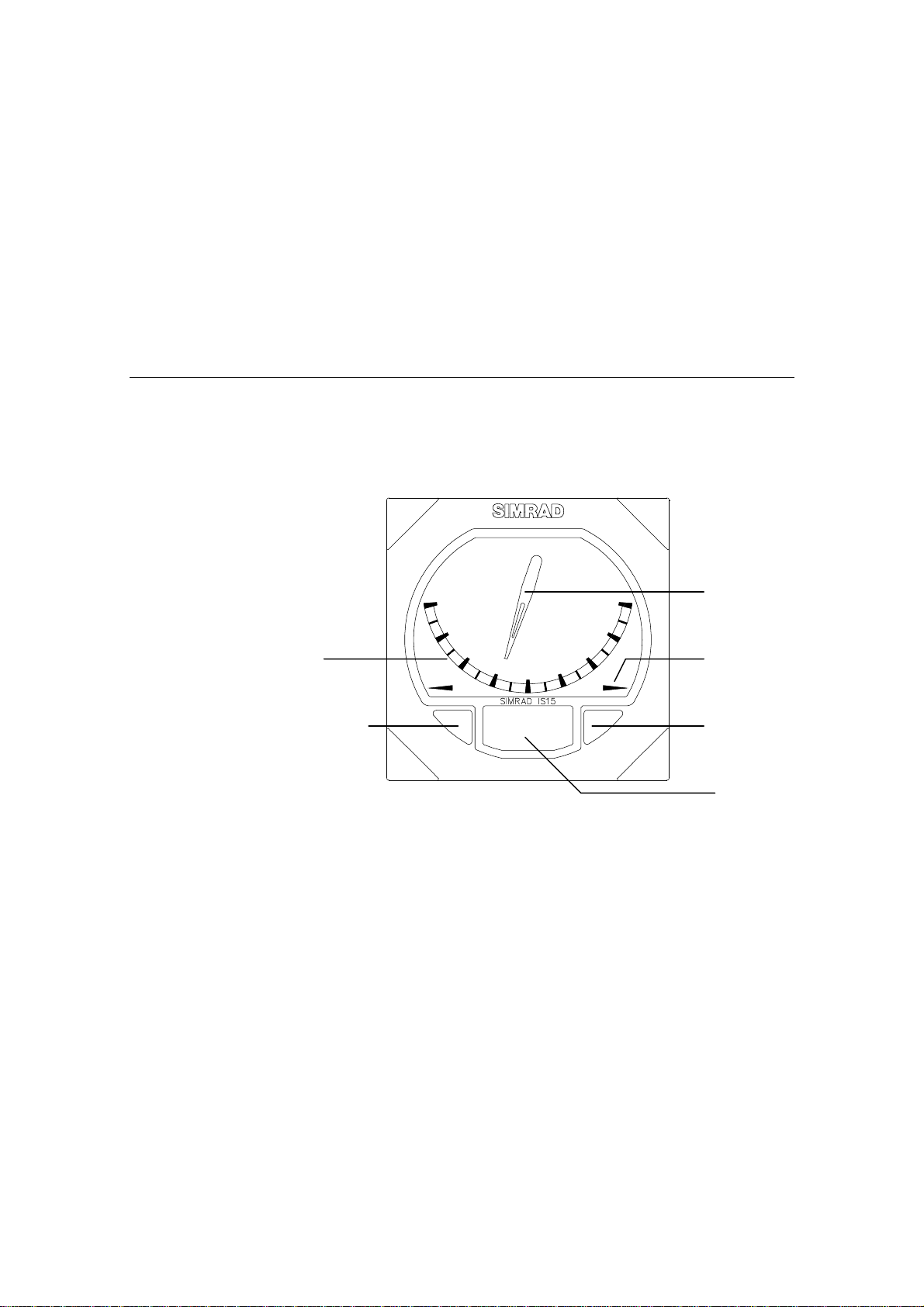

2.1 General Description
The display is divided into two sections, the scale with pointer,
and the LCD. Both are controlled by the two buttons.
The Scale
The pointer indicates the rudder angle and the scale has markings
of “0” (midship), “1/2” and “1” (full deflection).
Full deflection (1/1) is scaled for 45° of rudder travel from
factory. However, the instrument/pointer may be calibrated to
show full deflection (1/1) for smaller rudder angles (see
specifications).
The LCD Display
In normal operation the LCD has two modes:
•Heading
Right
button
Pointer
LCD dis
p
la
y
LCD Arrow
Le
g
en
d
Scale
Left button

IS15 Rudder Manual
820221263A
•Locked Course/Direction to steer
There are two arrows at the top of the LCD indicating what data
is being displayed at any one time. The arrow legend is printed
on the scale. The right arrow points to LOCK for ‘Locked
Course’ mode, the left arrow points to HDG for ‘Heading’ mode.
The Buttons
A given press on any of the two buttons will change the mode
from ‘Heading’ to ‘Locked Course’ mode and vice versa.
The left button is used to enter set-up and installation screens.
The right button sets the lighting level. When in a set-up or
installation screen, both buttons are used to change settings.
Figure 2-1 - The Buttons
2.2 Powering Up
At first time turn on please refer to section 5.1. At normal power
up, the pointer will sweep the scale, and the LCD will show the
software version for approximately one second.
The pointer will then show the rudder angle and the LCD will
show the heading provided this is available as an input.
Note ! It may take 10-15 seconds before the heading is displayed.

Operation
20221263A 9
2.3 Display backlighting
Press the button and hold for 2 seconds. The display then
presents the backlighting level. Repeat pressing until desired
backlighting level. Selectable values are 1-7 and off (0).
2.4 The Heading Display
The Heading Display is the first display that is shown after
power up. It shows the present heading with the left arrow lit.
•The heading may be referenced to either Magnetic or True
North. If only one type of data is available, and the other
data is required then the local magnetic variation may be
entered, or it may be read in from a GPS if one is fitted. This
may enable the display of True heading when only a
magnetic referenced heading sensor is available.
•If no heading data is available the LCD will show four
dotted lines.
Magnetic variation [Var]
This is a sub-screen to the Heading display.
The IS15 instruments automatically read the Magnetic Variation
compensation from a connected GPS. The compensation is
presented on the screen. You can not adjust the compensation
from the GPS. If you press the button and hold for 2 seconds
the screen just flashes AUtO and returns to show VAr.
If a GPS is not connected you will be able to enter the magnetic
variation manually.
1. Press the button and hold for 2 seconds. The MagVar
reading flashes. It indicates ‘000’ when there is no
compensation for the variation.

IS15 Rudder Manual
10 20221263A
2. To select or increase an easterly variation value, apply short
presses on the button. The reading will be positive.
3. To select or increase a westerly variation value, apply short
presses on the button. The reading will be negative.
4. Press the button and hold for 2 seconds to save the
setting.
5. Press the button and hold for 2 seconds to return to the
main screen.
The Locked Course Display
From the Heading Mode a quick single press on the or
push-button will enter Locked Course Mode and the right arrow
will lit on the LCD. If the boat stays steady on course, the LCD
will display the locked course. Whenever the boat is off course
the LCD shows >XX or XX<. ‘XX’ is the magnitude of the
course error and the arrow (<>) points in the direction to steer to
get back on course.
Changing the Set Course in ‘Locked Mode’
This is a sub-screen to the ‘Locked Course’ display and allows
you to view the set course or to manually set to a new course to
steer.
With the LCD arrow pointing right press the button for 2
seconds and the LCD starts flashing.
The LCD will flash the current set course. If you want to
maintain the set course, press and hold the button for 2
seconds.
If you want to change the set course apply short presses on the
or button to set the next course to steer to port or
starboard respectively.

Operation
20221263A 11
Press and hold the button for 2 seconds to enter the new
setting.
The display will stop flashing and the arrow points in the
direction to steer, while the digits on the LCD show how much
the boat is off the new set course.
2.5 Alarm Sounding
If the IS15 Rudder is integrated in an IS15 Instrument system it
will sound and flash a warning message in the event there is an
alarm situation.
To cancel a sounding alarm press any button on any of the
instrument displays.
Note ! The flashing warning will remain as long as the alarm condition
exists and disappears automatically when there is no longer an
alarm condition. The sounding alarm will always have to be
cancelled.
Alarm messages
The symbols that are shown when an alarm is triggered are as
below:
‘SHAL’ = The Shallow Water Alarm
‘dEEP’ = The Deep Water Alarm
‘AnCH’ = The Anchor Alarm
‘HIGH’ = The High Wind Speed Alarm
‘Er.XX’ = System failure (Contact your Simrad dealer)

IS15 Rudder Manual
12 20221263A
3TECHNICAL SPECIFICATIONS
Rudder Angle
Scale Full deflection adjustable for any h.o. angle
between ±20° and ±45°. Divisions: Marking per
each 1/8 of full deflection. Accuracy: ±2° of full
scale deflection.
Heading Functions
Heading Display (Digital)
Heading Resolution 0 to 359° 1°
Heading Reference True or Magnetic North
Heading Lock Course and direction to steer on digital display.
Course to Steer Settable on digital display.
General
Power Requirement 12/24 VDC, 70 mA, (100 mA max with max
lighting)
Size See Figure 3-1
Weight 225 grams
Environmental Protection IP56 from front, IP44 from rear
Temperature Range Operation: 0°C to +55°C (+32 to +130°F)
Storage: -30°C to +80°C (-22 to +176°F)
Display Backlighting Green colour with seven levels plus Off
Display Backlighting
Control Two independent lighting banks or individual settings (bank 0)

Technical Specifications
20221263A 13
Inputs
Rudder angle: 2-wire p.w.m. (RF300 Feedback Unit)
NMEA 0183, RSA
Roblink (IS15 system)
Compass heading: NMEA 0183, HDG, HDM, HDT
Outputs
Rudder angle: NMEA 0183, RSA, 5 Hz *
Compass heading: NMEA 0183, HDG
Other: NMEA 0183 sentences according to IS15 NMEA
in/out table in IS15 General Manual.
* 5 Hz only as stand alone. (Other external data input will slow down the output rate.)
110mm[4,33"]
21 mm
[0,83"]
30 mm
[1,18"]
85 mm Dia
[3,35"].
(Panel cut-out)
32 mm
[1,26"]
110mm[4,33"]
110 mm [4,33"]
9 mm
[0,35"]
Figure 3-1 IS15 Display Head Dimensions

IS15 Rudder Manual
14 20221263A
4INSTALLATION
4.1 Mounting of Instrument head
Caution Do not install the instrument where moisture at the rear could
be present. It can cause damage by entering the breathing hole
or by coming into contact with the electrical connectors.
The instrument head is fully waterproof from the front and can
be installed on deck or below.
The selected surface for the instrument head must be flat and
even to within 0.5 mm.
Before installation, note the Serial Number of the unit and keep
it in a safe place.
0.5 mm max.
✓✗✗
Figure 4-1 - Installation

Installation
20221263A 15
1. Do not remove the protection film on the display before the
installation and set-up is completed.
2. Carefully position the self-adhesive template provided on the
surface where the display head is to be mounted. Allow
sufficient space for the protection cover as shown on the
template when instruments are installed adjacent to each
other.
3. Drill a small pilot hole first, and then check the location on
the other side of the panel or bulkhead to confirm suitability.
Open out the pilot hole to 85 mm (3.4”) using a cutter, or an
electric drill saw (86 mm or 3 3/8”).
4. Drill the four screw holes using a 2.5 mm (0.1”) drill.
5. Ensure that the sealing gasket is correctly located and secure
the instrument using the four self-tapping screws provided.
Apply the front panel corners.
Note ! Ensure that all sockets without cable connections have the
supplied bungs inserted. It is also recommended, to secure the
connectors to the instrument, using the enclosed self-tapping
screws.
Caution Do not over-tighten fixing screws.
Do not use sealing compound on the instrument back.
Do not use WD40 or any solvent on any part of the instrument.
4.2 Installing RF300 Rudder Feedback
The RF300 Rudder feedback unit mounts close to the rudder,
and is mechanically linked to the rudder tiller arm or rudder
quadrant.
Refer to Figure 4-2 for the recommended mounting arrangement.
Note that the RF300 transmitter arm has two slots for the

IS15 Rudder Manual
16 20221263A
transmission link. The slots enable maximum flexibility to
provide the 1:1 mechanical linkage relationship.
Note ! Do not try to remove the transmitter arm from the feedback unit.
The unit is factory adjusted and need no further adjustment at
installation than described below.
As a starting point, it is desirable to set the transmitter rod to the
inner limit of the outer slot if possible. (Refer to Figure 4-2).
Drill and tap the rudder tiller arm so that the Y1 dimension is
equal to the Y2 dimension (Use 4.2 mm drill and 5 mm tap).
Attach the ball joint to the tiller arm, and connect the transmitter
rod to the ball joint at the rudder tiller arm.
Rotate the RF300 transmitter lever until it is set to centre
position. (Use the alignment mark to line up the transmitter lever
to be opposite the cable entry into the feedback.).
Note ! Carefully observe the alignment marks. A rudder feedback alarm
may be the result if the alignment instructions as per Figure 4-2
are neglected.
Attach the transmitter rod to the RF300. Set the RF300 mounting
location to be in accordance with Figure 4-2. The centre of the
RF300 should be in line with the centre of the rudder post.
Mount the RF300 to a suitable platform using the screws
provided. If necessary, add blocking material under the RF300 to
adjust the height of the transmission arm to be level with the
rudder tiller arm.

Installation
20221263A 17

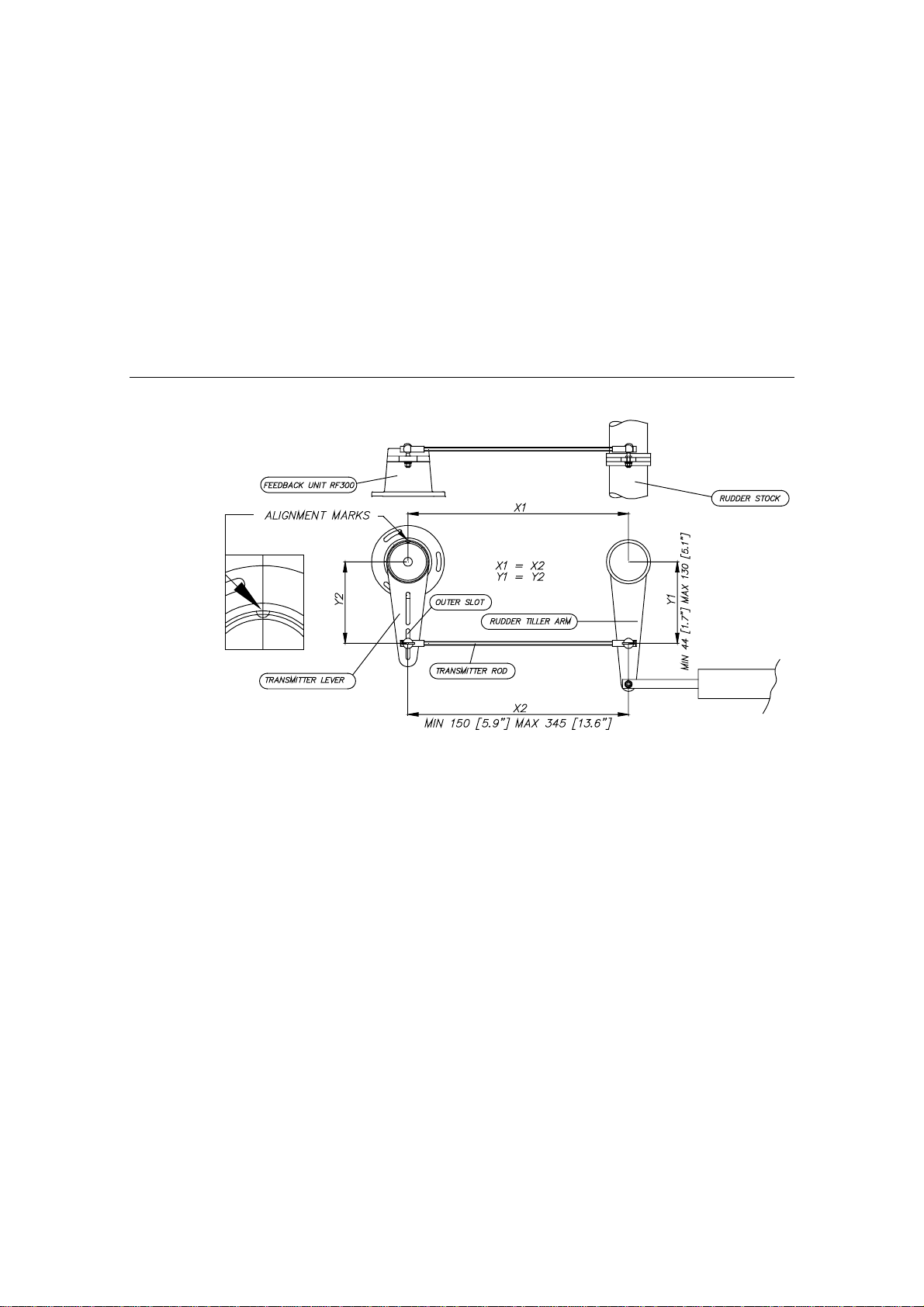

Figure 4-2 RF300 mounting
Note ! Due to space limitations, it may be necessary to cut the length of
the transmitter rod to move the RF300 closer to the rudder post.
Tighten the mounting screws for both the RF300 feedback unit
and the transmitter rod ball joint.
Observe the RF300 while someone turns the helm wheel through
the complete travel from full port to full stbd. rudder to verify
that the mechanical linkage to the RF300 is not obstructed.

IS15 Rudder Manual
18 20221263A
4.3 Cabling
Hdg input (NMEA)
12V
RF300
QUICK
CONNECTOR
ROBLINK
PWR
ROBLINK
1
SENSOR
23
NMEA
42
ROBLINK
1
PWR
ROBLINK NMEA
SENSOR
34
IS15 RUDDER IS15 RUDDER IS15 COMBI
ROBLINK
PWR
ROBLINK
1 2
SENSOR NMEA
43
With code R04
or higher
IS15 Power Cable
Figure 4-3 Three IS15 instruments supplied via IS15 Power Cable
Notes ! 1. RF300 is connected to no. 3 “Sensor” input on IS15 Rudder
only.
2. Maximum 3 instruments.
3. Only 12V supply when interconnected with other models of
IS15 instruments.

Installation
20221263A 19
Hdg (NMEA)
(To J3XX TX1+/TX1-)
RF300
PWR
ROBLINK
1
SENSORROBLINK
23
NMEA
4 2
ROBLINK
PWR
ROBLINK
1
NMEASENSOR
34
IS15 TRANSCEIVER
IS15 EXPANDER
IS15 POWER SUPPLY
Alternatively to
Autopilot
J3XX RF+/RF-
ROBLINK
PWR
ROBLINK
1 2
ROBLINK
IS15 RUDDER
SENSOR NMEA
3 4
PWR
ROBLINK
1 2
SENSOR NMEA
3 4
Figure 4-4 IS15 Rudder integrated in IS15 system
Note ! RF300 to be connected to IS15 Rudder only. Do not use IS15
Power Cable.

IS15 Rudder Manual
20 20221263A
Alternative 1: IS15 Rudder off when autopilot off
RF300
PWR
ROBLINK
1
SENSORROBLINK
2 3
NMEA
4
IS15 RUDDER
21 3 4
IS15 RUDDER
+
RF+
RF
TX+
TX
Vbat+
GND
POWER
PCB MAIN
PCB
SUPPLY
10,8-31,2
J3XX
Max. 2
IS15 RUDDER
ROBLINK
PWR
ROBLINK SENSOR NMEA
IS15 Power cable
Figure 4-5 Connection to “X”-series autopilots, alternative 1
Note ! Rudder instrument “Sensor” (3) input is connected to RF+/RF–
(in parallel with RF300) in the autopilot junction unit.
