Konica Minolta bizhub 28e User manual

Specication & Installation Guide
bizhub 28e

1
Specication & Installation Guide
bizhub 28e
bizhub 28e Specications
Type Electrographic Laser Printer
Resolution 600 x 600 dpi
Paper
Plain Paper: 20-24 lb.
Thick Stock: 20-43 lb.*
Duplexing: 20 to 28 lb.
Envelopes**, letterhead*, recycled paper, transparencies*, postcard.*
*Can only be fed through bypass tray.
** Can only be fed through bypass tray (1 envelope).
Paper Tray Sizes
BypassTray:(W)3.6"–8.5"to(L)5.5"–14.0", letter, legal, half-letter, A4, A5, A6, F4.
Tray 1: Letter, legal, half-letter, A4, A5, A6, F4.
Tray 2-4 (option): Letter, legal, half-letter, A4, A5, A6, F4.
Paper Tray Capacity
Bypass Tray: 100 sheets
Tray 1: 500 sheets
Tray 2 (option): 500 sheets
Tray 3 (option): 500 sheets
Tray 4 (option): 500 sheets
Paper Output Capacity 250 sheets (face down)
2-bin Tray: 100 sheets (optional)
Warm-up Time Approximately 12 seconds
Image Loss Width 0.12" from all edges
First Print Approximately 5 seconds
Print Speed 28 ppm
Power Requirements 120 V, 8.4 A
Power Consumption
Peak: 1000 W
Standby: 41 W
Sleep: 1.3 W
Dimensions (WxDxH) 20.5" x 20.2" x 20.0"
System Memory 512 MB
Weight 53 lbs.
Duty Cycle
Up to 50,000 maximum monthly print volume supported under vendor supplied service. Customers should consider multiple
machines if average approaches duty cycle on a continual basis.
Environmental Requirements
Temperature 50 to 89.6°F
Humidity 20 to 80% RH (at 86°F)
Noise while engine
under operation
Copying: 56.8 dB
Idle: 40.0 dB (average)

2
Specication & Installation Guide
bizhub 28e
Electrical Requirements
Line options Dedicated
Voltage 120 V/60 Hz

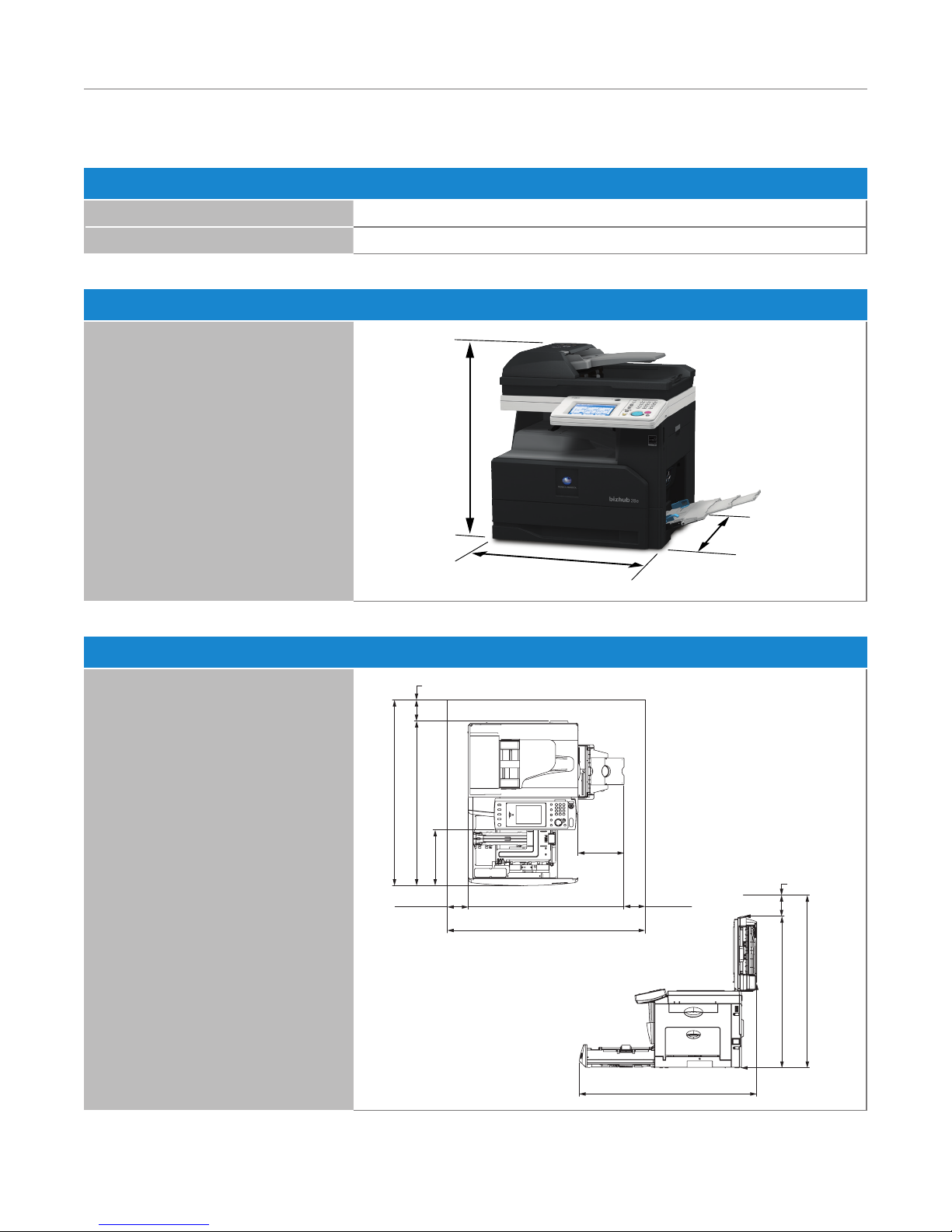

bizhub 28e Dimensions
Dimensions
20.0"
20.2"
20.5"
bizhub 28e Space Requirements
To ensure easy operation,
consumable replacement
and maintenance, adhere
to the recommended space
requirements detailed below.
7.5"
(191mm)
28.0" (711mm)
33.2" (843 mm)
10.4" (264 mm)
30.7" (780 mm)
4" (100 mm)
34.6" (879 mm)
31.0" (787 mm)
4" (100 mm)
34.9" (886 mm)
4" (100 mm)
4" (100 mm)
35.9" (911mm)
7.5"
(191mm)
28.0" (711mm)
33.2" (843 mm)
10.4" (264 mm)
30.7" (780 mm)
4" (100 mm)
34.6" (879 mm)
31.0" (787 mm)
4" (100 mm)
34.9" (886 mm)
4" (100 mm)4" (100 mm)
35.9" (911mm)

3
Specication & Installation Guide
bizhub 28e

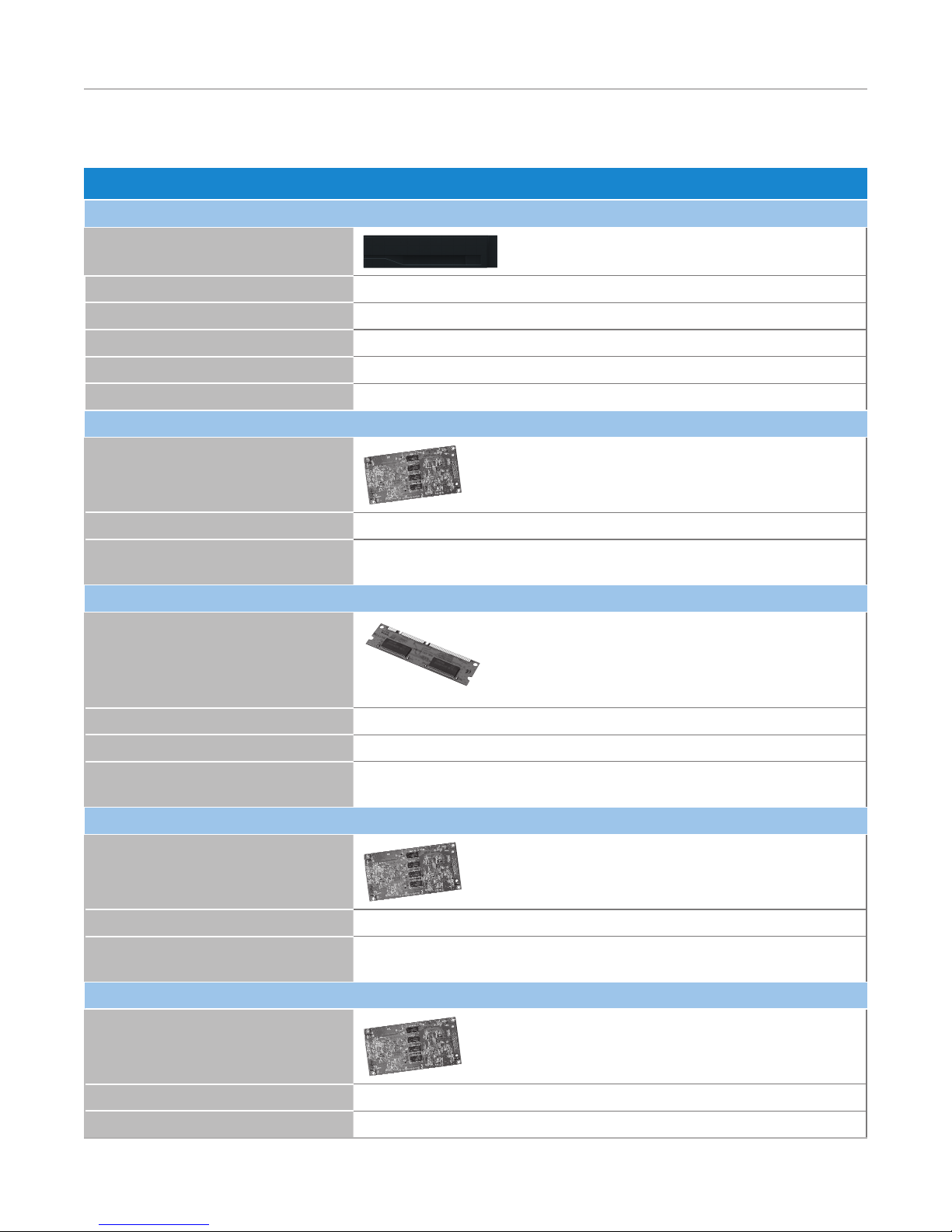

Component Considerations
PF-508 Paper Feed Cassette
Type 1 x 500-sheet cassette (Max. 3)
Support Paper Weight 20–24 lb. bond
Support Paper Size 5.5" x 8.5" to 8.5" x 14"
Paper Capacity 500 Sheets
Power Requirements Supplied from main body
PS-505 PostScript 3 Enabler
Type Printing Option
Functions Enables PS3 compatibility with Mac operating environments or specialty print
applications. Required for PDF Direct Printing.
EM-905 PostScript 3 Memory Upgrade Kit
Type Printing Option
Size 1 GB
Function Increases PostScript printing performance for specialty printing applications.
Recommended if using the PDF Direct Printing feature.
BC-904 Barcode Printing
Type Printing Option
Functions Enables the printing of barcodes including UPC/EAN, Interleave 25, Code 39,
Code 126, PostNet and more.
PS-506 PostScript 3/Barcode Printing/OCR Enabler
Type Printing Option
Functions Allows for Barcode, OCR Font and PostScript Printing.
continued

4
Specication & Installation Guide
bizhub 28e
Component Considerations
SX-4600WAN Wireless Network Adapter
Type Miscellaneous Option
Functions Provides wireless connectivity.
MC-901 Mechanical Page Counter
Type Mechanical Counter
Functions Quickly access machine print counts using this hard counter.
Panel Overlay Kit (Spanish)
Type Miscellaneous Option
Functions Panel overlay for Spanish language users. Includes Spanish drivers.
Panel Overlay Kit (French)
Type Miscellaneous Option
Functions Panel overlay for French language users. Includes French drivers.
SCD-26L Large Paper Cabinet
Type Paper Cabinet
Functions Storage of accessories, supplies, paper, etc.
Dimensions (WxDxH) 20.5" x 18.0" x 19.5" Must add one optional paper cassette (PF-508) to achieve
operation height.
continued

5
Specication & Installation Guide
bizhub 28e

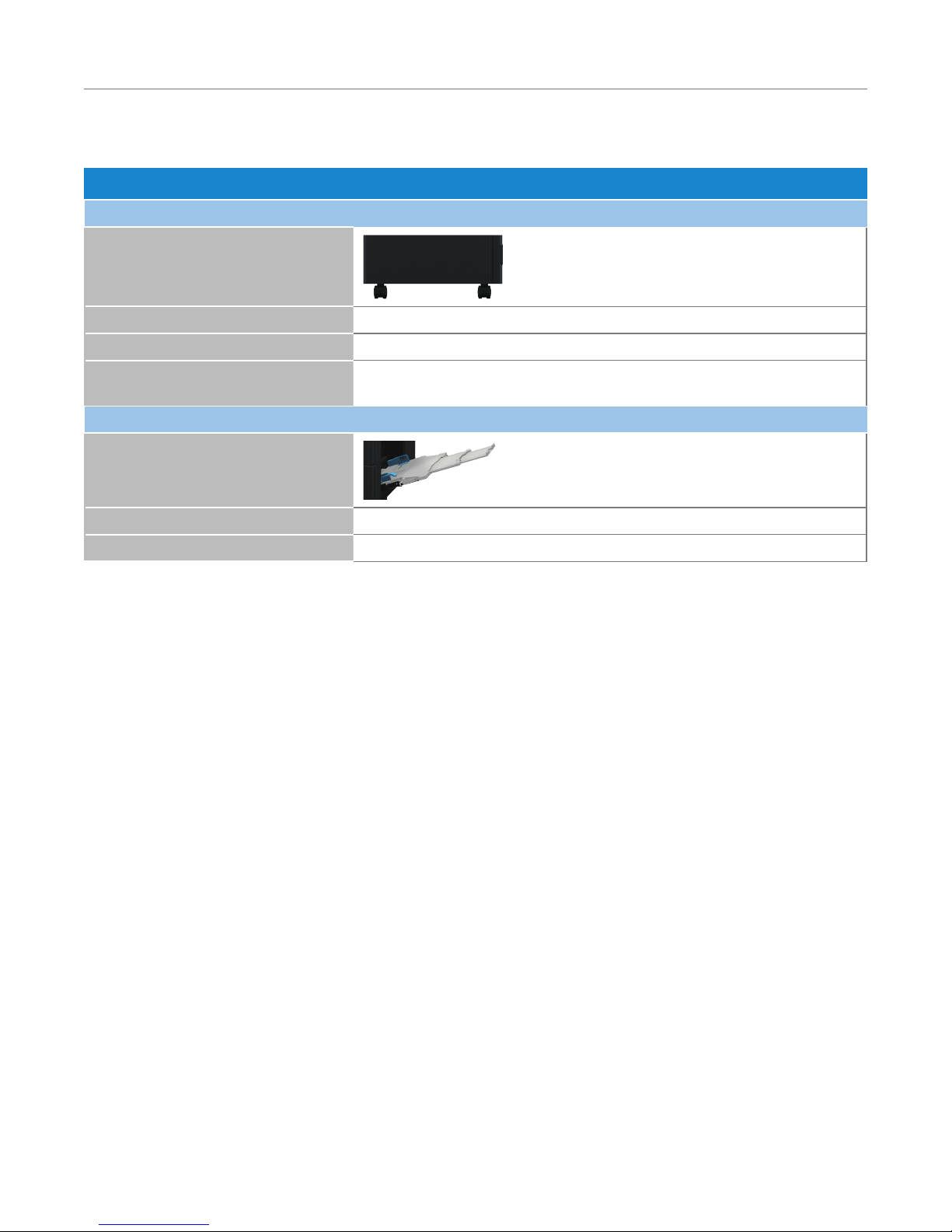

Component Considerations
SCD-26S Small Paper Cabinet
Type Paper Cabinet
Functions Storage of accessories, supplies, paper, etc.
Dimensions (WxDxH) 20.5" x 18.0" x 10.0"
Must add three optional paper cassettes(PF-508) to achieve operation height.
JS-604 External Job Separator
Type Output Tray
Functions Additional output tray. Separation for fax output, etc.

6
Specication & Installation Guide
bizhub 28e
Standard Paper Tray Support
Main Unit Standard Tray and Bypass Tray
Component
Capacity Size Weight
Standard Tray 500-sheets Letter, Legal, Half-letter 20-28 lb. bond
Bypass Tray 100-sheets Postcard, Letter, Legal, Half-letter,
Envelopes, Cover stock 20-43 lb. bond
Copy Specications
Copying Process Electrostatic LED Copy, Mono Component
Toner System Crushed Toner
Copy Speed (Letter) Up to 28 ppm
Autoduplex Speed (Letter) Up to 10 ppm
1st Copy Out Time Approx. 5 sec.
Warm-Up Time Approx. 12 sec.*
Copy Resolution 600 x 600 dpi
Multi Copy 1-99
Gradation 256 Gradations
Original Size Up to 8.5" x 14"
Magnication 25-400% in 1% steps
Copy Functions Duplex Copy, Electronic Sorting, Rotation Copy, 2in1, 4in1, ID Card Copy,
Custom Size Settings
* Warm up time may vary, depending on the operating environment.
Print Specications (Standard)
Type Built-in Print System
CPU 364 MHz
Memory 512 MB
Print Speed 28 ppm Letter
Print Resolution 600 x 600 dpi
Compatible Computers IBM PC or compatible and Macintosh (Power PC or Intel Processor)
PDL GDI, PCL 5e/XL (Std),PostScript 3 (Opt.), Barcode (Opt.), PDF Direct (Opt.)
Interface 10/100 Base-TEthernet,Hi-Speed USB 2.0, Hi-Speed USB 2.0 Host Port
Ethernet Protocol TCP/IP (IPv4/IPv6), SMB, LPD, IPP, SNMP, HTTP, HTTPS, POP3, LDAP, SSL, LPR
Supported OS
Windows XP (32/64), Vista (32/64) Windows 7 (32/64), Windows 8 (32/64),
Windows 10, Windows Server 2003/2003 x64/2008/2008 x64; Unix, Citrix, SAP,
AS/400; Mac OS 10.2-10.8*, 11.0;Linux (Red Hat, Fedora, SUSE)*
Font
PCL: 80 fonts, Cyrillic, 15 fonts
Barcode (option): 32 fonts (PCL 5e only)
PS3 (option): 136 fonts
* PS3 Option required

7
Specication & Installation Guide
bizhub 28e
Print Drivers
Windows Windows XP (32/64), Vista (32/64) Windows 7 (32/64), Windows 8 (32/64),
Window 10, Windows Server 2003/ 2003 (64)/2008/2008 (64)/2008 R2/ 2012 (64)
Macintosh Mac OS 10.2–10.8*, 11.0
Other Unix, Citrix, SAP, AS/400;Linux (Red Hat, Fedora, SUSE)*
*PS3 Option required.
Scanning Functions
Color/Monochrome Yes/Yes
Scanning Size Up to 8.5" x 14"
Duplex Scanning Yes
TWAIN Compliant Windows XP (32/64), Vista (32/64) Windows 7 (32/64), Windows 8 (32/64),
Window 10, Windows Server 2003/2003 (64)/2008/2008 (64)/2008 R2/2012 (64)
WIA Compliant Yes: Windows XP (32/64), Vista (32/64), 7 (32/64)
Color Depth 24-bit
Scanning Resolution Up to 600 x 600 dpi
Protocol TCP/IP(IPv4/IPv6),SMB, LPD, IPP, SNMP, HTTP, HTTPS, POP3, LDAP, SSL, LPR
Output Format PDF, TIFF, JPEG, Secure PDF
Main Function Scan-to-Email, I-fax, Scan-to-FTP, Scan-to-SMB, Scan-to-USB, TWAIN,
Scan-to-Evernote, Box, Dropbox, Google Drive, PaperCut MF Integration
Gradation 256 levels
Driver Network, TWAIN Driver
Address Setting supports LDAP
Network Functions
Sending Scanned Data
in an Email Message
Scanned data can be sent to a specied Email address. The destination is specied from
the control panel of this machine, and the scanned data is sent as an Email attachment.
Sending Scanned Data as Files (FTP)
Scanned data is uploaded to a specied FTP server. The FTP server address,
login password, and other information are entered from the MFP control panel
or message board.
Sending Scanned Data
to a Computer on the Network (SMB)
Scanned data can be sent to a shared folder on a specied computer. The name
of the destination computer, login password, and other information are entered
from Message Board.
Sending Scanned Data
to a USB Thumb Drive
Scanned data can be sent to a USB thumb drive inserted into the USB Host Port
on the front of the machine.
Using the bizhub 28e
solely as a Scanner
This machine can be used as a scanner. The scanner can be controlled from a PC
connected to the network, and the scanned image can be loaded into an application
on the PC to be processed.
Sending Scanned Data to Cloud Apps Scan directly to Evernote, box apps, Google Drive and Dropbox to allow document access
from a Smartphone, PC or tablet.

8
Specication & Installation Guide
bizhub 28e
Fax Specications
Communication Super G3
Compatible Lines Public Switched Telephone Network, PBX
Duplex Fax (Receive) Yes
Compression MH/MR/MMR/JBIG
Modem Speed 33.6 Kbps
Grayscale/Halftones 256 levels
Transmit Paper Size Up to 8.5” x 14”
Receive Paper Size Up to 8.5” x 14”
Polling Types Standard, Secure
Resolution Up to 400 dpi
Speed Dial 1000
Groups Up to 100
Transmission Speed Between 2 and 3 seconds (33600 bps)
Special Fax
Features
VoIP Support
Delayed Transmission
Custom Cover Sheet Insertion
Batch Transmission
PC-based Fax
Fax Forwarding to Email
Device Management and User Tools
Message Board
Scan-to-Print Monitor

9
Specication & Installation Guide
bizhub 28e
Paper Type Specications
Normal
(Plain Paper)
Normal paper is for general use. Normal
paper is usually not a recycled paper.
Normal paper is paper weighing
between 20 to 24 lb.
Thick Paper Thick paper is paper weighing between
20 to 43 lb. It can be fed via the bypass tray.
Envelopes Envelopes (up to 1) can be fed through
the bypass tray.
Recommended Paper Stocks
Classication Brand of Paper
Normal (Plain Paper) Xerox #4200
Transparency 3M PP2500
Paper Considerations
Paper Size Conversion Chart
Paper Letter Legal
Measurement 8.5" x 11" 8.5" x 14"
Paper Weight Conversion Chart
Caliper
gsm Bond Offset Cover Tag Index Point Bristol inches mm
60.20 16 40 22 37 33 3.2 27.4 0.0032 0.081
67.72 18 45 24 41 37 3.6 30.9 0.0036 0.092
75.20 20 50 28 46 42 3.8 34.3 0.0038 0.097
90.30 24 60 33 56 50 4.8 41.2 0.0048 0.120
105.35 28 70 39 64 58 5.8 48.1 0.0058 0.147
109.11 29 73 40 62 60 6.0 49.8 0.0060 0.152
116.63 31 81 45 73 66 6.1 53.2 0.0061 0.155
131.68 35 90 48 80 74 6.2 60.1 0.0062 0.157
135.45 36 90 50 82 75 6.8 61.8 0.0068 0.173
146.73 39 100 54 90 81 7.2 67.0 0.0072 0.183
150.50 40 100 56 93 83 7.3 68.7 0.0073 0.185
161.78 43 110 60 100 90 7.4 73.8 0.0074 0.188
165.55 44 110 61 02 92 7.6 75.5 0.0076 0.193
176.83 47 120 65 108 97 8.0 80.7 0.0078 0.198
199.41 53 135 74 122 110 9.0 91.0 0.0085 0.216

10
Specication & Installation Guide
bizhub 28e
Step 1: Base Unit

bizhub 28e Printer/Copier/Scanner/Fax
Includes GDI, PCL 5e/XL, 5.8" Touch Screen Panel,
Automatic Duplex Printing, Color Scanning,
512 MB System Memory, 80-sheet Duplexing Automatic
Document Feeder, Fast Ethernet, Hi-Speed USB 2.0
(supports local printing), 100-sheet Bypass Tray,
500-sheet Paper Tray, 52.3K Drum Unit (includes toner
for approx. 2K prints).
Step 2: Paper Handling Option

PF‑508 Paper Feed Cassette (500-sheets, maximum 3)

JS‑604 External Job Separator

SCD‑26L Large Copy Desk

SCD‑26S Small Copy Desk
Step 3: Printing Options
(Select One — Only one of these options can be installed)

PS‑505 PostScript 3 Enabler

BC‑904 Barcode Printing

PS‑506 PostScript 3/Barcode Printing/OCR Printing
Step 4: Options

EM‑905 PostScript Memory Upgrade (1 GB)

MC‑901 Mechanical Page Counter

Panel Overlay Kit (Spanish or French)

SP‑504 Fax Stamp Kit

SX‑4600WAN Wireless LAN Adapter
System Memory
(512 MB)
USB Host Port
External
Job Separator
Face‑down
Output Tray
(250-sheets)
Duplexing
Automatic
Document Feeder
Standard 500‑sheet
Paper Tray
(Letter/Legal)
500‑sheet
Paper Feed Cassette
(Letter/Legal)
Control Panel
5.8" Touch
Screen Panel
Large
Copy Desk
100‑sheet
Bypass Tray
How to Build a bizhub 28e System (from start to nish)

11
Specication & Installation Guide
bizhub 28e
Accessory Options for bizhub 28e Printer/Copier/Scanner/Fax
DESCRIPTION ITEM NO. NOTES
Base Unit
bizhub 28e
Printer/Copier/Scanner/Fax DD1362
IncludesGDI,PCL 5e/XL,5.8"Touch Screen Panel, Automatic Duplex Printing, Color
Scanning, 512 MB System Memory, 80-sheet Duplexing Automatic Document Feeder,
Fast Ethernet, Hi-Speed USB 2.0 (supports local printing), 100-sheet Bypass Tray,
500-sheet Paper Tray, 52.3K Drum Unit (includes toner for approx.2K prints).
Paper Handling Options
PF-508 Paper Feed Cassette
(500-sheets) DD1667
Lower feeder unit adds 500-sheets of paper capacity (legal, letter). Up to three cassettes
can be added. Total paper capacity:Up to 2,100.
SCD-26L Larger Paper Cabinet 56540
Adds storage and mobility.
SCD-26S Small Paper Cabinet 56530
Adds storage and mobility.
JS-604 External Job Separator DD1668
Additional output tray. Separation for fax output, etc.
Printing Options
PS-505 PostScript 3 Enabler DD1631
Enables compatibility with Mac operating environments, specialty print applications and
printing from Linux environments (RedHat 3-5, SUSE 10.1-10.3/11, Fedora 4-10). Required
for PDF Direct Printing. Cannot be installed with DD1632 or DD1633.
BC-904 Barcode Printing DD1632
Enables barcode printing including UPC/EAN, Interleave 25, Code 39, Code 126, PostNet
and more. Cannot be installed with DD1631 or DD1633.
PS-506 PostScript 3/
Barcode Printing/OCR Enabler DD1633
Enables compatibility with Mac operating environments, specialty print applications
and printing from Linux environments (RedHat 3-5, SUSE 10.1-10.3/11, Fedora 4-10).
Required for PDF Direct Printing. Enables barcode printing including UPC/EAN,
Interleave 25, Code 39, Code 126, PostNet and more. Cannot be installed with DD1631
or DD1632.
Miscellaneous Options
EM-905 PostScript
Memory Upgrade (1GB) DD1634
Increases PostScript printing performance for specialty printing applications.
Recommended if using the PDF Direct printing functions.
MC-901Mechanical
Page Counter 7640015039
Hard counter for quick access to machine print counts.
Panel Overlay Kit (French) DD25EF
Panel overlay for French language users. Includes French drivers.
Panel Overlay Kit (Spanish) DD25ES
Panel overlay for Spanish language users. Includes Spanish drivers.
SP-504 Fax Stamp Kit DD1630
Installed in RADF. Stamps fax originals.
SX-4600WAN
Wireless Network Adapter SX-4600WAN
Provides wireless connectivity.
Consumables*
CONSUMABLE ITEM NO. YIELD
TN-219 Black Toner DD1A002G3X 20K
DR-212 Black Drum Cartridge DD1A001F3X 52.3K
*Based on 6% page coverage.

Partnership.
Konica Minolta can help give shape to your ideas and partner with you to achieve your corporate
objectives. Contact us to realize opportunities in:
Information Management
Enterprise Content Management (ECM)
Document Management
Automated Workow Solutions
Business Process Automation
Security and Compliance
Mobility
eDiscovery Services
IT Services
Application Services
Cloud Services
IT Security
Managed IT Services
IT Consulting & Projects
Technology
Ofce Multifunction Business Solutions
Commercial and Production Printers
3D Printers
Wide Format Printers
Laptops, Desktops and Computer Hardware
Servers and Networking Equipment
Managed Print Services (MPS)
Managed Enterprise Services
For complete information on Konica Minolta products and solutions,
please visit: CountOnKonicaMinolta.com
©2017 KONICA MINOLTA BUSINESS SOLUTIONS U.S.A., INC. All rights reserved. Reproduction in whole or in part without written permission
is prohibited. KONICA MINOLTA, the KONICA MINOLTA logo, bizhub and Giving Shape to Ideas are registered trademarks or trademarks of KONICA
MINOLTA, INC. All other product and brand names are trademarks or registered trademarks of their respective companies or organizations.
All features and functions described here may not be available on some products. Design & specications are subject to change without notice.
KONICA MINOLTA BUSINESS SOLUTIONS U.S.A., INC.
100 Williams Drive, Ramsey, New Jersey 07446
CountOnKonicaMinolta.com
Item #: bizhub28eSIG
12/22/2017
