Konica Minolta bizhub 43 User manual

MULTIFUNCTION
bizhub 43
TECHNICAL DOCUMENT
253 363 295 - B
KONICA MINOLTA

3000 359 745 - 02 - 2 -

- 3 - 3000 359 746 - 02
DESCRIPTIVE NOTICE 3000 329 392 - 03
INSTALLATION GUIDE 3000 361 032 - 01
MAINTENANCE GUIDE 3000 329 394 - 03
ILLUSTRATED PART LIST 3000 361 031 - 01
PERSONNALISATION HFFV2 BIZHUB 43 3000 348 280 - 02
PRINTER TECHNICAL DOCUMENT 3000 329 397 - 01
REFERENCE

3000 359 746 - 02 - 4 -
DOCUMENT EVOLUTION
Date Indice Action Author Requested by
20/09/10 A Initial creation C.C. A. Cruchant
18/10/10 B Evolution C.C. A. Cruchant

- 1 - DN 3000329392 - 03
CONTENTS
1 GENERAL INFORMATION 2
1.1 PRESENTATION 2
1.2 GENERAL DESCRIPTION 3
2 CHARACTERISTICS 4
2.1 PHYSICAL CHARACTERISTICS 4
2.2 GENERAL TECHNICAL CHARACTERISTICS 4
3 FUNCTIONING 10
3.1 MAINBOARD 11
3.2 HFFV2 LCD PANEL TOP EQUIPPED SUB ASSEMBLY 21
3.3 HFFV2 KEYPAD SUB ASSEMBLY 24
3.3.1 Keypad board 25
3.3.2 Keypad Mezzanine board 27
4 POWER SUPPLY 28
5 CRYSTALS 29
6RESET 29
7 STANDBY MODE 30
DESCRIPTION

DN 3000329392 - 03 - 2 -
1. GENERAL INFORMATION
1.1 PRESENTATION
1 Sheet feeder scanner (ADF) 13 Paper tray 2
2 Adjustable paper guide 14 Toner cartridge access button
3 Automatic document feeder 15 Chip card reader
4 Original document output tray 16 Touch screen
5 Paper stop 17 Access handle for the flatbed scanner
6 Finger print reader 18 Power cord connection
7 Numerical keypad 19 LINE 1 socket- phone cord Connection
8 Master USB connector (USB key) 20 LINE 2 socket- phone cord Connection
(according to model)
9 - Printer output tray
- Access door to the toner cartridges 21 LAN connector
10 Paper stop 22 Slave USB connector (for PC)
11 Main paper tray 23 Duplex module
12 On/Off switch

- 3 - DN 3000329392 - 03
1.2 GENERAL DESCRIPTION
These terminals are part of a range of multifunction office equipment.
The product consist of a colour scanner with a 600 dpi resolution and a black and white printer with
1200 dpi resolution.
The documents to be processed are read by means of a sheet feeder scanner using CCD sensor
technology via the ADF (Automatic Document Feeder) or via the exposition window for bulky
documents.
The control panel comprises:
• a 7-inch colour graphic display equipped with a touch screen that allows users to view the
command or alert messages and control the terminal,
• a row of terminal function and command keys.
The keyboard part comprises:
• a numerical keyboard,
• a finger print reader that allows user authentication for restricted functions or secured printing (a
row of LEDs that visually invite users to log in, with the finger print).
• a USB connector.
The chip card reader allow to validate consumables and to back up of user functions (directory content
and user settings)

DN 3000329392 - 03 - 4 -
2. CHARACTERISTICS
2.1 PHYSICAL CHARACTERISTICS
2.2 GENERAL TECHNICAL CHARACTERISTICS
General
Dimensions (width x depth x height in mm., without
trays) 505x571x684
Weight (kg) 36
Consumables
Reference Paper (RP)
Type Technostar
A4 - 80 g/m2
Reference Document (RD)
Type ISO/IEC19752
Resolution Normal mode (200 x 100 DPI)
ADF Scanner
Type CCD Colour
Colour analysis Yes
Resolution in dpi 600
Environment
• Operating :
- The machine should not be exposed to
direct sunlight.
- Power supply: 220-240 V - 50/60 Hz - 6 A.
- Power consumption, standby 25 W.
- Power consumption, printing 800 W
(1300 W max).
- Temperature: 10 °C to 32 °C.
- Temperature changes: ≤10 °C/hour.
- Humidity: 15 % to 85 % (RH non-con
densing).
- Humidity changes: ≤20 %/hour.
•Storage:
Multifunction :
- Temperature: -20 °C to 40 °C.
- Temperature changes: ≤10 °C/hour.
Consumables (toner cartridge) :
- Normal temperature: 0 to 40 °C.
- Humidity: 30 % to 85 % (RH non-con
densing).
Maximum storage time: 18 months

- 5 - DN 3000329392 - 03
Grey scale 16 bits
Colour scale 48 bits (3 x 16)/pixel
Paper size
• Maximum width Letter
• Maximum length A4
Paper weight 60 to 105 g/m2
Capacity of document loading tray 70 sheets
Acquisition time for black and white document
• 600 x 100 DPI 43 ppm
• 600 x 200 DPI 43 ppm
• 600 x 300 DPI 24 ppm
Acquisition time for color document
• 600 x 100 DPI 39 ppm
• 600 x 200 DPI 22,4 ppm
• 600 x 300 DPI 11,8 ppm
Effective scanner width in mm 206
Zoom in steps of 1% 25 % to 400 %
Contrast adjustment Yes
Brightness adjustment Yes
Margin adjustment (left/right) Yes
Duplex scan Yes
Flatbed Scanner
Type CCD Colour
Colour analysis Yes
Black & White resolution in dpi 600 x 600
Colour resolution in dpi 600 x 600
Grey scale 16 bits
Colour scale 48 bits (3 x 16)/pixel
Window size 220 mm x 300 mm
Paper size
• Maximum width Letter
• Maximum length A4
Zoom in steps of 1% 25 % to 400 %
Contrast adjustment Yes
Brightness adjustment Yes
Printer
Type Laser Black&White
Resolution in Dpi 1200
B&W printing speed 43 PPM (A4) / 45 PPM (Letter)
Paper size in mm A4 (210 x 297)
Capacity of the first input tray (in RP) 150 sheets
Capacity of the second input tray (in RP) 550 sheets
Capacity of the output tray (in RP) 500 sheets
First page printed after 7,9 s

DN 3000329392 - 03 - 6 -
Printing area 4 mm margins
A4 : 208 x 289 mm
Letter : 208 x 271 mm
Duplex unit Yes
PaperSave in Printing Yes
Optional paper tray (2 max) Option
Consumables management By smart card
Fonts list Can be printed by menu
"Report", "Fonts".
Fax-Modem
Type PSTN-Super G3
Maximum speed in bps (V34Fax) 33 600
V34Fax capabilities in bps 33 600 to 2 400
• Incrementation in bps 2 400
V17 capacity in bps 14 400, 12 000, 9 600, 7 200
V29 Fax capacity in bps 9 600, 7 200
V27ter capacity in bpsTypeType 4 800, 2 400
Automatic fall back Yes
Data-Modem
Type PSTN-V34
Maximum speed in bps (V34) 33 600
V90 capabilities No
• V90 increments No
V34plus capabilities in bps 33 600 to 2 400
• V34plus increments in bps 2 400
V32bis capabilities in bps 14 400, 12 000, 9 600, 7 200
V32 capabilities in bps 9 600, 4 800
V22bis capabilities in bps 2 400
V22 capabilities in bps 1 200, 600
Automatic fall back Yes
Fax communication
Type PSTN, ITU T30, G3
Max speed 33 600bps (V34Fax)
Coding scheme MH, MR, MMR,
JBIG(1st line only), JPEG (LAB,
4:1:1)
ECM (Error Correction Mode) T30 ECM
Sending type Memory
Delayed sending Yes
B&W
Transmission speed (for RD) 2.5s
Sending header adding Yes (programmable)
Reception header adding Yes (programmable)
Full duplex scan Yes
Transmission speed adjustment Yes
Reception speed adjustment Yes
Transmission report with reduced 1st page Yes (programmable)

- 7 - DN 3000329392 - 03
Only one report for broadcast-list Yes (programmable)
ECO PSTN sending No
ECO period 0
On-hook dialling No
Reception without paper Yes (programmable)
Multiple copying of received Fax Yes (1 to 99 copies)
Deposit (for subscriber's polling) No
Multiple deposit (for several subscribers) No
Polling No
Fax TAD No
Confidential TAD reception No
Remote TAD polling No
Confidential Mailbox No
Confidentiality via password No
Deposit in a mailbox No
Sending into a mailbox No
Reception into a mailbox No
Mailbox reception report No
Polling a mailbox No
Remote broadcast demand No
Remote broadcast performs No
Remote broadcast reception report with reduced 1st page No
Echo Protection Yes (programmable)
Adding echo Protector Tone in V29 Yes (programmable)
Rings number before answering Programmable (1 to 5)
Dialling type DTMF
Fax forwarding Yes
Fax Memory forwarding (once) No
Maximum received page width 216 mm
Maximum received page length 1 m
Internet access
Type PSTN-V34
Maximum speed in bps (V34Fax) 33 600
Modem error correction mode V42, MNP4
Data compression V42bis, MNP5
Modem transmission rate adjustment Yes
ISP subcriptions 1
ISP access protocol PPP
• ISP access security PAP & CHAP-MD5C
Internet protocol TCP/IP
DNS Queries Yes (2 DNS servers access)
LAN Access
Type Ethernet 10/100 base T
Plug and Play configuration DHCP & BOOTP
Internet protocol TCP/IP
DNS 2 DNS servers access

DN 3000329392 - 03 - 8 -
WINS 2 servers access
NetBIOS compatibility yes (2 names)
SNTP compatibility Yes
Embedded Web Server Yes
Network scanner
Scan To E-Mail Yes (SMTP)
Scan To FTP Yes (FTP)
Scan To Disk Yes (SMB)
B&W Format PDF, TIFF, secured PDF (v1.1)
Colour Format PDF, JPEG, secured PDF (v1.1)
E-Mail and fax communication
Compatibility ITU T37
Mail Protocol : sending SMTP
Mail Protocol : polling POP3
Mail format MIME
• Charset US-ASCII
• Encoding 7 bits, base 64, quoted-printable
Keyboard and Screen
Keyboard 64 QWERTY 62 or 64 keys
Screen Colour graphics
7 lines of 20 characters
8 icons
LED two-colour green/orange
Address List
Capacity 500
Type Name/PSTN and
SMS number/E-mail
Transmission list 32
Transmission list capacity 499
Alphabetical typing Yes
Associated key No
Directory import/export Email (CSV format)
Directory server access yes (LDAP V3)
Mass-storage USB
KeyToPrint (stand-alone) JPEG (single, index), PDF (1.4),
Tiff, Txt
KeyToDisplay JPEG
ScanToKey B&W/Colour,
Tiff, JPEG, PDF
Multicopy 1-99
Copier
Copie Modes Fast/Text/Photo/Mixt
ADF
Scan Resolution (HxV) dpi 600x300 / 600x600 / 600x300 /
600x600
Output resolution (HxV) dpi 300x300 / 600x600 / 600x600 /
600x600

- 9 - DN 3000329392 - 03
Speed (multicopy) cpm 35 / 24 / 35 / 24 cpm
First copy- time from multipages 6 / 16/ 15 / 16 s
FB
Scan Resolution (HxV) dpi 600x600 / 600x600 / 600x600 /
600x600
Output resolution (HxV) dpi 300x300 / 600x600 / 600x600 /
600x600
First copy- time (s) 6 / 18 / 18 / 18 s
Zoom 25%-400%
Automatic Duplex Mode (Recto/verso) Yes
Manual Duplex Mode (Recto/verso) No
Multicopy 1-99

DN 3000329392 - 03 - 10 -
3. FUNCTIONING
The equipment is a Group 3 multifunction fax functioning in accordance with the UIT-T T30
recommendation.
It consists of a black and white laser printer, a CCD (Charge Coupled Device) colour ADF scanner, a
colour flatbed scanner, a front panel with a graphic colour screen equipped with a touchscreen and
command keys (refer to the User Guide for a more complete description of the front panels).
It allows the following operations to be carried out:
• B&W Fax transmission and reception on the switched telephone network using the V34
protocol (max. 33.6 kbits/s) and the V17 protocol (max. 14.4 kbits/s),
• Internet e-mail transmission on the switched telephone network using the V34 protocol,
• B&W photocopying,
• Local printer via a USB interface PC connection,
• Network printer and scanner, via a local area network (LAN),
• E-mail transmission and reception on the local area network,
• Securised printer with data storage in hard disk,
• Pictures, pdf files printing from USB key. Direct scan on USB key.
Remark(s): The machine does not have any facilities for managing an external telephone answering
machine connected on the same line (with a stackable plug). It is preferable to use a
dedicated phone line for multi-function use.

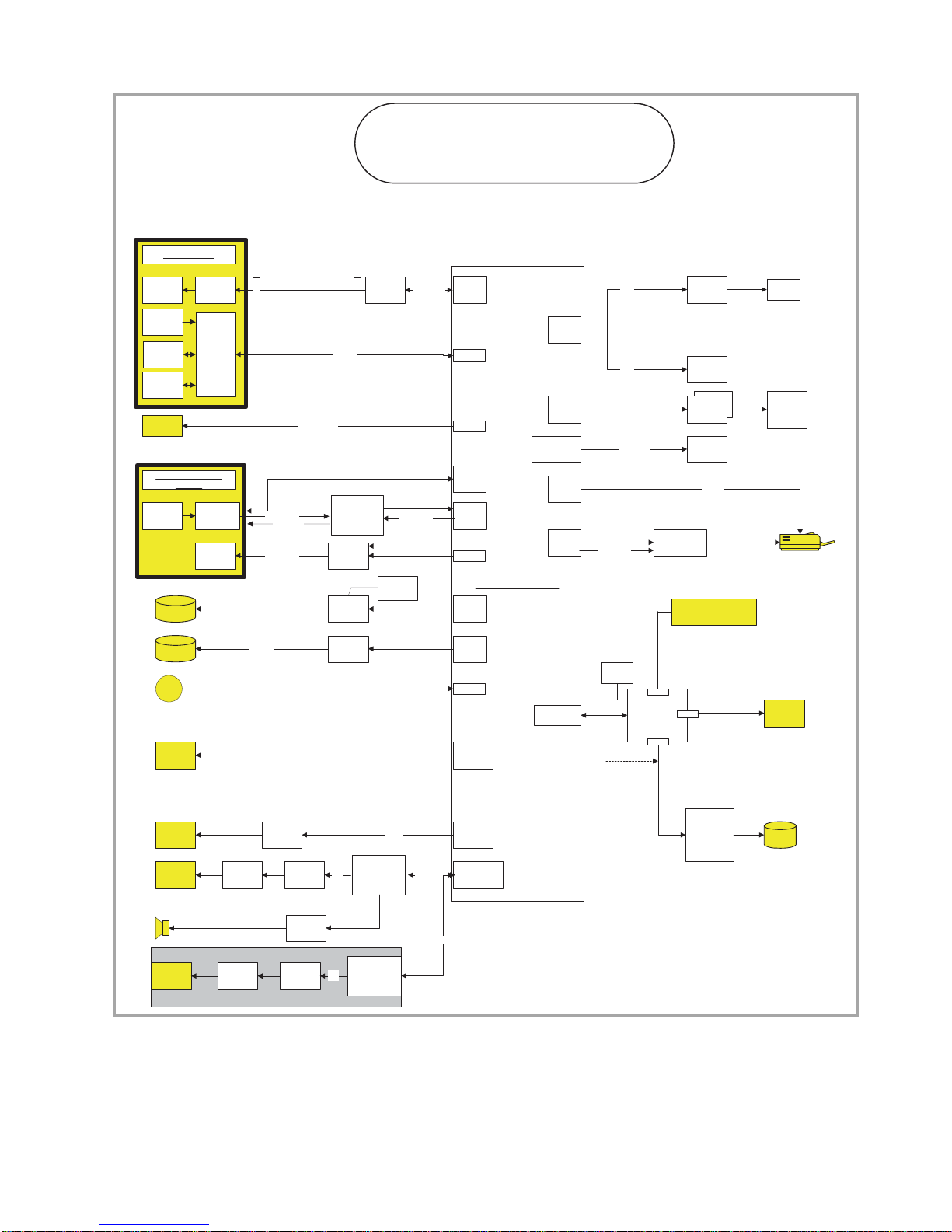

The machine’s electronics is made up of:
- CPU board with hard disk,
- front panel board,
- keyboard ,
- mezzanine board with finger print sensor,
- networking board in the scanner module,
- chip card reader board,
- two USB board.
For the printer part, refer to the printer section. The power supply is provided by a power supply board
that is located in the printer part.
Remark(s): (for technicians).The LAN interface conform to the SELV (very low safety voltage)
safety level.
The telephone line input conforms to the TRT3 safety level.
Before performing any intervention on the CPU board, disconnect the phone lead.
Before performing any intervention on the CPU electronic circuit board or the mezzanine board, it is
also preferable to:

- 11 - DN 3000329392 - 03
• Set the main switches to the OFF position,
• Disconnect all external interconnect leads (LAN, PTSN, USB),
• Disconnect the mains lead.
3.1 MAINBOARD
The CPU board is based on the ZORAN 4230 circuit which performs in particular the function of
microprocessor.
The executable code is stored in the flash memory Z1101.
This flash memory is divided in two zones: a zone reserved for the storage of the code and a zone
reserved for the storage of the documents.
The code is loaded from this flash memory into DDR2-SDRAM, and the microprocessor executes its
instructions from the DDR2-SDRAM.
Before printing, the documents to be printed are stored as bitmaps in DDR2-SDRAM.
The DDR2-SDRAM is also used as the working memory for the ZORAN 4230.

DN 3000329392 - 03 - 12 -
Electronic architecture diagram :
Main processor
DDR2
SDRAM
DDRII bus
System bus Flash
(Main Reset)
Motors
Drivers
L6219
USB
Device
PC HS
AFE
MAC
Battery+
Quartz
RTC
ETH
Ethernet
PHY
GPIO
ADF motor
LVDS output
HS USB
Host
HDD
SATA
USB2.0-SATA
Bridge
Oxu931S
(quartz 25Mhz,
Ext_Reset)
USB2.0-Hub
Cy7C65620B
(quartz 24Mhz,
Ext_reset)
"CC" UART
7814
system bus
(8 bits data)
SL
UART
AFE 3-
channels
LM98714
L
V
D
S
CCFL
inverter
CCD
TOSHIBA
TCD2914BFG
Motors
Drivers
L6258
PRIMAX B3 Digital
2 CCFL
Line
Interface
ADF
motor
FB
motor
FB motor
UART
DDR IF
PRN IF
system bus
(8 bits data)
SPI
Eeprom
(on holder)
SPI2
DDR2
SDRAM
DDR2
SDRAM
module
SPI2
system
bus
Scanner
IF
GPIO
Scanner
IF
Scanner
IF
RJ45
(with
transformer)
RJ11
CCFL
PSU
CCFL-Power
(18V/24V)
GPIO
ELECTRONIC SYNOPTIC
HFFv2
Port1
Port2
sensor
Home / STSC / Cover / PSF sensors
GPIO
System bus
HP driver
Motor DC/DC
supply (36v)
LVDS clock Power-down
E2prom
(25LC080)
Tranceiver
Power-down
LVDS receiver
(National semi.)
DS90CR218A
DS90CV011A
24V
Printer
Modem Data
Pump
DP3V34
LCD Ctrl
System bus
L
V
D
S
Chip Card
SPI
MFP Back
MFP Back
MFP Back
AFE SL
Line
Interface
RJ11 Modem Data
Pump
DP3V34
System bus
2nd modem line
WIFI module (option)
Jigen 45
LCD-TFT
Control
Panel-
Keypad
Timing
generator
Touch
screen
HFx Keyboard
PIC
Finger
print RX/TX
L
V
D
S
USB Key On
keyboard
Port3

- 13 - DN 3000329392 - 03
Architecture module :

DN 3000329392 - 03 - 14 -
Diagram of the Connector and Sensor Locations :
List of connectors :
Connector Part
number Number of
points
Type Position
Smart card P1202 6 Male Straight
Loudspeaker P1301 2 Male Straight
PSTN P1420 4 External type, RJ11
Extension memory P2100 144 Male Right angled connector for
plug in board
Front panel P3270 20 Male Straight
LAN P4100 8 External type, RJ45
USB WIFI P4302 Male Straight
USB Front panel P4340 5 Male Straight
SATA Signal P4400 7 Male Straight SATA connector
SATA Power P4401 4 Male Straight
ADF Motor & sensor P5120 20 Male Straight
FB Motor P5200 6 Male Straight
CCD P5300 28 Male Straight
Power supply P7103 5 Male Straight
Power supply P7102 2 Male Straight
Mezz modem P1300 26 Female Straight
Engine Mechanical P6100 26 Female Straight
MAINBOARD UC
PC
P4400
RJ45
RJ11
P4401 P3270
P4340
P5300 P5120P5200
P1202
P1301
P6100
P7102
P4302
Extension
memory board
(OPTION)
P4100
P7103
P1420
USB Device
P2100
Mezzanine
modem
P1300
Mezz
modem
ADF
motor
&
sensor
WIFI
P4000
SATA
Front panel USB
Smart card cable
Front panel cable
CCD
cable
Power
supply
cable FB
motor
Modem
Ethernet
Mechanical
engine
cable

- 15 - DN 3000329392 - 03
• P1202 : Smart Card interface
• P1301 : Loudspeaker
• P1420 : PSTN
• P3270 : Interface with Front panel
Pin Signal name Input /
output Description
1 CCAP_DETECT I Smart card insertion detect
2 CCAP_RESET* O Smart card reset
3 CCAP_CLK O Smart card clock
4 GND - Ground
5 CCAP_VCC O Smart card power command
6 CCAP_DIO I/O Smart card data
Pin Signal name Input /
output Description
1 HP+ O LF differential signal to loudspeaker
2 HP- O LF differential signal to loudspeaker
Pin Signal name Input /
output Description
1NC -
2 R1F I/O L1 local feedback
3 L1 I/O PSTN signal
4 L2 I/O PSTN signal
5 R2F I/O L2 local feedback
6NC -
Pin Signal name Input /
output Description
1 Int_pic I PIC controller interrupt signal
2 GND - Ground
3 Spi_do O SPI serial line – data output
4 GND - Ground
5 Spi_di I SPI serial line – data input
6 Spi_pic_cs* O SPI serial line – PIC select
7 Spi_clk O SPI serial line – clock
8 Spi_fgpr* O SPI serial line – Finger print select
9 GND - Ground
10 GND - Ground
11 VCC - +5V Power supply
12 P24V - CCFL +24V Power supply
13 P3V3 - +3,3V Power supply

DN 3000329392 - 03 - 16 -
• P4100 : LAN
• P4302 : Interface with USB Wifi
• P4340 : Interface with USB Front panel
14 GND - Ground
15 GND - Ground
16 GND - Ground
17 Lvds_cko+ O LVDS (Twisted wires) video clock
18 Lvds_cko- O
19 Lvds_dso+ O LVDS (Twisted wires) video data
20 Lvds_dso- O LVDS (Twisted wires) video data
Pin Signal name Input /
output Description
1 TX+ O Differential pair emitted on network
2 TX- O Differential pair emitted on network
3NC -
4 GND - Ground
5 GND - Ground
6NC -
7 RX+ I Differential pair received on network
8 RX- I Differential pair received on network
9 VDDA33 - LED Anode Power supply
10 ACTIVITY/PHYAD2 - ACTIVITY Yellow LED
11 LINK/PHYAD1 - LINK Green LED
12 VDDA33 - LED Anode Power supply
Pin Signal name Input /
output Description
1 USB_FRONT_HSH_V
bus O +5V Power supplied by the master
2 USB_FRONT_HSH_M I/O Differential pair
3 USB_FRONT_HSH_P I/O Differential pair
4 GND - Ground
5 GND - Ground
Pin Signal name Input /
output Description
1 USB_FRONT_HSH_V
bus O +5V Power supplied by the master
2 USB_FRONT_HSH_M I/O Differential pair
3 USB_FRONT_HSH_P I/O Differential pair
4 GND - Ground
5 GND - Ground
