Kospel KDE User manual

Assembly and operating instructions
PPE2
KDE
PPVE
KDE2
Electric Instantaneous Water Heater

2
This appliance can be used by children aged from 3 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.

EN-045BC_f.1179 3
Safety instructions
1. Read and strictly follow the installation and operating instructions to ensure a long
life and reliable unit operation.
2. The unit is designed to be wall mounted.
3. The unit can only be used when in perfect technical condition and correctly
assembled.
4. If there is a non-return valve installed on the water supply pipe the safety valve
must be tted between unit and non-return valve. This relates to KDE only.
5. Inlet and outlet pipes should not be made of plastic. This relates to KDE only.
6. The maximum inlet water temperature should not exceed 60°C.
7. The unit should always be vented before initial start-up. Vent the unit each time
after the water has been emptied from the heater or pipes (e.g. when water supply
system has been repaired or maintained).
8. Connection to the mains and measurement of re protection effectiveness should
be made by a qualied person.
9. Water heater must be unconditionally connected to protective grounding-the quality
of which (continuity of the protective conductor) should be checked periodically
by qualied electrician. It is recommended to install heater on grounded, steel or
copper hydraulic ttings.
10. The unit must be permanently connected to the mains which is equipped with
earth clamp.
11. According to the general norms, electrical installation must be equipped with
current-diferential switch of high sensitivity (of max rated current 30 mA), whereby
we recommend installing a separate four-pole residual current circuit breaker
(regardless of the remaining part of the installation) of current 10 or 30 mA
12. The unit must not be installed in the place which is exposed to the danger of
explosion and place in which the temperature may go down below 0°C.
13. Storage of water heater in the rooms where temperature drops below 0 degrees
may result in its damage (there is water inside the device) and may eventually
lead to the loss of warranty rights

4
14. Do not use when the water has been emptied from the unit or pipes (e.g. when
water supply system has been repaired or maintained).
15. Unit’s cover must not be taken off while power is on.
16. Failure to install the lter on water supply pipe can cause unit damage.
17 Lime scale built up on heater’s elements may limit water ow and lead to heater’s
damage. Such damages are not subjected to warranty rights. Water heater and
sanitary ttings should be periodically descaled, whereas, frequency this process
should be adjusted to water hardness in given installation. Lime scale built-up
may be partially limited by usage of magnetic descalers installed on the cold water
inlet pipe.
18. Appropriate precaution must be taken when using hot water. Temperature of water
over 40°C may cause hot feeling and can be dangerous for children, whereas,
temperature above 50°C may lead to rst degree burn (espcially amongst small
children).
19. Electronically controlled heater is a electrical surge sensitive device, therefore
the electrical installation must contain surge protection devices.
20. Water heater should be mounted in such a way in order to enbale easy access
for service and service repair. It is connected with keeping minimal distance from
the walls and the ceiling of min 100mm.

EN-045BC_f.1179 5
Installation - Assembly
1. Apply templete on place the unit will be tted.
Mark points for drilling the holes for xing
screws.
2. Bring the water system pipes and electric
supply cables to the marked places.
3. Take off the unit’s cover.
4. Run the supply wire through the hole and x
the unit on the wall.
5. Connect the unit to the electric mains.
6. Remove rubber plugs from cold and hot water
ttings.
7. Connect the unit to the water supply system.
8. Open the cold water valve and check for leaks.
9. Vent the water system. See section „Venting ”
10. During heater’s installation, check the
activation of safety switch (only applies to
the rst connection of the device).
11. Put the unit’s cover back.
12. Make sure that there is no access to live parts
through the holes at the back plate.


2
2
3
3
1
1

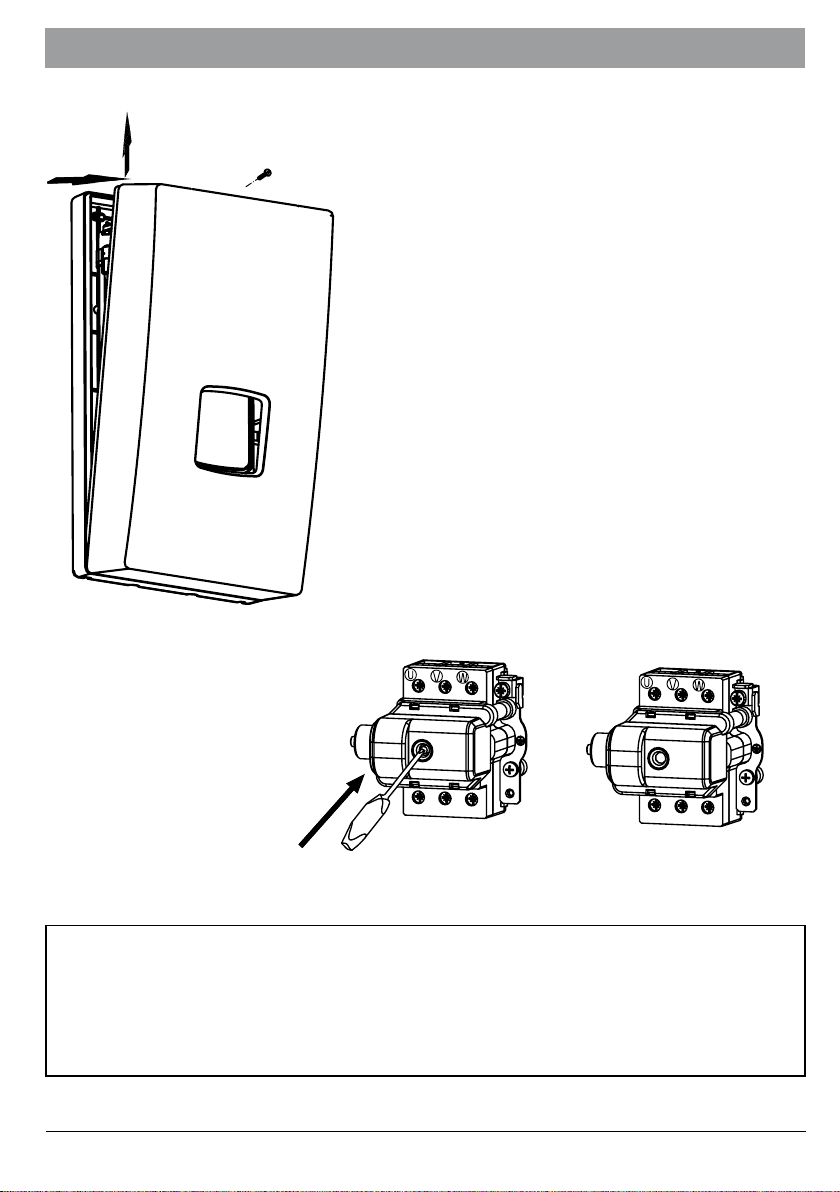

Safety switch
a)to switch on
b)safety switch on
a) b)
Attention! In the event of a safety switch being triggered during operation,
please contact the service.
Switching on the safety switch again and continuing to use the device may
cause danger and serious damage to the heater.

6
Conguration
Heating box size 15 kW
Heating box size 24 kW
Heating box size 27 kW
P
P
P
P
P
P
P
P
P
7
Before you supply voltage for the rst time, make sure that
you set the heater’s power at appropriate value (always
consider the capacity of your home’s electrical system).
Notice: Conguration must be performed before initial
start-up when power supply is switched off. Set
2 (two) switches at proper position to congure
a heater. The switches are located on electronic
board. Each switch has 4 (four) positions, they
are described as P(power settings) and F(other
settings). Switch on a power supply to upgrade
conguration. After you supply power to PPE2 or PPVE
a display will show: (PW...) - software version of control
panel, (MSP...) - software version of controller and the
value of rated power that has been set for the heater
(PPE2; PPVE).
P switches settings (for PPE2, KDE2, PPVE):
• 1, 2 - rated power of heater,
• 3, 4 - type of heating box,
Do not reset P switches for KDE - keep factory settings
intact.
Fswitches settings:
• 1, 2, 3 - do not change! keep factory settings
intact,
• 4 - ON - blocks access to the heater’s settings.
In this case for PPE2 or PPVE, the display shows
the desired temperature value (which has been
adjusted before the heater is off), the heating icon
and other possible working characteristics.
Weight square shows the
switch position
The heater is factory set at NORMAL mode (30-60ºC). To use the heater for shower
purposes it has to be changed to SHOWER mode (30-55ºC). Change of the modes
can only be done by authorised service.
Venting
1. Shut off electric supplies to the heater
2. Turn the ow on (turn the hot water tap on) in order to vent the water installation
(for about 15-30 seconds), until the ow of water becomes constant and even.
3. Switch on the electric supplies.

EN-045BC_f.1179 7
PPE2 Operation
The heater switches on automatically straight after reaching
the ow rate over 2,5 l/min. The temperature control system
adjusts the power rate according to the water ow rate,
required temperature and the temperature of water in
the mains. The LCD backlight and icon signalises the
heating operation.
If the unit reach the maximum power
value which is too low for a given operating conditions the
LCD display will show ickering icon.
The LED display
backlight also turns on while pushing or turning the setting
knob. The backlight will automatically turn off when the
heating operation is turned off, or if more than 50 seconds
have passed since the last adjustment.
If you block the unit by master appliance (NA entry) the display will show „EXT BLOCKED”.
If the fault occurs the display will show icon and error message.
Error messages:
• ER>T INLET - inlet sensor failure,
• ER> T MAX - temperature has exceeded the maximum value,
• ER> AIR 1 - air bubbles in the heating box - equipment detection,
• ER> AIR 2 - air bubbles in the heating box - program detection.
If the display shows ER> T MAX, ER> AIR 1 or ER> AIR 2 the unit will stop heating.
The unit will not heat again until the failure is resolved and the appropriate value of
water ow is reached.
Temperature adjustment
Turn the knob to the right to increase the temperature value, or to the left to decrease it.
Push the knob to read the temperature value that is stored in memory. Push it again
to read the next stored value. You can switch between the following settings „ECO”,
„SINK” and „BATH”.
To change the temperature setting in memory:
•select the temperature setting by pushing the control knob,
• push the knob and keep for about 3 seconds until the value starts to ashing,
• turn the knob to adjust the value,
•push the knob to save the value.
Notice: save the new value within 10 seconds, otherwise you will lose it.

8
Conguration and parameters view
Set the minimum temperature value then push and keep knob for about 5 seconds until
the display shows „>T SETPOINT”. Turn a knob to select the required value.
There are some parameters that are not changeable by the user (e.g. >T INLET,
>POWER), or can be used to change the work conguration only (e.g. display bright-
ness, language version). To change the parameters value push (position ickering) and
turn the knob. Push the knob to conrm a changes.
Notice: conrm a new parameter value within 10 seconds, otherwise you will lose it.
The new parameter value will be saved when you exit menu using [>EXIT].
You can switch between the following parameters:
• [>T SETPOINT] temperature (min-max) - °C,
• [>T INLET] inlet temperature value - °C,
• [>T OUTLET] outlet temperature value - °C,
• [>FLOW] ow rate - l/min,
•
[>POWER] percentage of maximum power with which the unit currently heats, -%,
• [>T - h] work time,
• [>BRIGH MIN] minimum brightness / stand-by-mode (0 - BRIGH MAX),
• [>BRIGH MAX] maximum brightness / active (BRIGH MIN -25),
• [>ENGLISH] select language version,
•[>TEMP LIMIT] maximum temperature limit (min setting - max setting)
Notice: a new maximum temperature value will be saved in memory for other
temperature settings as well,
If you try to set the temperature above the adjusted maximum value the display
will show for about 1 second.
• [>TEST] for authorized service only,
• [>POWER SET] congured power value,
- push knob to check a software version (PW...,MSP...),
- restore to factory settings [FACTORY SET] or to restart controllers [RESET],
- push and keep knob (for about 5sec., until the display show [--]) to up grate
[FACTORY SET] and [RESET] function,
• [>EXIT] save a new parameters and menu exit.
Notice: parameters view mode will automatically exit (without saving changes) after 5
minutes since the last adjustment.

EN-045BC_f.1179 9

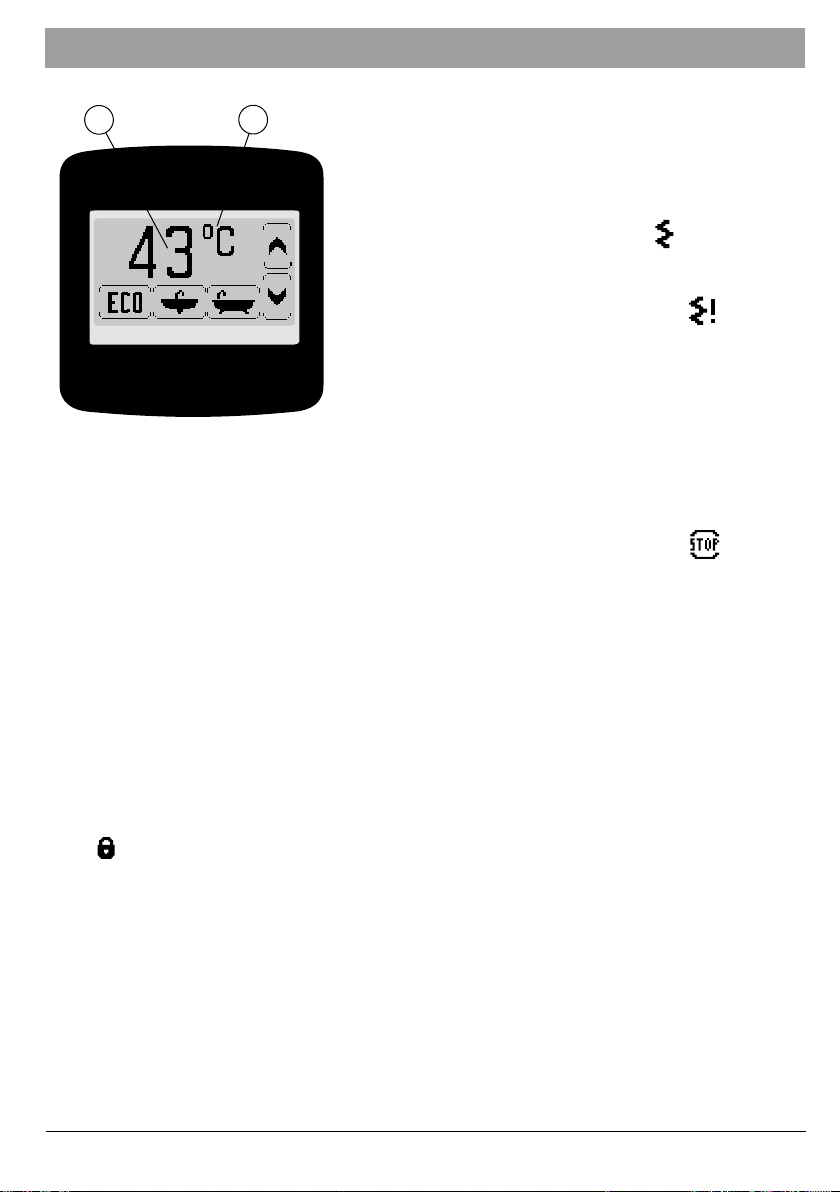

PPVE Operation
The heater switches on automatically straight after
reaching the ow rate over 2,5 l/min. The temperature
control system adjusts the power rate according to the
water ow rate, required temperature and the water
temperature in the mains.
The LCD red colour backlight and icon signalises
the heating operation. If the unit reach the maximum
power value which is too low for a given operating
conditions the LCD display will show . The LED
display backlight also turns. The heater switches
on automatically straight after reaching the ow
rate over 2,5 l/min. The temperature control system
adjusts the power rate according to the water
ow rate, required temperature and the water
temperature in the mains. The LED display backlight also turns on while pushing or
turning the setting knob. The backlight will automatically turn off when the heating
operation is turned off, or if more than 30 seconds have passed since the last adjustment.
If you block the unit (NA entry) by master appliance the display will show .
If the fault occurs the display will show error message:
• ERR
Tin - inlet sensor failure,
• ERR
Tout - outlet sensor failure,
• ERR
Tmax - temperature has exceeded the maximum value,
• ERR
AIR1 - air bubbles in the heating box - equipment detection,
• ERR
AIR2 - air bubbles in the heating box - program detection.
If the display shows ERR
Tmax , ERR
AIR1 , ERR
AIR2 the unit will stop heating.
The unit will not heat again until the failure is resolved and the appropriate rate of water
ow is reached.
If you try to set the temperature above the adjusted maximum value the display will
show .
electronic
A
A
B
B

10
Temperature setting
Display shows three icons: You can set the desired temperature value (which
has been stored in memory for each icon) by pressing one of them
- the icons will be displayed in inverse .
To change the desired temperature value:
• push the icon,
• push the icon again and keep (for about 3 seconds) until the value starts to icker,
• to set the new value press ,
• to save the value press icon.
Notice: save the new value within 10 seconds, otherwise you will lose it.
Conguration
To enter the conguration mode press . To adjust the value press The parameters
will switch as you press . You can switch between the following parameters:
• maximum temperature value,
• display contrast (0-20),
• display brightness in stand-by-mode (0-20) /brightness min. / (0 – brightness max.),
• display brightness in active mode (0-20) /brightness max. / (brightness min. –20).
To exit parameters setting mode press Notice: parameters setting mode will
automatically exit after 20 seconds since the last adjustment.
Parameters view
To enter the parameters view mode press .The parameters will switch as you press
. You can switch between the following parameters:
• ow rate ,
• percentage of maximum power with which the unit currently heats ,
• rated power ,
• correction of power ,
• software details and work time,
• inlet temp ,
• outlet temp .

EN-045BC_f.1179 11
Number
of impulses
(green indicator)
description
1
The unit was switched off because the temperature has exceeded the
maximum value (fault signal will not disappear until the appropriate rate of
water ow is reached).
2 The unit was switched off by a master appliance.
3 The inlet temperature sensor failure.
4
The unit was switched off because the air bubbles in the heating box (the
unit will not heat again until the fault is resolved and the appropriate rate of
water ow is reached).
The heater switches on automatically straight after reaching the ow rate over
2,5l/min. The temperature control system adjusts the power rate according to the water
ow rate, required temperature and the water temperature in the mains.
There are two indicators on the case:
- green - power supply „on”,
- red - heating „on”.
Other modes are shown by ickering green light.
KDE, KDE2 Operation

12
Maintenance
Co-operation with other appliances
Unit is equipped with the BLOK and NA clamps.
BLOK - relay input that switches off the slave appliance, the circuit that is connected
to the BLOK clamps (max. 0,1A 250V-) will be opened at the time of heating operation
starts up.
NA - input that locks the unit operation, opened NA contacts locks the heating operation
- co-operation with the master appliance.
Wire (2 x 0,5mm2) for BLOCK and NA clamps should be run inside the unit on the right
side.
The wire connections must be performed by a qualied person.

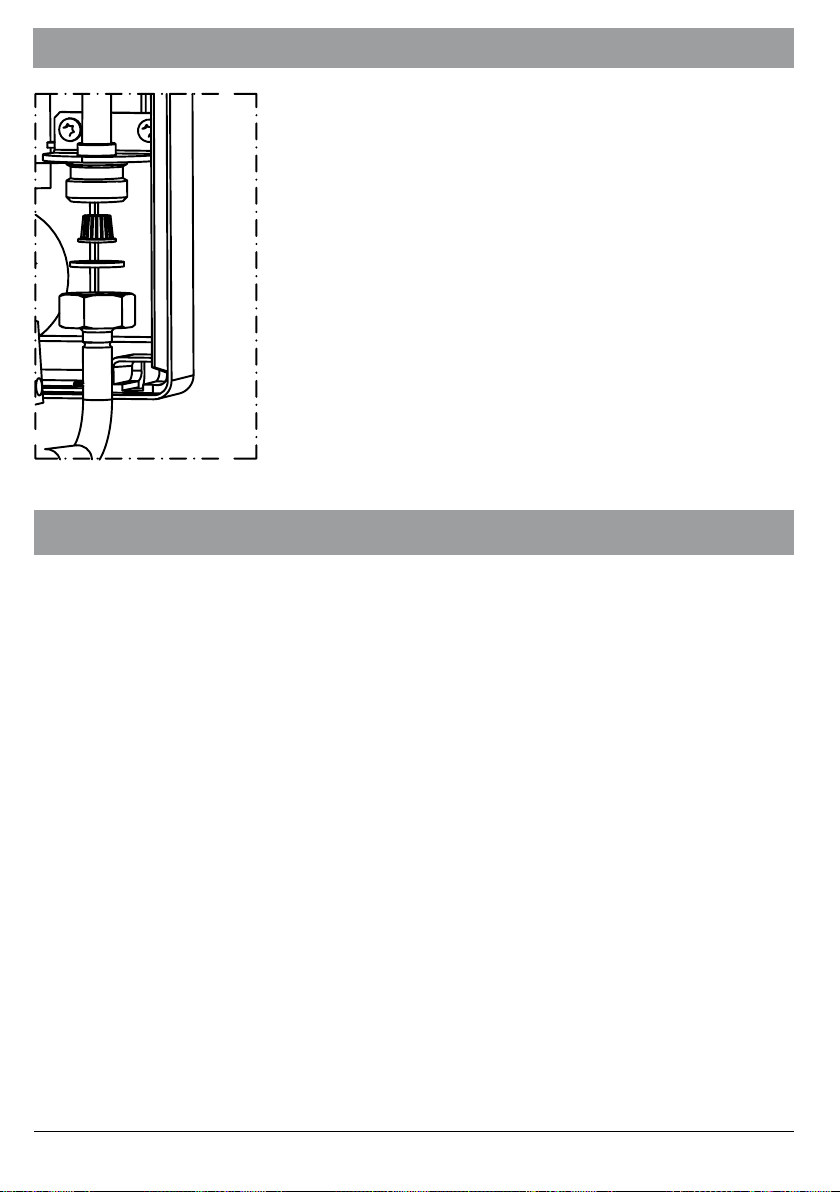

Filter cleaning:
1. Cut off power and cold water supplies.
2. Take off the unit’s cover.
3. Undo the inlet tting - on the cold water side.
4. Take the lter out from the inlet tting.
5. Clean up the lter.
6. Fix the lter back, put the gasket and do up the inlet
tting.
7. Open the cut-off valve on cold water supply pipe - check
connections for leaks.
8. Fix the unit’s cover back.
9. Vent the water system - see Venting section.

EN-045BC_f.1179 13
Technical data
KDE.4
9 12 9 12
Rated power kW 9 12 9 12
Rated voltage 240V~ 230V~ Rated current A 37,5 50 39,1 52,2
Efciency (at Δt = 30°C and water pressure at 0,4 MPa)
l/min 3,3 4,3 3,3 4,3
Min. connecting wires section mm23 x 10 3 x 6 3 x 10
Max. connecting wires section mm23 x 25 3 x 16
KDE
9 12 15 18 21 24 27
Rated power kW 9 12 15 18 21 24 27
Rated voltage 400V 3~ Rated current A 3x13,0 3x17,3 3x21,7 3x26,0 3x30,3 3x34,6 3x39,0
Rated voltage 380V 3~ Rated current A 3x13,7 3x18,2 3x22,8 3x27,3 3x31,9 3x 36,5 3x41,0
Efciency (at Δt = 30°C and water pressure at 0,4 MPa)
l/min 4,3 5,8 7,2 8,7 10,1 11,6 13,0
Min. connecting wires section mm24x1,5 4x2,5 4x4 4x6
Max. connecting wires section mm24x16
The maximum allowed network impedance Ω 0,43 0,37 0,30
Overall dimension (height without tap set x width x depth
mm 440 x 245 x 120
Weight kg ~5,2

14
The minimal resistivity of water at 150C for PPE2, KDE2 , PPVE is 1100 Ω cm.
PPE2, PPVE, KDE2 9/11/12/15 17/18/21/24 27
Rated power kW 9 11 12 15 17 18 21 24 27
Rated voltage 400V 3~ Rated current A 3x13,0 3x15,9 3x17,3 3x21,7 3x24,7 3x26,0 3x30,3 3x34,6 3x39,0
Rated voltage 380V 3~ Rated current A 3x13,7 3x16,7 3x18,2 3x22,8 3x25,8 3x27,3 3x31,9 3x 36,5 3x41,0
Efciency (at Δt = 30°C and water pressure at 0,4 MPa) l/min 4,3 5,2 5,8 7,2 8,1 8,7 10,1 11,6 13
Min. connecting wires section mm24 x 2,5 4 x 6
Max. connecting wires section mm24 x 16
The maximum allowed network impedance Ω 0,43 0,37 0,30
Overall dimension (height without tap set x width x depth mm 440 x 245 x 126 Weight kg ~4,0
Pressure in the water mains MPa 0,1 ÷ 1,0 Activation point (min. rate of ow) l/min 2,5 Temperature adjustment range
NORMAL mode
°C
30 ÷ 60
SHOWER mode 30 ÷ 55
Water ttings G 1/2” (distance between inlet and outlet 100 mm)

EN-045BC_f.1179 15
Used product can’t be treated as general communal waste.
Disassembled appliance has to be delivered to the collection
point of electrical and electronic equipment for recycling.
Appropriate utilisation of used product prevents potential
negative environmental inuences that may occur as a result
of inappropriate handling of waste. In order to get more detailed
information about recycling this product you should contact the
local government unit, waste management service or the shop
where this product has been purchased.

KOSPEL S.A. 75-136 Koszalin, ul. Olchowa 1
tel. [phone]
[email protected] www.kospel.pl
