Kramer VP-470 User manual

KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
VP-470
SD / 3G HD-SDI Scaler
P/N: 2900-300035 Rev 2

VP-470 – Contents
i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 Recycling Kramer Products 3
3Overview 4
3.1 Defining the VP-470 SD / 3G HD-SDI Scaler 5
4Connecting the VP-470 7
5Operating the VP-470 SD / 3G HD-SDI Scaler 8
5.1 Using the Front Panel Buttons 8
5.2 Using the OSD 8
6Technical Specifications 12
Figures
Figure 1: VP-470 SD / 3G HD-SDI Scaler 5
Figure 2: Connecting the VP-470 SD / 3G HD-SDI Scaler 7

VP-470 - Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP
5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP
7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:
Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and
GROUP 14: Collaboration.
Congratulations on purchasing your Kramer VP-470 SD / 3G HD-SDI Scaler,
which is ideal for the following typical applications:
Projection systems in conference rooms, boardrooms, hotels and churches
Home theater up-scaling
Production studios, rental and staging
Presentation and multimedia applications

2
VP-470 - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to http://www.kramerelectronics.com to check for up-to-date user
manuals, application programs, and to check if firmware upgrades
are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer VP-470 away from moisture, excessive sunlight and dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Warning:
Disconnect the power and unplug the unit from the wall
before installing
i
!
!

VP-470 - Getting Started
3
3
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4
VP-470 - Overview
3 Overview
The VP-470 is a high−performance digital scaler for 3G HD−SDI signals. It up or
down−scales the incoming SDI signal to resolutions up to 1080p, and routes it to
two identical SDI outputs.
The following output resolutions are supported:
SDTV: 480i @59.94Hz, 576i @50Hz
HDTV: 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz,
1080p @23.98/24/25/29.97/30Hz
3G: 1080p @50/59.94/60Hz
The VP-470 also features:
A maximum data rate of 3Gbps
Multi-standard operation: SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and
3G HD-SDI (SMPTE 424M)
HDTV Compatibility
An OSD (On-screen Display) accessible via the front panel buttons for easy
setup and adjustment
Selectable Output Size & Aspect Ratio: Full, panscan, letter box, under− and
over−scan settings
A built-in ProcAmp (Color hue, sharpness, contrast and brightness) for
convenient signal adjustment
A non-volatile memory that retains the last settings used
A freeze button
SDI input and loop output (up to 3G HD-SDI)
An external 5V DC source, making it suitable for field operation
Compact MegaTOOLS™, letting 2 units to be rack mounted side−by−side in
a 1U rack space with the optional RK−T2B universal rack adapter

VP-470 - Overview
5
5
3.1 Defining the VP-470 SD / 3G HD-SDI Scaler
This section defines the VP-470.
Figure 1: VP-470 SD / 3G HD-SDI Scaler

6
VP-470 - Overview
#
Feature
Function
1
PROGRAM USB
Connector
Use for firmware upgrade
2
SDI IN BNC Connector
Connect to the SDI source
3
LOOP BNC Connector
Connect to an additional unit or a local display. The
signal is reclocked and equalized
4
SDI OUT BNC
Connector (1 and 2)
Connect to the SDI acceptor
5
5V DC
Connect to the +5V DC power adapter, center pin
positive
6
ON LED
Lights green when the unit is powered on
7
SDI LED
Lights blue when an SDI signal is detected on the input
8
MENU Button
Press to display the OSD (On-screen Display) menu.
When the OSD is not displayed, press together with the –
button to set the output resolution to 720p (1280x720)
9
ENTER Button
In the OSD, press to select the highlighted menu item.
When the OSD is not displayed, press together with the +
button to set the output resolution to 1080p
10
–Button
In the OSD, press to step up through the options or to
decrement the parameter value
11
+ / FREEZE Button
In the OSD, press to step down through the options or to
increment the parameter value.
When the OSD is not displayed, press to freeze the
display

VP-470 - Connecting the VP-470
7
7
4 Connecting the VP-470
Always switch off the power to each device before connecting it to your
VP-470. After connecting your VP-470, connect its power and then
switch on the power to each device.

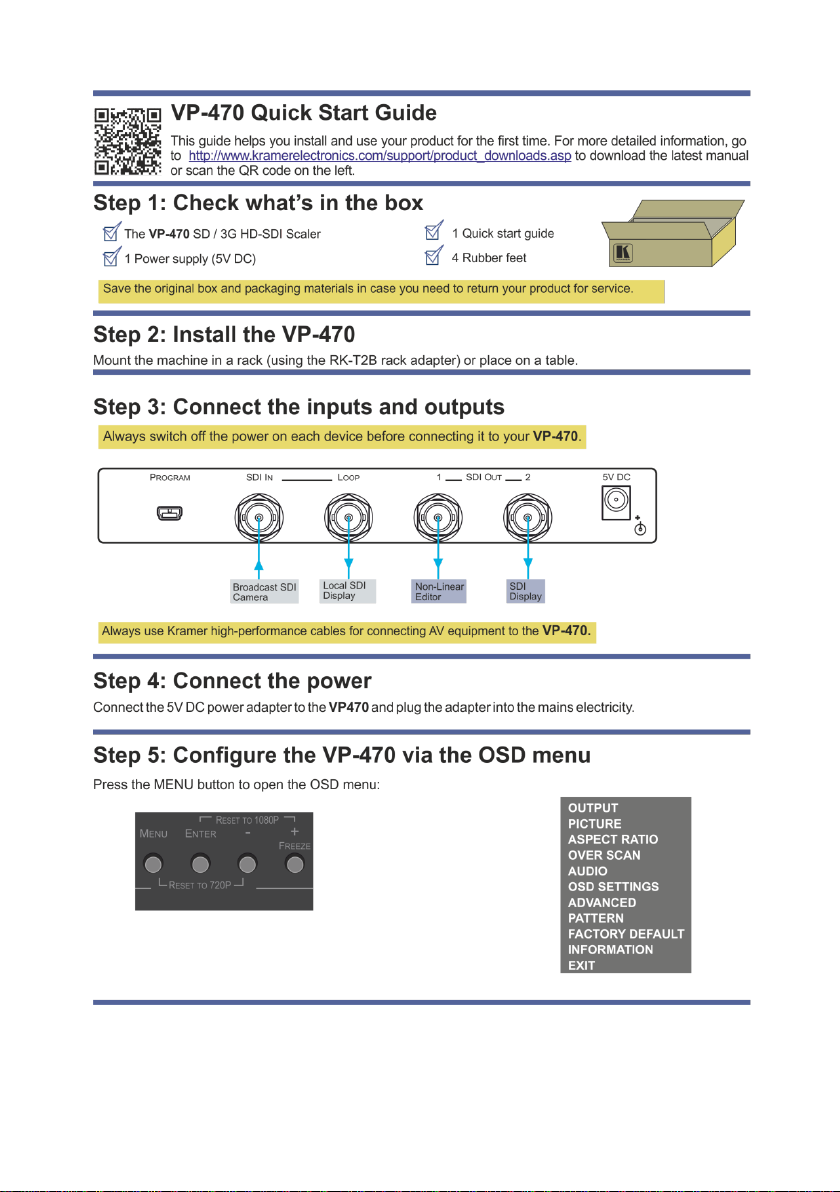

To connect the VP-470 as illustrated in the example in Figure 2:
1. Connect a broadcast SDI camera to the SDI IN BNC connector.
2. Connect the LOOP BNC connector to a local display.
3. Connect the SDI OUT 1 BNC connector to a non-linear editor.
4. Connect the SDI OUT 2 BNC connector to an SDI display.
5. Connect the 5V DC power adapter to 5V DC power socket and to the mains
electricity (not shown in the illustration).
Figure 2: Connecting the VP-470 SD / 3G HD-SDI Scaler
!
