Kramer TP-112HD User manual

Kramer Electronics, Ltd.
USER MANUAL
Model:
TP-112HD
XGA / HD Line Transmitter - DA

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
3 Overview 1
3.1 About the Power Connect Feature 2
3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 2
3.3 About the TP-112HD 2
3.4 Recommendations for Achieving the Best Performance 3
4 Your TP-112HD XGA / HD Line Transmitter – DA 3
5 Configuring a 1:2 XGA / HD-to-Twisted Pair DA System 5
5.1 Wiring the CAT5 LINE IN / LINE OUT RJ-45 Connectors 7
6 Technical Specifications 8
Figures
Figure 1: TP-112HD XGA / HD Line Transmitter – DA 3
Figure 2: TP-112HD (Top Side Panel) 3
Figure 3: TP-112HD (Lower Side Panel) 3
Figure 4: TP-112HD (Underside Panel) 4
Figure 5: Configuring a 1:2 XGA / HD to Twisted Pair Transmitter / Receiver / DA 6
Figure 6: CAT5 PINOUT 7
Tables
Table 1: TP-112HD XGA / HD Line Transmitter - DA Features 4
Table 2: TP-112HD (Underside Panel) Features 4
Table 3: CAT5 PINOUT 7
Table 4: Technical Specifications of the TP-112HD (with 100m CAT5 cable) 8

Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video, audio
and presentation professional on a daily basis. In recent years, we have redesigned
and upgraded most of our line, making the best even better! Our 350-plus
different models now appear in 8 Groups
1
, which are clearly defined by function.
Congratulations on purchasing your Kramer TOOLS: TP-112HD XGA / HD
Line Transmitter - DA, which is ideal for:
 Presentation and multimedia applications
 Long range graphics distribution for schools, hospitals, security, and stores
The package includes the following:
 TP-112HD XGA / HD Line Transmitter - DA
 Power adapter (12V DC Input)
 This user manual
2
2 Getting Started
We recommend that you:
 Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
 Review the contents of this user manual
 Use Kramer high performance high resolution cables
3
3 Overview
This section describes:
 The power connect feature, see section 3.1
 Using shielded twisted pair (STP) / unshielded twisted pair (UTP), see
section 3.2
 A summary of the TP-112HD, see section 3.3
 Recommendations for achieving the best performance, see section 3.4
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
2
3.1 About the Power Connect Feature
The Power Connect feature lets you power a transmitter / receiver system by
connecting just one power adapter to either the transmitter or the receiver.
The other unit is fed over the same cable. The Power Connect feature applies
as long as the cable is heavy gauge cable (that is, it can carry power). The
distance does not exceed 50 meters on standard CAT5 cable.
For a distance of 100 meters, separate power supplies must be connected to
the transmitter and to the receiver simultaneously, unless using heavy gauge
cable.
3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)
The decision whether to use shielded twisted pair (STP) cable or unshielded
twisted pair (UTP) cable depends on the nature of the application.
It is recommended that in applications with high interference, shielded
twisted pair (STP) cable is used. However, the shield itself does create a
capacitance that degrades the frequency response of the machines. For shorter
distances, of 50m or so, shielded twisted pair (STP) cable is preferred because
it provides protection from interference (degradation is non apparent).
For a long range application, unshielded twisted pair (UTP) cable is preferred.
However, the unshielded twisted pair (UTP) cable should be installed far away
from electric cables, motors and so on, which are prone to create electrical
interference.
3.3 About the TP-112HD
Your Kramer TOOLS TP-112HD XGA / HD Line Transmitter - DA:
 Receives a computer graphics
1
/ HD
2
signal and transmits it over two
CAT5 cables to appropriate receivers
3
 Has a video bandwidth of 150MHz, with a transmission range of more
than 300 ft. (more than 100 meters)
 Includes the Power Connect feature
 Is 12VDC fed
1 The terminology XGA is used throughout this manual, where this implies any RGBHV signal on an HD15 connector
having a resolution from VGA up to UXGA
2 The TP-112HD accepts high definition resolutions: 480p, 576p, 720p, 1080i, and 1080p
3 Note that the CAT5 connectors exclude audio

Your TP-112HD XGA / HD Line Transmitter – DA
3
3.4 Recommendations for Achieving the Best Performance
Achieving the best performance means:
 Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
 Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality, and positioning your TP-112HD away
from moisture, excessive sunlight and dust
4 Your TP-112HD XGA / HD Line Transmitter – DA
Figure 1, Figure 2, Figure 3 and Table 1 define the TP-112HD:

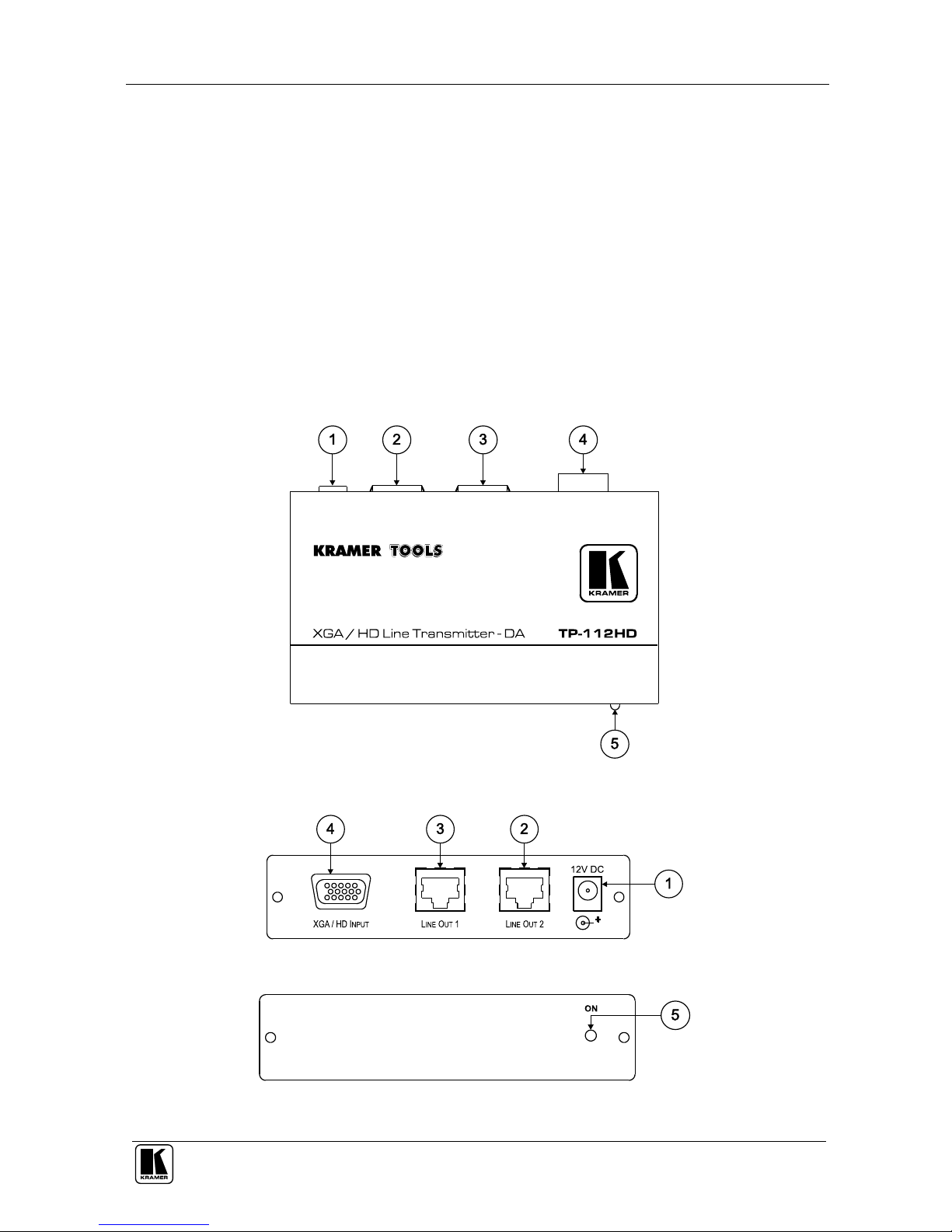

Figure 1: TP-112HD XGA / HD Line Transmitter – DA
Figure 2: TP-112HD (Top Side Panel)
Figure 3: TP-112HD (Lower Side Panel)

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your TP-112HD XGA / HD Line Transmitter – DA
4
Table 1: TP-112HD XGA / HD Line Transmitter - DA Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 LINE OUT 2 RJ-45 Connector Connects to
1
the LINE IN RJ-45 connector on the (second)
TP-120 XGA Line Receiver
2
3 LINE OUT 1 RJ-45 Connector Connects to
1
the LINE IN RJ-45 connector on the (first) TP-120
XGA Line Receiver
2
4 XGA /HD INPUT HD15F Connector
Connect to the XGA source
5 ON LED Illuminates when receiving power
Figure 4 and Table 2 define the TP-112HD underside panel:

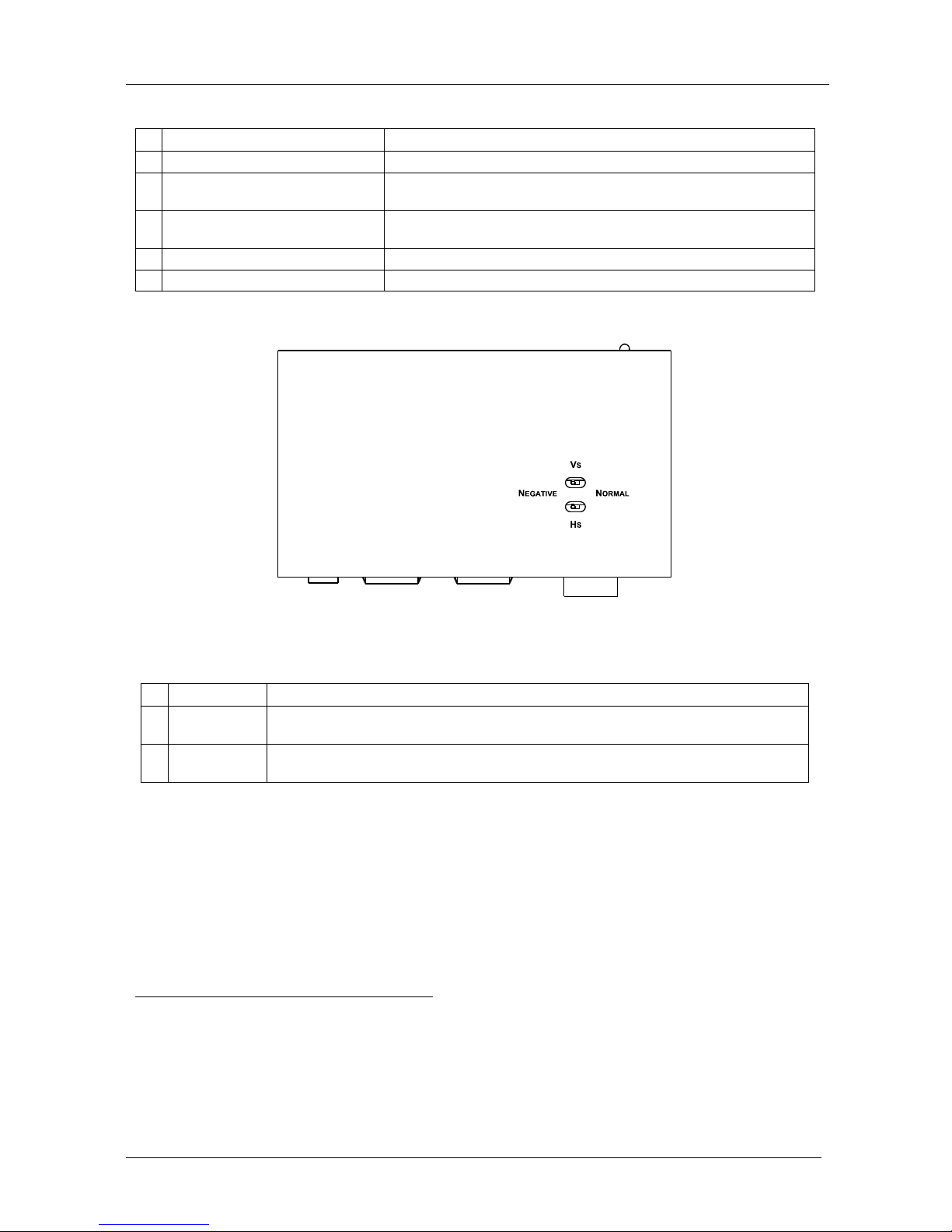

Figure 4: TP-112HD (Underside Panel)
Table 2: TP-112HD (Underside Panel) Features
# Feature Function
1 VS Switch Slide the switch to the left
3
to change the VS polarity to NEGATIVE polarity
4
; slide
the switch to the right (to NORMAL) to retain the polarity
2 HS Switch Slide the switch to the left
3
to change the HS polarity to NEGATIVE polarity
4
; slide
the switch to the right (to NORMAL) to retain the polarity
1 Using a UTP CAT5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 3 and Figure 6)
2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at this
URL: http://www.kramerelectronics.com. Also, see the example illustrated in Figure 5
3 By default, both switches are set to the right
4 Downgoing syncs

Configuring a 1:2 XGA / HD-to-Twisted Pair DA System
5
5 Configuring a 1:2 XGA / HD-to-Twisted Pair DA System
You can use the TP-112HD XGA / HD Line Transmitter – DA with two
TP-120 XGA Line Receiver units
1
to configure a 1:2 XGA / HD-to-Twisted
Pair DA system. This will let you transmit a computer graphics / HD signal to
two displays via long line CAT5 UTP cabling.
To connect the TP-112HD to two TP-120 units, as the example in Figure 5
illustrates, do the following:
1. On the TP-112HD, connect the XGA / HD source (for example, a computer
graphics / HD source) to the XGA / HD INPUT HD15F connector, and
connect the line output RJ-45 connector
2
:
 OUT 1 connector to the LINE IN RJ-45 connector on the first TP-120
 OUT 2 connector to the LINE IN RJ-45 connector on the second TP-120
2. On the two TP-120 units, connect the:
 XGA OUT HD15F connector of the first TP-120 unit to the XGA / HD
acceptor (for example, Display 1)
 XGA OUT HD15F connector of the second TP-120 unit to the XGA /
HD acceptor (for example, Display 2)
3. On each of the three Kramer TOOLS, connect the 12V DC power adapter
to the power socket and connect the adapter to the mains electricity.
The signal from the XGA source is transmitted via the two CAT5 cables,
decoded and converted at the each of the XGA OUT HD15F connectors
to the XGA acceptors.
4. On the TP-120 units, if necessary:
 Set the H SYNC and V SYNC switches
3
on the underside
 Adjust
4
the video output signal level and/or cable compensation
equalization level
5. On the TP-112HD, if necessary, set the VS and HS switches
5
on the
underside
1 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at this
URL: http://www.kramerelectronics.com
2 Via UTP cabling (with a range of more than 300ft (>100m)). For details of how to wire a CAT5 LINE IN / LINE OUT
RJ-45 connector, see section 5.1
3 By default, both switches are set down (for negative V SYNC and H SYNC polarity)
4 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level
5 By default, both switches are set to the right (to NORMAL) to retain the V SYNC and H SYNC polarity

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Configuring a 1:2 XGA / HD-to-Twisted Pair DA System
6

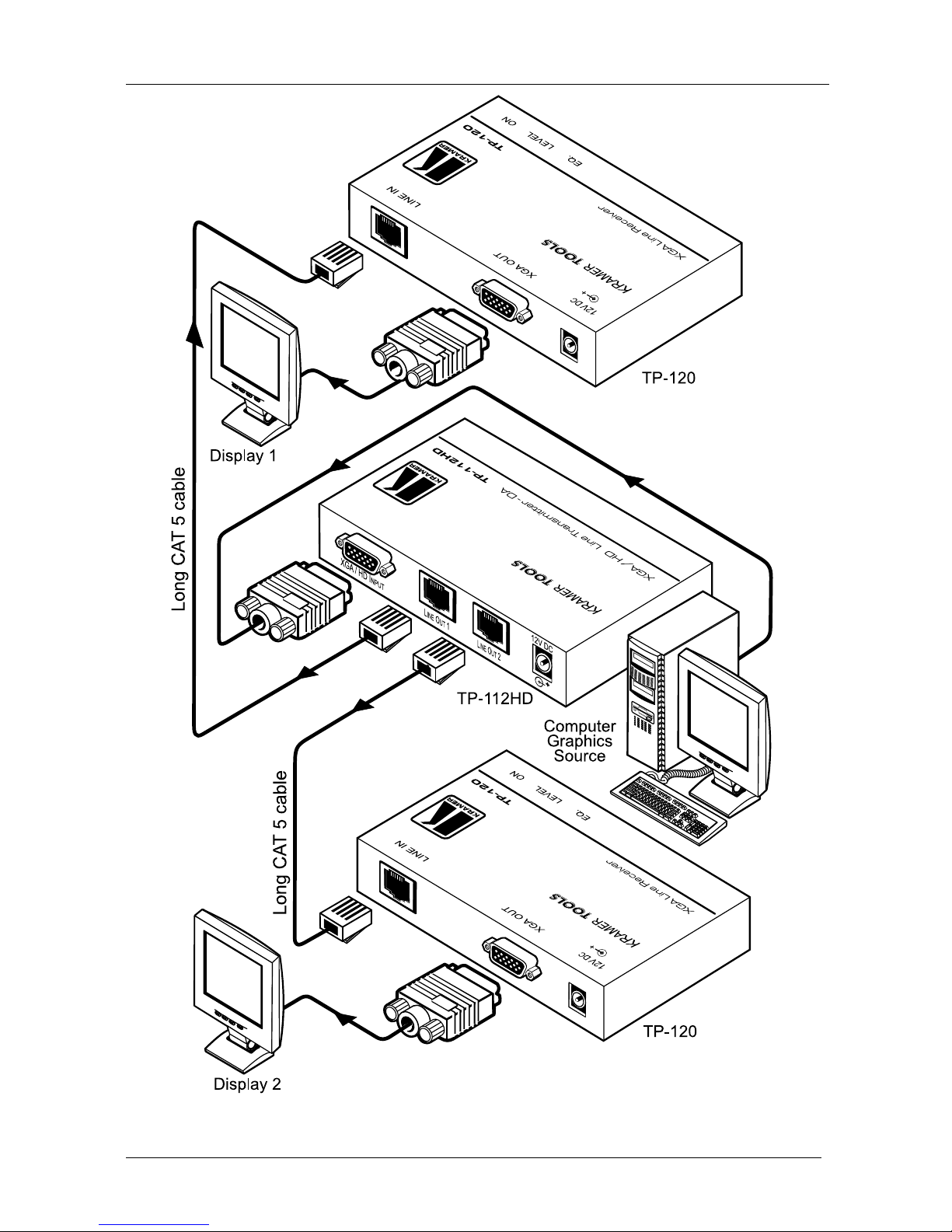

Figure 5: Configuring a 1:2 XGA / HD to Twisted Pair Transmitter / Receiver / DA

Configuring a 1:2 XGA / HD-to-Twisted Pair DA System
7
5.1 Wiring the CAT5 LINE IN / LINE OUT RJ-45 Connectors
Table 3 and Figure 6 define the UTP CAT5 PINOUT, using a straight pin to
pin cable with RJ-45 connectors:
Table 3: CAT5 PINOUT
EIA /TIA 568A EIA /TIA 568B
PIN Wire Color PIN Wire Color
1 Green / White 1 Orange / White
2 Green 2 Orange
3 Orange / White 3 Green / White
4 Blue 4 Blue
5 Blue / White 5 Blue / White
6 Orange 6 Green
7 Brown / White 7 Brown / White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8 Pair 4 7 and 8
Figure 6: CAT5 PINOUT

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
8
6 Technical Specifications
Table 4 includes the technical specifications
1
of the TP-112HD.
Table 4: Technical Specifications of the TP-112HD (with 100m CAT5 cable)
INPUT: 1 XGA / HD on an HD15F connector
OUTPUTS: 2 RJ-45 OUT connectors
MAX. OUTPUT LEVEL: 1.7Vpp
HIGHEST RESOLUTION
2
: UXGA, 1080P
DIFF. GAIN
2
: 4%
DIFF. PHASE
2
: 0.3 Deg
K-FACTOR
2
: 0.1%
S/N RATIO
2
: 65dB
CONTROLS
2
: 2 switches for sync inversion
COUPLING
2
: AC
POWER SOURCE: 12 VDC 522mA
3
DIMENSIONS: 12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08"), W, D, H
WEIGHT: 0.3 kg. (0.67 lbs.) approx.
ACCESSORIES: Power supply
1 Specifications are subject to change without notice
2 For the TP-112HD Transmitter/ TP-120 Receiver SETUP
3 Sufficient for feeding two receivers via CAT5
