USER MANUAL
Models:
VP-200XLT, XGA Line Amp / CAT 5 Transmitter
VP-200XLTHD, XGA Line Amp / CAT 5 Transmitter
VP-300T, 1:2 XGA DA/CAT 5 Transmitter
VP-5T, 1:4 VGA/UXGA Distributor/CAT 5 Transmitter
VP-5THD, 1:4 VGA/UXGA Distributor/CAT 5 Transmitter
VP-5R, CAT 5 Receiver / 1:5 VGA/UXGA Distributor

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 2
3 Overview 4
3.1 About the Power Connect Feature 4
3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 5
3.3 Recommendations for Achieving the Best Performance 5
4 Your VP-200XLT XGA Line Amp / CAT 5 Transmitter 6
5 VP-200XLTHD XGA Line Amp / CAT 5 Transmitter 7
6 Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter 9
6.1 Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Topside) 9
6.2 Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Underside) 10
7 Your VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5
Transmitter 11
7.1 Your VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter 11
7.2 Your VP-5T/VP5THD (Underside) 13
8 Your VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor 14
8.1 Your VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor 14
8.2 Your VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor (Underside) 15
9 Connecting the VP-200XLT 16
10 Connecting the VP-300T 19
11 Connecting the VP-5T and the VP-5R 21
11.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 23
12 Technical Specifications 24
Figures
Figure 1: VP-200XLT XGA Line Amp / CAT 5 Transmitter 6
Figure 2: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter 8
Figure 3: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter 9
Figure 4: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Topside) 10
Figure 5: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Underside) 11
Figure 6: VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter 12
Figure 7: VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter (Underside)
13
Figure 8: VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor 15
Figure 9: VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor (Underside) 16
Figure 10: Connecting the VP-200XLT 18
Figure 11: Connecting the VP-300T 20

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Contents
ii
Figure 12: Connecting the VP-5T and the VP-5R 22
Figure 13: CAT 5 PINOUT 23
Tables
Table 1: VP-200XLT XGA Line Amp / CAT 5 Transmitter Features 7
Table 2: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter Features 8
Table 3: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter Features 9
Table 4: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Topside) Features 10
Table 5: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Underside) Features 11
Table 6: VP-5T 1:4 VGA/UXGA Distributor / CAT 5 Transmitter Features 13
Table 7: VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter (Underside)
Features 14
Table 8: VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor Features 15
Table 9: VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor (Underside) Features 16
Table 10: CAT 5 PINOUT 23
Table 11: Technical Specifications of the VP-200XLT (with 30m CAT 5 cable) 24
Table 12: Technical Specifications of the VP-200XLTHD (with 30m CAT 5 cable) 24
Table 13: Technical Specifications of the VP-300T (with 30m CAT 5 cable) 25
Table 14: Technical Specifications of the VP-5T/VP-5THD (with 60m CAT 5 cable) 25
Table 15: Technical Specifications of the VP-5R (with 30m CAT 5 cable) 26

Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups
1
that are clearly
defined by function.
Thank you for purchasing the Kramer: VP-200XLT XGA Line Amp/CAT 5
Transmitter, VP-200XLTHD XGA Line Amp / CAT 5 Transmitter,
VP-300T 1:2 XGA DA/ CAT 5 Transmitter,VP-5T,VP-5THD 1:4
VGA/UXGA Distributor / CAT 5 Transmitter, and/or VP-5R CAT 5
Receiver / 1:5 VGA/UXGA Distributor, which are ideal for:
Presentation and multimedia applications
Long range graphics distribution for schools, hospitals, security,
and stores
The package includes this user manual
2
, and one or more of the following:
VP-200XLT
3
/VP-200XLTHD
3
, and/or VP-300T
3
, and/or
VP-5T/HD
4
, and/or VP-5R
4
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
Review the contents of this user manual
Use Kramer high-performance high-resolution cables
5
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 With a power adapter
4 With a power cord
5 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.

Getting Started
3
1
2
2
3
Computer
Graphics Source
Local
Display 4
Local
Display 1
Display 1 Display 5
VP-5T
VP-5R*
4
* Located up to 300ft (>100 meters)
away from the Computer Graphics
Source
1
3
4

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
4
3 Overview
This user manual describes the following products:
Kramer TOOLS VP-200XLT XGA Line Amp / CAT 5 Transmitter,
which accepts one computer graphics input and distributes the signal
to its high-density 15 pin “D” connector output, as well as
transmitting it over UTP cabling (CAT 5 or similar) to its appropriate
receiver, see section 4
Kramer TOOLS VP-200XLTHD XGA Line Amp / CAT 5
Transmitter, which accepts one computer graphics input and
distributes the signal to its high-density 15 pin “D” connector output,
as well as transmitting it over UTP cabling (CAT 5 or similar) to its
appropriate receiver, see section 5
Kramer TOOLS VP-300T 1:2 XGA DA/ CAT 5 Transmitter, which
is a distributor for computer graphics signals, accepting one input
and distributing the signal to its identical 2 outputs, as well as
transmitting it over CAT 5 UTP cable to its appropriate receiver, see
section 6
Kramer VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5
Transmitter, which is a distributor for computer graphics signals,
accepting one input, and distributing the signal to its identical 4
outputs, as well as transmitting it over CAT 5 UTP cable to its
appropriate receiver, see section 7
Kramer VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor, which
is a distributor for computer graphics signals, receiving the computer
graphics signal via CAT 5 UTP cable, and distributing the signal to 5
identical 15-pin HD outputs, see section 8
This section describes:
The power connect feature, see section 3.1
Using shielded twisted pair (STP) / unshielded twisted pair (UTP),
see section 3.2
Recommendations for achieving the best performance, see section
3.3
3.1 About the Power Connect Feature
The Power Connect feature applies as long as the cable can carry power. The
distance does not exceed 50m on standard CAT 5 cable, for longer distances,
heavy gauge cable should be used
1
.
1 CAT 5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances

Overview
5
For a CAT 5 cable exceeding a distance of 50m, separate power supplies
should be connected to the transmitter and to the receiver simultaneously.
3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)
We recommend that you use shielded twisted pair (STP) cable. There are
different levels of STP cable available, and we advise you to use the best
quality STP cable that you can afford. Our STP skew-free cable, Kramer
BC-SXTP, is intended for transmitting VGA signals. Our non-skew-free
cable, Kramer BC-STP, is intended for digital signals.
The compliance to electromagnetic interference was tested using STP
cables, therefore we recommend using those cables.
Although unshielded twisted pair (UTP) cable might be preferred for long
range applications, the UTP cable should be installed far away from electric
cables, motors and so on, which are prone to create electrical interference.
However, since the use of UTP cable may not conform to electromagnetic
standards, Kramer does not commit to meeting the standard with UTP cable.
3.3 Recommendations for Achieving the Best Performance
To achieve the best performance:
Connect only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching,
and elevated noise- levels (often associated with low quality
cables)
Avoid interference from neighboring electrical appliances and
position your Kramer machines away from moisture, excessive
sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit
1
.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 For example, part number 2535-000251

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-200XLT XGA Line Amp / CAT 5 Transmitter
6
4 Your VP-200XLT XGA Line Amp / CAT 5 Transmitter
The VP-200XLT is a high-performance XGA line amp / CAT 5 transmitter
that accepts one computer graphics (XGA
1
) input, provides necessary
buffering and isolation, and distributes the signal to its high-density 15 pin
“D” connector output, as well as transmitting it over UTP CAT 5 cable to
its appropriate receiver.
In particular, the VP-200XLT has:
A transmission range of more than 300ft (more than 100m) over
UTP cabling
Video bandwidth exceeding 400MHz, ensuring transparency even
when operating at the highest resolutions
Output level control, and cable equalization, using two rotary
controls on the side panel of the machine
Figure 1 and Table 1 define the VP-200XLT:
Figure 1: VP-200XLT XGA Line Amp / CAT 5 Transmitter
1 The terminology XGA is used throughout this manual, where this implies any RGBHV signal on an 15-pin HD connector
having a resolution from VGA up to XGA

VP-200XLTHD XGA Line Amp / CAT 5 Transmitter
7
Table 1: VP-200XLT XGA Line Amp / CAT 5 Transmitter Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 LINE OUT RJ-45 Connector Connects to
1
the LINE IN RJ-45 connector on the TP-120 XGA Line
Receiver
2
or the VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor
3 XGA OUT 15-pin HD Connector Connect to the XGA acceptor
4 INPUT 15-pin HD Connector Connect to the XGA source
5 LEVEL Control knob Rotate to adjust the output signal level
6 EQ. Control knob Rotate to adjust the video EQ. (equalization) compensation
7 ON LED Illuminates when receiving power
5 VP-200XLTHD XGA Line Amp / CAT 5 Transmitter
The VP-200XLTHD is a high-performance XGA line amp / CAT 5
transmitter that accepts one computer graphics (XGA) input, provides
necessary buffering and isolation, and distributes the signal to its high-
density 15 pin “D” connector output, as well as transmitting it over UTP
CAT 5 cable to its appropriate receiver. In particular, the VP-200XLTHD:
Can also receive HD signals (high-definition resolutions: 480p,
576p, 720p, 1080i and 1080p)
Has a transmission range of more than 300ft (more than 100m)
over UTP cabling
Has a video bandwidth exceeding 400MHz, ensuring transparency
even when operating at the highest resolutions
Includes output level control and cable equalization control, via
two trimmers on the side panel of the machine
Figure 2 and Table 2 define the VP-200XLTHD:
1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 10 and Figure 13)
2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at this
URL: http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
VP-200XLTHD XGA Line Amp / CAT 5 Transmitter
8
Figure 2: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter
Table 2: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 LINE OUT RJ-45 Connector Connects to
1
the LINE IN RJ-45 connector on the TP-120 XGA Line
Receiver
2
or the VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor
3 XGA OUT 15-pin HD Connector Connect to the XGA acceptor
4 INPUT 15-pin HD Connector Connect to the XGA source
5 LEVEL trimmer Adjust
3
the output signal level
6 EQ. trimmer Adjust
3
the video EQ. (equalization) compensation
7 ON LED Illuminates when receiving power
Figure 3 and Table 3 define the VP-200XLTHD:
1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 10 and Figure 13)
2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at this
URL: http://www.kramerelectronics.com
3 Insert a screwdriver into the hole and carefully rotate it, to trim the level

Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter
9

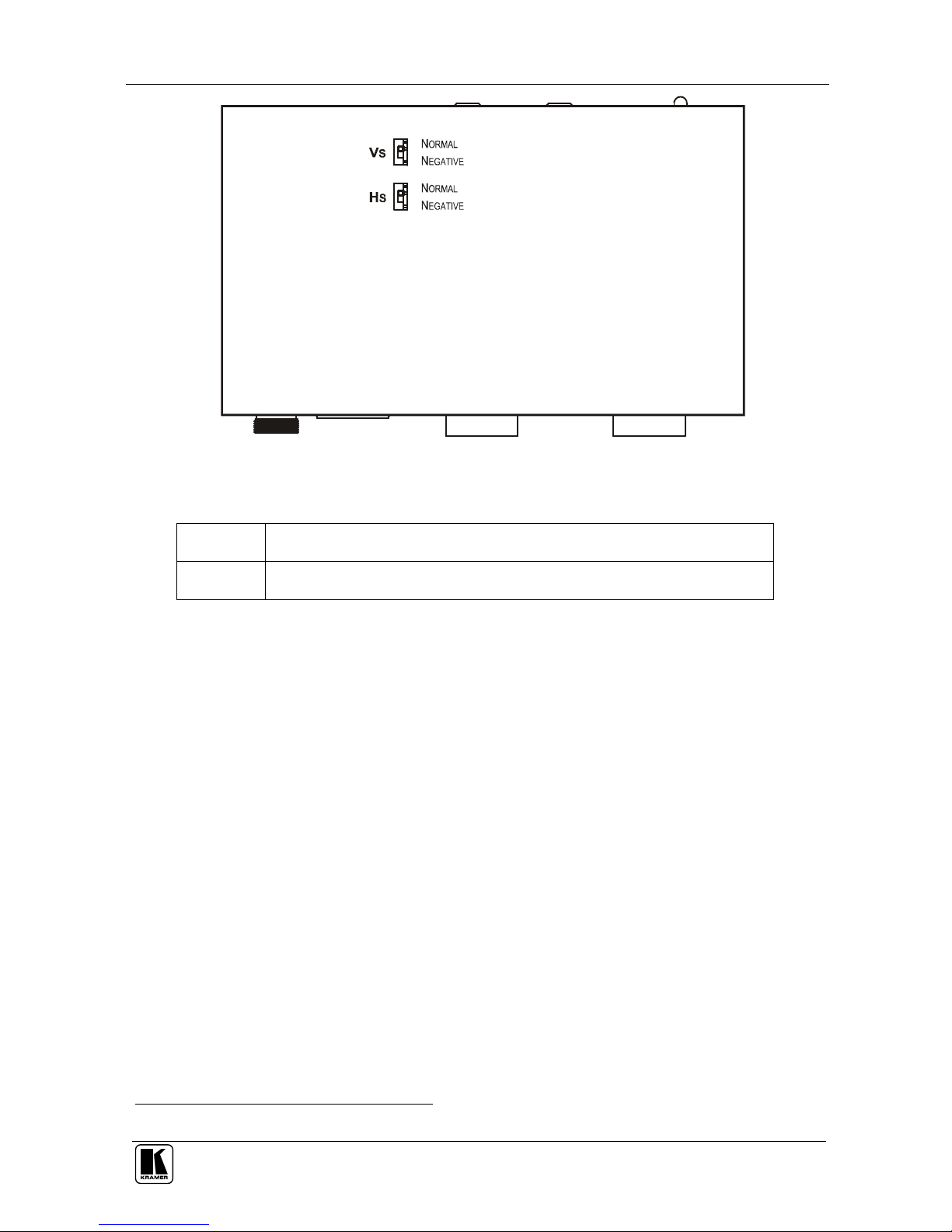

Figure 3: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter
Table 3: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter Features
VS Switch Slide the switch downward to change the VS polarity to negative polarity
1
;
slide the switch upward to retain the polarity (default)
HS Switch Slide the switch downward to change the HS polarity to negative polarity
1
;
slide the switch upward to retain the polarity (default)
6 Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter
This section describes the topside (see section 6.1), and the underside (see
section 6.2) of the VP-300T 1:2 XGA DA/ CAT 5 Transmitter.
6.1 Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Topside)
The VP-300T is a high-performance distributor for computer graphics
signals, accepting one input, providing necessary buffering and isolation,
and distributing the signal to its identical 2 outputs, as well as transmitting it
over UTP CAT 5 cable to its appropriate receiver. In particular, the
VP-300T has a:
Video bandwidth exceeding 430MHz, ensuring transparency even
when operating at the highest resolutions
Transmission range of more than 300ft (more than 100m) over
UTP cabling
Switch for ID Bit control
Is 12V DC fed
1 Downgoing syncs

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter
10
Figure 4 and Table 4 define the VP-300T:
Figure 4: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Topside)
Table 4: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Topside) Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 LINE OUT RJ-45 Connector Connects to
1
the LINE IN RJ-45 connector on the TP-120 XGA Line
Receiver
2
or the VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor
3 OUTPUT 2 15-pin HD Connector Connect to the XGA acceptor 2
4 OUTPUT 1 15-pin HD Connector Connect to the XGA acceptor 1
5 XGA INPUT 15-pin HD Connector Connect to the XGA source
6 ON LED Illuminates when receiving power
6.2 Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Underside)
Figure 5 and Table 5 define the underside of the VP-300T 1:2 XGA DA/
CAT 5 Transmitter:
1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 10 and Figure 13)
2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at this
URL: http://www.kramerelectronics.com

Your VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter
11
Figure 5: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Underside)
Table 5: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Underside) Features
# Feature Function
1 ID Bit Switch Slide to the right to set to ON
1
; to the left to set to OFF
7 Your VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5
Transmitter
This section describes the front and rear panels of the VP-5T/VP-5THD
1:4 VGA/UXGA Distributor / CAT 5 Transmitter (see section 7.1), and the
underside (see section 7.2).
7.1 Your VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5
Transmitter
The VP-5T/VP-5THD is a high-performance distributor for computer
graphics signals, accepting one input, providing necessary buffering and
isolation, and distributing the signal to its identical 4 outputs, as well as
transmitting it over UTP CAT 5 cable to its appropriate receiver.
In particular, the VP-5T:
Features front panel EQ. control
Has switches on the underside for ID Bit control
1 The default. Enabling the notebook or laptop to output a VGA signal to an external VGA monitor

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter
12
Has video bandwidth exceeding 440MHz, ensuring transparency
even when operating at the highest resolutions
Has a transmission range of more than 300ft (more than 100m)
over UTP cabling
Is mains fed and housed in a half 19" enclosure
The VP-5THD:
Includes all the features as the VP-5T
Has Hs and Vs polarity switches on its underside
Also receives HD signals (high-definition resolutions: 720p, 1080i and
1080p) and SD signals
Figure 6 and Table 6 define the VP-5T and VP-5THD:
Figure 6: VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter

Your VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter
13
Table 6: VP-5T 1:4 VGA/UXGA Distributor / CAT 5 Transmitter Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 EQ. Trimmer Adjusts
1
the video EQ. (equalization) compensation
3 INPUT 15-pin HD Connector Connect to the VGA/UXGA source
4 CAT 5 OUT RJ-45 Connector Connect to
2
the LINE IN RJ-45 connector on the VP-5R CAT 5
Receiver / 1:5 VGA/UXGA Distributor
5 OUTPUT 15-pin HD Connector Connect to the VGA/UXGA acceptor (from 1 to 4)
6 Power Connector with FUSE AC connector enabling power supply to the unit
7.2 Your VP-5T/VP5THD (Underside)
Figure 7 and Table 7 define the underside of the VP-5T/VP-5THD 1:4
VGA/UXGA Distributor / CAT 5 Transmitter:
Figure 7: VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter (Underside)
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
2 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 10 and Figure 13)

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor
14
Table 7: VP-5T/VP-5THD
1:4 VGA/UXGA Distributor / CAT 5 Transmitter (Underside)
Features
# Feature Function
1 PIN 11 ID BIT CONTROL Switch
Slide to the left to set to ON
1
; to the right to set to OFF
2 PIN 4 ID BIT CONTROL Switch Slide to the left to set to ON
1
; to the right to set to OFF
3 VS Switch Slide the switch to the left to change the VS polarity to
negative polarity
2
; slide the switch to the right to retain the
polarity (default)
4
HD ONLY
HS Switch Slide the switch to the left to change the HS polarity to
negative polarity
2
; slide the switch to the right to retain the
polarity (default)
8 Your VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor
This section describes the front and rear panels of the VP-5R CAT 5
Receiver / 1:5 VGA/UXGA Distributor (see section 8.1), and the underside
(see section 8.2).
8.1 Your VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor
The VP-5R is a high-performance distributor for computer graphics signals,
receiving the computer graphics signal via UTP CAT 5 cable, and
distributing the signal to 5 identical 15-pin HD outputs. In particular, the
VP-5R:
Features front panel line input level and EQ. control, as well as
output EQ. control
Is mains fed
Is housed in a half 19" enclosure
Figure 8 and Table 8 define the VP-5R:
1 The default. Enabling the notebook or laptop to output a VGA signal to an external VGA monitor
2 Downgoing syncs

Your VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor
15
Figure 8: VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor
Table 8: VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 LINE INPUT LEVEL Trimmer Adjusts
1
the video input level
3 LINE INPUT EQ. Trimmer Adjusts
1
the video input EQ. (equalization) compensation
4 OUTPUT EQ. Trimmer Adjusts
1
the video output EQ. (equalization) compensation
5 CAT 5 LINE IN RJ-45 Connector Connect to
2
the LINE OUT RJ-45 connector on the VP-5T 1:4
VGA/UXGA Distributor / CAT 5 Transmitter
6 OUTPUT 15-pin HD Connector Connect to the VGA/UXGA acceptor (from 1 to 5)
7 Power Connector with FUSE AC connector enabling power supply to the unit
8.2 Your VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor
(Underside)
Figure 9 and Table 9 define the underside of the VP-5R CAT 5 Receiver /
1:5 VGA/UXGA Distributor:
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
2 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 10 and Figure 13)

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-200XLT
16
Figure 9: VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor (Underside)
Table 9: VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor (Underside) Features
# Feature Function
1 V SYNC Switch Slide the switch to the right
1
to change the V SYNC polarity;
slide the switch to the left to retain the polarity
2 H SYNC Switch Slide the switch to the right
1
to change the H SYNC polarity;
slide the switch to the left to retain the polarity
9 Connecting the VP-200XLT
2
You can use the VP-200XLT and, for example, the TP-120 to configure an
XGA Line-to-Twisted Pair Transmitter and Receiver system.
To connect the VP-200XLT with the TP-120, as the example in Figure 10
illustrates, do the following:
1. On the VP-200XLT XGA Line Amp / CAT 5 Transmitter, connect the:
Computer graphics (XGA) source (for example, a
computer) to the INPUT 15-pin HD connector
XGA OUT 15-pin HD connector to the acceptor (for
example, to a projector)
2. On the TP-120 XGA Line Receiver, connect the XGA OUT 15-pin HD
connector to the XGA acceptor (for example, a display).
1 By default, both switches are set to the left
2 This section also applies to the VP-200XLTHD

Connecting the VP-200XLT
17
3. Connect the LINE OUT RJ-45 connector on the VP-200XLT to the LINE
IN RJ-45 connector on the TP-120, via UTP cabling (with a range of more
than 300ft (more than 100m)), see section 11.1.
4. Connect the 12V DC power adapter to the power socket on the
VP-200XLT, and plug the adapter into the mains electricity socket.
Similarly, connect the other 12V DC power adapter to the power socket on
the TP-120,and plug that adapter into the mains electricity socket.
5. On the VP-200XLT, if required, rotate the appropriate control knob to
adjust the:
Video output signal level
Cable compensation equalization level
6. On the TP-120, if required:
Adjust
1
the video output signal level and/or cable
compensation equalization level
Set the H SYNC and V SYNC switches
2
, on the underside
1 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level
2 By default, both switches are set down (for normal V SYNC and H SYNC polarity)
