USER MANUAL



Model:
TP-210
XGA Line Transmitter / DA

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 2
3 Overview 3
3.1 Power Connect Feature 3
3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 4
3.3 Recommendations for Achieving the Best Performance 4
4 Your TP-210 XGA Line Transmitter / DA 4
5 Installing the TP-210 on a Rack 7
6 Connecting the TP-210 8
6.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 10
7 Technical Specifications 11
Figures
Figure 1: TP-210 XGA Line Transmitter / DA 5
Figure 2: TP-210 Underside View 6
Figure 3: Connecting the TP-210 XGA Line Transmitter / DA 9
Figure 4: CAT 5 PINOUT 10
Tables
Table 1: Front Panel TP-210 XGA Line Transmitter / DA Features 6
Table 2: TP-210 XGA Line Transmitter / DA Underside Features 6
Table 3: CAT 5 PINOUT 10
Table 4: Technical Specifications of the TP-210 11

Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
500-plus different models now appear in 8 Groups
1
, which are clearly defined
by function.
Congratulations on purchasing your Kramer TP-210 XGA Line Transmitter
/DA. This product is ideal for utilizing existing CAT5 cabling that results in an
efficient, fast and uncluttered environment for:
Presentation and multimedia applications
Long range graphics distribution for schools, hospitals, security, and
stores
The package includes the following items:
TP-210 XGA Line Transmitter / DA
Power cord
This user manual
2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables
3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
Computer
Graphics
Source
Display
CAT5cable
TP-120
TP-210
Local
Display

Overview
3
3 Overview
The TP-210 XGA Line Transmitter / DA is a 1:2 XGA and 1:10 CAT5
transmitter distribution amplifier that receives an XGA signal
1
and transmits it
over 10 CAT5 cables to appropriate receivers to create a multimode
XGA/CAT5 distribution system.
The TP-210 XGA Line Transmitter:
Features a resolution up to UXGA
Has two XGA outputs for local monitoring
Has 10 CAT5 outputs for simultaneous signal transmission to 10
locations, each with a transmission range of more than 300 ft. (more
than 100 meters
2
)
Includes H and V SYNC switches for changing the polarity of the
signal
3.1 Power Connect Feature
The Power Connect feature lets you power a transmitter / receiver system by
connecting just one power adapter— to either the transmitter or the receiver.
The other unit is fed via the cable connecting between the transmitter/receiver.
The Power Connect feature applies as long as the cable can carry power. The
distance does not exceed 50 meters on standard CAT5 cable, for longer
distances, heavy gauge cable should be used
3
.
For a CAT5 cable exceeding a distance of 50 meters, separate power supplies
should be connected to the transmitter and to the receiver simultaneously.
Each output on the TP-210 can supply up to 500mA/12V, but no more than
2.5A in total (for all the outputs). Before using this feature, be sure that the
TP-210 is capable of providing the current requirements of the CAT5 receivers.
1 The terminology XGA is used throughout this manual, where this implies any RGBHV signal on an HD15 connector
having a resolution from VGA up to XGA
2 If the receiver is connected at a distance of over 50 meters, you need to connect a separate power supply for that receiver
3 CAT5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your TP-210 XGA Line Transmitter / DA
4
3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)
The decision whether to use shielded twisted pair (STP) cable or unshielded
twisted pair (UTP) cable depends on the nature of the application.
It is recommended that in applications with high interference, shielded twisted
pair (STP) cable will give better results. However, the shield itself does create a
capacitance that degrades the frequency response of the machines. For shorter
distances, of 50m or so, shielded twisted pair (STP) cable is preferred because
it provides protection from interference (degradation is non-apparent).
For a long-range application, unshielded twisted pair (UTP) cable is preferred.
However, the unshielded twisted pair (UTP) cable should be installed far away
from electric cables, motors etc., which are prone to create electrical
interference.
3.3 Recommendations for Achieving the Best Performance
To achieve the best performance:
Connect only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching,
and elevated noise- levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances and
position your Kramer TP-210 away from moisture, excessive
sunlight and dust
4 Your TP-210 XGA Line Transmitter / DA
Figure 1 and Table 1 define the TP-210:

Your TP-210 XGA Line Transmitter / DA
5
Figure 1: TP-210 XGA Line Transmitter / DA

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your TP-210 XGA Line Transmitter / DA
6
Table 1: Front Panel TP-210 XGA Line Transmitter / DA Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 XGA INPUT HD15 Connector
Connects to the video source
3 XGA OUT 2 HD15 Connector
Connects to the video acceptor 2
4 XGA OUT 1 HD15 Connector
Connects to the video acceptor 1
5 OUT CAT5 Connectors Connect to the LINE IN connectors on Line Receivers
1
(from 1 to 10)
6 Power Connector with FUSE AC connector enabling power supply to the unit
The TP-210 underside is illustrated in Figure 2 and defined in Table 2:
Figure 2: TP-210 Underside View
Table 2: TP-210 XGA Line Transmitter / DA Underside Features
# Feature Function
1 VS Switch Slide the switch down
2
(to NORM.) to retain the polarity; slide the
switch up (to NEG.) to change the VS polarity to negative polarity
2 HS Switch Slide the switch down
2
(to NORM.) to retain the polarity; slide the
switch up (to NEG.) to change the HS polarity to negative polarity
1 Using a cable with CAT5 connectors at both ends
2 By default, both switches are set to NORM

Installing the TP-210 on a Rack
7

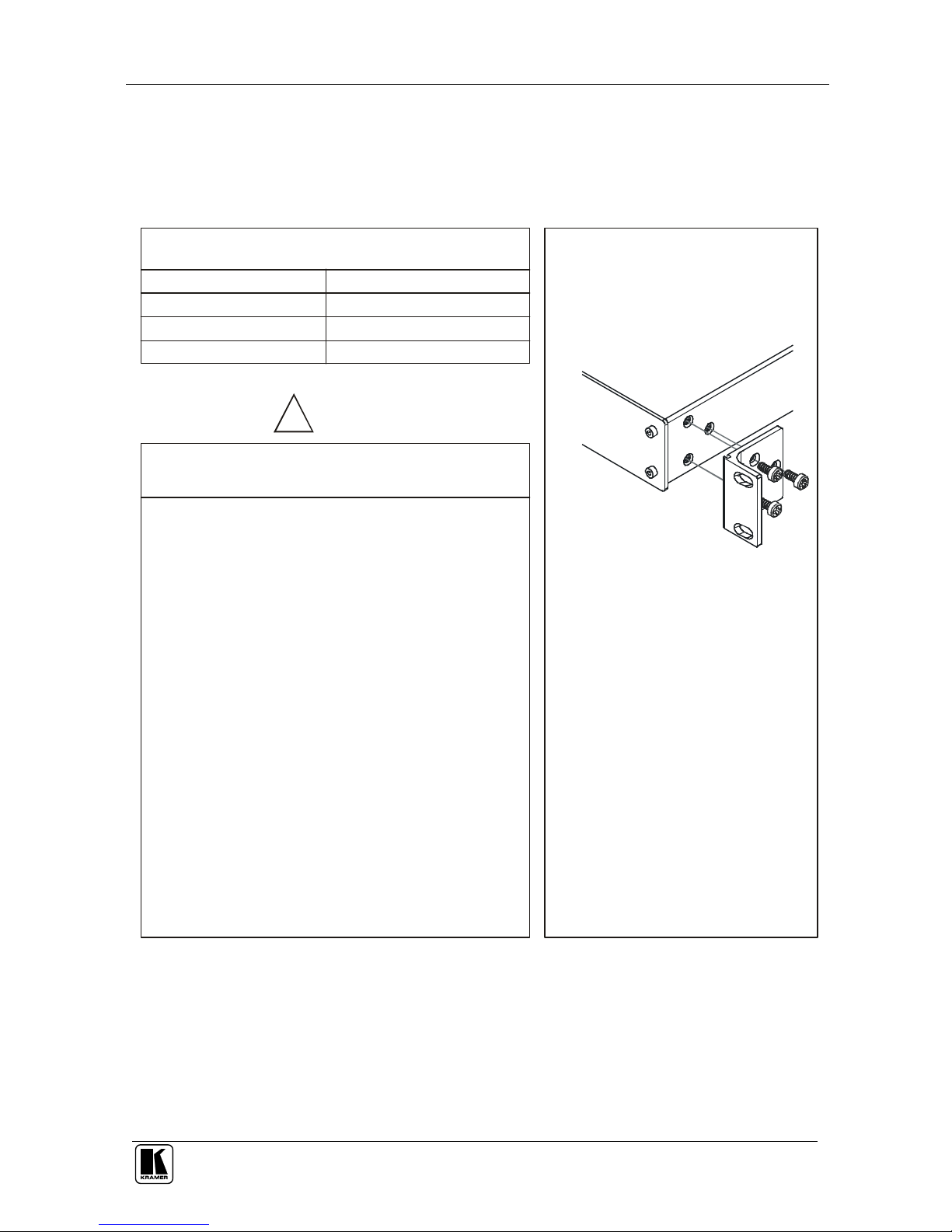

5 Installing the TP-210 on a Rack
This section describes what to do before installing on a rack and how to rack
mount.
Before installing on a rack, be sure that the environment is
within the recommended range:
Operating temperature range +5 to +45 Deg. Centigrade
5 to 65% RHL, non-condensing
-20 to +70 Deg. Centigrade
5 to 95% RHL, non-condensing
Operating humidity range
Storage temperature range
Storage humidity range
When installing on a 19" rack, avoid hazards by taking
care that:
It is located within the recommended environmental
conditions, as the operating ambient temperature of a
closed or multi unit rack assembly may exceed the
room ambient temperature.
Attach both ear brackets to the
machine. To do so, remove the
screws from each side of the machine
(3 on each side), and replace those
screws through the ear brackets.
Place the ears of the machine
against the rack rails, and insert the
proper screws (not provided) through
each of the four holes in the rack
ears.
Note that:
Detachable rack ears can be removed
for desktop use
Always mount the machine in the rack
before you attach any cables or
connect the machine to the power
If you are using a Kramer rack adapter
kit (for a machine that is not 19"), see
the Rack Adapters user manual for
installation instructions (you can
download it at:
http://www.kramerelectronics.com)




In some models, the front panel
may feature built-in rack ears
Once rack mounted, enough air will still flow around the
machine.
The machine is placed straight in the correct horizontal
position.
You do not overload the circuit(s). When connecting
the machine to the supply circuit, overloading the
circuits might have a detrimental effect on overcurrent
protection and supply wiring. Refer to the appropriate
nameplate ratings for information. For example, for
fuse replacement, see the value printed on the product
label.
The machine is earthed (grounded) in a reliable way
and is connected only to an electricity socket with
grounding. Pay particular attention
and that you use only the power cord that is
supplied with the machine.
to situations where
electricity is supplied indirectly (when the power cord is
not plugged directly into the socket in the wall), for
example, when using an extension cable or a power
strip,

CAUTION!!
Before Installing on a Rack
How to Rack Mount
To rack-mount a machine:
1
1
2
2
3
4
5

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the TP-210
8
6 Connecting the TP-210
To connect the TP-210, as Figure 3 illustrates, do the following:
1. Connect an XGA source (for example, a computer graphics source) to the
XGA INPUT connector.
2. Connect the XGA OUT 1 XGA connector to an XGA acceptor (for example,
Local Display 1).
3. Connect the XGA OUT 2 XGA connector to an XGA acceptor (for example,
Local Display 2).
4. Connect
1
the 10 LINE OUTPUT CAT5 connectors (from 1 to 10) to the
LINE IN CAT5 connectors of 10 XGA line receivers (for example, the
Kramer
2
TP-120).
5. Connect the power cord
3
(not shown in Figure 3).
1 You do not have to connect all the LINE OUTPUTS
2 Alternatively, you can use a different Kramer receiver, for example, the Kramer PT-120
3 We recommend that you use only the power cord that is supplied with this machine

Connecting the TP-210
9
Display 10
L
o
n
g
C
A
T
5
c
a
b
l
e
Display 1
LongCAT5cable
Local Display 2
TP-120
TP-120
TP-210
Local Display 1
Computer
Graphics
Source
Figure 3: Connecting the TP-210 XGA Line Transmitter / DA

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the TP-210
10
6.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors
Table 3 and Figure 4 define the CAT 5 PINOUT, using a straight pin-to-pin
cable with RJ-45 connectors:
Table 3: CAT 5 PINOUT
EIA /TIA 568A EIA /TIA 568B
PIN Wire Color PIN Wire Color
1 Green / White 1 Orange / White
2 Green 2 Orange
3 Orange / White 3 Green / White
4 Blue 4 Blue
5 Blue / White 5 Blue / White
6 Orange 6 Green
7 Brown / White 7 Brown / White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8 Pair 4 7 and 8
Figure 4: CAT 5 PINOUT

Technical Specifications
11
7 Technical Specifications
Table 4 defines the technical specifications
1
:
Table 4: Technical Specifications
2
of the TP-210
INPUTS: 1 XGA on an HD15F connector
OUTPUTS: 2 XGA on HD15F connectors
10 CAT5 on RJ-45 connectors
MAX. OUTPUT LEVEL: 1.9Vpp / 1.6Vpp
3
RESOLUTION: Up to UXGA
DIFF. GAIN: 0.03% / 2.5%
3
DIFF. PHASE: 0.05 Deg / 0.5 Deg
3
K-FACTOR: <0.05% / <0.05%
3
S/N RATIO @5MHz: 73.6dB / 68.5dB
3
CONTROLS: Level: -9.6dB to 2.4dB; EQ. @50MHz: 0 to 37.6dB, CAT5 by TP-120
COUPLING: AC/DC
POWER SOURCE: 100 – 240 VAC, 50/60Hz, 54 VA
DIMENSIONS: 19-inch (W), 7-inch (D), 1U (H)
WEIGHT: 2.5kg. (5.5lbs.) approx.
ACCESSORIES: Power cord
1 Specifications for 60m of CAT5 cable, unless otherwise specified
2 Specifications are subject to change without notice
3 For XGA / CAT5 system (including TP-120)

KRAMER: SIMPLE CREATIVE TECHNOLOGY
12
LIMITED WARRANTY
WHO IS PROTECTED?
WHAT IS COVERED AND WHAT IS NOT COVERED
WHAT WE WILLPAY FOR AND WHAT WE WILLNOT PAY FOR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATION OF IMPLIED WARRAN TIES
EXCLUSION OF DAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms.
Kramer
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
We will pay labor and material expenses for covered items.We will not pay for the following:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product,on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
1. Removal or installationscharges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damage to other property caused by defects in this product, damages basedupon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
NOTE:
Part 1:

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [email protected]
P/N: 2900-000199 REV 2
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
