USER MANUAL
Models:
TP-125, UXGA / Audio / Data Line Transmitter
TP-126, UXGA / Audio / Data Line Receiver

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 2
3 Overview 3
3.1 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 3
3.2 Recommendations for Achieving the Best Performance 4
4 Your TP-125 / TP-126 4
4.1 Your TP-125 UXGA / Audio / Data Line Transmitter 5
4.1.1 The TP-125 Internal Polarity Switches 6
4.2 Your TP-126 UXGA / Audio / Data Line Receiver 7
4.2.1 Your TP-126 UXGA / Audio / Data Line Receiver (Underside) 8
5 Connecting the TP-125/TP-126 Transmitter/Receiver Pair 9
5.1 Transmitting via RS-232 (for example, using a PC) 11
5.2 Wiring the CAT 5 RJ-45 Connectors 11
6 Technical Specifications 12
Figures
Figure 1: TP-125 UXGA / Audio / Data Line Transmitter 5
Figure 2: TP-125 Internal Polarity Switches 6
Figure 3: TP-126 UXGA / Audio / Data Line Receiver (Top, Front, and Rear) 7
Figure 4: TP-126 UXGA / Audio / Data Line Receiver (Underside) 8
Figure 5: Connecting the UXGA / Audio / Data Line Transmitter / Receiver System 10

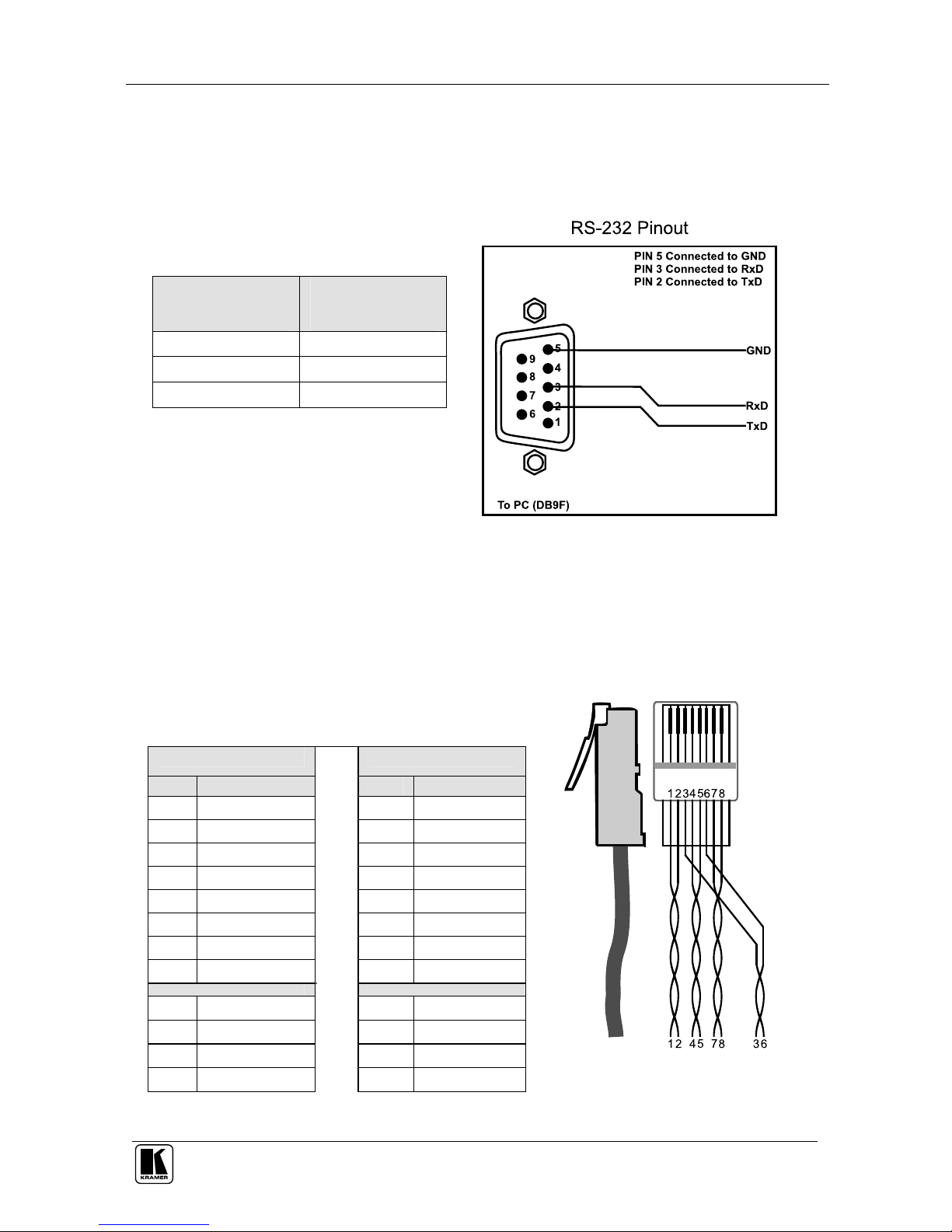

Figure 6: RS-232 PINOUT Connection 11
Figure 7: CAT 5 Connector 11
Tables
Table 1: TP-125 UXGA / Audio / Data Line Transmitter Features 6
Table 2: Features of the TP-125 Internal Polarity Switches 6
Table 3: TP-126 UXGA / Audio / Data Line Receiver (Top, Front, and Rear) Features 8
Table 4: TP-126 UXGA / Audio / Data Line Receiver (Underside) Features 8
Table 5: RS-232 PINOUT Connection 11
Table 6: CAT 5 Connector Pinout 11

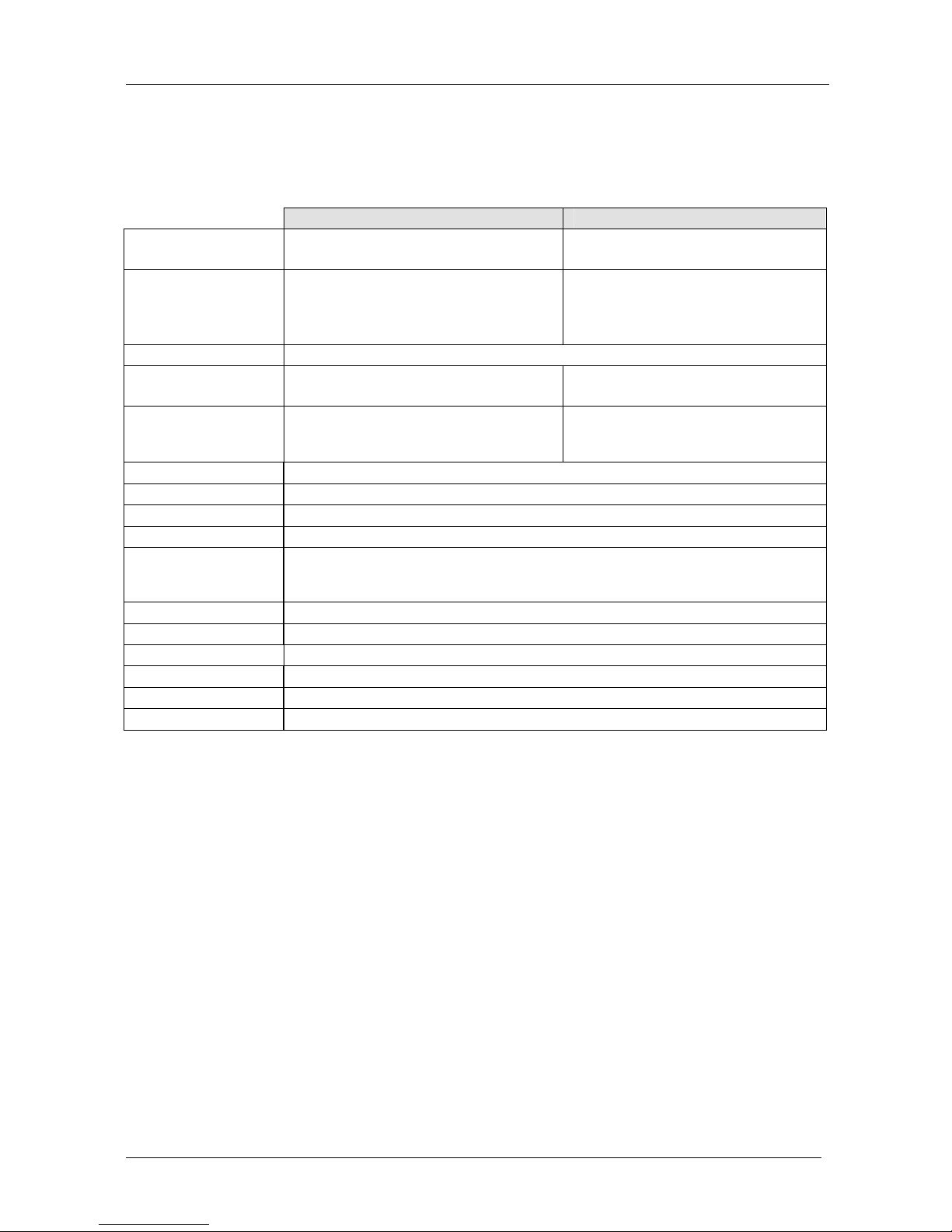

Table 7: Technical Specifications of the TP-125 / TP-126 12

Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups
1
that are clearly
defined by function.
Thank you for purchasing the Kramer TOOLS TP-125, UXGA / Audio /
Data Line Transmitter, and/or TP-126,UXGA / Audio / Data Line Receiver,
which are ideal for:
Presentation and multimedia applications
Long range graphics distribution for schools, hospitals, security,
and stores
Each package includes the following items:
TP-125 or TP-126
Poweradapter(12VDCInput)
This user manual
2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
Review the contents of this user manual
Use Kramer high-performance high-resolution cables
3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Twisted-Pair Solutions; GROUP 6: Specialty AV Products; GROUP 7: Scan
Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and
Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.

Overview
3
3 Overview
The TP-125 and TP-126 are a high-performance twisted pair transmitter
and receiver for computer graphics video (including HDTV), unbalanced
stereo audio, and RS-232 control commands.
The TP-125 converts computer graphics video, unbalanced stereo analog
audio, and RS-232 control commands to a twisted pair signal, and the
TP-126 converts the twisted pair signal back into computer graphics video,
unbalanced stereo and S/PDIF digital audio, and RS-232 control signals.
Together the TP-125 and TP-126 form a computer graphics/audio line
transmitter/receiver system.
More specifically, the products feature:
Resolution up to UXGA or 1920x1200
HDTV compatibility
Simultaneous unbalanced stereo and S/PDIF (24-bit 48kHz) audio
outputs (TP-126)
Level (gain) and EQ (peaking) controls (TP-126)
System range up to 100m (300ft)
This user manual describes the following Kramer TOOLS:
TP-125 UXGA / Audio / Data Line Transmitter, see section 4.1
TP-126 UXGA/Audio/DataLineReceiver, see section4.2
This section describes:
Using shielded twisted pair (STP) / unshielded twisted pair (UTP),
see section 3.1
Recommendations for achieving the best performance, see section 3.2
3.1 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)
The decision whether to use shielded twisted pair (STP) cable or unshielded
twisted pair (UTP) cable depends on the nature of the application.
In applications with high interference, shielded twisted pair (STP) cable is
recommended. However, the cable shield creates a capacitance that
degrades the frequency response of the device. For distances of 50 meters or
less shielded twisted pair (STP) cable is preferred because it provides
interference protection without any apparent degradation.
In applications where either: 1) the source and transmitter or receiver and
destination monitor are disconnected from common ground, or 2) the source
area (building) and destination area have no common ground – STP cable is
preferred. For long-range applications, unshielded twisted pair (UTP) cable

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your TP-125 / TP-126
4
is preferred. However, unshielded twisted pair (UTP) cable should be
installed far away from sources of electromagnetic interference such as
electric cables and motors.
It is recommended to use shielded twisted pair (STP) skew-free Kramer cable
BC-SXTP for transmitting VGA signals, and shielded twisted pair (STP)
non-skew-free Kramer BC-STP cable for digital signals.
3.2 Recommendations for Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables
1
to avoid interference,
deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low-quality cables)
Avoid interference from neighboring electrical appliances that
may adversely influence signal quality and position your Kramer
TP-125/TP-126 away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit
2
.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
4 Your TP-125 / TP-126
This section defines the:
TP-125, UXGA / Audio / Data Line Transmitter (see section 4.1)
TP-126,UXGA/Audio/DataLineReceiver(see section4.2)
1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com
2 For example: model number AD2512C, part number 2535-000251

Your TP-125 / TP-126
5
4.1 Your TP-125 UXGA / Audio / Data Line Transmitter
The TP-125 is a high-performance transmitter that accepts:
A computer graphics input signal
An unbalanced stereo analog audio signal
RS-232 control commands
The TP-125 codes the signals and transmits them over CAT 5 cable to a
TP-126 receiver. The stereo analog audio signal is converted to the digital
audio (S/PDIF) stream before transmitting, thus preserving the quality of
the audio source signals. Commands and data can flow in both directions
via the RS-232 interface, allowing status requests and control of the
destination unit.
Figure 1 and Table 1 define the TP-125:
Figure 1: TP-125 UXGA / Audio / Data Line Transmitter

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your TP-125 / TP-126
6
Table 1: TP-125 UXGA / Audio / Data Line Transmitter Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 AUDIO IN 3.5mm Mini Jack Connects to the audio source
3 RS-232 Terminal Block Connector Connects to the PC or the Remote Controller (see section 5.1)
4 LINE OUT RJ-45 Connector Connects to the LINE IN RJ-45 connector on the TP-126
UXGA / Audio Line Receiver
5 UXGA IN 15-pin HD (F) Connector Connect to the UXGA source
6 ON LED Illuminates when receiving power
4.1.1 The TP-125 Internal Polarity Switches
Figure 2 and Table 2 define the internal sync polarity switches inside the
TP-125.
Note, that you need to open the TP-125 unit to gain access to the Vs and Hs
Polarity switches. After setting the switches, close the TP-125 unit.
Figure 2: TP-125 Internal Polarity Switches
Table 2: Features of the TP-125 Internal Polarity Switches
Feature Function
VS Switch Slide down to set the V SYNC to negative polarity (NEG);
slide up
1
to set the V SYNC to positive polarity (NORM)
HS Switch Slide down to set the H SYNC to negative polarity (NEG);
slide up
1
to set the H SYNC to positive polarity (NORM)
1 By default, both switches are set down (for a negative V SYNC and H SYNC polarity)

Your TP-125 / TP-126
7
4.2 Your TP-126 UXGA / Audio / Data Line Receiver
The TP-126 is a high-performance receiver obtaining the computer graphics
signal/audio/control data from the Kramer TP-125 via UTP cabling at its
CAT 5 line input. The TP-126 outputs a computer graphics signal, an
unbalanced stereo analog audio signal, a converted digital audio (S/PDIF)
signal, and bi-directional RS-232 control commands and data, to and from the
receiver. The RS-232 interface makes it possible to control virtually any
device over a transmission range of more than 300 feet (more than 100
meters) over UTP cabling. In addition, the TP-126 features:
Level and EQ. control for the UXGA signals
The capability to change the polarity of decoding H and V Sync
24 bit 48kHz S/PDIF digital audio that supplies the highest quality audio
12V DC power
Figure 3 and Table 3 define the TP-126 UXGA / Audio / Data Line Receiver:
Figure 3: TP-126 UXGA / Audio / Data Line Receiver (Top, Front, and Rear)

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your TP-125 / TP-126
8
Table 3: TP-126 UXGA / Audio / Data Line Receiver (Top, Front, and Rear) Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 S/PDIF RCA connector Connects to the digital audio acceptor
3
AUDIO
OUT
ANALOG 3.5mm Mini Jack Connects to the analog audio acceptor
4 RS-232 Terminal Block Connector Connects to the controlled unit
5 LINE IN RJ-45 Connector Connects to
1
the LINE OUT RJ-45 connector on the TP-125
6 UXGA OUT 15-pin HD (F) Connector Connects to the UXGA acceptor
7 ON LED Illuminates when receiving power
8 EQ.
2
Trimmer Adjusts the cable compensation equalization level
9 LEVEL Trimmer Adjusts the output signal level
10 LINK LED Illuminates when receiving the correct input signal
4.2.1 Your TP-126 UXGA / Audio / Data Line Receiver (Underside)
Figure 4 and Table 4 define the underside of the TP-126 UXGA / Audio /
Data Line Receiver. Note, that you need to open the TP-126 unit to gain
access to the Vs and Hs Polarity switches. After setting the switches, close
the TP-126 unit.
Figure 4: TP-126 UXGA / Audio / Data Line Receiver (Underside)
Table 4: TP-126 UXGA / Audio / Data Line Receiver (Underside) Features
# Feature Function
1 VS Switch Slide down to set the V SYNC to negative polarity (NEG);
slide up
1
to set the V SYNC to positive polarity (NORM)
2 HS Switch Slide down to set the H SYNC to negative polarity (NEG);
slide up
1
to set the H SYNC to positive polarity (NORM)
1 Using a UTP cable with CAT 5 connectors at both ends (the PINOUT is defined in Figure 7 and Table 6)
2 Degradation and UXGA signal loss can result from using long cables (due to stray capacitance), sometimes leading to a
total loss of sharpness in high-resolution signals
