UrbixTM Industrial Bridge
Kitchen Faucet
KPF-3125
R
INSTALLATION MANUAL

2
Congratulations on the purchase of your new
Kraus plumbing fixture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your
receipt with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP

Prior to Installation:
·Make sure you have all necessary parts by checking the diagram and
parts list. If any part is missing or damaged, please contact Kraus
Customer Service at 800-775-0703 for a replacement.
·Turn off the hot and cold water supply at the angle stops and turn on
the old faucet to release any built up pressure. Remove existing faucet.
Clean sink or countertop to remove any debris, plumber’s putty, or
silicone.
·Flush angle stops to release any debris prior to installation.
·Pre-drilled hole size requirement: 1 1/4" (min) - 1 1/2" (max)
·Max countertop thickness: 2 1/2”
·
·3 or 4 hole installation
3

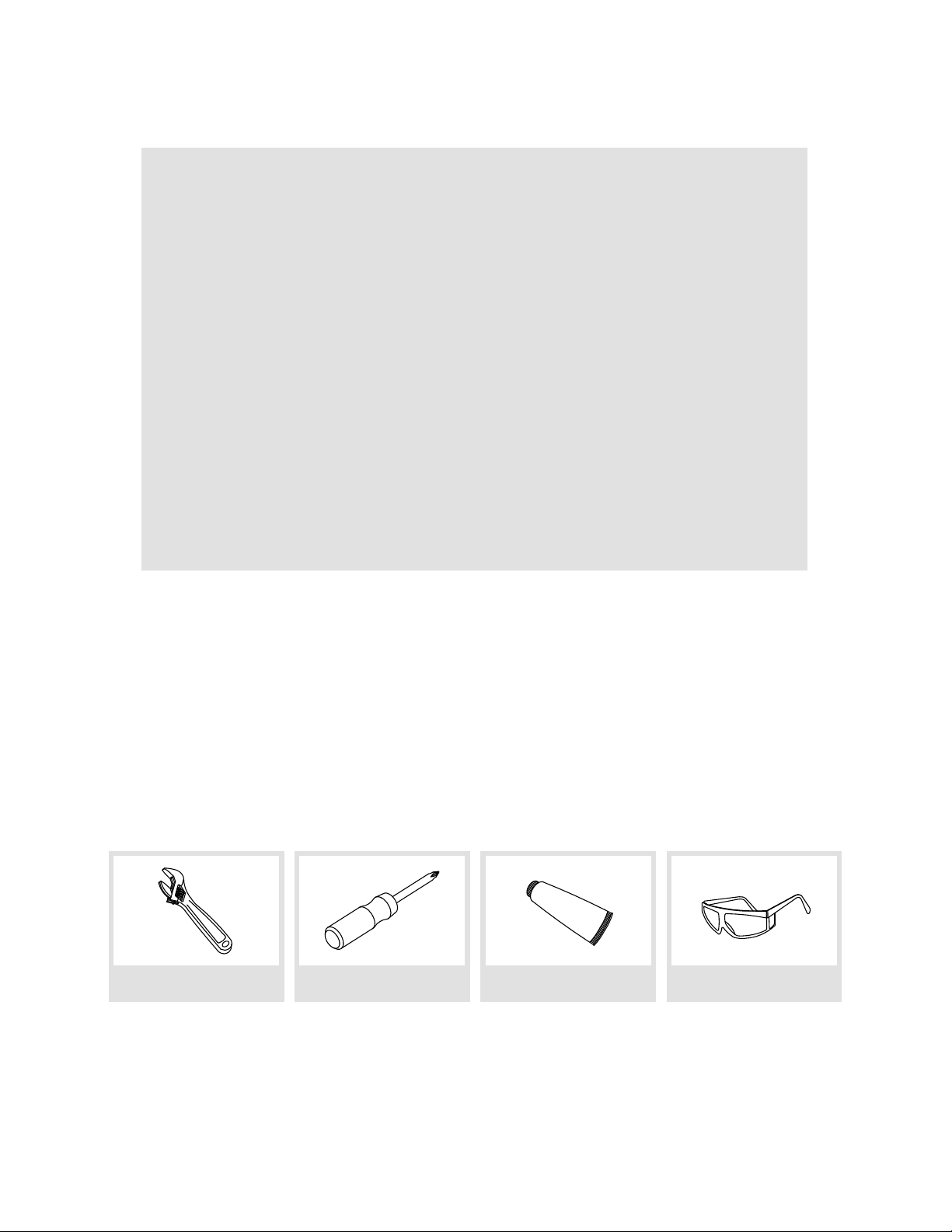

Tools Required
Adjustable Wrench Phillips Screwdriver Silicone Sealant Safety Goggles
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]

44

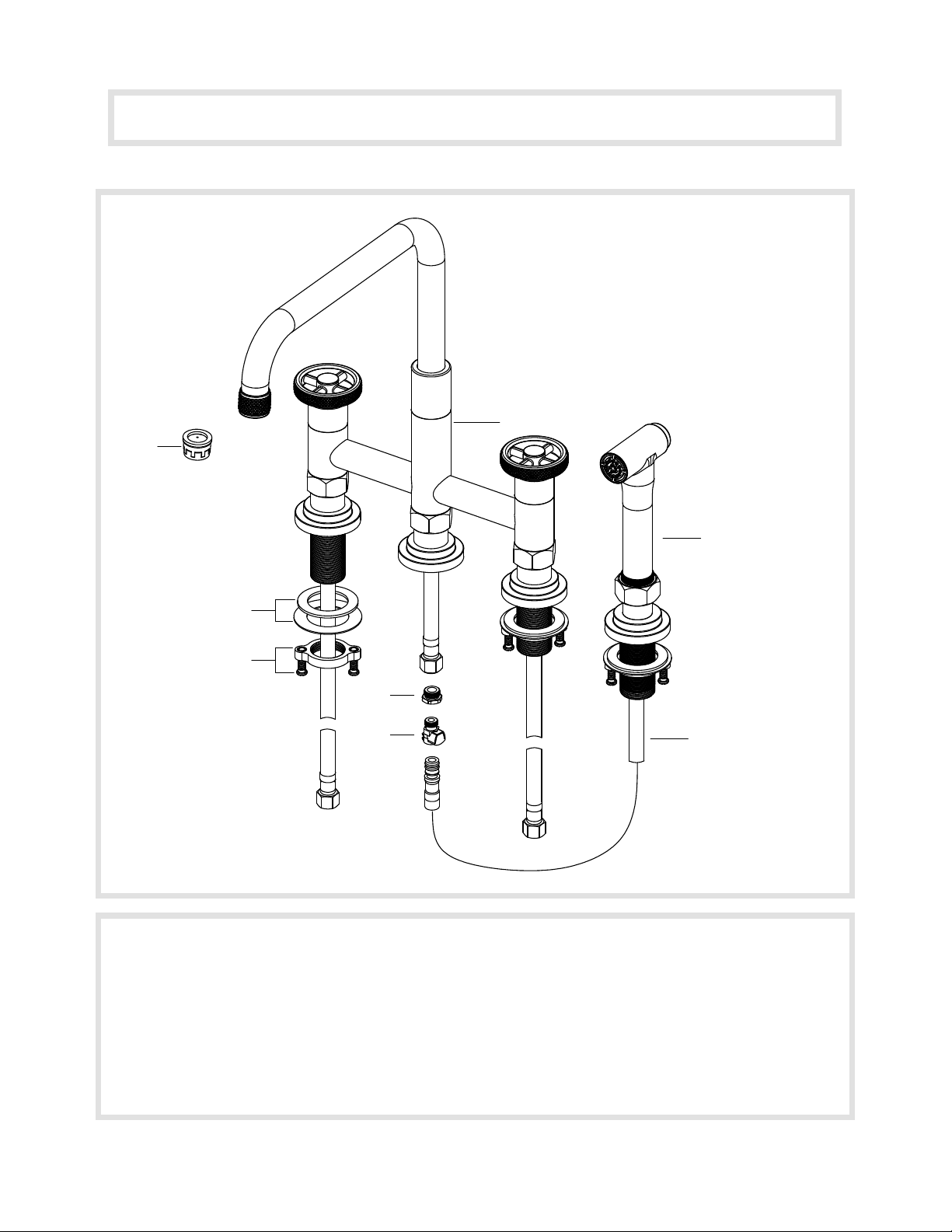

Diagram and Parts List
1. Faucet Body
2. Side Sprayer
3. Sprayer Hose
4. Quick Connector
5. Plug (for NO side sprayer installation)
6. Rubber & Metal Washer
7. Mounting Nut & Screws
8. 2.2 gpm Aerator
1
2
6
7
3
5
4
8

55
Faucet Installation Procedure
Installer Tip:
Shut off main water supply before installing new faucet.
2 1/8"
(53mm)
typ.
4"
(102mm)
4"
(102mm)
4"
(102mm)
5 1/2"
(139.8mm)
10 1/4"
(258.92mm)
8 3/8"
(213.04mm)
9 3/4"
(248.96mm)
11 3/8"*
(288mm)
12 3/8"*
(313.4mm)
11 3/8"
(288.11mm)
14 1/8" (359.98mm)
* - Adjustable height range.

66
NO Side Sprayer Option
Step 1. Drill countertop
Step 2. Install faucet assembly
Drill 3 holes into the countertop
for the faucet body (1).
Install the faucet assembly
through the holes in the
countertop.
3

7

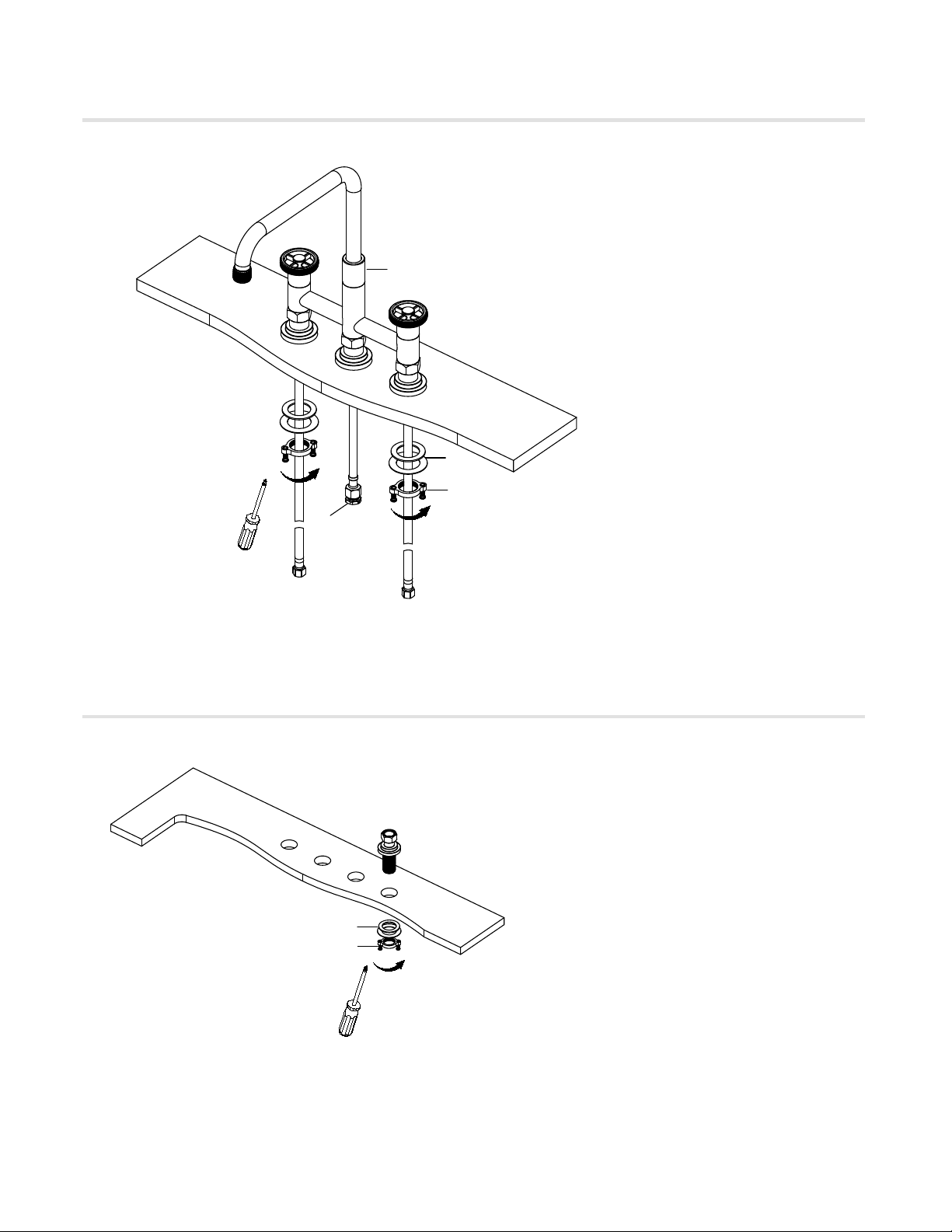

Step 3. Secure faucet assembly
Secure the faucet body (1) with the
rubber and metal washers (6) and
the mounting nuts and screws (7).
Do not overtighten. Make sure the
plug (5) is installed tightly.
Skip to Step 7.
1
6
7
5
Side Sprayer Option
Step 4. Drill countertop and install side sprayer support
Drill 4 holes into the countertop
for the faucet body (1) and side
sprayer (2). Install the side sprayer
support.
6
7

8

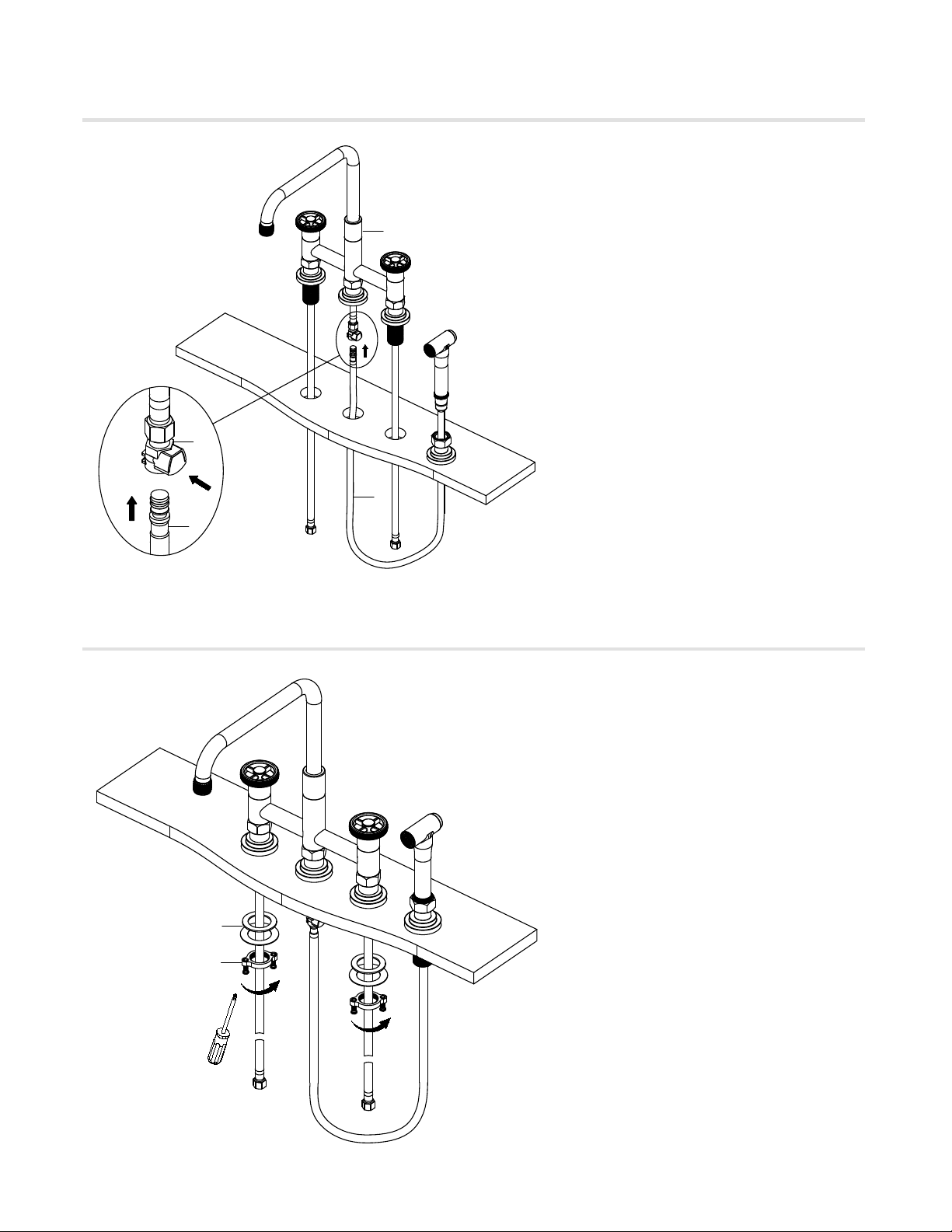

Step 5. Install faucet assembly
Install the faucet assembly
through the holes in the
countertop. Remove plug (5) and
install quick connector (4).
Connect the sprayer hose (3).
1
3
3
4
Step 6. Secure faucet assembly
Secure the faucet body (1) with the
rubber and metal washers (6) and
the mounting nuts and screws (7).
Do not overtighten.
6
7

9
Step 7. Connect waterlines
Connect waterlines to angle
stops. Tighten with a wrench
until snug. Turn on hot and
cold angle stops and check
for leaks.
NOTE: Make sure filter washers
are installed.
Step 8. Flush waterway
Remove the aerator from the
spout. Turn faucet on and let the
water run for 60 seconds to flush
any debris.

10
NOTE: In compliance with CEC standards, this faucet is designed with a 1.8 gpm
flow rate. At your discretion, you may modify the product with the included 2.2
gpm restrictor. Please note that doing so will remove the capability of this product
to meet specific low-flow standards. Kraus is not liable for any alterations made to
the product post-sale, and highly advises that you consult with your local or
statewide plumbing enforcement agency prior to any modification.
Step 9. Adjusting spout height
Unthread the holding nut (1) and
pull the spout (2) up. Thread the
holding nut (1).
Step 10. Aerator replacement
This faucet ships with a 1.8 GPM
red aerator installed. An optional
2.2 GPM yellow aerator is also
included in the box.
To switch the flow rate of the faucet:
1. Disassemble the aerator assembly
by separating the aerator housing
(1) and the aerator (2).
2. Replace 1.8 GPM red aerator
(2) with the 2.2 GPM yellow aerator (2).
3. Reinstall the aerator assembly.
1
2
1
2
1
2
1
NOTE: The adjustment
can be up to 1". Lock to
the desired location. It is
recommended to set
and forget, so the
grease does not get
worn. It is recommended
to wipe the spout after
setting the height.

11

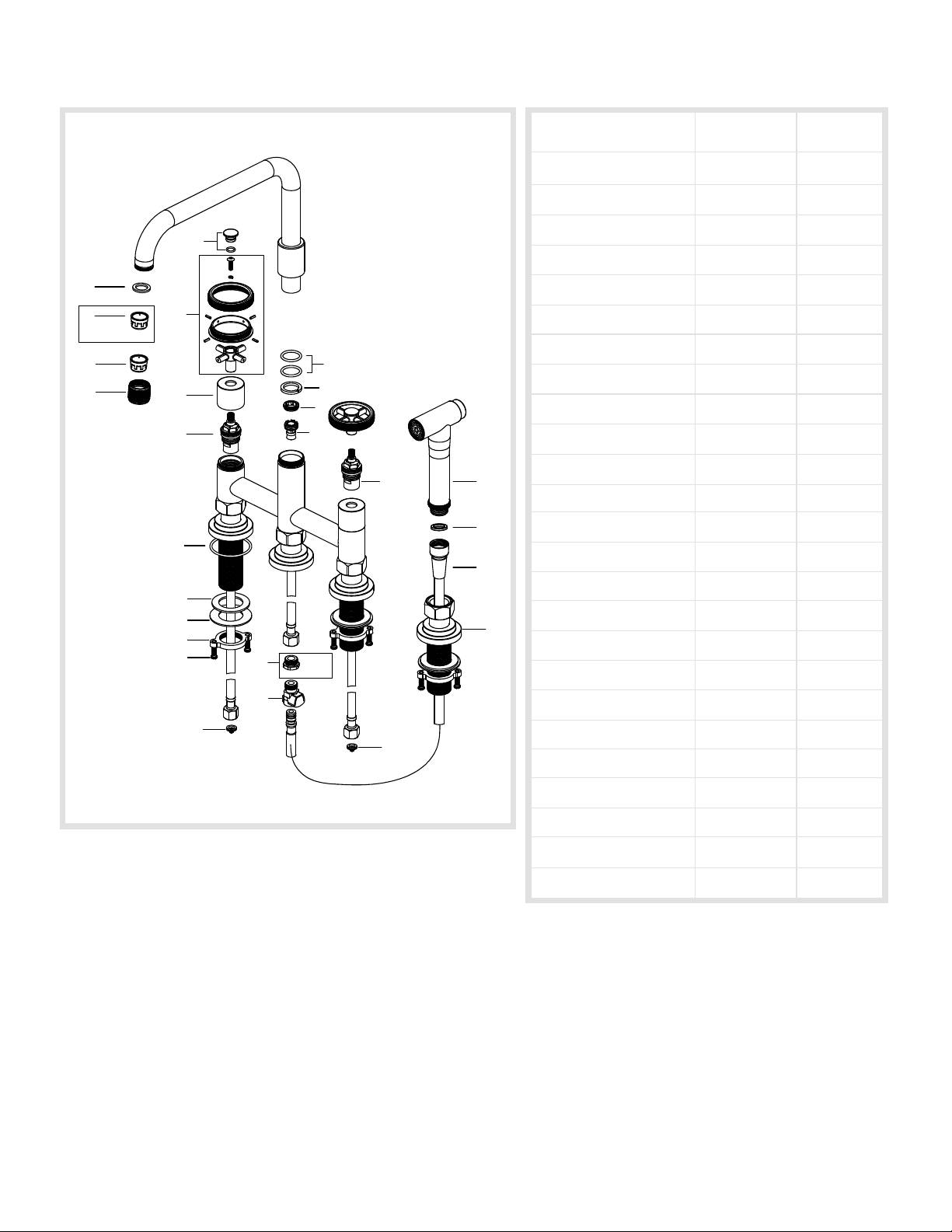

Replacement Parts
1. Aerator Housing
2. Aerator 1.8 GPM
3. Aerator 2.2 GPM
4. Aerator Washer
10. Metal Handle
7. Diverter Cap
11. Cartridge Cover
12. Cartridge Hot
13. Cartridge Cold
15. Rubber Washer
16. Metal Washer
18. Mounting Screws
19. Supply Hose Plug
22. Washer
20. Quick Connector
21. Side Sprayer
Part #
KP44031
KP44029
KP44030
KP44028
KP44036
KP44037
KP44038
KP44039
KP44032
KP44033
KP44034
KP44004-H
KP44004-C
KP44035
KP44006
KP44007
KP44008
KP44009
KP44041
KP44020
KP44042
KP44043
KP44044
KP44022
KP44045
SFS, MB, BG*
23. Side Sprayer Hose
5. Spout O-Ring
14. Base O-Ring
17. Mounting Nut
*Denotes faucet component color options:
SFS - Spot Free Stainless Steel
MB - Matte Black
BG - Brushed Gold
RD - Red
YW - Yellow
Finish/Color
Replacement Parts List
4
2
1
3
2.2GPM option
5
6
7
8
9
10
11
12
13
14
15
16
17
18 19
20
21
22
23
NO side
sprayer
option
6. Spout Sleeve
8. Diverter
9. Handle Button SFS,MB,BG,RD*
SFS,MB,BG,RD*
SFS, MB, BG*
SFS, MB, BG*
SFS, MB, BG*
RD*
YW*
24. Filter Washers
25. Sprayer Base SFS, MB, BG*
24
24
25

12
Trouble-Shooting
If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:
Leakage under faucet handle Locking nut has come loose or
cartridge needs to be reseated.
Remove button located at top of handle.
Loosen set screw with a phillips screw
driver. Remove handle and unscrew
cartridge cover by hand. Tighten locking
nut with an adjustable wrench.
Leaking between spray head
and the hose
Spray head may be loose or
washer is not seated correctly
in the hose connection.
Tighten spray head by hand until snug.
Make sure washer is seated correctly.
Care & Maintenance
* To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
* This installation manual is subject to change without further notice.
Water does not shut off
completely
Cartridge may need to be
adjusted or replaced.
Remove button located at top of handle.
Loosen set screw with a phillips screw
driver. Remove handle and unscrew
cartridge cover by hand. Unscrew locking
nut with an adjustable wrench. Remove
ceramic disc cartridge.
Check for cracks, and if O-ring is seated
correctly. Reseat cartridge.
Low flow Aerator may be clogged Unscrew aerator with aerator key. Hold tip
of spray head and turn on water to flush
debris.
The screen filter in the hose
connectors is dirty.
Turn off the water supply at water valve
and unscrew the hose connectors from
water supply lines. Clean the screen in the
water lines with hot water, removing any
debris or calcium build up.
ACID
PROBLEM CAUSE ACTION
The diverter may be clogged. Unscrew the spout nut, remove the spout.
Unscrew the diverter cap 7 with 12mm hex
key. Remove the diverter 8 with needle
pliers, clean it with hot water removing any
debris or calcium build up. Reassemble
spout.
Water doesn't divert properly from
faucet spout to faucet sprayer
The diverter may be clogged. Unscrew the spout nut, remove the spout.
Unscrew the diverter cap 7 with 12mm hex
key. Remove the diverter 8 with needle
pliers, clean it with hot water removing any
debris or calcium build up. Reassemble
spout.

FAUCET WARRANTY
Kraus products are manufactured and tested to the highest quality standards by Kraus USA Inc. ("Kraus").
Kraus extends this warranty to the original purchaser for personal household use of the "Faucet" in its original location.
The warranty is non-transferable.
Kraus warrants the structure and finish of the product to be free from defects in material and workmanship under normal
usage for the lifetime of the product. The warranty commences from the initial date of purchase by the owner or trade
professional, from an authorized Kraus dealer, through the lifetime of the original owner or end-user.
Kraus warrants the mechanical components such as but not limited to sprayhead assembly (includes engine, aerators,
structure, restrictors, back flow preventers, sprayer hoses, braided supply line hoses which encompasses nylon, silicon
and stainless steel,etc) of the product to be free from defects in material and workmanship under normal usage for a
period of one (1) year. The warranty commences from the initial date of purchase by the owner or trade professional,
from an authorized Kraus dealer, through the one (1) year term of the original owner or end-user.
Kraus warrants the mechanical component (cartridge) of the product to be free from defects in material and
workmanship under normal usage for a period of five (5) years. The warranty commences from the initial date of
purchase by the owner or trade professional, from an authorized Kraus dealer, through the five (5) year term of the
original owner or end-user.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired
or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user,
and is not transferable to a subsequent owner.
RESTRICTIONS
This warranty does not cover antediluvian, discontinued, or display products, whether such items are purchased at
discount outlets, unauthorized dealers, and/or sold on clearance.
This warranty does not cover instances of negligence, misuse, abuse, improper installation, carelessness, accident, hard
water or mineral deposits, exposure to corrosive materials, misapplication, damages caused by improper maintenance,
alteration of the product, or failure to follow care or installation instructions enclosed with your product. Avoid using
abrasive cleaners such as powders, bleach, ammonia, alcohol, or chlorine. Avoid using abrasive pads, steel wool, or wire
brushes, as these will damage and wear down the finish.
This warranty does not apply to Products that have not been installed or operated in accordance with instructions
supplied by Kraus and all applicable rules, regulations, and legislation pertaining to such installations.
This warranty does not apply unless the Kraus product is installed by a fully insured and licensed trade professional.
Kraus insists that such professionals have experience in the installation of bathroom and kitchen manufactured goods.
This warranty does not cover labor charges or costs of removal and reinstallation of said product. This warranty does not
allow recovery of incidental or consequential damages, such as loss of use, delay, property damage, or other
consequential damages, and Kraus accepts no liability for such damages.
This warranty does not cover Marine or Outdoor Installation.
Codes/Standards Applicable:
UPC
CR
UPC
CR
NSF/ANSI 372 NSF/ANSI 61-9
ASME A112.18.1
1.8GPM 6.8L/min maximum
13

Except as otherwise provided above, Kraus makes no warranties, expressed or implied, including warranties of
merchantability and fitness for a particular purpose, or compliance with any code.
Shipping charges will be covered for the first (1) year of the warranted replacement part or product (HI, AK, and Puerto
Rico shipping charges may apply). International shipping fees are not included.
COMMERCIAL WARRANTY
Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and
business use.
All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given,
including but not limited to any implied warranty of merchantability or fitness for a particular purpose.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long
an implied warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to
date comprehensive warranty, go to www.kraususa.com/warranty
If you are a homeowner please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an Authorized Partner please contact a Partner Support Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[email protected]
In requesting warranty service, please be ready to provide:
1. Proof of purchase.
2. A description of the problem.
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
14

Register Your Kraus Product
Activate Your Warranty
Access Premium Customer Support
Get Product Information
REGISTER TODAY
http://www.kraususa.com/registration
R
www.kraususa.com
IMPORTANT
