Kuppersberg OZ 969 Installation and maintenance instructions

TECHNICAL PASSPORT
ПАСПОРТ ТЕХНИЧЕСКОГО ИЗДЕЛИЯ
ELECTRIC OVENS
ЭЛЕКТРИЧЕСКИЕ ДУХОВЫЕ ШКАФЫ
OZ 969

2
TECHNICAL PASSPORT ENGLISH
Electric oven OZ 969
APPEAL TO THE CUSTOMER.............................................................................................. 3
MAINTENANCE AND INSTALLATION MANUAL...........................................................3
CONTROL TYPES AND USE................................................................................................. 3
CONTROL PANEL................................................................................................................ 3
BASIC SETTINGS................................................................................................................ 3
INSTALLATION SCHEME...................................................................................................... 14
MAINTENANCE AND CLEANINGS................................................................................... 14
CONTENTS

3
ENGLISH TECHNICAL PASSPORT
Electric oven OZ 969
APPEAL TO THE CUSTOMER
Our Valued Customer,
Thank you for your purchase of our
product. Please read all instructions
and warnings in this manual carefully.
This manual includes the important
information about safe installation,
usage and maintenance and the
required warnings for your utilization
of your equipment. Please keep this
manual at a safe and easily accessible
place to be used as future reference.
MAINTENANCE
AND INSTALLATION MANUAL
1. Front control panel with
anti-fi ngerprint fi nish
2. Oven Seal
3. Double folding grill
elements
4. Grid shelf
5. Telescoping guide rails
6. Cake shelf
7. Deep shelf
8. Door switch
9. Hinge
10.Triple glazed door
11.Air cooling outlet
12.Cabinet Mounting
13.Grill Screen
14.Smoke Outlet
15.Back Wall Panel
16.Side lights
17. Fan
18.Full size interior glass
1. On/off switch for oven
2. Selection of cooking
temperature
3. Menu navigation
4. Checking settings
5. Light
6. Access to electronic
timmer settings
7. Back
CONTROL TYPES AND USE
Control Panel
BASIC SETTINGS
Oven Use
Switching on the appliance and
selecting language.
After connecting the appliance to
the mains, electronic programmer starts
in menu: setup / language.
Using the sensor fi elds search
the contents of the language menu.
Touch sensor fi eld to select the
highlighted language in which you
want the messages to be displayed.
When mains power is cut and
restored (loss of power), electronic
programmer automatically goes into
standby and immediately displays the
current time.
Set current time.
Once language is selected, confi rm
the time displayed on the display using
the sensor fi eld or change it using
the sensor fi elds.

4
TECHNICAL PASSPORT ENGLISH
Electric oven OZ 969
Time can be set in the range from
0:00 to 23:59 for 24-hour clock system
or from 0:00 to 12:00 for the 12-hour
clock system.
When current time is set, electronic
programmer goes into standby mode
in which the display shows the current
time only.
To activate the appliance from
standby and set current time, touch the
sensor fi eld. When menu is displayed,
select „setup” using the sensor
fi elds and confi rm by touching . Upon
accessing the „time” menu using the
sensor fi elds, select „current time”
and confi rm by touching .
Menu
Touch to activate the appliance
from standby. Use sensor fi elds
to navigate the menu.
The following main menu items are
available:
setup,
heating functions,
preset programs,
user programs,
back.
Touch sensor fi eld to select any
menu item.
If no changes are made within 60
seconds, the appliance enters standby
mode. To immediately exit from the
menu and switch the appliance to
standby mode, select the back icon
and touch to confi rm or touch sensor
fi eld .
Menu \ Setup
Touch sensor fi eld to enter the
menu. Use sensor fi elds to select
the „setup” menu and confi rm the
selection by touching .
The following setup menu items are
available:
language,
time
lighting,
service,
factory settings,
back.
Use sensor fi elds to navigate
the menu.Touch to select the chosen
item.
To exit from the setup menu, select
back and touch to confi rm.
Menu \ Setup \ Language
Select the required language using
the sensor fi elds and confi rm
selection by touching .
The following language menu items
are available:
English,
Russian,
Back.
For details on how to select language,
please refer to section Switching on the
appliance and selecting language.
To exit from the language menu
to setup menu, select back using the
navigation sensor fi elds and touch to
confi rm. To immediately exit from the
language menu to setup menu and then
to main menu touch sensor fi eld

5
ENGLISH TECHNICAL PASSPORT
Electric oven OZ 969
Menu \ Setup \ Time
Select the time menu using the
sensor fi elds and confi rm selection by
touching . The following time menu
items are available:
set,
minute minder,
time display mode,
back.
Use the navigation sensor fi elds to
select one of the menu items above and
touch sensor fi eld to confi rm.
Menu \ Setup \ Time \ Set
For details on how to set current
time, please refer to section Set current
time.

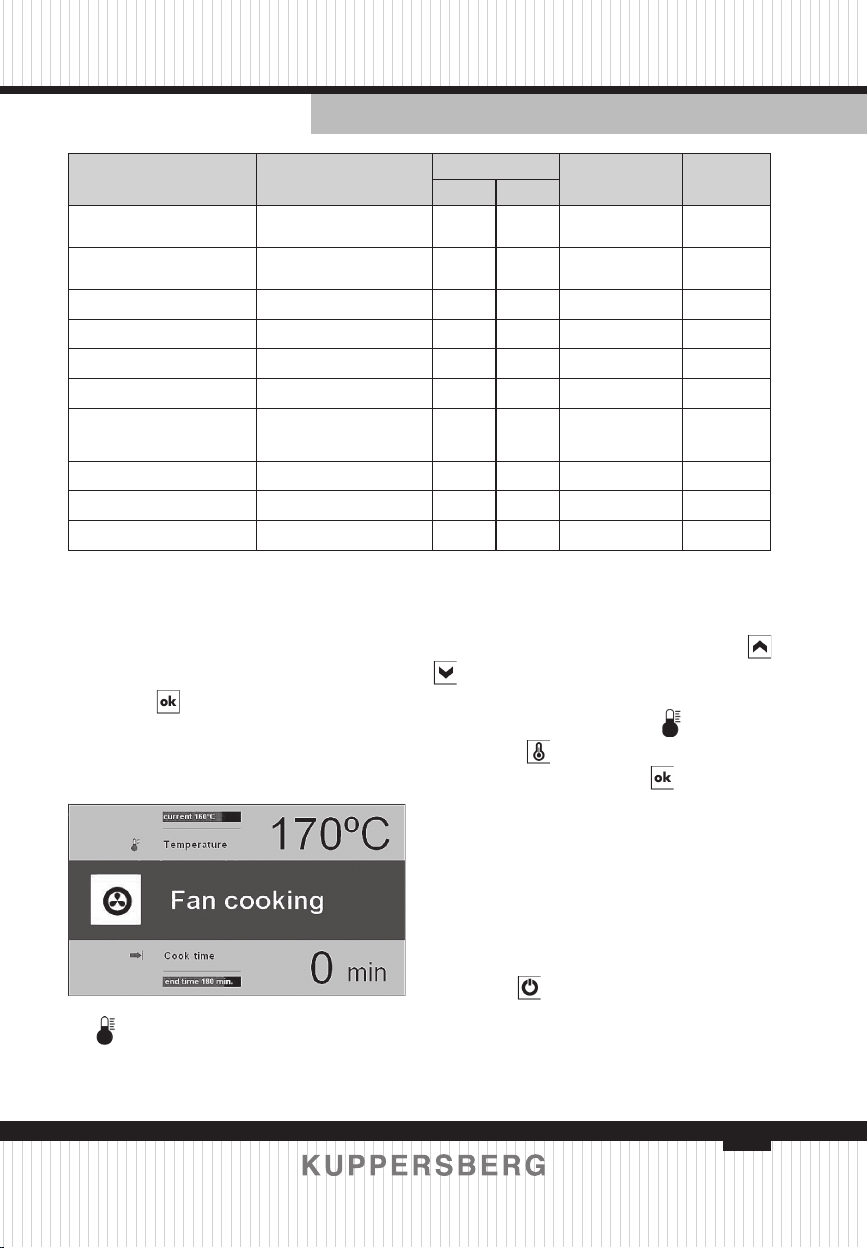

Setting cook time (for a heating
function)
Once heating function is selected,
touch
Once heating function is selected,
sensor fi eld. When starts
to fl ash on the display, near upper box
displaying the temperature, lower box
will appear displaying COOK TIME and
the time display shows „0 min”.
The display before setting cook time
or cook time and end time – lower box
is in active.
The display showing cook time for
cook time and end time – lower box is
active
If no change in setting is made
within 5 seconds the display will show
target and current temperature, box 2
will be deactivated and symbol will
stop fl ashing.
Touch navigation sensor fi elds
to set cook time in 1 minute steps. Cook
time is stored after 5 seconds or after
touching sensor fi eld.
COOK TIME changes to END TIME in
box 2. Entered cook time, for example
0:30, changes to the actual end time,
while the remaining time is displayed on
the red bar below the actual end time.
symbol is displayed continuously.
Once cook time has elapsed, an acoustic
signal is sounded (2 beeps / pause / 2
beeps) and screen is fl ashing.
Touch to acknowledge and mute the
acoustic signal.
Setting Cook Time and End
Time (for a heating function)
For details on how to set Cook Time,
please refer to the preceding paragraph.
