Kuppersberg SR 663 Installation and maintenance instructions

TECHNICAL PASSPORT
ПАСПОРТ ТЕХНИЧЕСКОГО ИЗДЕЛИЯ
ELECTRIC OVEN
ДУХОВОЙ ШКАФ ЭЛЕКТРИЧЕСКИЙ
SR 663

2
TECHNICAL PASSPORT ENGLISH
Electric Oven
CONTENTS
APPEAL TO THE CUSTOMER.............................................................................................. 3
SAFETY PRECAUTIONS......................................................................................................... 3
ELECTRICAL SAFETY.............................................................................................................. 4
SAFETY FOR CHILDREN....................................................................................................... 4
OVEN FUNCTIONS................................................................................................................... 5
USE OF THE OVEN ................................................................................................................... 5
COOKING LEVELS .................................................................................................................... 6
CLEANING AND MAINTENANCE...................................................................................... 8

3
ENGLISH TECHNICAL PASSPORT
Electric Oven
APPEAL TO THE CUSTOMER
Dear Customer,
We would like to thank you and
congratulate you on your choice.
This new product has been carefully
designed and built using top quality
materials, and meticulously tested to
ensure that it meets all your culinary
requirements.
GB Please read and observe these
simple instructions, which will enable
you to achieve excellent results from
the very  rst time you use it.
READ CAREFULLY AND KEEP
FOR FUTURE USE
This product is designed for
domestic use. The manufacturer
declines all responsibility for personal
injury or property damage deriving
from incorrect installation or improper,
erroneous or unsuitable use.
The appliance must not be
used by people (including children)
wıth physical, sensorial or mental
impairments, or by people wıthout the
necessary experience or knowledge,
unless they are supervised or instructed
in the use of the appliance by a person
responsible for their safety.
Chıldren must be supervısed to
ensure that they do not play wıth the
applıance. Do not place aluminium foil,
pots or similar objects in contact with
the base inside the oven for cooking.
The heating action of the lower
heating element causes overheating
of the lower part of the oven causing
damage and serious consequences (risk
of  re) even to the counter under the
oven.
WARNING
The appliance gets very hot during
use.
WARNING
Don’t touch the heating elements
inside the appliance.
SAFETY PRECAUTIONS
Carefully read this instruction
Manual to achieve the best results from
your oven. Due to the manufacturing
process there may be residues of grease
and other substances. To eliminate
these, proceed as follows:
ÂRemove all the packaging
material, including the protective
plastic, if included.
ÂSelect the or function at 200 C for
one hour. To do so, consult the feature
list provided with this manual.
ÂTo cool the oven open the door to
allow ventilation and odours to escape
from inside.
ÂAfter cooling, clean the oven and
the accessories.
ÂDuring the  rst use, fumes and
odours may occur and the kitchen
should therefore be well ventilated.

4
TECHNICAL PASSPORT ENGLISH
Electric Oven
Electrical Safety
ÂAll adjustments to or repair of
the appliance, including replacement of
the power lead, must be carried out by
authorised Technical Assistance Service
staff using original spare parts.Repairs or
alterations carried out by persons other
than Technical Assistance Service staff
may result in the malfunctioning of or
damage to the appliance, representing
a risk to your personal safety.
ÂDisconnect your oven if it breaks
down.
Safety for Children
ÂThe appliance is not intended for
use by young children or in rm persons
without supervision. Young children
should be supervised to ensure they do
not play with the appliance.
ÂDo not allow children to
approach the oven while it is in use, as
high temperatures can be reached.
ÂDuring the catalytic self-cleaning
process, which is carried out at a high
temperature, the outer surfaces may
become hotter than normal and children
should be kept away from the oven.
Oven Safety in Use
ÂThe oven must not be operated
with the door open.
ÂThe manufacturer will not be
held responsible if this oven is used for
anything other than domestic purposes.
Only use the oven when it is installed
within kitchen units.

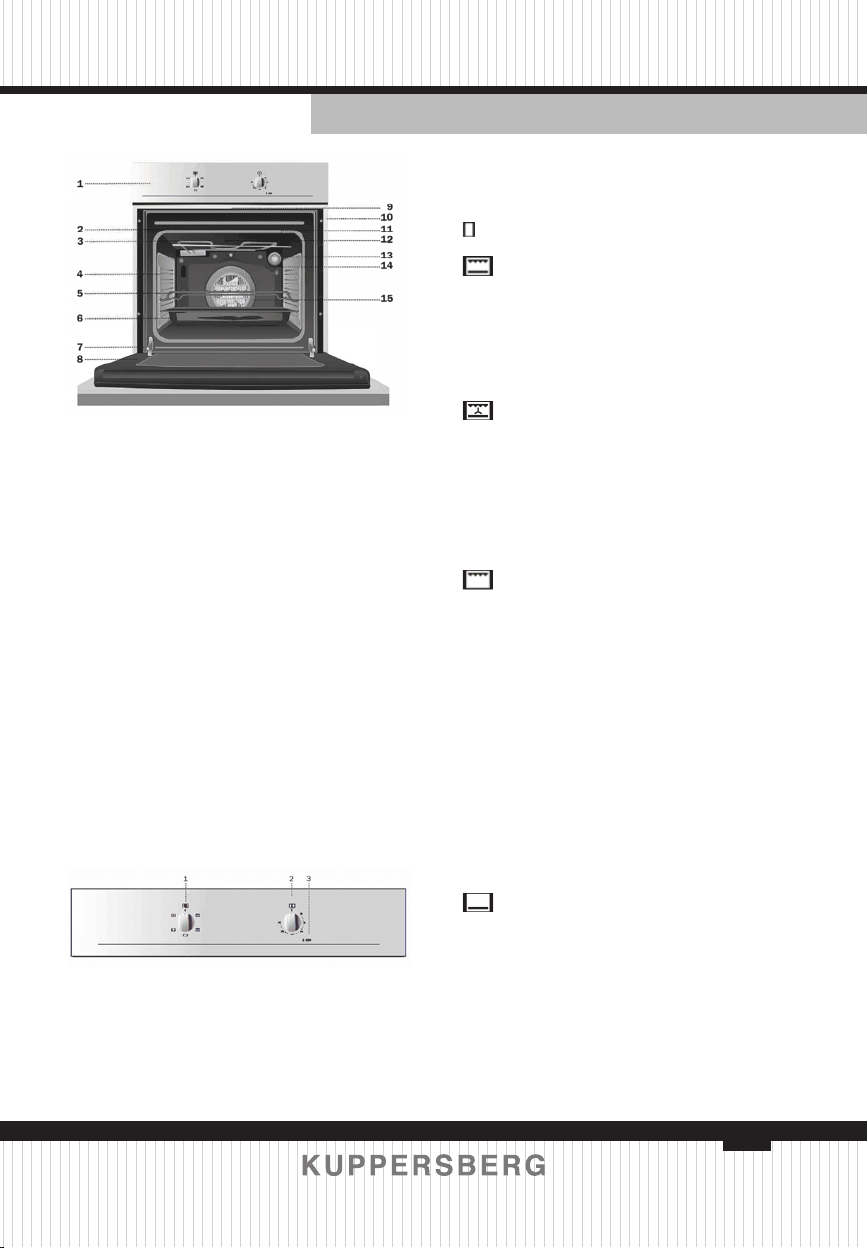

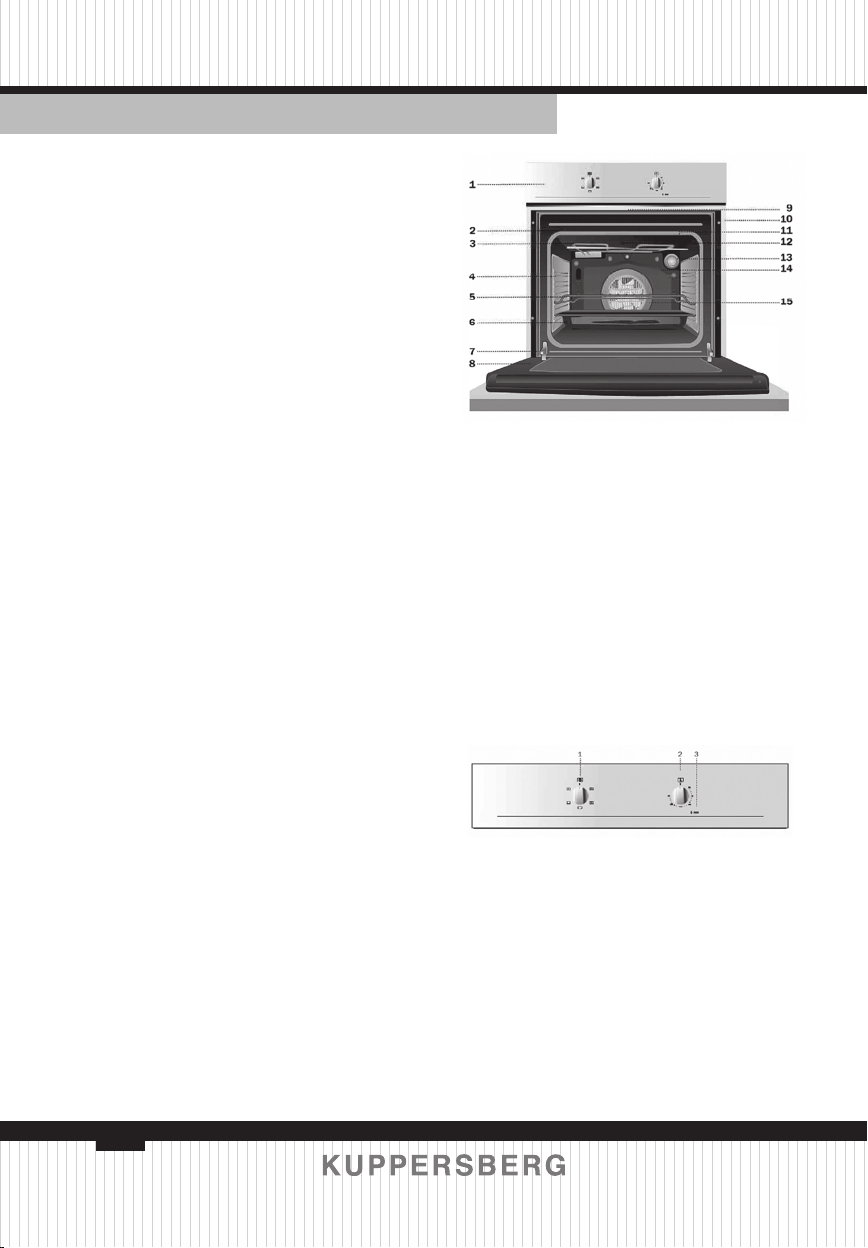

1 Control Panel
2 Oven Seal
3 Gri il Element
4 Chrome Support
5 Grid
6 Tray
7 Hinge
8 Door
9 Air Outlet
10 Fixing to Unit
11 Gri il Screen
12 Smoke Outlet
13 Light
14 Back Wall Panel
15 Fan
Control Panel Description
1 Function selector.
2 Temperature selector.
3 Gri il Element

5
ENGLISH TECHNICAL PASSPORT
Electric Oven
OVEN FUNCTIONS
Switch off oven
Grill and Lower element
Special for roasts. It can be used for
any piece, whatever its size.
Conventional with fan
Appropriate for roasts and cakes.
The fan spreads the heat uniformly
inside the oven.
Grill
For preparing dishes with super cial
roasting. It allows the outer layer to be
browned without affecting the inside
of the food. Ideal for  at food, such as
steaks, ribs,  sh, toast.
Caution
While using the Grill the door must be
kept closed.
Lower element
Heats only from beneath. Suitable
for heating dishes and raising pastry
and similar.
Defrosting
This cooking mode is suitable for
gently defrosting of food. In special food
to be consumed unwarmed, e.g.: cream,
custard, pastry, tarts, cakes, fruit,...
Note
The pilot light remains on in any
cooking function.
USE OF THE OVEN
Manual use of the oven
1 Select a temperature and a cooking
function.
2 Set the controls in position to
switch off the oven.
DEFINITIONS OF OVEN
1. Function selector.
2. Minute timing switch.
3. Electronic timer.
4. Temperature selector.
5. Heating indicator light. Indicates that the
heat is going to the food and it goes out
when the set temperature is reached.

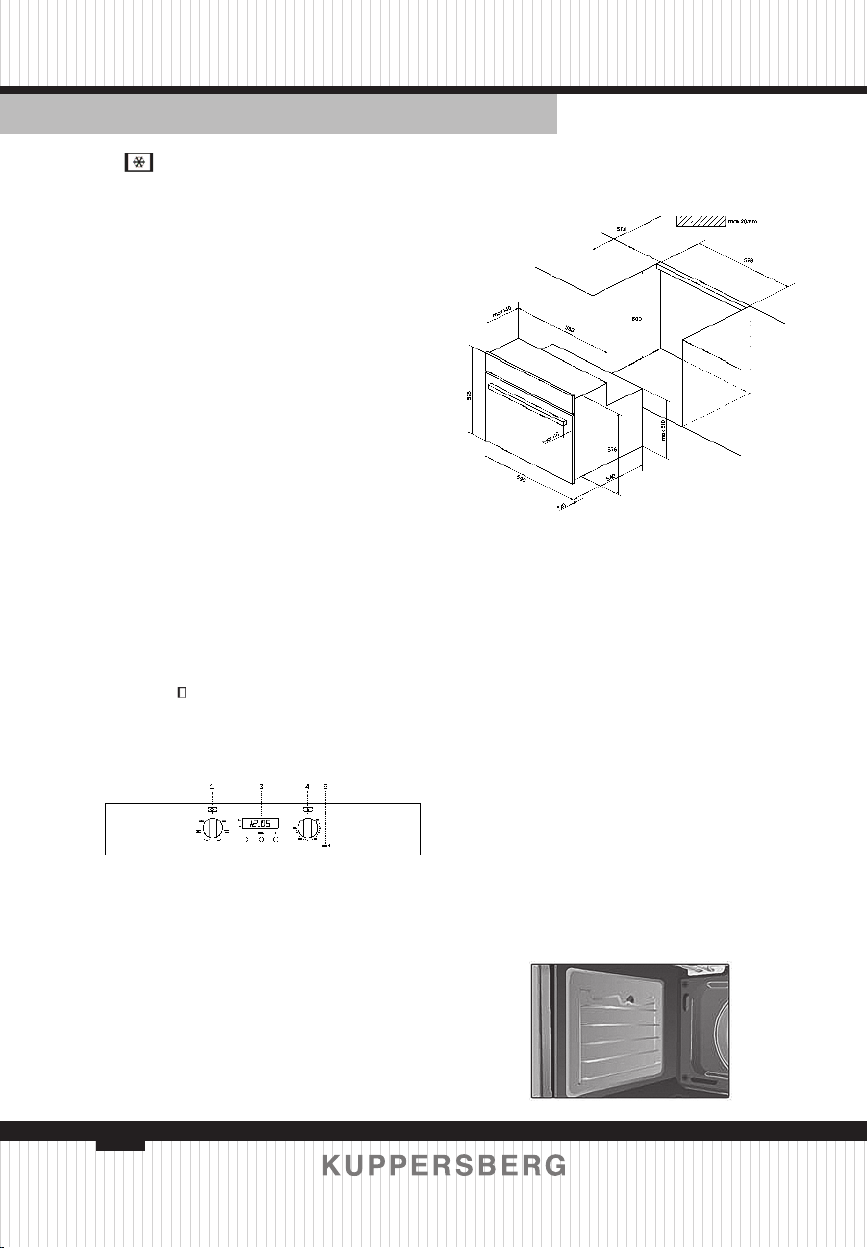

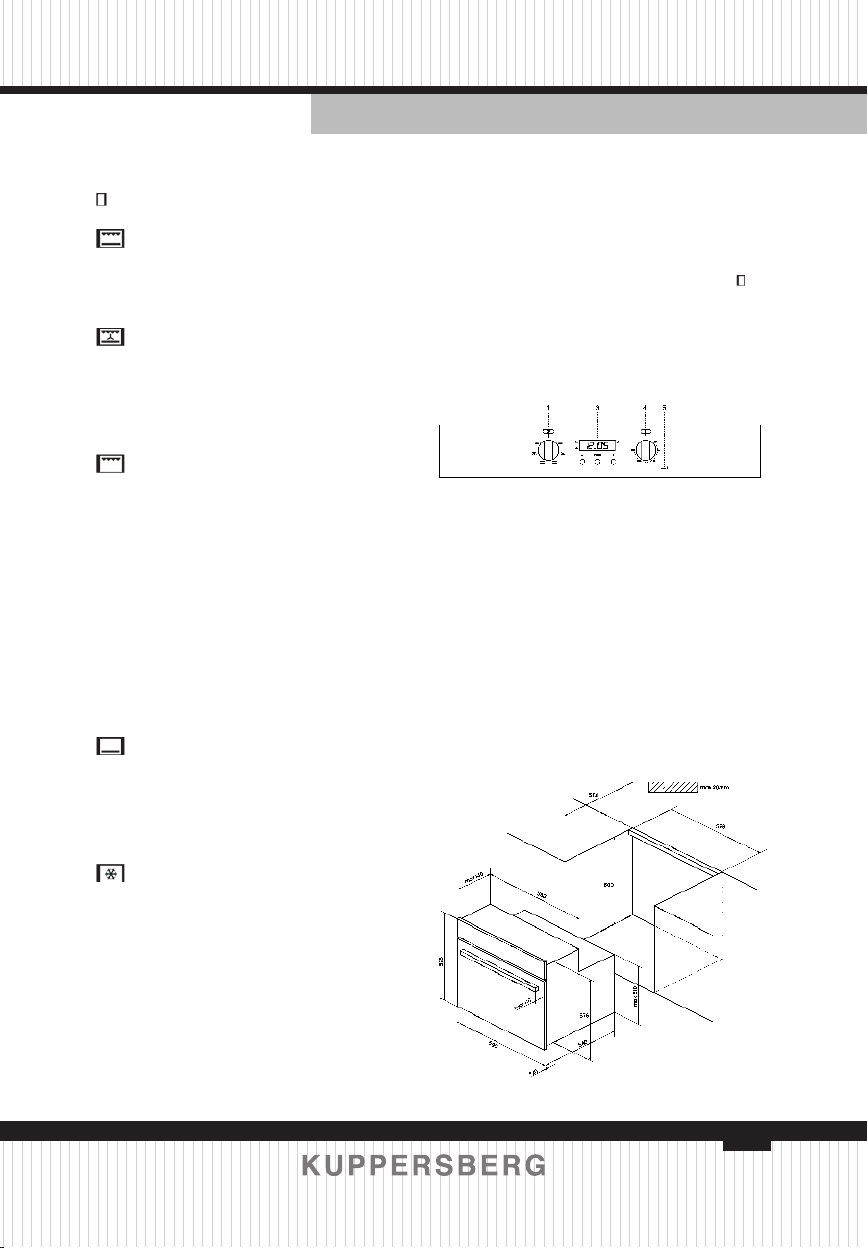

TECHNICAL DRAWINGS
