Kurth Electronic xDSL MultiTest KE3700 User manual

Version 17.05.01
© KURTH ELECTRONIC GmbH
All rights reserved, including translations.
All reprints and electronic copies, including excerpts, require prior written approval
of Kurth Electronic GmbH.
All of the brand names and trademarks cited herein are the property of their registered owners.
KE3700
xDSL MultiTest
Short Operating Manual
Kurth Electronic GmbH | Muehleweg 11 | D 72800 Eningen u.A. GERMANY |
Tel. [phone] | Fax [phone] |
[email protected] | www.kurthelectronic.de

© Kurth Electronic GmbH, All Rights Reserved
2
Application
The KE3700 is a fast, easy to use and a󰀨ordable multitester for the instal-
lation and troubleshooting of DSL services in hybrid ADSL1 / 2 / 2+ / VDSL2
and combined networks. With its numerous interfaces, it supports the entire
range of broadband network technology such as vectoring, G.fast, bonding,
SHDSL, Gigabit Ethernet and GPON.
Operation
The KE3700 is a powerful troubleshooting tool for quickly nding faults in
the network, outside wiring, customer devices or inside wiring. Even in hy-
brid networks where FTTH is installed, measurements can be made at any
LAN connection using the Ethernet ports of the KE3700. Because of this, the
KE3700 is the ideal solution for all broadband technologies.
Use
With its small size, robust design and intuitive operation, it is the perfect
tester for installers and service technicians. The user can perform his tasks
quickly and e󰀩ciently with automatic detection of the xDSL service and de-
nable test procedures. The large display increases operating convenience
and, when storing results, the technician has numerous options for exporting
the tests and for compiling reports.
At a glance
Multitasking tests without loss of synchronization
ADSL-VDSL2 in one device
Annex A/B/J/L/M
DSL vectoring (ITU-T G.993.5)
Web browser
GbE port for expanded Ethernet tests
All DSL parameters at one glance
IP Ping, Traceroute with IPv4 and IPv6
HTTP / FTP up / download test up to 700 MBit/s
Sunlight viewable color TFT
High-power rechargeable battery and expandable memory
Includes Software for mangement and protocols
Bluetooth and Wi-Fi integrated

© Kurth Electronic GmbH, All Rights Reserved 3
Documentation and Software
Up-to-date operating instructions and software updates can be found in
our download area after logging on in the CUSTOMER LOGIN.
You will nd the download area for the KE3700 under the Downloads
menu item. After entering the serial number, you will nd all current docu-
ments available for download in the following window.
PON/PTB
200+ Mb/s
ADSL2+
~6-25 Mb/s
VDSL2
~50 Mb/s
CENTRAL
OFFICE
DSLAM KVz
FTTN
DSLAM KVz
VDSL2
VECTORING
~100 Mb/s
VDSL2
VECTORING
~100 Mb/s
VDSL2
G.fast
~500 Mb/s
VDSL2
BONDING
~100 Mb/s
Fiber
Copper
Dark Fiber
DSL Bonding
VDSL2
ADSL2+
xDSL Test
Ethernet Test
STB
STB
STB
STB
TV
TV
TV
TV
VoIP
VoIP
VoIP
VoIP
PC
PC
PC
PC
Applications

© Kurth Electronic GmbH, All Rights Reserved
4
Keyboard / Display / Ports
Status LEDs
DSL CRC - orange > Indicates a CRC error
DSL LOSS - orange > Loss display with beep
DSL L1 - green >DSL connection established
DSL L2 - green > DSL line 2 connection established (bonding)
SFP Link - green > Indicates active SFP transceiver
USB2 Link - green > Indicates active USB connection, e.g. when saving
ETH Link - green > Indicates active ethernet connection
MGMT Link - green > Indicates active connection: Management port to PC
F1 F2 F4F3
SEL
ESC
0
*
#
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
VIEW
VOL
SPKR
SHIFT
ON-OFF
HELP
DSL
CRC
DSL
LOSS
DSL
L1
DSL
L2
SFP
Link
ETH
Link
USB2
Link
MGMT
Link
KE3700
xDSL M
ULTI
T
EST
L1 L2 L3 L4
SHDSL
®
Schnittstelle
Hilfe
Datum / Uhrzeit
Breitband
a/b: 0,0 V
2
Endgeräte Modus
Router Modus
Modem Modus
4
5
6
<xDSL>
xDSL Schnittstelle
3
Profile laden und speichern
1
G.FAST
7
<Ein>
Ethernet 10/100/1000 Management,
Ethernet 10/100/1000 Test port, USB 2
ISDN analogue interface, SFP port
xDSL test port, power supply connection
Fastener for shoulder strap
Status LEDs
Speaker (Telephony)
Battery indicator
Sunlight readable TFT colour display
Connection: USB 1, SD card
optional KECT interface
Menu-sensitive function keys F1 – F4
Menu UP - DOWN / LEFT- RIGHT buttons
ON / OFF button
Microphone (Telephony)
Alphanumeric keypad
ESC (back) button
Select (enter) button
Display connection status SHDSL
Shift button: Function keys F5 –F8
View button: Back to main menu
Speaker button: Speakerphone
Vol button: Increase volume (3 levels)
button: Increase brightness (3 levels)
Help button: Open the help function

© Kurth Electronic GmbH, All Rights Reserved 5
USB 2
ETH 2
1000 Mb/MGMT
ETH 1
1000 Mb
Upper side ports: Ethernet Ports
1 Gbit/s port for ethernet tests
10/100/1000 Mbit/s
Yellow LED: Link / Data
LED lights continuously: Connection has been established
LED ashes: Transmit / receive activity
Green LED: Transmission speed
USB 2: Function expansion
(e.g. external keyboard, USB storage)
Device management port
10/100 /1000Mbit/s
Connection Wi-Fi antenna
Upper side ports (optional): ISDN (BRI)/Analogue (POTS) / SFP
Slot for SFP modules Copper / Fiber for
GPON + Ethernet Measurements
Warning: Do not run a software update
with a plugged-in SFP module!
RJ11 Analogue Phone port (POTS)
ISDN Uk0 port
RJ45 ISDN S0port
POTS
ISDN-U
ISDN-S
SFP
LINE 1 LINE 2
A AB BGND GND
GND GNDTIP TIPRING RING
USB 1 SD
Side Ports: KECT Copper Testing (optional)
USB 1: Function expansion
SD-Card e.g. for long term measure-
ments. Insert /remove SD Card only when
the device is turned o󰀨!
Connections for Copper Tests KECT
Line 1 and 2 for 2x shielded test leads
with device side three-prong plug TF
xDSL Test Port
12-18V/DC
Bottom Ports: xDSL Ports
RJ11/ RJ45 xDSL Test Port
Power supply connection
SHDSL + S2M Interface (optional, upper side)
See chapter SHDSL in the Operating Manual.

© Kurth Electronic GmbH, All Rights Reserved
6
Keypad
When the KE3700 was developed, emphasis was placed on fast and easy
operation.
F1 – F4: Menu function buttons.
F1: Help function if provided.
ESC: Similar to a computer, the ESC but-
ton means „undo the last step,“ or Back.
SEL: SELECT button. Use this button for
selecting like an Enter key.
ON / OFF: Button for turning the device
On and O󰀨.
Arrow buttons ▲▼◄►
The arrow buttons are for menu scrolling
UP ▲ / DOWN ▼ and LEFT ◄ / RIGHT ►
Keypad: Alphanumeric keypad with 1 – 0, A– Z, special characters.
Text input:
F1: abc → 123 Switch between letters and numbers input. Special charac-
ters can be found under the keys *and #.
*: . - / @ : _ + , [ ] ; = ?
#: # $ % & ‛ ( ) { } ~
F2: Delete the entire entry line with Clr
F3: dDelete individual digits with Del
F4: Delete individual digits from right to left with ←
Caution: KE3700 / KE3550 may be operated only with the supplied ori-
ginalKE powersupply andneverunder anoutput voltageover 18V/DC!
Damage to the device resulting from inobservance will only be re-
paired for a fee!
Generally the PSU has to get plugged into the device rst
and then into the wall outlet.
Note: Please, fully charge the battery before the rst use!
The charging is completed when the charging LED changes from
orange to green. To check the charge indicator after the initial char-
ging, turn o󰀨 the device and then turn it on again with the AC adapter
connected for about 1 minute. During this time, the battery indicator
will be calibrated and now displays the correct value.

© Kurth Electronic GmbH, All Rights Reserved 7
Switch on > Main Menu
After a short boot with subsequent self-test screen appears with the device
information such as rmware version, modem version, installed options and
the hardware ID. Then the main menu appears with the following items:
1. Broadband > Selection of the
interface
2. Telephony (optional)
3. Copper Test (optional)
4. Analysis > Retrieve stored
measurements
5. Setup > Basic Device Settings
6. Address book
Setup
1. Display & Signals:
1.1. Automatic O󰀨 after the last button is pushed. Possible settings:
Always On / 3 minutes / 5 minutes / 15 minutes / 30 minutes / 60 minutes.
When a test is running, the KE3700 does not shut o󰀨 even after the time
has elapsed.
1.2. Backlight – Possible settings: Always On / Always O / 3 minutes.
Lets you specify the duration before the screen is dimmed in order to pre-
serve battery life. If 3 minutes is selected, 1.2. Brightness Dimmed ap-
pears as an additional menu item. Possible values are from Level 1 to 7,
whereas 1 is dark and 7 is light. 1.2.3 Brightness: Display brightness,
Level 1 (dark) to 7 (bright).
1.3. Date & Time: 1.3.1 Set Date & Time 1.3.2 Date format DD/MM/YYYY
or MM/DD/YYYY 1.3.3 Time format either
24 hours or 12 hours
1.3.4 Number format x xxx,xx or x,xxx.xx
1.4. Conrm power o󰀨: Warning when pressing the ON / OFF button to pre-
vents accidental switching o󰀨, On or O
1.5. Storage: Switch between Micro SD card and a USB storage as your
storage location.
1.6. Display Measurements: 1.6.1 Show Min/Max Value (Coppertest >
Line Multimeter) 1.6.2 Show Coppertest length (Coppertest > Line
Multimeter)
1.7. Turn warning signals on or o󰀨 (e.g. Keypad / Sync / Sync Loss / CRC /
FEC / Low battery)

© Kurth Electronic GmbH, All Rights Reserved
8
1.8. Alarm settings: 1.8.1 A/B Treshold Activation On / O and setting a
threshold value to display the voltage at the upper edge of the display.
2. Language: Setting the menu language
3. Software Updates: Checks if an update is available and allows its in-
stallation (greyed o if there is no update available). See the detailed
rmware update instructions KE-Manager-Firmware-Update.pdf
Warning: Do not run a software update with a plugged-in SFP module!
4. Management Port: Choose between Auto / Static. When Static is selec-
ted, it is possible to dene a xed IP address.
5. Reset Management IF: Reset and restart the Management Interface.
6. System information: Information about the built-in module versions
(hardware and software) and licences.
7. Licence information: Displays open source software used in the device
and the corresponding license terms.
8. Start VNC: Launches virtual network computing (VNC) that displays the
screen contents of the xDSL tester on a local computer (installed using
KE-Manager).
9. Modem Debug: Creates an additional modem log le, On or O
10. Batteriy status: 10.1 Set battery capacity and selection of
10.2 Capacity values of 4000 mAh to 8000 mAh
General Operation Help
deactivated, activate with key
activated, all inputs in order
> Testing possible
activated, add inputs
> Testing possible
activated, correct inputs
> Testing impossible
Red bar: Input /
verication required!

© Kurth Electronic GmbH, All Rights Reserved 9
1. Interface
Possible settings: <xDSL> and <Ethernet>
(<SFP> and <SHDSL> optional)
When the G.fast modem is installed, menu item
4 G.FAST (On / O󰀨) appears for activation.
The menu view changes depending on the
selection.
2. xDSL Interface
Possible settings e.g. <Annex A/M>/ <Annex B/J>.
With Annex J selected, a second synchroniza-
tion approach is needed because the lter from
Annex B to Annex J has to be switched over.
3. Terminal Mode (xDSL) with automatic
DSL Services detection
Synchronization with 1/ Start
Display Line Values
Net Data Rate: Current Up/Downstream
Max Data Rate: Max. Up/Downstream
Capacity: Display in %
Tx Pwr: Transmission power in dBm
Ø SNR Margin: Di󰀨erence between line SNR
and required SNR in dB
FEC: Forward Error Correction
CRC: Checksum error
HEC: ATM Header Error Check
Bitswap:Redirected data of a disturbed
communication channel to other channels
Ø Line Atten.: Attenuation in dB
INP: Impulse Noise Protection
Interleave: Delay in ms or 0 for Fast-Path
Line Loss: Loss of synchronized connections
LOF: ATM receiving station has lost
the frame description
LOM: Loss of Margin
SES: Severely Errored Second:
A second with bit error rate
UAS: Number of seconds during which no
transfer was possible
ES: Errored Second: One second of
measurement time during which one
or more bit errors are present
Resync History: During synchonization
Duration of synchronized connection
Help
Reset errors
Save measurement
Zoom
Line Values
PPP Status / IP Status
PPP Log / IP Log
Bands
Vectoring
SNR
BAT
Hlog
QLN
Summary
Web browser
Ping
Traceroute
Http Download
FTP Download
FTP Upload
VoIP Log
VoIP Statistics
VoIP Dial

© Kurth Electronic GmbH, All Rights Reserved
10
Function keys and options
F1 More (Select with SEL)
Help (reserved for help functions)
Reset errors (shown errors will be set to zero)
Save measurement or directly during the measurement by pressing the
SEL key. It opens up a window where the le name can be entered as a
name / number. After conrming with SEL, the measurement is stored on the
internal memory and can be edited using the supplied KE Manager software.
Zoom for graphs (only with SNR / BAT / Hlog / QLN)
F2 Views
(Line values, Bands, Vectoring ...)
Line values (see Page 9)
PPP status / IP protocol
Bands (Displays individual bands for
SNR Margin, Line Attenuation, Signal
attenuation and TX Power)
Vectoring (Vectoring status, G.INP and
possible errors)
SNR / BAT / Hlog / QLN: Graphs for Bits
per tone, SNR per tone, Hlog and QLN
can be retrieved here (Downstream
blue, Upstream green)
F3 Test
Data tests, VoIP and IPTV tests, web browser
4. Router mode
Connection of the KE3700 to the xDSL port and to the PC. Replaces the
modem and the router.
5. Modem mode
Connection of the KE3700 to the xDSL port and to the PC. Replaces the
modem.
Terminal mode (Ethernet)
Connection to the Ethernet interface of a modem / router or a hub/ switch.
Settings for Ping, Traceroute, HTTP Download, FTP Download and FTP
Upload.

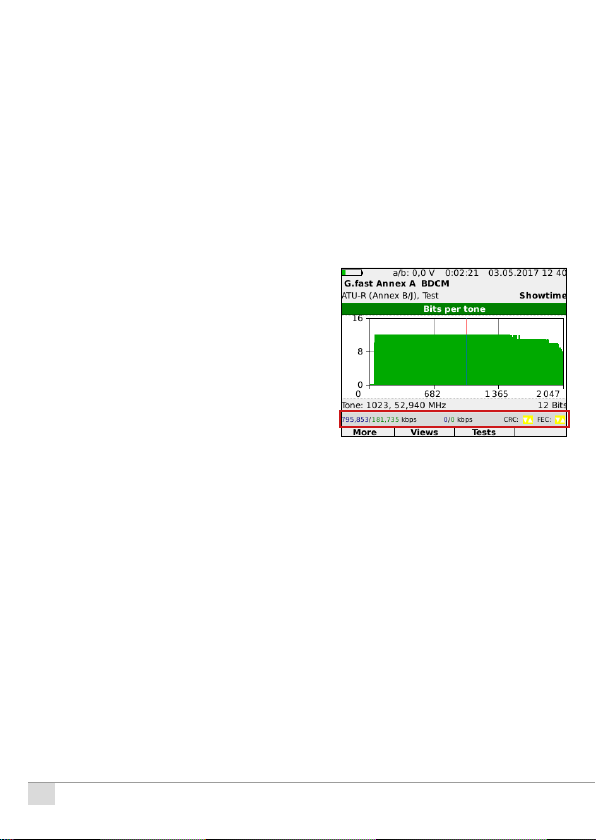

Status bar with Data Rate and CRC/FEC
Viewing Bits per tone

© Kurth Electronic GmbH, All Rights Reserved 11
Analysis
You have the option to retrieve saved
broadband and copper measure-
ments and analyze them within the
device. In this case, not only the stored
snapshot but the whole measurement
sequence from the start of the synchro-
nization is displayed. In the selection
menu you can start the display with F2
<Info> (this can be a lengthy process
depending on synchronisation time).
You can rename a measurement le
with F3 <Edit> and delete it with F4
<Delete>. Since the display is not an
active representation of the measured
values, it is displayed with a di󰀨erent
background colour and a red border.
Address book
In the address book you can store
phone numbers, IP addresses, VoIP
access data and SIP data, frequently
used URLs as well as user names and
passwords.
You can create a new address entry
with F1 > add contacts and add the
details for the above-mentioned rubrics
in the next menu via F2.
These are then available in the corre-
sponding menus (with the key) and
you do not need to reenter the details
again.
Help
Reset errors
Save measurement
Zoom
Line Values
PPP Status / IP Status
PPP Log / IP Log
Bands
Vectoring
SNR
BAT
Hlog
QLN
Summary
Web browser
Ping
Traceroute
Http Download
FTP Download
FTP Upload
VoIP Log
VoIP Statistics
VoIP Dial

© Kurth Electronic GmbH, All Rights Reserved
12
KE-Manager Software
You can install the KE-Manager software on your PC by double clicking the
setup le within the explorer window. A windows installation wizard will guide
you through the following steps.
Connect the Multitester to your network /PC
Switch on the xDSL Multitester. Use a RJ45
ethernet cable to connect the Multitester via
the management port (100 Mb, top side of
the device) to an ethernet port within your
network or directly to an ethernet port at
your PC.
Opening the KE-Manager
Click the KE-Manager icon on your PC Desktop. The KE-
Manager opens and shows the connection status between
your device and the PC via di󰀨erent colors.
The connection status is shown at the bottom row:
– For connecting, please click on KE3x00
– KE3x00 found ==> Connection to IP 192.xxx will be established
– Connection to KE3x00 (serial number, IP192.xxx) is OK
The green background signals the established connection. The serial num-
ber and IP address are shown in the top left corner of the window. In case of
multiple KE-Multitesters plugged to the network, you can nd the desired one
using the displayed serial number. Now you can adjust the settings for the
KE-Multitester using the KE-Manager.
red > no connection yellow > device found,
connection is
being established
green > connected
USB 2
ETH 2
1000 Mb/MGMT
ETH 1
1000 Mb

© Kurth Electronic GmbH, All Rights Reserved 13
The KE-Manager is a exible tool to manage the KE3700 and download
saved measurement data. Like the KE3700, the KE-Manager is designed
very distinct and largely intuitive.
Conguration
Settings for several basic
options and licensing, trans-
mitter list (IPTV proles) and
the prol set can be executed
here as well as updating the
device rmware. A detailed
update guide is found under
Help in the KE-Manager.
Result Center
Provides detailed information
about the active and stored
tests. Available for xDSL,
Ethernet, SHDSL and evalu-
ation of test errors. The dis-
play of the parameters is con-
gurable individually.
Important: Always con-
nect the KE-Multitester to
the PSU before starting
the update process! An
unintentional shutdown
during the update results
in the need to send the
device in.

© Kurth Electronic GmbH, All Rights Reserved
14

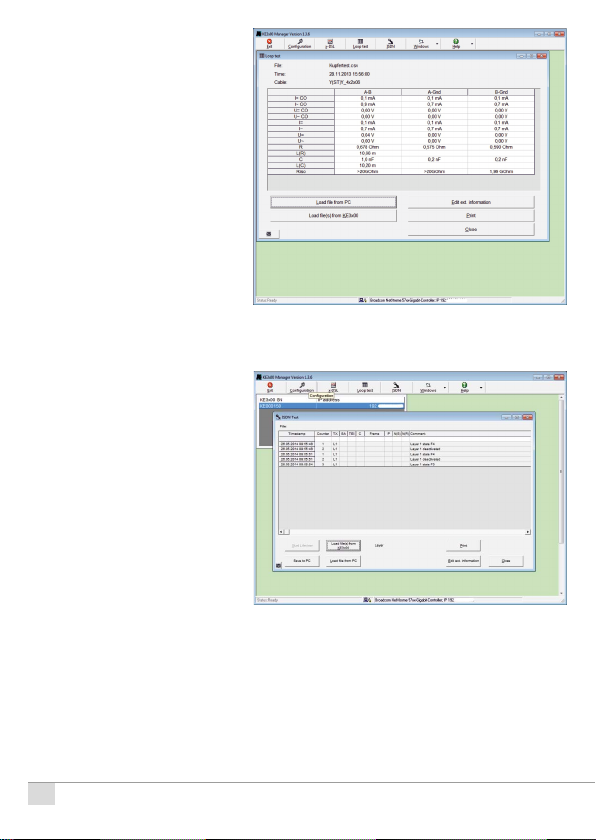

Loop test
Here you can view the stored
loop analysis tests from the
KECT copper Interface.
ISDN
Here you can view the stored
ISDN tests.

© Kurth Electronic GmbH, All Rights Reserved 15
General Data
Graphic TFT Display 3.5“ 240 (RGB) x 320
Languages German, English, French, Spanish,
Italian, Dutch
xDSL Test Port RJ11 / RJ45 (one port)
LAN Port RJ45
GbE Port RJ45
Power supply Built in LiPo battery
Capacity approx. 5 hours in xDSL test mode
Low batt indication Coloumb counter
Power supply 100 – 230 V AC 50 / 60 Hz, 12 – 18 V / DC
Scope of delivery
Unit comes with:
AC power supply and charger, test leads RJ11-RJ45, RJ11 banana plug
with rubber insulated crocodile clips, ethernet cable for PC connection,
bag made of rugged cordura with additional space. Windows software for
download of results and upgrade of unit.
Dimensions:
Size 230 x 114/90 x 70 mm
9“ x 4.5/3.5“ x 2.8“
Weight 1300 g (46 oz.)
Housing High impact resistant ABS, with drop protection
Display protection 2 mm Plexiglass
Environmental conditions:
Operation temperature: 0° – +50°C
Storage temperature -20° – +60°C
Humidity: up to 93%, non-condensing

© Kurth Electronic GmbH, All Rights Reserved
16
The device was manufactured according to the following guidelines:
Electromagnetic Compatibility Directive 2014/53/EC
LVD Directive 2014/53/EC
IEC/CISPR: 11:2009 + A1:2010, 16-1-2:2006 Edition 1.2, 16-2-1:2008 +
A1:2010, 16-2-3:2008 + A1:2010
IEC: 61000-4-1:2016, 61000-4-2:2008 Edition 2, 61000-4-3:2006 +
A1:2007 + A2:2010, 61000-4-8:2009, 61326-1:2012, 61326-2-1:2012
Safety instructions
The KE3700 may only be operated with the accessories originally pro-
vided. Using the device with accessories that are not original or for ap-
plications for which it was not intended can lead to incorrect measure-
ments and may damage the device. The relevant safety regulations in
VDE 0100, 0800 and 0805 must be adhered to.
The usage of connections other than those provided can damage
the device. The device should not be used with high-voltage current.
Kurth Electronic assumes no liability for damage resulting from
improper use.
Never apply external voltage to the device.
Open the device only to change the batteries. There are no other
parts in the device that need to be serviced or calibrated.
The measuring device is protected from splashing water and dust by
the front lm covering. However, it is not water proof.
Never pull unnecessarily on the cables connected to the device.
Last revision: 6.2017
