KWIK GOAL 9B51 User manual

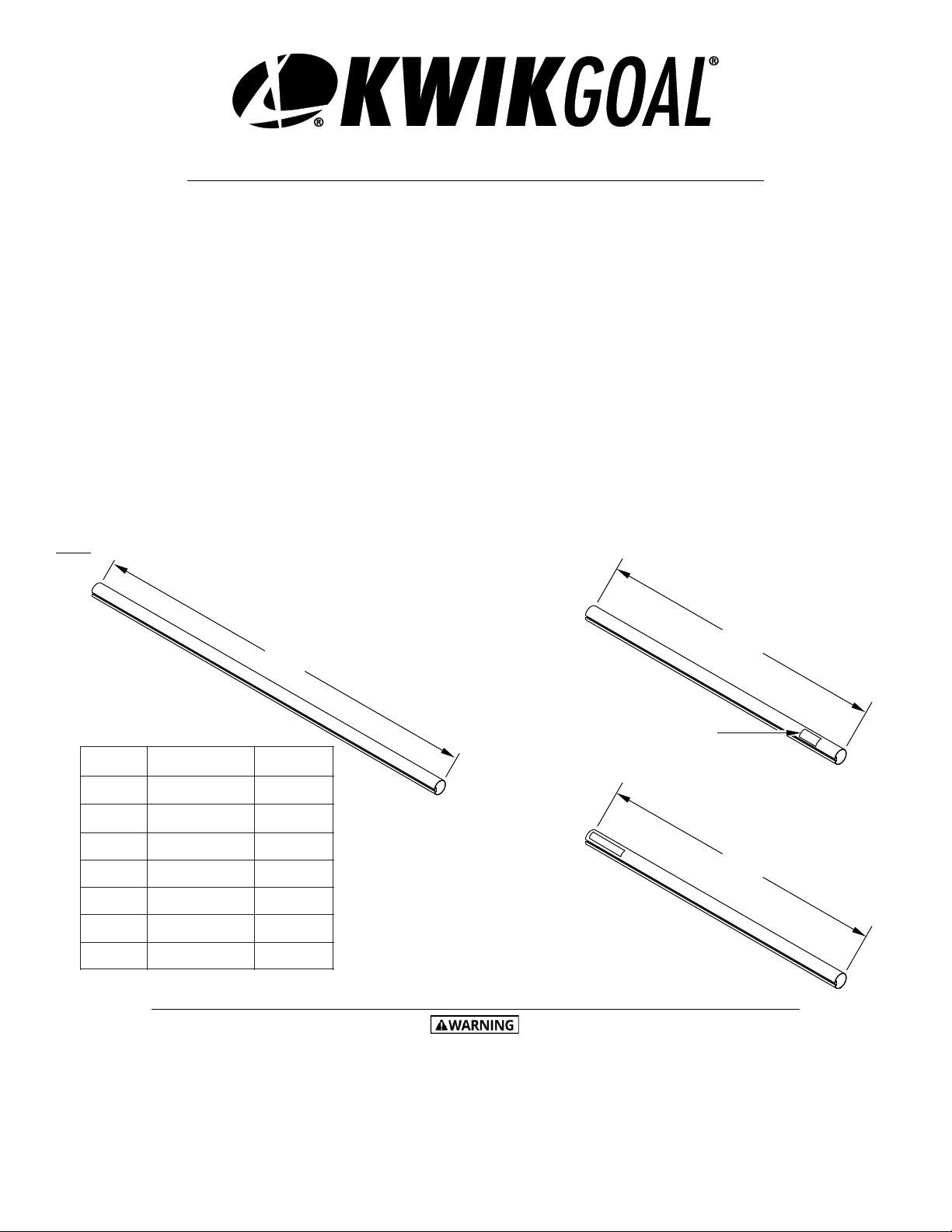

Crossbar (2)
(Part# SEE TABLE)
THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
NOTE: Components may be packaged in one or more additional boxes.
*THIS UNIT MUST BE ASSEMBLED BY A MINIMUM OF TWO QUALIFIED PERSONS*
2. Read through entire instruction before beginning assembly and installation.
NOTICE Sunlight reflecting off polycarbonate panels can contribute to increased temperatures of
surrounding objects. In certain situations, these increased temperatures can damage some artificial turf
surfaces. Kwik Goal is not responsible for any damage to artificial turf.
1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred,
notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging immediately. Wet or
damp packaging may damage contents.
ASSEMBLY INSTRUCTIONS FOR ALL 9B51 PORTABLE SHELTER FRAMES
Left Post (1)
(Part# UZ1103)
67-1/8”
Date of manufacture sticker
67-1/8”
Right Post (1)
(Part# UZ1103)
(A)
PART #
SHELTER WIDTH
DIM (A)
UZ1559
30’
362-3/8”
UZ1116
24’
287-3/4”
UZ1433
21’
250-7/16”
UZ1434
18’
213-1/8”
UZ1435
15’
175-13/16”
UZ1436
12’
138-1/2”
UZ1114
9’
101-3/16”
NZ373 Rev. 12/04/19
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.
Parts
140 Pacific Drive Quakertown, PA 18951
800-531-4252 Kwikgoal.com
2015, Rev 2019 Kwik Goal Ltd. ©

READ CAREFULLY
IMPORTANT SAFETY INSTRUCTIONS
1. Lifting and moving heavy field equipment can be dangerous if not done
properly. All Kwik Goal shelters must be moved by qualified personnel who are
experienced in moving large, heavy field equipment. Kwik Goal recommends
storing dolly and wheels in a secured area to prevent unauthorized use.
3. Do not attempt to lift, move, or remove anchors from any shelter in windy
conditions.
2. A minimum of four qualified, experienced people are required to install wheels
and move shelter.
4. Shelters must not be left unattended when wheels are installed.
5. Shelter must be on level, flat ground to use dolly handle and/or wheels.
6. Dolly is to be used as a wheel transport/storage and shelter lifting device. Do
not use dolly to move shelter.
7. Use extreme caution when pushing shelter. Excessive force can overturn
shelter. Always push at lowest point on shelter frame possible.
8. Do not push shelter directly from the front to rear or rear to front. Push from
end to end. (Refer to 9B1201 - Shelter Dolly instructions for details.)
9. Always use two people to lift shelter with dolly. With one person maintaining
light pressure on the handle, the second may insert wheels into shelter. Install
both wheels before resting shelter on the ground. (Refer to 9B1201 - Shelter
Dolly instructions for details.)
NEVER LOWER SHELTER WITH ONLY ONE WHEEL INSTALLED
NZ373 Rev. 12/04/19
140 Pacific Drive Quakertown, PA 18951
800-531-4252 Kwikgoal.com
2015, Rev 2019 Kwik Goal Ltd. ©

Crossbar Corner (2)
(Part# UZ1211)
Post Corner (2)
(Part# UZ1099)
Left Panel (1)
(Part# UZ1098)
Polycarbonate (1)
(Part# WZ510)
Right Panel (1)
(Part# UZ1097)
Polycarbonate (1)
(Part# WZ464)
Center Panel (SEE TABLE)
(Part# UZ1096)
Polycarbonate (1)
(Part# WZ462)
THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
(Part# 10B103 Pack of 4)
Ground Anchor (4) Anchor Bracket (8)
(Part# UZ1430)
SHELTER WIDTH
QTY
30’
10
24’
8
21’
7
18’
6
15’
5
12’
4
9’
3
Note: Hardware is packed separately in one or more boxes.
Open all boxes and layout all sealed hardware packs
before beginning assembly.
Frame Hdw (Part#JZ131)
3/8” Lock Washer (Part# TZ65) (20)
3/8” X 1” Socket Head (Part# TZ323) (20)
Lift Hdw (Part# JZ137)
Anchor Chain (Part# VZ564-12) (4)
7/16” Flat Washer (Part# TZ171) (8)
1/2” Lock Nut (Part# TZ28) (4)
7/16” X 5-1/2” Hex Bolt (Part# TZ291) (4)
1/2” U-bolt (Part# TZ306) (2)
1/2” Flat Washer (Part# TZ297) (4)
7/16” X 5” Hex Bolt (Part# TZ307) (4)
Anchor Hdw (Part# JZ210)
7/16” Lock Nut (Part# TZ47) (4)
NZ373 Rev. 12/04/19
Left Base (1)
(Part# UZ1101)
50-1/8”
Right Base (1)
(Part# UZ1102)
50-1/8”
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

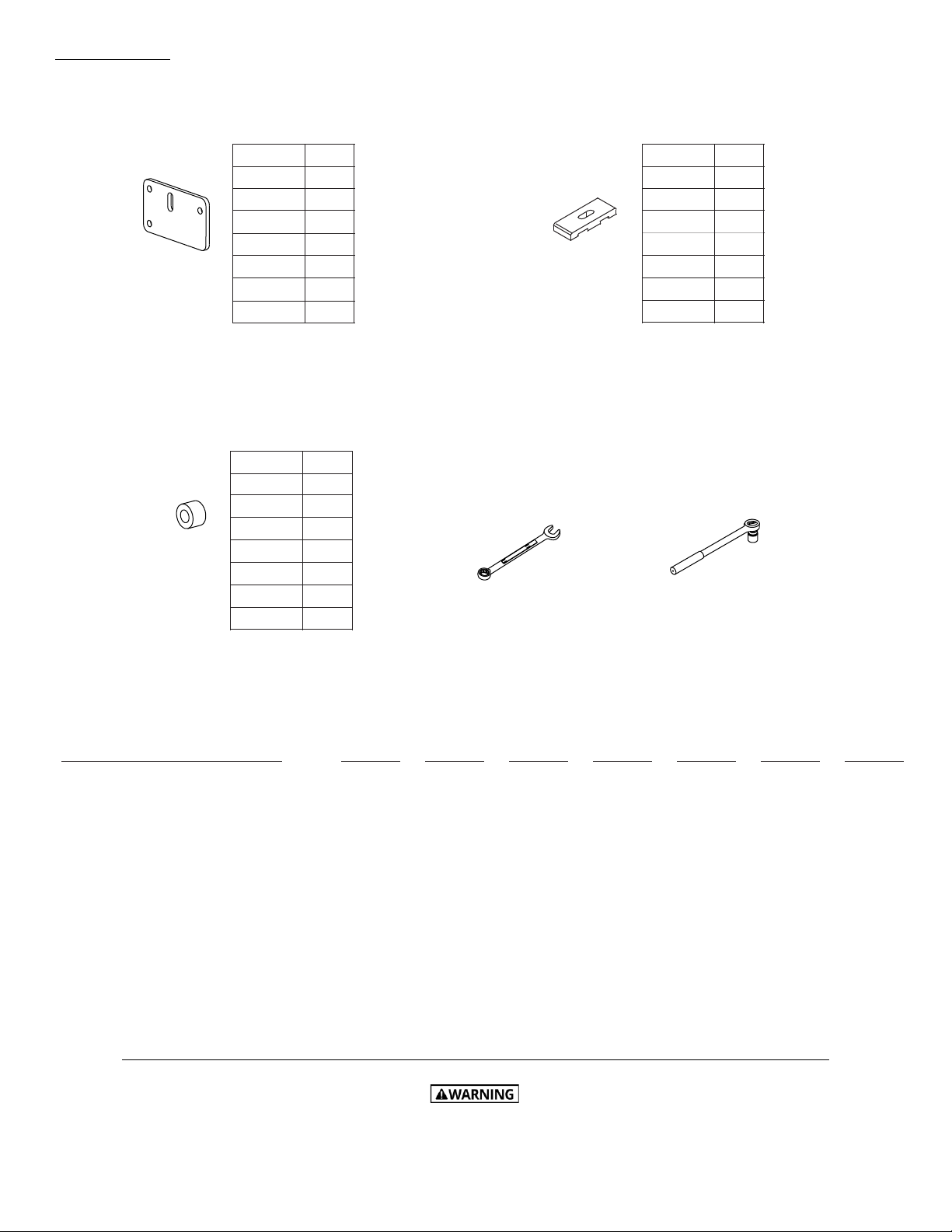

Parts Continued

1/2” U-Bolt
Right Base
1/2” Lock Nut
1/2” Flat Washer
1/2” U-Bolt Left Base
1/2” Lock Nut
1/2” Flat Washer
THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
Ratchet with
1/2”, 9/16”, 5/8” & 3/4”
Sockets
1/2”, 9/16”, 5/8” & 3/4”
Wrenches
9/16
5/16” Hex wrench
Assembly Tools
Polyurethane Sealant
(Part# VZ837)

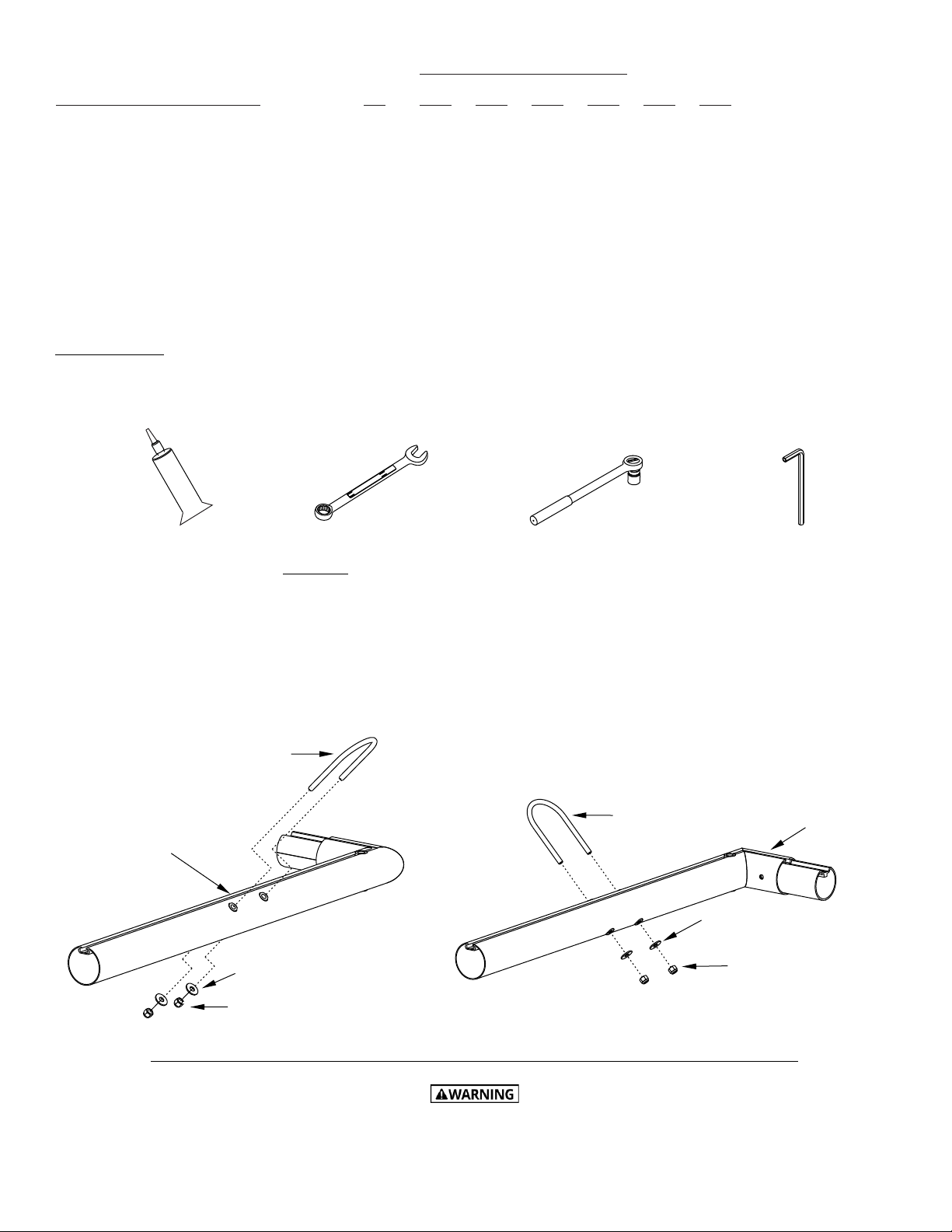

3. Hardware for this step is in Lift Hdw pack.
Attach 1/2” U-bolt to left and right bases.
NOTE: Tighten 1/2” nuts only until flush with end of U-bolts.
NZ373 Rev. 12/04/19
3/8” X 2-1/4” Hex Bolt (Part# TZ305) (7) (8) (9) (10) (11) (12) (14)
3/8” Square Nut (Part# TZ247) (12) (14) (16) (18) (20) (22) (26)
3/8” X 7/8” Hex Bolt (Part# TZ249) (5) (6) (7) (8) (9) (10) (12)
3/8” Flat Washer (Part# TZ60) (12) (14) (16) (18) (20) (22) (26)
5/16” Lock Nut (Part# TZ5) (12) (15) (18) (21) (24) (27) (33)
Panel Hdw (Part# JZ199, JZ202) 9ft 12ft 15ft 18ft 21ft 24ft 30ft
3/8” Lock Washer (Part# TZ65) (32) (34) (36) (38) (40) (42) (46)
Quantity per shelter length
5/16” X 3-3/4” Hex Bolt (Part# TZ264) (6) (9) (12) (15) (18) (21) (27)
5/16” Flat Washer (Part# TZ4) (18) (24) (30) (36) (42) (48) (60)
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
4. Hardware for this step is in Frame Hdw & Panel Hdw packs.
NOTE: Square nuts will float loose in channels until used later.
Assemble crossbar, bases, and post corners. Press joints together firmly before tightening bolts.
3/8” x 1”
Socket Head Cap Screw
3/8” Lock Washer
Crossbar
Right Base
3/8” Square Nut
Left Base
Crossbar
3/8” Lock Washer
3/8” x 1”
Socket Head Cap Screw
3/8” Square Nut (Qty=Center Panel Qty - 1)
Example: eight center panels = seven 3/8” square nuts
NZ373 Rev. 12/04/19
Post Corner
3/8” Square Nut
3/8” Lock Washer
3/8” x 1” Socket Head Cap Screw
Base
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
3/8” x 1” Socket Head Cap Screw
3/8” Lock Washer
3/8” Square Nut
Right Post
Crossbar Corner
Crossbar
Left Post
Crossbar Corner
Crossbar
Crossbar Corner
Right Post
Date of
manufacture sticker
Warning Sticker
Warning Sticker

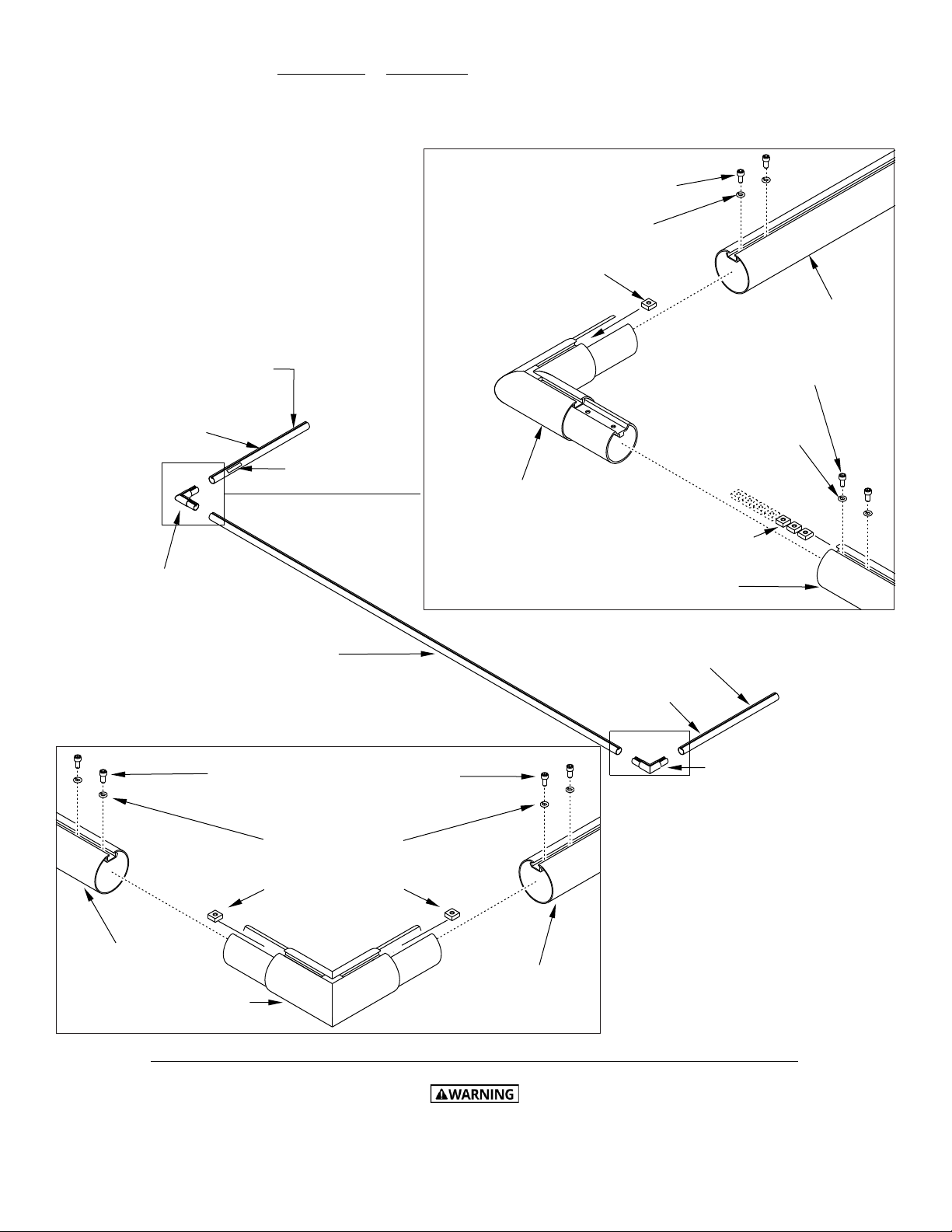

Assemble crossbar, posts, and crossbar corners. Press joints together firmly before tightening bolts.
NOTE: Square nuts will float loose in channels until used later.
5. Hardware for this step is in Frame Hdw & Panel Hdw packs.
NZ373 Rev. 12/04/19
3/8” Square Nut (Qty=Center Panel Qty - 1)
3/8” x 1” Socket Head Cap Screw
3/8” Lock Washer
3/8” Square Nut
3/8” x 1”
Socket Head Cap Screw
3/8” Lock Washer
Crossbar
Left Post
Crossbar Corner
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
6. Hardware for this step is in Frame Hdw & Panel Hdw packs.
Insert one 3/8” square nut in each side of assembled base corner. Connect assembled base and post as shown.
Press joints together firmly before tightening bolts.
Assembled Post
Assembled Base
Post Corner
Post
3/8” x 1” Socket Head Cap Screw
3/8” Lock Washer
3/8” Square Nut
Assembled Post
Assembled Base
NZ373 Rev. 12/04/19
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
Left Panel
Right Panel
Assembled Frame
Assembled Frame
Left Panel
3/8” Square Nut
3/8” x 2- 1/4” Hex Bolt
3/8” Lock Washer
3/8” Flat Washer
3/8” x 7/8” Hex Bolt - make finger tight
to temporarily hold square nut in place.
Base
Left Panel
3/8” Square Nut
Do NOT tighten bolts at this time.
7. Hardware for this step is in Panel Hdw packs.
Attach right and left panels to assembled frame as shown.
3/8” x 2 -1/4” Hex Bolt
3/8” Lock Washer
3/8” Flat Washer
3/8” Square Nut
Left Panel
Assembled Frame
NZ373 Rev. 12/04/19
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES

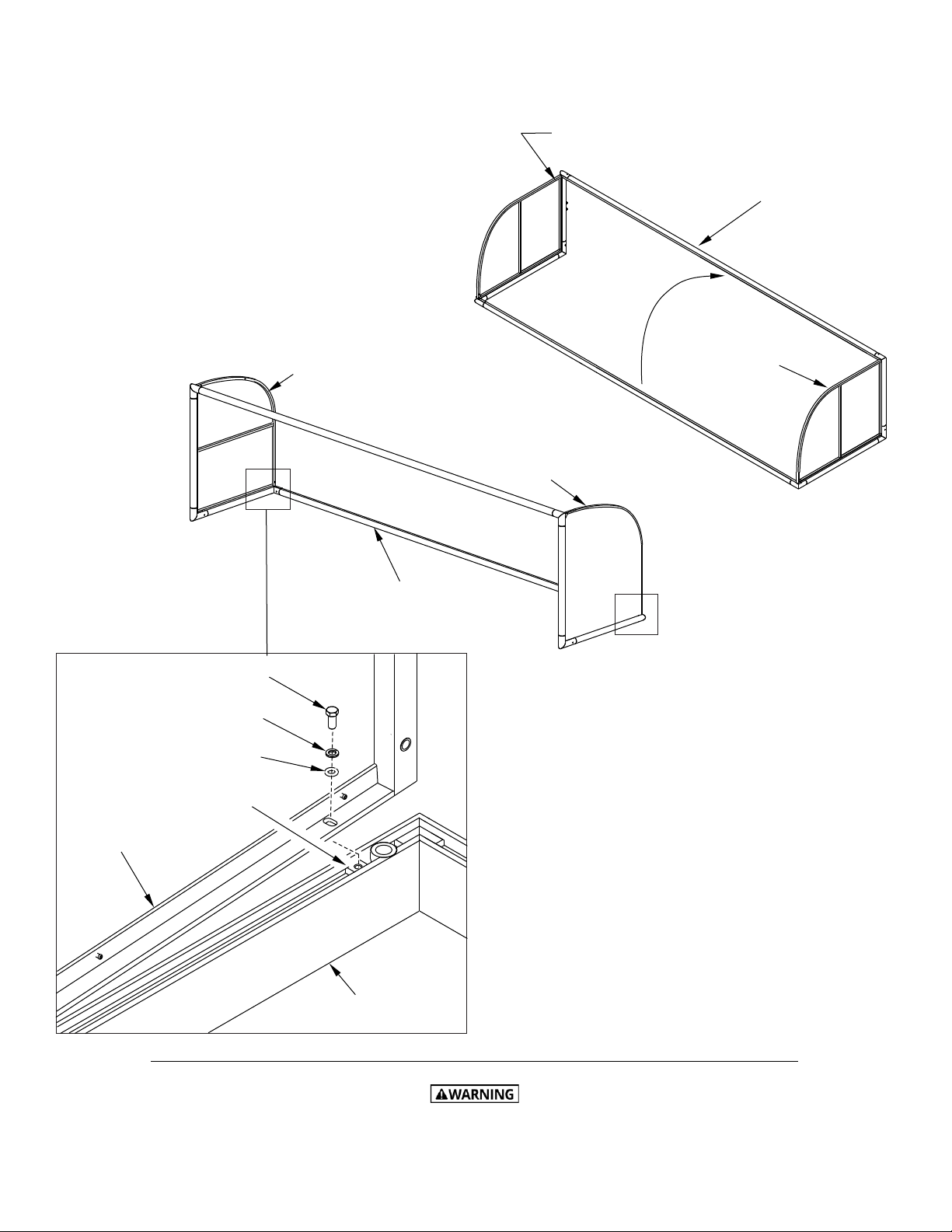

8. Turn shelter frame onto base and remove temporary 3/8” X 7/8” bolt then connect bottom of right and left
panel as shown.
Do NOT tighten bolts at this time.
3/8” x 7/8” Hex Bolt
3/8” Lock Washer
Assembled Frame
Left Panel
3/8” Square Nut
3/8” Flat Washer
Left Panel
Assembled Frame
Right Panel
Left Panel
Right Panel
Assembled Frame
NZ373 Rev. 12/04/19
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES

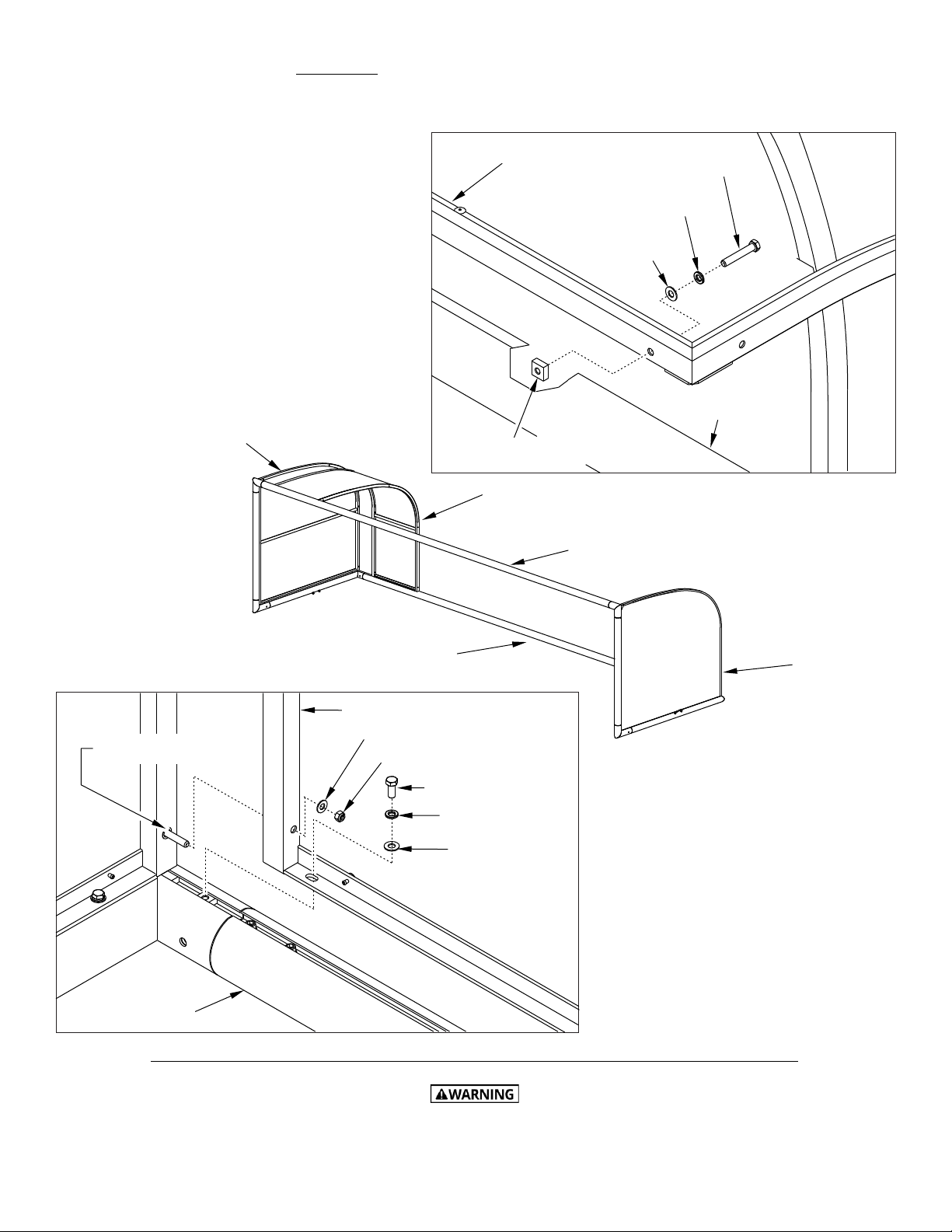

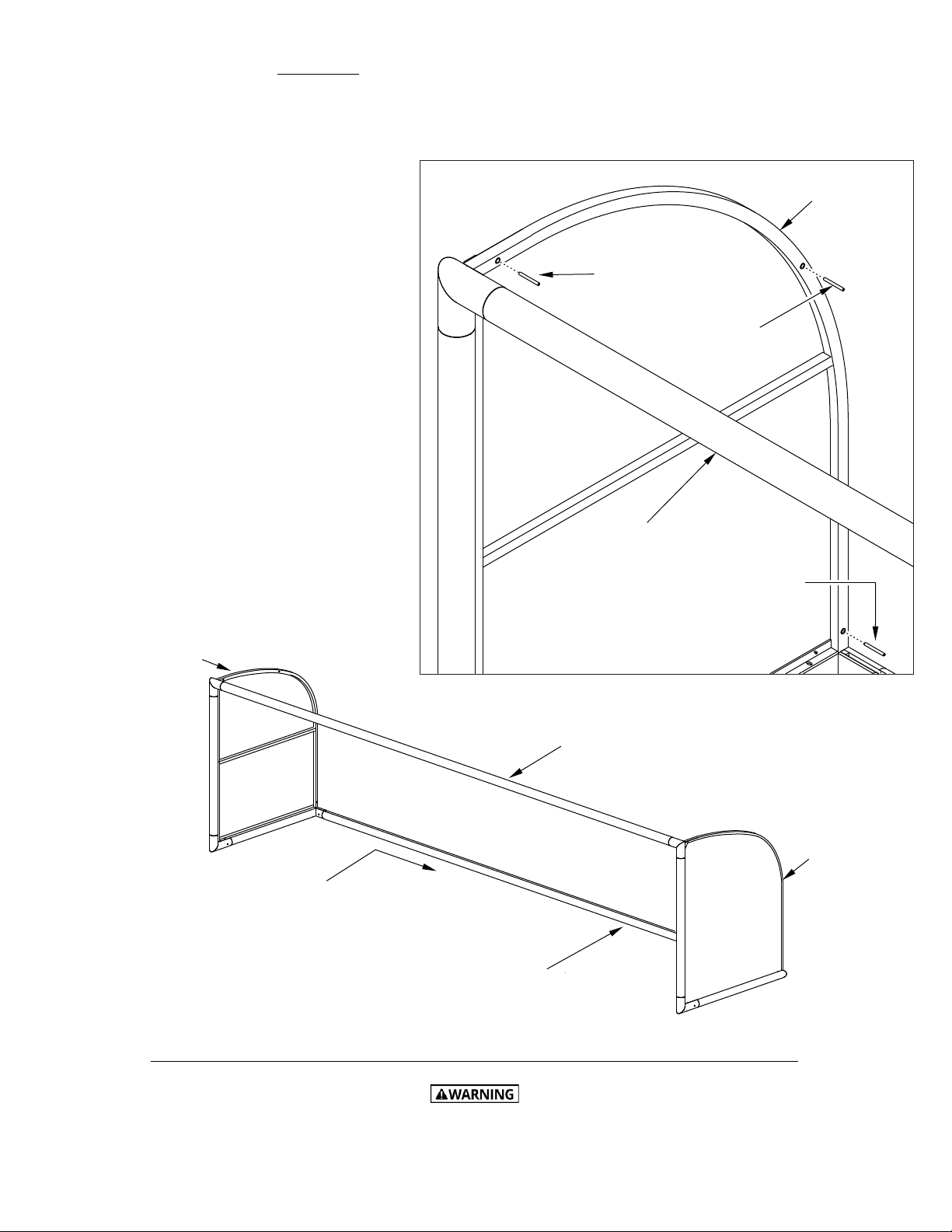

9. Hardware for this step is in Panel Hdw packs.
Insert double end studs into left panel. Move unneeded square nuts in top and bottom crossbars away from left
side at least one center panel width.
Do NOT tighten bolts at this time.
NZ373 Rev. 12/04/19
Left Panel
Double End Stud
Double End Stud
Double End Stud
Top Crossbar
Right Panel
Left Panel
Bottom Crossbar
Top Crossbar
Move unneeded square nuts in top & bottom
crossbars away from panel at least a panel width.
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES

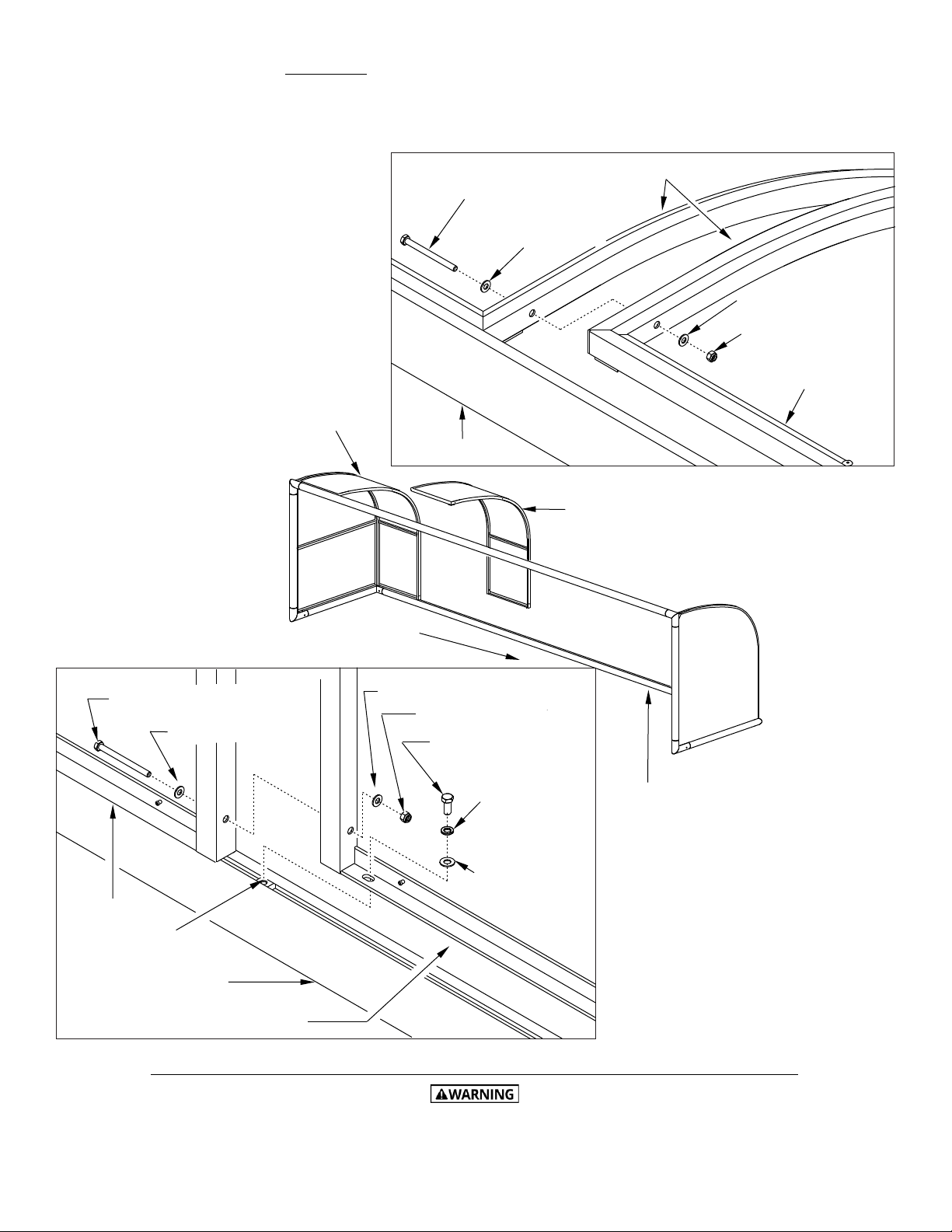

10. Hardware for this step is in Panel Hdw packs.
Line up square nut with holes in center panel and attach center panel to shelter frame. Slide center panel to
mate with left panel lining up double end studs, as shown. Repeat steps 9 & 10 to attach center panel to the
right side.
Do NOT tighten bolts at this time. Center Panel
3/8” Flat Washer
3/8” Lock Washer
3/8” x 2- 1/4” Hex Bolt
Top Crossbar
3/8” Square Nut
Center Panel
3/8” x 7/8” Hex Bolt
3/8” Lock Washer
3/8” Flat Washer
Bottom Crossbar
5/16” Flat Washer
5/16” Lock Nut
Double End Stud
Center Panel
Left Panel
Right Panel
Bottom Crossbar
Top Crossbar
NZ373 Rev. 12/04/19
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
Repeat step 10 to attach center panels to crossbars then connect center panels together until the only 1
center panel is left. Remember to move unneeded square nuts on top and bottom crossbars out from under
the center panel being attached before bolting center panel in place.
11. Hardware for this step is in Panel Hdw packs.
5/16” x 3- 3/4” Hex Bolt
5/16” Flat Washer
Center Panel
Top Crossbar
5/16” Flat Washer
5/16” Lock Nut
Rear Panel
Bottom Crossbar
3/8” Square Nut
5/16” x 3- 3/4” Hex Bolt
5/16” Flat” Washer
5/16” Flat Washer
5/16” Lock Nut
Center Panel
Center Panel
3/8” x 7/8” Hex Bolt
3/8” Lock Washer
3/8” Flat Washer
Bottom Crossbar
Center Panel
Center Panel
Move unneeded square nuts in top & bottom
crossbars away from panel at least a panel width.
NZ373 Rev. 12/04/19
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

12. If installing Bench or Molded Seating, skip to step 13.
If installing Luxury Seating, tighten all panel joint bolts. Begin at center joint and work outward. Tighten 3
bolts per joint. Tighten 3 panel frame bolts on each of the left and right end panels. Tighten panel to frame
bolts at top and bottom of each center panel.
THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
Panel Frame Bolts
Center Joint
Work Towards End
Work Towards End
NZ373 Rev. 12/04/19
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

Anchor Chain
7/16” X 5” Hex Bolt
7/16” Flat Washer
7/16” Flat Washer
7/16” Lock Nut
Assembled Shelter Frame
13. If anchoring to concrete slab, skip to step 16.
THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES

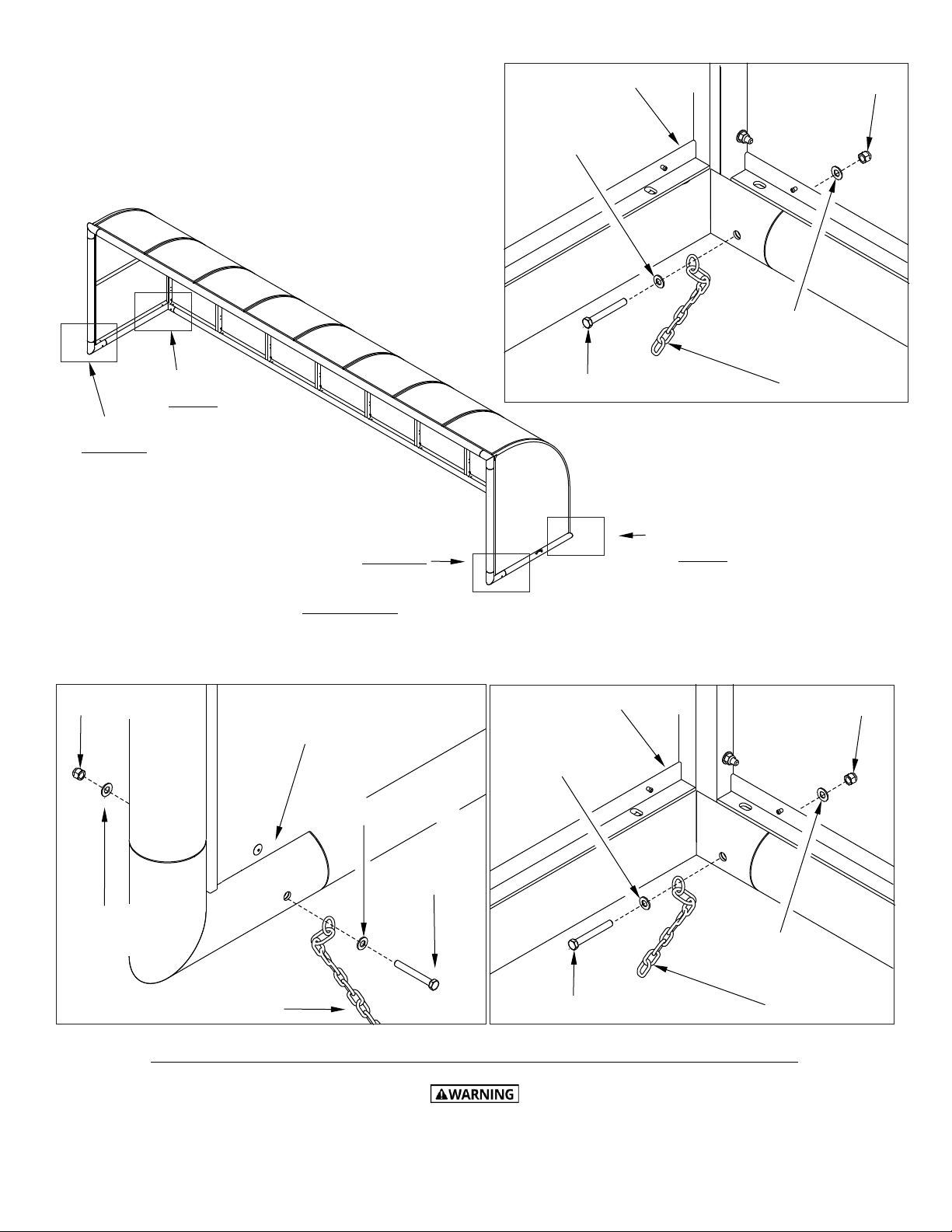

Attach anchor chain to shelter frame, 2 in the front on the outside and 2 on the inside at the back as shown.
14. Hardware for this step are in Anchor Hdw pack.
Anchor Chain
7/16” X 5” Hex Bolt
7/16” Flat Washer
7/16” Flat Washer
7/16” Lock Nut
Assembled Shelter Frame
Anchor Chain
Hex Bolt
7/16” X 5”
7/16” Flat Washer
7/16”
Flat Washer
7/16” Lock Nut
Assembled Shelter Frame
Anchor Chain
OUTSIDE
Anchor Chain
OUTSIDE
Anchor Chain
INSIDE
Anchor Chain
INSIDE
NZ373 Rev. 12/04/19
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
15. Hardware for this step is in Anchor Hdw pack.
Permanent ground anchors must be used at all times. Dig four holes according to the layout below. Note:
areas subject to heavy frost may require depths as deep as 36”. Prepare holes and add drain stone as shown.
Install anchor in each hole and fill hole with concrete. Allow concrete to cure before attaching shelter to
anchors. Upon completion of shelter frame, refer to seating instructions to complete your seating shelter.
Stone
Concrete Concrete
Anchor Hole Detail
(4 places per shelter)
20"
MIN
24" MIN
60°
Approx.
Field
Surface
Ground Anchor
12-3/4"
Assembled
4 Places
Ground Anchor
Anchor Chain
1/2" Hex Bolt
NZ373 Rev. 12/04/19
Overall Shelter Width + 8” = Center to center of anchors
 24 in Anchor Hole
4 Places
3'-8"
1'-0"
0'-9” From front of Shelter
TOP VIEW
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
Shelter may be anchored to a concrete pad using anchor brackets. Attach 8 brackets to shelter as shown.
16. Hardware for this step is in Anchor Hdw pack.
Anchor Bracket
Assembled
8 places
Anchor
1/2”
Concrete
Anchor Bracket Locations
Anchor Bracket
Hex Bolt
7/16” X 5-1/2”
7/16” Flat Washer
Flat Washer
7/16”
7/16” Lock Nut
Assembled Shelter Frame
Anchor Bracket
17. Place shelter in location of install and mark 8 anchor locations on concrete. Install eight 1/2” diameter anchors
with a minimum rating of 2500 lbs. each. Upon completion of shelter frame, refer to seating instructions to
complete your seating shelter.
Anchor Bracket
Anchor Bracket
7/16” X 5-1/2” Hex Bolt
7/16” Flat Washer
7/16” Flat Washer
7/16” Lock Nut
Assembled Shelter Frame
NZ373 Rev. 12/04/19
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

Crossbar
(43”)
Lower Brace Line
Panels
Seal Panel to Panel Joints
Polycarbonate
Sealant below lower brace line is not necessary.
18. If desired, panel joints may be sealed with a small bead of urethane sealant. Seal across crossbar to panel
joint, then panel to panel joints.
NOTE: Panel to panel joints should only be sealed between crossbar and lower brace of panels.
Prevent sealant material from contacting polycarbonate.
Panel to
Panel Joints
Crossbar Panel
THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
Go to kwikgoal.com for additional product information.
NZ373 Rev. 12/04/19
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

*THIS UNIT MUST BE ASSEMBLED BY A MINIMUM OF TWO QUALIFIED PERSONS*
ASSEMBLY INSTRUCTIONS FOR BENCH SEATS FOR 9B511 PORTABLE SHELTER
2. Refer to 9B51 instructions to assemble shelter frame prior to beginning seat assembly.
NOTE: Components may be packaged in one or more additional boxes.
SHELTERS MUST BE ANCHORED AT ALL TIMES WITH PERMANENT GROUND ANCHORS.
3. Read through entire instruction before beginning assembly and installation.
1. Unpack all parts and check for damage that may have occurred during shipping. If damage has
occurred, notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging
immediately. Wet or damp packaging may damage contents.
NZ375 Rev. 12/04/19
Bench Plank (SEE TABLE)
(Part# SEE TABLE)
(A)
MODEL#
DIM (A)
ANODIZED
PART #
PART #
POWDER COATED
QTY
9B5110
180”
UZ468
UZ1118
6
9B5118
288”
UZ1209
UZ1490
3
9B5117
252”
Uz763
UZ1119
3
9B5116
216”
UZ1459
UZ1502
3
9B5115
180”
UZ468
UZ1118
3
9B5114
144”
UZ1460
UZ1503
3
9B5113
108”
UZ1115
UZ1491
3
MODEL#
QTY
9B5110
6
9B5118
4
9B5117
4
9B5116
3
9B5115
3
9B5114
2
9B5113
2
Seat Frame (SEE TABLE)
(Part# UZ1106)
Seat Support
(Part# UZ1113)
THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
MODEL#
QTY
9B5110
4
9B5118
2
9B5117
2
9B5116
2
9B5115
2
9B5114
2
9B5113
2
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.
140 Pacific Drive Quakertown, PA 18951
800-531-4252 Kwikgoal.com
2015, Rev 2019 Kwik Goal Ltd. ©
Parts

8. Do not push shelter directly from the front to rear or rear to front. Push from
end to end. (Refer to 9B1201 - Shelter Dolly instructions for details.)
6. Dolly is to be used as a wheel transport/storage and shelter lifting device. Do
not use dolly to move shelter.
7. Use extreme caution when pushing shelter. Excessive force can overturn
shelter. Always push at lowest point on shelter frame possible.
9. Always use two people to lift shelter with dolly. With one person maintaining
light pressure on the handle, the second may insert wheels into shelter. Install
both wheels before resting shelter on the ground. (Refer to 9B1201 - Shelter
Dolly instructions for details.)
NEVER LOWER SHELTER WITH ONLY ONE WHEEL INSTALLED
READ CAREFULLY
IMPORTANT SAFETY INSTRUCTIONS
1. Lifting and moving heavy field equipment can be dangerous if not done
properly. All Kwik Goal shelters must be moved by qualified personnel who are
experienced in moving large, heavy field equipment. Kwik Goal recommends
storing dolly and wheels in a secured area to prevent unauthorized use.
2. A minimum of four qualified, experienced people are required to install wheels
and move shelter.
3. Do not attempt to lift, move, or remove anchors from any shelter in windy
conditions.
4. Shelters must not be left unattended when wheels are installed.
5. Shelter must be on level, flat ground to use dolly handle and/or wheels.
NZ375 Rev. 12/04/19
WARNING
140 Pacific Drive Quakertown, PA 18951
800-531-4252 Kwikgoal.com
2015, Rev 2019 Kwik Goal Ltd. ©

Seat Frame Plate (SEE TABLE)
(Part# UZ1107)
Plank Hold Down (SEE TABLE)
(Part# UZ475)
3/8” Seat Frame Spacers (SEE TABLE)
(Part# TZ308) Assembly Tools
Wrenches
1/2” & 9/16”
9/16
Ratchet with Socket
1/2” & 9/16”
AND
5/16” Flat Washer (Part# TZ4) (16) (16) (22) (22) (28) (28) (44)
3/8” Flat Washer (Part# TZ60) (16) (16) (24) (24) (32) (32) (48)
3/8” X 4-1/4” Hex Bolt (Part# TZ303) (8) (8) (12) (12) (16) (16) (24)
3/8” Lock Nut (Part# TZ197) (8) (8) (12) (12) (16) (16) (24)
5/16” X 3” Carriage Bolt (Part# TZ172) (16) (16) (22) (22) (28) (28) (44)
Hardware needed per Model 9B5113 9B5114 9B5115 9B5116 9B5117 9B5118 9B5110
MODEL#
QTY
9B5110
12
9B5118
8
9B5117
8
9B5116
6
9B5115
6
9B5114
4
9B5113
4
MODEL#
QTY
9B5110
44
9B5118
28
9B5117
28
9B5116
22
9B5115
22
9B5114
16
9B5113
16
MODEL#
QTY
9B5110
24
9B5118
16
9B5117
16
9B5116
12
9B5115
12
9B5114
8
9B5113
8
THIS UNIT MUST BE ANCHORED ACCORDING TO THESE INSTRUCTIONS AT ALL TIMES
NZ375 Rev. 12/04/19
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL’S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.
Parts Continued
