Kyocera Data Security Kit (B) For Copier User manual

1-1
General User Information
General User Information
Introduction
This operation guide contains information on the proper use of the Data
Security Kit (B) (hereinafter, Security Kit), as well as cautionary notes relating
to its use. Be sure to carefully read this operation guide before using the
Security Kit.
About The Security Kit
The copier temporarily stores the original document, which is read as
electronic data, onto the copier’s hard disk. Printing is performed using this
data. Even after the printing is completed, the data remains stored on the hard
disk until it is overwritten by other data. Therefore, there is a possibility that
confidential information will be leaked if special tools are used to recover this
remaining data.
The Security Kit overwrites old data - data that is not required - and data
storage area where the data has been deleted to ensure that data cannot be
recovered. Overwriting is performed automatically, without user intervention.
Unsecured Data
The Security Kit secures data that is not required after it is printed, and data
that has been deleted. This means that the responsibility for maintaining data
before it is printed or data that is stored before it is deleted lies with the user.
1
E
ng
li
s
h

1-2
General User Information
The data derived from the following functions must be administered by the
user.
• Document Management (Copy Function)
• Quick Copy (Printer Function)
• Proof and Hold (Printer Function)
• Private Print (Printer Function)
• Stored Job (Printer Function)
• Virtual MailBox (VMB) (Printer Function)
• Temporary code Job (Printer Function)
• Permanent code Job (Printer Function)

1-3
General User Information
Display during overwrite
Important! To avoid damaging the hard disk, do not turn the copier power off during
overwrite (while the hard disk icon is alternating between the two icons).
Note • If the copier power is turned off while overwriting is still in progress, any
data that has not yet been overwritten will remain on the hard disk. In this
case, overwriting should be re-started from the beginning when the copier
is turned on again.
• In rare cases after the copier power is turned off during overwrite, the hard
disk icon may not change to . This means that overwrite may not be
possible because data was corrupted during data overwriting. Though the
copier will be able to overwrite data that is not required after it is printed,
contact your administrator, who is responsible for operating the copier and
for copier security, in order to restore overwriting to normal.
Icon display Details
The hard disk contains old data.
Alternating Old data is being overwritten.
Old data has been overwritten.
Ready to copy.
11x8½"
Paper Size Set
4 in 1
Sheet
Margin
Left
ProgramFunctionUser choice
Basic
11x8½"
Plain
11x8½"
Recycled
11x17"
Plain
8½x11"
Plain 11x8½" Plain
MP tray
Plain
APS Auto %
Reduce
％100
Exposure
Auto
Staple
Staple
Left Top
Staple Off
％100
/Enlarge Mode
Exposure Erase
/Punch
Hard disk icon

1-4
General User Information
Data to be overwritten
Data to be overwritten are as follows.
Note The Security Kit immediately overwrites the original document data stored onto
the hard disk when copying, scanning or printing is cancelled while processing.
Copy Function
The original document data of a copy which output is completed
The original document data stored through a document management
function and deleted by the user
The original document data stored in Synergy Print Box that is deleted
because the expiration date was reached
Printer Function (when optional hard disk is installed)
Post-output print data
Print data in the private print mode and virtual mailbox function when
output is completed
Quick Copy, proof and hold, and Private Print data (Deleted when
power is turned off and then back on again.)
Data deleted by the user using the Quick Copy, proof and hold, Private
Print, Stored Job, virtual mailbox, Temporary code Job, or Permanent
code Job function
Data deleted when maximum number of documents is exceeded by
Quick Copy, or proof and hold print data
Data deleted when storage capacity is exceeded by Temporary code
Job print data
Scanner Function
Scanned original document data

1-5
Administrator Information
Administrator Information
Table of Contents
Introduction ....................................................................................1-5
Security Kit Functions ...................................................................1-8
Security Kit Installation Procedures ..........................................1-13
Hard Disk Format .........................................................................1-15
Error Messages ............................................................................1-16
Introduction
This operation guide contains information on the proper use of the Data
Security Kit (B) (hereinafter, Security Kit), as well as cautionary notes relating
to its use. Be sure to carefully read this operation guide before using the
Security Kit. The individual who will be responsible for operating the copier and
for copier security (hereinafter, administrator) should read this guide. The
administrator should store this guide in a secure place.
Attachments
The Security Kit comes with the following items:
• Security key (service representative will attach to copier.)
• Operation guide (this manual)
• Installation guide (for use by service representative)
About The Security Kit
The copier temporarily stores the original document, which is read as
electronic data, onto the copier’s hard disk. Printing is performed using this
data. Even after the printing is completed, the data remains stored on the hard
disk until it is overwritten by other data. Therefore, there is a possibility that
confidential information will be leaked if special tools are used to recover this
remaining data.
The Security Kit overwrites old data - data that is not required - and data
storage area where the data has been deleted to ensure that data cannot be
recovered. Overwriting is performed automatically, without user intervention.

1-6
Administrator Information
The Security Kit secures data on the copier’s internal hard disk, but does not
secure any other type of data (data sent to the computer, etc.) Note that data
security is not guaranteed even if only one of the conditions required for
data security described below is not met.
Conditions Required for Data Security
The followings are required for fulfilling the validity of data security using the
Security Kit.
Dependable Administrator
A dependable administrator is required in the department to take responsibility
on security on the copiers using this Security Kit.
Safe Physical Location of Installation
The copier should be installed in a location which the accessibilities are limited.
This avoids unauthorized personnel to use the copiers.
Dependable Service Representative
All maintenance activities must be performed by the service representative,
with the administrator in attendance.
Unsecured Data
The Security Kit secures data that is not required after it is printed, and data
that has been deleted. This means that the responsibility for maintaining data
before it is printed or data that is stored before it is deleted lies with the user.
The data derived from the following functions must be administered by the
user.
• Document Management (Copy Function)
• Quick Copy (Printer Function)
• Proof and Hold (Printer Function)
• Private Print (Printer Function)
• Stored Job (Printer Function)
• Virtual MailBox (VMB) (Printer Function)
• Temporary code Job (Printer Function)
• Permanent code Job (Printer Function)

1-7
Administrator Information
About Security Mode
Security mode refers to the machine status in which the Security Kit has been
installed on the copier and is functioning properly. When the copier is in the
security mode, a hard disk icon will be displayed on the right upper corner of
the touch panel.
(The hard disk icon is displayed on the screens of the copy, printer, and
scanner functions.)
Important! If a hard disk icon is not displayed on the screen of the copier, printer, and
scanner functions, it could mean that the machine is not in the security mode.
Contact your service representative.
Note You can determine the operational status of the overwrite function by
monitoring changes to the image of the hard disk icon. See page 1-10 Display
during overwrite for further details.
Ready to copy.
11x8½"
Paper Size Set
4 in 1
Sheet
Margin
Left
ProgramFunctionUser choice
Basic
11x8½"
Plain
11x8½"
Recycled
11x17"
Plain
8½x11"
Plain 11x8½" Plain
MP tray
Plain
APS Auto %
Reduce
％100
Exposure
Auto
Staple
Staple
Left Top
Staple Off
％100
/Enlarge Mode
Exposure Erase
/Punch
Hard disk icon

1-8
Administrator Information
Security Kit Functions
Overwrite Function
Function details
Overwrites old document data when copying or printing is completed.
Overwriting method
3-time Overwrite or Once Overwrite (See page 1-14 Step 3: Hard Disk
Overwrite Setting for further details.)
Execution timing
Overwrites existing old document data after a job is completed.
Data to be overwritten
See page 1-11 Data to be overwritten for further details.
Overwrite-in-Progress Screen
The hard disk icon alternates between the two icons (See page 1-10
Display during overwrite for further details.)
Security Kit
Copy
Function
Scanner
Function
Printer
Function
Hard Disk
Sends to
computer
Output

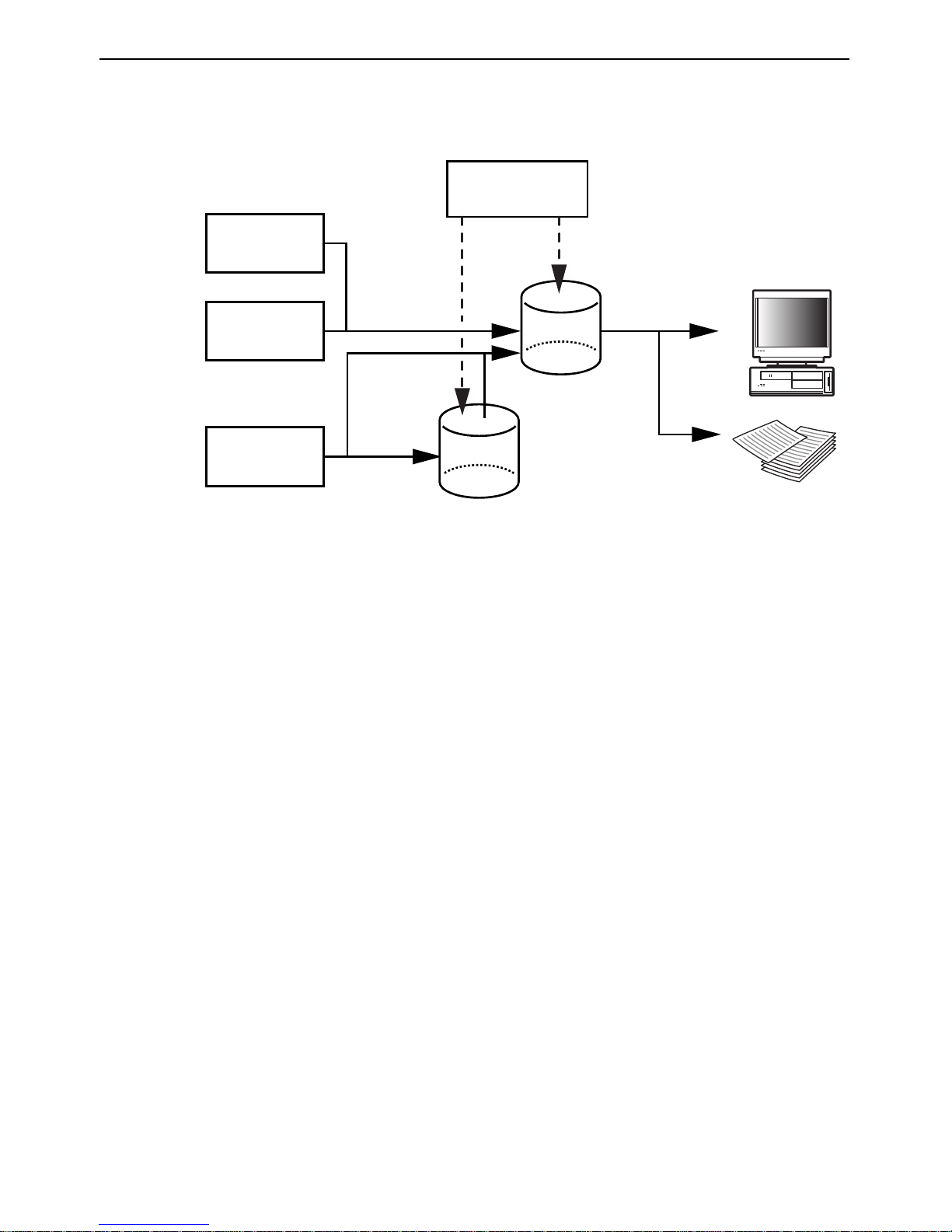

1 Monitors the status of
operations, overwrites
old image data.
2 Formats the hard disk.
Temporarily
stores original
document data
Optional Hard Disk

1-9
Administrator Information
Format Function
Overwriting Time
Differs depending on amount of data to overwrite.
Function details
Overwrites all data on the hard disk.
Overwriting method
3-time Overwrite or Once Overwrite (See page 1-14 Step 3: Hard Disk
Overwrite Setting for further details.)
Execution timing
Execution through the operation panel (See page 1-15 Hard Disk
Format for further details.)
Data to be overwritten
See page 1-12 Data overwritten through the format function for
further details.
Overwrite-in-Progress Screen
Formatting Hard Disk is displayed.
Overwriting Time
See page 1-12 Time required to format for further details.

1-10
Administrator Information
Hard Disk Overwrite
You can select either of the following two methods to overwrite data:
Display during overwrite
Important! To avoid damaging the hard disk, do not turn the copier power off during
overwrite (while the hard disk icon is alternating between the two icons).
Once Overwrite
Overwrites the entire area used to store old document data with zeroes
to reject recovery of the data. The entire hard disk is overwritten with
zeroes during a format operation.
3-time Overwrite (Default)
Overwrites the entire area used to store old document data twice with a
random pattern and then a third and final time with zeroes. It takes
longer to execute than the Once Overwrite, but because even highly-
sophisticated recovery methods are unable to recover the data, this
method provides higher security. The area to be overwritten is the
same as for the Once Overwrite.
Icon display Details
The hard disk contains old data.
Alternating Old data is being overwritten.
Old data has been overwritten.
Ready to copy.
11x8½"
Paper Size Set
4 in 1
Sheet
Margin
Left
ProgramFunctionUser choice
Basic
11x8½"
Plain
11x8½"
Recycled
11x17"
Plain
8½x11"
Plain 11x8½" Plain
MP tray
Plain
APS Auto %
Reduce
％100
Exposure
Auto
Staple
Staple
Left Top
Staple Off
％100
/Enlarge Mode
Exposure Erase
/Punch
Hard disk icon

1-11
Administrator Information
Note • If the copier power is turned off while overwriting is still in progress, any
data that has not yet been overwritten will remain on the hard disk. In this
case, overwriting should be re-started from the beginning when the copier
is turned on again.
• In rare cases after the copier power is turned off during overwrite, the hard
disk icon may not change to . This means that overwrite may not be
possible because data was corrupted during data overwriting. Though the
copier will be able to overwrite and overwrite data that is not required after
it is printed, the hard disk will need to be re-formatted in order to restore
overwriting to normal. (See page 1-15 for information about formatting the
hard disk.)
Data to be overwritten
Data to be overwritten are as follows.
Note The Security Kit immediately overwrites the original document data stored onto
the hard disk when copying, scanning or printing is cancelled while processing.
Copy Function
The original document data of a copy which output is completed
The original document data stored through a document management
function and deleted by the user
The original document data stored in Synergy Print Box that is deleted
because the expiration date was reached
Printer Function (when optional hard disk is installed)
Post-output print data
Print data in the private print mode and virtual mailbox function when
output is completed
Quick Copy, proof and hold, and Private Print data (Deleted when
power is turned off and then back on again.)
Data deleted by the user using the Quick Copy, proof and hold, Private
Print, Stored Job, virtual mailbox, Temporary code Job, or Permanent
code Job function
Data deleted when maximum number of documents is exceeded by
Quick Copy, or proof and hold print data
Data deleted when storage capacity is exceeded by Temporary code
Job print data
Scanner Function
Scanned original document data

1-12
Administrator Information
Data overwritten through the format function
Data overwritten through the format function are as follows.
Time required to format
Time required to format are as follows.
Copy Function
Job Accounting data
Original document data stored with the document management
function
Printer Function (when optional hard disk is installed)
Data stored in Stored Job mode
Program data
Optional font
Macro data
Scanner Function
Common book
Overwriting method Formatting time
Once Overwrite Approx. 2 hours
3-time Overwrite Approx. 7 hours

1-13
Administrator Information
Security Kit Installation Procedures
Step 1: Preparation
Security Kit installation
The Security Kit is installed by service representative.
Precautions for Security Kit installation
• The repeat copy function becomes prohibited.
• The Delete Invalid Data menu is replaced by the Format Hard Disk menu.
Precautions for installing the Security Kit on a pre-used copier
After installing the Security Kit, you must format all hard disks.
Step 2: Changing the Management code
The management code must be entered to use the Security Kit. Changing the
management code prevents everyone except the administrator from using the
Security Kit. The management code is eight digits long when using security
mode.
Important! Avoid using a management code that is easily guessed, such as 11111111 or
12345678.
Note You can change the management code within the range of 00000000 to
99999999.
Be sure to use eight digits.
1Press the Default Setting/Counter key.
2Press the Machine Default key.
3Use the numeric keys to enter the current management code. The factory
default numbers are 80008000 for 80 cpm model and 60006000 for 60 cpm
model.
4Select Management code change from the left side setup field, and press
the Change # key.

1-14
Administrator Information
5Enter the new management code using the numeric keys.
6Press the Close key.
Step 3: Hard Disk Overwrite Setting
Selects the hard disk overwrite. See page 1-10 Hard Disk Overwrite for
further details.
Note Note that it does not apply to overwrite and formatting individually.
1Press the Default Setting/Counter key.
2Press the Machine Default key.
3Use the numeric keys to enter the current Management code. The factory
default numbers are 80008000 for 80 cpm model and 60006000 for 60 cpm
model.
4Select Hard Disk Overwrite from the left side setting field, and press the
Change # key.
5Press 3-time Overwrite or Once Overwrite.
6Press the Close key.
Management code change Back Close
Machine DefaultSystem Menu
Change the management code.
-
Use the numeric keys to set 8 digit numbers.
27451172
Clear
Hard Disk Overwrite Back Close
Machine Default
Select the hard disk overwrite.
Once
System Menu
3-time
Overwrite
Overwrite
-

1-15
Administrator Information
Hard Disk Format
Format the hard disk when disposing of the copier or the hard disk to overwrite
the hard disk data. See page 1-9 Format Function for further details.
Important! To avoid damaging the hard disk, do not turn the power off while formatting the
hard disk. If the formatting is not completed, there is a possibility of data being
recovered from the hard disk and information being leaked.
Note • The Security Kit re-starts formatting the Hard Disk when power is turned of
and then on.
• If the optional hard disk is installed, the hard disk is also formatted.
1Press the Default Setting/Counter key.
2Press the BOX Management key.
3Use the numeric keys to enter the current Management code. The factory
default numbers are 80008000 for 80 cpm model and 60006000 for 60 cpm
model.
4Press the On key under Format Hard Disk (on the right side of the touch
panel).
5When you prompted to confirm formatting, press the Yes key. Formatting
begins.
6After formatting is completed, turn off the Main Switch and unplug the Power
Cord.
Close
HDD management mode
HDD management mode
System Menu
Check HardDisk capacity
Check the free space and capacity
of the Hard Disk.
On
Format Hard Disk
Overwrite data on the Hard Disk.
Data cannot be restored.
On

1-16
Administrator Information
Error Messages
Contact your service representative or authorized service center if any of the
following messages are displayed.
Message Details
Security key is not recognized.
Not available.
Security key is not connected
properly or is damaged.

2-1
Informations générales d’utilisation
Informations générales d’utilisation
Introduction
Ce manuel d’utilisation contient des informations et des mises en garde
relatives à l’utilisation correcte du Data Security Kit (B) (kit de sécurité des
données (B)) (ci-après, le kit de sécurité). Lisez attentivement ce manuel avant
d’utiliser le kit de sécurité.
A propos du kit de sécurité
Le copieur enregistre temporairement le document original sous forme de
données électroniques sur son disque dur. Ces données permettent
l’impression. Même après l’impression, les données restent sur le disque dur
jusqu’à ce qu’elles soient écrasées par d’autres données. Par conséquent, il
se peut que des informations confidentielles soient divulguées si des outils
spéciaux sont utilisés pour récupérer les données restantes.
Le kit de sécurité écrase les anciennes données (données non requises) et la
zone de stockage des données dans laquelle ces dernières ont été effacées
pour éviter leur recuperation. L'écrasement des données s'exécute
automatiquement, sans l'intervention de l'utilisateur.
Données non sécurisées
Le kit de sécurité protège les données non requises après impression et celles
supprimées. Cela signifie que la responsabilité de préservation des données
avant impression ou des données enregistrées avant effacement incombe à
l'utilisateur.
2
F
ranca
i
s

2-2
Informations générales d’utilisation
Les données dérivées des fonctions suivantes doivent être gérées par
l’utilisateur.
• Gestion document (Fonction de copie)
• Exemplaire rapide (Fonction d’imprimante)
• Vérification avant impression (Fonction d’imprimante)
• Exemplaire & personnel (Fonction d’imprimante)
• Tâche en mémoire (Fonction d’imprimante)
• Casier virtuel (VMB) (Fonction d’imprimante)
• Code temporaire JOB (Fonction d’imprimante)
• Code permanent JOB (Fonction d’imprimante)
