KYORITSU KEW 6016 User manual

INSTRUCTION MANUAL
MULTI-FUNCTION TESTER
KEW 6016

CONTENTS
1. Safe Testing ……….…………………………………………………………….….…….
1
2. Instruments Layout …………………………………………………………..……...
3
3. Accessories …………………………………………………………………………..
5
4. Features ………………………………………………………………………………
6
5. Specification ………………………………………………………………………….
8
5.1 Measurement Specification ………………………………………………….
8
5.2 Operating error ………………………………………………………….…….
11
5.3 General Specification ….…………………………………………………….. 13
5.4 Applied standards …………………………………………………………….. 14
5.5 List of Display Message .……………………………………………………..
15
6. Configuration …………………………………………………………………………
16
7. Continuity(resistance) tests ………………………………………………………...
17
7.1 Test procedure ………………………………………………………………... 17
7.2 2Ω Buzzer ..…………………………………………………………………….
19
8. Insulation tests ………………………………………………………………………. 20
8.1.1 The nature of insulation resistance ………………………………………..
20
8.1.2 Capacitive current ………………………………………………………….. 20
8.1.3 Conduction current …………………………………………………………. 21
8.1.4 Surface leakage current …………………………………………………....
21
8.1.5 Total leakage current .……………………………………………………....
21
8.2 Damage to voltage sensitive equipment …………………………………....
22
8.3 Preparation for measurement ………………………………………………..
23
8.4 Insulation resistance measurement .……………………………………...…
23
9. LOOP/PSC/PFC test ……………………………………………. ……..………...…
26
9.1 Principles of measurement of fault loop impedance and PFC……...……
26
9.2 Principles of measurement of line impedance and PSC…………...……
31
9.3 Operating instructions for LOOP and PSC/PFC ……………………...……
32
9.3.1 Initial Checks ……………………………………………………………...... 32
9.3.2 Measurement of LOOP and PSC/PFC ……………………………………
34
10. RCD tests …………………………………………………………………………..... 37
10.1 Principles of RCD Measurement ………………………………………......
37
10.2 Principles of Uc Measurement………………………………………………
39
10.3 Operating Instructions for RCD .………………………………………...….
39
10.3.1 Initial Checks …………………………………………………………...…. 39
10.3.2 RCD Measurement .…………………………………………………..….. 41
11. Earth tests…………………………………………………………………...…... ...
43
11.1 Principles of Earth Measurement …………………………………………
43
11.2 Earth resistance Measurement.………………………………………...…. 43
12. Phase Rotation tests.…………………………………...…. …………………...….
45
13. Volts……………………………………………………. ……………………………
46
14. Touch Pad.……. ………………………………………. ……………………………
46

15.
Back Light…………………………………………………………………………………
46
16.
Memory Function…………………………………………………………………………
47
16.1 How to save the data……………………………………………………
47
16.2 Recall the saved data……………………………………………………
49
16.3 Delete the s aved data……………………………………………………
50
16.4 Transfer the stored data to PC…………………………………………
52
17.
General .………………………………………………………………………...…….
53
18.
Battery replacement …………………………………………………………………
54
19.
Fuse replacement ……………………………………………………………...……
54
20.
Servicing………………………………………………………………………...……
55
21.
Case and strap assembly ....………………………………………………………..
56
The KEW6016 incorporates Anti Trip Technology (ATT) which electronically bypasses
RCDs when performing loop impedance tests. This saves time and money by not having
to take the RCD out of the circuit during testing and is a safer procedure to follow.
With the ATT function enabled , a test of 15mA or less is applied between line & earth. It
enables loop impedance measurements without tripping RCDs rated at 30mA and above.
Please read this instruction manual carefully before using this equipment.

1
1. SAFE TESTING
Electricity is dangerous and can cause injury and death. Always treat it with the
greatest of respect and care. If you are not quite sure how to proceed, stop and take
advice from a qualified person.
1 This instrument must only be used by a competent and trained person and operated in
strict accordance with the instructions. KYORITSU will not accept liability for any damage
or injury caused by misuse or non-compliance with the instructions or with the safety
procedures.
2 It is essential to read and to understand the safety rules contained in these instructions.
They must always be observed when using the instrument.
3 This instrument is designed to work in distribution systems where the line to earth has a
maximum voltage of 300V 50/60Hz and for some ranges where line to line has a
maximum voltage of 500V 50/60Hz.
Be sure to use it within this rated voltage.
For use in the continuity testing and insulation testing modes this instrument must be
used ONLY on circuits which are de-energized.
4 When conducting tests do not touch any exposed metalwork associated with the
installation. Such metalwork may become live for the duration of the test.
5 Never open the instrument case (except for fuse and battery replacement and in this
case disconnect all leads first) because dangerous voltages are present. Only fully
trained and competent electrical engineers should open the case. If a fault develops,
return the instrument to your distributor for inspection and repair.
6 If the overheat symbol appears in the display disconnect the instrument from the mains
supply and allow to cool down.
7 If abnormal conditions of any sort are noted (such as a faulty display, unexpected
readings, broken case, cracked test leads, etc) do not use the tester and return it to your
distributor for repair.
8 For safety reasons only use accessories (test leads, probes, fuses, cases, etc) designed
to be used with this instrument and recommended by KYORITSU. The use of other
accessories is prohibited as they are unlikely to have the correct safety features.
9 When testing, always be sure to keep your fingers behind the finger guards on the test
leads.
10 During testing it is possible that there may be a momentary degradation of the reading
due to the presence of excessive transients or discharges on the electrical system under
test. Should this be observed, the test must be repeated to obtain a correct reading. If in
doubt, contact your distributor.

2
11 Do not operate the function selector while the instrument is connected to a circuit. If, for
example, the instrument has just completed a continuity test and an insulation test is to
follow, disconnect the test leads from the circuit before moving the selector switch.
12 Do not rotate rotary switch when test button is depressed. If the function switch is
inadvertently moved to a new function when the test button is depressed or in lock-down
position the test in progress will be halted.
13 Always check the test lead resistance before carrying out tests. This ensures the leads
are ok before taking measurements. The resistance of leads and/or crocodile clips may
be significant when measuring low resistances. If crocodile clips can be avoided for low
resistance measurements, this will reduce the error due to lead accessories
14 When carrying out Insulation Resistance tests, always release the test button and wait for
charged capacitances to totally discharge before removing the test leads from the test
circuit.

3

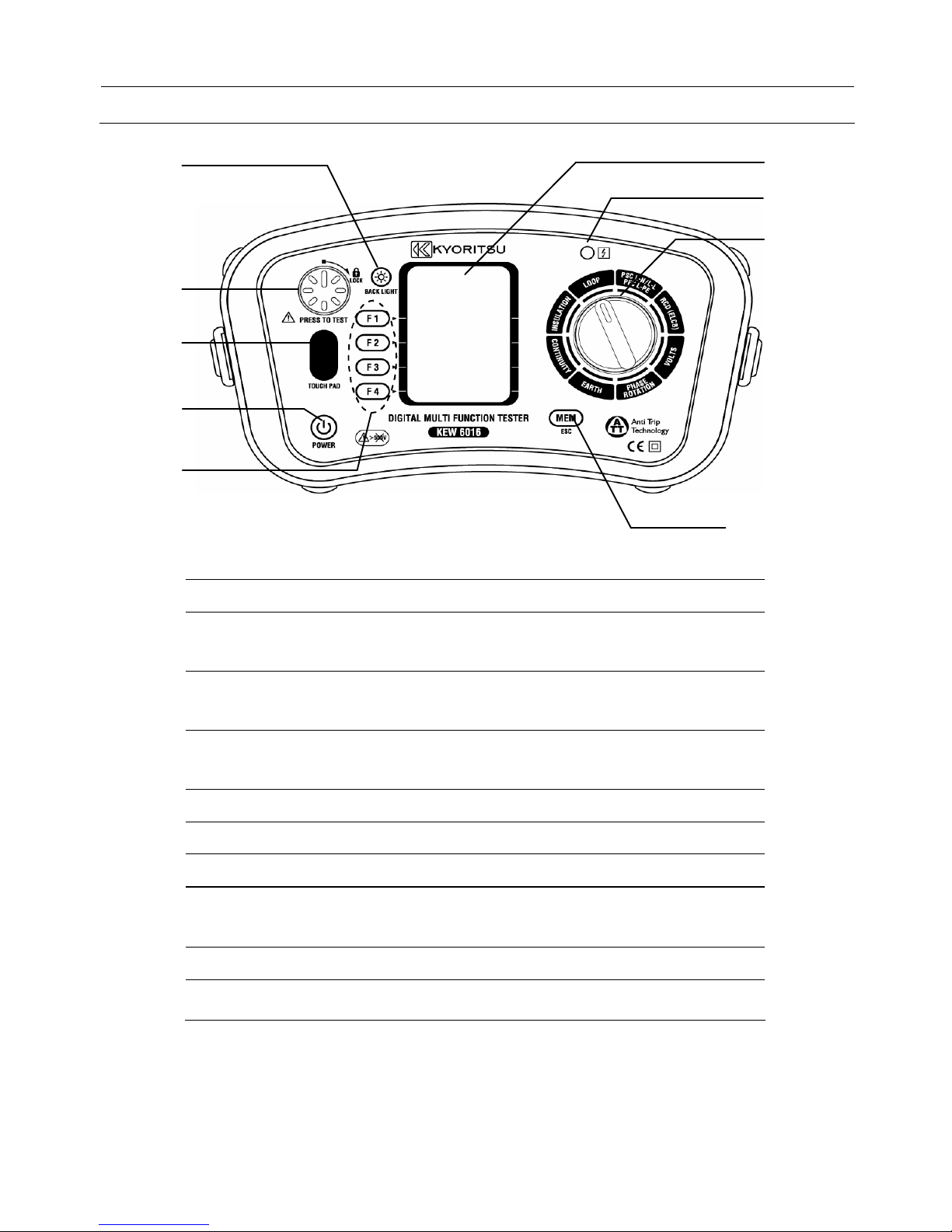

2. INSTRUMENT LAYOUT
Name Operation
(1)
Back Light Button Switches on/off the Backlight of the
Display(LCD)
(2)
Test Button Starts measurements. (press and rotate
for lock down feature)
(3)
Touch Pad Checks the electrical potential at the PE
terminal
(4)
Power Switch Power Switch
(5)
Function Switch Function setting (F1 ~ F4)
(6)
Display (LCD) Dot Matrix LCD 160(W)X240(H)
(7)
Insulation
resistance LED
Alerts that the test voltage is being output
(8)
Rotary Switch Selects measurement functions.
(9)
MEM (ESC) Button Activates Memory Function, or ESC Key
Fig.1
(6)
(1)
(3)
(4)
(5)
(7)
(8)
(2)
(9)

4

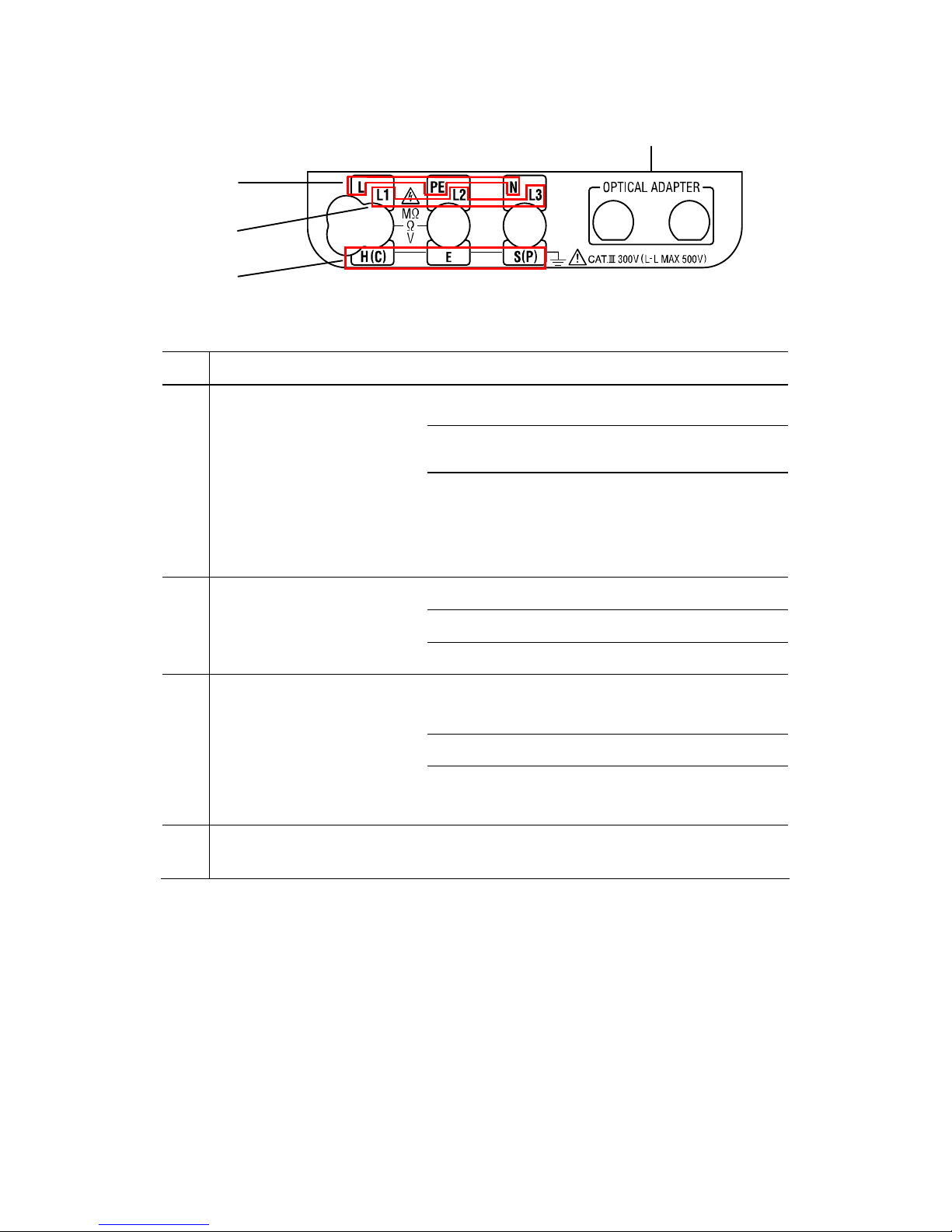

Input Terminal
Function Terminal
L : Line
PE : Protective Earth
(1)
Terminal Names for :
INSULATION,
CONTINUITY
LOOP,
PFC/PSC,
RCD,
VOLTS
N : Neutral (for LOOP,PSC/PFC, RCD)
L1 : Line1
L2 : Line2
(2) Terminal Name for
PHASE ROTATION
L3 : Line3
H(C) : Terminal for auxiliary earth
spike (current)
E : Terminal for the earth under test
(3) Terminal Name for
EARTH
S(P) : Terminal for auxiliary earth
spike (potential)
(4) Optical Adapter Communication port for Model8212USB
Fig.2
(1)
(2)
(3)
(4)

5
3. Accessories
1.Main Test Lead (Model7218)
2.Remote Test Lead (Model 7196)
3.Distribution Board fused test lead (Model7188)
(Fuse: 10A/600V fast acting ceramic)
4. Earth Tests Lead(Model7228) and Auxiliary Earth Spikes
5.Test Lead Carry pouchx1
6.Carrying Bagx1
7.Instruction Manualx1
8.Shoulder Strapx1
9.Bucklex2
10.Batteryx8
11.Model8212USB with PC Software “KEW Report”.
Blue(Neutral) Fig.3
Blue(Neutral or L3)
Green(Protective Earth or L2)
Red(Line or L1)
Fig. 4
Red(Line)
Green(Protective Earth)
Fig. 5
Fig. 6
Yellow S(P)10m
Green E 5m
Red H(C) 20m
Auxiliary Earth Spikes x2
Fig. 7
Fig. 8

6
4. FEATURES
The KEW6016 Multi-Function tester performs eight functions in one instrument.
1 Continuity tester
2 Insulation resistance tester
3 Loop impedance tester
4 Prospective short circuit current tester
5 RCD tester
6 Voltage tester
7 Phase rotation tester
8 Earth tester
Continuity function has the following features:
Live circuit warning “Live Circuit” warning on the display.
Fuse Protection Continuity Function has a fuse protection function to prevent a
fuse blow at live working. With this function, a fuse rarely blow
while measuring continuity on live conductors.
Continuity Null Allows automatic subtraction of test lead resistance from
continuity measurements.
Continuity 2Ω Buzzer Buzzer sounds at 2Ω or less at Continuity function.
(Switchable on or off)
Insulation function has the following features:
Live circuit warning “Live Circuit” warning on the display.
Auto discharge Electric charges stored in capacitive circuits are discharged
automatically after testing by releasing the test button.
Insulation Resistance
LED
LED lights up while making measurements at Insulation
function and alerts that test voltage is being output.

7
Loop impedance, PSC/PFC and RCD testing functions have the following features:
Wiring check Three Wiring symbols indicate if the wiring of the circuit under
test is correct.
Over temperature
protection
Detects overheating of the internal resistor (used for LOOP and
PSC/PFC tests) and of the current control MOS FET (used for
RCD tests) displaying a warning symbol and automatically
halting further measurements.
Phase angle
selector
The test can be selected from either the positive (0°) or from the
negative (180°) half cycle of voltage. This selector is used in the
RCD mode to obtain the maximum trip time of an RCD for the
test selected.
UL value selector Select UL (limit of contact voltage) 25V or 50V. Where Uc
(contact voltage) exceeds UL value at RCD testing, “Uc > UL”
will be displayed without starting the measurement.
ALL testing functions have the following
Touch Pad Gives an alert, when touching the Touch Pad, while the PE terminal
is connected to Line by mistake.
Memory Function Save the measured data in the internal memory.
The data can be edited on a PC by using Communication Adapter
Model8212USB and PC Software “KEW Report”.
Auto power off Automatically switches the instrument off after a period of
approximately 10 minutes. The Auto power off mode can only be
cancelled by switching the instrument on again.

8
5. Specification
5.1 Measurement Specification
Continuity
Open Circuit
Voltage (DC)
Short Circuit
Current Range Accuracy
0~0.19Ω ±0.1Ω
5V±20%(*1)
Greater than
200mA
20/200/2000Ω
Auto-Ranging
0.2~2000Ω ±(2%rdg+8dgt)
2 Ω Buzzer : Buzzer sounds when measured resistance is 2Ω or less.
2 Ω Buzzer Accuracy : 2Ω ± 0.4Ω
(*1) Voltages are output when measurement resistance is under 2100 ohm.
Insulation Resistance
Open Circuit
Voltage (DC) Rated Current Range Accuracy
250V+25% -0% 1mA or greater
@ 250kΩ
20/200MΩ
Auto-Ranging
0 ~19.99M Ω:
±(2%rdg+6dgt)
20 ~200M Ω:
±(5%rdg+6dgt)
500V+25% -0% 1mA or greater
@ 500kΩ
20/200/2000MΩ
Auto-Ranging
1000V+20% -0% 1mA or greater
@ 1MΩ
20/200/2000MΩ
Auto-Ranging
0 ~199.9M Ω:
±(2%rdg+6dgt)
200 ~ 2000 M Ω:
±(5%rdg+6dgt)
Loop Impedance
Function
Rated
Voltage
Nominal Test Current
at 0Ω External Loop:
Magnitude/Duration(*2)
Range Accuracy
L-PE
100~260V
50/60Hz
20Ω: 6A/20ms
200Ω: 2A/20ms
2000Ω: 15mA/500ms
20/200/2000Ω
Auto-Ranging
±(3%rdg+4dgt) *3
±(3%rdg+8dgt) *4
L-PE
(ATT)
100~260V
50/60Hz
L-N: 6A/60ms
N-PE: 10mA/approx. 5s
20/200/2000Ω
Auto-Ranging
(L-N < 20Ω)
±(3%rdg+6dgt) *3
±(3%rdg+8dgt) *4
L-N / L-L
50/60Hz
L-N:100~300V
L-L:300~500V
20Ω: 6A/20ms 20Ω ±(3%rdg+4dgt) *3
±(3%rdg+8dgt) *4
*2: at 230V
*3: 230V+10%-15%
*4: voltages except for *3

9
PSC (L-N/L-L) / PFC (L-PE)
Function
Rated
Voltage
Nominal Test Current
at 0Ω External Loop:
Magnitude/Duration(*5)
Range Accuracy
PSC
100~500V
50/60Hz
6A/20ms
PFC
100~260V
50/60Hz
6A/20ms
2A/20ms
15mA/500ms
PFC
(ATT)
100~260V
50/60Hz
L-N: 6A/60ms
N-PE: 10mA/approx. 5s
2000A/20kA
Auto-Ranging
PSC/PFC
accuracy is
derived from
measured loop
impedance
specification and
measured voltage
specification
*5: at 230V
RCD
Accuracy
Trip Current
Function Rated Voltage
AC Type A Type
Trip Time
X1/2 -8%~-2% -10%~0%
X1 +2%~+8% 0%~+10%
X5 +2%~+8% 0%~+10%
Ramp( )
230V+10%-15%
50/60Hz
±4% ± 10%
±(1%rdg+3dgt)
Auto
Depending on the accuracy at each function.
Measurement sequence:
X1/2 0°→X1/2 180°→X1 0°→X1 180°→X5 0°→X5 180°
Measurements with x5 are not carried out for RCDs with
nominal current of 100mA or more.
RCD(Uc)
Function Rated Voltage Range Test Current Accuracy
UC 230V+10%-15%
50/60Hz 100.0V
1/2In
(max150mA)
+5%+15%rdg
±8dgt

10
RCD Trip Current Duration
RCD Trip Current Duration
Function Type 10 30 100 300 500 1000
AC 2000 2000 2000 2000 2000 2000
G A 2000 2000 2000 2000 2000 n.a
AC 2000 2000 2000 2000 2000 n.a
X1/2
S A 2000 2000 2000 2000 2000 n.a
AC 550 550 550 550 550 550
G A 550 550 550 550 550 n.a
AC 1000 1000 1000 1000 1000 n.a
X1
S A 1000 1000 1000 1000 1000 n.a
AC 410 410 410 n.a n.a n.a
G A 410 410 410 n.a n.a n.a
AC 410 410 410 n.a n.a n.a
X5
S A 410 410 410 n.a n.a n.a
AC n.a
G A
Goes up by 10% from 20% to 110%
300ms × 10 times n.a
AC n.a
Trip
Current
Duration
(ms)
Ramp
( )
S A
Goes up by 10% from 20% to 110%
500ms × 10 times n.a
Earth
Measuring
Frequency Range Accuracy
20 Ω range : ±(3%rdg+0.1dgt)
200/2000 Ω range : ±(3%rdg+3dgt)
825Hz 20/200/2000Ω
Auto-Ranging
(Auxiliary earth resistance 100±5%)
PHASE ROTATION
Rated Voltage
Remarks
50-500V
50/60Hz
Correct phase sequence: are displayed “1.2.3” and mark
Reversed phase sequence: are displayed “3.2.1” and mark
Volts
Function Rated voltage Measuring
Range Accuracy
Volts 25~500V
45~65Hz 25~500V ±(2%rdg+4dgt)
Frequency 25~500V
45~65Hz 45~65Hz ±(0.5%rdg+2dgt)

11
Possible number of tests with fresh batteries.
Continuity :Approx. 2000 times min. at load 1 Ω
Insulation Resistance :Approx. 1000 times min. at load 1M Ω (1000V)
LOOP/PFC/PSC :Approx. 1000 times min. ( ATT )
RCD :Approx. 2000 times min. ( G-AC X1 30mA)
EARTH :Approx. 1000 times min. at load 10 Ω
VOLT/PHASE ROTATION :Approx. 50H
Reference Conditions
Ambient temperature 23±5oC
Relative humidity 45% to 75%
Nominal system voltage and
frequency 230V, 50Hz
Altitude Less than 2000m
5.2 Operating error
Continuity (EN61557-4)
Operating range compliant with
EN61557-4 operating error
Maximum percentage
operating error
0.20~1999MΩ ±30%
The influencing variations used for calculating the operating error are denoted as follows;
Temperature : 0 oC and 35 oC
Supply voltage : 8V to 13.8V
Insulation Resistance(EN61557-2)
Volt Operating range compliant with
EN61557-2 operating error
Maximum percentage
operating error
250V 0.25~199.9MΩ
500V 0.50~1999MΩ
1000V 1.00~1999MΩ
±30%
The influencing variations used for calculating the operating error are denoted as follows;
Temperature : 0 oC and 35 oC
Supply voltage : 8V to 13.8V

12
Loop Impedance(EN61557-3)
Volt Operating range compliant with
EN61557-3 operating error
Maximum percentage
operating error
L-PE 0.50~1999Ω
L-N 0.50~19.99Ω ±30%
The influencing variations used for calculating the operating error are denoted as follows;
Temperature : 0 oC and 35 oC
Phase angle : At a phase angle 0°to 18°
System frequency : 49.5Hz to 50.5Hz
System voltage : 230V+10%-15%
Supply voltage : 8V to 13.8V
Harmonics : 5% of 3rd harmonic at 0°phase angle
5% of 5th harmonic at 180°phase angle
5% of 7th harmonic at 0°phase angle
D.C quantity : 0.5% of the nominal voltage
RCD(EN61557-6)
Function Operating error of trip current
X1/2 -10%~0%
X1, X5 0%~+10%
Ramp -10%~+10%
The influencing variations used for calculating the operating error are denoted as follows
Temperature : 0 oC and 35 oC
Earth electrode Resistance (shall not exceed below) :
Earth electrode resistance (Ω max.)
IΔn (mA) UL50V UL25V
10 2000 2000
30 600 600
100 200 200
300 130 65
500 80 40
1000 40 20
Table.1
System voltage: 230V+10%-15%
Supply voltage : 8V to 13.8V

13
Earth Resistance (EN61557-5)
Operating range compliant with EN61557-5
operating error
Maximum percentage
operating error
5.00~1999Ω ±30%
The influencing variations used for calculating the operating error are denoted as follows;
Temperature : 0 oC and 35 oC
Series interference voltage : 3V
Resistance of the probes and auxiliary
earth electrode resistance : 100 x RA, 50kΩ or less
Supply voltage : 8V to 13.8V
5.3 General specification
Instrument dimensions 235 X 136 X 114mm
Instrument weight:-
Reference conditions
1350g (including batteries.)
Specifications are based on the following conditions except
where otherwise stated:-
1. Ambient temperature: 23±5°C:
2. Relative humidity 45% to 75%
3. Position: horizontal
4. AC power source 230V, 50Hz
5. DC power source: 12.0 V, ripple content 1% or less
6. Altitude up to 2000m, Indoor use
Battery type Eight LR6 or R6 batteries.
Operating temperature
and humidity.
0 to +40°C, relative humidity 80% or less, no condensation
Storage temperature
and humidity
-20 to +60 oC, relative humidity 75% or less, no condensation.
Display Dot Matrix LCD 160(W) X 240(H) pixels.
Overload protection The continuity test circuit is protected by a 0.5A/600V fast
acting (HRC) ceramic fuse mounted in the battery
compartment, where a spare fuse is also stored.
The insulation resistance test circuit is protected by a resistor
against 1000 V AC for 10 seconds.

14
5.4 Applied standards
Instrument operating
Standard
IEC/EN61557-1,2,3,4,5,6,7,10
Safety standard IEC/EN 61010-1(2001),
CATIII (300V) -Instrument
IEC/EN 61010-031(2001),
CATII (250V)-Test Lead Model7218
CATIII (600V)-Test Lead Model7188
CATIII (1000V)-Test Lead Model7196
CATIII (300V)-Test Lead Model7228
Protection degree IEC 60529 (1989 + A1) IP40
EMC EN 61326
EN55022/24
This manual and product may use the following symbols
adopted from International Safety Standards;
CAT.III Measurement category “CAT III” applies to;
Primary electrical circuits of the equipment connected directly
to the distribution panel, and feeders from the distribution
panel to outlets.
Equipment protected throughout by DOUBLE INSULATION
or REINFORCED INSULATION;
Caution (refer to accompanying documents)
Caution, risk of electric shock
Protection against wrong connection is up to 500V
Earth Ground

15
5.5 List of Display Message
Low battery warning
Temperature monitor for internal resistance, available at Loop,
PSC/PFC & RCD function. Further measurements are
suspended until the “ ” symbol disappears.
Measuring Measurements in progress
Live Circuit Live circuit warning (Continuity / Insulation Function)
PE Hi V Caution : Presence of 100V or more at PE terminal, appears
when touching the Touch Pad
L-N >20Ω Alert : Presence of 20Ω or more between Line - Neutral at ATT
measurement
Noise Caution : Presence of noise in the circuit under test during ATT
measurement. ATT function should be disabled to continue
measurements.
N - PE Hi V Caution: Presence of high voltage between NEUTRAL - EARTH
during ATT measurement. ATT function should be disabled to
continue measurements.
Uc > UL Caution : Uc at RCD measurement is exceeding the preset UL
value (25 or 50V).
no Error message : When on the RCD function, RCD tripped before
measuring RCD trip time. Selected IΔn value may not be correct.
When on the LOOP, PSC/PFC function, supply may have been
interrupted.
Wiring check for LOOP, PSC/PFC function
OK Appears when all results passed during the RCD Auto Test
function.
× NO Appears when any results failed during the RCD Auto Test
function.
RH Hi, Rs Hi Appears when a Probe resistance of H terminal (RH) or of S terminal (RS)
at Earth measurement is exceeded the measurable range.
No 3-phase system Appears to indicate wrong connection at Phase Rotation check.

16

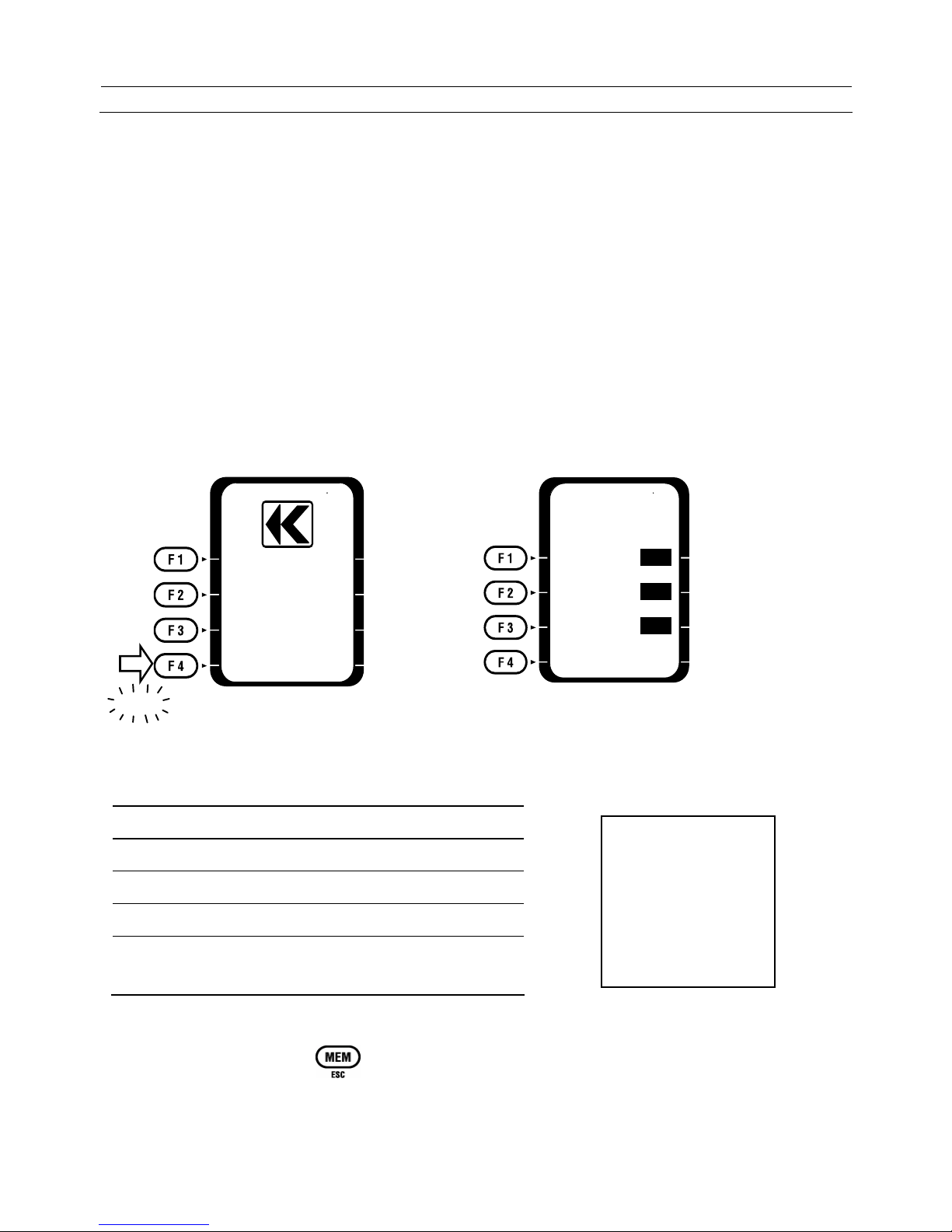

6. Configuration
Setting for following three parameters
● UL valueSelects a UL value for RCD function
● Touch PadEnables / disables Touch Pad function
● Back LightSelects Backlight ON / OFF. When ON is selected, the
Backlight automatically turns on at powering on the instrument.
● LanguageSelect and change the languages to be displayed.
Setting method
3. Press the F1 – F4 Button to change following setting.
Parameter Selection Initial value
F1 UL value 25V, 50V 50V
F2 Touch Pad ON, OFF ON
F3 Back Light ON, OFF OFF
F4 Language EN, FR,
PL,
IT, ES, RU
EN
4. Press the ESC Button ( ) when setting change is completed, and return to the normal
screen.
KEW
TESTEUR
MULTIFONCTION
6016
Konfigurowan
EN: English
FR: French
IT : Italian
ES: Spanish
RU: Russian
PL: Polish
Fig.9
1. Press the Config Button
(F4) when powering on
KEW6016. (Fig.9)
2. Then, Configuration Screen
(Fig.10) is displayed.
Fig.10
Push
Touch Pad :
UL :
OFF

 ś :
ON
50V
Language

17

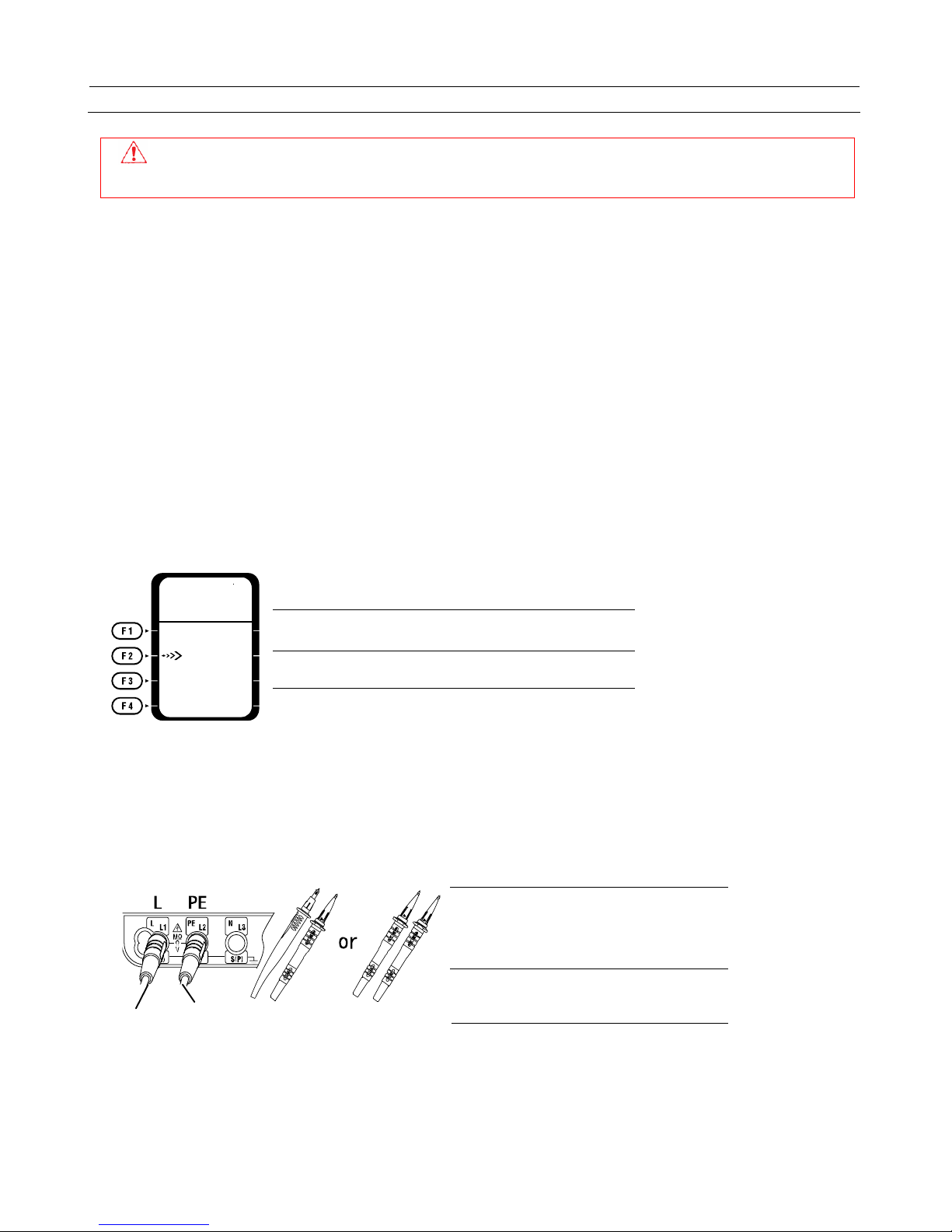

7. CONTINUITY (RESISTANCE) TESTS
WARNING
Ensure that circuits to be tested are not live.
Disconnect the instrument from the circuit under test before operating the function
switch.
To select the low resistance range select ‘CONTINUITY’.
7.1 Test Procedure
The object of continuity testing is to measure only the resistance of the parts of the wiring
system under test. This measurement should not include the resistance of any test leads
used. The resistance of the test leads needs to be subtracted from any continuity
measurement. The KEW6016 is provided with a continuity null feature which allows
automatic compensation for any test lead resistance.
You should only use the test leads supplied with the instrument.
Operation of Function Switch
F1 Switches on / off NULL function
F2 Switches on / off 2Ω buzzer
F3 N/A
NULL OFF
ON
Ω
F4 N/A
Proceed as follows:-
1 Select the continuity test by rotating the Rotary switch.
2 Insert the Test Leads to the L and PE terminal on KEW6016 respectively
as shown in Fig.12.
L terminal
Red cord of Model7188, or
Model7196 Remote Test Lead
PE terminal
Green cord of Model7188
3 Connect the ends of the test leads firmly together (see Fig.13) and press and lock down the
test button. The value of the lead resistance will be displayed.
Fig.12
Fig.11
Red Green
