1550 Series
In-Row Ripper
Operator’s Manual

F-298-0111 Edition i
Table of Contents
1 Introduction
Understanding Safety Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2 Standard Specifications
3 Assembly Instructions
Assembly Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Jackstand Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
SMV Bracket Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Tire and Wheel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Parabolic Shank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Straight Shank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Coulter Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Hydraulic Installation (D and E Models Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Bedding Attachment Assembly (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
4 Operation and Maintenance
Tractor Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
In-Row Ripper Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Attaching to Three-Point Hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Field Operation — Three-Point Hitch Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Wheel Bearing Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Coulter Spring Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Hydraulic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
5 Troubleshooting Guide

ii F-298-0111 Edition

1-1
Chapter 1
Introduction
The Landoll Model 1550 In-Row Ripper is a quality product designed to give years of trouble free performance. By
following each section of this manual, your system will perform as designed for you and your operation
CHAPTER 1 gives basic instructions on the use of this manual.
CHAPTER 2 gives product specifications. These specifications supply lengths and measures for your
equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques to
be used when servicing this product.
CHAPTER 3 contains assembly instructions for your Model 1550 In-Row Ripper. When these
procedures are correctly followed, your equipment should provide you years of
trouble-free operation and service.
CHAPTER 4 instructs how to operate your equipment before using it, and describes adjustments
needed. It also gives practical advice for the care and maintenance of your Landoll
equipment. Drawings in this section locate adjustment points on the equipment.
NOTE: IF THE EQUIPMENT IS IMPROPERLY ASSEMBLED OR MAINTAINED, THE
WARRANTY IS VOID. IF YOU HAVE ANY QUESTIONS CONTACT:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
or phone:
[phone] or
[phone]
or FAX:
[phone]
CHAPTER 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equipment.
PARTS LIST is a separate manual showing the various assemblies, subassemblies, and systems.
Refer to that manual when ordering Landoll replacement parts. Order parts from your
Landoll dealer.
WARRANTY The Warranty Registration form is included with the product documents. Fill it out and
mail it within 15 days of purchase.
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
LANDOLL MACHINE CAN VOID YOUR WARRANTY.
COMMENTS Address comments or questions regarding this publication to:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
ATTENTION: PUBLICATIONS -DEPT. 55

1-2 F-298-0111 Edition
INTRODUCTION
Understanding Safety
Statements
You will find various types of safety information on the
following pages and on the machine signs (decals)
attached to the vehicle. This section explains their
meaning.
The Safety Alert Symbol means ATTENTION! YOUR
SAFETY IS INVOLVED!

DANGER

WARNING

CAUTION
NOTE
Means that failure to follow these instructions could
cause damage to the equipment or cause it to operate
improperly.
NOTE
Make sure you read and understand the information
contained in this manual and on the machine signs
(decals) before you attempt to operate or maintain this
vehicle.
The safety statements contained in this manual relate to
the operation of the Model 1550 In-Row Ripper.
Danger means a life-threatening situation exists.
Death can occur if safety measures or
instructions on this label are not properly
followed.
Warning means serious injury or death can occur
if safety measures or instructions on this label
are not properly followed.
Caution means serious equipment or other
property damage can occur if instructions on this
label are not properly followed.

2-1
Chapter 2
Standard Specifications
1550 SERIES IN-ROW RIPPER SPECIFICATIONS
MODEL
NO.
NO. OF
SHANKS
SHANK
SPACING SHANK EXTENSIONS
TRANSPORT
WIDTH
ESTIMATED
WEIGHT
(LBS.)
1553A30 3 30” NONE 8’-3” 2,271
1553A36 3 36” NONE 8’-3” 2,271
1553A38 3 38” NONE 8’-3” 2,271
1553A40 3 40” NONE 8’-3” 2,271
1554A30 4 30” NONE 8’-3” 2,597
1554A36 4 36” 17” BOLT ON 11’-6” 2,917
1554A38 4 38” 17” BOLT ON 11’-6” 2,917
1554A40 4 40” 17” BOLT ON 11’-6” 2,917
1555A30 5 30” 17” BOLT ON 11’-6” 3,243
1554B40 440” NONE 11’-2” 2,726
1555B30 530” NONE 11’-2” 3,052
1555B36 536” 17” BOLT ON 14’-2” 3,372
1555B38 538” 17” BOLT ON 14’-2” 3,372
1555B40 540” 17” BOLT ON 14’-2” 3,372
1556B30 630” 17” BOLT ON 14’-2” 3,698
1556B36 636” 27” BOLT ON 15’-10” 3,372
1557B30 730” 27” BOLT ON 15’-10” 4,098
1556C30 6 30” NONE 14’-0” 3,598
1556C36 6 36” 17” BOLT ON 17’-2” 3,918
1556C38 6 38” 17” BOLT ON 17’-2” 3,918
1557C30 7 30” 17” BOLT ON 17’-2” 4,244
1558C30 7 30” 27” BOLT ON 18’-10” 4,644
1556D36 636” 33” WING 16’-1” 4,280
1556D38 638” 33” WING 15’-9” 4,280
1556D40 640” 46” WING 15’-5” 4,394
1557D30 730” 33” WING 16’-1” 4,606
1557D36 736” 46” WING 17’-5” 4,720
1557D38 738” 58” WING 17’-1” 4,798
1557D40 740” 58” WING 16’-10” 4,798
1558D30 830” 46” WING 17’-2” 5,046
1558E36 8 36” 46” WING 20’-3” 5,337

2-2 F-298-0111 Edition
STANDARD SPECIFICATIONS
1558E38 8 38” 58” WING 19’-10” 5,415
1558E40 8 40” 58” WING 19’-5” 5,415
1559E30 9 30” 46” WING 20’-3” 5,663
TIRE INFLATION
TIRE
SIZE
TIRE
MANUFACTURER
PLY/LOAD
RATING
INFLATION PRESSURE
(psi) (max.)
20.5 x 8.0-10 Load Range D/ 1,320 lb. 70 psi
RECOMMENDED TORQUE SPECIFICATION FOR LUG BOLTS AND NUTS
BOLT SIZE TORQUE (FT. LBS.)
9/16-18 (Heavy Duty Disc) 80 - 90 ft. lbs
5/8-18 (Heavy Duty Disc) 85 - 100 ft. lbs
1550 SERIES IN-ROW RIPPER SPECIFICATIONS
MODEL
NO.
NO. OF
SHANKS
SHANK
SPACING SHANK EXTENSIONS
TRANSPORT
WIDTH
ESTIMATED
WEIGHT
(LBS.)

STANDARD SPECIFICATIONS
2-3

2-4 F-298-0111 Edition
STANDARD SPECIFICATIONS
Table 2-1: General Torque Specifications
LANDOLL CORPORATION
GENERAL TORQUE SPECIFICATIONS (REV. 4/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR GENERAL PURPOSE APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON PROCESS
OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED NUTS AND CAPSCREWS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS RECEIVED CONDITION). THEY
DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
WHEN FASTENERS ARE DRY (SOLVENT CLEANED), ADD 33% TO AS RECEIVED CONDITION TORQUE.
BOLT HEAD IDENTIFICATION MARKS INDICATE GRADE AND MAY VARY FROM MANUFACTURER TO MANUFACTURER.
THICK NUTS MUST BE USED ON GRADE 8 CAPSCREWS.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
TORQUE IS SPECIFIED IN FOOT POUNDS
UNC
Size
SAE Grade
2
SAE Grade
5
SAE Grade
8
UNF
Size
SAE Grade
2
SAE Grade
5
SAE Grade
8
1/4-20 4 [5] 6 [7] 9 [11] 1/4-28 5 [6] 7 [9] 10 [12]
5/16-18 8 [10] 13 [16] 18 [22] 5/16-24 9 [11] 14 [17] 20 [25]
3/8-16 15 [19] 23 [29] 35 [43] 3/8-24 17 [21] 25 [31] 35 [44]
7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]
1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]
9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]
5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]
3/4-10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]
7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]
1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]
1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]
1-1/4-7 380 [475] 840 [1050] 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]
1-3/8-6 490 [612] 110 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260 [1575] 2010 [2512]
1-1/2-6 650 [812] 1460 [1825] 2360 [2950] 1-1/2-12 730 [912] 1640 [2050] 2660 [3325]
1-3/4-5 736 [920] 1651 [2063] 2678 [3347] 1-3/4-12 920 [1150] 2063 [2579] 3347 [4183]
METRIC
COARSE THREAD METRIC CLASS 10.9 FASTENERS AND CLASS 10.0 NUTS AND THROUGH HARDENED FLAT WASHERS, PHOSPHATE COATED, ROCKWELL
“C” 38-45.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
Nominal
Thread
Diameter
mm
Standard Torque Nominal
Thread
Diameter
mm
Standard Torque
Newton-
Meters
Foot-
Pounds
Newton-
Meters
Foot-
Pounds
6 10 [14] 7 [10] 20 385 [450] 290 [335]
7 16 [22] 12 [16] 24 670 [775] 500 [625]
8 23 [32] 17 [24] 27 980 [1105] 730 [825]
10 46 [60] 34 [47] 30 1330 [1470] 990 [1090]
12 80 [101] 60 [75] 33 1790 [1950] 1340 [1450]
14 125 [155] 90 [115] 36 2325 [2515] 1730 [1870]
16 200 [240] 150 [180] 39 3010 [3210] 2240 [2380]
18 275 [330] 205 [245]

STANDARD SPECIFICATIONS
2-5
Table 2-2: Hydraulic Fitting Torque Specifications
LANDOLL CORPORATION
HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS, & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON PROCESS
OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS
RECEIVED CONDITION).THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL. STAINLESS STEEL, ALUMINUM AND MONEL - THREADS ARE TO BE
LUBRICATED.
TORQUE IS SPECIFIED IN FOOT POUNDS
PARKER BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-13 15-17 13-15
-5 14-16 — 21-23
-6 20-22 34-36 25-29
-8 43-47 58-62 40-44
-10 55-65 100-110 57.5-62.5
-12 80-90 134-146 75-85
-16 115-125 202-218 109-121
-20 160-180 248-272 213-237
-24 185-215 303-327 238-262
-32 250-290 — 310-340
GATES BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 10-11 10-12 14-16
-5 13-15 — —
-6 17-19 18-20 24-26
-8 34-38 32-40 37-44
-10 50-56 46-56 50-60
-12 70-78 65-80 75-83
-14 — 65-80 —
-16 94-104 92-105 111-125
-20 124-138 125-140 133-152
-24 156-173 150-180 156-184
-32 219-243 — —
AEROQUIP BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-12 10-12 14-16
-5 15-16 — 18-20
-6 18-20 18-20 24-26
-8 38-42 32-35 50-60
-10 57-62 46-50 72-80
-12 79-87 65-70 125-135
-14 — — 160-180
-16 108-113 92-100 200-220
-20 127-133 125-140 210-280
-24 158-167 150-165 270-360
-32 245-258 — —

2-6 F-298-0111 Edition
STANDARD SPECIFICATIONS

3-1
Chapter 3
Assembly Instructions
It is very important that your new 1550 Series In-Row
Ripper be properly assembled, adjusted, and lubricated
before use. Illustrations are provided in this section to
show proper assembly procedures. Remove paint from
grease fittings and replace any that are damaged or
missing. Be sure to return bolts, clips, etc. to their original
locations.
To insure assemblies are aligned, insert all bolts and
leave the nuts loose until completion of final
assembly. Use lockwashers or flat washers where called
for. Spread all cotter pins.
After completion of final assembly, tighten all nuts evenly
to prevent misalignment, distortion, or binding. Tighten all
bolts and nuts to the recommended torques shown in
Table 2-1 and Table 2-2. Tighten all U-bolt legs evenly.
IMPORTANT
Check all bolt lengths, nut sizes, etc., from the parts
book before assembly. Different models of the 1550
Series In-Row Ripper use different size bolts.

DANGER

DANGER

CAUTION
Coulter blades are extremely sharp. use extreme
care when working on or near coulter blades. Do
not allow coulters to roll over or fall on any part of
body. Do not allow wrenches to slip when
working near coulter blades. Never push
wrenches towards coulter blades. Do not climb
over machine above coulter blades. Failure to
stay clear of coulter blade edges may result in
serious personal injury or death.
To prevent accidental lowering:
1. All hydraulically elevated equipment must be
locked out using the cylinder lockouts.
2. Lower equipment to the ground while
servicing or when it is idle.
Failure to take measures to prevent accidental
lowering may result in serious personal injury or
death.
Be sure to bleed the hydraulic system of all air in
lines after installation. Failure to bleed the system
of all air may cause the machine to operate
improperly.

3-2 F-298-0111 Edition
ASSEMBLY INSTRUCTIONS

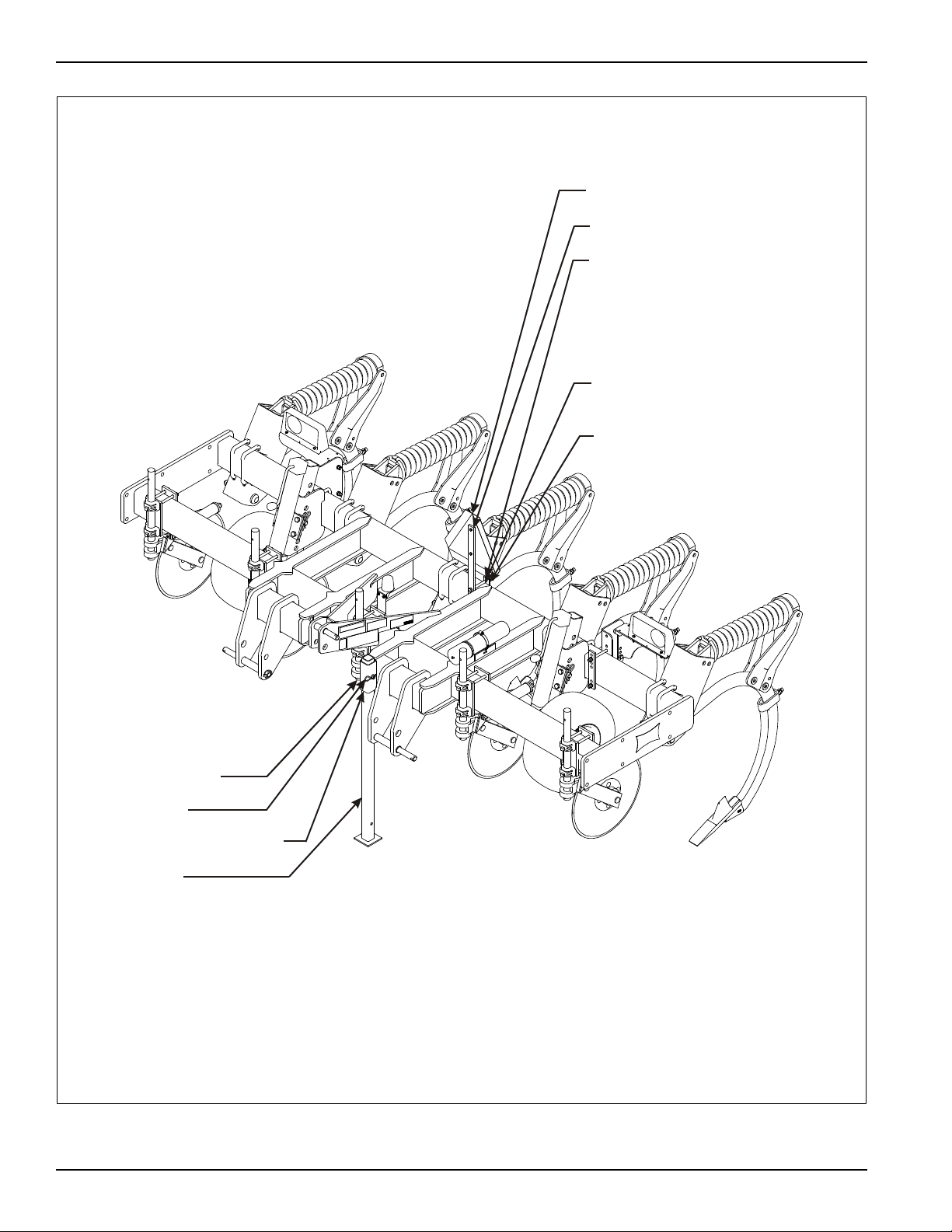

Figure 3-1: 1550 Series Parts Identification
m1550-parts-id
SMV EMBLEM
SMV MOUNTING BRACKET
WARNING LIGHT BAR
1/2-13 X 5-1/2 HEX
HEAD CAP SCREW
1/2-13 HEX LOCK NUT
RIGID GAUGE WHEEL
ADJUSTMENT PIN
3/16 HAIR PIN
OUTER JACK STAND TUBE
JACK STAND

ASSEMBLY INSTRUCTIONS
3-3
Assembly Preparation
1. Hook up the In-Row Ripper to a tractor using the
three-point hitch. Raise the unit about 36” and place
stands under the main frame to prevent accidental
lowering.

WARNING
Jackstand Installation
1. Remove jackstand(s) from frame.
2. Remove rigid gauge adjustment pin and 3/16 hair pin
from outer jackstand tube.
3. Insert jackstand through bottom of outer jackstand
tube and pin at desired level with rigid gauge
adjustment pin and 3/16 hair pin (See Figure 3-1.)
SMV Bracket Installation
1. Install the SMV mounting bracket and light bar close
to the center of machine on rear frame member using
1/2-13 X 5-1/2 hex head cap screws and hex lock
nuts (See Figure 3-1.)
2. Attach plastic SMV emblem to mounting bracket
using 1/4-20 X 1 hex head cap screw and hex lock
nuts.
Tire and Wheel Assembly
1. All hubs and spindles come already assembled from
the factory. Mount the tire and wheel assembly onto
the hubs.
Do not attempt to lift heavy parts (such as the
frame), manually. Use a hoist or a forklift to move
these parts into position.

3-4 F-298-0111 Edition
ASSEMBLY INSTRUCTIONS

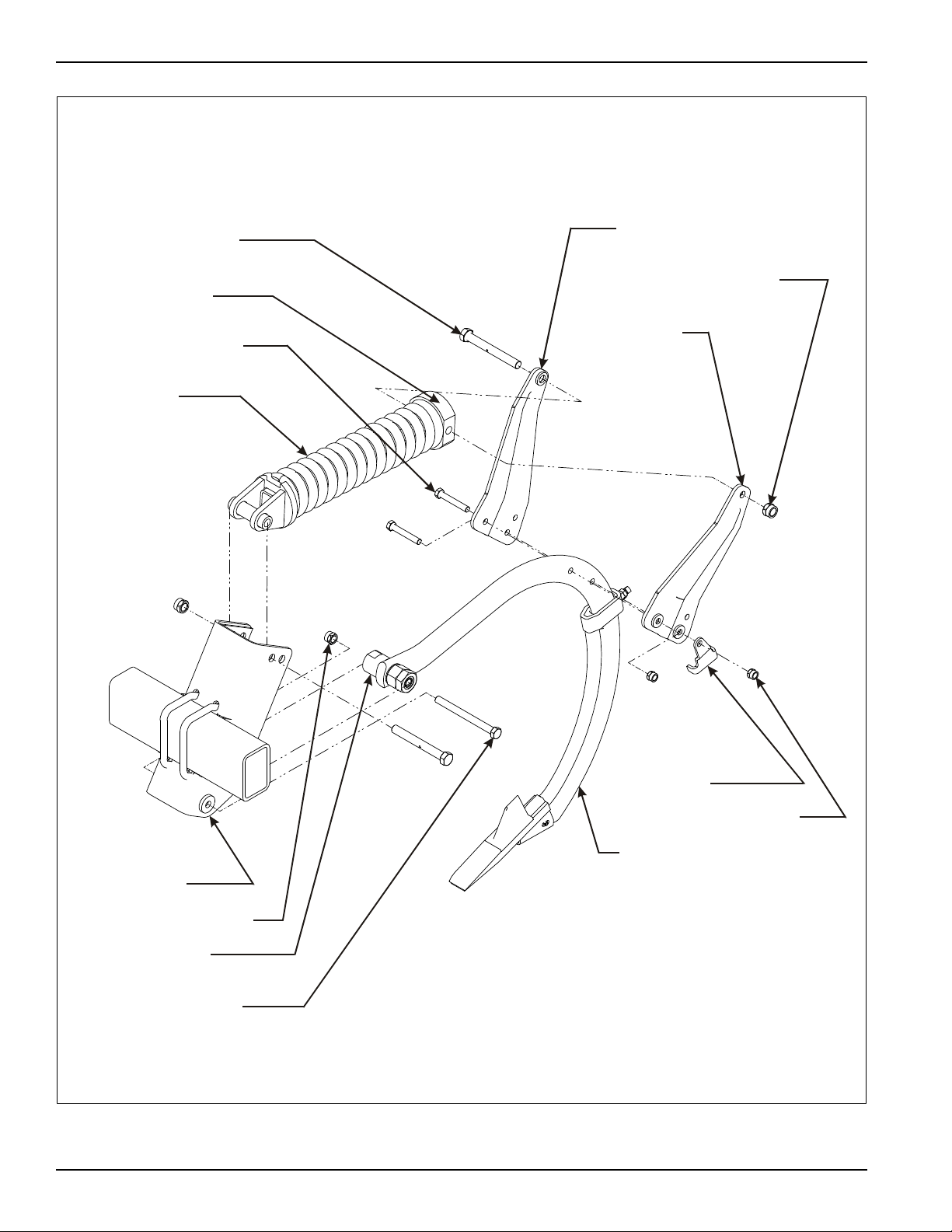

Figure 3-2: Parabolic Shank Assembly
1-8 X 8-1/2 HEX
HEAD CAP SCREW
DANGER COIL
SPRING DECAL
5/8-11 X 4 HEX
HEAD CAP SCREW
COIL SPRING
ASSEMBLY
SPRING CLAMP
WELDMENT
7/8-9 HEX LOCK NUT
HOLLOW BOLT
7/8-9 X 8-1/2 HEX
HEAD CAP SCREW
RH SPRING ANCHOR
PLATE
1-8 HEX LOCK NUT
LH SPRING ANCHOR
PLATE
WEAR GUARD STOP
BRACKET
5/8-11 HEX LOCK NUT
SHANK ASSEMBLY
m1550-shanks-2

ASSEMBLY INSTRUCTIONS
3-5
Parabolic Shank Assembly
1. The spring clamp weldments are already located on
the frame at the proper spacing.
2. Attach shank assembly to lower hole of spring clamp
using 7/8-9 x 8-1/2 hex head cap screw and hex lock
nut. Tighten the nut on the hex head cap screw to
200 ft.-lbs. Grease hollow bolt (See Figure 3-2.)
3. Assemble spring anchor plates to shank assembly
using 5/8-11 x 4 hex head cap screws and hex lock
nuts. The bottom edge of stop bracket should be just
above the wear guard clamp. Leave screws loose
until springs have been installed.
IMPORTANT
Plate with tapped hole for spring pivot bolt should be
on left side of shank. If reversed, shank will be at
improper angle!
IMPORTANT
1-8 x 8-1/2 hex head cap screw located in spring
anchor plates should be installed in opposite
direction to 1-8 x 8-1/2 hex head cap screw in spring
clamp weldment.
Install coil spring assembly between the spring clamp
weldment and the rear spring anchor plates. Secure with
1-8 x 8-1/2 hex head cap screw and hex lock nuts.
IMPORTANT
Do not overtighten bolts as the springs must be free
to pivot.
4. Tighten 5/8-11 x 4 hex head cap screws in spring
anchor plates to correct torque.
5. Adjustment holes are provided at the top of the
spring clamp weldment to compensate for varying
ground conditions.

3-6 F-298-0111 Edition
ASSEMBLY INSTRUCTIONS
Figure 3-3: Straight Shank Assembly
COIL SPRING
ASSEMBLY
SPRING CLAMP
WELDMENT
3/4-10 HEX
LOCK NUT
3/4-10 X 8-1/2 HEX
HEAD CAP SCREW
1-8 HEX LOCK NUT
5/16-18 HEX
LOCK NUT
HEAVY DUTY
CLAMP WELDMENT
WEAR GUARD
SPIKE
1-8 HEX LOCK NUT
SHANK BRACKET
WELDMENT
1-8 X 8-1/2 HEX
HEAD CAP SCREW
1-8 X 4 HEX
HEAD CAP SCREW
5/16-18 X 3-1/2 HEX
HEAD CAP SCREW
HEAVY DUTY SHANK
ROLL PIN
1-8 X 6-1/2 HEX
HEAD CAP SCREW
PLASTIC BEARING
NARROW CLAMP
WELDMENT
NARROW SHANK
ROLL PIN
SPIKE
m1550-shanks-3

ASSEMBLY INSTRUCTIONS
3-7
Straight Shank Assembly
1. The spring clamp weldments are already located on
the frame at the proper spacing.
2. Attach shank bracket weldment to the spring clamp
weldment using plastic bearings, 3/4-10 x 8-1/2 hex
head cap screw, and 3/4-10 hex lock nut.
3. Install coil spring assembly between top hole of
bracket weldment and top hole of spring clamp
weldment. Secure with 1-8 x 8-1/2 hex head cap
screw and hex lock nut.
IMPORTANT
Do not overtighten bolts as the springs must be free
to pivot.
4. Install clamp weldment to bottom holes of bracket
weldment using 1-8 x 6-1/2 hex head cap screws and
hex lock nuts.
5. Assemble shank to clamp weldment using 1-8 x 4
hex head cap screws and hex lock nuts.
6. If installing wear guards (used on straight heavy
duty), install wearguard into clamp weldment and
secure in place with 5/16-18 x 3-1/2 hex head cap
screw and hex lock nut (See Figure 3-3.) Install the
spikes on the shanks using the roll pin provided.

3-8 F-298-0111 Edition
ASSEMBLY INSTRUCTIONS

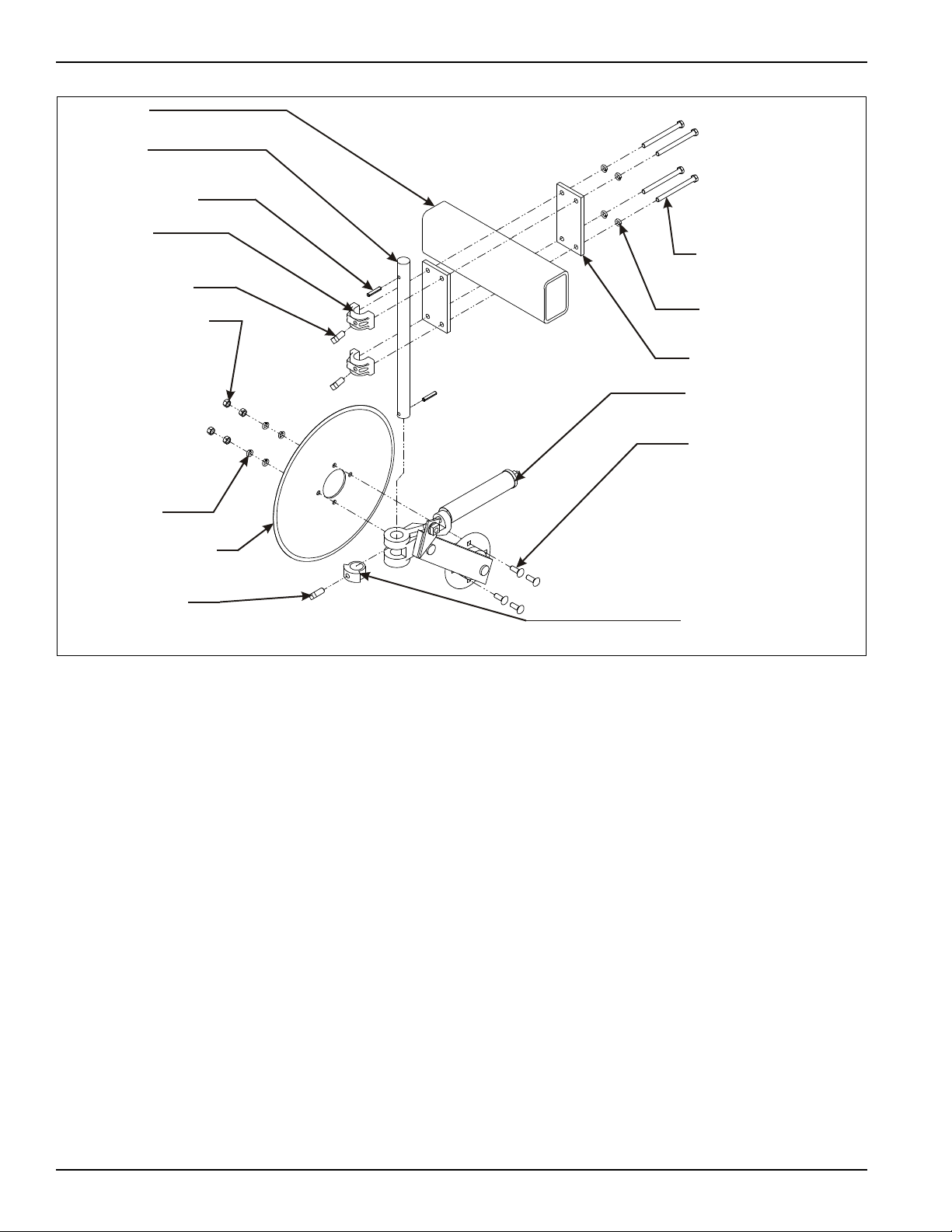

Figure 3-4: Coulter Assembly
Coulter Assembly
1. Assemble coulter shank to coulter assembly using
coulter stop weldment and 5/8-11 x 1-1/2 square
head set screw. Install 3/8 x 2 spring slotted pins in
coulter shank.
2. Install the shank and coulter assembly to the frame
with the coulter clamps and plates using 1/2-13 x 6
hex head cap screws and hex lock washers (See
Figure 3-4.)
3. Use square head cup point set screws through hole
in clamp to hold coulter shank in place.
4. Attach the coulter blade to the coulter assembly
using 1/2-13 x 1-1/2 round head square neck screws,
hex lock washers, and hex nuts.
FRAME
SHANK
3/8 X 2 SPRING
SLOTTED PIN
CLAMP
5/8-11 X 1-1/2
SET SCREW
1/2-13 HEX NUT
1/2 SPLIT LOCK
WASHER
COULTER BLADE
5/8-11 X 1-1/2
SET SCREW
1/2-13 X 6 HEX
HEAD CAP SCREW
1/2 SPLIT LOCK
WASHER
CLAMP PLATE
COULTER
ASSEMBLY
1/2-13 X 1-1/2
ROUND HEAD
SQUARE NECK
SCREW
COULTER STOP
WELDMENT
m1550-coulter-2
