Landoll Brillion CPP7 User manual

®
175rev1113 7D525
LANDOLL CORPORATION
1900 North Street
Marysville, Kansas 66508
[phone]
800-428-5655 ~ WWW.LANDOLL.COM
Chisel Plow, 3 - Bar Mounted
Models: CPP7 through CPP12
Operator’s Manual

7D525 i
Table of Contents
1 Introduction and Safety Information
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Description of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Warranty Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Understanding Safety Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Transporting Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Attaching, Detaching and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Maintenance Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Protective Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Tire Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
2 Assembly

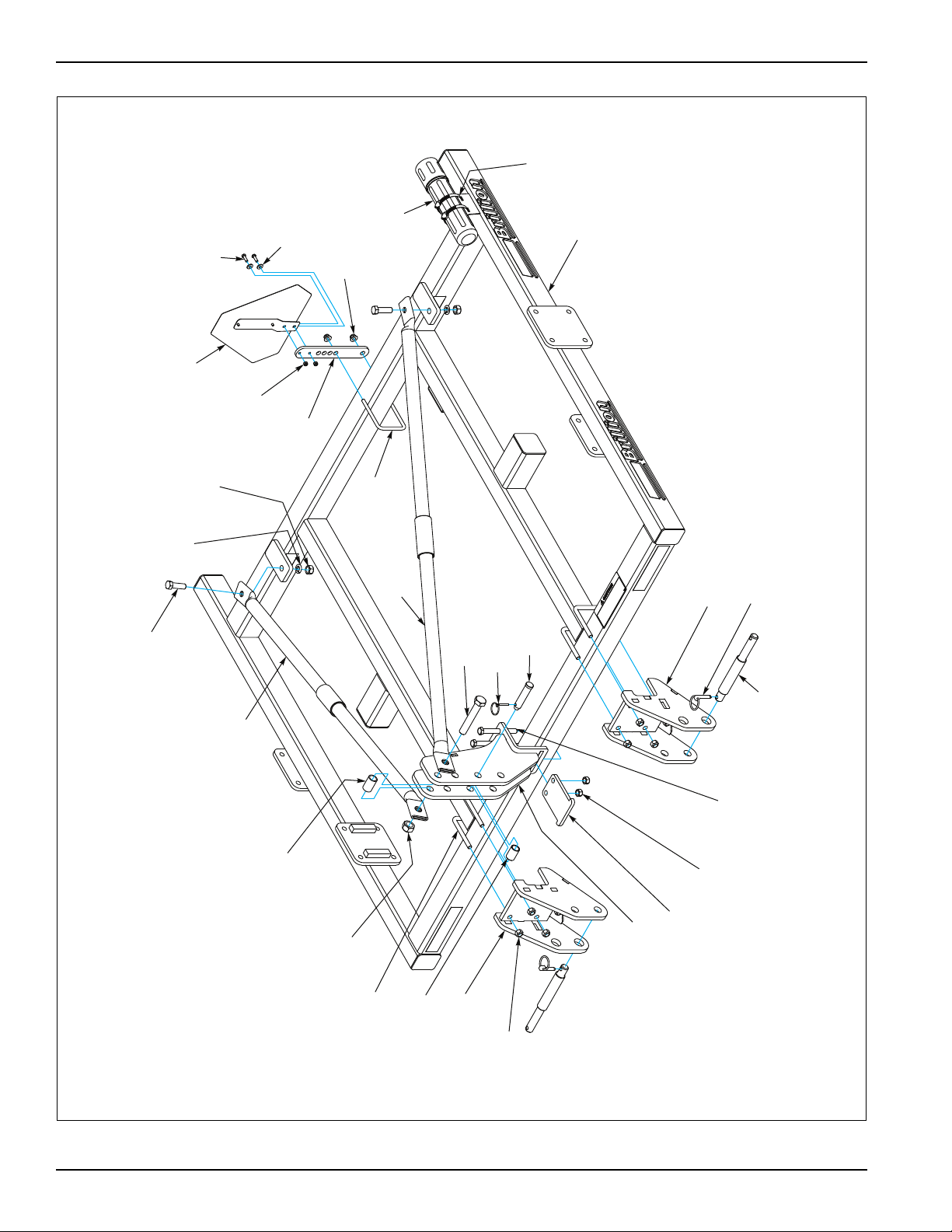

Main Frame Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

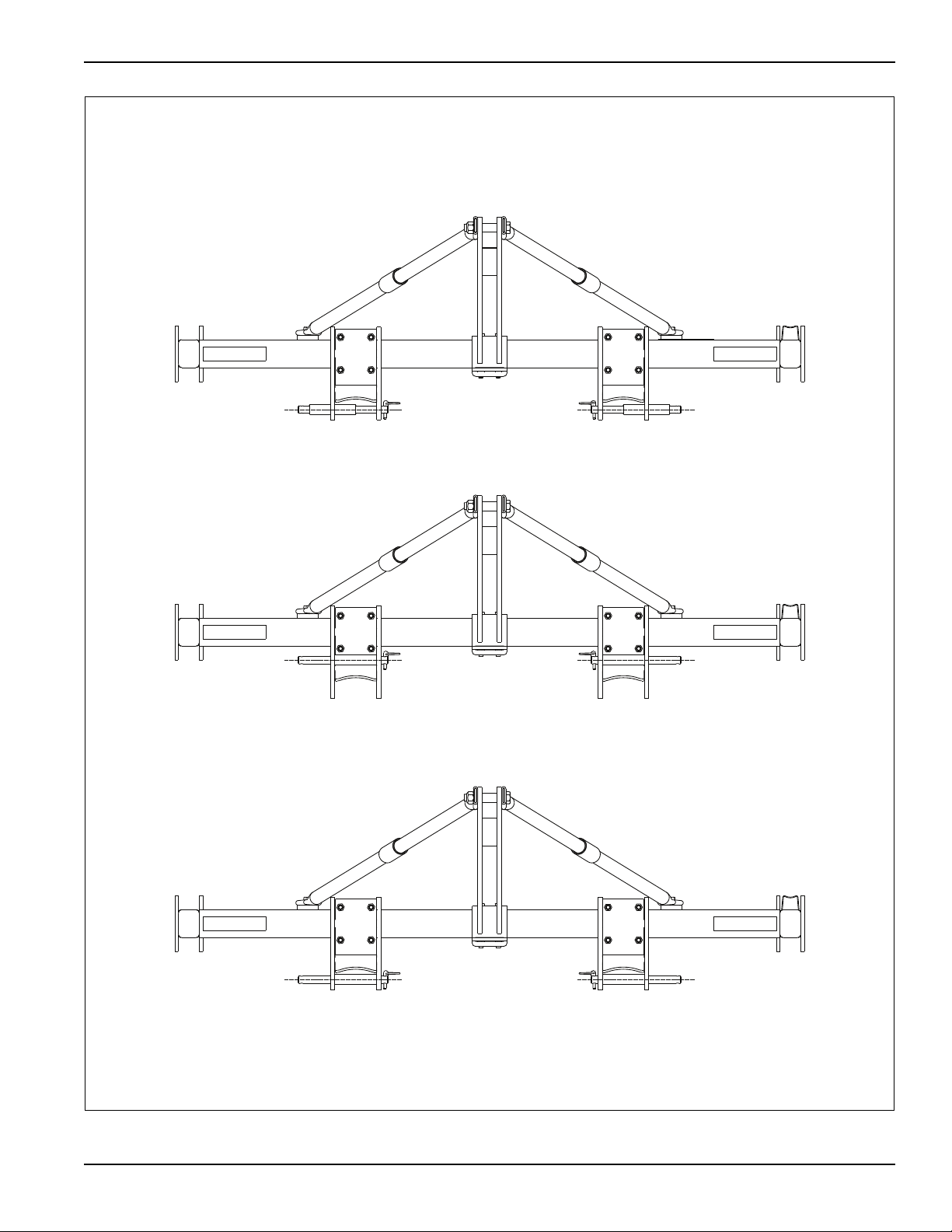

Frame Assembly Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

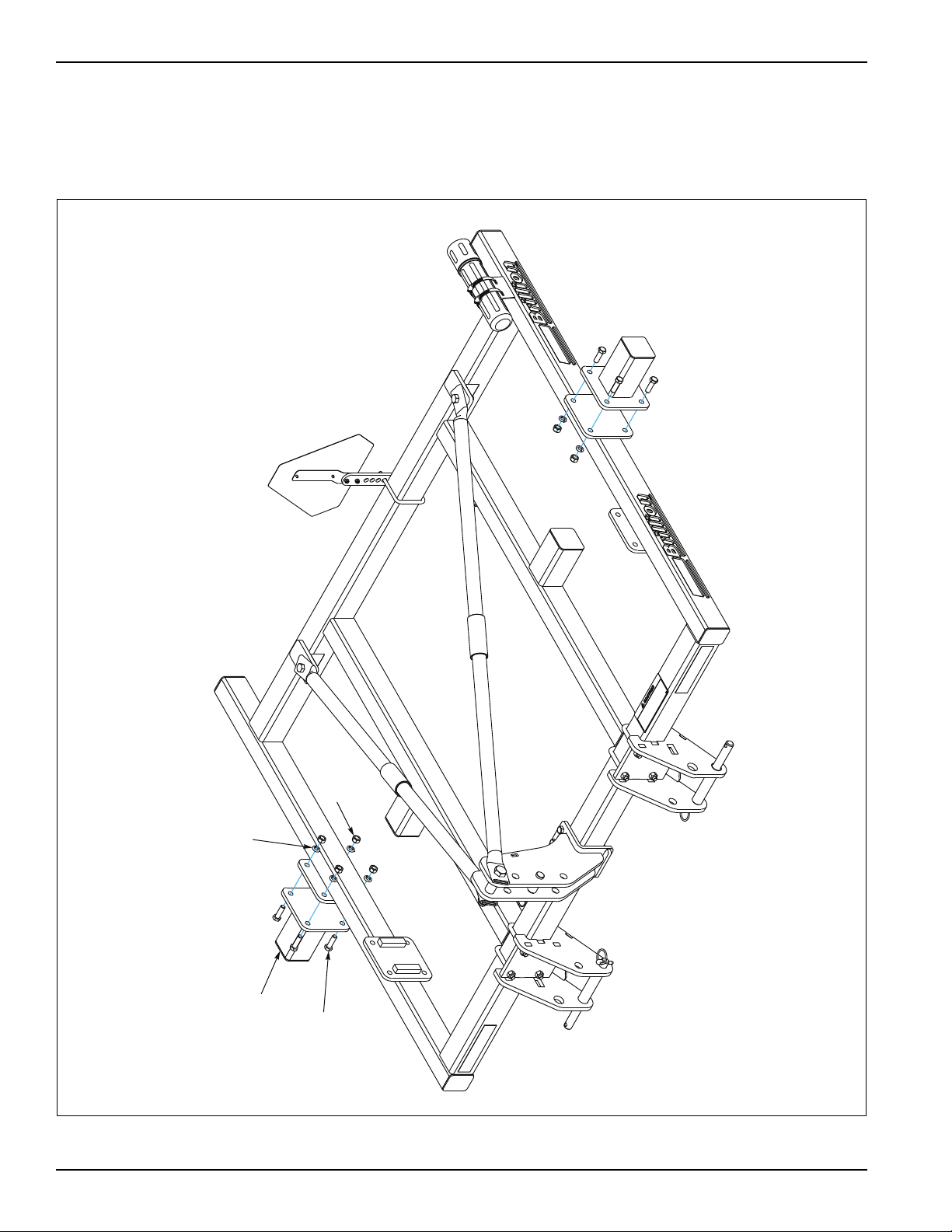

1 Ft Frame Extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

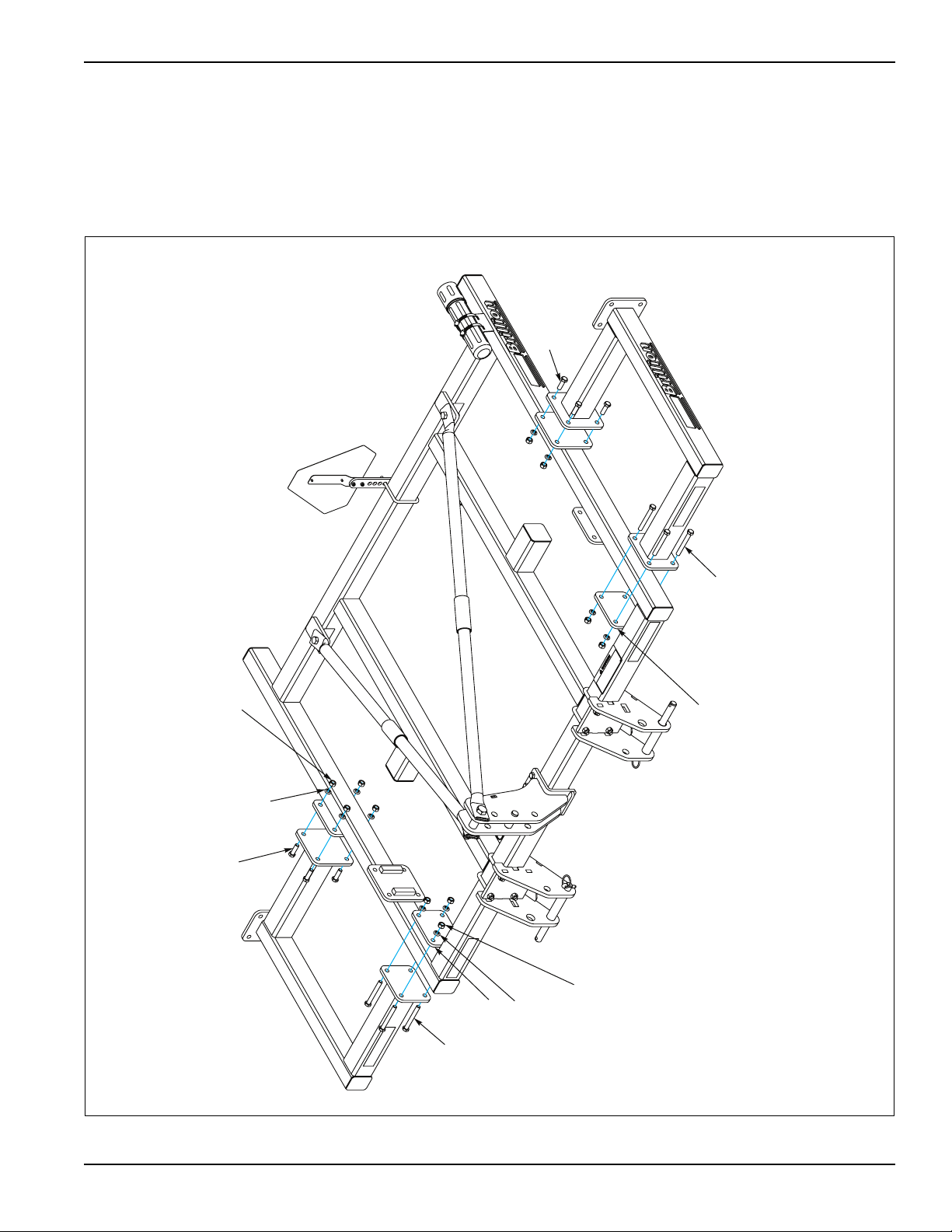

2 Ft Frame Extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Shank Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Spring Clamp Shank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Rigid Clamp Shank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Point Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Twisted Shovels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-14
Optional Gauge Wheels Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
LED Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
LED Warning Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
3 Operation
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Operating Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Tractor Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Attaching to Three-Point Hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Field Operation - Three Point Hitch Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Spring Shank Tension Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

ii
4 Maintenance
General Torque Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Wheel Hub Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Lubricating Wheel Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Lubrication (Spring Shank Clamp) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
5 General Reference and Specifications
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

1-1
Chapter 1
Introduction and Safety Information
Introduction
The implement described in this manual has been
designed with care and built by skilled workers using
quality materials and processes. Proper assembly and
maintenance will provide you with satisfactory use for
seasons to come.

DANGER
Description of Unit
The Chisel Plow was the machine that started the age of
“conservation tillage” as we know it today. The 3-Bar
Chisel Plows offer an effective and economic solution to
basic primary tillage. A wide variety of shank
configurations and points allow the producer to fine tune
the Chisel Plow to fit his requirements. Optional
extension kits allow the 3 Bar Chisel Plow to grow with
any operation.
Using this Manual
This manual will familiarize you with safety, assembly,
operation, adjustment, and maintenance. Read this
manual and follow the recommendations to help ensure
safe and efficient operation.
• The information in this manual is current at time of
printing. Some parts may have changed to assure top
performance.
• Location reference: Right and Left designations in this
manual are determined by facing the direction the
implement will travel during field operation, unless
otherwise stated.
Owner Assistance
If customer service or repairs are needed, contact your
Brillion dealer. They have trained personnel, parts and
service equipment specially designed for Brillion
products. Your implement’s parts should only be replaced
with Brillion parts. If items covered in this manual are not
understood, contact your local Brillion Dealer.
Warranty Registration
Brillion Farm Equipment, by Landoll, shall have no
warranty obligation unless each product is registered
within 10 days of retail purchase, using the Landoll
Corporation Ag Products on-line registration process.
Please refer to the Ag Products Policy and Procedures
Manual, accessible at www.landoll.com for step by step
instructions regarding product registration.
Enter your product information below for quick reference.
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE

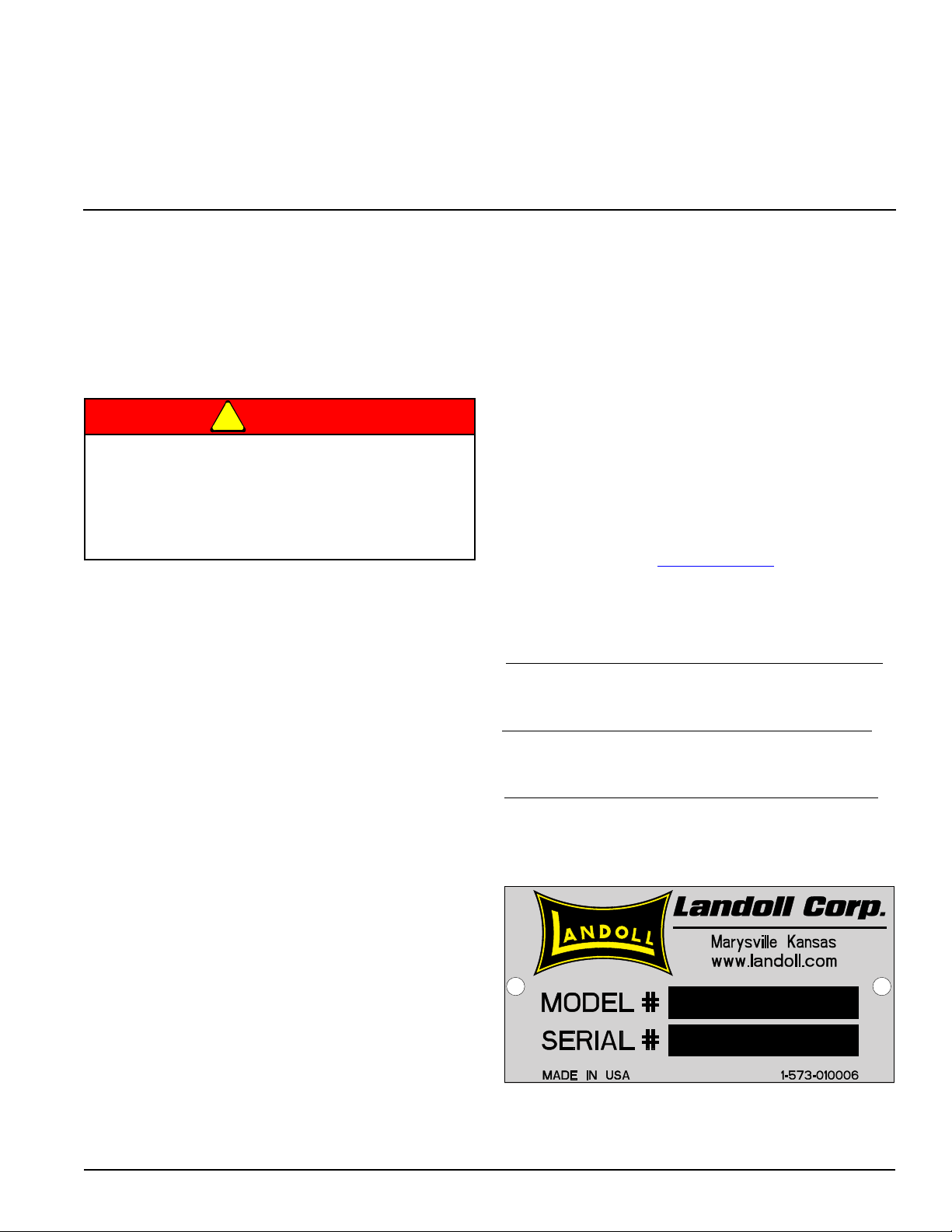

Refer to the ID plate as shown. See Figure 1-1.
Figure 1-1: ID Plate
Read this entire manual before attempting to
assemble, adjust or operate this implement.
Failure to comply with this warning can result in
personal injury or death, damage to the
implement or its components and inferior
operation.

1-2 7D525
INTRODUCTION AND SAFETY INFORMATION
Safety
NOTE
Investigation has shown that nearly 1/3 of all farm
accidents are caused by careless use of machinery.
Insist that all people working with you or for you abide by
all safety instructions.
Understanding Safety Statements
You will find various types of safety information on the
following pages and on the implement decals (signs)
attached to the implement. This section explains their
meaning.
NOTICE

CAUTION

WARNING

DANGER
NOTE
You should read and understand the information
contained in this manual and on the implement decals
before you attempt to operate or maintain this equipment.
Examine safety decals and be sure you have the correct
safety decals for the implement. See Figure 1-2.
Order replacement decals through your Brillion dealer.
Keep these signs clean so they can be observed readily.
It is important to keep these decals cleaned more
frequently than the implement. Wash with soap and water
or a cleaning solution as required.
Replace decals that become damaged or lost. Also, be
sure that any new implement components installed
during repair include decals which are assigned to them
by the manufacturer.
When applying decals to the implement, be sure to clean
the surface to remove any dirt or residue. Where
possible, sign placement should protect the sign from
abrasion, damage, or obstruction from mud, dirt, oil etc.

DANGER
Transporting Safety
IMPORTANT
It is the responsibility of the owner/operator to
comply with all state and local laws.
When transporting the implement on a road or highway,
use adequate warning symbols, reflectors, lights and
slow moving vehicle sign as required. Slow moving
tractors and towed implements can create a hazard when
driven on public roads. They are difficult to see,
especially at night.
Do not tow an implement that, when fully loaded, weighs
more than 1.5 times the weight of the towing vehicle.
Carry reflectors or flags to mark the tractor and
implement in case of breakdown on the road.
Do not transport at speeds over 20 MPH under good
conditions. Never travel at a speed which does not allow
adequate control of steering and stopping. Reduce
speed if towed load is not equipped with brakes.
Avoid sudden stops or turns because the weight of the
implement may cause the operator to lose control of the
tractor. Use a tractor heavier than the implement.
Use caution when towing behind articulated steering
tractors; fast or sharp turns may cause the implement to
shift sideways.
Keep clear of overhead power lines and other
obstructions when transporting. Know the transport
height and width of your implement.
Attaching, Detaching and Storage
• Do not stand between the tractor and implement when
attaching or detaching implement unless both are
blocked from moving.
• Block implement so it will not roll when unhitched from
the tractor.
Special notice - read and thoroughly understand.
Proceed with caution. Failure to heed caution
may cause injury to person or damage product.
Proceed with caution. Failure to heed warning will
cause injury to person or damage product.
Proceed with extreme caution. Failure to heed
notice will cause injury or death to person and/or
damage product.
• Do not allow anyone to ride on the tractor or
implement. Riders could be struck by foreign
objects or thrown from the implement.
• Never allow children to operate equipment.
• Keep bystanders away from implement during
operation.

INTRODUCTION AND SAFETY INFORMATION
1-3
Maintenance Safety
• Block the implement so it will not roll when working on
or under it to prevent injury.
• Do not make adjustments or lubricate the machine
while it is in motion.
• Make sure all moving parts have stopped.
• Understand the procedure before doing the work. Use
proper tools and equipment.
Protective Equipment
• Wear protective clothing & equipment appropriate for
the job. Avoid loose fitting clothing.
• Because prolonged exposure to loud noise can cause
hearing impairment or hearing loss, wear suitable
hearing protection, such as earmuffs or earplugs.
Tire Safety
Tire changing can be dangerous and should be
performed by trained personnel using correct tools and
equipment.
When inflating tires, use a clip-on chuck and extension
hose long enough to allow you to stand to one side, not in
front of or over the tire assembly. Use a safety cage if
available.
When removing and installing wheels use
wheel-handling equipment adequate for the weight
involved.

1-4 7D525
INTRODUCTION AND SAFETY INFORMATION
Decals

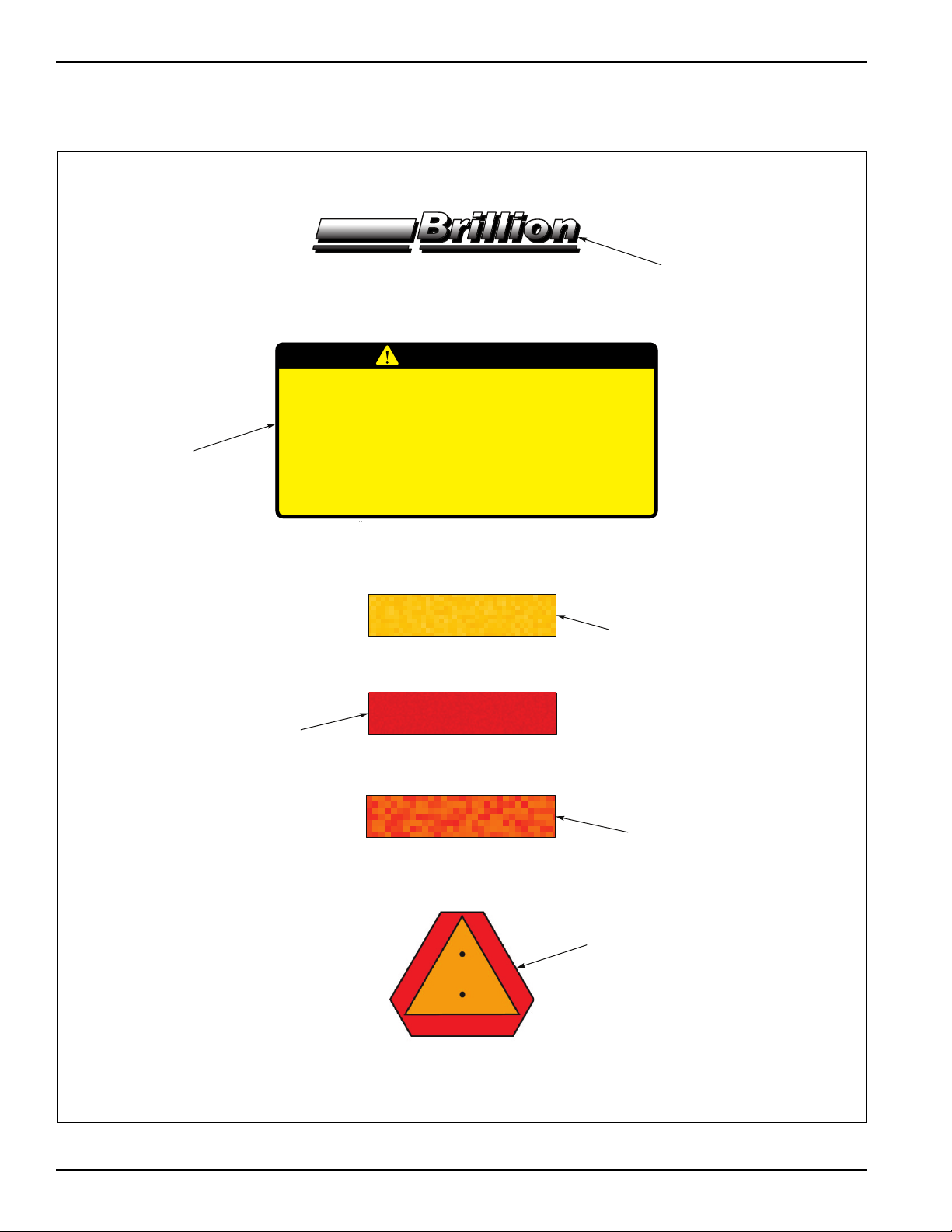

Figure 1-2: Decals and Locations
528933
528934
CAUTION
1. DO NOT LUBRICATE, ADJUST OR REPAIR WHEN MACHINE IS IN MOTION.
2. DO NOT TOW OR TRANSPORT FASTER THAN 15 MILES PER HOUR.
3. DO NOT RIDE OR ALLOW OTHERS TO RIDE ON THE MACHINE.
4. BLOCK UP ALL HYDRAULICALLY OR MECHANICALLY RAISED COMPONENTS TO PREVENT
UNINTENDED LOWERING OR LOWER THE MACHINE TO THE GROUND TO MAKE ADJUSTMENT
OR REPAIRS OR WHEN NOT IN USE.
5. KEEP ALL PERSONS AWAY FROM MACHINE DURING HITCHING AND OPERATING.
6. SLOW DOWN BEFORE MAKING SHARP TURNS OR USING THE BRAKE.
DRIVE SLOWLY OVER ROUGH GROUND, SIDE HILLS, AND AROUND CURVES TO AVOID TIPPING.
7. COMPLY WITH ALL LAWS WHEN TRANSPORTING THE MACHINE ON PUBLIC ROADWAYS.
8. INSTRUCT ALL OPERATORS IN THE SAFE OPERATION OF THE MACHINE.
REVIEW THE OPERATOR’S MANUAL FOR CORRECT PROCEDURES.
9. BLOCK IMPLEMENT TO PREVENT MOVEMENT WHEN UNHITCHED FROM TRACTOR.
10. KEEP ALL GUARDS AND SHIELDS IN PLACE WHILE MACHINE OR PARTS ARE IN MOTION.
8J310
8J310
4K036
2
1
4
3
528938
2P151
6
5

INTRODUCTION AND SAFETY INFORMATION
1-5

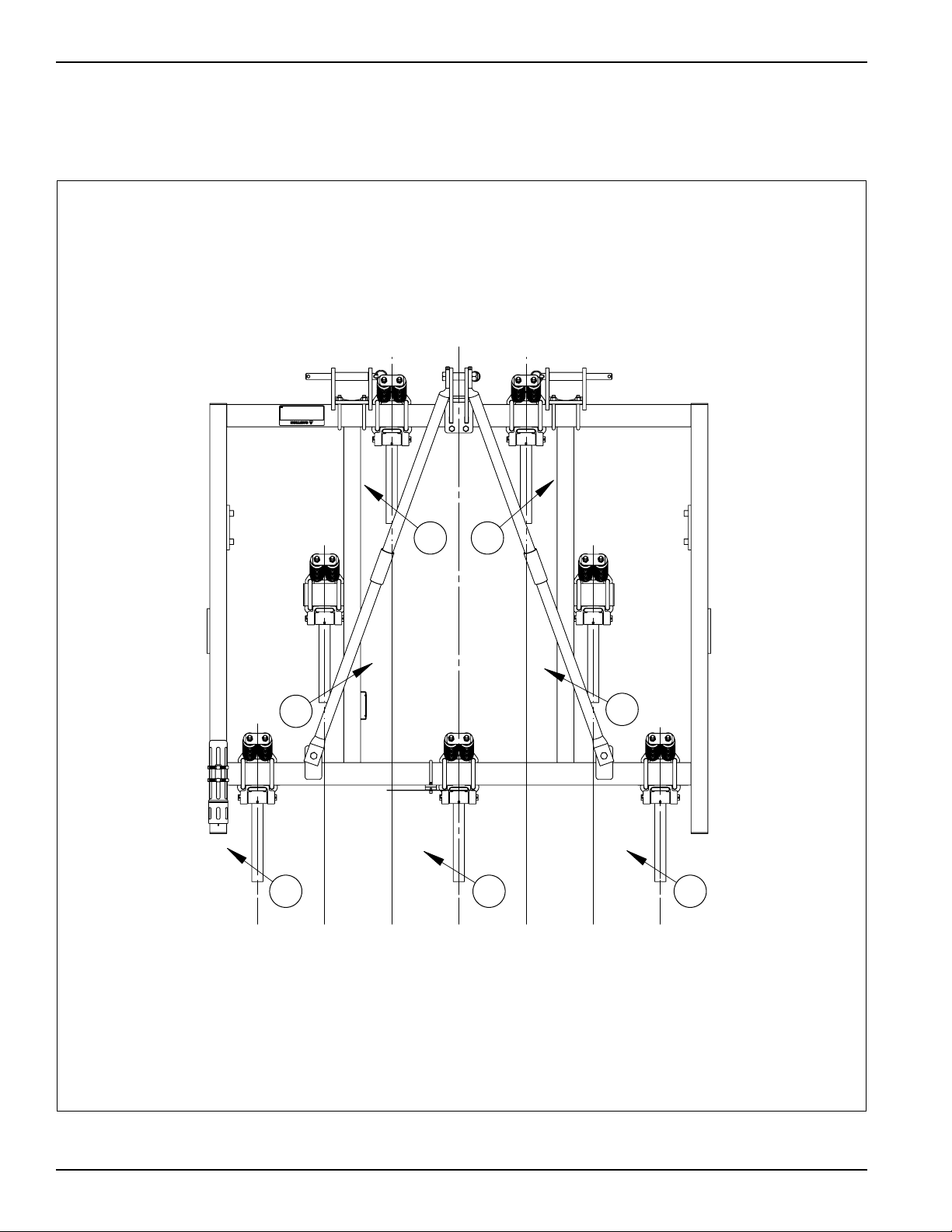

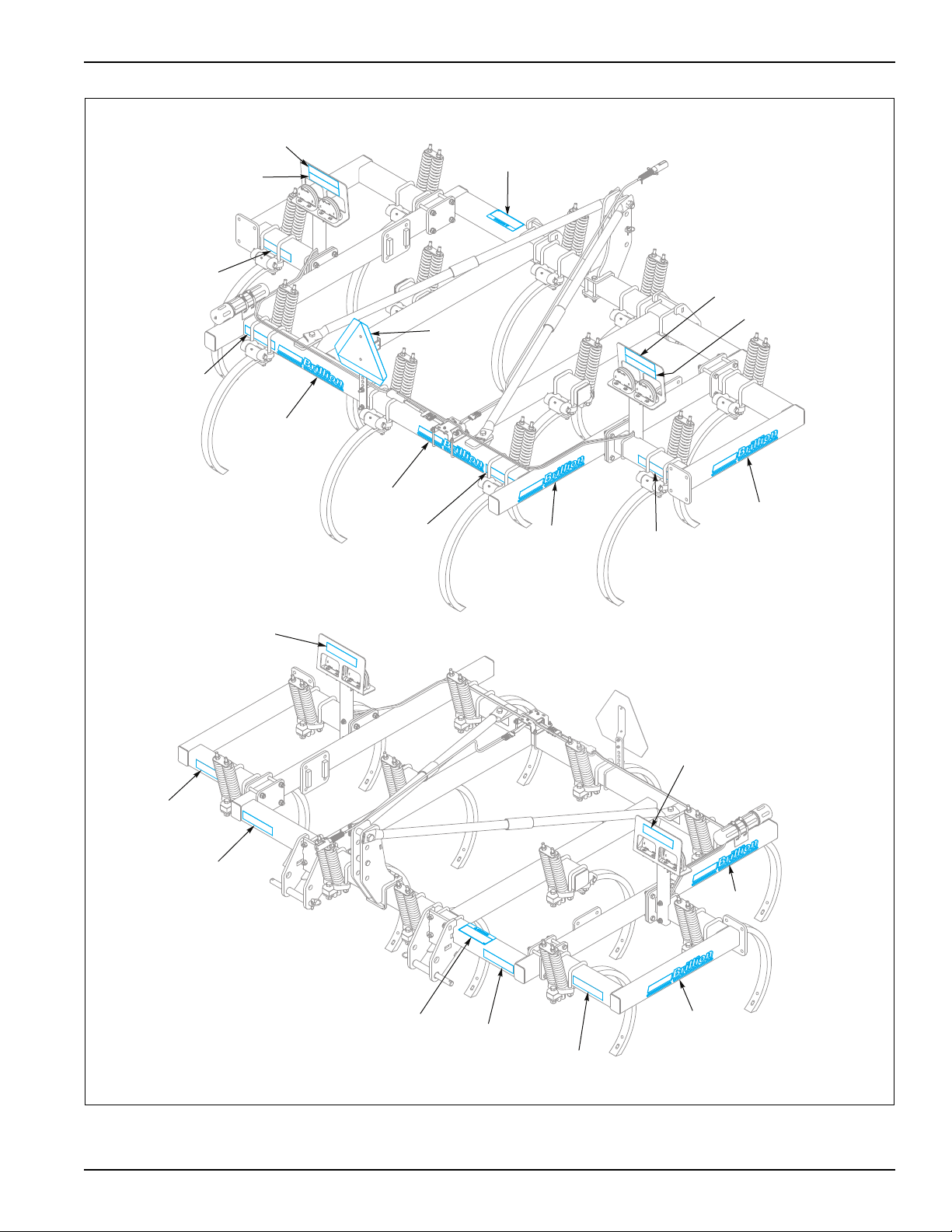

Figure 1-3: 7 and 9 Shank Model Decal Locations
CPP7&9 Decals
1
1
2
1
1
1
1
2
3
3
3
3
4
5
4
5
4
4
6

1-6 7D525
INTRODUCTION AND SAFETY INFORMATION
Figure 1-4: 10 and 12 Shank Model Decal Locations
CPP10&12 Decals
4
5
4
1
1
6
4
5
1
1
2
3
3
3
3
2
1
1
4

INTRODUCTION AND SAFETY INFORMATION
1-7
Figure 1-5: 11 Shank Decal Locations
CPP11 Decals
1
1
1
1
6
4
4
4
4
5
4
5
2
4
1
1
3
3
3
3
3
3
2

1-8 7D525
INTRODUCTION AND SAFETY INFORMATION
Table provided for general use.
NOTES:

2-1
Chapter 2
Assembly

CAUTION

WARNING
NOTE
Refer to the repair parts manual 7D524 for identification
of parts and for the approximate relationship of the parts
in assembly.
To ensure alignment of assemblies, leave the nuts
loose until completion of final assembly. Use lock
washers or flat washers as specified. Spread all cotter
pins.
After completion of final assembly, tighten all nuts
evenly to prevent misalignment, distortion or binding.
Tighten all screws and nuts to the recommended torques.
Using blocks or other supports, block up the Frame
approximately 36”. Be sure that it is secure and cannot
topple.
IMPORTANT
• If pre-assembled parts or fasteners are temporarily
removed, remember where they go. It is best to keep
parts separated.
• Check that all working parts move freely, bolts are tight
and cotter pins spread.
• Refer to the Torque Table for proper torque valves.
Note the different torque requirements for bolts with
lock nuts. See Page 4-1.
“Left” and “Right” refer to directions seen as if standing
behind the machine and facing in the direction of forward
travel.
Main Frame Assembly
1. Place the frame on blocks at least 36-42 inches high
for the assembly of the machine.
2. See Figure 2-2 for the dimensional location of the
Upper and Lower Hitch Brackets.
3. Assemble Upper Hitch Bracket to the center of the
Front Frame Tube. Slide Upper Hitch Bracket Plate
in the slot of the Upper Hitch Bracket and under the
Front Frame Tube. Secure with 5/8-11 x 6 Bolts and
Lock Nuts. See Figure 2-1.
4. Place 1-5/16 x 2-1/8 spacer between the top holes of
the Upper Hitch Bracket and place the LH and RH
Braces on either side of the Bracket. Insert 1-8 x 6
Bolt and secure with Lock Nut. Install braces to the
rear of the Frame with 3/4-10 x 2-1/2 Bolt,
Lockwasher and Nut.
5. Assemble LH and RH Lower Hitch Brackets to the
Front Frame Tube. Secure with 5/8-11 U-Bolts and
Lock Nuts.
6. Determine the category of tractor and Length of
Shank that will be used and install the Upper and
Lower Hitch pins into the Hitch Brackets. See
Figures 2-1, 2-3 and 2-4.
Tighten all hardware to the recommended torques. See
Page 4-1.
Manual Storage Canister
Install the Manual Storage canister to the frame with
Hose Clamps. See Figure 2-1.
SMV Sign
Attach the SMV Mount about 4 inches left of center on
the rear Frame Tube with 1/2-13 U-Bolt and Flange Lock
Nuts. See Figure 2-1. Install SMV Sign to Mount with
5/16-18 x 1 Bolts, Flat Washers and Lock Nuts.
Do not work on or under this machine unless
securely blocked and supported by a hoist or
tractor or by other sufficient means.
Do not attempt to lift heavy parts (such as the
frame, rock shaft, and pull hitch) manually. Use a
hoist or a fork lift to move these parts into
position.

2-2 7D525
ASSEMBLY
Figure 2-1: Frame
CPP OpFrame
SMV
Right Hand Brace
Bolt,3/4-10 x 2-1/2
Lockwasher,3/4
Nut,Hex 3/4-10
Left Hand Brace
SMV Mount
Lock Nut, 5/16-18
Flange Lock Nut,1/2-13
Flat Washer,5/16
Bolt, 5/16-18 x 1
Spacer
Lock Nut,1-8
U-Bolt,5/8-11
Bolt,1-8 x 6
Lynch Pin,1/4 x 1-1/4
Pin,1 x 4.5
Upper Hitch Bracket
Bracket Plate
Lock Nut,5/8-11
Bolt,5/8-11 x 6
Sleeve
LH Lower Hitch Bracket
RH Lower Hitch Bracket
Pin,Lower 3-Point Lynch Pin,
1/4 x 1-1/4
Lock Nut, 5/8-11
Frame
U-Bolt,1/2-13
Hose Clamps
Manual Canister
Upper Hitch

ASSEMBLY
2-3
Frame Assembly Dimensions
“Left” and “Right” refer to directions seen as if standing
behind the machine and facing in the direction of forward
travel.
Figure 2-2: Frame Assembly Dimensions

5HI
5HI
&33
&33


/+/RZHU
+LWFK%UDFNHW
5+/RZHU
+LWFK%UDFNHW
8SSHU+LWFK
%UDFNHW
)UDPH
&
/

2-4 7D525
ASSEMBLY
Figure 2-3: Upper and Lower Hitch Pin Positions
1
2
A
B
C
D
Upper Hitch
Bracket
Lower Hitch
Bracket
Frame
CPP OpHitchPinPosition
Tractor Category
Shank Length
Upper Hitch
Pin Position
Lower Hitch
Pin Position
Lower Hitch
Pin Orient
CAT 2 Free Link
26" Shank C 1 View AA
CAT 2 Free Link
32" Shank B 1 View AA
CAT 2 Quick Coupler
26" Shank B 2 View BB
CAT 2 Quick Coupler
32" Shank A 1 View CC
CAT 3 Free Link
26" Shank D 1 View CC
CAT 3 Free Link
32" Shank C 1 View CC
CAT 3 Quick Coupler
CAT 3N Quick Coupler
26" Shank
C 2 View BB
CAT 3 Quick Coupler
CAT 3N Quick Coupler
32" Shank
B 1 View CC

ASSEMBLY
2-5
Figure 2-4: Lower Hitch Orientation
View AA
View BB
View CC

2-6 7D525
ASSEMBLY
1 Ft Frame Extensions
Install a 1 Ft Frame Extensions on each 4-Hole Plate on
the outer tubes of the Frame with 5/8-11 x 2 Bolts,
Lockwashers and Nuts.
Figure 2-5: 1 Ft Extensions
CPP Op1FtExt
1 Ft Extension
Bolt, 5/8-11 x 2
Lockwasher
Nut,5/8-11

ASSEMBLY
2-7
2 Ft Frame Extensions
Install a 2 Ft Frame Extensions on each 4-Hole Plate on
the outer tubes of the Frame with 5/8-11 x 2 Bolts,
Lockwashers and Nuts. Secure the front of the extension
by placing a 4-hole plate on the inside of the frame tube.
Secure with 5/8-11 x 5 Bolts, Lockwashers and Nuts.
Figure 2-6: 2 Ft Extensions
CPP Op4FtExt
Bolt,5/8-11 x 5
Bolt,5/8-11 x 2
Bolt,5/8-11 x 5
4 Hole Plate
4 Hole Plate
Lockwasher,5/8
Nut,5/8-11
Bolt,5/8-11 x 2
Lockwasher,5/8
Nut,5/8-11

2-8 7D525
ASSEMBLY
Shank Installation
Attach the Shank Assemblies to the frame in the
locations indicated in Figure 2-7 through 2-12.
Shank Assemblies are shipped with all the necessary
hardware to mount the shanks to the frame.
Figure 2-7: CPP7 Shank and Shovel Locations

     
5+5+ /+
/+
/+
5+
5+
&336KDQN
