Lanner IIOT-I300 User manual

IIOT-I300
User Manual
Version: 1.0
Date of Release:2023-02-14
Industrial Embedded Platforms

IIOT-I300 User Manual
2
This manual describes the overview of the various functionalities of this product, and the information you need
to get it ready for operation. It is intended for those who are:
-responsible for installing, administering and troubleshooting this system or Information Technology
professionals.
-assumed to be qualified in the servicing of computer equipment, such as professional system integrators, or
service personnel and technicians.
The latest version of this document can be found on Lanner’s official website, available either through the
product page or through the Lanner Download Center page with a login account and password.
The icons are used in the manual to serve as an indication of interest topics or important messages. Below is a
description of these icons.
Icon
Usage
This mark indicates that there is something you should pay special
attention to while using the product.
This mark indicates that there is a caution or warning and it is
something that could damage your property or product.
To obtain additional documentation resources and software updates for your system, please visit the Lanner
Download Center. As certain categories of documents are only available to users who are logged in, please be
registered for a Lanner Account at http://www.lannerinc.com/ to access published documents and
downloadable resources.
In addition to contacting your distributor or sales representative, you could submit a request at our Lanner
Technical Support and fill in a support ticket to our technical support department.
Your feedback is valuable to us, as it will help us continue to provide you with more accurate and relevant
documentation. To provide any feedback, comments or to report an error, please email to
[email protected]m, Thank you for your time.
This document is copyrighted © 2023 by Lanner Electronics Inc. All rights are reserved. The original manufacturer
reserves the right to make improvements to the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without the prior written permission of the original manufacturer.
Information provided in this manual is intended to be accurate and reliable. However, the original manufacturer
assumes no responsibility for its use, nor for any infringements upon the rights of third parties that may result
from such use.
Note or Information
Warning or Important

IIOT-I300 User Manual
3
Taiwan Corporate Headquarters
Lanner Electronics Inc.
7F, No.173, Sec.2, Datong Rd.
Xizhi District, New Taipei City 22184,
Taiwan
立端科技股份有限公司
221 新北市汐止區
大同路二段 173 號7樓
T: [phone]
F: [phone]
E: [email protected]m
China
Beijing L&S Lancom Platform Tech. Co., Ltd.
Guodong LOFT 9 Layer No. 9 Huinan Road,
Huilongguan Town, Changping District, Beijing
102208 China
T: [phone]
F: [phone]
E: [e-mail]
USA
Lanner Electronics Inc.
47790 Westinghouse Drive
Fremont, CA 94539
T: [phone]
F: [phone]
E: [e-mail]
Canada
Lanner Electronics Canada Ltd
3160A Orlando Drive
Mississauga, ON
L4V 1R5 Canada
T: [phone]
F: [phone]
E: [e-mail]
Europe
Lanner Europe B.V.
Wilhelmina van Pruisenweg 104
2595 AN The Hague
The Netherlands
T: [phone]
E: [e-mail]

IIOT-I300 User Manual
4
Intel® and Intel® Celeron® are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
Hailo-8TM is registered trademarks of Hailo.
All other product names or trademarks are properties of their respective owners.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and roll up your
sleeves.
Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before installing or removing a chassis
or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.
Note
1. An unshielded-type power cord is required in order to meet FCC emission limits and also to prevent interference
to the nearby radio and television reception. It is essential that only the supplied power cord be used.
2. Use only shielded cables to connect I/O devices to this equipment.
3. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Important
1. Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
2. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.

IIOT-I300 User Manual
5
Suivez ces consignes pour assurer la sécuritégénérale :
Laissez la zone du châssis propre et sans poussière pendant et après l’installation.
Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis. Attachez votre cravate ou
écharpe et remontez vos manches.
Portez des lunettes de sécurité pour protéger vos yeux.
N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre l’équipement dangereux.
Coupez complètement l’alimentation en éteignant l’alimentation et en débranchant le cordon d’alimentation avant
d’installer ou de retirer un châssis ou de travailler à proximité de sources d’alimentation.
Ne travaillez pas seul si des conditions dangereuses sont présentes.
Ne considérez jamais que l’alimentation est coupée d’un circuit, vérifiez toujours le circuit. Cet appareil génère, utilise
et émet une énergie radiofréquence et, s’il n’est pas installé et utilisé conformément aux instructions des fournisseurs
de composants sans fil, il risque de provoquer des interférences dans les communications radio.
There is risk of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Installation should be conducted only by a trained electrician or only by an electrically trained person who knows all
installation procedures and device specifications which are to be applied.
Do not carry the handle of power supplies when moving to another place.
Please conform to your local laws and regulations regarding safe disposal of lithium battery.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an explosion.
Leaving a battery in an extremely high temperature environment can result in an explosion or the leakage of flammable
liquid or gas.
A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.
Risque d’explosion si la pile est remplacée par une autre d’un mauvais type.
Jetez les piles usagées conformément aux instructions.
L’installation doit être effectuée par un électricien formé ou une personne formée à l’électricité connaissant toutes les
spécifications d’installation et d’appareil du produit.
Ne transportez pas l’unité en la tenant par le câble d’alimentation lorsque vous déplacez l’appareil.
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment to acceptable
operating temperatures without adequate circulation. Be sure that the room in which you choose to operate your
system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively. An open chassis
permits air leaks, which may interrupt and redirect the flow of cooling air from internal components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when electronic
components are improperly handled and can result in complete or intermittent failures. Be sure to follow ESD-
prevention procedures when removing and replacing components to avoid these problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is available, ground
yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1 and 10 megohms (Mohms).
L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être adéquate pour refroidir
l’équipement à une température de fonctionnement acceptable sans circulation adaptée. Vérifiez que votre site
propose une circulation d’air adéquate.
Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de refroidissement de bien
circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut interrompre et rediriger le flux d’air frais destiné aux
composants internes.
Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les circuits électriques. Des dégâts

IIOT-I300 User Manual
6
d’ESD surviennent lorsque des composants électroniques sont mal manipulés et peuvent causer des pannes totales ou
intermittentes. Suivez les procédures de prévention d’ESD lors du retrait et du remplacement de composants.
Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est disponible, reliez
votre corps à la terre en touchant la partie métallique du châssis.
Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise entre 1 et 10 mégohms
(Mohms).
Before turning on the device, ground the grounding cable of the equipment. Proper grounding (grounding) is very
important to protect the equipment against the harmful effects of external noise and to reduce the risk of electrocution in
the event of a lightning strike. To uninstall the equipment, disconnect the ground wire after turning off the power. A
ground wire is required and the part connecting the conductor must be greater than 4 mm2 or 10 AWG.
This equipment must be grounded. The power cord for product should be connected to a socket-outlet with earthing
connection.
Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National Electrical Code
and NFPA 75.
The machine can only be used in a restricted access location and has installation instructions by a skilled person.
Avant d’allumer l’appareil, reliez le câble de mise à la terre de l’équipement à la terre. Une bonne mise àla terre (connexion
à la terre) est très importante pour protéger l’équipement contre les effets néfastes du bruit externe et réduire les risques
d’électrocution en cas de foudre. Pour désinstaller l’équipement, débranchez le câble de mise à la terre après avoir éteint
l’appareil. Un câble de mise à la terre est requis et la zone reliant les sections du conducteur doit faire plus de 4 mm2 ou
10 AWG.
Cet équipement doit être mis à la terre. La fiche d'alimentation doit être connectée à une prise de terre correctement
câblée
Peut être installé dans des salles de matériel de traitement de l'information conformément à l'article 645 du National
Electrical Code et àla NFPA 75.
Les matériels sont destinés à être installés dans des EMPLACEMENTS À ACCÈS RESTREINT.
Class I Equipment. This equipment must be earthed. The power plug must be connected to a properly wired earth ground
socket outlet. An improperly wired socket outlet could place hazardous voltages on accessible metal parts.
Équipement de classe I. Ce matériel doit être relié à la terre. La fiche d’alimentation doit être raccordée à une prise de terre
correctement câblée. Une prise de courant mal câblée pourrait induire des tensions dangereuses sur des parties métalliques
accessibles.
Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National Electrical Code
and NFPA 75.
«Convient pour une installation dans les salles informatiques conformément à l’article 645 du National Electrical Code et
àla norme NFPA 75 ».
Important
1. The appliance is only to be connected to network without routing to outside plant.
2. Instruction for the installation of the conductor to building earth by a skilled person.

IIOT-I300 User Manual
7
The device can only be used in a fixed location such as a lab or a machine room. When you install the device, ensure that
the protective earthing connection of the socket-outlet is verified by a skilled person.
« L’appareil ne peut être utilisé que dans un lieu fixe, tel qu’un laboratoire ou une salle de machines. Lorsque vous
installez l’appareil, assurez-vous que le raccordement à la terre de protection de la prise de courant a fait l’objet d’une
vérification par une personne qualifiée. »
Equipment is intended for installation in Restricted Access Location
«Les matériels sont destinés àêtre installés dans des EMPLACEMENTS À ACCÈS RESTREINT »
Lithium Battery Caution: Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type.
Dispose batteries according to manufacturer's instructions.
Disposal of a BATTERY into fire or a hot oven, or mechanically crushing or cutting of a BATTERY, that can result in an
EXPLOSION.
Leaving a BATTERY in an extremely high temperature surrounding environment that can result in an EXPLOSION or the
leakage of flammable liquid or gas.
A BATTERY subjected to extremely low air pressure that may result in an EXPLOSION or the leakage of flammable liquid
or gas.
Pile au lithium Attention: Risque d'explosion si la pile n'est pas remplacée correctement. Remplacez uniquement par un
type identique ou équivalent. Jetez les piles conformément aux instructions du fabricant.
Mise au rebut d'une BATTERIE dans un feu ou un four chaud, ou écrasement ou découpage mécanique d'une BATTERIE,
pouvant entraîner une EXPLOSION.
Laisser une BATTERIE dans un environnement extrêmement chaud pouvant entraîner une EXPLOSION ou une fuite de
liquide ou de gaz inflammable.
UNE BATTERIE soumise à une pression d'air extrêmement basse pouvant entraîner une EXPLOSION ou une fuite de
liquide ou de gaz inflammable.
Important
“Product shall be used with Class 1 laser device modules.”
“Le produit doit être utiliséavec des modules de dispositifs laser de classe 1.”

IIOT-I300 User Manual
8
Package Content...............................................................................................................................10
Ordering Information .......................................................................................................................10
System Specifications.......................................................................................................................11
Front Panel .......................................................................................................................................12
Rear Panel ........................................................................................................................................13
Motherboard Information................................................................................................................14
Opening the Chassis .........................................................................................................................22
Installing the System Memory .........................................................................................................23
Installing the mSATA Storage (Optional)..........................................................................................24
Installing the Wi-Fi Module (Optional).............................................................................................25
Installing the LTE Module (Optional) ...............................................................................................27
Installing the SSD Storage (Optional)...............................................................................................29
Mounting the System (Optional)......................................................................................................30
Entering Setup..................................................................................................................................32
Main Page.........................................................................................................................................33
Advanced..........................................................................................................................................34
Chipset..............................................................................................................................................56
Security.............................................................................................................................................63
Boot Menu........................................................................................................................................66
Save and Exit Menu..........................................................................................................................67

IIOT-I300 User Manual
9
Warranty Policy................................................................................................................................69

IIOT-I300 User Manual
10
The IIOT-I300 is an industrial environment gateway IPC powered by the Intel® Celeron® (Apollo Lake) processor,
with 2/4 core CPU (N3350/J3455) and 3x GbE ports (depend on SKU), serial and digital I/O ports, 1x display port,
2x USB 2.0, 2x USB 3.0, 2x M.2 expansion for LTE & Wi-Fi. This wireless gateway with LTE or Wi-Fi is designed
for IoT/IIoT edge, wireless security and multi-site management solution deployment in commercial, enterprise,
and public sector applications.
Your package contains the following items:
1x IIOT-I300 IOT Gateway
1x Terminal Block Connector for DIO
1x Terminal Block Connector for Power Input
SKU No.
Main Features
IIOT-I300A
Intel® N3350 CPU with 1*DDR3L SODIMM, 1*DP, 3* RJ45 GbE LAN, 2* USB 3.0, 2* USB2.0,
2*DB9 for RS232/422/485, Audio, 4*DIO, 1*M.2 B-key for LTE with Dual SIM, 1*M.2 E-Key
for Wi-Fi, 1*mSATA Slot, 1*2.5” SATA Drive Bay (Optional), +24VDC Input With AC/DC
Adapter & Wallmount (Optional)
IIOT-I300B
Intel® J3455 CPU with 1*DDR3L SODIMM, 1*DP, 3* RJ45 GbE LAN, 2* USB 3.0, 2* USB2.0,
2*DB9 For RS232/422/485, Audio, 4*DIO, 1*M.2 B-Key for LTE with Dual SIM, 1*M.2 E-key
for Wi-Fi, 1*mSATA Slot, 1*2.5” SATA Drive Bay (Optional), +24VDC Input with AC/DC
Adapter & Wallmount (Optional)
IIOT-I300C
Intel® N3350 CPU with 1*DDR3L SODIMM, 1*DP, 2* RJ45 GbE LAN, 2* USB 3.0, 2* USB2.0,
2*DB9 for RS232/422/485, Audio, 4*DIO, 1*M.2 B-Key for LTE with Dual SIM, 1*M.2 E-key
for Wi-Fi, 1*mSATA Slot, 1*2.5” SATA Drive Bay (Optional), +24VDC Input With AC/DC
Adapter & Wallmount (Optional)
IIOT-I300D
Intel® J3455 CPU with 1*DDR3L SODIMM, 1*DP, 2* RJ45 GbE LAN, 2* USB 3.0, 2* USB2.0,
2*DB9 for RS232/422/485, Audio, 4*DIO, 1*M.2 B-Key for LTE with Dual SIM, 1*M.2 E-Key
for Wi-Fi, 1*mSATA Slot, 1*2.5” SATA Drive Bay (Optional), +24VDC Input with AC/DC
Adapter & Wallmount (Optional)

IIOT-I300 User Manual
11
Processor System
CPU
SKU A/C: Intel® Celeron® N3350 (Apollo Lake)
SKU B/D: Intel® Celeron® J3455 (Apollo Lake)
Frequency
SKU A/C: 1.1-2.4GHz
SKU B/D: 1.5-2.3GHz
Core Number
SKU A/C: 2 cores
SKU B/D: 4 cores
BIOS
AMI SPI Flash BIOS
Fanless
Yes
System Memory
Technology
1x DDR3L 1600MHz SO-DIMM
Max. Capacity
Up to 8GB (Default 4 GB)
Graphic
Controller
Intel® HD Graphics 500
Interface
2x Display Port
Ethernet
Controller
Intel® i210AT
Speed
10/100/1000Mbps
Interface
SKU A/B: 3x RJ45 LAN Ports; SKU C/D: 2x RJ45 LAN Ports
Storage
1x mSATA;
1x 2.5” SATA Drive Bay (Optional)
Expansion
M.2
1x M.2 3042/3052 B-Key for LTE w/ Dual SIM;
1x M.2 2230 E-Key Slot for Wi-Fi5/Wi-Fi6
I/O
Serial Port
2x RS-232/422/485, DB9 Male Ports
DIO
1x 2x6-pin, 3.5mm, Terminal Block for 4x DI and 4x DO
Audio Port
1x Line-out and 1x Mic-In
Display Port
2x Display Ports (Max Resolution: 4096x2160 @60Hz)
Power Button
1x Power On/Off Button
Reset Button
1x Reset Button
LAN Port
SKU A/B: 3x RJ45 LAN Ports; SKU C/D: 2x RJ45 LAN Ports
USB Port
2x USB 2.0 Type A; 2x USB 3.0 Type A Ports
LED Indicator
Storage Status/ LTE Status/ Power On Status
Power Inlet
1x 2-pin Terminal Block for +24VDC Input
Antennas
4x Antenna Holes
Watchdog Timer
Watchdog Timer 1~255 Level Time Interval System Reset, Software
Programmable
Power
Power Supply Voltage
24Vdc
Adapter
60W
Power Consumption (Idle)
115V: 8.3W; 230V: 8.8W
Power Consumption (Full Load)
115V: 17.6W; 230V: 17.1W
Environment
Operating Temperature
0ºC ~55ºC
Storage Temperature
-30ºC ~ 70 ºC
Relative Humidity
10% ~ 90% (Operating); 5%~95% (Non-operating)
Vibration
IEC 60068—64, 0.5Grms, Random; 5~500Hz, 30 Mins/Axis
Mechanical
Dimension (WxHxD)
198 x 45.8 x 142mm
Weight
3KG (Package Weight)
Mounting
SFF Wall mount
Driver Support
Microsoft Windows
Windows 10 IoT
Linux
Linux Debian 11
Certification
CE/FCC Class A, UL, CB, RoHS

IIOT-I300 User Manual
12
No.
Description
F1
Power Button
1x Power ON/OFF switch
F2
LED Indicators
F3
Audio Port
1x Line-out and 1x Mic-in
F4
USB Port
1x USB 3.0 Port and 1x USB 2.0 Port
F5
LAN Port
A/B SKU: 3x RJ45 GbE Ports
C/D SKU: 2x RJ45 GbE Ports
F6
Antenna
2x Antenna Holes for Wi-Fi 5/6
Storage Activity
LTE Status (Optional)
System Power
F1
F2
F3
F4
F5
F6

IIOT-I300 User Manual
13
No.
Description
R1
Power Supply
1x 2-pin Terminal Block for DC +24V Input
R2
Serial Port
2x DB9 Male for RS232/422/485 Ports (Default RS232)
R3
DIO Port
2x6-pin Terminal Block (3.5mm) for 4x DI and 4x DO
R4
USB Port
1x USB 3.0 Port and 1x USB 2.0 Port
R5
Display Port
2x Display Ports (Resolution Max: 4096x2160 @60Hz)
R6
Reset Button
1x Reset Button
R7
Antenna
2x Antenna Holes for 4G LTE
R2
R1
R3
R4
R5
R6
R7

IIOT-I300 User Manual
14

IIOT-I300 User Manual
15

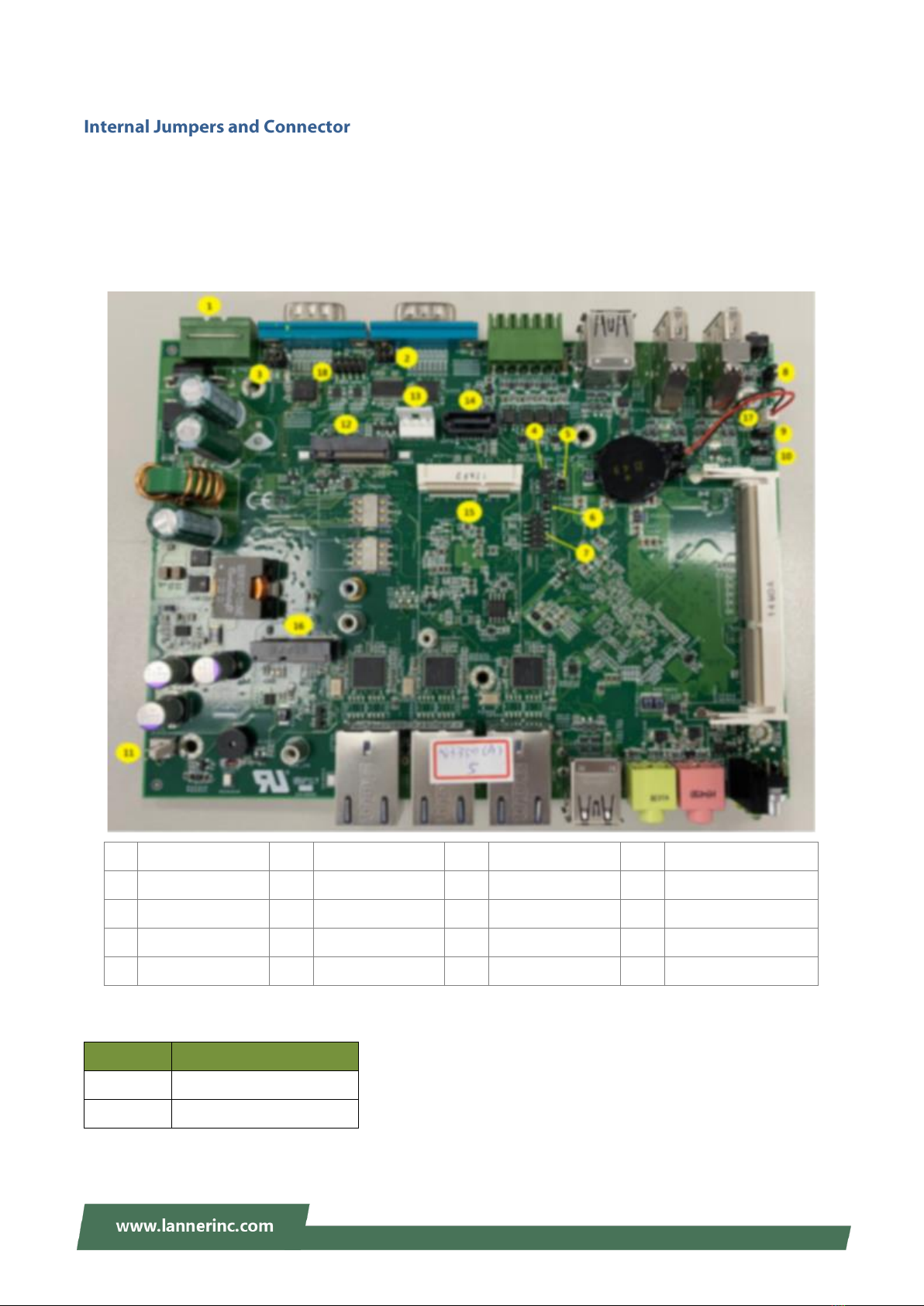

The pin headers on the motherboard are often associated with important functions. With the shunt (Jumper)
pushed down on the designated pins (the pin numbers are printed on the circuit board, surrounding the pin
header), certain feature can be enabled or disable. When changing the jumpers, make sure your system is
completely turned off.
1
PW1
6
JBWP1
11
JCASEOPEN1
16
M2_E
2
JRI1
7
JSPI1
12
M2_B
17
JBAT1
3
JRI2
8
RST2
13
SATAPWR1
18
J80PORT1
4
J3600
9
JCMOS1
14
SATA1
5
J1100
10
JCMOS2
15
MSATA1
1. PW1 (+24V)
Pin
Signal
1
GND
2
DC_IN_CONN

IIOT-I300 User Manual
16
2. JRI1 1-2: COM1 (Default Pin 1-2)
Pin
Signal
Pin
Signal
1
COM_RI1_N
2
COM_RI1_SEL_N
3
+P5V_S
4
COM_RI1_SEL_N
5
+P12V_S
6
COM_RI1_SEL_N
3. JRI2: COM2 (Default Pin 1-2)
Pin
Signal
Pin
Signal
1
COM_RI2_N
2
COM_RI2_SEL_N
3
+P5V_S
4
COM_RI2_SEL_N
5
+P12V_S
6
COM_RI2_SEL_N
4. J3600: PMIC SMBUS (Default NC)
Pin
Signal
1
PMIC_SDA
2
PMIC_SCL
3
GND
5. J1100: Force DNX FW Load (Default NC)
Short Pin 1-2 = Force
NC = Do Not Force (Default)
Pin
Signal
1
SOC_COM2_TXD
2
+P1V8_A
6. JBWP1: SPIROM WP (Default NC)
Pin
Signal
1
SOC_GPIO8
2
SPI0_WP_N
7. JSPI1: BIOS Flash
Pin
Signal
1
SPI0_HOLD_N
2
NC
3
SPI0_CS_N
4
+P1V8_A_SPI
5
SPI0_MISO_R

IIOT-I300 User Manual
17
6
NC
7
NC
8
SPI0_CLK
9
GND
10
SPI0_MOSI
8. RST2: SW/HW Reset (Default Pin 2-3)
Pin 1-2 SW Reset
Pin 2-3 HW Reset
Pin
Signal
1
SIO_SW_RST_N
2
SW_RST_BTN_N
3
HW_RST_BTN_N
9. JCMOS1: RTC CMOS1 (Default Pin 1-2)
Pin 1-2 Normal
Pin 2-3 Clear RTC
Pin
Signal
1
NC
2
SRTCRST_N
3
GND
10. JCMOS2: RTC CMOS2 (Default Pin 1-2)
Pin 1-2 Normal
Pin 2-3 Clear RTC
Pin
Signal
1
NC
2
RTEST_N
3
GND
11. JCASEOPEN1: Case Open Function
Pin
Signal
1
GND
2
SIO_CASEOPEN0_N

IIOT-I300 User Manual
18
12. M2_B: M.2 B-Key
Pin
Signal
Pin
Signal
1
NC
2
+P3V3_M2B
3
GND
4
+P3V3_M2B
5
GND
6
F_CARD_PWROFF_N
7
USB_D+
8
M2B_W_DIS_N
9
USB_D-
10
WWAN_LED_N
11
GND
12
Key(Notch location)
13
Key(Notch location)
14
Key(Notch location)
15
Key(Notch location)
16
Key(Notch location)
17
Key(Notch location)
18
Key(Notch location)
19
Key(Notch location)
20
NC
21
NC
22
NC
23
NC
24
NC
25
NC
26
M2B_GPS_DIS_N
27
GND
28
NC
29
USB3_RXN
30
UIM1_RST_R
31
USB3_RXP
32
UIM1_CLK_R
33
GND
34
UIM1_DAT_R
35
USB3_TXN
36
UIM1_PWR
37
USB3_TXP
38
M2B_GPIO11
39
GND
40
M2B_UIM2_DET
41
NC
42
M2B_UIM2_DAT_R
43
NC
44
M2B_UIM2_CLK_R
45
GND
46
M2B_UIM2_RST_R
47
NC
48
M2B_UIM2_PWR_R
49
NC
50
NC
51
GND
52
NC
53
NC
54
NC
55
NC
56
NC
57
GND
58
NC
59
Reserved
60
NC
61
Reserved
62
NC
63
Reserved
64
NC
65
Reserved
66
M2B_UIM1_DET
67
RESET#
68
NC
69
Config1
70
+P3V3_M2B

IIOT-I300 User Manual
19
71
GND
72
+P3V3_M2B
73
GND
74
+P3V3_M2B
75
NC
13. SATAPWR1: SATA1 Power Connector
Pin
Signal
1
+P12V_S
2
GND
3
GND
4
+P5V_S
14. SATA1: SATA Connector
Pin
Signal
1
GND
2
SATA_TXP
3
SATA_TXN
4
GND
5
SATA_RXN
6
SATA_RXP
7
GND
15. MSATA1: MSATA Connector
Pin
Signal
Pin
Signal
1
NC
2
+P3V3_S
3
NC
4
GND
5
NC
6
NC
7
NC
8
NC
9
GND
10
NC
11
NC
12
NC
13
NC
14
NC
15
GND
16
NC
17
NC
18
GND
19
NC
20
NC
21
GND
22
NC
23
SATA_RXP
24
+P3V3_S
25
SATA_RXN
26
GND
27
GND
28
NC

IIOT-I300 User Manual
20
29
GND
30
NC
31
SATA_TXN
32
NC
33
SATA_TXP
34
GND
35
GND
36
NC
37
GND
38
NC
39
+P3V3_S
40
GND
41
+P3V3_S
42
NC
43
NC
44
NC
45
NC
46
NC
47
NC
48
NC
49
NC
50
GND
51
NC
52
+P3V3_S
16. M2_E: M.2 E-Key
Pin
Signal
Pin
Signal
1
GND
2
+P3V3_S
3
USB2_D+
4
+P3V3_S
5
USB2_D-
6
LED_WLAN1_N
7
GND
8
NC
9
NC
10
NC
11
NC
12
NC
13
NC
14
NC
15
NC
16
LED_WLAN2_N
17
NC
18
GND
19
NC
20
NC
21
NC
22
NC
23
NC
24
Key(Notch location)
25
Key(Notch location)
26
Key(Notch location)
27
Key(Notch location)
28
Key(Notch location)
29
Key(Notch location)
30
Key(Notch location)
31
Key(Notch location)
32
NC
33
GND
34
NC
35
PCIE_M2E_TXP
36
NC
37
PCIE_M2E_TXN
38
NC
39
GND
40
NC
41
PCIE_M2E_RXP
42
NC
43
PCIE_M2E_RXN
44
NC
