Lanner LEC-7242 User manual

LEC-7242
User Manual
Version: 1.9
Date of Release:2023-06-15
Industrial Embedded Platforms

LEC-7242 User Manual
2
This manual describes the overview of the various functionalities of this product, and the information you
need to get it ready for operation. It is intended for those who are:
-responsible for installing, administering and troubleshooting this system or Information Technology
professionals.
-assumed to be qualified in the servicing of computer equipment, such as professional system
integrators, or service personnel and technicians.
The latest version of this document can be found on Lanner’s official website, available either through the
product page or through the Lanner Download Center page with a login account and password.
The icons are used in the manual to serve as an indication of interest topics or important messages. Below
is a description of these icons.
Icon
Usage
This mark indicates that there is something you should pay special
attention to while using the product.
This mark indicates that there is a caution or warning and it is
something that could damage your property or product.
To obtain additional documentation resources and software updates for your system, please visit the
Lanner Download Center. As certain categories of documents are only available to users who are logged
in, please be registered for a Lanner Account at http://www.lannerinc.com/ to access published documents
and downloadable resources.
In addition to contacting your distributor or sales representative, you could submit a request at our Lanner
Technical Support and fill in a support ticket to our technical support department.
Your feedback is valuable to us, as it will help us continue to provide you with more accurate and relevant
documentation. To provide any feedback, comments or to report an error, please email to
[email protected]m, Thank you for your time.
This document is copyrighted © 2023 by Lanner Electronics Inc. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products described in this manual at any
time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any
form or by any means without the prior written permission of the original manufacturer.
Information provided in this manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, nor for any infringements upon the rights of third
parties that may result from such use.
Note or Information
Warning or Important

LEC-7242 User Manual
3
Taiwan Corporate Headquarters
Lanner Electronics Inc.
7F, No.173, Sec.2, Datong Rd.
Xizhi District, New Taipei City 22184,
Taiwan
立端科技股份有限公司
221 新北市汐止區
大同路二段 173 號7樓
T: [phone]
F: [phone]
E: [email protected]m
China
Beijing L&S Lancom Platform Tech. Co., Ltd.
Guodong LOFT 9 Layer No. 9 Huinan Road,
Huilongguan Town, Changping District, Beijing
102208 China
T: [phone]
F: [phone]
E: [e-mail]
USA
Lanner Electronics Inc.
47790 Westinghouse Drive
Fremont, CA 94539
T: [phone]
F: [phone]
E: [e-mail]
Canada
Lanner Electronics Canada Ltd
3160A Orlando Drive
Mississauga, ON
L4V 1R5 Canada
T: [phone]
F: [phone]
E: [e-mail]
Europe
Lanner Europe B.V.
Wilhelmina van Pruisenweg 104
2595 AN The Hague
The Netherlands
T: [phone]
E: [e-mail]

LEC-7242 User Manual
4
Intel® and Intel® Celeron® are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Note
1. An unshielded-type power cord is required in order to meet FCC emission limits and also to prevent interference
to the nearby radio and television reception. It is essential that only the supplied power cord be used.
2. Use only shielded cables to connect I/O devices to this equipment.
3. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Important
1. Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
2. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.

LEC-7242 User Manual
5
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and roll up your
sleeves.
Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before installing or removing a
chassis or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.
Suivez ces consignes pour assurer la sécuritégénérale :
Laissez la zone du châssis propre et sans poussière pendant et après l’installation.
Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis. Attachez votre cravate ou
écharpe et remontez vos manches.
Portez des lunettes de sécurité pour protéger vos yeux.
N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre l’équipement dangereux.
Coupez complètement l’alimentation en éteignant l’alimentation et en débranchant le cordon d’alimentation avant
d’installer ou de retirer un châssis ou de travailler à proximité de sources d’alimentation.
Ne travaillez pas seul si des conditions dangereuses sont présentes.
Ne considérez jamais que l’alimentation est coupée d’un circuit, vérifiez toujours le circuit. Cet appareil génère,
utilise et émet une énergie radiofréquence et, s’il n’est pas installé et utilisé conformément aux instructions des
fournisseurs de composants sans fil, il risque de provoquer des interférences dans les communications radio.
There is risk of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Installation should be conducted only by a trained electrician or only by an electrically trained person who knows
all installation procedures and device specifications which are to be applied.
Do not carry the handle of power supplies when moving to another place.
Please conform to your local laws and regulations regarding safe disposal of lithium battery.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an
explosion.
Leaving a battery in an extremely high temperature environment can result in an explosion or the leakage of
flammable liquid or gas.
A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or
gas.
Risque d’explosion si la pile est remplacée par une autre d’un mauvais type.
Jetez les piles usagées conformément aux instructions.
L’installation doit être effectuée par un électricien formé ou une personne formée à l’électricité connaissant toutes
les spécifications d’installation et d’appareil du produit.
Ne transportez pas l’unité en la tenant par le câble d’alimentation lorsque vous déplacez l’appareil.
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment to
acceptable operating temperatures without adequate circulation. Be sure that the room in which you choose to
operate your system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively. An open
chassis permits air leaks, which may interrupt and redirect the flow of cooling air from internal components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when
electronic components are improperly handled and can result in complete or intermittent failures. Be sure to follow

LEC-7242 User Manual
6
ESD-prevention procedures when removing and replacing components to avoid these problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is available, ground
yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1 and 10 megohms
(Mohms).
L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être adéquate pour refroidir
l’équipement à une température de fonctionnement acceptable sans circulation adaptée. Vérifiez que votre site
propose une circulation d’air adéquate.
Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de refroidissement de bien
circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut interrompre et rediriger le flux d’air frais destiné aux
composants internes.
Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les circuits électriques. Des
dégâts d’ESD surviennent lorsque des composants électroniques sont mal manipulés et peuvent causer des pannes
totales ou intermittentes. Suivez les procédures de prévention d’ESD lors du retrait et du remplacement de
composants.
Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est disponible,
reliez votre corps àla terre en touchant la partie métallique du châssis.
Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise entre 1 et 10
mégohms (Mohms).
Mounting Installation Precautions
The following should be put into consideration for rack-mount or similar mounting installations:
Do not install and/or operate this unit in any place that flammable objects are stored or used in.
The installation of this product must be performed by trained specialists; otherwise, a non-specialist might create
the risk of the system’s falling to the ground or other damages.
Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for supporting the
system or use of inappropriate installation components.
Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given
to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified
by the manufacturer.
Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of airflow required for
safe operation of the equipment is not compromised.
Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not
achieved due to uneven mechanical loading.
Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and
the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing this concern.
Reliable Grounding - Reliable grounding of rack mounted equipment should be maintained. Particular attention
should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

LEC-7242 User Manual
7
Before turning on the device, ground the grounding cable of the equipment. Proper grounding (grounding) is very
important to protect the equipment against the harmful effects of external noise and to reduce the risk of
electrocution in the event of a lightning strike. To uninstall the equipment, disconnect the ground wire after turning
off the power. A ground wire is required and the part connecting the conductor must be greater than 4 mm2 or 10
AWG.
This equipment must be grounded. The power cord for product should be connected to a socket-outlet with earthing
connection.
Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National Electrical
Code and NFPA 75.
The machine can only be used in a restricted access location and has installation instructions by a skilled person.
Avant d’allumer l’appareil, reliez le câble de mise à la terre de l’équipement à la terre. Une bonne mise à la terre
(connexion à la terre) est très importante pour protéger l’équipement contre les effets néfastes du bruit externe et
réduire les risques d’électrocution en cas de foudre. Pour désinstaller l’équipement, débranchez le câble de mise à la
terre après avoir éteint l’appareil. Un câble de mise à la terre est requis et la zone reliant les sections du conducteur
doit faire plus de 4 mm2 ou 10 AWG.
Cet équipement doit être mis àla terre. La fiche d'alimentation doit être connectée àune prise de terre correctement
câblée
Peut être installédans des salles de matériel de traitement de l'information conformément àl'article 645 du National
Electrical Code et àla NFPA 75.
Les matériels sont destinés àêtre installés dans des EMPLACEMENTS À ACCÈS RESTREINT.
Connect the grounding cable to the ground.
The protection device for the DC power source must provide 30 A current.
This protection device must be connected to the power source before DC power.
Branchez le câble de mise à la terre àla terre.
L’appareil de protection pour la source d’alimentation CC doit fournir 30 A de courant.
Cet appareil de protection doit être branché à la source d’alimentation avant
l’alimentation CC.
Important
1. The appliance is only to be connected to network without routing to outside plant.
2. Instruction for the installation of the conductor to building earth by a skilled person.

LEC-7242 User Manual
8
Package Content...........................................................................................................................9
Ordering Information ...................................................................................................................9
System Specifications.................................................................................................................10
Front Panel .................................................................................................................................11
Rear Panel...................................................................................................................................12
Motherboard Information..........................................................................................................13
Opening the Chassis ...................................................................................................................20
Installation for LTE Module (Optional).......................................................................................21
Installation for SIM Card.............................................................................................................21
Installation for Wi-Fi Module (Optional)....................................................................................22
Wall Mounting............................................................................................................................23
Advanced....................................................................................................................................24
Warranty Policy ..........................................................................................................................26

LEC-7242 User Manual
9
The LEC-7242 is an industrial environment gateway IPC with Intel® Apollo Lake CPU. This wireless gateway
with FCC/CE/PTCRB certification for LTE or Wifi is designed for IoT/IIoT edge, wireless security and multi-site
management solution deployment in commercial, enterprise and public sector applications.
Your package contains the following items:
1 x LEC-7242 IOT Gateway
1 x 60W Power Adaptor
SKU No.
Main Features
LEC-7242A
Commercial Grade (OP Temp 0~50C), Intel® Celeron® N3350, 8GB LPDDR4 Memory, 1x
SATA 2.5” Drive Bay, Intel® i210AT Ethernet, Mini-PCIe for LTE, M.2 for LTE, with AC/DC
Adapter
LEC-7242B
Commercial Grade (OP Temp 0~50C), Intel® Celeron® N3350, 8GB LPDDR4 Memory, 1x
SATA 2.5” Drive Bay, Intel® i210AT Ethernet, Mini-PCIe for LTE, M.2 for Wi-Fi, with AC/DC
Adapter
LEC-7242C
Commercial Grade (OP Temp 0~50C), Intel® Atom® X5-E3940, 8GB LPDDR4 Memory, 1x
SATA 2.5” Drive Bay, Intel® i210IT Ethernet, Mini-PCIe for LTE, M.2 for LTE, with AC/DC
Adapter
LEC-7242D
Commercial Grade (OP Temp 0~50C), Intel® Atom® X5-E3940, 8GB LPDDR4 Memory, 1x
SATA 2.5” Drive Bay, Intel® i210IT Ethernet, Mini-PCIe for LTE, M.2 for Wi-Fi, with AC/DC
Adapter

LEC-7242 User Manual
10
Processor System
CPU
SKU A/B: Intel® Celeron® N3350 (Apollo Lake)
SKU C/D: Intel® Atom® X5-E3940 (Apollo Lake)
Frequency
SKU A/B: 2.40 GHz
SKU C/D:1.8 GHz
Core Number
SKU A/B: 2 cores
SKU C/D: 4 cores
BIOS
AMI SPI Flash BIOS, 16Mbit
Fanless
Yes
System Memory
Technology
Onboard Non-ECC LPDDR4 2400
Max. Capacity
8 GB (Default 8 GB)
Graphic
Controller
Intel® HD Graphics 500
Interface
1x HDMI;
1x Display Port
Ethernet
Controller
SKU A/B: Intel® i210AT
SKU C/D: Intel® i210-IT
Speed
10/100/1000Mbps
Interface
2x RJ45 LAN Ports
Storage
1x SATA 2.5” Drive Bay
Expansion
mini-PCIe
1x Mini PCIe socket w/ Dual SIM for LTE
1x M.2 3042 B+M Key Socket w/ Dual SIM for LTE or Wi-Fi
I/O
Serial Port
1x RS-232/422/485, DB9 Male Ports
Power Button
1x Power On/Off Button
Reset Button
1x Reset Button
USB Port
2x USB 3.0 Type A Port
LED Indicator
Power on Status/Alarm/ GPS status/ LTE status;
LTE signal level status
Watchdog Timer
Watchdog Timer 1~255 Level Time Interval System Reset,
software programmable
Power
System Requirement
+12Vdc
Input Connector
DC Jack with lock
Adapter
Rated Input Range: 100~240Vac, 60W
Output Rated Voltage: +12Vdc
Environment
Operating Temperature
0 ~ 50ºC / -20~70 ºC
Relative Humidity
5% ~ 95%, non-condensing
Mechanical
Dimension (W x H x D)
168x 40 x 145 mm
Construction
Aluminum Extrusion + SGCC
Weight
1kg
Mounting
Wall mount
Driver Support
Microsoft Windows
WES7E, Win7 Pro FES, WE 8.1 Industry Pro, Win 10 IoT
Linux
Kernel 3.12
Certification
CE/FCC Class A, UL
PTCRB
Device HW Version: MSA7308-203, MSA7307-803, MSA8008-003, MSA8007-003
Device SW Version: FLEB7242A00006V113 (0A0W000006790),
FLEB7242B00006V113 (0A0W000006814)
LTE Module: EG25G (0TAW000234000)
Wi-Fi Module: WNFQ-262ACNI (0TAW000257000)

LEC-7242 User Manual
11

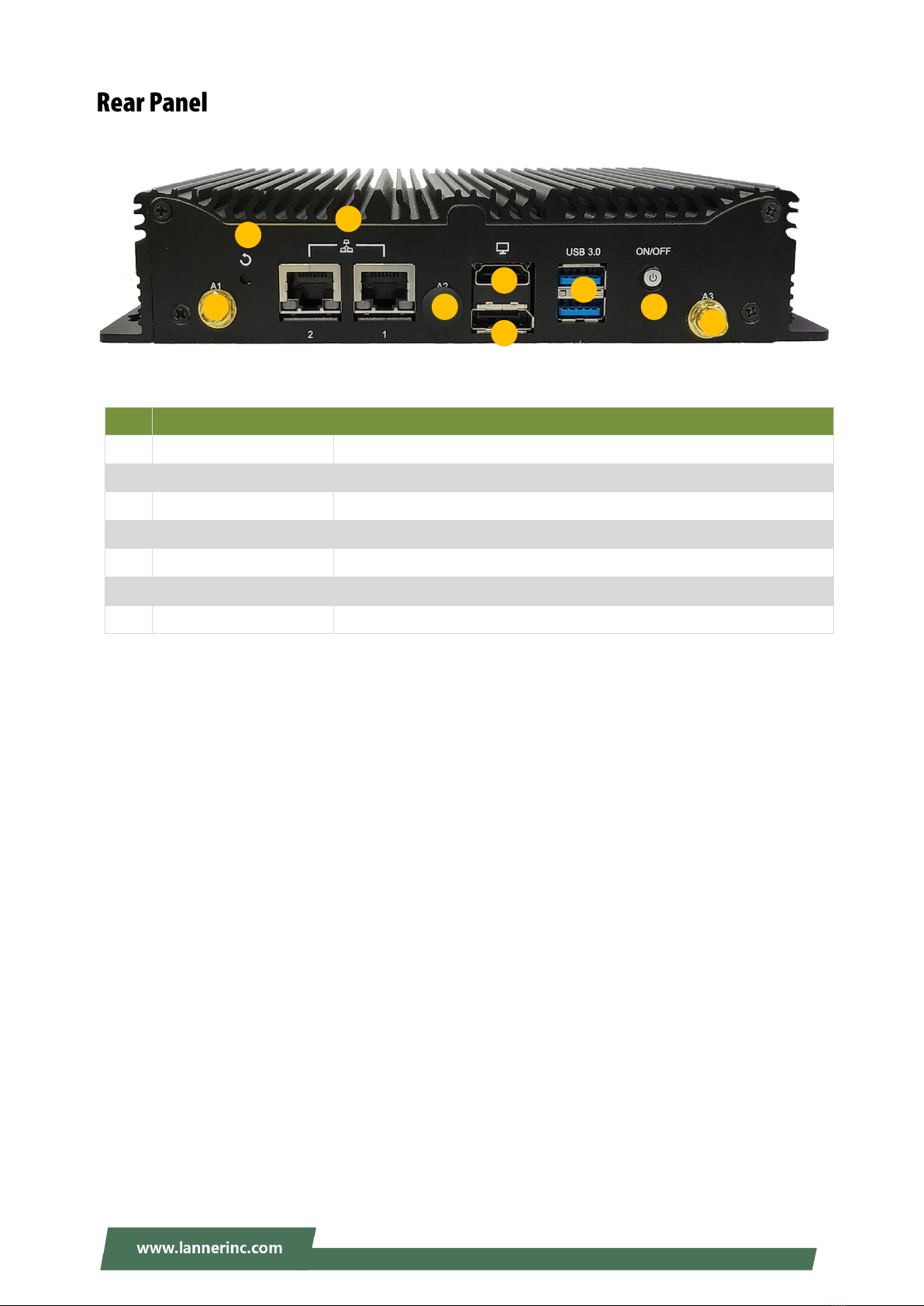

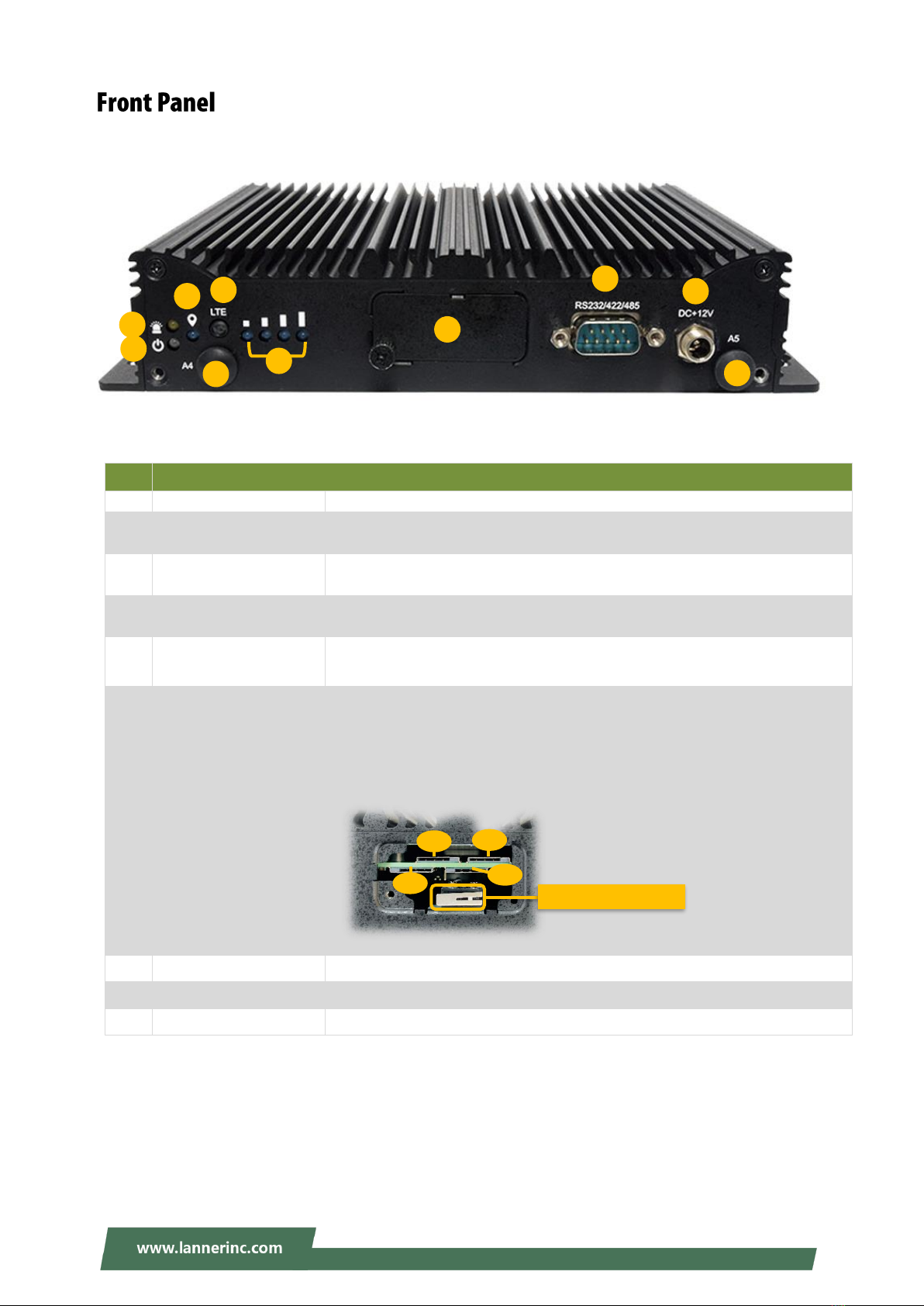

No.
Description
F1
Alarm Indicator
Yellow LED for Alarm (Programmable by customer software)
F2
Power Status Indicator
1x Green LED for Power ON Status
(Standby in Red and Power ON in Green)
F3
GPS Indicator
1x Blue LED for GPS status
(GPS from M.2 LTE module, Programmable by customer software)
F4
LTE Indicator
1x Yellow/ Green / Red for LTE status
(Programmable by customer software)
F5
LTE Signal Strength
Indicator
4x Blue LED for LTE signal level status
(Programmable by customer software)
F6
Dual SIM Card slot
SIM1, SIM2 for M.2 LTE module
SIM3, SIM4 for mini-PCIe LTE module
Note: There is need to shut down the system while installing/exchanging
the SIM card. The Cover-Remove-detect I/O will deliver the GPO signal
and cut off the Power of m.2 and mini PCIe while uninstalls the cover.
F7
COM Port
1x DB9 male Port for RS232/422/485
F8
DC-in Jack
1x DC 12V direct power input
F9
Antenna Hole
2x Antenna Holes for LTE/Wi-Fi
F4
F9
F1
F2
F3
F7
F6
F8
F9
F5
SIM3
SIM2
SIM4
SIM1
Cover-Remove-detect I/O

LEC-7242 User Manual
12
No.
Description
R1
Reset Button
1x Reset Button
R2
LAN Port
2x RJ45 Port
R3
HDMI Port
1x HDMI Port
R4
Display Port
1x Display Port
R5
USB Port
2x USB 3.0 Type A Ports
R6
Power Switch
1x Power Switch
R7
Antenna Hole
3x Antenna Holes for LTE/Wi-Fi
R6
2
R7
R1
R7
R2
R7
R4
R3
R5
2

LEC-7242 User Manual
13

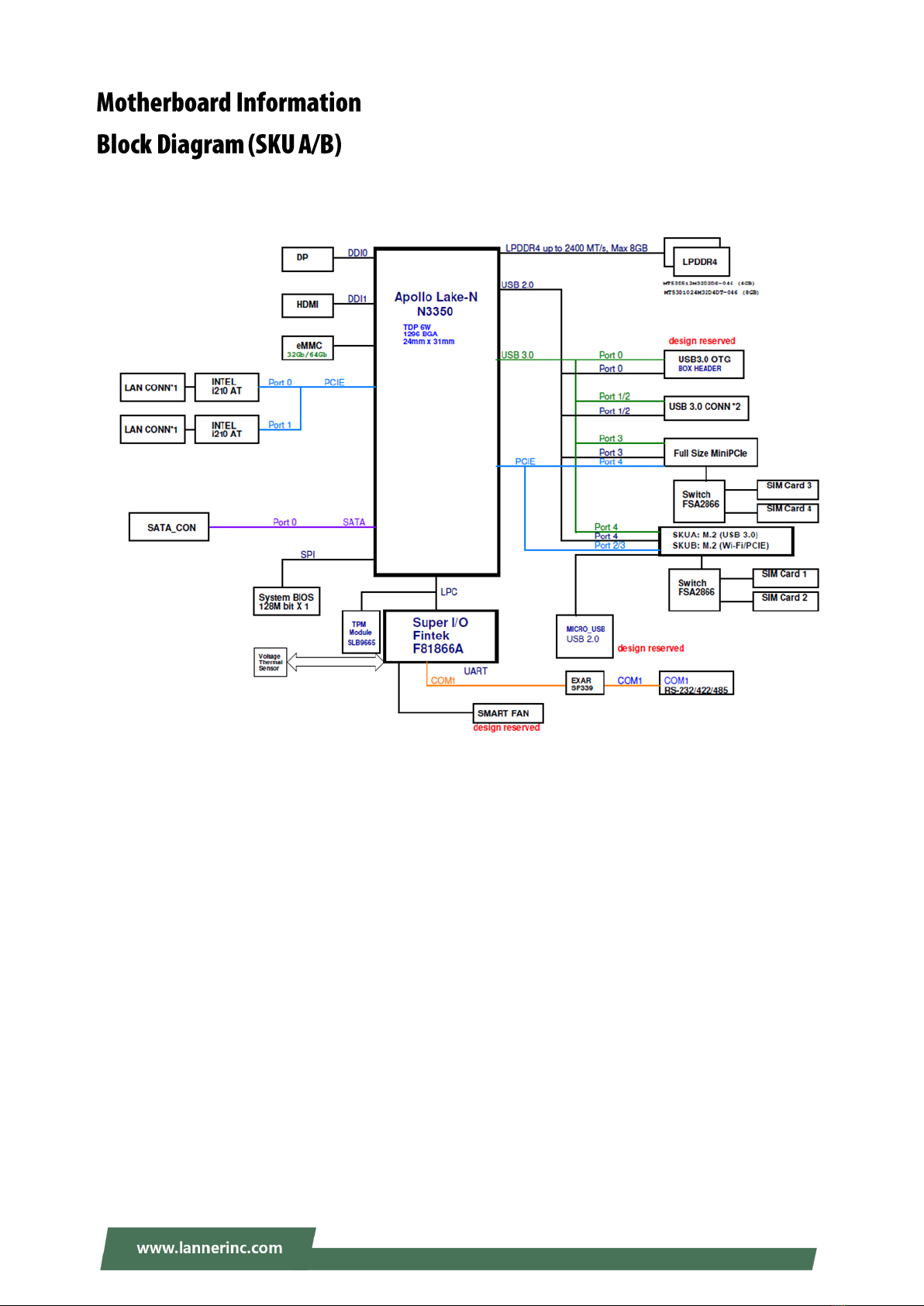

The block diagram indicates how data flows among components on the motherboard. Please refer to the
following figure for your motherboard’s layout design.

LEC-7242 User Manual
14
The block diagram indicates how data flows among components on the motherboard. Please refer to the
following figure for your motherboard’s layout design.

LEC-7242 User Manual
15
LPC1
JCOMS2
JRI1
JCOMS1
JSPI1
RST3

LEC-7242 User Manual
16
DCJACK1 (+12V)
Pin
Signal
1
DCIN
2
GND
3
GND
JRI1: 1-2 (Default) COM1
Pin
Signal
1
COM_RI1#_P
2
COM_RI1#_SEL
3
V5_S
4
COM_RI1#_SEL
5
V12_S
6
COM_RI1#_SEL
RST3: 2-3 (Default) RST4
1-2 Software Reset
2-3 Hardware Reset (Default)
Pin
Signal
1
GPIO_SW_RST
2
SW_RST_BTN_N
3
FP_RST_N
JCOMS1
Pin
Signal
1
NC
2
VCCRTC_3P3
3
GND
JCOMS2
Pin
Signal
1
NC
2
RTEST_N
3
GND

LEC-7242 User Manual
17
JSPI1
Pin
Signal
1
SPI0_HOLD_N
2
N/A
3
SPI0_CS_N
4
V1P8_A_SPI
5
SPI0_MISO_R
6
N/A
7
N/A
8
SPI0_CLK
9
GND
10
SPI0_MOSI
LPC1
Pin
Signal
1
L_CLKOUT1
2
LPC_AD1
3
PLTRST_BUF2_N
4
LPC_AD0
5
LPC_FRAME#
6
V3P3_S
7
LPC_AD3
8
GND
9
LPC_AD2
10
GND
COM1
Pin
Signal
1
COM_DCD1#_P
2
COM_RXD1_P
3
COM_TXD1_P
4
COM_DTR1#_P
5
GND
6
COM_DSR1#_P
7
COM_RTS1#_P
8
COM_CTS1#_P
9
COM_RI1#_SEL

LEC-7242 User Manual
18
M.2
Pin
Signal
Pin
Signal
Pin
Signal
1
NC
26
NC
51
GND
2
V3P3_G1
27
GND
52
NC
3
GND
28
UIM1_VPP
53
PCIE_REFCLK2_DN
4
V3P3_G1
29
M2_USB3_RXN
54
NC
5
GND
30
UIM1_RST
55
PCIE_REFCLK2_DP
6
PWROFF1#
31
M2_USB3_RXP
56
NC
7
USB2_DP4_M2
32
UIM1_CLK
57
GND
8
W_DIS1#
33
GND
58
NC
9
USB_DN4_M2
34
UIM1_DAT
59
ANTCTL0
10
NGFF_LED_1N
35
M2_USB3_TXN
60
NC
11
GND
36
UIM1_PWR
61
ANTCTL1
12
NC
37
M2_USB3_TXP
62
NC
13
NC
38
NC
63
ANTCTL2
14
NC
39
GND
64
NC
15
NC
40
NC
65
ANTCTL3
16
NC
41
PCIE2_RXN
66
NC
17
NC
42
NC
67
PERST#M
18
NC
43
PCIE2_RXP
68
NC
19
NC
44
NC
69
NC
20
NC
45
GND
70
V3P3_G1
21
NC
46
NC
71
GND
22
NC
47
PCIE2_TXP
72
V3P3_G1
23
NC
48
NC
73
GND
24
NC
49
PCIE_TXP
74
V3P3_G1
25
NC
50
PERST#M
75
NC
MiniPCIE2
Pin
Signal
Pin
Signal
1
PCIE_WAKE2_LAN_N(NC)
2
V3P3_G2
3
NC
4
GND
5
NC
6
V1PS_MPCIE2
7
V3P3_G2(NC)
8
UIM2_PWR
9
GND
10
UIM2_DAT
11
PCIE_REFCLK3_DN
12
UIM2_CLK
13
PCIE_REFCLK3_DP
14
UIM2_RST
15
GND
16
UIM2_VPP

LEC-7242 User Manual
19
17
NC
18
GND
19
NC
20
V3P3_G2(NC)
21
GND
22
PERST#2
23
USB3_RX3_N
24
V3P3_G2
25
USB3_RX3_P
26
GND
27
GND
28
V1PS_MPCIE2
29
GND
30
SMB_3P3_SCL(NC)
31
USB3_TX3_N
32
SMB-3P3_SDA(NC)
33
USB3_TX3_P
34
GND
35
GND
36
USB2_DN3
37
GND
38
USB2_DP3
39
V3P3_G2
40
GND
41
V3P3_G2
42
NC
43
GND
44
NC
45
NC
46
NC
47
NC
48
V1P5_MPCIE2
49
NC
50
GND
51
NC
52
V3P3_G2

LEC-7242 User Manual
20

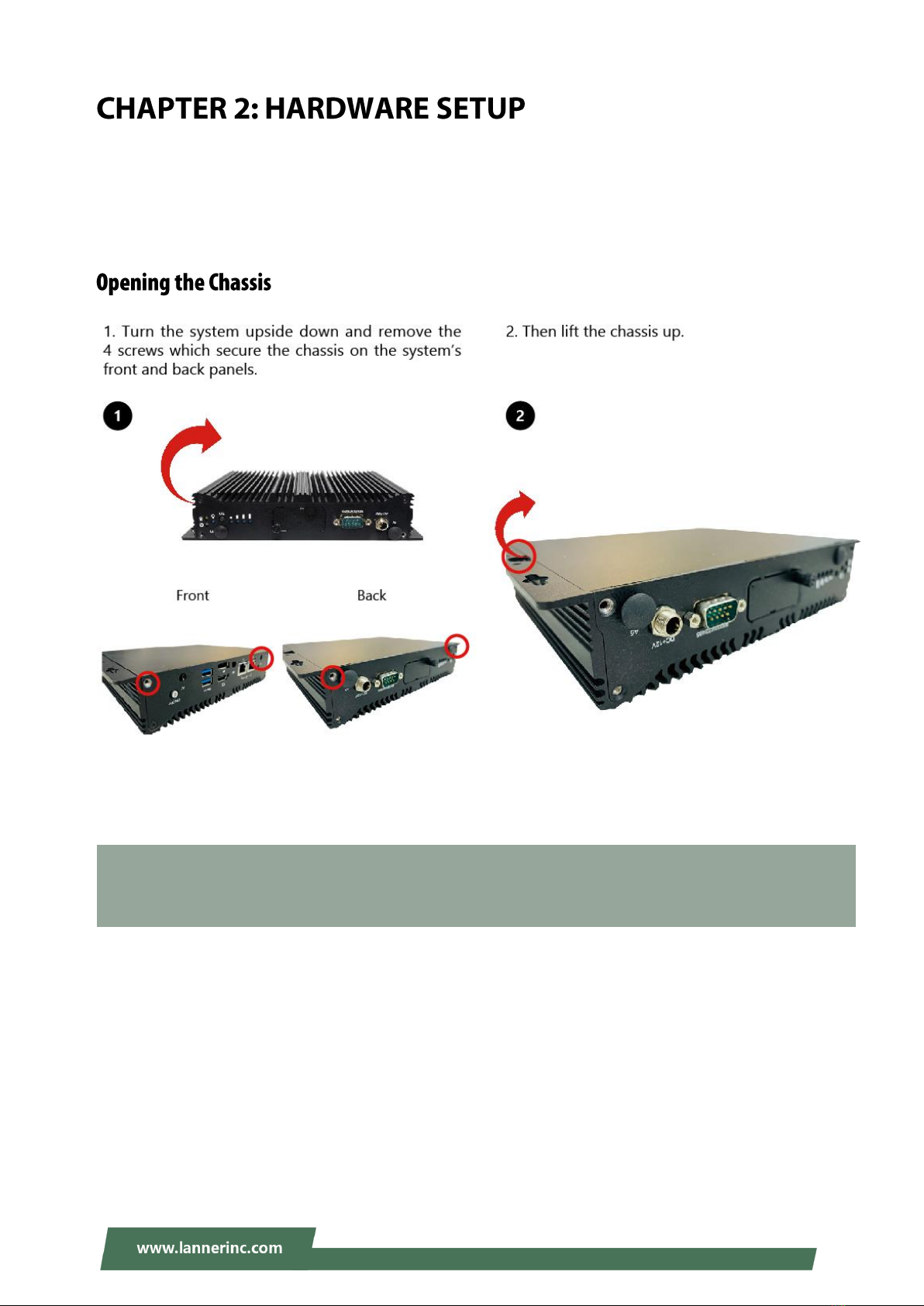

To reduce the risk of personal injury, electric shock, or damage to the unit, please remove all power
connections to completely shut down the device, and wear ESD protection gloves when handling the
installation steps.
1x Mini PCIe socket w/ Dual SIM for LTE
1x M.2 3042 B+M Key Socket w/ Dual SIM for LTE or Wi-Fi
