Lanner LEC-2290 User manual

LEC-2290 User Manual
1
LEC-2290
User Manual
Version: 1.0
Date of Release: 2020-11-27
Embedded Computing Platform

LEC-2290 User Manual
2
Icon Descriptions
The icons are used in the manual to serve as an indication of interest topics or important messages. Below
is a description of these icons:
Note: This mark indicates that there is a note of interest and is something that you should pay
special attention to while using the product.
Warning: This mark indicates that there is a caution or warning and it is something that could
damage your property or product.
Online Resources
The listed websites are links to the on-line product information and technical support.
Resources
URL
Lanner
http://www.lannerinc.com
Product Resource
http://www.lannerinc.com/download-
center
RMA
http://eRMA.lannerinc.com
Copyright and Trademarks
This document is copyrighted © 2019. All rights are reserved. The original manufacturer reserves the right
to make improvements to the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without the prior written permission of the original manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original manufacturer assumes no responsibility for its
use, nor for any infringements upon the rights of third parties that may result from such use.
Acknowledgment
Intel® , Intel® Core™are trademarks or registered trademarks of Intel Corporation or its subsidiaries in
the U.S. and/or other countries.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.

LEC-2290 User Manual
3
Compliances and Certification
This product has passed the CE test for environmental specifications. Test conditions for passing included
the equipment being operated within an industrial enclosure. In order to protect the product from being
damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-
compliant industrial enclosure products.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. The operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
EMC Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. The operation of this
equipment in a residential area is likely to cause harmful interference in which case users will be required
to correct the interference at their own expense.
Safety Guidelines
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and
roll up your sleeves.
Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before installing or
removing a chassis or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.
Consignes de sécurité
Suivez ces consignes pour assurer la sécurité générale :
Laissez la zone du châssis propre et sans poussière pendant et après l’installation.
Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis. Attachez votre
cravate ou écharpe et remontez vos manches.
Portez des lunettes de sécurité pour protéger vos yeux.
N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre l’équipement
dangereux.
Coupez complètement l’alimentation en éteignant l’alimentation et en débranchant le cordon
d’alimentation avant d’installer ou de retirer un châssis ou de travailler à proximité de sources
d’alimentation.

LEC-2290 User Manual
4
Ne travaillez pas seul si des conditions dangereuses sont présentes.
Ne considérez jamais que l’alimentation est coupée d’un circuit, vérifiez toujours le circuit. Cet appareil
génère, utilise et émet une énergie radiofréquence et, s’il n’est pas installé et utilisé conformément aux
instructions des fournisseurs de composants sans fil, il risque de provoquer des interférences dans les
communications radio.
Lithium Battery Caution
There is risk of Explosion if Battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Installation only by a skilled person who knows all Installation and Device Specifications which are to
be applied.
Do not carry the handle of power supplies when moving to another place.
Please conform to your local laws and regulations regarding safe disposal of lithium BATTERY.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result
in an explosion.
Leaving a battery in an extremely high temperature surrounding environment can result in an explosion
or the leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure that may result in an explosion or the leakage of
flammable liquid or gas.
Avertissement concernant la pile au lithium
Risque d’explosion si la pile est remplacée par une autre d’un mauvais type.
Jetez les piles usagées conformément aux instructions.
L’installation doit être effectuée par un électricien formé ou une personne formée à l’électricité
connaissant toutes les spécifications d’installation et d’appareil du produit.
Ne transportez pas l’unité en la tenant par le câble d’alimentation lorsque vous déplacez l’appareil.
Operating Safety
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment
to acceptable operating temperatures without adequate circulation. Be sure that the room in which you
choose to operate your system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively. An
open chassis permits air leaks, which may interrupt and redirect the flow of cooling air from internal
components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs
when electronic components are improperly handled and can result in complete or intermittent failures.
Be sure to follow ESD-prevention procedures when removing and replacing components to avoid these
problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is
available, ground yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1 and 10
megohms (Mohms).
Sécurité de fonctionnement
L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être adéquate
pour refroidir l’équipement à une température de fonctionnement acceptable sans circulation adaptée.
Vérifiez que votre site propose une circulation d’air adéquate.
Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de

LEC-2290 User Manual
5
refroidissement de bien circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut interrompre et
rediriger le flux d’air frais destiné aux composants internes.
Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les circuits
électriques. Des dégâts d’ESD surviennent lorsque des composants électroniques sont mal manipulés
et peuvent causer des pannes totales ou intermittentes. Suivez les procédures de prévention d’ESD lors
du retrait et du remplacement de composants.
Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est
disponible, reliez votre corps àla terre en touchant la partie métallique du châssis.
Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise entre 1 et
10 mégohms (Mohms).
Mounting Installation Precaution
Environment:
Do not install and/or operate this unit in any place that flammable objects are stored or used in.
If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack
environment may be greater than room ambient. Therefore, consideration should be given to installing
the equipment in an environment compatible with the maximum ambient temperature (Tma) specified
by the manufacturer.
Installation of the equipment (especially in a rack) should consider the ventilation of the system’s intake
(for taking chilled air) and exhaust (for emitting hot air) openings so that the amount of airflow required
for safe operation of the equipment is not compromised.
To avoid a hazardous load condition, be sure the mechanical loading is even when mounting.
Consideration should be given to the connection of the equipment to the supply circuit and the effect
that overloading of the circuits might have on over-current protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing this concern.
Reliable earthing should be maintained. Particular attention should be given to supply connections
other than direct connections to the branch circuit (e.g., use of power strips).
Installation & Operation:
The installation of this product must be performed by trained specialists; otherwise, a non-specialist
might create the risk of the system’s falling to the ground or other damages.
Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for
supporting the system or use of inappropriate installation components.
Electrical Safety Instructions
Before turning on the device, ground the grounding cable of the equipment. Proper grounding
(grounding) is very important to protect the equipment against the harmful effects of external noise and
to reduce the risk of electrocution in the event of a lightning strike. To uninstall the equipment, disconnect
the ground wire after turning off the power. A ground wire is required and the part connecting the
conductor must be greater than 4 mm2 or 10 AWG.
Consignes de sécurité électrique
Avant d’allumer l’appareil, reliez le câble de mise à la terre de l’équipement à la terre.
Une bonne mise àla terre (connexion àla terre) est très importante pour protéger l’équipement contre
les effets néfastes du bruit externe et réduire les risques d’électrocution en cas de foudre.
Pour désinstaller l’équipement, débranchez le câble de mise à la terre après avoir éteint l’appareil.

LEC-2290 User Manual
6
Un câble de mise à la terre est requis et la zone reliant les sections du conducteur doit faire plus de 4
mm2 ou 10 AWG.
Grounding Procedure for Power
Source
Loosen the screw of the earthing point.
Connect the grounding cable to the ground.
The protection device for the power source must provide 30 A
current.
This protection device must be connected to the power source
before power.
The cable hould 16 AWG
Procédure de mise à la terre
pour source d’alimentation
Desserrez la vis du terminal de mise àla terre.
Branchez le câble de mise à la terre à la terre.
L’appareil de protection pour la source d’alimentation doit
fournir 30 A de courant.
Cet appareil de protection doit être branché à la source
d’alimentation avant l’alimentation.
Le câble doit 16 AWG
This product is intended to be supplied by a Listed Power Adapter or DC power source, rated 12-24Vdc,
17.5-8A minimum, Tma = 70 degree C, and the altitude of operation = 5000m.
This equipment must be grounded.
Cet équipement doit être mis à la terre.
Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National
Electrical Code and NFPA 75.
Peut être installé dans des salles de matériel de traitement de l'information conformément à l'article
645 du National Electrical Code et à la NFPA 75.
The machine can only be used in a restricted access location and has installation instructions by a skilled
person.
Les matériels sont destinés àêtre installés dans des EMPLACEMENTS À ACCÈS RESTREINT.
This equipment is for INDOOR USE ONLY

LEC-2290 User Manual
7
Table of Contents
Package Content.........................................................................................................................8
Ordering Information.................................................................................................................8
System Specifications.................................................................................................................9

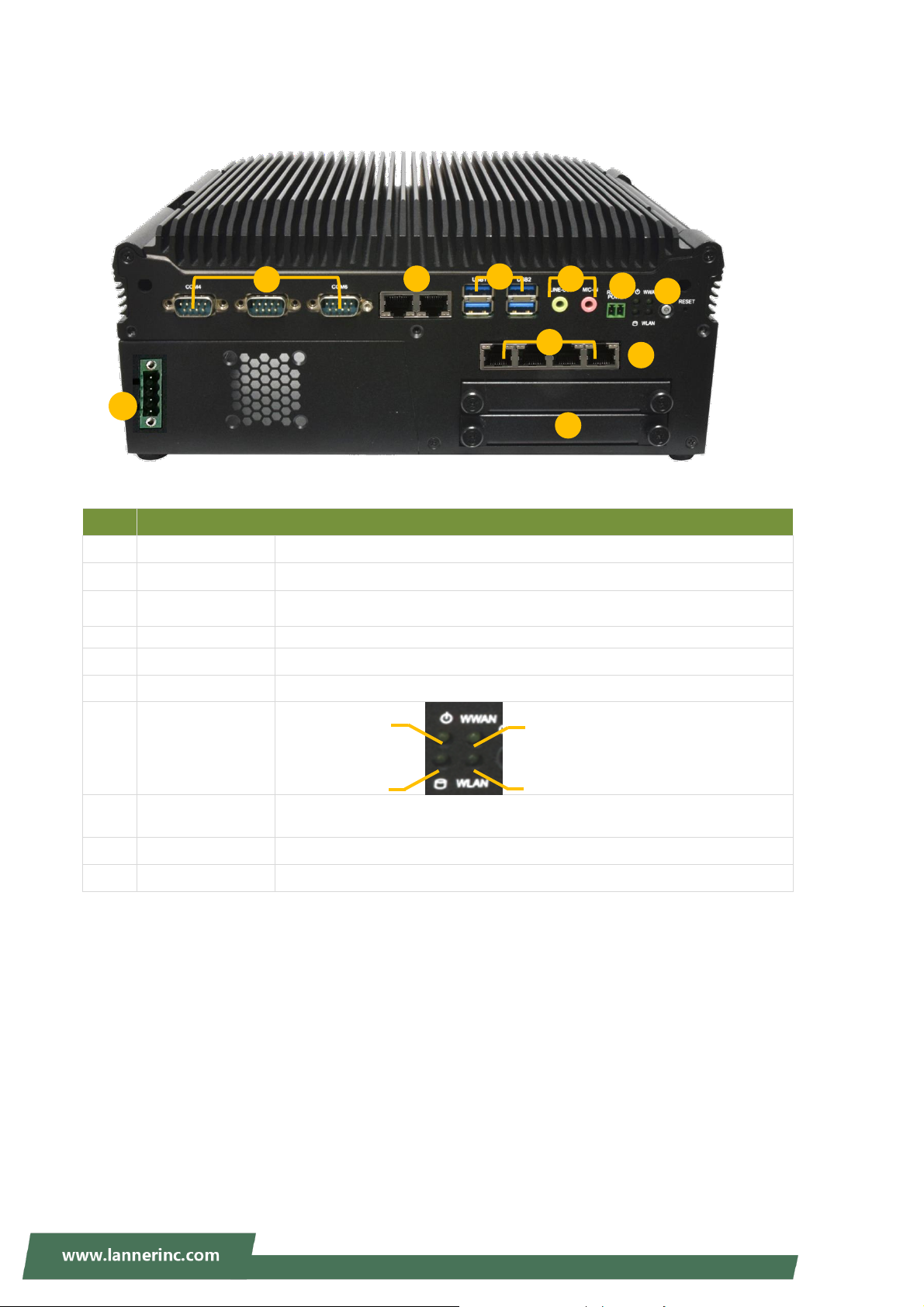

Front Panel ...............................................................................................................................11

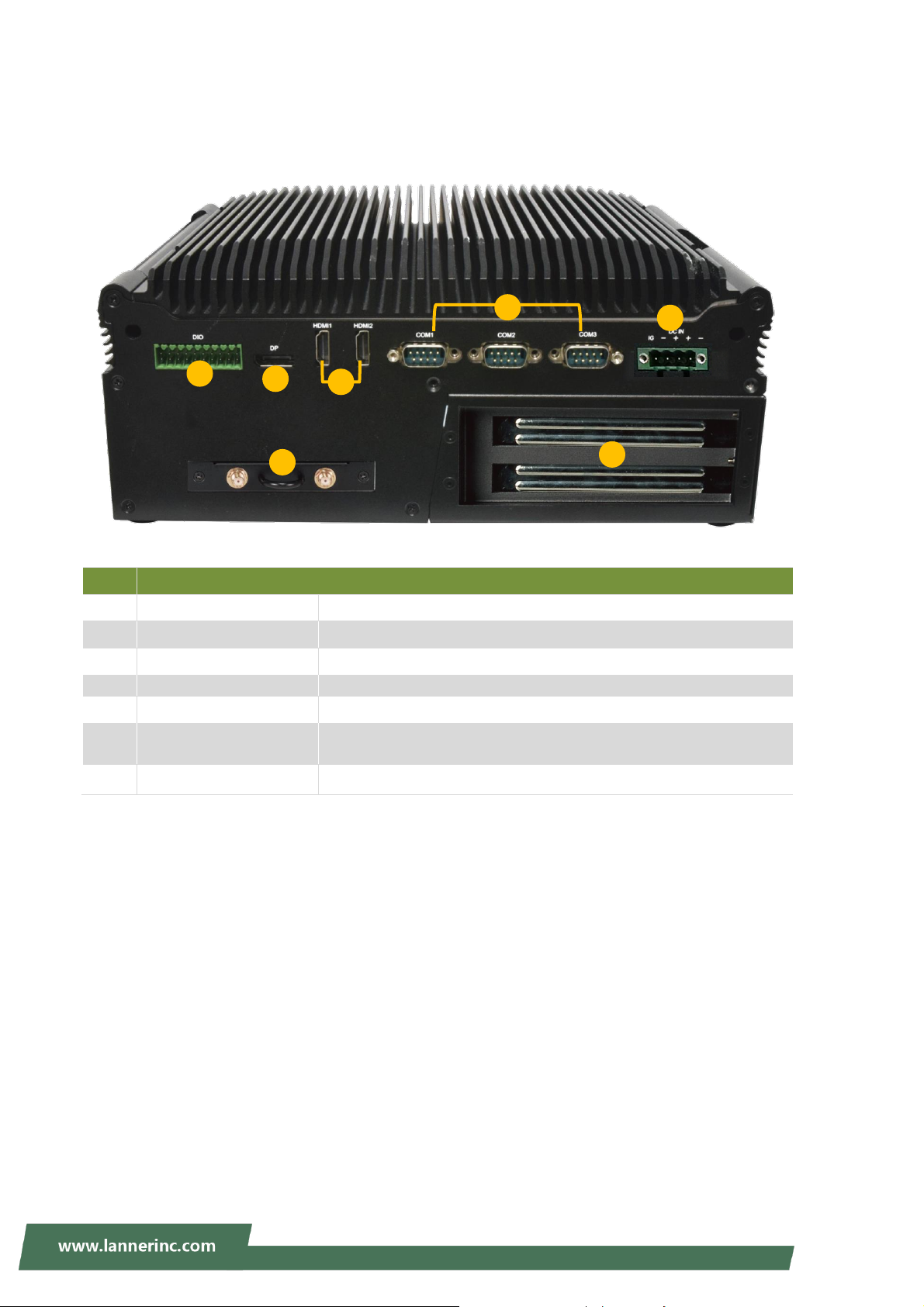

Rear Panel ................................................................................................................................12

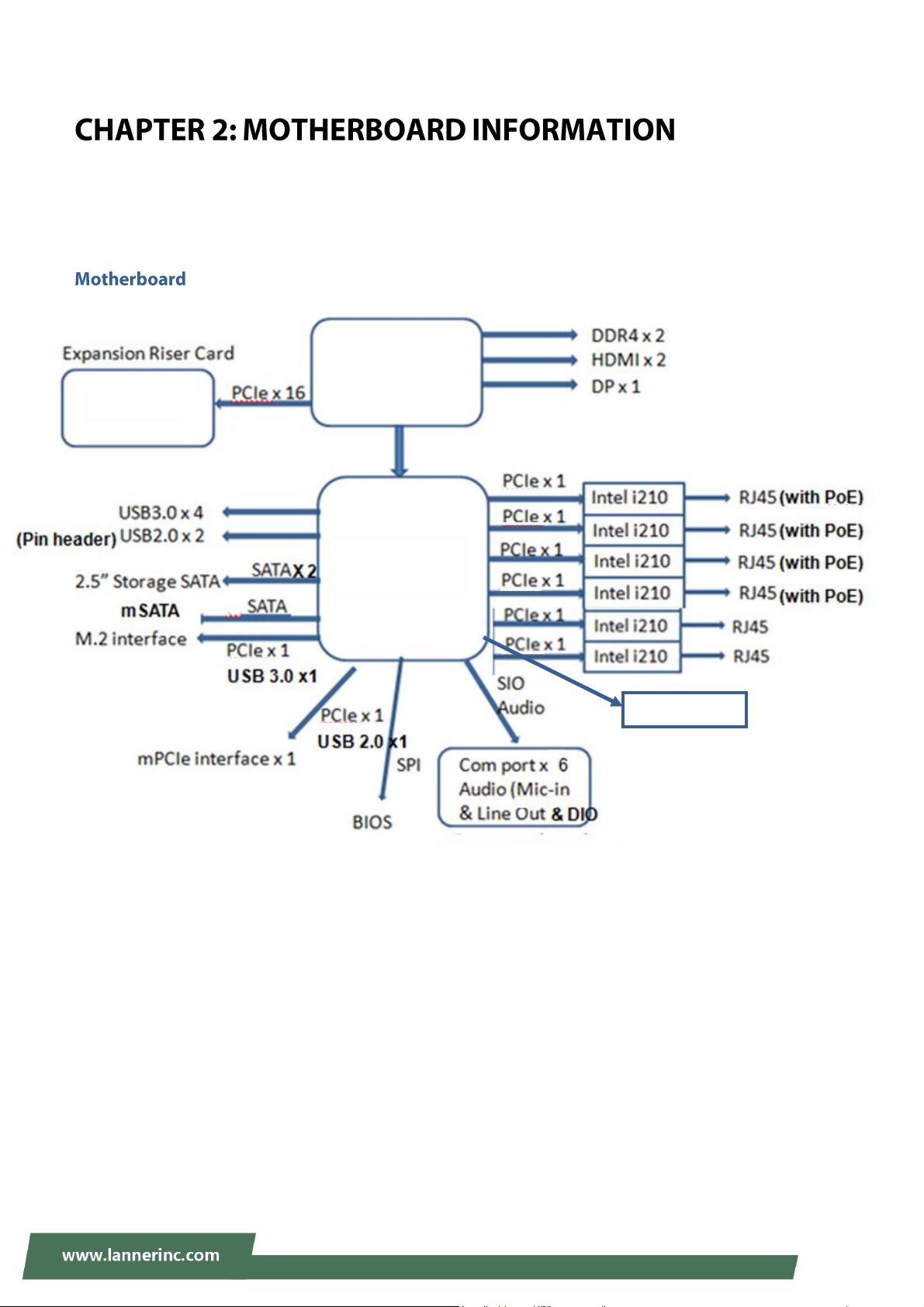

Block Diagram...........................................................................................................................13

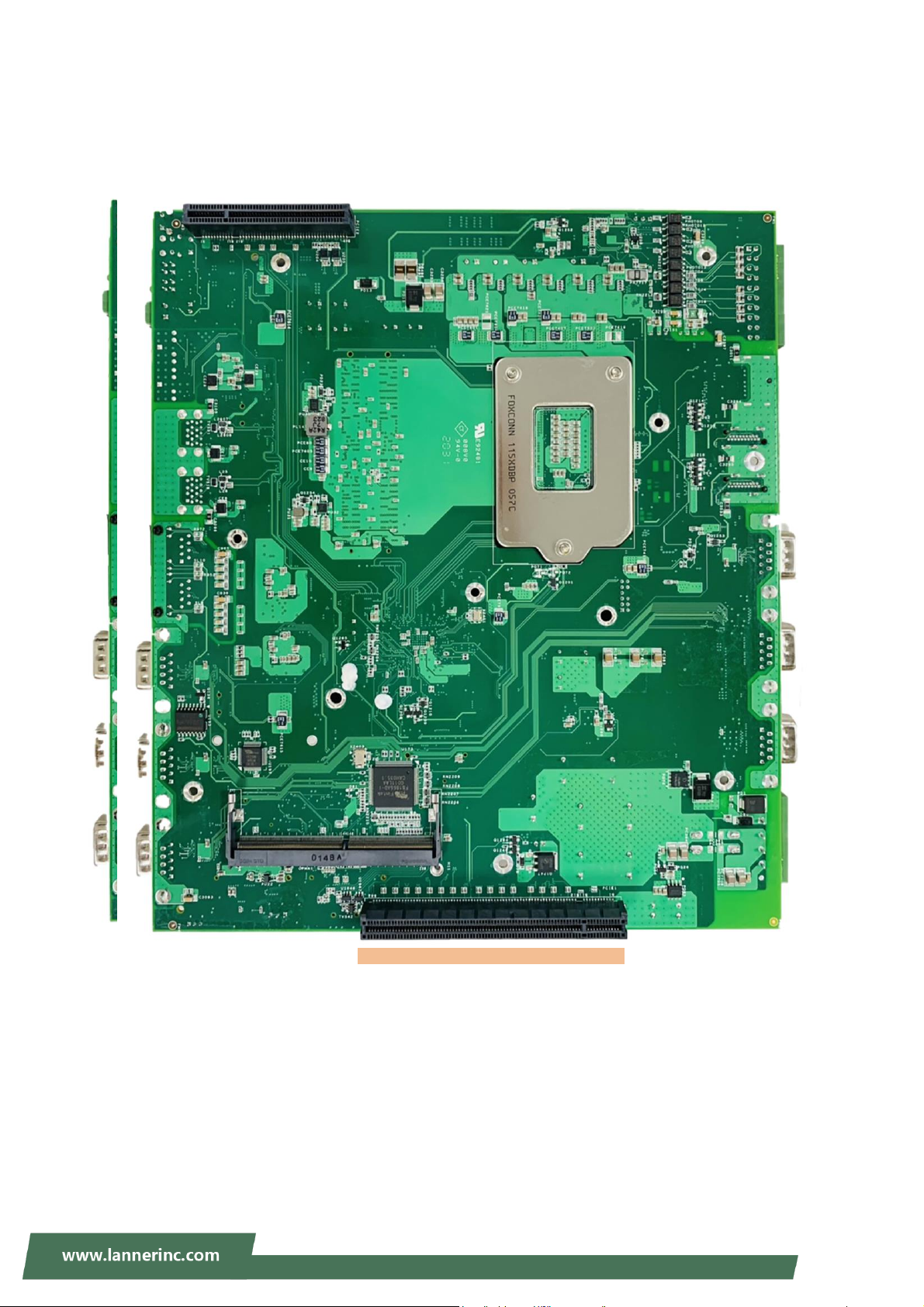

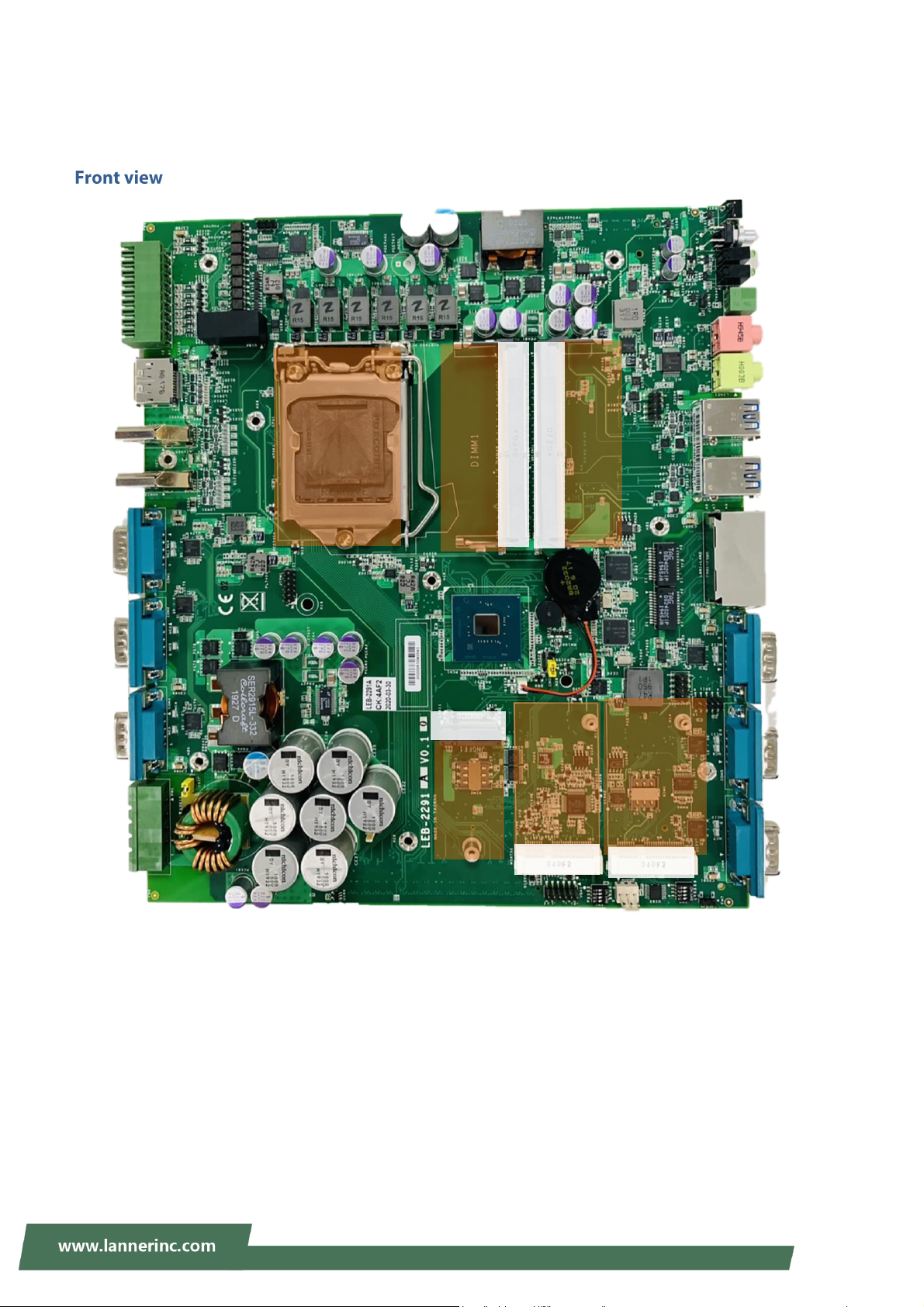

Motherboard Layout................................................................................................................14
Internal Jumpers and Connector..............................................................................................16

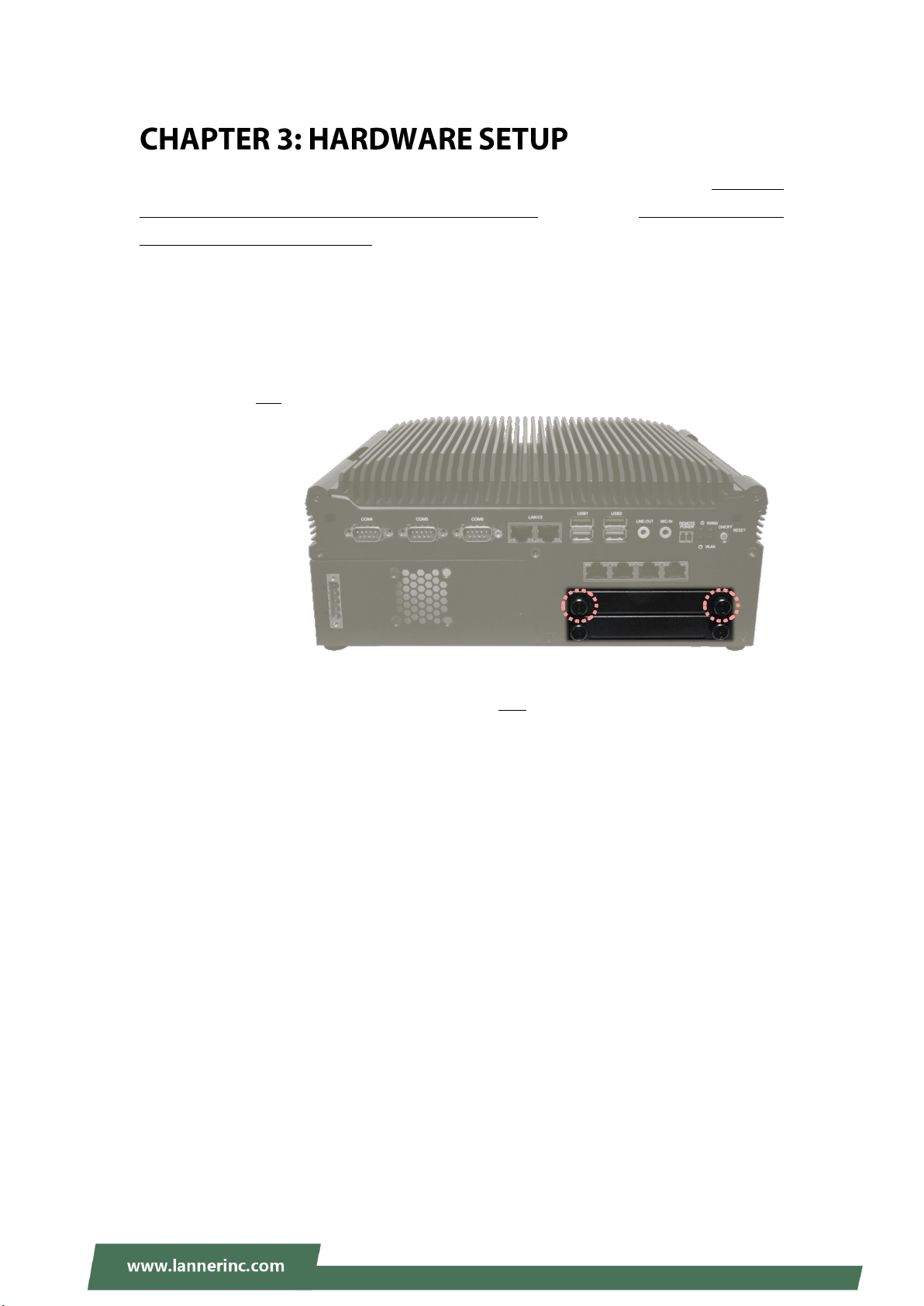

Installing the Disk Drive............................................................................................................19
Installing 4G Module ................................................................................................................20
Wall Mounting..........................................................................................................................21
Entering BIOS Setup .................................................................................................................23
Main Page.................................................................................................................................24
Advanced Page.........................................................................................................................25
Chipset......................................................................................................................................57
Security.....................................................................................................................................69
Boot Menu................................................................................................................................72
Save and Exit Menu..................................................................................................................73
Warranty Policy........................................................................................................................78
RMA Service .............................................................................................................................78
RMA Service Request Form......................................................................................................79

LEC-2290 User Manual
8
Package Content
Your package contains the following items:
1xLEC-2290 Computer
4x rubber Foot
2x 4-pin Terminal Block, 1x 2-pin Terminal Block, 1x 20-pin Terminal Block
Note: If you should find any components missing or damaged, please contact your dealer
immediately for assistance.
Ordering Information
SKU No.
Description
LEC-2290A
Intel intel® Core™i7-8700(T), i5-8500(T), i3-8100(T) (FCLGA1152) with
2*DDR4 SO-DIMM, 2*HDMI, 1*DP, 2*GbE LAN, 4*GbE PoE, 6* RS-
232/422/485, 4*USB 3.0, DIO, Audio, 1*mSATA, 2*external 2.5" SATA drive
bay, 1*miniPCI-E slot with 1*Sim card socket, 1* m.2 Slot with 1*Sim card
socket, Support 1* removable m.2 with dual SIM carrier, +9~30VDC input,
1*PCIe x16 expansion slot

LEC-2290 User Manual
9
System Specifications
Processor System
CPU
Support Intel® Core™ i7-8700(T), i5-8500(T), i3-8100(T)
(FCLGA1152), Codenamed Coffee Lake S
Frequency
Up to 3.2 GHz
Core Number
6 core
Chipset
C246
Fanless
Yes
Memory
Technology
DDR4 2133/2400 SO-DIMM x2
Max. Capacity
Up to 32 GB
Socket
2x 260-pin SODIMM
Graphic
Graphic Processor
Intel® UHD Graphics 630
Audio
Codec
TSI 92HD73C HD code
Interface
1x for MIC-in and 1x for Line-out
Ethernet
Controller
6x Intel i210iT Ethernet controller
Speed
10/100/1000 Mbps
PoE
4x IEEE 802.3af / IEEE 802.3at (Total PoE Budget of 60W)
Interface
RJ45
Storage
HDD/SSD
2x Removable HDD/SSD external slot with RAID
mSATA
1x mSATA
I/O
COM
6x D-sub 9, support RS232/422/485
Ethernet
6x RJ45 GbE Ethernet ports
USB
4x USB3.0 type A connector
Audio
1x Mic-in, 1xLine-out
Remote
1 x 2pin remote power switch
LED
Power-on status: power ongreen, power offLED off
1x Storage access status: connectgreen, disconnectLED off
1x 3G/LTE access status: programmable LED
1x Wifi access status: programmable LED
LAN LED: 1Gamber, 100MBgreen, activeblinking
Button
1x Reset Button, 1x Power-on button(Red-stand by, Green-
Operating)
Display
1x DP max. 4096x2304@60Hz; 2 x HDMI max. 4096x2304@24Hz
Digital I/O
1x terminal block Isolation 8 DI (12V) , 8 DO(Sink mode,
12V@100mA)
PoE
4x PoE supporting IEEE802.3af(15.5W)
Single port supporting IEEE802.3at(25.5W)
Max power output of 4x port PoE: 60W
Power input
1x 4Pin Terminal block(Pin define: -/+/+/- ) for 9~30V DC input
(normal 12VDC & 24VDC)
Antenna
4x SMA-type Antenna Hole
Expansion Interface
PCIe
1x PCIe x16 Slot
1x PCIe x4 Slot
1x mini-PCIe (PCIe + USB2.0) with nano-SIM
1x B key M.2 (PCIe + USB3.0) with nano-SIM
Cooling
Processor
Passive CPU heatsink
System
N/A
Power
Connector
1x 4pin terminal block
Input
DC 9~30V ( -/+/+/-)
Environment
Operating Temperature
-20°C~45°C for Intel® Core™ i7-8700(3.2GHz)@TDP 65W
Intel® Core™ i5-8500(3.3GHz)@TDP 62W
Intel® Core™ i3-8300(3.7GHz)@TDP 62W
-20°C~55°C for Intel® Core™ i7-8700T(2.4GHz)@TDP 35W
Intel® Core™ i5-8500(2.7GHz)@TDP 35W
Intel® Core™ i3-8100(3.1GHz)@TDP 35W

LEC-2290 User Manual
10
Storage Temperature
-40°C to +70°C
Relative Humidity
10%~90%
Mechanical
Dimension (W x H x D)
275 x 225 x 115mm (without mounting)
Weight
6.2 kg
Mounting
Wallmount kit
OS Support
Microsoft Windows
Windows 10 IoT 64-bit series
Linux
Ubuntu 18.10 64bit above / Cent OS 7 above / Fedora 30 64bit and
Above
Certification
EMC
FCC/CE Class A
Safety
N/A

LEC-2290 User Manual
11
Front Panel
No.
Description
F1
COM Port
3x DB9 Male Connector for RS232/422/485
F2
GbE Port
2x RJ45 port with LED indicators
F3
USB 3.0 Port
4x USB 3.0 Type A
F4
Audio Jack
3.5mm Line-out and Line-in Jack
F5
Remote Switch
1 x 2pin remote power switch
F6
Power Button
Power On/Off button with LED Indicator
F7
System Status
LED Indicator
F8
PoE Port
4x PoE Port with LED indicators. Any single port supports IEEE 802.3at
25.4W under total PoE power budget at 60W.
F9
Storage Bay
2x HDD/SSD Disk Bays (9.5mm height each max.)
F10
DC Input
1x 4 pin terminal block (pin define: -/+/+/-) for 12V DC input (max. 200W)
HDD 1
HDD2
PoE1
F5
F6
F8
F2
F1
F4
F3
PoE2
PoE3
PoE4
F7
F9
HDD Status
System Power
Status
WLAN Connection Status
WWAN Connection Status
F10

LEC-2290 User Manual
12
Rear Panel
No.
Description
R1
DIO
1x 20 pin terminal block 8 DI (12V)& 8 DO(12V,100mA) Isolation
R2
Display Port
1x Display Port
R3
HDMI Port
2x HDMI Port
R4
COM Port
3x DB9 Male Connector for RS232/422/485
R5
DC Input
1x 4-pin terminal block for DC 9~36V system power source
R6
Module Slot
(Antenna Port)
Removable PGN Module Slot supporting Dual SIM and 2x Antenna
Hole with dust cover
R7
PCIE Slot
1x PCIe x16 Slot
R1
R2
R3
R4
R5
R6
R7

LEC-2290 User Manual
13
Block Diagram
The block diagram indicates how data flows among components on the motherboard. Please refer to the
following figure for your motherboard’s layout design.
1x PCIe x16 Slot
Coffee Lake
Intel® Core™ i7
Intel® Core™ i5
Intel® Core™ i3
Intel C246
Chipset
x4 PCIe Slot

LEC-2290 User Manual
14
Motherboard Layout
Storage
Expansion
DDR4
DDR4
CPU
M.2
DIMM1
DIMM2
MSATA1
MPCIE1
JNGFF1

LEC-2290 User Manual
15
PCIE2
PCIE1

LEC-2290 User Manual
16

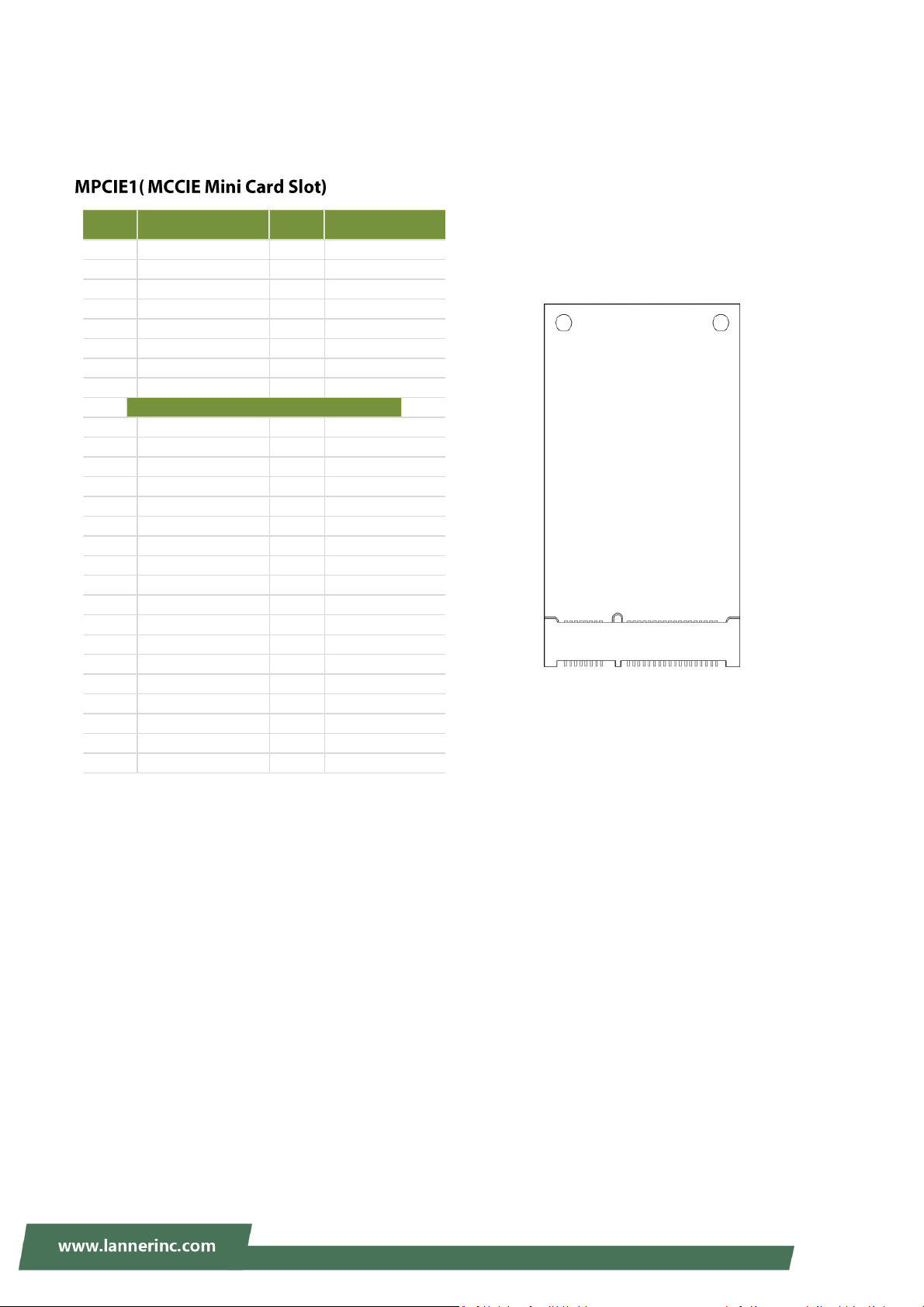

Internal Jumpers and Connector

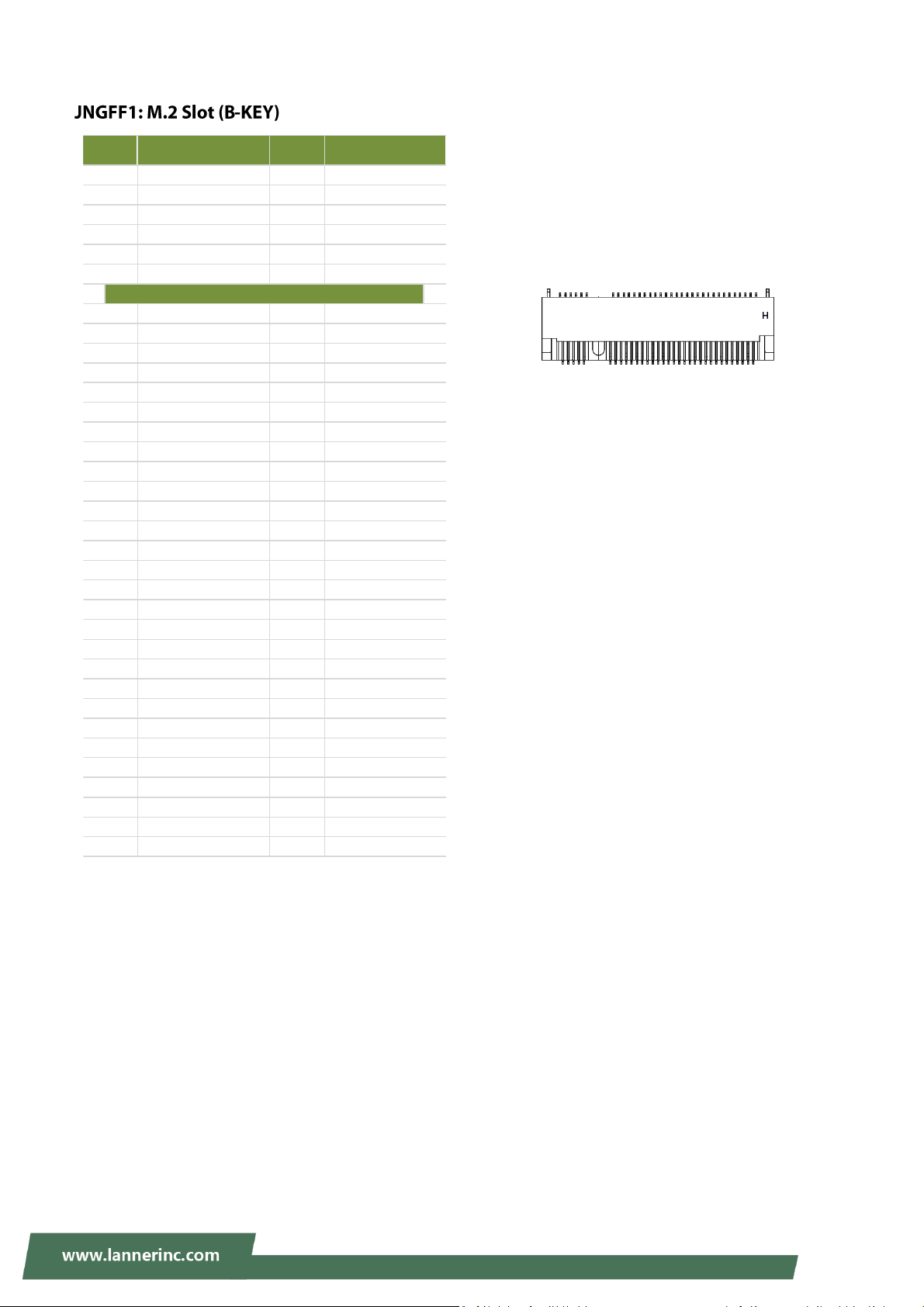

PIN
DESCRIPTION
PIN
DESCRIPTION
1
WAKE#
2
+3.3V
3
RSVD
4
GND
5
RSVD
6
+1.5V
7
CLKREQ#
8
UIM_PWR
9
GND
10
UIM_DATA
11
REFCLK-
12
UIM_CLK
13
REFCLK+
14
UIM_RESET
15
GND
16
UIM_VPP
KEY
17
RSVD
18
GND
19
RSVD
20
W_DISABLE#
21
GND
22
PERST#
23
PERn0
24
+3.3V
25
PERp0
26
GND
27
GND
28
+1.5V
29
GND
30
SMB_CLK
31
PETn0
32
SMB_DATA
33
PETp0
34
GND
35
GND
36
USB_D+
37
GND
38
USB_D-
39
+3.3V
40
GND
41
+3.3V
42
LED_WWAN#
43
GND
44
LED_WLAN#
45
RSVD
46
LED_WPAN#
47
RSVD
48
+1.5V
49
RSVD
50
GND
51
RSVD
52
+3.3V
MPCIE

LEC-2290 User Manual
17
PIN
DESCRIPTION
PIN
DESCRIPTION
1
CONFIG3
2
3V3_AUX
3
GND
4
3V3_AUX
5
GND
6
CARD PWROFF
7
USB D+
8
W_DIS
9
USB D-
10
DAS/DSS#
11
GND
KEY B
21
CONFIG0
20
AUDIO_0
23
NC
22
AUDIO_1
25
NC
24
AUDIO_2
27
GND
26
AUDIO_3
29
PERn1/USB3RX-
28
UIM_RFU
31
PERp1/USB3RX+
30
UIM_RESET
33
GND
32
UIM_CLK
35
PETn1/USB3TX-
24
UIM_DATA
37
PETp1/USB3TX+
36
UIM_PWR
39
GND
38
DEVSLP
41
PETn0/SATA_B+
40
GNSS0
43
PETp0/SATA_B-
42
GNSS1
45
GND
44
GNSS2
47
PERn0/SATA_A-
46
GNSS3
49
PERp0/SATA_A+
48
GNSS4
51
GND
50
PRESET#
53
REFCLK-
52
CLKREQ#
55
REFCLK+
54
WALE#
57
GND
56
NC
59
ANTCTL0
58
NC
61
ANTCTL1
60
COEX3
63
ANTCTL2
62
COEX2
65
ANTCTL3
64
COEX1
67
PEDET
66
SIM_DET
69
PEDET/CONFIG1
68
SUSCLK
71
GND
70
3V3_AUX
73
GND
72
3V3_AUX
75
CONFIG2
74
3V3_AUX

LEC-2290 User Manual
18
PIN
DESCRIPTION
PIN
DESCRIPTION
1
N.C
2
+3.3V
3
N.C
4
GND
5
N.C
6
N.C
7
N.C
8
N.C
9
GND
10
N.C
11
N.C
12
N.C
13
N.C
14
N.C
15
GND
16
N.C
KEY
17
N.C
18
GND
19
N.C
20
N.C
21
GND
22
N.C
23
SATA_RXp
24
+3.3V
25
SATA_RXn
26
GND
27
GND
28
N.C
29
GND
30
N.C
31
SATA_TXn
32
N.C
33
SATA_TXp
34
GND
35
GND
36
N.C
37
GND
38
N.C
39
+3.3V
40
GND
41
+3.3V
42
N.C
43
GND
44
N.C
45
N.C
46
N.C
47
N.C
48
N.C
49
N.C
50
GND
51
N.C
52
+3.3V
MSATA

LEC-2290 User Manual
19
To reduce the risk of personal injury, electric shock, or damage to the unit, please remove all
power connections to completely shut down the device. Also, please wear ESD protection
gloves when conducting the steps in this chapter.
Installing the Disk Drive
This system is built with two 2.5” HDD/SSD drive bays. The following will discuss disk drive
installation procedures based on their designs.
1. Unscrew the two thumbscrews that fix the tray on the system.
2. Install the disk onto the tray and secure it with four provided disk screws. Make sure the
SATA connector faces outwards as shown in the picture.
3. Insert the tray into the bay and fasten the two thumbscrews that fix the tray on the system.
HDD1
HDD2

LEC-2290 User Manual
20
Installing 4G Module
This system comes with an external M.2 slot, supporting dual SIM design. The following will
discuss the installation of 4G module and SIM cards.
Loosen the two screws that secure the tray and draw
out the tray by its grip.
To Install the 4G module:
1. Locate the M.2 slot on the top side of this tray. Align the notch of the module with the socket key in the
slot, and insert it at 30 degrees into the socket until it is fully seated in the connector.
2. Push down on the module and secure it with the screw that comes with it.
3. Attach both inner antenna cables to this module.
To install the SIM cards:
4. Slide open the socket cover and lift the cover on its
hinges.
5. Insert the SIM card into the slot in the cover with the
gold contacts facing down.
6. Push down the cover to close, and the SIM card will
come in contact with the metal contacts in the
socket. Finally, Slide the socket cover to the Lock
position.
The angled corner of the card is
positioned as shown in this picture.
LOCK
OPEN
