Larzep EE12018-CE User manual

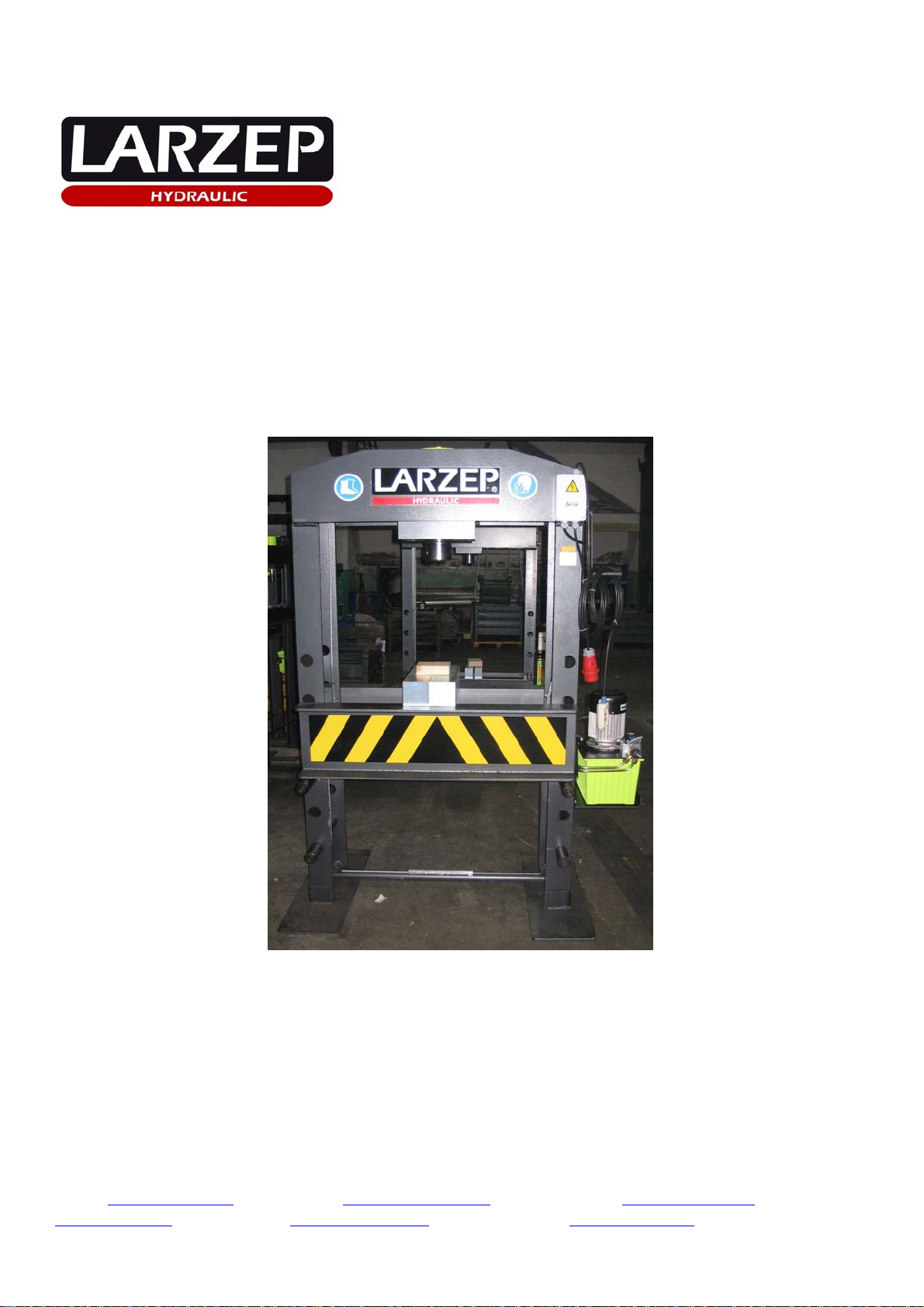

COLUMN PRESS 120 ton
WITH ELECTRIC PUMP
“EE12018-CE”
LARZEP,S.A. LARZEPAUSTRALIAPTY.LTD. LARZEPGBLTD.
AvenidaUrtiaga,6 104WedgewoodRoad, 3CommerceWay‐LeightonBuzzard
48269MALLABIA,SPAIN HALLAM,VIC.3803AUSTRALIA BEDSLU74RWUNITEDKINGDOM
Tel.+34943171200 Tel.+61(3)97963744 Tel.+441525377819
Fax.+34943174166 Fax.+61(3)97965964 Fax.+441525851990
www.larzep.com www.larzep.com.au www.larzep.co.uk

2
Instruction Manual
Column Press with Electric Pump “EE12018-CE”
INDEX
1- BEFORE USING THE EQUIPMENTS-------------------------------------------------------------2
2- TECHNICAL FEATURES-------------------------------------------------------------------------- 2-3
3- ESSENTIAL SAFETY REQUIREMENTS---------------------------------------------------------3
4- TRANSPORT AND INSTALLATION --------------------------------------------------------------4
5- START-UP OF THE MACHINE---------------------------------------------------------------------4
6- MAINTENANCE-----------------------------------------------------------------------------------------5
7- WARRANTY ---------------------------------------------------------------------------------------------5
8- DECLARATION OF CONFORMITY --------------------------------------------------------------6
ANNEX
GENERAL DRAWING
1. BEFORE USING THE EQUIPMENTS.
Before unpacking the equipment check for:
1. Oil leaks, sign of corrosion.
2. Damages in the hydraulic cylinder or line.
3. Damages in the frame and the accessories.
4. Damages or lack of screws and connections.
5. Bad connection of accessories.
If you observe any fault or damage in the equipment, avoid its use and store it in a safety place until be repaired by an authorized service dealer.
Never use damaged or bad condition equipment.
Familiarize the operators with the equipment before using the machine. Read and observe exactly the instructions and the recommendations included in packaging.
Any inadequate use of the equipment not observed in the present manual or the omission of this one, may cause serious personal and material damages, which
LARZEP, S.A. will not be responsible in any case.
Do not loose the instruction manual.
Do not work with the equipment near of the flames, explosives, heat sources or any other source that may produce fire or cause damages in the equipment.
The equipment must not be exposed to temperatures greater than 60º C in use as in storage.
If you are using a pump or cylinder with the press, assure that you are having a good combination before making the assemble. We recommended
asking professional advice to our technicians.
When you have located a good place for the press, assure that it is in solid and flat ground; all the base of the press must be supported. If there is any doubt about
the stability, it is recommended distributing the weight in a bigger area placing a steel flat under the base of the press.
Store the press with the piston fully retracted. We recommended protecting the cylinder with a plastic or locating the press in a clean place not to damage the
components and in order to have the press correctly storage.
2. TECHNICAL FEATURES.
HYDRAULIC CYLINDER
MODEL EE12018-CE
Max. Pushing Capacity (ton) 120
Working Pressure (Kg/cm²) 700
Hydraulic Stroke (mm) 180
Effective area (cm²) 176.71
Oil capacity (cm²) 3180.8
Extension speed, without load (mm/sg) 2.8
Extension speed at 700 Kgr/cm² 0.5
ELECTRIC PUMP REF. HAM7344B
MODEL HAM7344B
Oil tank capacity 10 Litres
Low pressure oil flow. Rapid advance 4 l/min
High pressure oil flow. Working 0,36 l/min
Maximum working pressure 700 bar (Kg/cm²)
Maximum pressure in retraction 100 bar (Kg/cm²)
Distribution valve Hand: 4 way/ 3 position
Motor 0, 75 kW 400V 50Hz 3 ph

3
Instruction Manual
Column Press with Electric Pump “EE12018-CE”
FRAME: Welded-Mechanized frame, mobile table and anchor bolt system.
MODEL EE12018-CE
Max. working height (mm) 910
Min. Working height (mm) 80
Sequence of table positioning (mm) 165
Working width (mm) 880
Total weight (Kg) 750
3. ESSENTIAL SAFETY REQUIREMENTS.
Due to the functional reasons, "dangerous area" is considered to be the space between the columns, the table and the hydraulic cylinder piston.
Due to the material pressed, "dangerous area" is supposed to be the surrounding area to the machine in case of metal parts being ejected during
pressing.
The speed of the hydraulic cylinder during its extension is less than 30 mm/second. Therefore the machine should be considered by the application of ANNEX V
of the Declaration of CE Conformity.
Operators standing in the dangerous area around the machine should protect their faces and feet form metal pieces being ejected during pressing.
Used materials and components are not for the health and safety of operators. The electric pump contains hydraulic oil type ISO: HV46
In any case, the hydraulic oil is toxic if it takes contact in the bloodstream, so that NEVER PLACE THE FINGERS OVER ANY HOLE THAT MAY
CAUSE A FILTRATION.
The start and stop operations of the motor are made with the commands of IP55 electric box. The commands are supplied with a 24 V. tension.
The advance and return movements of the cylinders are made by the hand lever located in the pump. This lever actuates over a directional valve.
The command have not maintaining action device due to the kind of operation that the equipment makes, the operator sometimes must place its hands over
the material to be treated. So that it forces to the operator to know the inherent risks and operating of the equipment.
The starting up of the motor is carried out by the green push button located on the electric box.
The rest of operating devices are activated manually from the directional valve on the cover of the pump.
To get cylinder movements, it is necessary to push the green button.
The red emergency push button stops the machine completely, in a safe way. To re-start it is necessary to unblock the emergency button.
It can be stopped too from the remote control
If you stop pressing the green push button, the motor stops and with it the cylinder movements.
The machine is equipped with the fuse and a thermo-magnetic switch for its protection.
The machine is equipped with supporting plates in the columns for a perfect stability. The machine gets operated without fixing onto the floor, but it is
strongly recommended to do it by drilling the plates in the place of your choice.
The construction of machine has been calculated to bear without any breaking under conditions of foreseen utilization and for the whole life of the
machine.
The hydraulic components have been designed and calculated in compliance with the ANSI B30.1
It is operator's responsibility to wear special protective clothes and attachments in both feet and face to prevent any damage as a result of accidental fallings
and breakings of metal pieces under operation or machine components in touch with.
Risks due to surfaces, bends and angles: The frame of the machine does not cause to be dangerous in that sense.
oRisk due to mobile components in setup stage: The table can be positioned in several fixing points.(weight of the table 21,5 Kg). The
EE012018 model is provided with a winch for the displacement of the table. It is operator's responsibility to wear safety shoes in any case.
There are 2 axle pins in equivalent holes of the lowest position to prevent operator's feet from being caught by the table.
oRisk due to mobile components during service: The operator must either move the directional valve lever to "C" position or press the red
button to fully stop the movement of the piston.
SAFETY PREVENTIVE ACTIONS AGAINST OTHER RISKS
Risk due to power supply: The machine is equipped with the fuse and a thermo-magnetic switch for its protection.
Risk due to hydraulic power: The hydraulic pump is equipped with an internal security valve in the tank, out of operator's control and rated at 700
Kgr/cm², as well as with a pressure relief valve on the tank cover adjustable by the operator from 0 to 700 Kgr/cm². The hydraulic cylinder is also
furnisher with a pressure relief valve, rated at 700 Kgr/cm², which prevents the retraction chamber of the cylinder from overpressures in case of
obstruction of the return way.
All the maintenance operations must be performed while the machine is stopped, thus avoiding this way any potentially dangerous situation.
A poor maintenance program of the press does not increase the risk, but obviously will revert in a lower performance.
The hydraulic pump is mounted in the frame and access is very easy. To disassemble the pump, unscrew the bolts in the tap cover. In order to
disassemble the cylinder it is required to first disassemble the piping.
Isolation of the power supply: Release the terminal wiring to disconnect the power supply. Previously you should unplug the pin.
Handling by the operator: The machine is designed to assure that all maintenance tasks are performed by the operator in an easy and safe way. All the
components that would require any maintenance operation are easy accessible.
In the valve, you can find several marks depending on the position of the lever:
•"A" for extension of the cylinder piston.
•"B" for holding the pressure without piston movement.
•"C" fir retraction of the cylinder piston.
The press, the cylinder and the electric pump have their corresponding serial numbers marked on them. In addition to it, you can find an sticker label showing the
commercial reference, capacity, working pressure, name and address of the manufacturer.

4
Instruction Manual
Column Press with Electric Pump “EE12018-CE”
4. TRANSPORT AND INSTALLATION.
The machine is delivered properly packed in a wooden pallet. For its handling, it is recommended to use a forklift truck or a crane. In the last case, it is necessary to
make the slings trespass the arc of the frame. When doing this operation, you should be cautious and prevent the flexible hoses and coupling from any damage.
The machine is stable enough to operate without fixing, but if it is placed in an area commonly operated by mobile machinery (cranes, lifting
equipment...) it is strongly recommended to fix it to the desired place by drilling the supporting plates.
ELECTRIC CONNECTIONS
Bear in mind the voltage indicated in the motor.
Make sure that the directional valve is in "C" position (neutral). Make sure that the motor is rotating in the direction indicated by the arrow. In the
opposite case, change the position of the cables and terminals of the motor. The last operation must be performed with the machine disconnected.
REPLACEMENT OF THE TRANSPORT CAP
You should replace the a.m. cap on the tank cover by the pressurized cap supplied with the press (in the small plastic bag next to the lever of the distributor).
INSTALLING THE GAUGE
Replace the threaded tap in the top of the cylinder by the gauge which is supplied separately. Tighten the gauge cone to the gauge adaptor seat by using
a flat wrench size 22. Hold the gauge screen by hand during threading process and after reaching a comfortable reading position set the gauge screen
free so that it turns the last quarter solidarily with the thread.
There is an alternative gauge port in the electric pump with a 3/8" BSP thread.
CHECKING THE RIGHT OPERATION OF ALL DEVICES AND MECHANISM
1. Turn the lever of the pump direction valve to "C" position.
2. Turn the main switch to 1.
3. Press the start button (green) for a instantaneous current.
4. Verify the rotation direction of the motor.
5. If the direction is opposite to the indicated in the motor, you should reverse the electric phases of the power supply. When doing this, machine should be
unplugged.
6. Turn the pump direction valve lever to "A" position. Pushing de green button constantly, the piston should move forwards (extension). Check the
extension speed and maximum stroke.
7. Once the piston is fully extended run the pump to increase the pressure. Check the working pressure in the gauge. Verify that there are no oil leaks in
the connections, gauge, etc.
8. Turn the direction valve lever to "C" position to check that the pressure in the cylinder does not drop.
9. Turn the direction valve lever to "B" and push the green button to retract the piston. Check the retraction speed.
10. Test the emergency button. Unblock it and with de motor stopped, turn the directional valve lever "A" to "B" to depressurize the cylinder. Turn the lever
to "C" position and turn "0" the main switch.
Once all the steps have been completed, the machine is ready to be used. Repeat the sequence as many times as required to get the knowledge on how to work the
machine.
5. START-UP.
Operate the machine as per the preciously mentioned indications.
Repositioning the table height
Models EE012018
Choose the right height. Lift the table rotating the lever of the winch until you are able to extract the pin bearings. Place the table in an upper level than the desired
height. Place the pin bearings in the desired position. Descend the table by means of the winch until the table stands in the pins without any tension in the winch
cable.
VERY IMPORTANT WARNING: THE TABLE POSSITIONING SYSTEM IS NOT CONCEIVED TO BEAR THE FORCE THE CYLINDER
CAN DEVELOP. IT MUST BE USED JUST TO POSSITION THE TABLE.
Regulation of the maximum working pressure
The maximum pressure developed by the hydraulic system is 700 Kgr/cm². An internal security valve discharges when the system reaches that pressure.
In order to operate at a lower working pressure, you should proceed like follows:
You can find the pressure regulation screw on the tank cover. Loosen the nut lock and unscrew the regulation screw. Check gradually the pressure with
the gauge and after reaching the required pressure tight again the nut lock to prevent the system from undesired vibrations.

5
Instruction Manual
Column Press with Electric Pump “EE12018-CE”
6. MAINTENANCE.
The hydraulic circuit of the press is closed, so in normal conditions no oil leakage should be coming up.
In case of oil leakage, after the proper repairing work, you should fill up the tank with hydraulic oil by LARZEP (Ref: AZ8902). The electric pump is
equipped with an oil level indicator to control the need quantity of oil.
As far as a non-continuous use of the press is concerned (1 hour per day), oil replacement should be done once a year. To empty the tank, you should
remove the cover and take the oil out to another container. Please, bear in mind the existing rules for water processing when handling the used oil.
Keep greasy and lubricated the pin bearings, the piston and in general all the parts that might be in friction.
SYMTONS POSIBLE CAUSE SOLUTIONS
1 Piston dos not extend 1.1 Prime less pump 1.1 Maintain the pump on for some minutes in "C" position.
1.2 Filter is dirty. 1.2 Remove and clean it properly.
1.3 Not enough oil in the tank 1.3 Check the oil level.
1.4 Pressure retainer damaged. 1.4 Replace the retainer.
1.5 Cylinder body damaged. 1.4 Repair the cylinder body.
1.6 Distribution valve damaged. 1.5 Repair the valve.
1.7 Electric problem 1.7 Check the installation
2 Cylinder does not reach pressure. 2.1 Internal valve unrated 2.1 Rate again the valve.
2.2 Pressure retainer damaged. 2.2 Replace the retainer.
2.3 Cylinder body damaged. 2.3 Repair the cylinder body.
3 Cylinder does not hold pressure. 3.1 Pressure retainer damaged. 3.1 Replace the retainer.
3.2 Distribution valve damaged 3.2 Repair the valve.
4 Cylinder does not retract. 4.1 Pressure retainer damaged. 4.1 Replace the retainer.
4.2 Distribution valve damaged. 4.2 Repair the valve.
Solutions written in bold face should be done by specially trained staff.
7. WARRANTY.
LARZEP, S.A. guarantees its products against all design and manufacturing defects for the durations of two years from the date of purchase. This guarantee does
not include the ordinary wear of both metal and non-metal parts, abuse, using the equipment beyond its rated capacity and any wear or damage incurred as a result
of using a hydraulic fluid which is not recommended by LARZEP, S.A.
Please note that if the equipment is disassembled or serviced by anyone other than an authorized service dealer or by LARZEP, S.A., this guarantee is rendered
null and void.
In the event of a warranty claim, return the equipment, to LARZEP, S.A. or the authorized dealer which sold you the hydraulic equipment, LARZEP, S.A. will
repair or replace the faulty equipment, whichever is deemed most appropriate. LARZEP, S.A. shall not be held liable for any consequential damages or losses,
which may occur as a result of faulty equipment.

6
Instruction Manual
Column Press with Electric Pump “EE12018-CE”
8. DECLARATION OF CONFORMITY.

7
Instruction Manual
Column Press with Electric Pump “EE12018-CE”
Table of contents
Other Larzep Power Tools manuals

Larzep
Larzep EZ03012 User manual

Larzep
Larzep EE03116 User manual

Larzep
Larzep EM06018 User manual

Larzep
Larzep EE03116-CE User manual

Larzep
Larzep ECZ01113 User manual

Larzep
Larzep ECM01113 User manual

Larzep
Larzep ECE02013 User manual

Larzep
Larzep EE06018 User manual

Larzep
Larzep CA1014 User manual

Larzep
Larzep EM03012 User manual

Larzep
Larzep ECE02015-CE User manual

Larzep
Larzep EE06018-CE User manual

Larzep
Larzep EE25030-CE User manual

Larzep
Larzep ECE02013-CE User manual

Larzep
Larzep ECE01113 User manual

Larzep
Larzep EE25030-CE/L User manual

Larzep
Larzep EE12018 User manual

Larzep
Larzep ECE01115 User manual

Larzep
Larzep ECE01113-CE User manual
