Laserworld CS-150G User manual

CS-150G
USER MANUAL
Please read this manual carefully before use!

USER MANUAL: Laserworld Proline CS-150G
Date: 01/200
Page
2
of
10
I
Table of contents
Page
1. SAFETY INSTRUCTIONS 3
2. OPERATING DETERMINATIONS 4
3. PACKAGE LIST 4
4. PRODUCT INTRODUCTION 5
5. FUNCTION INTRODUCTION 5
6. INSTRUCTIONS 5
7. CHANNEL’S FUNCTION 6
. SIGNAL CONNECTION AND ADRESS DIALING 7
9. SAFETY MARKS
10. MAINTENANCE 9
11. TECHNICAL SPECIFICATIONS 9
hecking Parts
Please check if the following parts are included:
1 x CS-150G Laser
1 x Power cable
1 x User manual

USER MANUAL: Laserworld Proline CS-150G
Date: 01/200
Page
3
of
10
DANGER LASER RADIATION!
Avoid direct eye exposure!
Laser radiation can cause eye damage and/or skin damage
All protective measures for a safe operation of this laser must be applied.
1. SAFETY INSTRU TIONS
- If the device has been exposed to drastic temperature fluctuation, do not
switch it on immediately. The arising condensation water might damage your
device. Leave the device switched off until it has reached room temperature.
1. The laser must only be used for shows. The operation is only allowed if it is
controlled by a skilled and well-trained operator.
- Never leave this device running unattended and keep it away from children
and unauthorized persons.
2. Keep away from heaters and other heating sources. In order to safeguard
sufficient ventilation, leave 50 cm of free space around the device.
3. Never direct the laser beam to people or animals.
4. CAUTION LASER DIODE: Never unscrew the housing!
There are no serviceable parts inside the device. Maintenance and service
operations shall only be carried out by authorized dealers.
5. Always disconnect from the mains when the device is not in use or before
cleaning it.
- HEALTH HAZARD! Never look directly into the light source, as
sensitive persons may suffer an epileptic shock!

USER MANUAL: Laserworld Proline CS-150G
Date: 01/200
Page
4
of
10
2. OPERATING DETERMINATIONS
6. The operator has to make sure that laser radiation – also reflected laser
radiation –higher than the highest allowed level is avoided by technical or
organisational measures.
7. Make sure that the used voltage is : AC 220V~240V, 50/60Hz
. If the device is used in a flying installation, the mounting brackets and an
appropriate safety-rope must be fixed.
9. Laser effects are not designed for permanent operation. Consistent operation
breaks will ensure that the device will serve you for a long time without
defects.
10.In some countries, the operator must notify the accidence insurance and the
authority for industrial safety, before operating a laser. For more information,
contact the relevant authorities.
11.Please consider that unauthorized modifications on the device are forbidden
due to safety reasons!
12.If this device will be operated in any way differently than described in this
manual, the product may suffer damages and the guarantee becomes void.
Furthermore, any other operation may lead to dangers like short-circuit,
burns, electric shock, etc.
Thank you for using the lub series laser projector. For the sake of safety
and better Operation of this projector, please read this manual carefully
before use and operate the projector , lest incur any personal injury or
damage to the projector.
3. PA KAGE LIST
When you unpack the case, please take time to examine the items as follow:
projector 1
Power cord 1
Owner’s manual 1
projector sling 1

USER MANUAL: Laserworld Proline CS-150G
Date: 01/200
Page
5
of
10
4. PRODU T INTRODU TION
The Club series projector adopts the latest appearance design to make it compact
and light. The housing use imported paint. It has füll solid semiconductor laser
source. Wavelength is 523nm and emerald green color. Laser generator is double-
temperature -controlled power supply. The laser light source has a long life span and
highly stability, complying with the international Standard. The scanning System is
vibratory mirror, DMX-512 Signal 16 channel.
This product introduced the vibratory mirror control from Britain, international
Standard DMX-512 Signal control. It can printing 2 laser pattern at the same time.
There are 12 latest laser effect patterns in it, can be used for word (Chinese,
English and Japanese)performance> animation performance> laser beam
performance, with spatial, projection and animation effects.
Control modes: DMX-512 Signal control and music control.
The Club series laser projector was applied for the place of public entertainment such
as disco, night club and theater etc.
5. FUN TION INTRODU TION
The Club series has 16 DMX-512 control Signal control, it can make tunnel effect and
animation, geometric, character and 3D effects, Laser sky effects, Rolling effects,
Scanning effects, and Laser tunnel effects in all directions. And it also has music
control. The effect can be control by music rhythm.
6. INSTRU TIONS
After unpacking, check whether the projector has been damaged by transport such
as any screw loosening, reflecting mirror broken, etc. If everything is OK, select a
proper location, hang the projector and adjust its angle properly, then connect the
power cord and the ground wire before switch on at the means. Notice that while
using this projector the green and yellow wire has to connect the ground properly by
Professionals. Please examine the electrics and voltage before power on it. We
suggest customer apply 220V or a transformer. 20 seconds after powered on the
projector, it will self-check and then can be used.
Because the radiate laser generator’s own characteristic, securing the laser *s long
life span. Please terminate it for 10 minutes after using it for 30 minutes.
Avoid being interfered by other Signals while using the DMX-512 Signal Controller.

USER MANUAL: Laserworld Proline CS-150G
Date: 01/200
Page
6
of
10
7. HANNEL’S FUN TION
Ch1: Laser pattern A switch light: 0-51 for laser source switch, 52-103 for automatic
with out breakpoint, 104-155 for automatic with breakpoint, 156-207 for acoustic
control without breakpoint, 20 -255 for acoustic control with breakpoint.
Ch2: Laser pattern A selection, one pattern every 2 point,
Ch3: Laser pattern A, 0-12 for rotation angle adjustment, 129-255 for rotation
speed
adjustment.
Ch4: Laser pattern A up/down turning, 0-12 for adjustment of up/down turning
angle,
129-255 for adjustment of up/down turning speed.
Ch5: pattern A left/right turning channel 0-12 for adjustment of left/right turning
angle, 129-255 for adjustment of left/right turning speed
Ch6:( pattern left /right moving channel) 0-12 for left/right movement, 129-255 for
up/down movement
Ch7: (pattern gradual drawing channel) 0-255 for adjustment of gradual drawing
Ch : (point adjusting channel) 0-12 for adjusting the definition of the point, 129-
255
for adjusting the length of point
Ch9: laser pattern B switch light, 0-51 for laser source switch, 52-103 for automatic
with out breakpoint, 104-155 for automatic with breakpoint, 156-207 for acoustic
control without breakpoint, 20 -255 for acoustic control with breakpoint.
Ch10: Laser pattern B selection, one pattern every 2 point,
Ch11: Laser pattern B, 0-12 for rotation angle adjustment, 129-255 for rotation
speed adjustment.
Ch12: Laser pattern B up/down turning, 0-12 for adjustment of up/down turning
angle, 129-255 for adjustment of up/down turning speed.
Ch13: pattern B left/right turning channel, 0-12 for adjustment of left/right turning
angle, 129-255 for adjustment of left/right turning speed
Ch14: pattern B left /right moving channel, 0-12 for left/right movement, 129-255
for
up/down movement
Ch15: pattern B gradual drawing channel, 0-255 for adjustment of gradual drawing
Ch16: (point adjusting channel) 0-12 for adjusting the definition of the point,
129-255 for adjusting the length of point.

USER MANUAL: Laserworld Proline CS-150G
Date: 01/200
Page
7
of
10

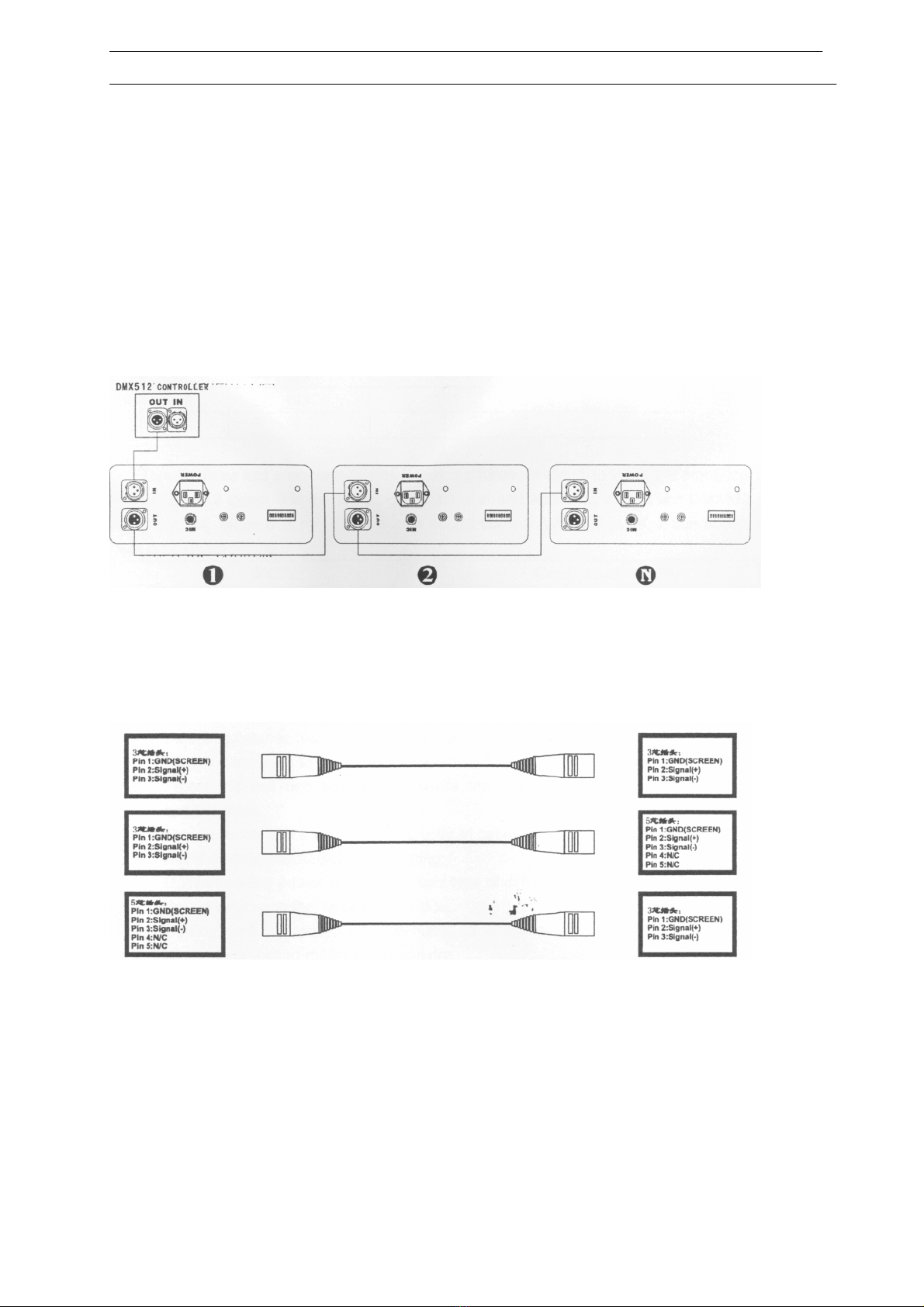

8. SIGNAL ONNE TION AND ADRESS DIALING
When the Controller transmits DMX512 Standard Signals, the connection of which is
accomplished through the "input" and "output" 3-pin XLR socket. When a console
Signal Outputs to the unit, it must correspond to the Pin 1 Ground, Pin 2 Negative
and Pin 3 Positive of the XLR socket on the unit. If it does not work just try
exchanging the Pin 2 and Pin 3 (these 2 pins are generally do not need exchanged
for consoles). The Signal wire length should not exceed 100m in order to avoid the
interference of the other Signals by any other electric appliances.
If your DMX-512signal Controller adopt 5 pins XLR plug, you need one transfer line,
the transfer method as following:
When control Signals from the console inputs into Club series laser light projector.
The projector must be assigned a data Start address code, so that a unit may act on
the corresponding control Signal. Thus, when any Controller is used, every unit must
have its own data Start address Accordingly, the address of the first unit is set as 1,
the second unit has also 10 channels, so its address code is 11, the third unit is set
at 21, so on and so forth (the setting method will also depend on the specific
console, the above is just for general cases).
The details of DMX-512 Signal control mode address switch as follow:

USER MANUAL: Laserworld Proline CS-150G
Date: 01/200
Page
of
10
This Club series has controlled by on/off switch address code. 1 to 9 are the
numerical value DMX 512 Signal, 0 is the exchange switch of sound activated control
and DMX512 Signal control. When 0 is on, it can accept sound control. When 0 is off,
it can accept DMX-512 Signal control.
9. SAFETY MARKS
Before maintenances, please refer to eligible personnel.
Please make sure to switch off the power before Installation or maintenance.
Please do not use power and lasers that do not conform to the current
specifications.
Please do not see the laser light directly, in case it might damage the eyes.
Avoid electric shock! Bulb overheating;
Do not use any power voltage and light type of different specifications
Do not expose to the laser light outside.
Do not use it trequently under the humid atmosphere.
Keep the reflecting mirror clean and dry.

USER MANUAL: Laserworld Proline CS-150G
Date: 01/200
Page
9
of
10
10. MAINTENAN E
Maintenance should be performed every 15-day period, by using a sponge which is
dipped with alcohol, rather than wet cloth or other chemical liquid, to clean the
mirror.
Always disconnect from the mains when the device is not in use or before cleaning it.
There are no serviceable parts inside the device. Maintenance and service operations
are only to be carried out by authorized dealers.
Never look directly into the light source.
Always disconnect from the mains when the device is not in use or before
cleaning it.
11. TE HNI AL SPE IFI ATIONS
Power supply: AC 110V/AC 220V, 50/60 Hz
DMX 512: 16 channels
ondition temperature: -10°C ~ +35°C
Operating Environment: indoor
Signal input power: -5V~+5V
Power consumption: 150W
Working mode: Music Control
Optical power: Green: ca. 150mW / 532nm
Laser classification: 3b
Weight: 15 kg
Dimensions: 560 x 410 x 230 mm (L x W x H)
PLEASE NOTE
This device has left our premises in absolutely perfect condition. In order to maintain
this condition and to ensure a safe operation, it is absolutely necessary for the user
to follow the safety instructions and warning notes written in this user manual.
Laserworld cannot be made liable for damages caused by incorrect installations and
unskilled operation!

USER MANUAL: Laserworld Proline CS-150G
Date: 01/200
Page
10
of
10
EU- Declaration of onformity
We hereby confirm that the following device
Laserworld lub S-150G Laser Projector
complies with the essential safety requirements, laid down in the regulations of the
committee to assimilate the provisions of law of all participating EU states on the
electromagnetic compatibility ( 9/446/EWG).
The device has been classified considering the following EU-norms on
electromagnetic compatibility:
DIN EN 55103-1: 1996
DIN EN 55103-2: 1996
DIN EN 61000-3-2:2000 + A2: 2005
DIN EN 61000-3-3:1995 + A1: 2001
Assessment of compliance of the product with the requirements relating to the Low Voltage
Directive (LVD) was based on the following standards:
DIN EN 60065 : 2002
Furthermore, the device is verified in correspondence to the laser class
regulations DIN EN 60 25-1, if properly set up according to the upper
mentioned laser safety regulation.
After installing the device, an inspection and official approval is indispensable for the overall
setup. The inspection must follow the European guidelines EN 60 25-1 and corresponding
regulations for the prevention of accidents BGV-B2. This declaration is executed on behalf of
the CS-150G Laser manufacturer
Laserworld (Switzerland) AG
c/o LOG.ON GmbH
Raiffeisenstrasse 8
78658 Zimmern ob Rottweil
GERMANY
VAT number: DE252331844
WEEE-Reg.-Nr.: DE 93014361
Laserworld (Switzerland) AG
based in:
Rheinblick Residenz
Oberstrasse 1
8274 Tägerwilen
SWITZERLAND
Authorized person:
Supervisory board Ms Rhea Gössel
place of business: 8274 Tägerwilen / Schweiz
company number: CH-440.3.020.548-6
Commercial Registry Kanton Thurgau
www.laserworld.com
[email protected]
