Laserworld Pro-3000RGB User manual

Pro-3000RGB
User Manual
Please read this manual carefully before use!

User Manual: Pro-3000RGB
Stand: 11/2008
Page
2
of
9
Contents
Page
SAF TY INSTRUCTIONS .........................................................................................................3
OP RATING TH LAS R .........................................................................................................3
Using the laser..........................................................................................................................4
Control panel ............................................................................................................................4
Control panel ............................................................................................................................4
ILDA mode ................................................................................................................................5
DMX mode.................................................................................................................................5
Maintenance / cleaning ...........................................................................................................5
Technical specifications...........................................................................................................6
Change scanner........................................................................................................................6
Adjustable mirror mounts .......................................................................................................6
Troubleshooting .......................................................................................................................7
ILDA signal................................................................................................................................7

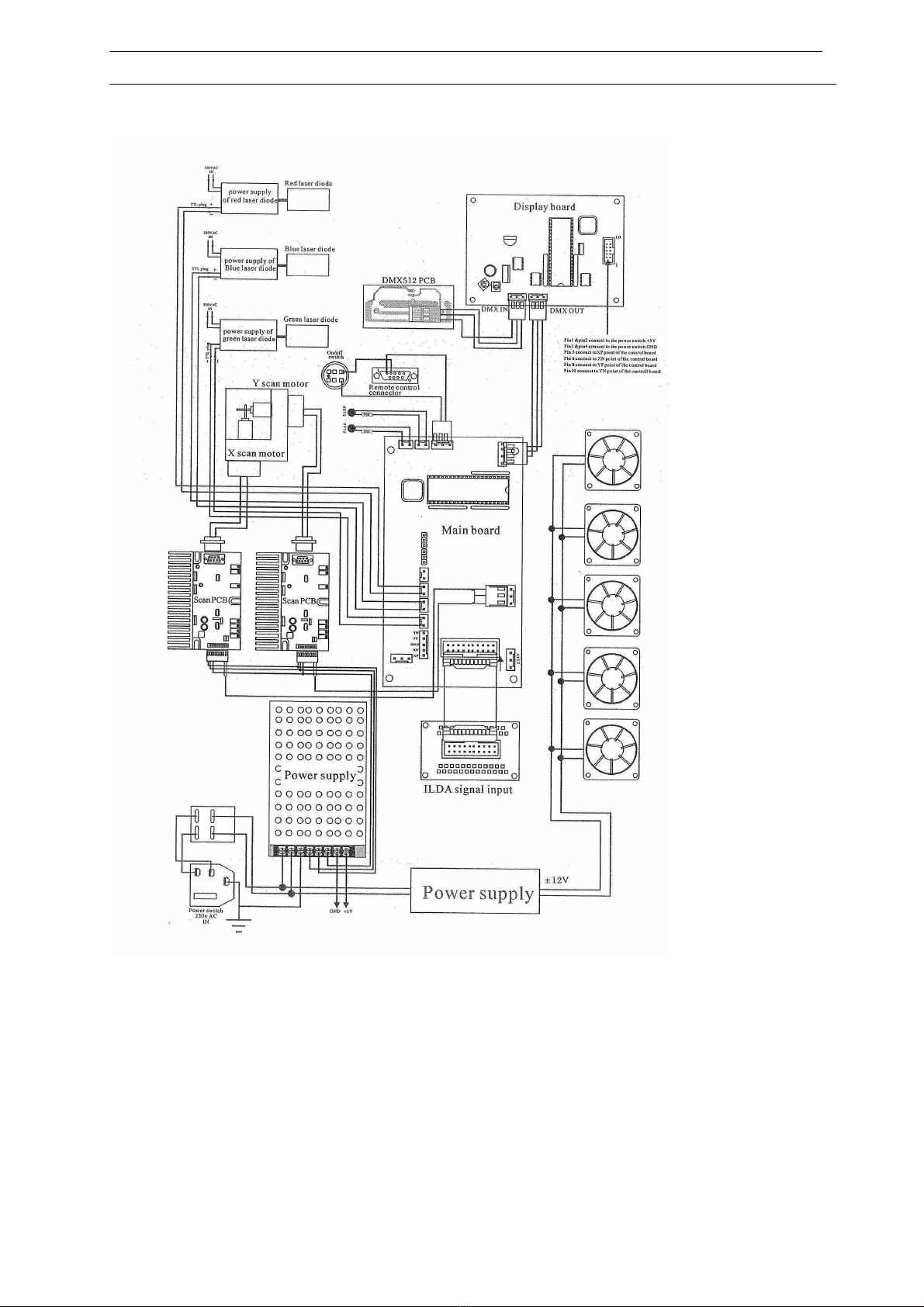

Technical diagram....................................................................................................................8
Please note................................................................................................................................8
U-declaration of conformity..................................................................................................9
Checking arts
Please check if all listed parts are included, and are not damaged.
Included:
1 x Pro-3000RGB Laser
1 x Power cable
1 x 9-pin plug
2 x key
1 x safety cord
1 x manual

User Manual: Pro-3000RGB
Stand: 11/2008
Page
3
of
9
SAFETY INSTRUCTIONS
If the device has been exposed to great temperature changes, do not switch it on
immediately. Condensation water may damage your device. Leave the device
switched off until it has reached room temperature.
The laser must only be used for shows. Any operation has to be attended and
supervised by a skilled and well-trained operator.
Never leave this device running unattended and keep it away from children and
unauthorized persons.
Keep away from heaters and other heat sources. In order to safeguard sufficient
ventilation, leave 50 cm of free space around the device.
Never direct the laser beam to people or animals.
CAUTION LAS R DIOD : Don’t open the housing!
There are no serviceable parts inside the device. Maintenance and service operations
shall only be carried out by authorized dealers. If you open the device for cleaning,
always disconnect from mains!
HEALTH HAZARD! Never look directly into the light source, as
sensitive ersons may suffer an e ile tic shock!
These lasers are considered a definite eye hazard,
particularly at the higher power levels, which WILL cause
eye damage. So these laser series models supplied with a
key switch to prevent unauthorized use, warning labels
and aperture labels affixed to the laser.
Installation safety
Prior to installation and operation of the laser, the paths of
the beams and effects should be considered, particularly with respect to how they
will reach the audience. If direct audience scanning is desired, then the laser energy
in the effects needs to be considered to decide if the effects are safe for direct
viewing.
OPERATING THE LASER
The operator has to make sure that laser radiation – also reflected laser radiation –
higher than the maximum permissible level is avoided by technical or organisational
measures.
Make sure to use the correct voltage
If the device is used in a flying installation, the mounting brackets and an
appropriate safety-rope must be fixed.
In some countries, the operator must notify the accidence insurance and the
authority for industrial safety, before operating a laser. For more information, contact
the relevant authorities.
Please consider that unauthorized modifications on the device are strictly forbidden
due to safety reasons!
If this device will be operated in any way differently than described in this manual,
the product may suffer damages and the guarantee becomes void. Furthermore, any
other operation may lead to dangers like short-circuit, burns, electric shock, etc.

User Manual: Pro-3000RGB
Stand: 11/2008
Page
4
of
9
Keep surrounding dry and clean. This unit should be kept dry, do not use in the rain
or damp and dusty environment. Projector should be put in a water-proof housing
when operated outside.
Operating temperature is 10~35°C. Let laser cool off 10minutes after 2 hours of
operation, to ensure maximum lifetime for the diode.
Distance between laser aperture and projection screen should be not less than 1
meter.
Do not turn device on and immediately off again frequently.
Do not look into the laser beam directly, especially not with optical instruments.
Do not touch the device with wet hands.
When the laser diode becomes dim or broken, please contact your dealer timely.
When returning laser to dealer/manufacturer always use original packaging.
Maintenance should be performed every 15-day period. Use a sponge with alcohol,
rather than wet cloth or other chemical liquid, to clean the mirror.
Using the laser
Make sure the correct voltage is used. Connect mains. Connect an emergency switch
to the 9-pin connector on the backside (pins 1, 2). If you do not wish to connect an
emergency switch, connect the 9-pin plug. Depending on the mode selected (see
below), laser light should come out of the opening on the front panel – be careful.
Control anel
Control anel
•MODE: select mode, or go up in menu
•ENTER: confirm changes, or go down in menu
•UP/ DOWN: change DMX address
O erating modes:
Automatic mode: built-in patterns are displayed
Music active: laser is controlled from built-in microphone
“DMXAddr“: DMX512 mode-. Here you can change the DMX address:
“Open“: change address
“Up“ & “down“: increase/decrease address
“Save“: save new address
“LCD display memory function“: save settings automatically.
Laser: On/Off, when set to Off, laser is off in Auto/DMX mode (ILDA mode only)
X/Y-Axis: mirrors projection horizontally/vertically
Upside down: Display turned upside down

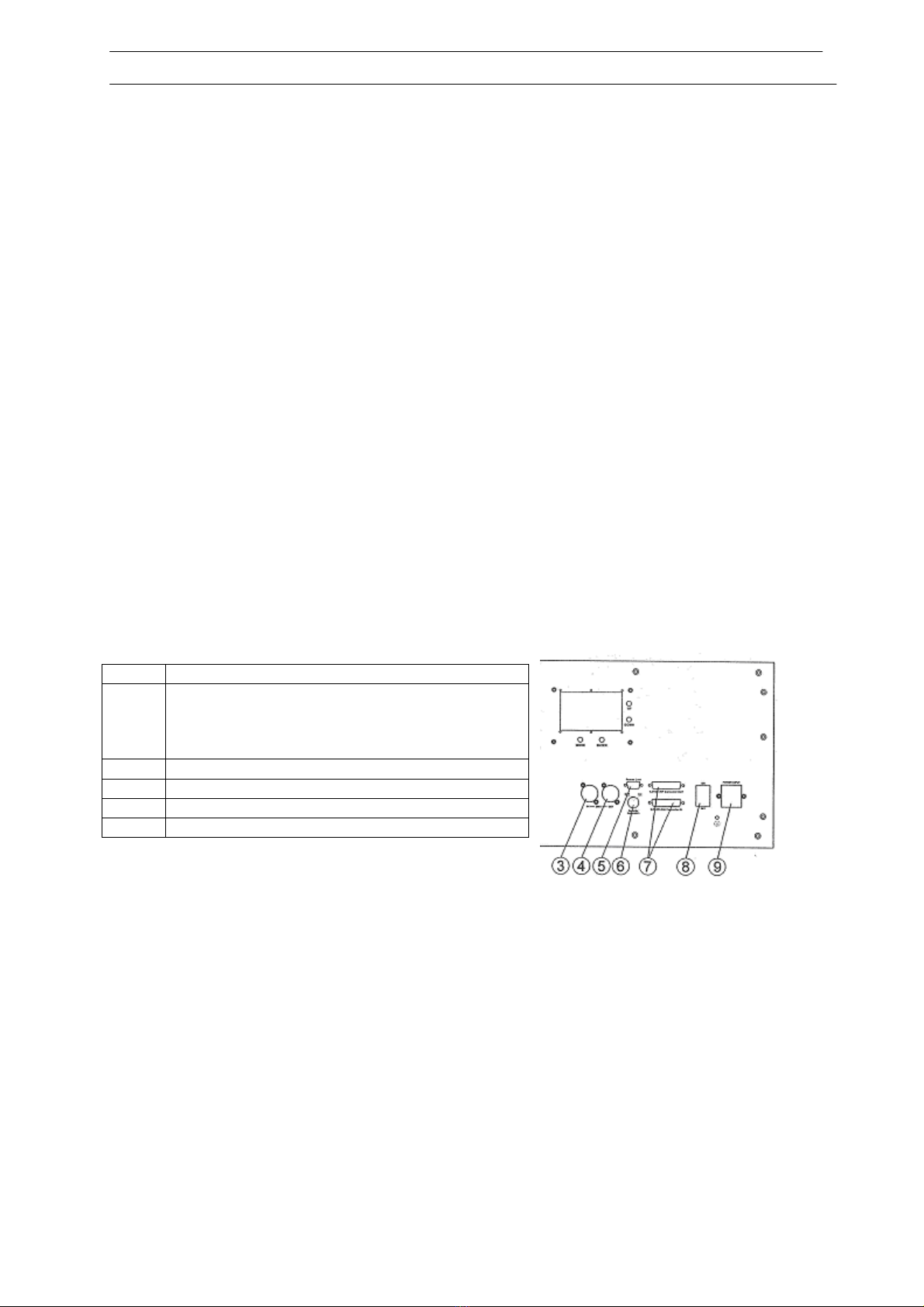

3/4 DMX In/Out
5 Remotelock: connect emergency switch. If no
emergency switch is connected use the 9 pin plug
supplied.
6 Security switch: Laser on/off
7 ILDA connector in/out
8 Power switch: power on/off
9 Power: connect to mains.

User Manual: Pro-3000RGB
Stand: 11/2008
Page
5
of
9
ILDA mode
When an IDLA compatible interface is connected to the laser, the laser is
automatically switched to ILDA mode. Output is then controlled from a PC running
software.
The laser uses pins 4 and 17 of the IDLA signal to detect the presence of an ILDA
interface.
Further information can be found in the software manual.
DMX mode
Channel DMX512 value Function
1 Red 0~255 0~100% Dimmer
2 Green 0~255 0~100% Dimmer
3 Blue 0~255 0~100% Dimmer
0~25 Original colour
26~51 White
52~77 Yellow
78~103 Red
104~129 Green
130~155 Cyan
156~181 Blue
182~207 Purple
208~233 Change colour
4 Colour
234~255 Colour flux, slow to fast
0~51 Pattern group 1
52~103 Pattern group 2
104~154 Pattern group 3
155~205 Pattern group 4
5 Pattern group
206~255 Pattern group 5
6 Pattern 0~255 160/5=32pcs
7 Horizontal rotation 0~255 slow to fast
8 Vertical rotation 0~255 slow to fast
9 Rotation about Z-axis 0~255 slow to fast
10 Horizontal movement 0~255 slow to fast
11 Vertical movement 0~255 slow to fast
12 Horizontal size 0~255 slow to fast
13 Vertical size 0~255 slow to fast
14 Hor. and vert. size 0~255 slow to fast
15 Drawing speed 0~255 slow to fast
16 Point draw 0~255 slow to fast
17 Scanspeed 0~255 slow to fast
0~1 Original size 18 Pattern size
2~255 Size (120=original)
Maintenance / cleaning
Always disconnect from mains before cleaning/opening the laser. Regularly clean the
interior from dust, especially ensure operation of the fans. Use a sponge with
alcohol, rather than wet cloth or other chemical liquid, to clean the mirrors. Be
careful, even light scratches reduce the output power of the laser. Mirrors need
cleaning, when a “halo” is noticeable around the beam, or an unusual high amount
of diffuse light can be seen inside the device.

User Manual: Pro-3000RGB
Stand: 11/2008
Page
6
of
9
Technical s ecifications
• Out ut ower: typical: 3000mW, guaranteed: 2400mW, 550mW 632nm
green, 200mW 473nm blue, 1650mW 650nm red
• Lasersources: aircooled DPSS laser
• Laser class: 4
• Modes: ILDA, DMX 512, auto, music active
• ILDA: 25pin ILDA standard Sub-D shaped 25pin connector
• Galvos: 50k scanspeed
• DMX 512: 14 channels
• Patterns: 160
• Scanangle: set to ca. 40° optical (60° max)
• Beam: ca. 3mm/1mrad
• Accessories: power cable, key switch, interlock plug, manual, safety cord
• The laser comes in a flightcase.
• In ut voltage: AC 100~240V 50/60Hz
• Power consum tion: 450W
• Size: 670 x 370 x 440 mm (W x D x H)
• Weight: 30kg Laser, total: 50kg (with flightcase)
• O erating tem erature: 10°-35°C (below 20°C the power may be reduced)
Change scanner
1. Unscrew UK M6 screws and
disconnect signal cable.
2. Loosen M4 x 10 screw and remove
galvo.
3. Insert galvo, reconnect and fix
signal cable.
4. Rotate galvo to centre projection.
Fix galvo.
Adjustable mirror mounts
1. Loosen setscrews, then adjust with X/Y
adjustable screws. Make sure beam is
centred on scanner mirrors.
2. Adjust Z-screw simultaneously.
3. Tighten setscrews.
4. When combining beams (RGY/RGB
laser), first make sure the beams are
(roughly) on the same spot on the
mirrors/dichros. Then use a test pattern
(e.g. rectangle) to do fine adjustment.
For adjustments, always turn output
power down (if possible).

User Manual: Pro-3000RGB
Stand: 11/2008
Page
7
of
9
Troubleshooting
Problem Possible reason Damaged art Re lacement
Fuse blown Fuse 09-00-3001-01
+-24V 16-03-0039-00
No power
Power supply defective
12V 19-03-0019-00
Microphone defective Microphone 16-03-0001-00
Control board defective Control board 26-2A-2009LD-00
Potentiometer defective Potentiometer 04-03-0104-01
Music mode not working
CPU defective IC 00-89C516 D-00
Scanner defective Galvo 15-01-2215-00
CPU defective IC 00-89C516 D-00
Control board defective Control PCB 26-2A-2009LD-00
Power supply defective +-24V 16-03-0039-00
X and/or Y axis no
deflection
Scanner driver board defective Scanner driver board 26-2A-6800A-00
Lenses / mirrors dirty Clean with alcohol
Laser diode defective Laser diode Inquire
Control board defective Control board 26-2A-2009LD-00
Laser dark or dim
Configuration / wrong mode Check configuration (see
paragraph control panel)
Configuration / wrong mode Check configuration (see
paragraph control panel)
Control board defective Control PCB 26-2A-2009LD-00
Power supply defective +-24V 16-03-0039-00
Display board defective Display 26-2A-YX2012DI-00
No output
Pins 4 and 17 of the ILDA signal
not connected
See below
Laser does not switch to ILDA mode:
•The interface does not connect pins 4 and 17 (Interlock) of the IDLA signal. See
interface manual
•The cable does not connect pins 4 and 17. Use a cable that connects pins 4 and 17.
•Use an adapter that connects pins 4 and 17.
ILDA signal
Pin out of the standard ILDA signal:
1 Scanner X+ -10V..+10V 14 X- +10V..-10V
2 Scanner Y+ -10V..+10V 15 Y- +10V..-10V
3 Intensity/Blanking+ 0V..+2.5V 16 Intensity/Blanking- 0..-2.5V
4 Interlock A 17 Interlock B
5 Red+ 0..2.5V 18 Red- 0..-2.5V
6 Green+ 0..2.5V 19 Green- 0..2.5V
7 Blue+ 0..2.5V 20 Blue- 0..-2.5V
8 – 12 Not used 23-24 Not used
13 Shutter +5V, max. 20 mA 25 GND Signal ground

User Manual: Pro-3000RGB
Stand: 11/2008
Page
8
of
9
Technical diagram
Please note
This device has left our premises in absolutely perfect condition. In order to maintain
this condition and to ensure a safe operation, it is absolutely necessary for the user
to follow the safety instructions and warning notes written in this user manual.
Laserworld cannot be made liable for damages caused by incorrect installations and
unskilled operation!

User Manual: Pro-3000RGB
Stand: 11/2008
Page
9
of
9
EU-declaration of conformity
We hereby confirm that the following device
Laserworld Pro-3000RGB
complies with the essential safety requirements, laid down in the regulations of the
committee to assimilate the provisions of law of all participating U states on the
electromagnetic compatibility (89/336/ WG).
The device has been classified considering the following U-norms on
electromagnetic compatibility:
DIN N 61000-3-2:2000 + A2: 2005
DIN N 61000-3-3:1995 + A1: 2001
Assessment of compliance of the product with the requirements relating to the Low Voltage
Directive (LVD 2006/95/ G) was based on the following standards:
DIN N 60065 : 2002
Furthermore, the device is verified in correspondence to the laser class regulations DIN N
60825-1, if properly set up according to the upper mentioned laser safety regulation.
After installing the device, an inspection and official approval is indispensable for the overall
setup. The inspection must follow the european guidelines N 60825-1 and corresponding
regulations for the prevention of accidents BGV-B2.
This declaration is executed on behalf of the Laserworld Pro-3000RGB manufacturer
Laserworld (Switzerland) AG
Oberstrasse 1
8274 Tägerwilen
SWITZ RLAND
Authorized person:
Supervisory board Ms Rhea Gössel
place of business: 8274 Tägerwilen / SWITZ RLAND
company number: CH-440.3.020.548-6
Commercial Registry Kanton Thurgau
www.laserworld.com
[e-mail]
representative according to MVG:
Cleantech urope GmbH
Managing Director: Thomas Schulze
Fürkhofstr. 5
81927 München / D
