Lattice Semiconductor iCE40HX-8K User manual

November 2013
EB85_01.0
iCE40HX-8K Breakout Board
User’s Guide

2
iCE40HX-8K Breakout Board
Introduction
Thank you for choosing the Lattice iCE40HX-8K Breakout Board.
This document provides technical information and instructions for using the iCE40HX-8K Breakout Board. This kit
is based on the Lattice iCE40-HX8K-CT256 high performance FPGA device. Two source codes, one written in Ver-
ilog and the other in VHDL, are available to download for the iCE40HX-8K Breakout Board. Both codes are func-
tionally the same.
The contents of this user’s guide include demo operation, top-level functional descriptions of the various portions of
the evaluation board, descriptions of the on-board connectors, switches, a complete set of schematics and the bill
of materials for the iCE40HX-8K Evaluation Board.
Features
The iCE40HX-8K Breakout Board includes:
•iCE40HX-8K Evaluation Board – The iCE40HX-8K Evaluation Board features the following on board capabili-
ties:
– iCE40HX-8K CT256 device
– 8 user accessible LEDs
– SPI Flash for programming configuration
– 40 pin 0.1” header for user connectivity
– 0.1” holes for user connectivity
– FTDI 2232H for USB interface
– 12Mhz oscillator
– Jumpers to select programming the SPI flash or iCE40HX-8K
•Pre-loaded Demo – The kit comes with a default design that flashes the LEDs on and off
•USB connector Cable – A mini B USB cable for programming the SRAM fabric of the iCE40HX-8K or the on-
board SPI flash. The USB cable also powers the iCE40HX-8K evaluation board.

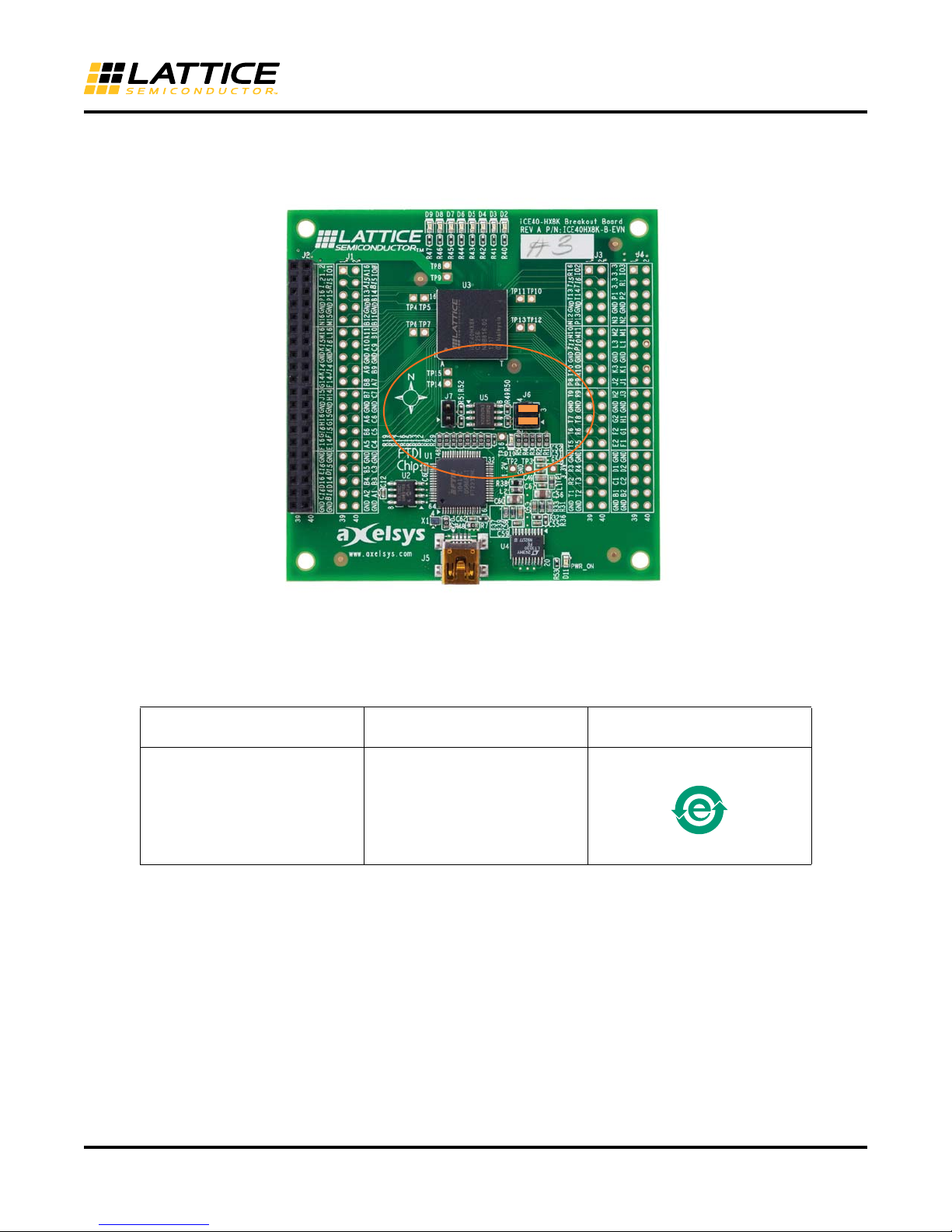

Figure 1 shows the top side of the iCE40HX-8K Evaluation Board indicating the specific features that are designed
on the board.

3
iCE40HX-8K Breakout Board
Figure 1. iCE40HX-8K Evaluation Board (Top Side)
Figure 2. Block Diagram
iCE40HX-8K
LEDs
40 pin header 0.1" spaced holes
USB
FPGA
Power from USB 5V
BANK 3
BANK 1
BANK 0
BANK 2
iCE40HX8K-CT256
HEADER
HEADER
HEADER
I/Os
I/Os
I/Os
HEADER
I/Os
RS232
USB
CONNECTOR
USB to
SPI / RS232
LEDS(1-8)
SPI

4
iCE40HX-8K Breakout Board
iCE40 Device
This board features an iCE40HX-8K device with a 1.2v core supply. It is packaged in a 256 caBGA package. For a
complete description of this device, see HB1011, iCE40 LP/LX/LM Family Handbook.
Software Requirements
You should install the following software before you begin developing designs for the evaluation board:
• Lattice iCEcube2 Release: 2012.09SP1.22498 or later
• Diamond Programmer: Version 2.2 or later
These software are available at the Lattice website Design Software & IP page. Make sure you log in to the Lattice
website, otherwise these software downloads will not be visible.
Demonstration Design
The demonstration design iCE40HX8KLED.zip file contains the following files:
• LED_VHDL.vhd (VHDL code)
• LED_Verilog.v (Verilog code)
• LED.pcf (pin constraint file)
• LED_VHDL_bitmap.hex (Bit stream file for programming FPGA.)
• LED_Verilog_bitmap.hex (Bit stream file for programming FPGA.)
Two source codes are provided, one written in VHDL and the other in Verilog. Both of these codes function identi-
cally. This provides you with an option to use either one of the code when programming the Breakout Board. When
the FPGA is programmed with one of these codes, the red LEDs (D2 thru D9) will flash on for ½ second and off for
½ second.
Figure 3 shows the block diagram of the Verilog or VHDL code.
Figure 3. Block Diagram of the Verilog or VHDL Code
The source code has two counters that are used to divide the 12MHz clock by 216 and 96 generating a approxi-
mately ½ second pulse. This pulse along with the decoder will turn the LEDs (D2 thru D9) on for ½ second and off
for ½ second. The decoder can be modified to have any type of LED sequence by changing either the VHDL or
Verilog code.
When the board is plugged into a USB port, a +5 volt power is applied to the board that will light a green LED
(D11). After the FPGA has been programmed, a green LED (D10) will light. This LED is connected to the CDONE
line of the FPGA.
÷2
16
÷96
2 bit counter
Decoder
½ second pulse 2
LED 2
LED 2
LED 3
LED 9
12MHz Clk

5
iCE40HX-8K Breakout Board
Board Power
The iCE40HX-8K evaluation board is powered with the USB cable. LED location D11 indicates that the board is
powered up. All I/Os are driven at 3.3v.
Board I/Os
The I/Os that feed the holes and the 0.1” connector are driven at 3.3v levels. Location J2 is the populated 2 x 20
row connector. Locations J1, J3 and J4 have hole locations that the users can connect to for their specific I/O
requirements.
Programming Options
Two jumpers, J6 and J7 can be set for two types of FPGA Configurations:
• SPI Flash Mode, for programming the serial flash memory.
• SPI Peripheral Mode, for configuring the volatile CRAM in the FPGA.
In SPI Flash Mode the SPI signals, from the FTDI USB interface chip, programs the serial flash memory. After the
memory is programmed the FPGA reads from the memory and configures its self. The advantage of programming
the serial flash is that the FPGA will be re-configured after power-up. Jumpers must be in locations J7:1-2, J6:2-4,
and J6:1-3. See Figure 4
Figure 4. SPI Flash Programming
In SPI Peripheral Mode the SPI signals loads the program file into the CRAM (configuration ram) of the FPGA
directly. In this mode the FPGA will lose its configuration when power is removed and must be re-configured. Jump-

6
iCE40HX-8K Breakout Board
ers must be in locations J6:1-2 and J6:3-4. Jumper J7 is not installed. See Figure 5
Figure 5. CRAM Programming
LED in location D10 is connected to the CDONE pin of the iCE40HX-8K. This can be monitored to determine that
the iCE40HX-8K is programmed correctly.
Ordering Information
Description Ordering Part Number
China RoHS Environment-
Friendly Use Period (EFUP)
ICE40HX-8K Breakout Board ICE40HX8K-B-EVN

Technical Support Assistance
e-mail: techsuppor[email protected]
Internet: www.latticesemi.com
Revision History
© 2013 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as
listed at www.latticesemi.com/legal. All other brand or product names are trademarks or registered trademarks of
their respective holders. The specifications and information herein are subject to change without notice.
Date Version Change Summary
November 2013 01.0 Initial release.

Appendix A. Schematic Diagrams

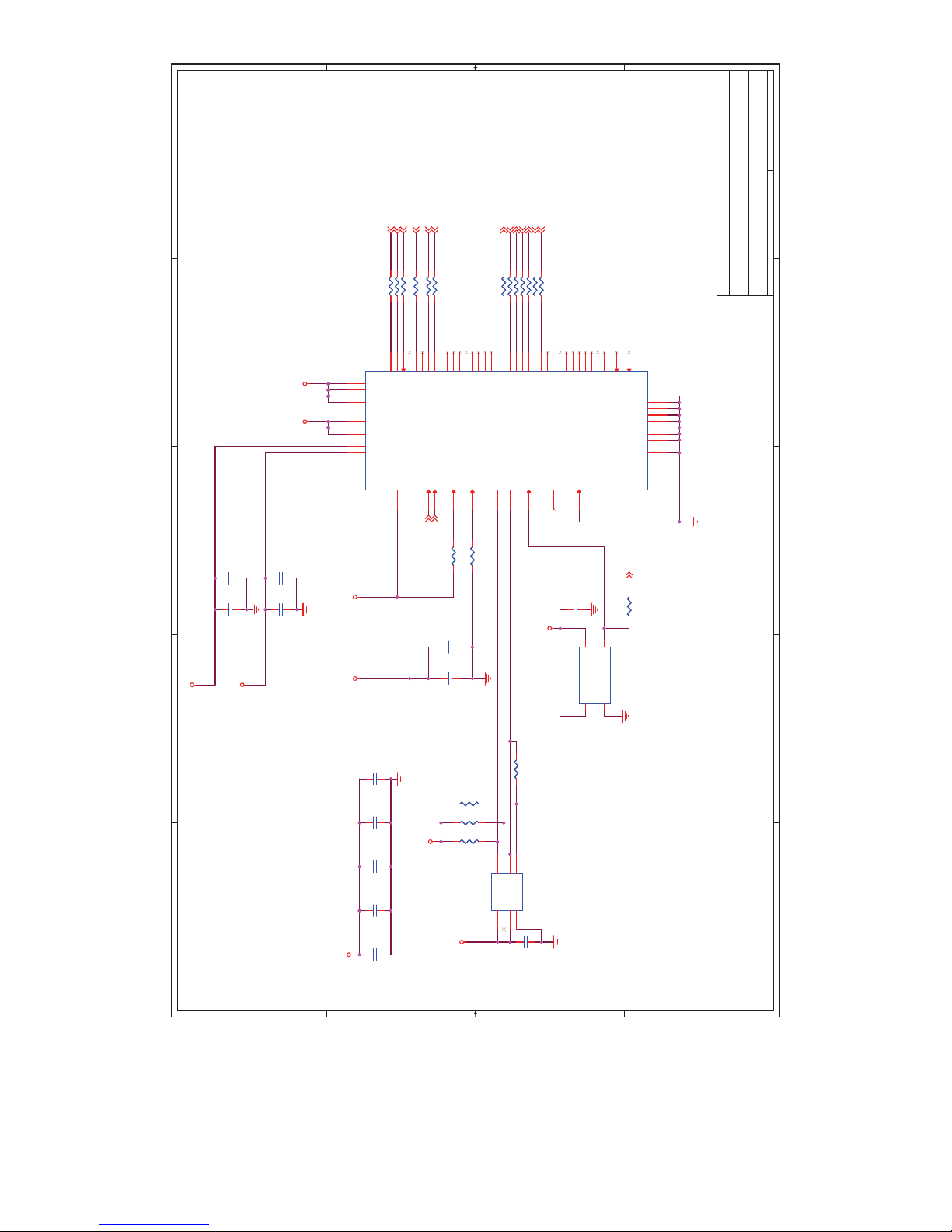

Figure 6. Block Diagram
5
5
4
4
3 3
2
2
1
1
DD CC B B
A A
FPGA
Power from USB 5V
BANK 3
BANK 1
BANK 0
BANK 2
iCE40HX8K-CT256
HEADER
HEADER
HEADER
I/Os
I/Os
I/Os
HEADER
I/Os
RS232
USB CONNECTOR
USB to SPI / RS232
LEDS(1-8)
SPI
Title
veRreb
mu
N
t
n
e
muco
D
eziS
te
eh
S:eta
Dof
AXELSYS
ICE40HX8K-B-EVN
A
iCE40-HX8K Breakout Board - Block Diagram
B
16Jul 11, 2013
Title
v
e
Rr
ebmu
N
t
n
e
mu
coD
eziS
t
ee
h
S:etaD of
AXELSYS
ICE40HX8K-B-EVN
A
iCE40-HX8K Breakout Board - Block Diagram
B
16Jul 11, 2013
Title
v
e
Rr
ebmu
N
t
n
e
mu
coD
eziS
t
ee
h
S:etaD of
AXELSYS
ICE40HX8K-B-EVN
A
iCE40-HX8K Breakout Board - Block Diagram
B
16Jul 11, 2013

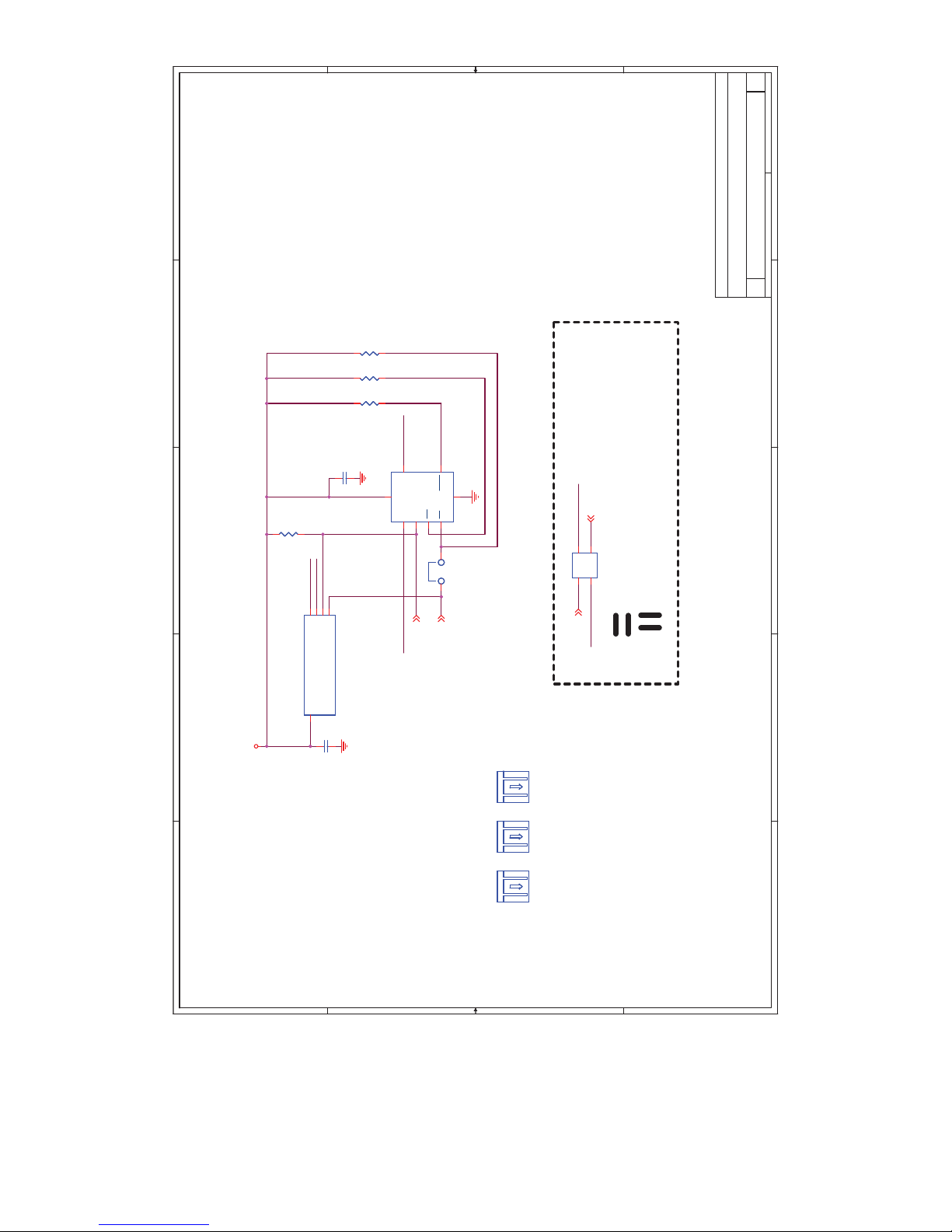

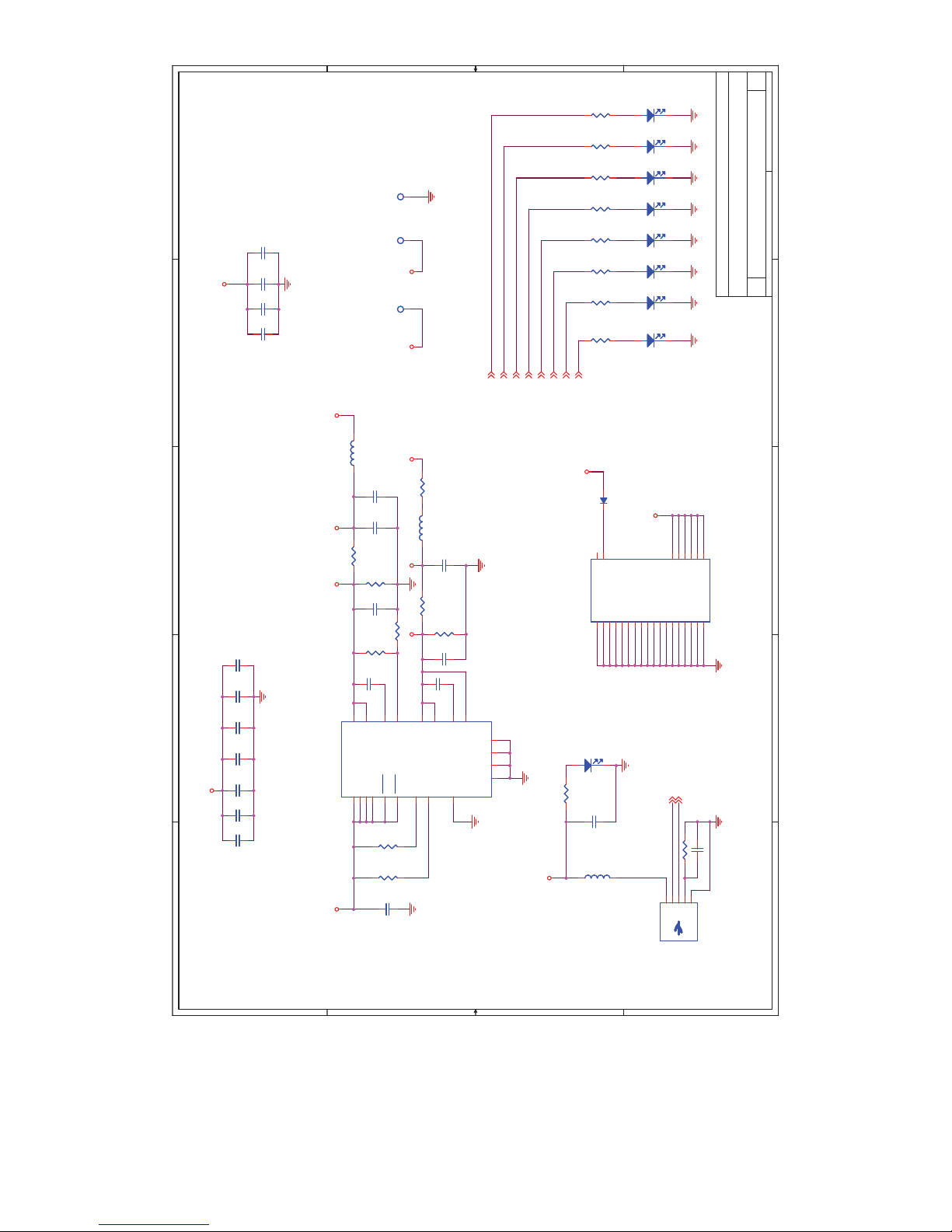

Figure 7. USB to SPI/RS232
5
5
4
4
3 3
2 2
1 1
D D CC BB
AA
SCK SI
SO
FT_EECS
FT_EECLK
FT_EEDATA
SS
+3.3V
VCC1_8FT
VCC1_8FT
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
iCE_SCK 6
FLASH_MOSI 6 FLASH_MISO 6 iCE_SS_B 6
DM5 DP5
RS232_Rx_TTL 3
RS232_Tx_TTL 3
RTSn 3 DTRn 3
CTSn 3
DSRn 3
DCDn 3
iCE_CLK 4
iCE_CDONE 4
iCE_CREST 4
Title
v
eR
r
ebmuN
t
nemucoDezi
S
t
e
e
h
S
:e
t
a
Dof
AXELSYS
ICE40HX8K-B-EVN
A
iCE40-HX8K Breakout Board - USB to SPI/RS232
B
26
Jul 11, 2013
Title
v
e
Rr
e
b
mu
NtnemucoDeziS
te
e
h
S:etaD of
AXELSYS
ICE40HX8K-B-EVN
A
iCE40-HX8K Breakout Board - USB to SPI/RS232
B
26
Jul 11, 2013
Title
v
e
Rr
e
b
mu
NtnemucoDeziS
te
e
h
S:etaD of
AXELSYS
ICE40HX8K-B-EVN
A
iCE40-HX8K Breakout Board - USB to SPI/RS232
B
26
Jul 11, 2013
R50R50
C13 0.1uF C13 0.1uF
C4
0.1uF
C4
0.1uF
R4
0R4 0
C12
0.1uF
C12
0.1uF
R11 12KR11 12K
R10 10K R10 10K
C6 0.1uF C6 0.1uF
X1
12.0000MHZ
X1
12.0000MHZ
VDD 4
STANDBY#
1
GND
2OUTPUT 3
R8 10K R8 10K
R150R150 R12
0R12 0
R19
0R19 0
R30R30
C11
0.1uF
C11
0.1uF
R17
0R17 0
R14 2.2KR14 2.2K
R20 0 R20 0
R7 2.2KR7 2.2K
C5 0.1uF C5 0.1uF
C3 4.7uF C3 4.7uF
C9
0.1uF
C9
0.1uF
R2
0R2 0
C2
0.1uF
C2
0.1uF
R9 10K R9 10K
C10
10uF
C10
10uF
R16
0R16 0
C8 0.1uF C8 0.1uF
FTDI High-Speed USB
FT2232H
FT2232HL
U1
FTDI High-Speed USB
FT2232H
FT2232HL
U1
VREGIN
50
VREGOUT
49
DM
7
DP
8
REF
6
RESET#
14
EECS
63
EECLK
62
EEDATA
61
OSCI
2
OSCO
3
TEST
13
ADBUS0 16
ADBUS1 17
ADBUS2 18
ADBUS3 19
VPHY 4
VPLL 9
VCORE 12
VCORE 37
VCORE 64
VCCIO 20
VCCIO 31
VCCIO 42
VCCIO 56
AGND
10
GND
1
GND
5
GND
11
GND
15
GND
25
GND
35
GND
47
GND
51
PWREN# 60
SUSPEND# 36
ADBUS4 21
ADBUS5 22
ADBUS6 23
ADBUS7 24
ACBUS0 26
ACBUS1 27
ACBUS2 28
ACBUS3 29
ACBUS4 30
ACBUS5 32 ACBUS6 33
ACBUS7 34 BDBUS0 38
BDBUS1 39 BDBUS2 40
BDBUS3 41
BDBUS4 43
BDBUS5 44 BDBUS6 45
BDBUS7 46
BCBUS0 48
BCBUS1 52
BCBUS2 53 BCBUS3 54
BCBUS4 55
BCBUS5 57
BCBUS6 58
BCBUS7 59
R13
0R13 0
R60R60
R18
0R18 0
R10R10
C7
0.1uF
C7
0.1uF
C1
4.7uF
C1
4.7uF
93LC56-SO8
U2
93LC56-SO8
U2
CS 1
CLK 2
DI 3
DO 4
VSS
5ORG
6NU
7VCC 8

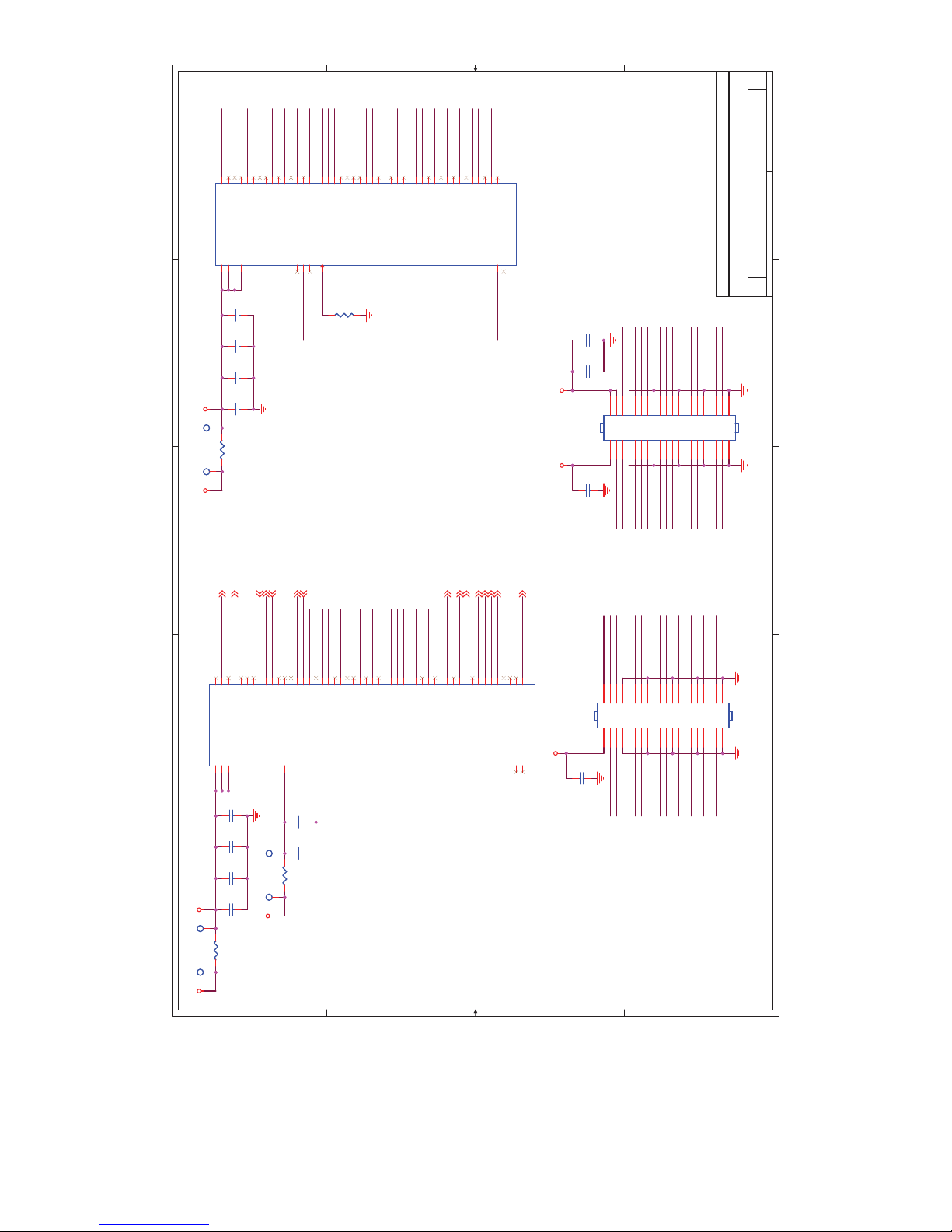

Figure 8. FPGA
