Laufen CLEANET RIVA User manual

LAUFEN CLEANET RIVA
OPERATING MANUAL

3
1 SAFETY AND WARNING NOTICES 6
2 INTRODUCTION 8
2.1 Notices 8
2.2 Remote control: All Laufen symbols at a glance 8
2.3 Shower toilet: LED indicator light 9
3 OVERVIEW OF YOUR LAUFEN SHOWER TOILET 10
3.1 Shower toilet 10
3.2 Controller with rotary button 11
3.3 Remote control 11
3.4 Remote control wall holder 11
3.5 Water hardness test strip 12
3.6 Laufen carbon filter 12
4 OPERATING THE REMOTE CONTROL FOR THE FIRST TIME 13
5 USING THE SHOWER TOILET FOR THE FIRST TIME 14
5.1 Switch on the shower toilet 14
5.2 User detection 14
5.3 Seat and cover lowering system 15
5.4 Splash guard 15
5.5 Demo mode 16
6 CONFIGURING BASIC SETTINGS USING THE REMOTE CONTROL 17
6.1 Language 17
6.2 Water hardness 18
6.3 Economy settings 18
6.4 LED indicator light 19
6.5 Thermal cleaning reminder function 19
6.6 Saving basic settings 20
7 SELECTING SPECIAL FUNKCTIONS USING THE REMOTE CONTROL 21
7.1 Retracting and extending the shower arm 21
7.2 Replace carbon filter 21
7.3 Thermal cleaning 22
7.4 Descaling 22
7.5 Restoring the factory settings 23
Continued on next page
CONTENTS

4
8 CONFIGURING THE BASIC PROFILE AND USER PROFILES USING THE REMOTE CONTROL 24
8.1 Jet intensity 24
8.2 Shower jet position 24
8.3 Shower duration 25
8.4 Shower temperature 25
8.5 Pulsation (massage shower) 25
8.6 Oscillation 26
8.7 Air purifier 26
8.8 Lady shower settings 27
8.9 Saving 28
9 OPERATING THE SHOWER TOILET 29
9.1 Air purifier 29
9.2 Selecting the basic profile and user profiles 30
9.3 Rear shower 31
9.3.1 Power mode 32
9.3.2 Jet intensity 32
9.3.3 Shower jet position 33
9.3.4 Oscillation 33
9.3.5 Pulsation (massage shower) 34
9.3.6 Saving your changes 34
9.3.7 Switching from the lady shower to the rear shower 35
9.4 Lady shower 36
9.4.1 Jet intensity 37
9.4.2 Shower jet position 38
9.4.3 Oscillation 38
9.4.4 Pulsation (massage shower) 39
9.4.5 Saving your changes 39
9.4.6 Changing from the lady shower to the rear shower 40
9.5 LED indicator light 40
CONTENTS

5
10 MAINTENANCE AND CLEANING 41
10.1 Holiday program 41
10.2 Cleaning the seat and cover unit 41
10.3 Cleaning the descaling and filter opening 41
10.4 Cleaning the ceramic surface 42
10.5 Cleaning plastic surfaces and metal components 42
10.6 Cleaning the remote control 42
10.7 Suitable cleaning agents and equipment, cleaning tips 43
10.8 Unsuitable cleaning agents and equipment 43
10.9 Ordering consumables 43
10.10 Thermal cleaning, automatic 44
10.11 Thermal cleaning, manual 47
10.12 Descaling, automatic 48
10.13 Descaling, manual 51
10.14 Replacing the carbon filter automatically 52
10.15 Replacing the carbon filter manually 55
10.16 Replacing the nozzle 56
10.17 Replacing the cover ring 57
10.18 Replacing the remote control batteries 58
10.19 Replacing the controller battery 59
11 TROUBLESHOOTING 61
11.1 Info and reset 61
11.2 Messages and faults 62
11.3 Ceramic unit removal 63
12 DISPOSAL AND EVIRONEMENT 66
13 TECHNICAL DATA LAUFEN CLEANET RIVA 67
14 LEGAL NOTICES 68
CONTENTS

6
Intended use
The Laufen shower toilet is designed to wash the rear area and also the female intimate area with the lady
shower. Any other kind of use is not permitted. Glowing cigarettes or other burning objects must not be
thrown into the WC bowl. Laufen shall not accept liability for damage that occurs as a result of connect-
ing the appliance incorrectly, misuse or inappropriate use.
Persons with physical, sensory or mental disabilities as well as persons who are completely unfamiliar
with the appliance (especially children) may only use the shower toilet under the supervision or instruction
of a responsible person.
Warning notices/precautions (your safety)
Never operate a faulty appliance or an appliance with a damaged supply pipe. Only connect the appli-
ance to the voltages specified in the operating manual. For further information, see section 13, Laufen
Cleanet Riva technical data.
Check all functions regularly to ensure they work normally. Should you have any suspicion that the appli-
ance is faulty, disconnect it immediately from the power supply and contact Laufen customer services.
Do not attempt to open or repair the appliance yourself. Do not install any additional components
or make any modifications. The appliance contains live components. Opening the appliance can be
extremely dangerous!
Unprofessionally performed repairs can cause dangerous accidents, malfunctions or damage to the appli-
ance and installation. Repairs must therefore always be performed by trained and authorised personnel
using original spare parts and accessories.
Only original materials for electrical and water connections as well as original spare parts may be used.
In the event of an appliance malfunction or repair order, follow the instructions in section 11, Trouble-
shooting. If necessary, contact Laufen customer services.
Every person feels temperatures differently. You should therefore check the water temperature setting
before using the shower toilet.
1 SAFETY AND WARNING NOTICES

7
As a user or owner, you may only maintain or operate the appliance as described in these instructions.
Always use drinking water to operate your Laufen shower toilet. Do not use rainwater, grey water or dem-
ineralised water.
Always use original Laufen products or products recommended by Laufen for cleaning, care and descal-
ing tasks. We do not accept liability for the use of other products.
Thermal cleaning is performed using hot water: Caution,risk of scalding!
Do not sit on the shower toilet during thermal cleaning.
Visit www.laufen-cleanet.com to view the Declaration of Conformity
1 SAFETY AND WARNING NOTICES

8
REMOTE CONTROL: ALL LAUFEN SYMBOLS AT A GLANCE
All symbols on the remote control are explained in the “Help” menu.
Press “Help” to open the overview.
Basic profile
Rear shower
Oscillation
Confirm
Menu
Thermal
cleaning
User profile 1
Lady shower
Pulsation
Cancel
Shower set-
tings
Descaling
User profile 2
Power mode
Reduce jet intensity
Reduce shower
duration
Stop
General settings Water hardness
User profile 3
Replace carbon filter Increase jet intensity
Increase shower
duration
Next Back
Factory settings Reset Sanitary ware
removal
User profile 4
Air purifier Reduce shower
temperature
Shower arm for-
wards
Minus
LED indicator light
Info Help
Save
Increase shower
temperature
Shower arm back
Plus
Language
Service information
NOTICES Information Warning
Demo
2.2
2.1
2 INTRODUCTION

9

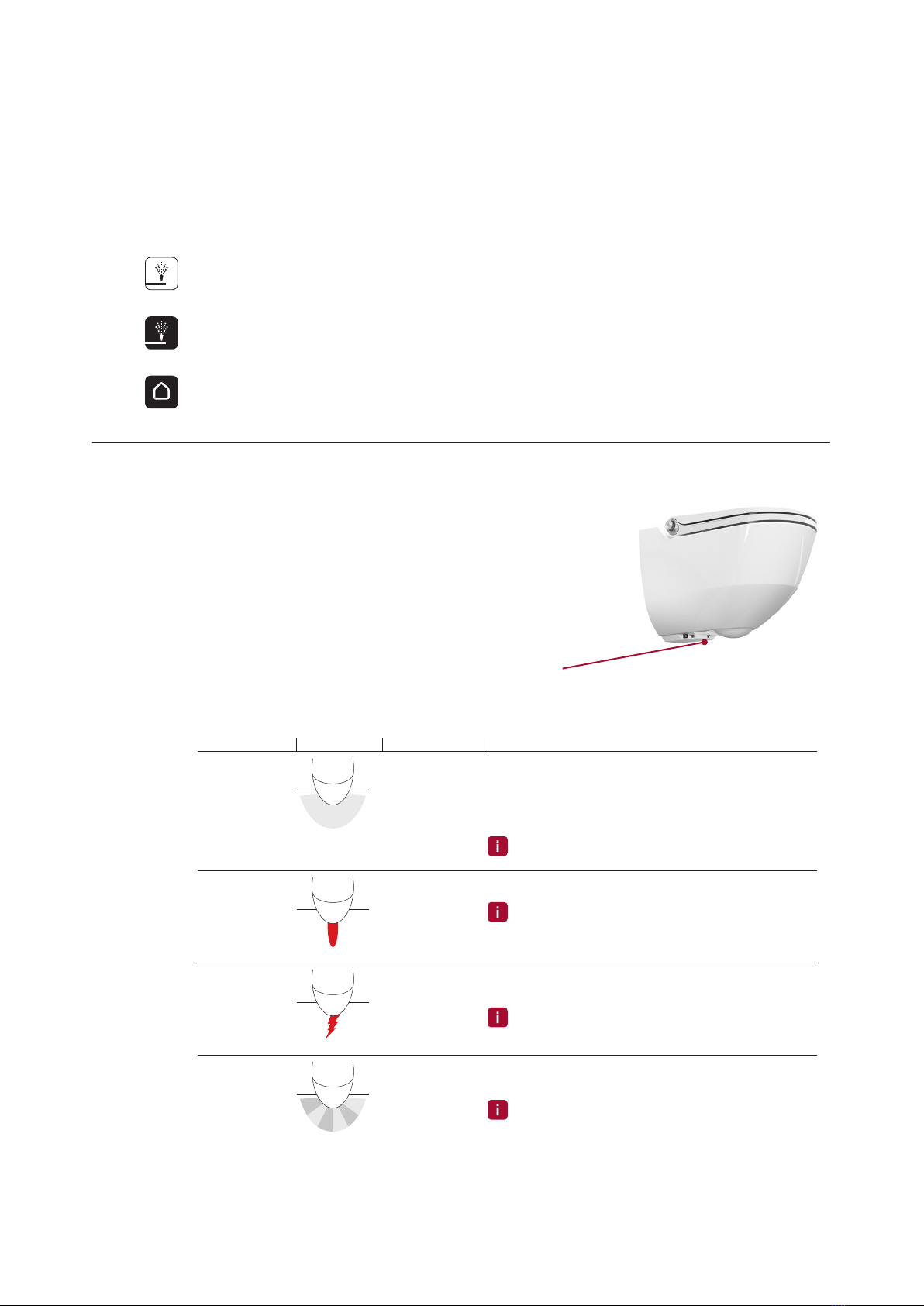

SHOWER TOILET: LED INDICATOR LIGHT
The LED indicator light underneath the appliance throws light
on the floor. It offers orientation when visiting the WC during
the night and notifies you of required maintenance or possi-
ble malfunctions on your shower toilet.
LED indicator light Information Description
White Normal operation Everything functioning correctly.
The white LED indicator light provides lighting at night. You can select
one of 4 brightness settings or deactivate the indicator light using the
remote control.
For a more detailed description,
see section 6.4 LED indicator light.
Red Care notice Please activate the remote control for further information.
For further information and descriptions on the notice, see
section11.2, Messages and malfunctions.
Red flashing Fault indication Please contact our service hotlineand have your remote control ready
for further instruction.
For further information and descriptions of the problem,
see section11.2, Messages and malfunctions.
Alternate white
flashing
Care program
active
If the white LED indicator light flashes alternately, descaling or thermal
cleaning is active.
For further information and descriptions, see section 10.9,
Thermal cleaning, automatic and 10.11, Descaling, automatic.
White symbol
Function is active/in use.
Black symbol
Function is inactive/not in use.
You can return to the main menu at any time by pressing “Menu”. Any changes made are discarded.
2.3
2 INTRODUCTION
LED indicator
light

10
SHOWER TOILET3.1
3 OVERVIEW OF YOUR LAUFEN SHOWER TOILET
Reset button/
Holiday program
Carbon filter opening
Descaling agent opening
LED indicator light
Controller with
rotary button
Main switch

11
CONTROLLER WITH ROTARY BUTTON
You can operate the Laufen shower toilet
easily by turning and pressing the rotary button
located on the right. The following functions
can be activated using the controller:
User profile selection
Rear shower
Lady shower
Jet intensity
Shower jet position
REMOTE CONTROL
Activate the touch screen remote control
by pressing the start button at the top right.
Unique commissioning software* guides you
through the most important settings. The
remote control is ready as soon as you sit on
the shower toilet.
* The sanitary technician may have already commissioned
the WC after installation. For further information and
descriptions, see section6, Configuring basic settings
using the remote control.
REMOTE CONTROL WALL
HOLDER
When stowed in the wall wall holder, the
remote control is easy to reach at all times.
Double-sided adhesive tape is affixed to the
back of the wall wall holder. Please remove
the protective film and
press the holder onto the wall.
3.2
3.3
3.4
3 OVERVIEW OF YOUR LAUFEN SHOWER TOILET
Controller with
rotary button
Wall holder
Remote control
with touch screen
Start button

12
LAUFEN CARBON FILTER
The opening for the carbon filter already fitted by the
sanitary technician is located on the left under the seat
and cover unit.
WATER HARDNESS TEST STRIP
You can measure the hardness of your tap water using the test strip
provided. Please save this information under “Default settings” on
the remote control. The sanitary technician may have already done
this for you.
3.5
3.6
3 OVERVIEW OF YOUR LAUFEN SHOWER TOILET

13
Activate the touch screen remote control by pressing the start
button at the top right. When the remote control is activated
for the first time, a setup program guides you through the most
important settings. The sanitary technician may have already
commissioned the WC after installation. You can modify the
corresponding settings again at a later time.
Once the shower toilet and remote control are activated, the
shower toilet is ready to use. As soon as you sit on the shower
toilet, the appliance can be operated using the rotary button
or remote control.
For further descriptions, see section6, Configuring basic
settings using the remote control.
4 OPERATING THE REMOTE CONTROL
FOR THE FIRST TIME
Start button

14
USER DETECTION
As soon as you sit on the Laufen shower toilet, the air purifier is activated. It can be switched off at any
time using the remote control. The shower settings saved under the basic profile are now active and
can be accessed using the rotary button or remote control.
SWITCH ON THE SHOWER TOILET
After installation, the shower toilet can be switched on at the
main switch.
If the symbols are black,
the remote control is active.
The shower toilet has
detected the presence of a
user or demo mode is active.
If the symbols are white, the
remote control is inactive.
The shower toilet has not detected
the presence of a user.
5.2
5.1
5 USING THE SHOWER TOILET FOR THE
FIRST TIME
Main switch

15
SPLASH GUARD
The splash guard is used to check the function of the shower
toilet without you having to sit on the appliance. Open the
cover and place the splash guard in position. Apply pressure
to the front of the seat until the air purifier switches on.
While maintaining pressure on the seat, you can check all the
functions using the rotary button or theremote control.
You can also bypass user detection in demo mode.
For further descriptions, see section 5.5, Demo mode.
SEAT AND COVER LOWERING SYSTEM
Dampers lower the seat and cover silently and make sure they
close slowly. The seat and cover are opened in the same way
as on a standard WC.
Please do not force down the seat and cover
as this will damage the damper.
5.4
5.3
5 USING THE SHOWER TOILET FOR THE
FIRST TIME

16
INFORMATION
Reset restarts the shower-toilet.
Service hotline:
A: item number
B: serial number /1.2.3
C: 0.0.12/3898
D: 1.2.3/1011
DEMO MODE
Demo mode allows you to perform a convenient demonstration or func-
tion check on the shower toilet without you having to sit on the appli-
ance. Open the cover and place the splash guard in position.
Press “Info” to open the overview.
Press “Demo” and confirm the prompt that appears to start demo mode.
You can now start a demonstration of the shower toilet. The shower toi-
let deactivates demo mode automatically after 5 minutes of inactivity.
Press “Demo” again to
deactivate demo mode.
The splash guard must be placed on the shower toilet
to prevent water damage.
Demo mode can be deactivated prematurely by pressing
“Reset” on the shower toilet.
5.5
5 USING THE SHOWER TOILET FOR THE
FIRST TIME
INFORMATION
Service hotline:
A: item number
B: serial number /1.2.3
C: 0.0.12/3898
D: 1.2.3/1011
Reset restarts the shower-toilet.

17
BASIC SETTINGS
SPECIAL FUNCTIONS
ECO
1
15-25°fH, 8,4-14°dH
English
BASIC SETTINGS
SPECIAL FUNCTIONS
ECO
1
15-25°fH, 8,4-14°dH
English
Press “General settings” to change the basic settings. You can
modify these settings again at any time.
Please remember that any changes made under “Basic settings”
must be saved before leaving the menu.
Press “Save”.
LANGUAGE
Select the desired language by pressing the
“Language” button repeatedly.
6.1
6 CONFIGURING BASIC SETTINGS USING
THE REMOTE CONTROL

18
BASIC SETTINGS
SPECIAL FUNCTIONS
ECO
1
15-25°fH, 8,4-14°dH
English
BASIC SETTINGS
SPECIAL FUNCTIONS
ECO
1
15-25°fH, 8,4-14°dH
English
WATER HARDNESS
There are various ways of measuring the water hardness:
Measure the water hardness at the place of installation using the enclosed
test strip.
Ask your water supply company. You will usually find this information on
your water bill.
Select the measured water hardness by pressing the “Water hardness”
symbol repeatedly. The following ranges are available for selection:
< 15 °fH, < 8.4 °dH
15-25 °fH, 8.4-14 °dH
25-35 °fH, 14-19.7 °dH
> 35 °fH, > 19.7 °dH
°fH: French water hardness, °dH: German water hardness
ECONOMY SETTINGS
The Laufen shower toilet was developed in such a way that energy
consumption is minimised in standby mode. The factory settings create
a perfect compromise between comfort and economy. We therefore
recommend leaving the factory settings for economy mode, the shower
temperature and the shower duration unchanged. The following settings
are selected:
Economy mode: ECO
Shower temperature of rear and lady shower: Setting 4, approx. 36 °C
Shower duration of rear and lady shower: 20 seconds
Selecting economy mode
Select the desired economy mode by pressing the “Reduce shower temper-
ature” symbol repeatedly. The following settings are available for selection:
Description
ON The boiler heater is switched on permanently and produces warm water within
approx.30 seconds.
ECO The boiler heater switches on as soon as you sit down and user detection is acti-
vated. Warm water is available after a heating time of approx. 3½minutes.
OFF The boiler heater is switched off permanently. Only cold water is available, which
means energy consumption is minimised.
6.2
6.3
6 CONFIGURING BASIC SETTINGS USING
THE REMOTE CONTROL

19
BASIC SETTINGS
SPECIAL FUNCTIONS
ECO
1
15-25°fH, 8,4-14°dH
English
BASIC SETTINGS
SPECIAL FUNCTIONS
ECO
1
15-25°fH, 8,4-14°dH
English

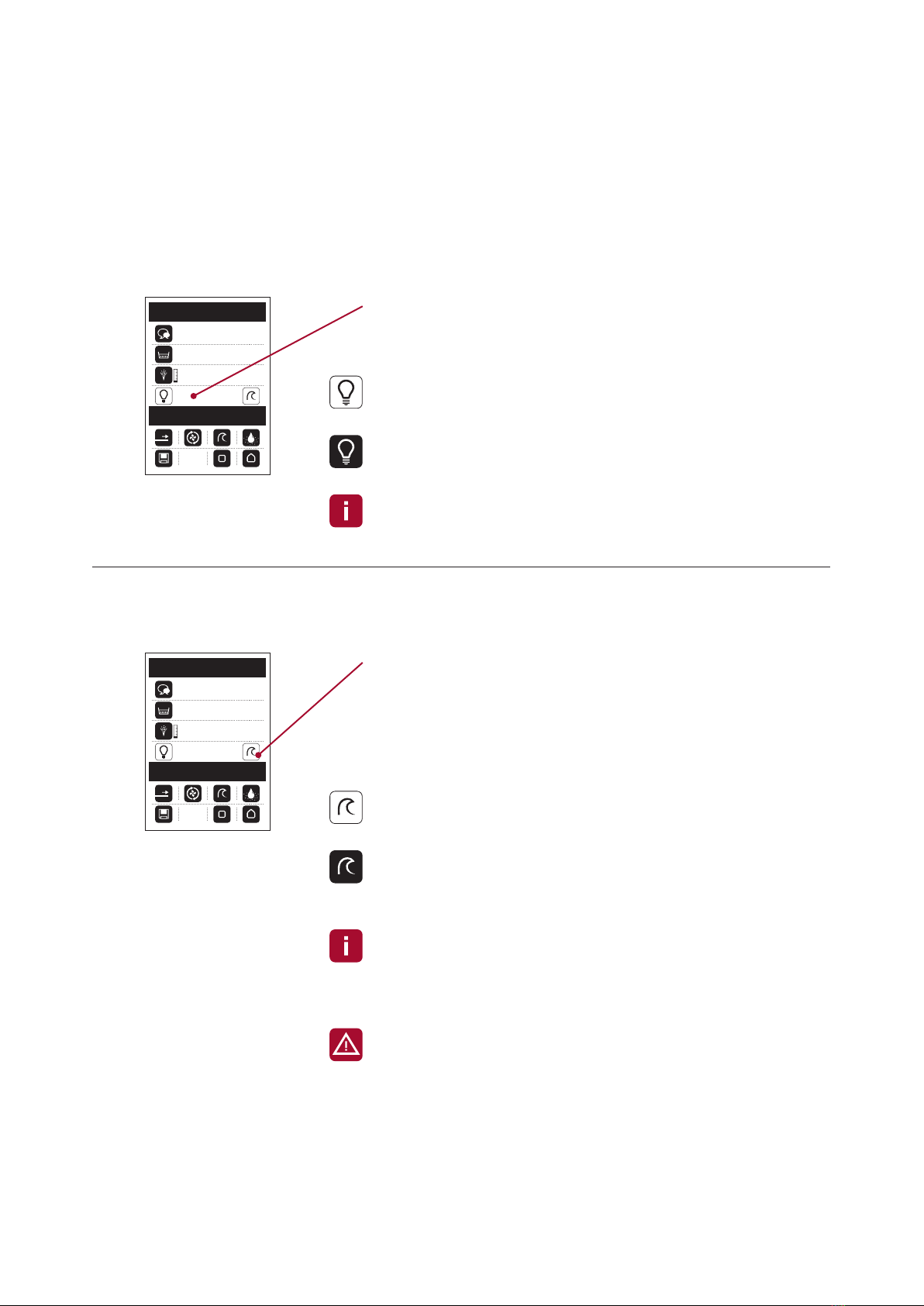

LED INDICATOR LIGHT
The white LED indicator light provides lighting at night. Press “LED indicator
light” repeatedly to choose from 4 brightness settings or to deactivate the
indicator.
The white symbol indicates that the white LED indicator light is active. The
brightness setting (1-4) is displayed next to the symbol.
The black symbol indicates that the white LED indicator light is inactive.
Care and malfunction notices remain active and displayed, even when the
night lighting is inactive.
THERMAL CLEANING REMINDER FUNCTION
Thermal cleaning flushes the entire water-carrying system on your shower
toilet with hot water to eliminate bacteria and germs. An illuminated red
LED indicator light on the appliance and corresponding service information
on the remote control remind you when thermal cleaning is due. The auto-
matic reminder is activated by default and can be deactivated by pressing
“Thermal cleaning”. The automatic reminder then no longer appears.
The white symbol indicates that the automatic reminder
for thermal cleaning is active.
The black symbol indicates that the automatic reminder
for thermal cleaning is inactive.
Thermal cleaning can be started manually at any time.
For further descriptions, see section 10.9,Thermal cleaning,
automatic, and section 10.10, Thermal cleaning, manual.
Thermal cleaning is performed using hot water:
Caution,risk of scalding!
6.4
6.5
6 CONFIGURING BASIC SETTINGS USING
THE REMOTE CONTROL

20
BASIC SETTINGS
SPECIAL FUNCTIONS
ECO
1
15-25°fH, 8,4-14°dH
English
SAVING BASIC SETTINGS
Please remember that any changes must be saved before leaving the
menu. Press “Save” to save the settings.
6.6
6 CONFIGURING BASIC SETTINGS USING
THE REMOTE CONTROL
