LV 7800
MULTI RASTERIZER
INSTRUCTION MANUAL
(ETHERNET)

TABLE OF CONTENTS
1INTRODUCTION ........................................................................................................ 1
1.1 Networks................................................................................................................................... 1
1.2 Trademark Acknowledgments................................................................................................... 1
2TELNET...................................................................................................................... 2
2.1 Procedure ................................................................................................................................. 2
2.2 How to Enter Commands.......................................................................................................... 3
2.3 Commands ............................................................................................................................... 4
2.3.1 LV 7800 Commands.......................................................................................................... 4
2.3.2 LV 58SER01A Commands ................................................................................................ 8
2.3.3 LV 58SER02 Commands ................................................................................................ 24
2.3.4 LV 58SER03 Commands ................................................................................................ 29
2.3.5 LV 58SER04 Commands ................................................................................................ 35
2.3.6 LV 58SER40A Commands .............................................................................................. 43
3FTP........................................................................................................................... 54
3.1 Procedure ............................................................................................................................... 54
3.2 How to Enter Commands........................................................................................................ 55
3.3 Commands ............................................................................................................................. 55
4SNMP ....................................................................................................................... 56
4.1 Procedure ............................................................................................................................... 56
4.2 MIB ......................................................................................................................................... 58
4.2.1 Standard MIB .................................................................................................................. 58
4.2.2 Enterprise MIB................................................................................................................. 63
4.3 Enterprise Trap ....................................................................................................................... 94
4.3.1 Specific Trap ................................................................................................................... 94
4.3.2 Variable Binding List........................................................................................................ 95
5FIRMWARE REVISION HISTORY ........................................................................... 97

1. INTRODUCTION
1
1 INTRODUCTION
This manual explains how to control an LV 7800 remotely over an Ethernet. For other
explanations and notes, see the main LV 7800 instruction manual.
1.1 Networks
Controlling an LV 7800 remotely through the instrument’s Ethernet interface has only been
confirmed to work in a local network environment. LEADER does not guarantee that you will be
able to control an LV 7800 remotely through the instrument’s Ethernet interface in any network
environment.
1.2 Trademark Acknowledgments
Windows is a registered trademark of Microsoft Corporation in the United States and/or other
countries.

2. TELNET
2
2 TELNET
Through the Ethernet port on the rear panel, you can perform operations remotely from a
network-connected PC. The operations that you can perform are approximately the same as
those that you can perform using the front panel.
2.1 Procedure
To control an LV 7800 remotely over Telnet, follow the procedure below.

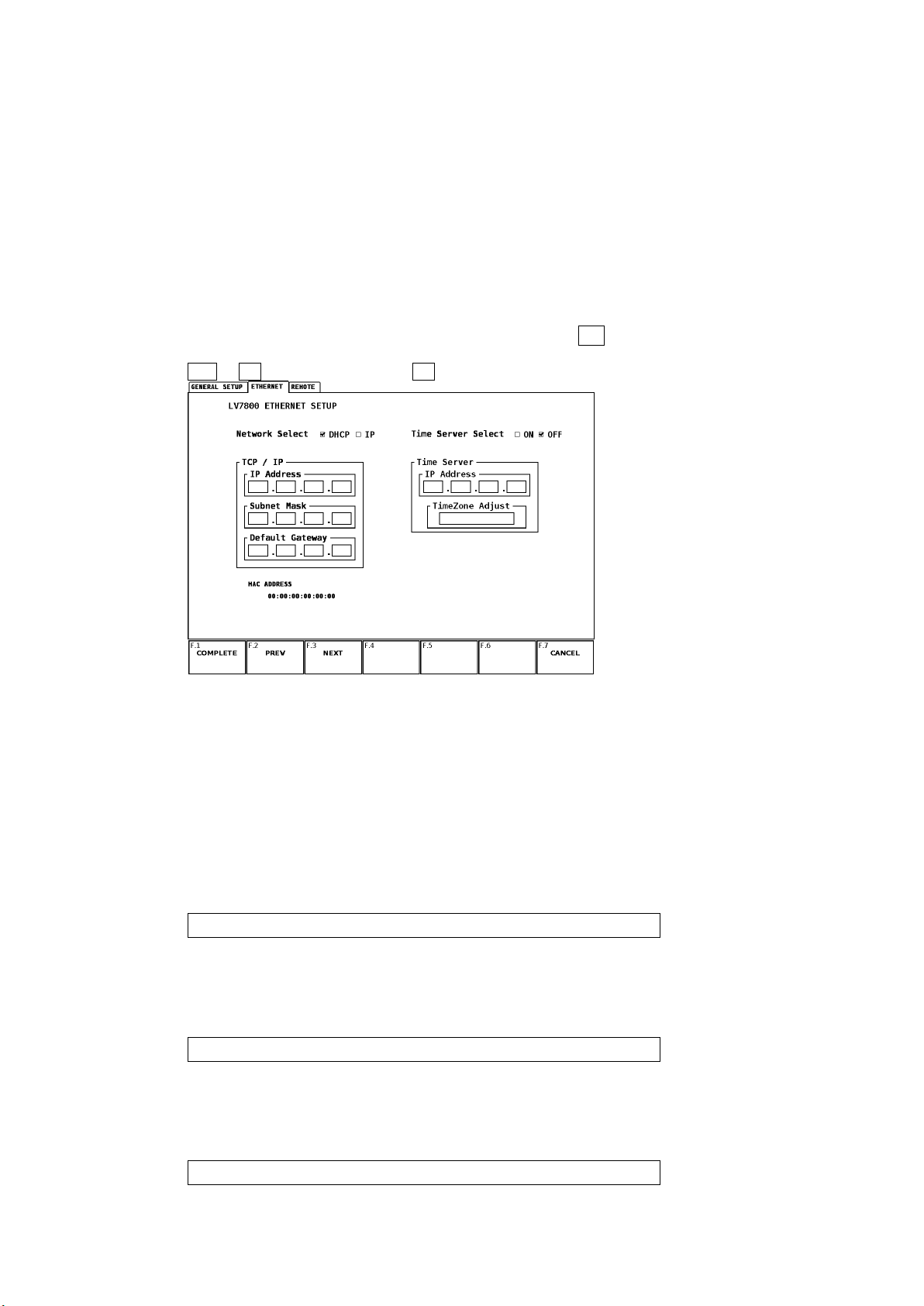

1. Configure the Ethernet settings on the LV 7800.
After you have finished configuring the settings, press F•1 COMPLETE.
SYS → F•2 PLATFORM SETUP → F•3 NEXT
2. If you changed any settings in step 1, restart the LV 7800.
The new settings become valid after the instrument restarts.
3. Connect a cable to the LV 7800 Ethernet port.
Use a cross cable to connect the LV 7800 to a PC directly. Use a straight cable to connect
the LV 7800 to a PC through a hub.
4. Start Telnet. (*1)
After you start Telnet, the following display appears.
LV7800 login:
5. Enter the login name, and press Enter.
The login name is LV7800. Be sure to use capital letters.
You cannot change the login name.
LV7800 login: LV7800
6. Enter the password, and press Enter.
The password is LV7800. Be sure to use capital letters.
You cannot change the password.
Password: LV7800 (The password is not actually displayed.)

2. TELNET
3
7. Enter commands.
After you enter the password, the following command prompt appears.
Enter commands while referring to sections 2.2, “How to Enter Commands,” and 2.3,
“Commands.”
LV7800>
*1 An example of running Telnet on Windows 7:
On the taskbar, click Start, and then click Run.
Type [TELNET] + [Space] + [the IP address of the LV 7800], and click OK.
(To use TELNET, open Control Panel, click Turn Windows features on or off under Program and Features,
and select the Telnet Client check box.)
2.2 How to Enter Commands
The command syntax is explained below.
LV7800> [Command] + [Space] + [Parameter 1] + [Space] + [Parameter 2]
●Precautions
•You can enter commands using uppercase or lowercase letters.
•You can enter zero, one, or two parameters.
•You have to specify the unit number for commands that begin with [SYS:UNIT:]. Enter the
unit number (1 to 4) in [Parameter 1]. Use the [SYS:UNITn_INFO] command to check which
unit is installed in slot number n.
•Measurement display commands that begin with [WFM], [VECT], [PIC], [AUDIO], [STATUS],
or [EYE] only apply to the area that is specified by the [DISPLAY] command.
Entering a command for a mode that is different from the current display mode produces no
effect.
•Enable Telnet flow control. If your Telnet client does not support flow control, the LV 7800
may not operate properly when commands are transferred at a high speed.
If you absolutely can not use flow control, wait approximately 1 second between commands,
or send the [REMOTE:REPLY] command to enable return values and perform software
handshaking.
●Command Entry Examples
•Resetting the status display (no parameters):
LV7800> STATUS:RESET
•Setting the gain of the video signal waveform to five (one parameter):
LV7800> WFM:GAIN:MAG X5
•Using the SDI Input on unit 1 to detect level errors (two parameters):
LV7800> SYS:UNIT:ERROR:LEVEL 1 ON

2. TELNET
4
2.3 Commands
Telnet commands follow the LV 7800 menu structure. For details on how each command works,
see the instruction manuals for the LV 7800 and each unit.
2.3.1 LV 7800 Commands
●Front Panel LV 7800 (MULTI RASTERIZER)
Command Parameter1 Description
DISPLAY 1 Selects first area
2 Selects second area
3 Selects third area
4 Selects fourth area
? Queries the selected area
MULTI ON Selects multi screen display
OFF Selects 1 screen display
? Queries the multi screen display
INPUT:UNIT UNIT1 Selects unit 1
UNIT2 Selects unit 2
UNIT3 Selects unit 3
UNIT4 Selects unit 4
? Queries the selected unit
INPUT:CH A Selects channel A
B Selects channel B
? Queries the input channel
MODE WFM Selects the video signal waveform
VECT Selects vector waveform
PIC Selects picture display
AUDIO Selects audio display
STATUS Selects status display
EYE Selects eye pattern display
? Queries the display mode
EXT INT Selects internal sync signal
EXT Selects external sync signal
? Queries the sync signal
RCLL 1 to 60 Recall presets
KEYLOCK ON Enables the key lock.
OFF Disables the key lock.
? Queries the key lock status.

2. TELNET
5
●System Settings LV 7800 (MULTI RASTERIZER)
Command Parameter1 Description
SYS:PLATFORM:SOURCE_MODE SINGLE Sets the single input mode.
MULTI Sets the multi input mode. (Doesn’t interlock with the
line selection.)
MULTI_LINE Sets the multi input mode. (Interlocks with the line
selection.)
? Queries the input mode.
SYS:PLATFORM:DISPLAY:
MULTI_MODE
2MULTI Sets the 2 screen display when the multi screen is
selected
4MULTI Sets the 4 screen display when the multi screen is
selected
? Queries the multi screen display
SYS:PLATFORM:WINDOW_MARKER OFF Sets the selected window to a colorlessness frame.
BLUE Sets the selected window to a blue frame.
WHITE Sets the selected window to a white frame.
? Queries the frame color of selected window.
SYS:PLATFORM:CAPTURE_MODE SCREEN Sets the capture mode to screen capture.
VIDEO_FRAME Sets the capture mode to frame capture.
? Queries the capture mode.
SYS:PLATFORM:DISPLAY:INFO:
FORMAT
ON The format is displayed.
OFF The format is not displayed.
? Queries the presence of format display setting.
SYS:PLATFORM:DISPLAY:INFO:
DATE
OFF The date is not displayed.
YMD Displays the date in order of the year/ month / day.
MDY Displays the date in order of the month/ day/ year.
DMY Displays the date in order of the day/ month / year.
? Queries the presence of date display setting and
display type.
SYS:PLATFORM:DISPLAY:INFO:TIME ON The time is displayed.
OFF Time is not displayed.
? Queries the presence of time display setting.
SYS:PLATFORM:DISPLAY:INFO:
COLOR
ON The color system is displayed.
OFF The color system is not displayed.
? Queries the presence of color system display
SYS:PLATFORM:DISPLAY:INFO:INPUT ON Number of input unit and the input channel are
displayed.
OFF Number of input unit and the input channel are not
displayed.
? Queries the presence of setting for displaying both the
number of input unit and the input channel.
SYS:PLATFORM:REMOTE_MODE BIT Recalls the presets from No.1 to 8 by bit.
BINARY Recalls the presets from No.1 to 60 by binary code.
? Queries the remote mode.
SYS:PLATFORM:ALARM:POLARITY POSITIVE High is output at the time of error detection
NEGATIVE Low is output at the time of error detection

2. TELNET
6
Command Parameter1 Description
? Queries the output polarity at the time of error detection.
SYS:PLATFORM:ALARM1:UNIT UNIT1 Outputs the error of unit No.1 to alarm 1.
UNIT2 Outputs the error of unit No.2 to alarm 1.
UNIT3 Outputs the error of unit No.3 to alarm 1.
UNIT4 Outputs the error of unit No.4 to alarm 1.
ALL Outputs the error of all units to alarm 1.
? Outputs the error of unit from No.1 to 4 to alarm 1.
SYS:PLATFORM:ALARM2:UNIT UNIT1 Outputs the error of unit No.1 to alarm 2.
UNIT2 Outputs the error of unit No.2 to alarm 2.
UNIT3 Outputs the error of unit No.3 to alarm 2.
UNIT4 Outputs the error of unit No.4 to alarm 2.
ALL Outputs the error of unit from No.1 to 4 to alarm 2.
? Queries the unit that outputs the error to alarm 2.
SYS:PLATFORM:ALARM3:UNIT UNIT1 Outputs the error of unit No.1 to alarm 3.
UNIT2 Outputs the error of unit No.2 to alarm 3.
UNIT3 Outputs the error of unit No.3 to alarm 3.
UNIT4 Outputs the error of unit No.4 to alarm 3.
ALL Outputs the error of unit from No.1 to 4 to alarm 3.
? Queries the unit that outputs the error to alarm 3.
SYS:PLATFORM:ALARM4:UNIT UNIT1 Outputs the error of unit No.1 to alarm 4.
UNIT2 Outputs the error of unit No.2 to alarm 4.
UNIT3 Outputs the error of unit No.3 to alarm 4.
UNIT4 Outputs the error of unit No.4 to alarm 4.
ALL Outputs the error of unit from No.1 to 4 to alarm 4.
? Queries the unit that outputs the error to alarm 4.
SYS:PLATFORM:ALARM1:CH A Outputs the error of A channel to alarm 1.
B Outputs the error of B channel to alarm 1.
A/B Outputs the error of A/B channels to alarm 1.
? Queries the channel that outputs the error to alarm 1.
SYS:PLATFORM:ALARM2:CH A Outputs the error of A channel to alarm 2.
B Outputs the error of B channel to alarm 2.
A/B Outputs the error of A/B channels to alarm 2.
? Queries the channel that outputs the error to alarm 2.
SYS:PLATFORM:ALARM3:CH A Outputs the error of A channel to alarm 3.
B Outputs the error of B channel to alarm 3.
A/B Outputs the error of A/B channels to alarm 3.
? Queries the channel that outputs the error to alarm 3.
SYS:PLATFORM:ALARM4:CH A Outputs the error of A channel to alarm 4.
B Outputs the error of B channel to alarm 4.
A/B Outputs the error of A/B channels to alarm 4.
? Queries the channel that outputs the error to alarm 4.
SYS:PLATFORM:ERROR_BEEP ENABLE Sounds the Beep Alarm when error is detected.
DISABLE Does not sound the Beep Alarm when error is
detected.
? Queries whether to sound Beep Alarm when error is

2. TELNET
7
Command Parameter1 Description
detected
SYS:DATE YYYY/MM/DD,
hh:mm:ss
Sets up the date and time.
? Queries the date and time
SYS:UNIT1_INFO - Queries the unit 1 type
SYS:UNIT2_INFO - Queries the unit 2 type
SYS:UNIT3_INFO - Queries the unit 3 type
SYS:UNIT4_INFO - Queries the unit 4 type
SYS:ASPECT 4:3 Sets the aspect ratio to 4:3.
16:9 Sets the aspect ratio to 16:9.
? Queries the aspect ratio.
SYS:INIT - Initializes the LV 7800.
●Miscellaneous LV 7800 (MULTI RASTERIZER)
Command Parameter1 Description
REMOTE:HELP - Displays the list of the commands.
REMOTE:REPLY (*1) ON Replies for the command.
OFF Does not reply for the command.(Default setting)
*1 When set to ON, the LV 7800 returns a reply to the command as follows:
OK: The command was processed properly.
ERR1: The number of parameters was incorrect.
ERR2: The value of a parameter was outside of its acceptable range.
ERR3: In the LV 7800’s current state, the function is not valid.
-rbash:[command]:command not found: The command was incorrect.

2. TELNET
8
2.3.2 LV 58SER01A Commands
●System Settings LV 58SER01A (SDI INPUT)
Command Parameter1 Parameter2 Description
SYS:UNIT:LINK_FORMAT 1, 2, 3, 4 SINGLE Sets the link format to single link.
DUAL Sets the link format to dual link.
2K Sets the link format to 2048 × 1080 (2K)
of dual link.
? Queries the link format
SYS:UNIT:MANUAL_SELECT 1, 2, 3, 4 AUTO Sets the format automatically at the time
of single link.
MANUAL Sets the format manually at the time of
single link.
? Queries the format at the time of single
link.
SYS:UNIT:MANUAL_FORMAT 1, 2, 3, 4 1080I/60 Sets the format to 1080i/60 at the time of
single link.
1080I/59.94 Sets the format to 1080i/59.94 at the
time of single link.
1080I/50 Sets the format to 1080i/50 at the time of
single link.
1080SF/30 Sets the format to 1080PsF/30 at the
time of single link.
1080SF/29.97 Sets the format to 1080PsF/29.97 at the
time of single link.
1080SF/25 Sets the format to 1080PsF/25 at the
time of single link.
1080SF/24 Sets the format to 1080PsF/24 at the
time of single link.
1080SF/23.98 Sets the format to 1080PsF/23.98 at the
time of single link.
1080P/30 Sets the format to 1080p/30 at the time
of single link.
1080P/29.97 Sets the format to 1080p/29.97 at the
time of single link.
1080P/25 Sets the format to 1080p/25 at the time
of single link.
1080P/24 Sets the format to 1080PsF/24 at the
time of single link.
1080P/23.98 Sets the format to 1080PsF/23.98 at the
time of single link.
720P/60 Sets the format to 720p/60 at the time of
single link.
720P/59.94 Sets the format to 720p/59.94 at the
time of single link.
720P/50 Sets the format to 720p/50 at the time of
single link.

2. TELNET
9
Command Parameter1 Parameter2 Description
720P/30 Sets the format to 720p/30 at the time of
single link.
720P/29.97 Sets the format to 720p/29.97 at the
time of single link.
720P/25 Sets the format to 720p/25 at the time of
single link.
720P/24 Sets the format to 720p/24 at the time of
single link.
720P/23.98 Sets the format to 720p/23.98 at the
time of single link.
525I/59.94 Sets the format to 525i/59.94 at the time
of single link.
625I/50 Sets the format to 625i/50 at the time of
single link.
SYS:UNIT:I_PSF 1, 2, 3, 4 INTERLACE Sets the format display type to the
interlace at the time of single link.
SEG.FRAM Sets the format display type to the
segmented frame at the time of single
link.
? Queries the format display type at the
time of single link.
SYS:UNIT:DUAL:SYSTEM 1, 2, 3, 4 GBR_444 Sets the color system to GBR (4:4:4) at
the time of dual link.
YCBCR_422 Sets the color system to YCbCr (4:2:2)
at the time of dual link.
? Queries the color system at the time of
dual link.
SYS:UNIT:DUAL:DEPTH 1, 2, 3, 4 10B Sets the number of quantization bits per
pixel to 10-bit at the time of dual link.
12B Sets the number of quantization bits per
pixel to 12-bit at the time of dual link.
? Queries the number of quantization bits
per pixel at the time of dual link.
SYS:UNIT:DUAL:SCAN 1, 2, 3, 4 1080I Sets the scan mode to the interlace at
the time of dual link.
1080PSF Sets the scan mode to the
segment-frame at the time of dual link.
1080P Sets the scan mode to the progressive
at the time of dual link.
? Queries the scan mode at the time of
dual link.
SYS:UNIT:INFO:TIME_CODE 1, 2, 3, 4 REAL Use the built-in time function of main
frame for the time display.
LTC Use the LTC (time code) for the time
display.

2. TELNET
10
Command Parameter1 Parameter2 Description
VITC Use the VITC (time code) for the time
display.
D_VITC Use the D-VITC (time code) for the time
display.
? Queries the time display mode being
displayed.
SYS:UNIT:SELECT_OUTPUT 1, 2, 3, 4 A OUTPUT SDI A/B becomes the reclock
output of A channel during single link.
A/B OUTPUT SDI A/B becomes the reclock
output of active channel during single
link.
? Queries the setting of the OUTPUT SDI
A/B during single link.
SYS:UNIT:ERROR:TRS 1, 2, 3, 4 ON Detects the TRS errors.
OFF Does not detect the TRS errors.
? Queries the presence of TRS error
detection.
SYS:UNIT:ERROR:HD_LINE 1, 2, 3, 4 ON Detects the line number errors.
OFF Does not detect the line number errors.
? Queries the presence of line number
error detection.
SYS:UNIT:ERROR:HD_CRC 1, 2, 3, 4 ON Detects the CRC errors.
OFF Does not detect the CRC errors.
? Queries the presence of CRC error
detection.
SYS:UNIT:ERROR:SD_EDH 1, 2, 3, 4 ON Detects the EDH errors.
OFF Does not detect the EDH errors.
? Queries the existence of EDH error
detection function.
SYS:UNIT:ERROR:ILLEGAL_CODE 1, 2, 3, 4 ON Detects the illegal code errors.
OFF Does not detect the illegal code errors.
? Queries the presence of illegal code
error detection.
SYS:UNIT:ERROR:CABLE 1, 2, 3, 4 ON Detects the cable errors.
OFF Does not detect the cable errors.
? Queries the presence of cable error
detection.
SYS:UNIT:ERROR:HD_CABLE 1, 2, 3, 4 LS_5CFB Sets the cable type to FS_5CFB for
HD-SDI input.
1694A Sets the cable type to 1694A for HD-SDI
input.
L_7CHD Sets the cable type to L-7CHD for
HD-SDI input.
? Queries the cable type for HD-SDI input.
SYS:UNIT:ERROR:HD_LENGTH 1, 2, 3, 4 5 to 200 Sets the cable length (m) considered as

2. TELNET
11
Command Parameter1 Parameter2 Description
an error for the HD-SDI input.
? Queries the cable length considered as
an error for HD-SDI input.
SYS:UNIT:ERROR:HD_WARN 1, 2, 3, 4 5 to 200 Sets the cable length (m) considered as
a warning for the HD-SDI input.
? Queries the cable length considered as
a warning for HD-SDI input.
SYS:UNIT:ERROR:SD_CABLE 1, 2, 3, 4 L_5C2V Sets the cable type to L_5C2V for
SD-SDI input.
8281? Sets the cable type to 8281 for SD-SDI
input.
1505A Sets the cable type to 1505A for SD-SDI
input.
? Queries the cable type for SD-SDI input.
SYS:UNIT:ERROR:SD_LENGTH 1, 2, 3, 4 50 to 300 Sets the cable length (m) considered as
an error for the SD-SDI input.
? Queries the cable length considered as
an error for SD-SDI input.
SYS:UNIT:ERROR:SD_WARN 1, 2, 3, 4 50 to 300 Sets the cable length (m) considered as
a warning for the SD-SDI input.
? Queries the cable length considered as
a warning for SD-SDI input.
SYS:UNIT:ERROR:ANC:PARITY 1, 2, 3, 4 ON Detects the parity errors in the ancillary
data.
OFF Does not detect the parity errors in the
ancillary data.
? Queries the presence of parity error
detection in the ancillary data.
SYS:UNIT:ERROR:ANC:CHECKSUM 1, 2, 3, 4 ON Detects the checksum errors in the
ancillary data.
OFF Does not detect the checksum errors in
the ancillary data.
? Queries the presence of checksum error
detection in the ancillary data.
SYS:UNIT:ERROR:AUDIO:BCH 1, 2, 3, 4 ON Detects the BCH errors in the embedded
audio.
OFF Does not detect the BCH errors in the
embedded audio.
? Queries the presence of BCH error
detection in the embedded audio.
SYS:UNIT:ERROR:AUDIO:DBN 1, 2, 3, 4 ON Detects the DBN errors in the embedded
audio.
OFF Does not detect the DBN errors in the
embedded audio.
? Queries the presence of DBN error

2. TELNET
12
Command Parameter1 Parameter2 Description
detection in the embedded audio.
SYS:UNIT:ERROR:AUDIO:PARITY 1, 2, 3, 4 ON Detects the parity errors in the
embedded audio.
OFF Does not detect the parity errors in the
embedded audio.
? Queries the presence of parity error
detection in the embedded audio.
SYS:UNIT:ERROR:AUDIO:INHIBIT 1, 2, 3, 4 ON Detects the inhibit errors in the
embedded audio.
OFF Does not detect the inhibit errors in the
embedded audio.
? Queries the presence of inhibit error
detection in the embedded audio.
SYS:UNIT:ERROR:GAMUT:LPF 1, 2, 3, 4 HD1M_SD1M Sets the LPF for gamut error detection
to 1 MHz.
HD2.8M_SD1M Sets the LPF for gamut error detection
to 2.8 MHz as for HD-SDI and to 1 MHz
as for SD-SDI.
OFF Turns off the LPF for gamut error
detection.
? Queries the LPF setting for gamut error
detection.
SYS:UNIT:ERROR:GAMUT 1, 2, 3, 4 ON Detects the gamut errors.
OFF Does not detect the gamut errors.
? Queries the presence of gamut error
detection.
SYS:UNIT:ERROR:GAMUT:UPPER 1, 2, 3, 4 90.8 to 109.4 Sets the upper limit (%) of gamut error
? Queries the upper limit of the gamut
error.
SYS:UNIT:ERROR:GAMUT:LOWER 1, 2, 3, 4 -7.2 to 6.1 Sets the lower limit (%) of gamut error
? Queries the lower limit of the gamut
error.
SYS:UNIT:ERROR:GAMUT:AREA 1, 2, 3, 4 0.1 to 5.0 Sets the area ratio (%) for gamut error
detection.
? Queries the area ratio for gamut error
detection.
SYS:UNIT:ERROR:GAMUT:DURATION 1, 2, 3, 4 1 to 60 Sets the duration (frames) of detection
for gamut error.
? Queries the duration of detection for
gamut error.
SYS:UNIT:ERROR:C_GAMUT 1, 2, 3, 4 ON Detects the composite gamut errors.
OFF Does not detect the composite gamut
errors.
? Queries the presence of composite
gamut error detection.

2. TELNET
13
Command Parameter1 Parameter2 Description
SYS:UNIT:ERROR:C_GAMUT:SETUP 1, 2, 3, 4 0P Sets the setup to exclude when
converting the composite.
7.5P Sets the setup to 7.5 % when converting
the composite.
? Queries the setup value when
converting the composite.
SYS:UNIT:ERROR:C_GAMUT:UPPER 1, 2, 3, 4 90.0 to 135.0 Sets the upper limit (%) of composite
gamut error
? Queries the upper limit of the composite
gamut error.
SYS:UNIT:ERROR:C_GAMUT:LOWER 1, 2, 3, 4 -40.0 to 20.0 Sets the lower limit (%) of composite
gamut error
? Queries the lower limit of the composite
gamut error.
SYS:UNIT:ERROR:C_GAMUT:AREA 1, 2, 3, 4 0.1 to 5.0 Sets the detection area (%) for
composite gamut error.
? Queries the detection area (%) for
composite gamut error.
SYS:UNIT:ERROR:C_GAMUT:DURATION 1, 2, 3, 4 1 to 60 Sets the duration of detection (frames)
for gamut error.
? Queries the duration of detection for
gamut error.
SYS:UNIT:ERROR:FREEZE 1, 2, 3, 4 ON Detects the freeze errors.
OFF Does not detect the freeze errors.
? Queries the presence of freeze error
detection.
SYS:UNIT:ERROR:FREEZE:UPPER 1, 2, 3, 4 0 to 100 Sets the detection area (upper) for
freeze error. (%)
? Queries the detection area (upper) for
freeze error.
SYS:UNIT:ERROR:FREEZE:LOWER 1, 2, 3, 4 0 to 100 Sets the detection area (lower) for
freeze error. (%)
? Queries the detection area (lower) for
freeze error.
SYS:UNIT:ERROR:FREEZE:LEFT 1, 2, 3, 4 0 to 100 Sets the detection area (left side) for
freeze error. (%)
? Queries the detection area (left side) for
freeze error.
SYS:UNIT:ERROR:FREEZE:RIGHT 1, 2, 3, 4 0 to 100 Sets the detection area (right side) for
freeze error. (%)
? Queries the detection area (right side)
for freeze error. (%)
SYS:UNIT:ERROR:FREEZE:DURATION 1, 2, 3, 4 2 to 300 Sets the duration of detection (frames)
for freeze error.
? Queries the duration of detection for

2. TELNET
14
Command Parameter1 Parameter2 Description
freeze error.
SYS:UNIT:ERROR:BLACK 1, 2, 3, 4 ON Detects the black errors.
OFF Does not detect the black errors.
? Queries the presence of black error
detection.
SYS:UNIT:ERROR:BLACK:LEVEL 1, 2, 3, 4 0 to 100 Sets the detection level (%) for black
error.
? Queries the detection level for black
error.
SYS:UNIT:ERROR:BLACK:AREA 1, 2, 3, 4 1 to 100 Sets the detection area (%) for black
error.
? Queries the detection area for black
error.
SYS:UNIT:ERROR:BLACK:DURATION 1, 2, 3, 4 1 to 300 Sets the duration of detection (frames)
for black error.
? Queries the duration of detection for
black error.
SYS:UNIT:ERROR:LEVEL 1, 2, 3, 4 ON Detects the level errors.
OFF Does not detect the level errors.
? Queries the presence of level error
detection.
SYS:UNIT:ERROR:LEVEL:RUMA:
UPPER
1, 2, 3, 4 -51 to 766 Sets the upper limit (mV) of luminance
level.
? Queries the upper limit of luminance
level.
SYS:UNIT:ERROR:LEVEL:RUMA:
LOWER
1, 2, 3, 4 -51 to 766 Sets the lower limit (mV) of luminance
level.
? Queries the lower limit of luminance
level.
SYS:UNIT:ERROR:LEVEL:CHROMA:
UPPER
1, 2, 3, 4 -400 to 399 Sets the upper limit (mV) of chroma
difference level.
? Queries the upper limit of chroma
difference level.
SYS:UNIT:ERROR:LEVEL:CHROMA:
LOWER
1, 2, 3, 4 -400 to 399 Sets the lower limit (mV) of chroma
difference level.
? Queries the lower limit of chroma
difference level.

2. TELNET
15
●WFM LV 58SER01A (SDI INPUT)
Command Parameter 1 Description
WFM - Displays the video signal waveform.
WFM:CH1 ON Displays CH1.
OFF Does not display CH1
? Queries the presence of CH1 display.
WFM:CH2 ON Displays CH2.
OFF Does not display CH2
? Queries the presence of CH2 display.
WFM:CH3 ON Displays CH3.
OFF Does not display CH3
? Queries the presence of CH3 display.
WFM:OVLAY ON Sets overlay display.
OFF Sets parade display.
? Queries the display mode.
WFM:INTEN:WFM -128 to 127 Adjusts the intensity of the video waveforms.
? Queries the intensity of the video waveforms.
WFM:COLOR WHITE Sets the waveform display color to white.
GREEN Sets the waveform display color to green.
MULTI Sets the waveform display color as follows: Y: Yellow, Cb:
Cyan, Cr: Magenta, G: Green, B: Blue, and R: Red.
? Queries the waveform display color.
WFM:INTEN:SCALE -8 to 7 Adjusts the intensity of the scale.
? Queries the intensity of the scale.
WFM:SCALE:UNIT HDV_SDP Sets the scale unit to V for HD-SDI and % for SD-SDI.
HDV_SDV Sets the scale unit to V.
HDP_SDP Sets the scale unit to %.
? Queries the scale unit.
WFM:SCALE:COLOR75P ON Displays the 75% scale.
OFF Does not display the 75% scale.
? Queries the presence of the 75% scale display.
WFM:SCALE:COLOR WHITE Sets the scale color to white.
YELLOW Sets the scale color to yellow.
CYAN Sets the scale color to cyan.
GREEN Sets the scale color to green.
MAGENTA Sets the scale color to magenta.
RED Sets the scale color to red.
BLUE Sets the scale color to blue.
? Queries the scale color.
WFM:GAIN:VAR CAL Sets the gain mode of the waveform to a constant (x1).
VAR Sets the gain mode of the waveform to variable (×0.200 to
×2.000).
? Queries the gain mode setting.
WFM:GAIN:VAL 0.200 to 2.000 Sets the variable gain value of the waveform.
? Queries the variable gain value of the waveform.
WFM:GAIN:MAG X1 Sets the magnification of the waveform to x1.

2. TELNET
16
Command Parameter 1 Description
X5 Sets the magnification of the waveform to x5.
? Queries the magnification of the waveform.
WFM:SWEEP:SWEEP H Sets the sweep mode to the line display.
V Sets the sweep mode to the field or frame display.
? Queries the sweep mode setting.
WFM:SWEEP:H_SWEEP 1H Sets 1 line display.
2H Sets 2 line display.
? Queries the line display setting.
WFM:SWEEP:V_SWEEP 1V Sets 1 frame display if the input signal is progressive.
Sets 1 field display if the input signal is interlace or
segmented frame.
2V Sets 1 frame display.
? Queries the field or frame display setting
WFM:SWEEP:H_MAG X1 In case of line display, set the sweep magnification so that
the waveform fits on the screen.
X10 In case of line display, set the sweep magnification to x10
with respect to x1.
X20 In case of line display, set the sweep magnification to x20
with respect to x1.
ACTIVE In case of line display, display to magnify the waveform in
the active period.
BLANK In case of line display, display to magnify the waveform in
the H blanking period.
? Queries the sweep magnification mode in case of line
display.
WFM:SWEEP:V_MAG X1 In case of field (frame) display, set the sweep magnification
so that the waveform fits on the screen.
X20 In case of field (frame) display, set the sweep magnification
to x20 with respect to X1.
X40 In case of field (frame) display, set the sweep magnification
to x40 with respect to X1.
? Queries the sweep magnification mode in case of field
(frame) display.
WFM:SWEEP:FIELD FIELD1 Displays the waveform of field 1.
FIELD2 Displays the waveform of field 2.
? Queries the selected field.
WFM:LINE_SELECT ON Enables the line select function.
OFF Disables the line select function.
? Queries the line select function.
WFM:LINE_FIELD FIELD1 Sets the selection range of the line select to field 1.
FIELD2 Sets the selection range of the line select to field 2.
FRAME Sets the selection range of the line select to frame.
? Queries the selection range of the line select.
WFM:LINE_NUMBER Example)
1 to 1125
Sets the line of the line select.

2. TELNET
17
Command Parameter 1 Description
(Depending
on the format)
? Queries the selected line of the line select.
WFM:FILTER:NORMAL FLAT Sets the filter to Flat for the component display.
LOWPASS Sets the filter to LPF for the component display.
? Queries the filter setting for the component display.
WFM:FILTER:COMPOSITE FLAT Sets the filter to Flat when displaying the
pseudo-composite.
FLAT_LUM Sets the filter to Flat and to parade display of the luminance
signal when displaying the pseudo-composite.
LUM_CHROMA Sets the filter to luminance signal and to parade display of
the color signal when displaying the pseudo-composite.
? Queries the filter setting when displaying the
pseudo-composite.
WFM:BLANKING:NORMAL REMOVE Displays the active period for the component display.
H_VIEW Displays the active period and the horizontal blanking
period for the component display.
V_VIEW Displays the active period and the vertical blanking period
for the component display.
ALL_VIEW Displays the entire input signal for the component display.
? Queries the blanking period display for the component
display.
WFM:BLANKING:COMPOSITE REMOVE Displays the active period when displaying the
pseudo-composite.
V_VIEW Displays the active period and the vertical blanking period
when displaying the pseudo-composite.
? Queries the blanking period display when displaying the
pseudo-composite.
WFM:PERSISTENCE ON Sets the persistence display to enabe.
OFF Sets the persistence display to disable.
INFINIT Overlays the waveform.
? Queries the persistence display setting.
WFM:PERSIST_CLEAR - Clears the overlaid waveforms.
WFM:SPECIAL_FORM NORMAL Sets the SPECIAL FORM display to disable.
TIMING Sets the SPECIAL FORM display to TIMING.
4Y_PARADE Sets the SPECIAL FORM display to 4Y PARADE.
? Queries the SPECIAL FORM display setting.
WFM:MATRIX YCBCR Sets the color matrix to YCbCr display.
GBR Sets the color matrix to GBR display.
RGB Sets the color matrix to RGB display.
COMPOSITE Sets the color matrix to pseudo-composite display.
? Queries the color matrix setting.
WFM:MATRIX:YGBR ON Displays the luminance signal when displaying RGB.
OFF Does not display the luminance signal when displaying
RGB.

2. TELNET
18
Command Parameter 1 Description
? Queries the presence of luminance signal when displaying
RGB.
WFM:MATRIX:YRGB ON Displays the luminance signal when displaying RGB.
OFF Does not display the luminance signal when displaying
RGB.
? Queries the presence of luminance signal when displaying
RGB.
WFM:MATRIX:COMPOSITE:FORMAT AUTO Selects NTSC or PAL automatically when displaying the
pseudo-composite.
NTSC Displays NTSC when displaying the pseudo-composite.
PAL Displays PAL when displaying the pseudo-composite.
? Queries the display format of the pseudo-composite
display.
WFM:MATRIX:SETUP 0P Sets the setup to exclude when displaying the
pseudo-composite.
7.5P Sets the setup to 7.5% when displaying the
pseudo-composite.
? Queries the setup value of the pseudo-composite display.
