1 What you should know
1.1 Foreword
Thank you for placing your trust in us. We congratulate you on your
decision. With the MiniVario®, you have acquired a high-quality and
innovative product.
Thanks to its advanced design, meticulous material selection, state-
of-the art manufacturing techniques and the precision work of our
employees,thisdevicemeetsallefciency,quality,reliabilityandvalue
requirements.
Maintaining and servicing in accordance with the operating instructions
ensures the safety of the device and maintains the value of your
MiniVario®.
1.2 About these operating instructions
These operating instructions are part of the MiniVario®and must always
be readily available. All persons who work with the MiniVario®must read
and follow the operating instructions.
You must become acquainted with the intricacies of the device, have
command of the device and optimise its operation.
Warning notices
Warningnoticesintheseoperatinginstructionsareidentiedasfollows:
Danger!
Warning of immediate danger. Non-observance of
appropriate measures may result in death and severe
personal injury or serious damage to property.
Warning!
Warning of possible danger. Death, severe personal injury
or serious damage to property is possible.
Caution!
Warning of possible dangerous situations. Slight personal
injury or damage to property is possible.

5
1 What you should know
1.3 Intended use
The MiniVario®is used exclusively for spreading fertiliser, catch crops,
grass, granulates, salt and seed.
1.4 Warranty
We provide a guarantee of 6 months and warranty of 24 months on the
MiniVario®.
Caution!
Defective plugs and cables or those of the wrong size can
leadtofunctionaldeciencies.
Use original or cables and plugs approved by the
manufacturer only.
Any changes to cable or plug connections without factory approval
automatically invalidate the warranty. Motors may not be opened or
dismantled.
Warranty repairs must be coordinated with the manufacturer before any
work is started.
For replacement parts, additional expenses are automatically
charged for any changes made to cables and plugs by the customer.
Replacement parts are to be returned carriage paid.
Rusted bearings are not subject to the manufacturer's warranty.
Upon receipt:
Check your MiniVario®for any damage caused in transit. Such
damage(s) must be reported to the manufacturer within 24 hours of
receipt.

6
1 What you should know
1.5 About your safety
Carefully read and observe these operating instructions before use.•
Always keep these instructions to hand at the point of use.
Observe the accident prevention regulations, safety and operating•
regulations and the regulations for environmental protection.
Observe all applicable standards and guidelines.•
When travelling on public roads and streets, follow the legal rules of the•
road.
Observe the safety instructions.•
Do not start up the• MiniVario®ifithasanysafety-relateddeciencies.
Immediatelyresolveanysafety-relateddeciencies.
It is forbidden to stay in the spreading zone. Make sure that nobody is•
in the spreading zone.
Do not touch the hopper during operation.•
Do not undertake any repairs, maintenance or cleaning procedures on•
the MiniVario®when the mains plug is connected.

7
2 Starting up the MiniVario®
2.1 Mounting the frame
The MiniVario®can be screwed on directly or an auxiliary bracket used.
Mounting holes are provided on the back of the framework.
The recommended delivery height is approx. 0.60 m.
The MiniVario®can be attached at the front or rear both on the tractor or
ATV or directly to the soil cultivation equipment.
Because the MiniVario®is considerably heavier when the hopper is
full, the load capacity of the consoles used for attachment should be
checked.
2.2 Electrical connection
Technical data
Operating voltage 12 to 15 volts
Fuse 25 A
Power of drive motor
(spreading disc)
100 watts
Power of mixer motor 150 watts
Speed range 40 to 600 rpm
Power consumption of motor Start up to 25 A, normal
operation up to 13 A
Operating temperature -10 to +70 °C
Storage temperature -30 to +70 °C
Any changes to cable or plug connections without factory approval
automatically invalidate the entire warranty. Changes to cables
undertaken by the customer are taken into account in the case of
repairs.

8
2 Starting up the MiniVario®
2.3 Mounting the MiniVario®
Checkwhetherthehoppertswellinthehopperplatform.1.

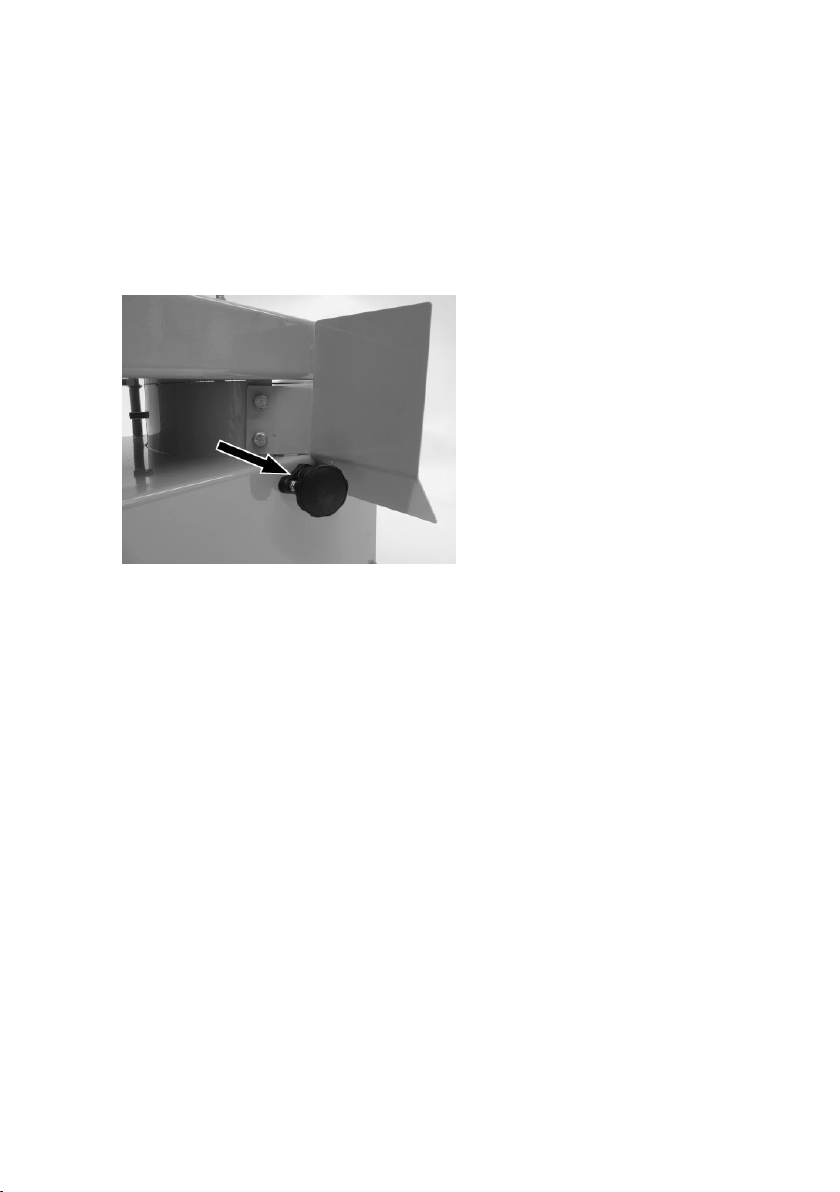

Usingscrews,attachtheincludeddeectorplate(arrow)tothe2.
spreader.
Check that the3. MiniVario®is securely attached.

9
2.4 Mounting the control panel
Caution, risk of short circuits!
Ensure that the cable is not routed over any sharp edges.
1
2 3 4
Mount support for the control panel in the vehicle cabin.1.
Plug the control panel cable into the 3-pin plug2. 1of the carrier vehicle.
If the plug is not available, use the provided battery cable:
Connect terminal 2to -pin of the battery
(not to the body).
Connect terminal 3(with fuse 4) to +pin of the battery
Place cable end with socket in carrier vehicle.
Plug the spreader cable into the 16-pin plug of the control panel.3.
The battery cable supplied must be used to ensure an optimum
power supply.
Your device is now ready to operate.
2 Starting up the MiniVario®

10
3 Operating the MiniVario®
3.1 Controls on the control panel
6
1 2 3
54
Switching on / off1
Display2
Opening and closing the slide3
Slide open: green LED lights up
Slide closed: yellow LED lights up
Setting the speed or slide opening4
Switch to change between speed and slide5
Empty indicator6

11
3 Operating the MiniVario®
3.2 The display
Arrow denotes the active line1
Spreading disc speed2
Slide opening3
OK sign for open slide4
Error messages, also see Troubleshooting chapter.
Disc blocking
Slide not open
> RPM 200
Slide 29 ok
1 2
3 4

12
3 Operating the MiniVario®
3.3 Switching on / off
Risk of injury!
The drive motor starts immediately when switched on.
Make sure the danger area is clear when starting.

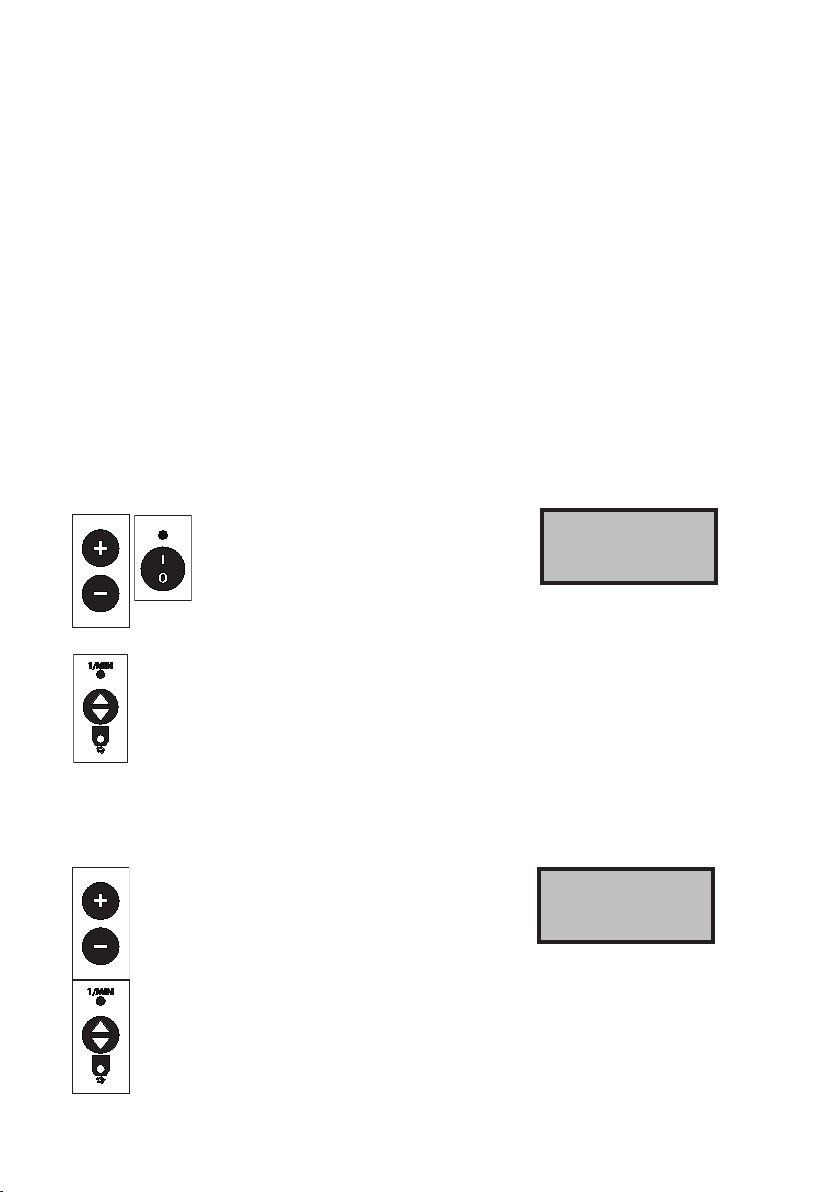

Press the button.
The speed of the spreading disc and
the slide opening is displayed. The slide
is always closed when switching on the
drive motor.
> Speed 200
Slide 29
If this message is displayed, a cable is damaged
or a plug disconnected. > Speed 200
Connecting spr.
Low temperatures can cause the empty indicator to respond slowly.
To check the adjustment:
Allow the spreader to run for approx. 1 minute with the slide closed.
If the slide is then opened, the empty indicator must be activated
after approx. 5 seconds.
If this doesn't happen, move the empty indicator 5% into the negative
range; see Settings and displays chapter, Adjusting the empty indicator.
Autostart/automatic freewheeling
Ifamotorisdifculttostartduetoheavyloads,startthemotorupto
10 times in alternating motor directions. If the mixer or spreading plate
cannot break free as a result, the motor is automatically switched off.
The following message is displayed:
Mixer stationary, if the mixer cannot break free.
Disc blocking, if the spreading plate cannot break free.

13
3 Operating the MiniVario®
Risk of injury!
Never open the hopper or touch the spreading disc when
the drive motor is running.
Switch off the drive motor and ensure that the motor
is stopped before opening the hopper or touching the
spreading disc.
To eliminate the blockage:
Switch off1. the machine.
Manually turn the spreading disc or empty the hopper.2.
3.4 Setting the speed

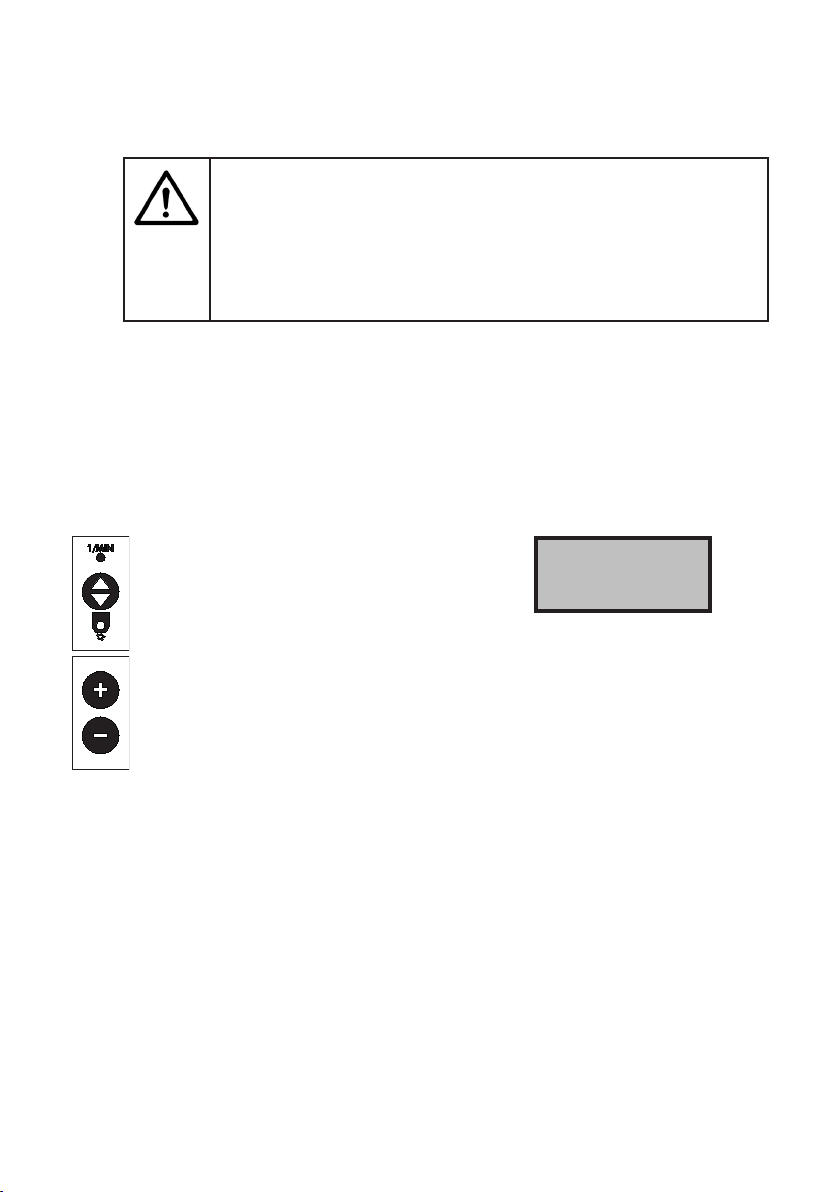

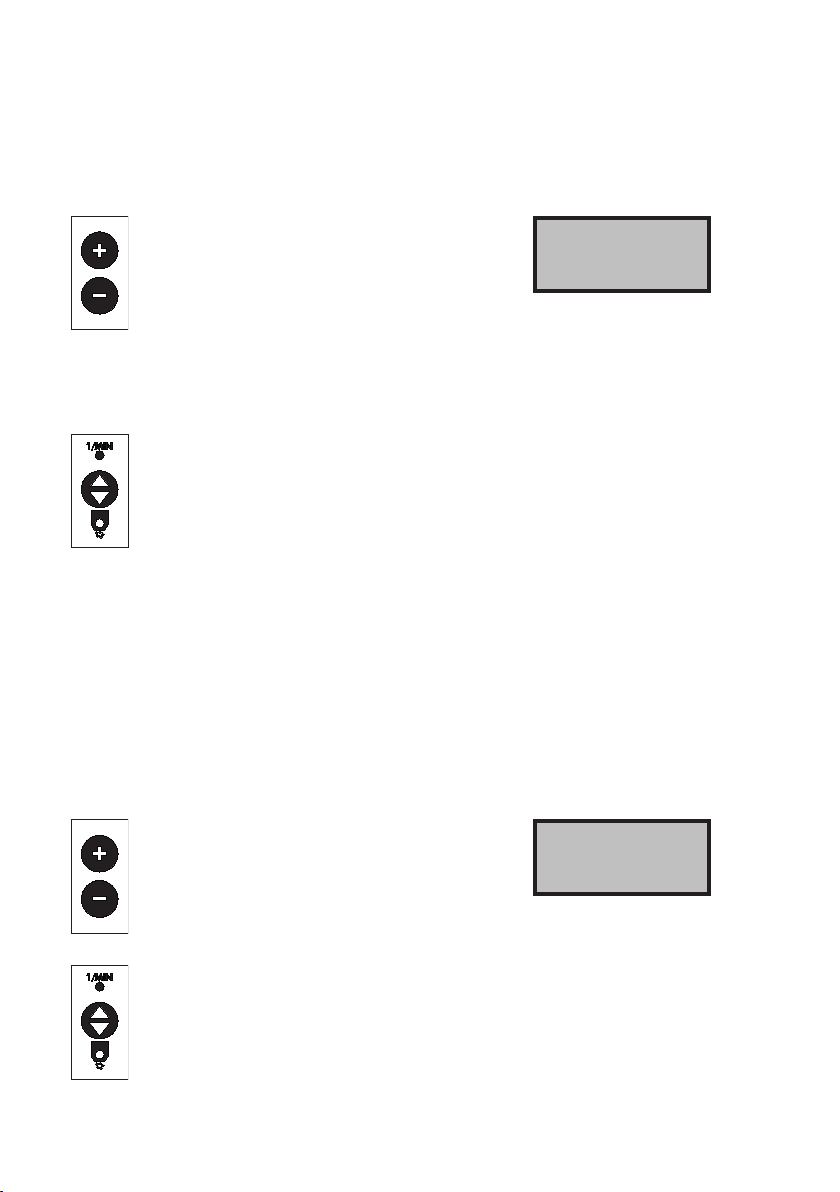

If necessary, press the toggle switch to
select the speed; the arrow points to the
rstlineinthedisplay.
> Speed 200
Slide 29
Press the button to set the speed.
The speed can be adjusted continuously
from 40 - 600 rpm.
You can take the required speed from the
spreading chart.
The setpoint speed is displayed for 10
seconds, after which the actual speed is
displayed.

14
3 Operating the MiniVario®
3.5 Setting the slide opening

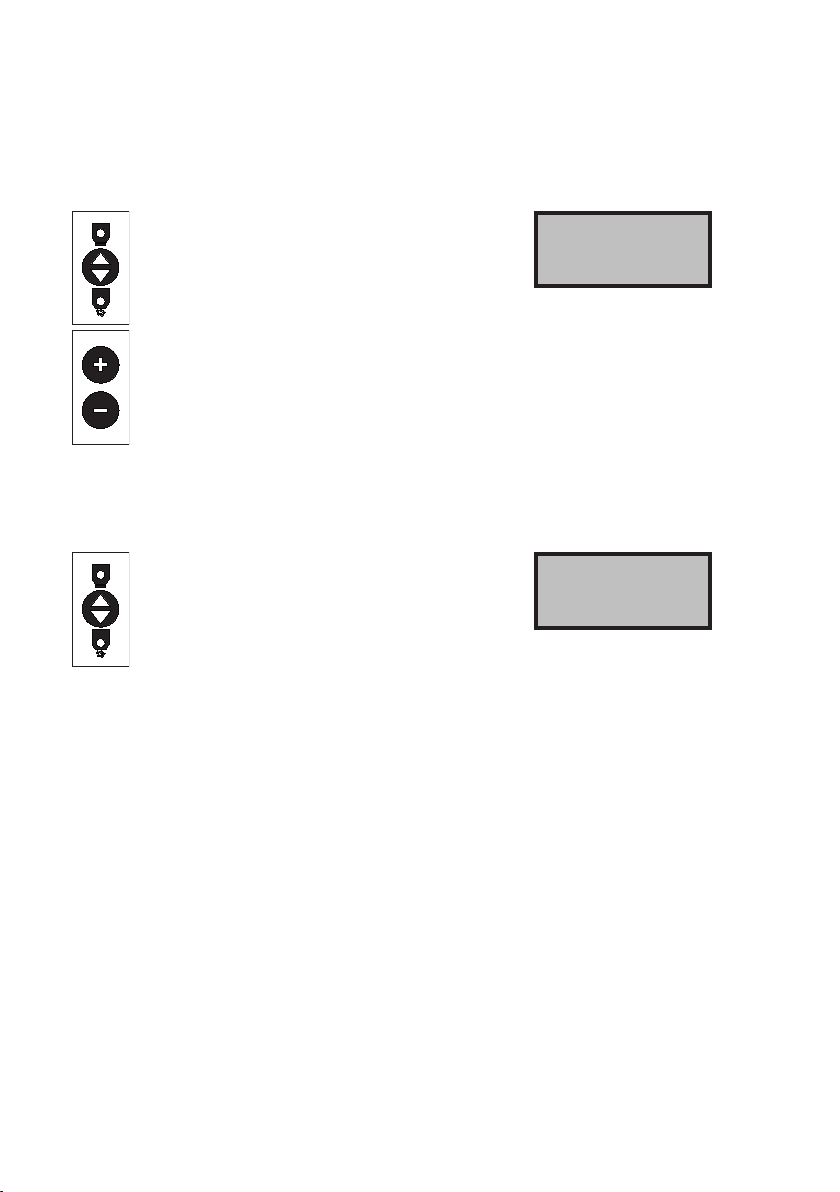

If necessary, press the button to select the
slide. The arrow points to the second line
in the display.
Speed 200
> Slide 29
Press the button to adjust the slide
opening.
You can take the required slide opening
from the spreading chart.
3.6 Opening/closing the slide
Press the button to open or close the slide.
Slide open: green LED lights up
Slide closed: yellow LED lights up
> Speed 200
Slide 29 ok
Slide monitoring
Iftheslidedoesnotreachthespeciedpositionwithin10seconds,the
spreader switches off.
The following message is displayed:
Slide not open or Slide not closed. 5 warning signals also sound.
Switch off the machine to remedy the fault. For more information, see
Troubleshooting chapter.

15
3 Operating the MiniVario®
3.7 Performing the slide reference run
The slide motor and control panel are adjusted to one another at the
factory. The setting can be lost over time or when replacing the control
panel.
Switch off the machine.
Press and hold down the button for switching
between speed and slide and the + button
while also pressing the On button for around 3
seconds.
The slide performs its reference run.
Approx. 240 is displayed as the upper value and approx. 40 as the lower
value.
Switch off the machine at the main switch; the values are saved.
If a slide reference run cannot be performed, the following message
ashesonthedisplay:slide not calib.
Check that the slide unit is not blocked by foreign bodies and perform
another reference run.
3.8 Setting the spreading width
The spreading width depends on the condition of the spreading material
and the speed of the spreading disc. The more coarse the spreading
material, the larger the possible spreading width.
The speed and position of the casting shovels should be varied to
establish the optimum settings for the various spreading materials.

16
3.9 Setting spreading zone
You can set the zone within which the spreading material is to be
spread. This allows you to spread the material on one side for example
when the carrier vehicle is following the driving line.
Spread spreading material in left-hand direction of travel
(when mounted at the rear):
turn spindle (arrow) clockwise.
Spread spreading material in right-hand direction of travel
(when mounted at the rear):
turn spindle (arrow) anti-clockwise.
3.10 Empty indicator
The empty indicator shows you when the spreading material in the
hopperfallsbelowaspeciclllevel:
Thefollowingmessageashesonthedisplayforapprox.5seconds:
Hopperempty,8warningsignalssoundandtheredLEDashesonthe
empty indicator.
To switch off the empty indicator:
Close the slide or switch off the spreader.
3 Operating the MiniVario®

17
4 Settings and displays
The control element can be used to make the following settings:
Language
Empty indicator selection
EHR signal
EHR cycle
Empty indicator adjustment
Spreader type
Number of spreaders
4.1 Making settings
Switch off the machine.
Press and hold down both buttons
at the same time while pressing
the On button for approx. 3
seconds.
The language selection is
displayed.
Language 0
English
Press the toggle switch to select the
desired menu item.
4.2 Language
Press the button to set the language. Language 0
English
Press toggle switch: setting saved, next
menu item
or
press main switch: setting saved and
machine switched off.

18
4 Settings and displays
4.3 Selecting the empty indicator
Press the button to select the empty
indicator.
Via spreading disc resistance (1),
via mixer motor (2) with soft mixer,
via external empty indicator (3) - not
programmed
or
empty indicator switched off (0).
Empty ind. 1
One disc
Press toggle switch: setting saved, next
menu item
or
press main switch: setting saved and
machine switched off.
4.4 Setting signal for electronic lifting gear control (EHR)
When the spreader is equipped with the headline manager accessory,
the hydraulic signal of the tractor can be detected. The signal is emitted
when lifting or lowering.
The spreader is set at the factory for the signal when lifting.
If the tractor emits the hydraulic signal when lowering, you can adjust the
spreader.
Press the button to set the EHR signal.
EHR signal for lifting:
High active is displayed.
EHR signal for lowering:
Low active is displayed.
EHR signal 0
High active
Press toggle switch: setting saved, next
menu item
or
press main switch: setting saved and
machine switched off.
