LEHNER Vento II Guide

Operating instructions with spare parts list
Vento® II
Controller: LAS PSM
Software: from version 0.84
Last updated: November 2018
Serial number: ..................................................
Software version: ..................................................
Original operating manual

Publisher's information
2 / 74 1.0 Vento® II
Publisher's information
LEHNER Maschinenbau GmbH
Haeuslesaecker 14
D-89198 Westerstetten, Germany
Tel.: [phone]
Fax: [phone]
www.lehner.eu
[email protected]
This document must not be distributed, duplicated or utilised, nor may its content be communicated without express
permission. Compensation will be sought for all breaches. All rights reserved in the event of patent, utility model or
design registration. Subject to design modifications.
English

Declaration of conformity
Vento® II 1.0 3 / 74
1 Declaration of conformity
EC Declaration of Conformity
In accordance with the EC Machinery Directive 2006/42/EC, app. II, 1.A
Manufacturer:
LEHNER Agrar GmbH
Haeuslesaecker 5-9
89198 Westerstetten
Person resident in the Community who is entitled to assemble the relevant technical documents:
LEHNER Agrar GmbH
Haeuslesaecker 5-9
89198 Westerstetten
Description and identification of the machine:
Product: Vento®
Function:
Vento® is a pneumatic granulate dispenser for different kind of seeds and granulated fertilizer in agriculture.
The exact dosage is via a rotary valve, which is controlled speed dependent application rate. An automatic
dosing via wheel sensor or GPS receiver is also possible. The pneumatic spreader feature is an agitator for
heavy-flowing spread materials. The grit is discharged by airflow of 8 tubes. Vento® is manufactured in
different sizes.
It is expressly declared that the machine is in accordance with all relevant provisions of the following
EC Directives:
2006/42/EC EC Machinery Directive 2006/42/EC
2004/108/EC (Electromagnetic Compatibility) Directive 2004/108/EC of the European
Parliament and the Council dated 15 December 2004 on the harmonization of
legal regulations in the member states regarding electromagnetic
compatibility and replacing Directive 89/336/EEC
Source of the applied harmonized standard acc. to Article 7, para. 2:
EN ISO 12100-2:2003-11 Safety of Machinery – Basic concepts; general principles for design –
Part 2 Technical principles
EN ISO 14121-1:2007 Safety of Machinery – Risk assessment – Part 1: Principles
(ISO14121-1:2007)
EN 50498:2010 Electromagnetic compatibility - Product family standard for electronic
equipment installed subsequently in vehicles
EN ISO 14982:2009 Electromagnetic compatibility - Agricultural and forestry machinery
Source of the applied other technical standards and specifications:
EN ISO 12100-1:2003-11 Safety of Machinery – Basic concepts; general principles for design –
Part 1: Basic terminology, methodology
Westerstetten, 01.07.2015
Place, Date Signature
Helmut Lehner
Managing Director

Table of contents
4 / 74 1.0 Vento® II
Table of contents
1 Declaration of conformity.......................................................................3
2 What you should know........................................................................... 6
2.1 Foreword.............................................................................................. 6
2.2 About this operating manual................................................................6
2.3 About your safety.................................................................................6
2.4 Notices used........................................................................................ 7
2.5 Intended use........................................................................................ 7
2.6 Reasonably predictable misuse...........................................................7
2.7 Package............................................................................................... 8
2.8 Warranty...............................................................................................8
2.9 Technical data......................................................................................8
2.10 Technical data, electrical system.........................................................9
2.11 Description of function......................................................................... 9
2.12 List of components.............................................................................. 9
3 Mounting and start-up.......................................................................... 10
3.1 Implement holder............................................................................... 10
3.2 Install the control panel..................................................................... 10
3.3 Install the electronic linkage control (EHR)....................................... 11
3.4 Installing hoses.................................................................................. 12
3.5 Electrical connection.......................................................................... 13
3.6 Connect the control panel................................................................. 14
3.7 Adjust the empty indicator................................................................. 14
3.8 Filling the Vento® II...........................................................................15
4 Operation................................................................................................ 16
4.1 Controls on the control panel............................................................ 16
4.2 Information shown on the display......................................................17
4.3 Information shown on the unit........................................................... 17
4.4 Switching on.......................................................................................18
4.5 General setting possibilities and displays..........................................19
4.6 Automatic dosing............................................................................... 37

Table of contents
Vento® II 1.0 5 / 74
4.7 Manual without EHR..........................................................................39
4.8 Manual with EHR...............................................................................39
4.9 Error message................................................................................... 40
4.10 Troubleshooting..................................................................................41
5 Maintenance and cleaning....................................................................42
5.1 Maintenance schedule....................................................................... 42
5.2 Spreading material hopper................................................................ 43
5.3 Cellular rotor shaft............................................................................. 45
5.4 Install/Remove drive unit................................................................... 46
5.5 Blower................................................................................................ 46
5.6 Brushes.............................................................................................. 47
5.7 Install/Remove empty indicator..........................................................48
6 Storage and disposal............................................................................ 49
6.1 Storage...............................................................................................49
6.2 Disposal..............................................................................................49
7 Appendix.................................................................................................50
7.1 Identification....................................................................................... 50
7.2 Dimensions.........................................................................................50
7.3 Overview of rotary feeder shafts....................................................... 52
7.4 Formulae............................................................................................ 52
7.5 List of spreading material.................................................................. 53
7.6 Spare parts and accessories.............................................................59

What you should know
6 / 74 1.0 Vento® II
2 What you should know
2.1 Foreword
Congratulations on purchasing the Vento® II, a high-quality, innovative product. Thank you for this expression of
confidence.
Thanks to its advanced design, meticulous material selection, state-of-the art manufacturing techniques and the
precision work of our employees, this equipment meets all efficiency, quality, reliability and value requirements.
Maintenance and cleaning as detailed in the operating manual ensure the safety and retain the value of your
Vento® II.
2.2 About this operating manual
This operating manual is an important component of the spreader and must always be kept close to hand. All per-
sons who work with the spreader must read, understand and follow the operating manual.
Keep the operating manual in a safe place. If you sell your spreader, always provide this operating manual to the
buyer.
2.3 About your safety
Read through this operating manual carefully before starting operation. Comply with the instructions, warnings and
safety information. Always keep this manual to hand at the point of use.
•Observe the accident prevention regulations, safety and operating regulations and the regulations for environ-
mental protection.
•Observe all applicable standards and guidelines.
•Observe the safety instructions.
•Wear appropriate working and protective clothing.
•Avoiding injury to personnel or damage to vehicles incurring liability.
•Before operation, check that the spreader is safely and correctly attached to the carrier vehicle.
•Do not take the spreader into operation if there are technical safety defects.
•Make sure that technical safety defects are rectified immediately.
•When travelling on public roads and tracks used by agricultural vehicles, follow the applicable rules of the road.
•No other persons or animals are allowed to be in the spreading zone.
•Never open the hopper during operation.
•Disconnect the mains plug before maintenance, troubleshooting, repair and cleaning work on the spreader.
•Comply with the safety instructions on the fertiliser that you are using.
•It is essential to comply with the instructions of the pesticide or fertiliser manufacturer in question.
•After completing work, always perform a complete residual discharge of the spreader.
•Spreading tables and additional information about the fertiliser used can be requested from the manufacturer in
question.
•LEHNER Agrar GmbH cannot accept any liability for the storage and application of the spreading material
(seeds and fertiliser).

What you should know
Vento® II 1.0 7 / 74
2.4 Notices used
Warning notices
Warning notices in this operating manual are identified as follows:
Danger!
Warning against immediate danger.
Non-observance of appropriate measures will result in death or severe personal injury.
Warning!
Warning against possible danger.
Death or severe personal injury is possible.
Caution!
Warning of possible dangerous situations.
Slight personal injury or damage to property is possible.
Notices
Notices in this operating manual are identified as follows:
Advice
For application instructions and other useful information.
2.5 Intended use
The Vento® II is exclusively used for spreading seeds and fertiliser in granulated form.
The seeds and fertiliser used must be free-flowing and, due to technical reasons, permit application by dosing. In
case anything is unclear, please contact the product specialists at Lehner.
The pneumatic granulate doser is only allowed to be used within the scope of its designated use.
2.6 Reasonably predictable misuse
Vento® II may only be used for approved seeds and fertiliser.
Vento® II may only be used on approved carrier vehicles with an adequate axle load and a vehicle electrical system
with a voltage of at least 12.5 to 15.0 V and a maximum current capacity of 40 A.

What you should know
8 / 74 1.0 Vento® II
2.7 Package
The Vento® II consists of the following components:
•Pneumatic granulate doser with blower and spreading material hopper, pre-mounted on a universal holder
•Control unit with a 6 mm² battery connection cable
•25 m hose
•8 baffle plates (complete and ready to install)
•8 hose grommets
Optional accessories
•Wheel sensor
•GPS sensor
•Headland Manager (VGM) sensor magnet
•Y-cable for speed signal via 7-pin socket as well as VGM sensor/magnet
At the time of manufacture, we are not aware of any negative effects from the seed and fertiliser on the materials of
the spreader.
2.8 Warranty
Subject to use in accordance with the designated use, LEHNER Agrar GmbH offers a 24-month warranty on the
spreader.
Caution!
Danger of short circuit!
Faulty or incorrectly sized plugs and cables can lead to malfunctions. Only use original plugs
and cables, or ones approved by the manufacturer.
Warranty repairs must be coordinated with LEHNER Agrar GmbH before any work is started.
For replacement parts, additional expenses are charged for any changes made to cables and plugs by the cus-
tomer.
Replacement parts are to be returned carriage paid.
Any changes to cable or plug connections without factory approval automatically invalidate the entire warranty.
Rusted bearings are not subject to the manufacturer's warranty.
Motors are not allowed to be opened or dismantled.
On receipt:
Please check the goods on receipt to ensure they are undamaged and nothing is missing.
If there has been damaged in transit, please inform the manufacturer within 24 hours!
2.9 Technical data
Vento® II
120 litre hopper
Vento® II
230 litre hopper
Length [mm] 527 570
Width [mm] 919 947
Height [mm] 1009 1199
Weight, empty [kg] 61 67
Spreading with [m] ≤ 6 ≤ 6

What you should know
Vento® II 1.0 9 / 74
2.10 Technical data, electrical system
Operating voltage 12.5 to 15 V
Fuse 40 A
Speed range 20 to 120 rpm
Power consumption of motor 10 A
Total Power consumption of Vento® II
8-Row
33 A
Total Power consumption of Vento® II
16-Row
45 A
Operating temperature -10 to +50 °C
Storage temperature -10 to +50 °C
Battery cable minimum 6 mm²
2.11 Description of function
The Vento® II is a pneumatic granulate doser for applying seeds and granulated fertiliser in agriculture.
Precise dosing is achieved using a cellular rotor valve that is driven according to the speed of the vehicle. Automatic
dosing by means of a wheel sensor or GPS receiver is possible. The spreader has an agitator for spreading materi-
als with reduced free-flowing properties. The spreading material is applied by means of an airflow through 8 hoses.
2.12 List of components
1Hopper with cover
2External Start/Stop control button on unit
3Complete drive unit
4Residual discharge hatch
5Drive belt
6Universal holder
7Baffle plate
8Hose grommet
9Cellular rotor shaft
10 Brushes
11 Blower
12 Agitator
13 Empty indicator
14 Load relief roof
15 Pressure piece

Mounting and start-up
10 / 74 1.0 Vento® II
3 Mounting and start-up
Warning!
Risk of injury due to inadequate attachment
If the spreader or hopper tip over, this can cause crushing or other injuries.
•Only mount the spreader on carrier vehicles that have a sufficient load carrying capability.
•Before start-up, make sure that the implement, spreading material hopper and hopper cover have
been correctly attached.
3.1 Implement holder
The Vento® II is supplied mounted on the universal
holder as standard. The mounting is specifically depen-
dent upon the carrier vehicle provided, and must be
adapted to its conditions.
Before operation, check the attachment of the spread-
er on the universal holder. The attachment must be se-
cured with the safety bolts (1). If replacing them, use
M10 bolts with a strength class of at least 8.8, with self-
locking nuts.
Optionally, installation is possible using U-brackets
(2) on a square tube with dimensions 80×80 mm to
120×120 mm.
3.2 Install the control panel
Install the universal holder supplied in the package in the working range of the driver.
The installation is specifically dependent upon the carrier vehicle provided, and must be adapted to its conditions.
Advice
Select the installation position so that the accessibility of other controls is not adversely affected.
1. Secure the universal holder to the vehicle using
point (1) and (2).

Mounting and start-up
Vento® II 1.0 11 / 74
Bl k
ed
2. Thread the battery connection cable (6) through the
opening (3).
3. Secure the battery cable plug (4) to the holder (5).
3.3 Install the electronic linkage control (EHR)
1. Secure the sensor in the joint area of the lower
link.
2. Secure the magnetic encoder to the lower link.
3. Set the position of the sensor and the magnetic
encoder.
Maximum distance 8 mm.
Advice
Please note that the contact
surfaces (1) of the sensor
are only located on the left
and right sides.
Sensor inactive
The sensor must not be within range of the magnetic encoder.
Sensor active
The sensor must be within range of the magnetic encoder.
Signal from linkage control
The "active" signal can be output during raising or lowering. Check the correct setting see "Electronic linkage control
(EHR) function".

Mounting and start-up
12 / 74 1.0 Vento® II

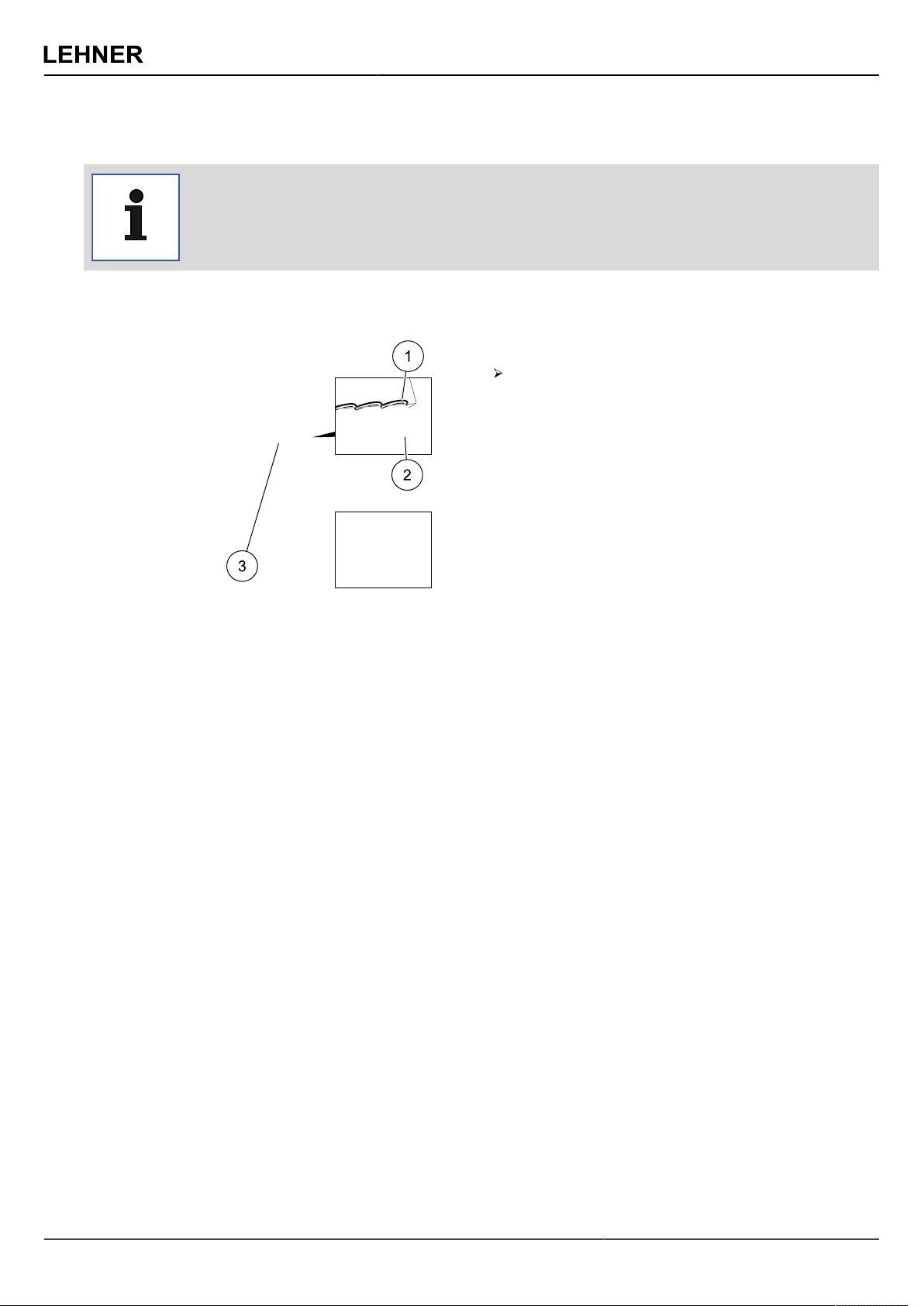

3.4 Installing hoses
Advice
Route hoses with as few bends as possible, and with the largest possible bending radius.
Incorrect hose routing can result in blockages in the hose.
Only insert clean hose grommets into the holder.
Installing hose
1. Install the sealing ring (1) on the hose grommet.
Ensure that it is correctly seated to avoid capacity
losses.
1. Secure the hose grommet (2) to the hose.
2. Slide the hose grommet (2) into the mounting (3) un-
til it engages.
3. Route the hose and cut to length.
4. Cut the hose off with a straight end.
5. Secure the baffle plate to the hose using a hose clip
(see detail illustration).

Mounting and start-up
Vento® II 1.0 13 / 74
3.5 Electrical connection
Caution!
Risk of short-circuit and injury when working on the battery and electrical system!
Electrical current flowing through the body can cause cramps, ventricular fibrillation,
heart stoppage and internal burns. Risk of burns due to arcing caused by short circuits.
•Protect the battery against damage and moisture.
•Disconnect the electrical power supply before starting work on the battery and electrical system.
•Use suitable tools so as to avoid short circuits.
•Sure that the cables are routed without tension, kinking and chafing, and also avoid bending them
around sharp edges.
•During all work on the battery, please comply with the regulations of the vehicle manufacturer in
question.
•Only use original cables, or ones approved by the manufacturer.
•Always push on the cap and lock it to protect electrical connections against damage.
Advice
Faulty cables or cables with incorrect dimensions can lead to malfunctions and damage to the spread-
er. Any changes to cable or plug connections without factory approval automatically invalidates the entire
warranty.
Changes to cables undertaken by the customer are taken into account in the case of repair. Only use original ca-
bles, or ones approved by the manufacturer. You must consult with the manufacture before carrying out any cable
modifications. Power loss must be taken into account when extending cables. A poor power supply may prevent you
from achieving the desired blower speed. Also, this could lead to intermittent complete failure.

Mounting and start-up
14 / 74 1.0 Vento® II
3.6 Connect the control panel
1. Connect the signal cable (2) on the electronic link-
age control to the 7-pole socket (1).
2. Connect the control cable (4) on the spreader to the
multi-pole socket (3).
1. Place the control panel plug into the socket (1) on
the supplied battery cable.
2. Connect the connector (2) on the black cable to the
negative pole on the battery (not to the bodywork).
3. Connect the connector (3) on the red cable with the
fuse (4) to the positive pole on the battery.
Advice
•Use the supplied 6 mm² battery cable to ensure a perfect power supply.
•A poor power supply may prevent you from achieving the desired blower speed. Also, this could lead
to intermittent complete failure.
Any changes to cable or plug connections without factory approval automatically invalidates the entire warranty.
Changes to cables undertaken by the customer are taken into account in the case of repair.
The spreader is ready for use.
3.7 Adjust the empty indicator
The empty indicator is given a default setting at the factory.
If you use particularly lightweight spreading material, it may be that the sensitivity of the empty indicator has to be
adjusted.
Adjust the empty indicator:
1. Turn the red setting screw clockwise.
This increases the sensitivity of the empty indicator.
2. Turn the red setting screw anti-clockwise.
This reduces the sensitivity of the empty indicator.

Mounting and start-up
Vento® II 1.0 15 / 74
3.8 Filling the Vento® II
Warning!
Risk of injury during operation if the spreading material hopper is open, due to spread-
ing material being thrown out and rotating parts.
This can cause injuries to the eyes and crushing injuries.
•Only operate when the hopper cover is closed.
•Always switch off the spreader and blower before opening the spreading material hopper.
Warning!
Risk of injury!
•Wear appropriate working and protective clothing during all work.
•Comply with the regulations of the fertiliser manufacturer.
Advice
Attach the data sheet of the fertiliser used in a clearly visible position on the spreader.
Advice
Make sure that no foreign bodies (e.g. packaging material) get into the hopper, in order to avoid malfunc-
tions.
Before starting, ensure that the hopper on the Vento® II is completely secure.
2
3
Filling
1. Make sure that the spreader and blower are
switched off.
2. To fill the spreader release the rubber straps (2) on
the hopper and remove the cover (3).
3. Make sure that suitable rotary valves are fitted ac-
cording to the spreading material table, and that the
load relief roof of the agitator has been mounted cor-
rectly.
4. Fill the spreading material, making sure that no for-
eign bodies or impurities get into the hopper.
5. Before closing the hopper, make sure that the
seal is in place all round between the hopper
and the hopper cover.
6. Seal the hopper using the four rubber straps (2).

Operation
16 / 74 1.0 Vento® II
4 Operation
4.1 Controls on the control panel
Controls
1Side cover with blower opening
2On/Off key
3Graphic display
4Turn-and-push button (encoder) for menu guide
through the program
5Empty indicator
•Red LED lit: small residual amount in hopper
6Escape (back key)
7Blower On/Off key and selector for blower power
setting
Orange LED lit: blower inactive
Blue LED flashes: blower power setting not yet
reached
Blue LED lit: blower running at power setting
8Start/Stop key
Orange LED lit: Stop is active
Blue LED flashes: Start selected but not yet possi-
ble
Blue LED lit: Start active
Connections
9Socket for spreader control cable
10 7-pole socket for EHR magnetic sensor, Y cable or
7-pole connection cable
11 5-pole socket for wheel sensor or GPS receiver
12 6 mm² connection cable for battery cable

Operation
Vento® II 1.0 17 / 74
4.2 Information shown on the display
1 Test
0.6
kg /
ha
U/min
km/h
0
0
+35%
2.0m
1
7
5
2
3
4
9
8
6
10
Automatic mode
1Cursor
2Main menu symbol
3EHR symbol
4Cellular rotor symbol
5Cellular rotor speed
6Selected calibration test
7Output rate
8Working width
9Qty. adaptation
10 Travel speed
Manual
EHR
70
U
/
min
0
U
/
min
[desired]
[actual]
2.0
m
1
5
6
2
3
4
Manual
1Main menu symbol
2Cursor
3EHR symbol
4Cellular rotor symbol
5Cellular rotor desired speed
6Cellular rotor actual speed
Product name
ABCDEFGHIJKLMNOPQRSTUV
WXYZ0123456789 .,;:-+/
New product
X«
«–
aA
OK
1
4
3
2
Entry box
1Delete single letters
2Delete complete text
3Upper/Lower case
4Continue to calibration test
4.3 Information shown on the unit
1LED lit: Empty indicator detects material in the hop-
per.
2LED lit: empty indicator is ready.

Operation
18 / 74 1.0 Vento® II
4.4 Switching on
I
0
1. Press On/Off key.
LEHNER
Agrar GmbH
"Lehner Agrar GmbH" appears in the display.
VENTO
V00 . 77
"Vento with the appropriate software version" ap-
pears in the display.
Manual
89 U / min
0U / min
[desired]
[actual]
2.0m
The last operating mode set will appear as the start
screen.

Operation
Vento® II 1.0 19 / 74
4.5 General setting possibilities and displays
The control element can be used to make the following settings:
•Quantity adaptation (only possible in automatic mode)
•Hectare counter (only possible in automatic mode)
•Service query
•Calibration test
•Operating mode
•Calibration run
•Speed pulse
•EHR signal
•Working width
•Residual discharge
•Error memory
•Language
•Units
•Blower
Select main menu:
1. Turn the turn-and-push button.
2. Select the "Main menu" symbol.
3. Push the turn-and-push button.
The main menu will be displayed.
Select a menu point:
1. Select main menu.
2. Turn the turn-and-push button.
3. Push the turn-and-push button.
The menu point will be displayed.

Operation
20 / 74 1.0 Vento® II
4.5.1 Qty. adaptation
Advice
•The Qty. adaptation Can only be selected if automatic mode is selected.
•The quantity can only be adapted if at least one product has been created, see "Calibration test".
Qty. adaptation
+50%
0.3 kg/ha
1. Select "Quantity adaptation" menu point.
The current value will be displayed.
2. Set the required value by turning the turn-and-push
button.
3. Press the turn-and-push button to save the set qty.
adaptation.
The entry will be confirmed.
The main menu will be displayed.
