Leica SR20 User manual

LEICA SR20
User Manual
Version 1.1
English

Introduction LEICA SR20 User Manual-1.1.0en
2
Introduction
Leica SR20
Congratulations on your purchase of a new Leica
SR20.
This manual contains important safety
directions (refer to chapter "Safety
directions") as well as instructions for
setting up the product and operating it.
Read carefully through the User Manual before you switch
on the product.
Product identification
The model and the serial number of your product are indi-
cated on the typeplate.
Enter the model and serial number in your manual and
always refer to this information when you need to contact
your agency or authorized service workshop.
GPS Receiver Type: _______Serial No.: _______
Software-Version V: _______Build: _______
External Antenna Type: _______Serial No.: _______
Symbols
The symbols used in this User Manual have the following
meanings:
DANGER:
Indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation or an
unintended use which, if not avoided, could result in
death or serious injury.
CAUTION:
Indicates a potentially hazardous situation or an
unintended use which, if not avoided, may result in
minor or moderate injury and / or appreciable mate-
rial, financial and environmental damage.
)Important paragraphs which must be adhered to in
practice as they enable the product to be used in a
technically correct and efficient manner.
Trademarks
• Windows (registered trademark of Microsoft Corpora-
tion)
• Bluetooth (registered trademark of Bluetooth SIG, Inc.)
All other trademarks are the property of their respective
owners.

View of chapters
3
LEICA SR20 User Manual-1.0.0en
View of chapters
1. General Information .................................................................... 5
2. Description of the System.......................................................... 7
3. Hardware and Software Setup ................................................. 11
4. Care and Transport ................................................................... 14
5. Safety Directions....................................................................... 16
6. Technical Data........................................................................... 28

Table of Contents
4
LEICA SR20 User Manual-1.1.0en
Table of Contents
1. General Information.................................5
The Leica SR20....................................................... 6
Overview of the User Manual .................................. 6
2. Description of the System.......................7
Unpacking the SR20 Standard Package ................. 7
GPS Receiver.......................................................... 8
Receiver Hardware.................................................. 8
Charge the Batteries ........................................ 9
Set Up the Equipment .................................... 10
Post-processing software ............................... 10
3. Hardware and Software Setup ..............11
Introduction............................................................ 11
Receiver Hardware................................................ 12
Leica SR20 Sensor ........................................ 12
Powering Up the Unit............................................. 13
4. Care and Transport................................14
Transport ............................................................... 14
Storage .................................................................. 14
Cleaning and drying............................................... 15
5. Safety Directions ................................... 16
Intended use of product ........................................ 16
Permitted uses ............................................... 16
Adverse uses ................................................. 16
Limits of use .......................................................... 17
Responsibilities ..................................................... 17
International Warranty, Software License
Agreement............................................................. 18
Hazards of use ...................................................... 19
Main hazards of use....................................... 19
Electromagnetic Compatability (EMC) .................. 24
FCC statement (applicable in U.S.)....................... 26
6. Technical Data ....................................... 28

General Information
5
LEICA SR20 User Manual-1.1.0en
1. General Information
For decades, Leica Geosystems has enjoyed a worldwide
technological lead in the manufacture of classical
surveying instruments and systems. Starting in 1987, Leica
Geosystems established a close business relationship with
Magnavox's commercial GPS business unit for the design
and construction of GPS surveying sensors. This culmi-
nated into Leica Geosystems acquisition of the Magnavox
GPS business unit in 1994. With this purchase, the
unbroken chain of impressive "firsts" now incorporated the
field of satellite navigation and positioning technology.
Magnavox was one of the first pioneers in this arena,
playing a leading role in the development of GPS and its
predecessors. Further acquisition of the Philips Ap Navi-
gator business in 1997 widened Leica Geosystems
product palette to an even greater extent.
Leica Geosystems offers an entire product basket of GPS
receivers. This includes receivers designed for Land
Surveying, GIS, Machine Control, Monitoring and various
other applications. The SR20 GPS receiver allows the user
the maximum in flexibility. The SR20 GPS receiver can be
used as a high accuracy Land Surveying device, a
powerful GIS data collector, or even a Reference Station.
The SR20 is packaged with the Leica Geo Office software.
This software is also extremely flexible with it’s ability to
accept data from a variety of Leica receivers including: total
stations, levels, and GPS.

General Information LEICA SR20 User Manual-1.1.0en
6
The Leica SR20
The Leica SR20 GPS receiver was designed to provide the
Land Surveying community with a reliable, rugged and
accurate GPS receiver that is also flexible enough to fit
both sub-meter and centimeter accurate land surveying
requirements. The Leica SR20 represents a true turnkey
GPS solution by integrating the GPS receiver and antenna
within the chassis of a handheld data collector. You will find
the SR20 is extremely easy to use and yet has the all the
power you would expect out of a Leica GPS receiver.
Overview of the User Manual
The User Manual is intended to provide information
concerning setup, safety, storage and technical data of the
SR20 and accessories. For additional information on the
use and operation of the SR20, please refer the SR20
"Getting Started Guide" (provided separately). For informa-
tion concerning the use and interaction between Leica Geo
Office and the SR20, please refer to the Leica Geo Office
online help system.

Description of the System
7
LEICA SR20 User Manual-1.1.0en
2. Description of the System

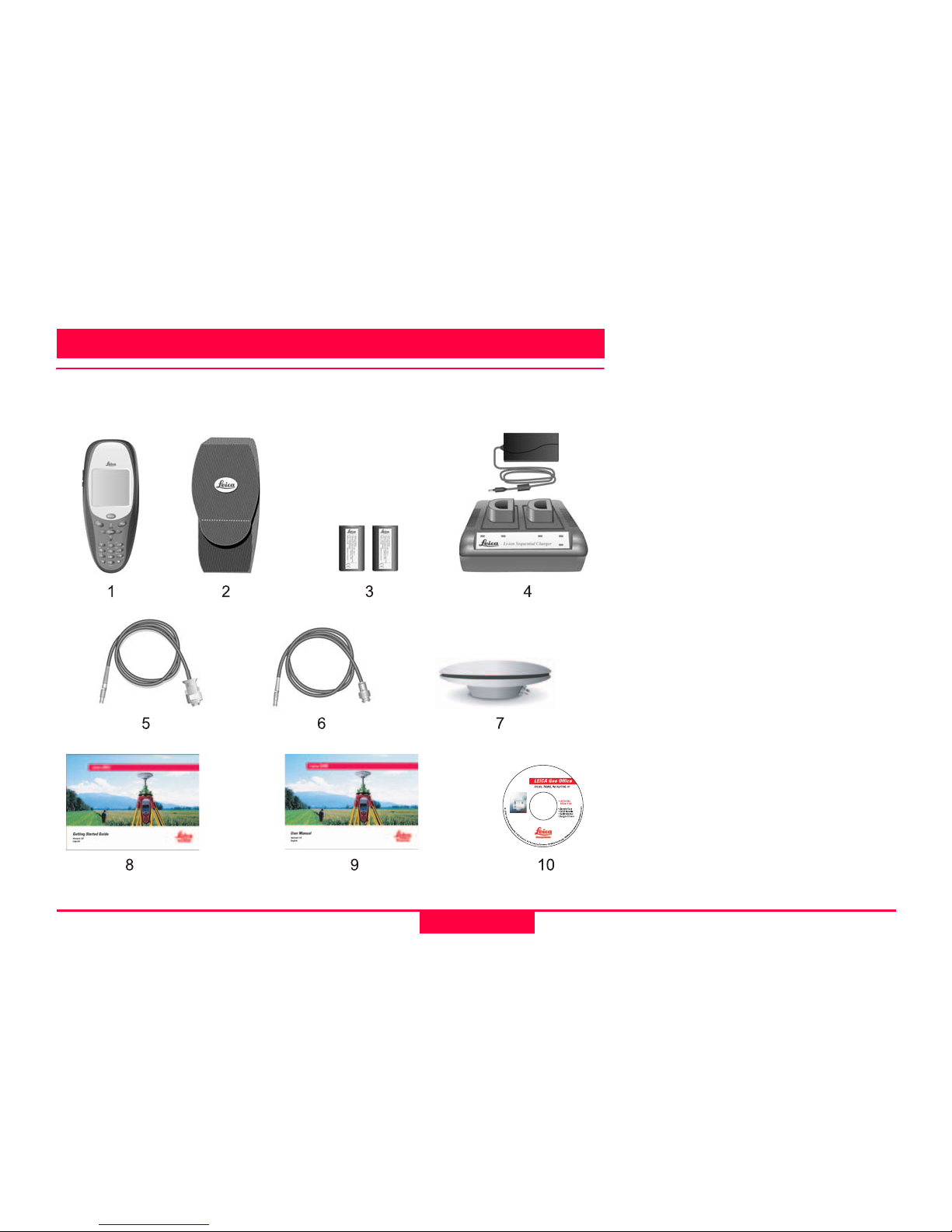

Unpacking the SR20 Standard Package
Take the product out of the transport case and check that it is complete:
1 SR20 Handheld GPS Receiver
2 SR20 Soft Case
3 GEB90 Battery, Li-Ion, 7.2V
4 Dual-Bay Battery Charger
5 Data Transfer Cable, SR20 to
RS232
6 SR20 Antenna Cable
7 AT501 Antenna
8 SR20 Getting Started Guide
9 Leica SR20 User Manual
10 Leica Geo Office Software CD

Description of the System LEICA SR20 User Manual-1.1.0en
8
GPS Receiver
The GPS Receiver receives the GPS signal from the
NAVSTAR satellites and calculates a range to all visible
satellites.
The Leica SR20 is a 12-channel L1 code and phase hand-
held GPS receiver for professional data mapping.
See section "
Technical Data ".
Receiver Hardware
In most cases, a short introduction in the use of the
Receiver will be provided by the local Leica Geosystems
representative.
Also refer to the SR20 "
Getting Started Guide."

Description of the System
9
LEICA SR20 User Manual-1.1.0en
Charge the Batteries
Your Leica SR20 is powered by a rechargeable 7.2 V, Li-
Ion battery.
The battery can be charged and discharged hundreds of
times but it will eventually wear out. When the operation
time is noticeably shorter than normal, it is time to buy a
new Leica Geosystems GEB90 Li-Ion Battery.
One battery, fully charged, will power the SR20 for about 7
hours continuously. Operating times will be shorter when
working in cold weather.
Primary use/charging
• The battery must be charged prior to using it for the first
time because it is delivered with an energy content as
low as possible.
• For new batteries or batteries that have been stored for
a long time (> three months), you should take the
battery through one complete charge/discharge cycle.
• For Li-Ion batteries, a single discharging and charging
cycle is sufficient. We recommend carrying out the
process when the battery capacity indicated on the
charger or on a Leica Geosystems product deviates
significantly from the actual battery capacity available.
• The permissible temperature range for charging is
between 0°C to +40°C/ +32°F to +104°F. For optimal
charging we recommend charging the batteries at a low
ambient temperature of +10°C to +20°C/+50°F to +68°F
if possible.
• It is normal for the battery to become warm during
charging. Using the chargers recommended by Leica
Geosystems, it is not possible to charge the battery if
the temperature is too high.
Operation/Discharging
• The batteries can be operated from -20°C to +55°C/
-4°F to +131°F.
• Low operating temperatures reduce the capacity that
can be drawn; very high operating temperatures reduce
the service life of the battery.

Description of the System LEICA SR20 User Manual-1.1.0en
10
Set Up the Equipment
For best performance, GPS data collection requires undis-
turbed satellite signal reception. This means GPS
Receivers work best in locations which are free of obstruc-
tions.

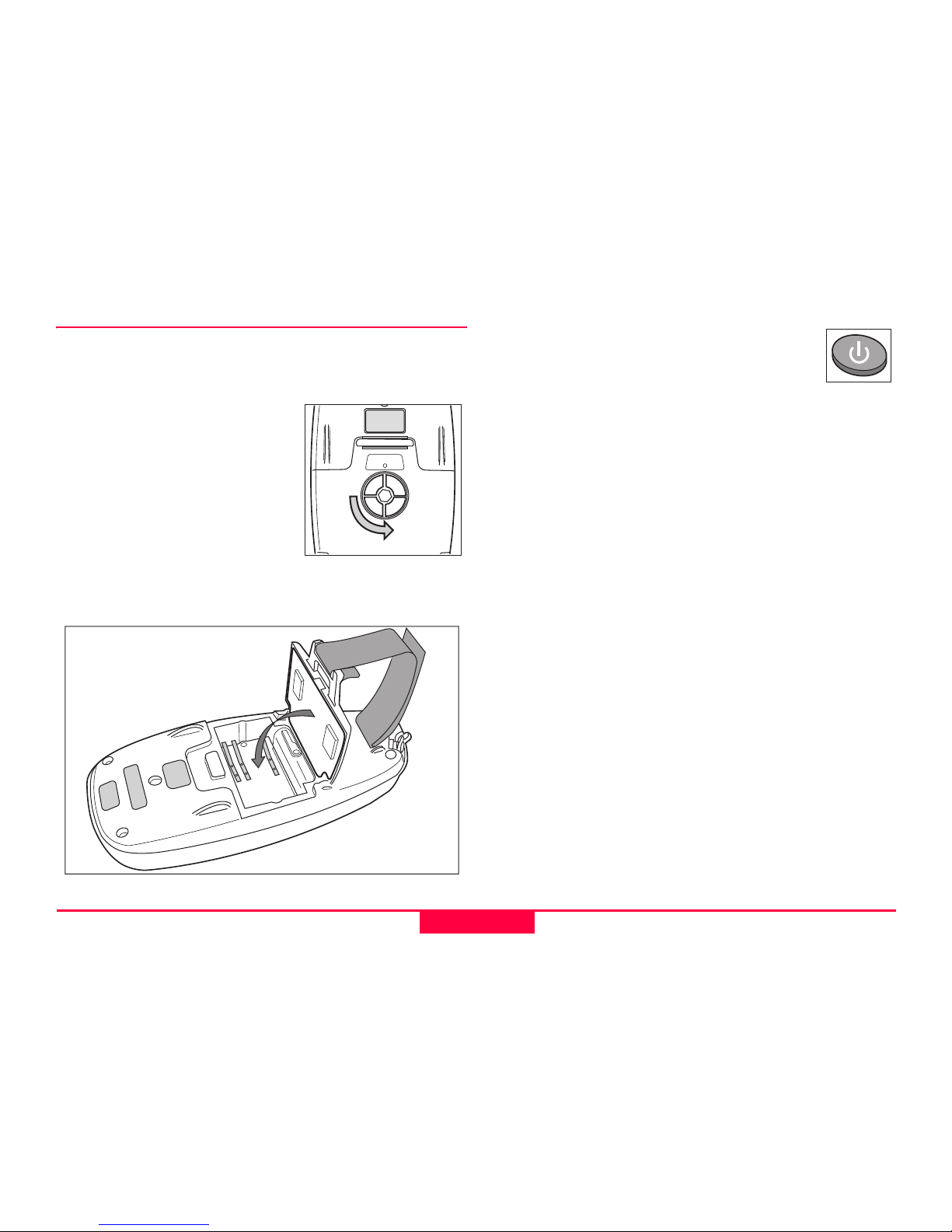

Press and release the Power Button located on lower left
of the keyboard. The unit will reply with an audible tone,
then proceed to a splash screen and then to the Main
Menu.
Your Leica SR20 is now fully ready for operation.
Post-processing software
The Post-processing software is used to process the
observations taken by the Receiver in order to compute
baselines and coordinates.
Leica Geo Office software is the standard post-processing
software for the SR20 GPS receiver. Please refer to the
"Getting Started Guide" and the Leica Geo Office online-
help system for further details.
