Leica DMi8 User manual

Instructions for Use tGebrauchsanweisung tMode d’emploi
Leica Microsystems CMS GmbH tInstructions 11934056, Revision 1.1 from 2015-07-15
Leica DMi8

2
COPYRIGHT/ CONTENTS

Instructions for Use
Leica Microsystems CMS GmbH tInstructions 11934056, Revision 1.1 from 2015-07-15
Leica DMi8

COPYRIGHT/ CONTENTS
Revision 1.1, published on 2015-07-15 by:
Leica Microsystems CMS GmbH
Ernst-Leitz-Straße 17-37
D-35578 Wetzlar (Germany)
http://www.leica-microsystems.com
Responsible for contents:
Marketing CMS
Copyright
All rights to this documentation are held by Leica Micro-
systems CMS GmbH. Reproduction of text or illustrations
(in whole or in part) by print, photocopy, microfilm or other
method (including electronic systems) is not allowed with-
out express written permission from Leica Microsystems
CMS GmbH.
The instructions contained in the following documentation
reflect state-of-the-art technology. We have compiled the
texts and illustrations as accurately as possible. Still, we
are always grateful for comments and suggestions regard-
ing potential mistakes within this documentation.
The information included in this manual may be changed with-
out prior notice.
Contents
1 Important Notes about this Manual ......................... 4
1.1 Text symbols and their meanings.............................. 4
2. Intended Purpose of the Microscope ...................... 6
3. Safety Notes ................................................................. 8
3.1 General safety notes ................................................... 8
3.2 Electrical safety ........................................................... 8
3.3 Laser safety ................................................................ 11
3.3.1 Safety switch (interlock) on the microscope ........ 11
3.3.2 Screwed-on filter turret cover................................. 12
3.3.3 Laser coupling by the user....................................... 12
3.3.3.1 Safety hazard due to folded back
Transmitted Light arm ............................................... 13
3.3.3.2 Safety hazard at eyepiece........................................ 13
3.3.3.3 Safety hazard in the condenser area
during operation. ....................................................... 13
3.3.3.4 Safety hazard above the condenser....................... 14
3.3.3.5 Safety hazard in the specimen area....................... 14
3.3.3.6 Safety hazard due to openings at microscope ..... 15
3.3.3.7 Note regarding the safety hazards in Sections
3.3.3.1 and Section 3.3.3.2......................................... 16
3.3.4. Exception for Class 1 lasers..................................... 17
3.5 Storage and transport............................................... 18
3.6 Ambient conditions.................................................... 18
3.7 Notes on handling light sources ............................. 19
3.8 Notes on handling the Touch Screen..................... 20
3.9 Notes on handling immersion oil............................. 20
3.10 Notes on handling acids and bases ....................... 20
3.11 Disposal....................................................................... 20
4. Leica DMi8 configurations instrument overview 21
4.1 Microscope configurations (examples)................. 21
4.2 Dimensions (specified in mm).................................. 22
4.3 Specifications+) .......................................................... 24
4.4 Controls ....................................................................... 28
4.4.1 Control panel fields.................................................... 29
4.4.2 Additional control elements..................................... 31
4.4.3 The Touch Screen...................................................... 34
4.4.4 The Leica SmartMove control element.................. 36
4.4.5 Leica STP4000/8000 external control panel........... 37
2

CONTENTS
6. Troubleshooting......................................................... 86
7. Care of the Microscope............................................ 89
7.1 Dust Cover................................................................... 89
7.2 Cleaning....................................................................... 89
7.3 Handling acids and bases ........................................ 90
8. Essential Consumable and Spare Parts ............... 91
9. Appendix.................................................................... 92
9.1 Assigning the variable function keys ..................... 92
9.2 Abbreviation glossary ............................................... 94
9.3 Overview of Touch Screen pictograms.................. 95
9.4 Additional information............................................... 96
10. Index ............................................................................ 97
11. EC Declaration of Conformity.................................. 99
5. Operation .................................................................... 38
5.1 Switching on the microscope.................................. 39
5.2 Illumination ................................................................. 41
5.2.1 Transmitted Light........................................................ 41
5.2.2 Fluorescence.............................................................. 42
5.2.3 Infinity port.................................................................. 44
5.2.4 Shutter ......................................................................... 45
5.3 Objectives ................................................................... 46
5.4 Tube.............................................................................. 49
5.5 Eyepieces.................................................................... 50
5.6 Stages and object displacement............................. 51
5.6.1 Object displacement ................................................. 51
5.6.2 Adjusting the step sizes on motorized stages....... 52
5.7 Focusing ...................................................................... 54
5.7.1 Focusing the image ................................................... 54
5.7.2 Focus thresholds........................................................ 55
5.7.3 Adjusting the step sizes............................................ 56
5.7.4 AFC (Adaptive Focus Control).................................. 57
5.8 Selecting the ports .................................................... 58
5.9 Magnification Changer ............................................. 59
5.10 Aperture diaphragm and field diaphragm ............. 60
5.11 Filter ............................................................................. 62
5.11.1 Transmitted Light filter .............................................. 62
5.11.2 Fluorescence Cubes.................................................. 63
5.11.3 Leica RFID Module......................................................... 65
5.11.3.1 Product Description ................................................. 65
5.11.3.2 Specifications LID Module 1.0...............................65
5.11.3.3 Specifications RFID Tag D6.7 special ..................... 65
5.11.3.4 Ports............................................................................. 65
5.11.3.5 FCC / IC Compliance .................................................. 65
5.12 The memory function on the Touch Screen .......... 66
5.13 Transmitted Light contrast method......................... 66
5.13.1 Brightfield (TL)............................................................ 67
5.13.2 Phase Contrast (TL) ................................................... 69
5.13.3 Darkfield (TL) .............................................................. 71
5.13.4 Polarization (TL) ......................................................... 72
5.13.5 Differential Interference Contrast – DIC (TL) ....... 74
5.13.6 Integrated Phase Contrast – IPH (TL) .................... 76
5.13.7 Integrated Modulation Contrast – IMC (TL) .......... 78
5.14 Fluorescence.............................................................. 82
5.15 Combination method ............................................... 85
3

1. IMPORTANT NOTES ABOUT THIS MANUAL
1 Important Notes about this Manual
Numbers in brackets, e.g. (1.2), refer to illustrations, in the
example to Fig. 1, item 2.
Numbers with an arrow, e.g. op. 20, refer to a specific
page of the manual.
WARNING indicates a hazard with a medium degree of risk
that, if not avoided, can result in death or serious injury.
CAUTION indicates a hazard with a low degree of risk that,
if not avoided, can result in minor or moderate injury.
Caution!
In this manual, additional safety notes are indicated with
the triangle symbol shown here, and have a gray back-
ground.
Caution! The instrument and accessories can be damaged
when operated incorrectly.
Caution!
These Instructions for Use are an essential component
of the product; they must be read carefully before the
product is assembled, put into operation or used, and
must be kept for later reference.
These Instructions for Use include important instructions
and information related to the operating safety and mainte-
nance of the instrument.
1.1 Text symbols and their meanings
(1.2)
op.20
!
WARNING
CAUTION
4

1. IMPORTANT NOTES ABOUT THIS MANUAL
Warning of hazardous electrical voltage! Risk of electrical
shock!
Danger due to hot surface
Warning of optical radiation! Never look directly into the
light beam! Wear safety goggles!
Warning of electromagnetic field
Warning of UV radiation! Wear safety goggles!
Warning of hazardous laser radiation – take appropriate
safety precautions!
Warning of hand injuries
Instructions for disposing of the instrument, its acces-
sories and consumables.
Connection to ground
Explanatory note
Item not contained in all equipment configurations
Manufacturing date, e.g. 11 / 2011 for November 2011
China RoHS 50 years EFUP
(Environmentally friendly use period)
*
MM/YYYY
5

2. INTENDED PURPOSE OF THE MICROSCOPE
2. Intended Purpose of the Microscope
DMi8 Leica microscopes are inverted light microscopes
and are intended for use as general lab microscopes for
routine examinations of biological specimens.
The Leica DMi8 series can be used universally. All con-
trast methods, such as Brightfield, Darkfield, Phase
Contrast, DIC, fluorescence or modulation contrast,
are integral components of the microscope and can
be adapted or exchanged quickly and easily. Vari-
able illumination and imaging beam paths as well as
HCSoptics,modularaccessoriesandawiderangeofavailable
peripherals supplement the inverted Leica research stand
from Leica Microsystems CMS GmbH.
Leica DMi8 microscopes:
Leica DMi8 manual 11889110
Leica DMi8 coded 11889111
Leica DMi8 automated 11889112
Leica DMi8 automated 11889113
Leica DMi8 automated 11889014
Directives of European Community (EC-Directives)
The named microscope meets the requirements of the
Council Directives 2006/95/EC and 2014/35/EC concerning
electrical apparatus and 2004/108/ EC and 2014/30/EC con-
cerning electromagnetic compatibility.
Reasonably foreseeable misuse
The following are prohibited:
tTo use the microscope for any purpose not in accordance
with the Declaration of Conformity (e.g. the use of medical
products in accordance with
EU Directive 93/42/EEC )
tMaking use of auxiliary equipment to use the area be-
tween the microscope stage and objectives as a clamp or
holder (working like a vice)
tOperating the microscope in an inclined position
tCleaning the microscope in a way other than specified in
the manual
tModifying the built-in safety circuits in the instrument
tAllowing unauthorized personnel to open the instrument
tUsing cables that Leica Microsystems CMS GmbH has not
provided or permitted
tUsing the swiveling Touch Screen of the microscope as a
transport handle
tUsing combinations with non-Leica components that go
beyond the scope of the manual
6

2. INTENDED PURPOSE OF THE MICROSCOPE
Caution!
The manufacturer assumes no liability for damage
caused by, or any risks arising from, using the micro-
scope for other purposes than those for which they are
intended or not using them within the specifications of
Leica Microsystems CMS GmbH.
In such cases, the Declaration of Conformity shall be in-
valid.
WARNING
Notes on handling laser devices
In the standard design without additional laser safety
precautions, the microscopes are not suitable for cou-
pling laser radiation (such as to the camera ports), since
this radiation poses a hazard for the user (eye injury in
particular).
For use of the microscope with lasers,
Leica Microsystems CMS GmbH offers special micro-
scope variants with additional safety features. Laser
couplings require corresponding safety devices that
have to be inspected and installed by trained personnel.
For further information, please contact your authorized
Leica Microsystems CMS GmbH representative.
7

3. SAFET Y NOTES
3. Safety Notes
3.1 General safety notes
These instruments of protection class 1 are built and in-
spected in accordance with
EN 61010-1 /IEC 61010-1 Safety requirements for
electrical equipment for measurement, control and labora-
tory .
They also meet the requirements in
EN / IEC 61326-1 Electrical equipment
for measurement, control and laboratory use – EMC re-
quirements .
The products were also tested in accordance with
EN
62471 / IEC 62471 Photobiological safety of lamps and lamp
systems .
Caution!
In order to maintain this condition and to ensure safe
operation, the user must follow the instructions and
warnings contained in this operating manual.
Caution!
The instruments and accessories described in this In-
structions for Use have been tested for safety and po-
tential hazards.
The responsible Leica Microsystems CMS GmbH af-
filiate or the main plant in Wetzlar must be consulted
whenever the device is altered, modified or used in con-
junction with non-Leica components that are outside of
the scope of this manual.
Unauthorized alterations to the instrument or noncom-
pliant use shall void all rights to any warranty claims!
3.2 Electrical safety
General specifications
Compact Leica CTR electronics box
For indoor use only.
Supply voltage: 100 – 240 VAC
Frequency: 50 / 60 Hz
Power consumption: max. 150 VA
Fuses: 3.15 A, slow-blowing,
Breaking capacity H, 250 VAC
Size: 5x20 mm
Ambient temperature: 15° - 35°C
Relative humidity: 90% up to 30°C,
non-condensing
Protection class: I
Overvoltage category: II
Pollution degree: 2
8

3. SAFET Y NOTES
Advanced/Advanced+ Leica CTR electronics box
For indoor use only.
Supply voltage: 100 – 240 VAC
Frequency: 50 / 60 Hz
Power consumption: max. 290 VA
Fuses: 6.3 A, slow-blowing,
Breaking capacity H, 250 VAC
Size: 5x20 mm
Ambient temperature: 15° - 35°C
Relative humidity: 90% up to 30°C,
non-condensing
Protection class: I
Overvoltage category: II
Pollution degree: 2
Leica DMi8 manual
For indoor use only.
Supply voltage: 100 – 240 VAC
Frequency: 50 / 60 Hz
Power consumption: max. 55 VA
Fuses: 1.6 A, slow-blowing,
Breaking capacity H, 250 VAC
Size: 5x20 mm
Ambient temperature: 15° - 35°C
Relative humidity: 90% up to 30°C,
non-condensing
Protection class: I
Overvoltage category: II
Pollution degree: 2
Leica DMi8 coded
For indoor use only.
Supply voltage: 100 – 240 VAC
Frequency: 50 / 60 Hz
Power consumption: max. 55 VA
Fuses: 1.6 A, slow-blowing,
Breaking capacity H, 250 VAC
Size: 5x20 mm
Ambient temperature: 15° - 35°C
Relative humidity: 90% up to 30°C,
non-condensing
Protection class: I
Overvoltage category: II
Pollution degree: 2
Leica DMi8 automated
For indoor use only.
Supply voltage: 100 – 240 VAC (oLeica CTR)
Frequency: 50 / 60 Hz (oLeica CTR)
Power consumption: see Leica CTR
Fuses: see Leica CTR
Ambient temperature: 15° - 35°C
Relative humidity: 90% up to 30°C,
non-condensing
Protection class: I (oLeica CTR)
Overvoltage category: II (oLeica CTR)
Pollution degree: 2 (oLeica CTR)
Leica EL6000*
For indoor use only.
Supply voltage: 100 – 240 VAC
Frequency: 50 / 60 Hz
Power consumption: max. 200 VA
Fuses: 2.5 A, slow-blowing,
Breaking capacity H, 250 VAC
Size: 5x20 mm
Ambient temperature: 0° - 40°C
Relative humidity: 90% up to 30°C,
non-condensing
Protection class: I
Overvoltage category: II
Pollution degree: 2
(* See provided Instructions for Use)
WARNING
The power plug may only be plugged into an outlet
equipped with a grounding contact.
Do not interfere with the grounding function by using an
extension cord without a ground wire. Any interruption
of the ground wire inside or outside of the instrument, or
release of the protective conductor terminal, can cause
the instrument to become hazardous. Intentional ground
interruption is not permitted!
9

3. SAFET Y NOTES
Caution!
By connecting it to the grounding connection (earth
screw at the back of the electronics box) ancillary
equipment with its own and/or extra power supply may
be brought to the same ground wire potential. For con-
nections without a ground protection conductor, Leica
Microsystems CMS GmbH Service must be consulted.
Caution!
Never use any fuses as replacements other than those
of the types and the current ratings listed here. Using
other fuses or bridging the fuse holder is not permitted.
The use of incorrect fuses may result in a fire hazard.
Caution!
The microscope's electrical accessory components are
not protected against water. Water can cause electric
shock.
Caution!
Protect the microscope from excessive temperature
fluctuations. Such fluctuations can lead to the accumu-
lation of condensation, which can damage the electrical
and optical components.
Operating temperature: 15-35°C
WARNING
Before exchanging the fuses or lamps, be absolutely
certain to switch off the main power switch and remove
the power cable.
!Caution!
Only insert or unplug data and control circuits when the
instrument is switched off; otherwise, the instrument
may be damaged.
WARNING
By definition, the main circuit breaker of this instrument
is the connection between the power cable and device
port. The user must ensure unobstructed access to the
main circuit breaker at all times.
WARNING
Only use power cables, or alternative cables with VDE/
HAR codes that minimally fulfill the following conditions:
3x0.75 mm2 and 10A/250V.
10

3. SAFET Y NOTES
3.3 Laser safety

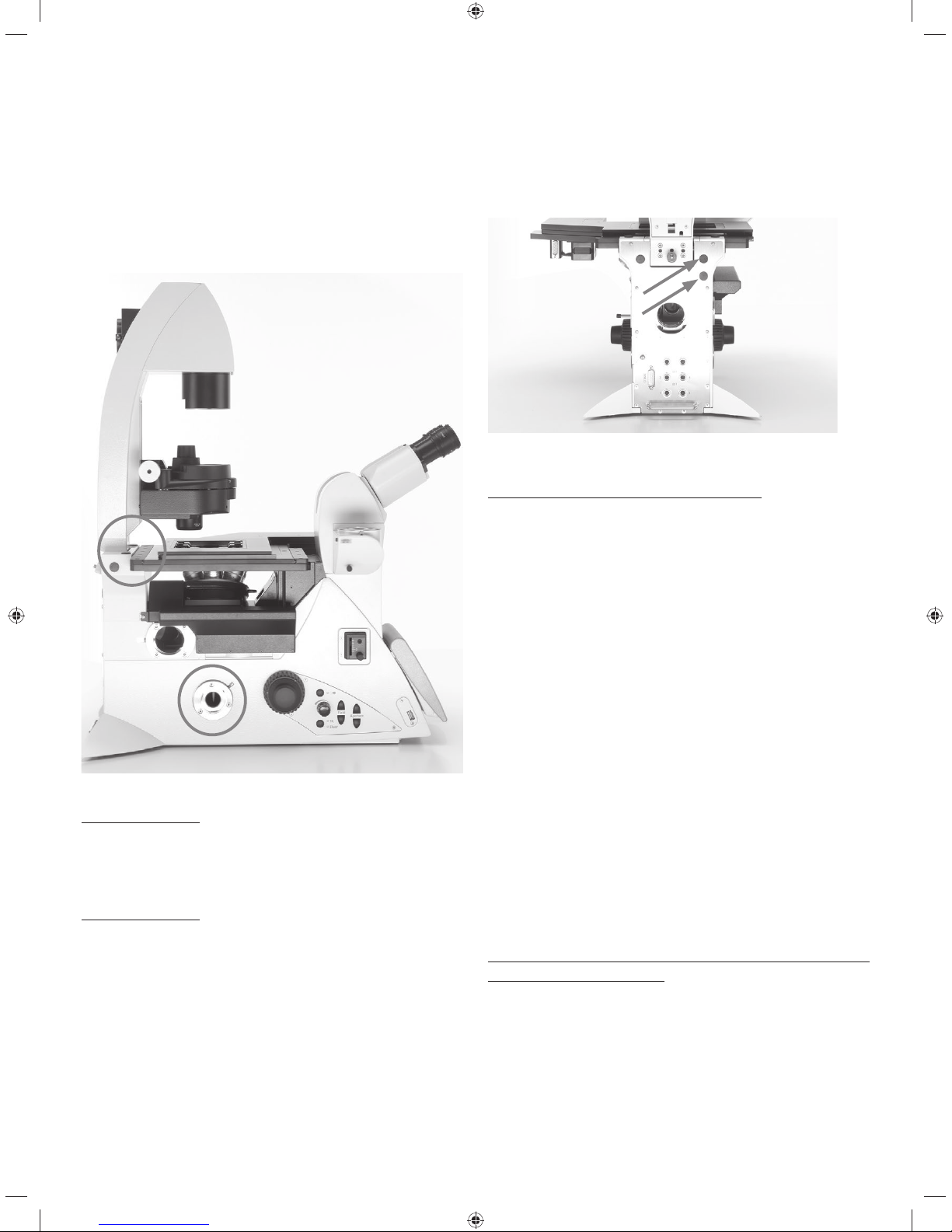

3.3.1 Safety switch (interlock) on the microscope
Two safety switches are integrated into the microscope us-
ing a laser safety kit option. These must be integrated into
the laser safety concept so that the light path of the laser
beam is interrupted when the interlock switch is opened.
1
2
Interlock switch (1) and (2)
Interlock switch 1:
An interlock switch is integrated on the Transmitted Light
arm and activated when the Transmitted Light arm is folded
back (interlock switch opens).
Interlock switch 2:
An additional interlock switch is also installed in the micro-
scope, which is activated (interlock switch opens) when
the beam path to the eyepiece is released.
Two equivalent interlock connectors, which lead to the
microscope's interlock switch, are attached to the back of
the microscope. The interlock connector of the microscope
must be connected to your laser beam interrupter.
Interlock connectors on the rear side of the stand
Technical data for the interlock connector:
Plug:
Manufacturer: Binder
Type: 09-0097-20-05
(5-pin flange plug,
711 series subminiature round plug connector)
Compatible coupling:
Manufacturer: binder
Type: 99-0096-102-05
(5-pin cable socket,
711 series subminiature round plug connector)
Type: 79-1414-12-05
(5-pin cable socket with 2m cable,
702 series subminiature round plug connector)
Type: 99-0414-00-05
(5-pin cable socket,
712 series subminiature round plug connector)
Pin assignment:
Switching contact between pin 1 and pin 5.
Maximum permitted electrical characteristic values of the
integrated interlock switch:
Umax= 40 V DC
Imax= 0.2 A
11

3. SAFET Y NOTES

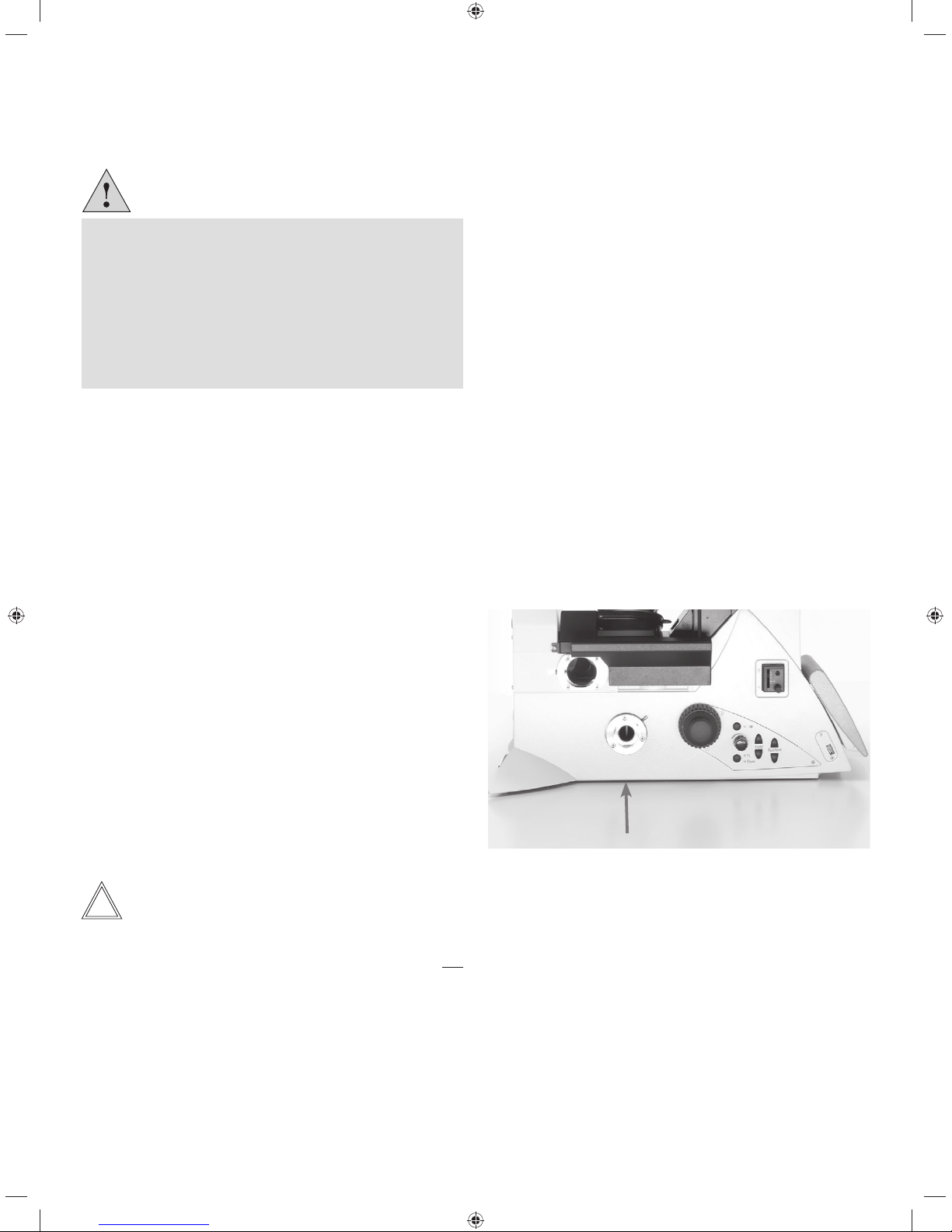

3.3.2 Screwed-on filter turret cover
As a safety precaution on laser microscope systems, the
fluorescent turret disk cover is secured using 2
DIN 912 M4x6 lens head Allen screws.
(Order No. 11 703 121 630 000)
WARNING
Store the screws in a safe place. Never operate the
microscope when the cover is not screwed into place!
Turn the screws to secure the filter turret cover
3.3.3 Laser coupling by the user
Because of a danger for the user due to laser radiation, the
Leica DMi8 microscopes in the standard version are not
suitable without additional laser safety measures for cou-
pling laser radiation1).
If you are, however, modifying a microscope and couple a
laser beam into it, as the user, you assume responsibility
as the manufacturer of the complete system.
We do not make provisions for your interference with the
device and, therefore, you are fully responsible for the
modifications regarding the adherence to basic safety re-
quirements and laser protective measures set forth by the
European Union guidelines and by the national legal and
technical directives and standards.
If you modify your microscope by coupling a laser beam
without authorization, when determining and implement-
ing laser safety measures, also take note of the subse-
quently described hazards at the microscope, as here the
danger exists of serious and irreversible eye damage and
skin injuries!
WARNING
Danger of serious and irreversible eye damage from la-
ser radiation!
Radiation of the eye or skin from direct or indirect laser
radiation has to be avoided by all means! The laser light
can cause serious eye damage and skin damage!
1) Laser radiation of Class 1 lasers is exempt. Further details
regarding this topic in Section 3.3.4
12

3. SAFET Y NOTES
3.3.3.1 Safety hazard due to folded back
Transmitted Light arm
If you fold back the Transmitted Light arm, the laser radia-
tion escaping from the lenses is beamed directly into the
open space.
Important safety note
As a safety measure, we recommend the microscope
models with integrated interlock connectors as men-
tioned in Section 3.3.3.7.
3.3.3.2 Safety hazard at eyepiece
The laser radiation that you coupled into the microscope
can disperse from the eyepiece and directly hit the user's
eye!
Important safety note
As a safety measure, we recommend the microscope
models with integrated interlock connectors as men-
tioned in Section 3.3.3.7.
3.3.3.3 Safety hazard in the condenser area
during operation.
If you couple a high power laser beam into the microscope,
the laser radiation, broadened by the lens, that passes the
condenser laterally, can exceed the permitted limit values
for eyes and skin.
Increased laser radiation can
beam laterally past the condenser
Eyepieces
Folded back Transmitted Light
arm; the light output out of the
objective is not shadowed by
the condenser base.
13

3. SAFET Y NOTES
3.3.3.4 Safety hazard above the condenser
The laser beam path between the condenser base and the
illuminated field diaphragm is without obstruction.
3.3.3.5 Safety hazard in the specimen area
The laser radiation is accessible without obstruction in the
specimen area of the microscope!
Laser beam path between condenser base and illuminated field dia-
phragm without obstruction
Specimen area
14

3. SAFET Y NOTES
Openings at the stand that have to be tightly sealed
a Cover for fluorescent turret disk
b Transmitted Light lamp housing
c Incident light lamp housing
d Side port right
e Bottom port
f Side port, left
g Objective nosepiece
h Top port
i Infinity port
j Openings at objective nosepiece
j
f
e
g
h
i
3.3.3.6 Safety hazard due to openings at microscope
Make sure, as part of your risk assessment, that all open-
ings at the microscope are tightly sealed and can only be
opened with tools to prevent laser radiation from escaping!
The openings to consider, for example: top port next to the
eyepieces, left and right side port, bottom port, infinity port,
connection for Transmitted Light lamp housing at the arm,
lamp connection for fluorescence/connection for incident
light lamp housing, cover for fluorescent turret disk.
The material that is used to seal off the openings has to be
suitable for the intensity of the coupled laser beam.
a
c
b
d
Furthermore, the terminals that are not occupied by objec-
tives have to be closed with caps at the objective nose-
piece.
15

3. SAFET Y NOTES
3.3.3.7 Note regarding the safety hazards in Sections
3.3.3.1 and Section 3.3.3.2
Important safety note
The overall responsibility for laser safety of the laser
microscope system assembled by you remains with you
as the responsible body, even if you use the microscopes
from Leica Microsystems CMS GmbH listed below in
conjunction. Within the context of your system composi-
tion and modifications, you have to verify whether the
component selected by you from this chapter is effec-
tive and suitable for your laser protection concept.
We recommend that for your laser applications you use
a microscope variant with the following selection options
because the microscope is already equipped with interlock
switches at the factory:
Leica No. 11889086
Laser Safety Kit
and also one of the following options:
Leica No. 11889077
Left motorized side port, 100% and interlock
Leica No. 11889078
Right motorized side port, 100% and interlock
Leica No. 11889079
Right/left motorized side port, 100% and interlock
Leica No. 11889087
Manual side port (100/0), Int.
Leica No. 11889088
Left manual side port (100/0)
Note:
The fixed Transmitted Light arm (order No. 11525105 (with
short cable) or order No. 11525116 (with long cable) is not
suitable for laser applications and therefore is not provided
for these applications.
a) Safety function for the safety hazard mentioned
in Section 3.3.3.1.
The special microscope variants have a built-in interlock
switch on the Transmitted Light arm that is activated when
folding back the Transmitted Light arm (interlock switch
opens).
The interlock connector of the microscope must be con-
nected to your laser beam interrupter, which interrupts the
laser beam coupled into the microscope when opening the
interlock switch or folding back the illumination arm.
b) Safety function for the safety hazard mentioned
in Section 3.3.3.2.
An additional interlock switch is also installed in the micro-
scope, which is activated (interlock switch opens) when
the beam path to the eyepiece is released.
The interlock switch of the microscope must be connected
to your laser beam interrupter, which interrupts the laser
beam coupled into the microscope when opening the in-
terlock switch or releasing the beam path towards the eye-
piece.
Please note that the laser radiation may not be coupled via
the bottom port!
Bottom port
Both interlock switches a) and b) are routed to a shared in-
terlock connector on the microscope; you have to connect
your laser beam interrupter to this connector.
16

3. SAFET Y NOTES
When doing so, note the electrical characteristic values of
the integrated interlock switches in the microscope. You
must not exceed these values by connecting a laser beam
interrupter, as otherwise the interlock switches will be
damaged and no longer function safely and reliably:
Maximum permitted electrical characteristic values of the
integrated interlock switch:
Umax= 40 V DC
Imax= 0.2 A
The integrated interlock switches in the microscope and
their wiring with a laser beam interrupter/laser ensure that
the laser radiation you coupled into the microscope cannot
get into the user's eyes through the eyepieces.
Important safety note
In addition, observe the safety hazards described in
Section 3.3.3.3 to 3.3.3.6!
3.3.4. Exception for Class 1 lasers
Coupling a laser of Class 1 in accordance with IEC/EN
60825-1 into a microscope does not result in any danger to
the user.
The listed safety hazards apply only for lasers of Class 1M,
2, 2M, 3R, 3B and 4.
Note that the rules and regulations of the United States FDA
21CFR1040.10 Class I (CFR – Code of Federal Regulation Title
21, revised as of April 1, 2011) do not distinguish between
Class 1 and 1M. Thus the statement that there are no safety
hazards on the microscope do not apply for the laser clas-
sification in accordance with FDA Class 1.
17

3. SAFET Y NOTES
3.5 Storage and transport
Transport
Caution!
Transport and storage at -20 °C – +85 °C and max. 90%
humidity.
For shipping or transporting the microscope and its acces-
sory components, the original packaging should be used.
As a precaution to prevent damage from vibrations, the fol-
lowing components should be disassembled and packaged
separately:
t6OTDSFXUIFPCKFDUJWFTt4FDVSFUIFPCKFDUJWFOPTFQJFDFFHXJUIBEIFTJWFUBQFt3FNPWFUIFFZFQJFDFTt3FNPWFUIFDPOEFOTFSt3FNPWFUIFTQFDJNFOTUBHFt3FNPWFUIF5SBOTNJUUFE-JHIUBSNt3FNPWFUIFMBNQIPVTJOHTt4FDVSFUIFNBHOFUJDnVPSFTDFOUUVSSFUDPWFSFHXJUIadhesive tape.
t3FNPWFBMMNPWJOHPSMPPTFQBSUTt1SPUFDUUIFNJDSPTDPQFGSPNEVTUBOEEJSUVTJOHBQMBTUJDbag.
Weight
CAUTION
At a full load, the microscope weighs more than 18
kg. The user must take corresponding precautions for
transporting the instrument.
Caution!
For transport, always remove all components listed un-
der "Transport!".
3.6 Ambient conditions
Caution!
This microscope may not be used at elevations over
2000 m above sea level.
Caution!
Do not use this instrument near sources of high electro-
magnetic radiation (for example, unshielded, intention-
ally operated ultra-high frequency sources), because
these can disrupt proper operation.
We recommend assessing the electromagnetic environ-
ment before operation of this instrument and then giving
corresponding instructions.
