LevelOne FSW-1609TFX User manual

LevelOne
FSW-1609TFX
FSW-2409TFX
16/24-Port Fast Ethernet Switch
w/ fiber module slot
User Manual
Version 1.1-0609

FCC Warning
This equipment has been tested and found to comply with
the regulations for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with this
user’s guide, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in
which case the user will be required to correct the
interference at his own expense.
CE Mark Warning
This is a Class B product. In a domestic environment, this
product may cause radio interference, in which case the user
may be required to take adequate measures.

TABLE OF CONTENTS
ABOUT THIS GUIDE.....................................................................................................1
PURPOSE .........................................................................................................................1
TERMS/USAGE ................................................................................................................1
OVERVIEW OF THIS USER’S GUIDE ................................................................................2
INTRODUCTION............................................................................................................3
FAST ETHERNET TECHNOLOGY......................................................................................3
SWITCHING TECHNOLOGY..............................................................................................4
FEATURES .......................................................................................................................5
UNPACKING AND INSTALLATION..........................................................................8
UNPACKING ....................................................................................................................8
INSTALLATION................................................................................................................9
100BASE-FX MODULE INSTALLATION........................................................................10
RACK MOUNTING .........................................................................................................11
FRONT PANEL ...............................................................................................................13
REAR PANEL .................................................................................................................14
LED INDICATORS .........................................................................................................15
CONNECTING THE SWITCH...................................................................................16
PC TO SWITCH..............................................................................................................16
HUB TO SWITCH............................................................................................................17
A. 10BASE-T Hub.....................................................................................................17
B. 100BASE-TX Hub................................................................................................17
SWITCH TO SWITCH (OTHER DEVICES).........................................................................18
A. Using straight cable.............................................................................................18
B. Using crossover cable .........................................................................................18
PORT SPEED & DUPLEX MODE ....................................................................................19
TECHNICAL SPECIFICATIONS ..............................................................................20
RJ-45 PIN SPECIFICATION.......................................................................................22

1
ABOUT THIS GUIDE
Congratulations on your purchase of the LevelOne FSW-
1609/2409TFX 16/24-Port 10/100Mbps Fast Ethernet Switch.
This device integrates 100Mbps Fast Ethernet and 10Mbps
Ethernet network capabilities in a highly flexible package.
Purpose
This guide discusses how to install your LevelOne 16/24Port
10/100Mbps Fast Ethernet Switch.
Terms/Usage
In this guide, the term “Switch” (first letter upper case)
refers to your LevelOne 16/24-Port 10/100Mbps Fast
Ethernet Switch, and ”switch” (first letter lower case) refers
to other Ethernet switches.
This guide provides the information you need to install and
configure the following models of the Switch:
 LevelOne FSW-1609TFX 16-Port 10/100Mbps Fast
Ethernet Switch
 LevelOne FSW-2409TFX 24-Port 10/100Mbps Fast
Ethernet Switch

2
The functionality of three units is identical, except for the
number of ports. Where appropriate, differences between the
two units are noted.
Overview of this User’s Guide
Chapter 1, Introduction . Describes the Switch and its
features.
Chapter 2,
Unpacking and Installation . Helps you
get started with the basic installation of the Switch.
Chapter 3,
Identifying External Components .
Describes the front panel, rear panel and LED
indicators of the Switch.
Chapter 4,
Connecting the Switch . Tells how you can
connect the Switch to your Ethernet network.
Appendix A,
Technical Specifications. Lists the
technical (general, physical and environmental, and
performance) specifications of the Switch.
Appendix B,
RJ-45 Pin Specification. Describes the
RJ-45 receptacle/connector and the straight and
crossover cable connector.

3
INTRODUCTION
This chapter describes the features of the Switch and some
background information about Ethernet/Fast Ethernet
switching technology.
Fast Ethernet Technology
The growing importance of LANs and the increasing
complexity of desktop computing applications are fueling the
need for high performance networks. A number of high-speed
LAN technologies have been proposed to provide greater
bandwidth and improve client/server response times. Among
them, 100BASE-T (Fast Ethernet) provides a non-disruptive,
smooth evolution from the current 10BASE-T technology.
The non-disruptive and smooth evolution nature, and the
dominating potential market base, virtually guarantee cost
effective and high performance Fast Ethernet solutions in
the years to come.
100Mbps Fast Ethernet is a new standard specified by the
IEEE 802.3 LAN committee. It is an extension of the
10Mbps Ethernet standard with the ability to transmit and
receive data at 100Mbps, while maintaining the CSMA/CD
Ethernet protocol. Since the 100Mbps Fast Ethernet is
compatible with all other 10Mbps Ethernet environments, it
provides a straightforward upgrade and takes advantage of
the existing investment in hardware, software, and
personnel training.

4
Switching Technology
Another approach to pushing beyond the limits of Ethernet
technology is the development of switching technology. A
switch bridge Ethernet packets at the MAC address level of
the Ethernet protocol transmitting among connected
Ethernet or Fast Ethernet LAN segments.
Switching is a cost-effective way of increasing the total
network capacity available to users on a local area network.
A switch increases capacity and decreases network loading
by dividing a local area network into different
segments ,
which don’t compete with each other for network
transmission capacity.
The switch acts as a high-speed selective bridge between the
individual segments. The switch, without interfering with
any other segments, automatically forwards traffic that
needs to go from one segment to another. By doing this the
total network capacity is multiplied, while still maintaining
the same network cabling and adapter cards.
For Fast Ethernet networks, a switch is an effective way of
eliminating problems of chaining hubs beyond the “two-
repeater limit.” A switch can be used to split parts of the
network into different collision domains, making it possible
to expand your Fast Ethernet network beyond the 205-meter
network diameter limit for 100BASE-TX networks. Switches
supporting both traditional 10Mbps Ethernet and 100Mbps
Fast Ethernet are also ideal for bridging between the
existing 10Mbps networks and the new 100Mbps networks.

5
Switching LAN technology is a marked improvement over
the previous generation of network bridges, which were
characterized by higher latencies. Routers have also been
used to segment local area networks, but the cost of a router,
the setup and maintenance required make routers relatively
impractical. Today switches are an ideal solution to most
kinds of local area network congestion problems.
Features
The Switches were designed for easy installation and high
performance in an environment where traffic on the network
and the number of user increase continuously.
The Switches with its rack size is specifically designed for
middle to large workgroups. These Switches provide
immediate access to a rapidly growing network through a
wide range of user-reliable functions.
The Switches are ideal for deployment with multiple high-
speed servers for shared bandwidth 10Mbps or 100Mbps
workgroups. With the highest bandwidth 200Mbps (100Mbps
full-duplex mode), any port can provide workstations with a
congestion-free data pipe for simultaneous access to the
server.
The Switches are expandable by cascading two or more
switches together. As all ports support 200Mbps, the
Switches can be cascaded from any port and to any number
of switches.
The Switches are a perfect choice for site planning to

6
upgrade to Fast Ethernet in the future. Ethernet
workgroups can connect to the Switches now, and change
adapters and hubs anytime later without needing to change
the Switches or reconfigure the network.
The Switches combine dynamic memory allocation with
store-and-forward switching to ensure that the buffer is
effectively allocated for each port, while controlling the data
flow between the transmit and receive nodes to guarantee
against all possible packet loss.
The Switches are an unmanaged 10/100 Fast Ethernet
Switch offering solutions in accelerating small Ethernet
workgroup bandwidth. Other key features are:
Auto-MDI function supports automatic MDI/MDIX
crossover detection function gives true ‘plug and play’
capability without the need of confusing crossover
cables or crossover ports.
Store and forward switching scheme capability. As
the result of complete frame checking and error frame
filtering, this scheme prevents error packages from
transmitting among segments.
NWay Auto-negotiation for any port. This allows for
auto-sensing of speed (10/100Mbps) thereby providing
you with automatic and flexible solutions in your
network connections.
Flow control for any port. This minimizes dropped
packets by sending out collision signals when the
port’s receiving buffer is full. Note that flow control

7
is only available in half duplex mode.
Data forwarding rate per port is at wire-speed for
100Mbps speed.
Data forwarding rate per port is at wire-speed for
10Mbps speed.
Data filtering rate eliminates all error packets, runts,
etc., per port at wire-speed for 100Mbps speed.
Data filtering rate eliminates all error packets, runts,
etc., per port at wire-speed for 10Mbps speed.
Up to 8K active MAC address entry table with self-
learning and table-aging for 16-port model, up to 8K
active MAC address entry table with self-learning
and table-aging for 24-port model.
512Kbyte RAM buffer per device for 16-port model,
2.5MB RAM buffer per device for 24-port model.

8
UNPACKING AND INSTALLATION
This chapter provides unpacking and setup information for
the Switches.
Unpacking
Open the shipping cartons of the Switch and carefully
unpacks its contents. The carton should contain the
following items:
 LevelOne FSW-1609/2409TFX 16/24-Port
10/100Mbps Fast Ethernet Switch
 One AC power cord, suitable for your area’s
electrical power connections
 Four rubber feet to be used for shock cushioning
 Screws and two mounting brackets
 This User Manual
If any item is found missing or damaged, please contact your
local reseller for replacement.

9
Installation
The site where you install the hub stack may greatly affect
its performance. When installing, consider the following
pointers:
Install the Switch in a fairly cool and dry place. See
Appendix B for the acceptable temperature and
humidity operating ranges.
Install the Switch in a site free from strong
electromagnetic field generators (such as motors),
vibration, dust, and direct exposure to sunlight.
Leave at least 10cm of space at the front and rear of
the hub for ventilation.
Install the Switch on a sturdy, level surface that can
support its weight, or in an EIA standard-size
equipment rack. For information on rack installation,
see the next section,
Rack Mounting.
When installing the Switch on a level surface, attach the
rubber feet to the bottom of each device. The rubber feet
cushion the hub and protect the hub case from scratching.

10
100Base-FX Module Installation
The installation procedure for each module is the same.
Additional information about each module is provided below.
To install any of the modules: (Includes SC or ST type
connectors)
1. Locate the module slot in the switch’s rear panel.
2. Using a screwdriver, undo the two screws and remove
the dust cover on the module slot.
3. Holding the module component-side up and connector-
side in, gently slide the module along the guides and seat
it in the internal connector.
4. Using a screwdriver, replace the two screws and tighten
until snug.

11
We recommend that you retain the dust cover in case you
need to remove the module for an extended period sometime
in the future.
In FSW-1609/2409TFX, the last port (Port 16/24) and the
100BASE-FX port is really the same port. Do not use both
Port 16/24 and the 100BASE-FX port at the same time.
Rack Mounting
The switch can be mounted in an EIA standard-size, 19-inch
rack, which can be placed in a wiring closet with other
equipment. Attach the mounting brackets at the switch’s
front panel (one on each side), and secure them with the
provided screws.

12
Then, use screws provided with the equipment rack to mount
each switch in the rack.

13
Identifying External Components
This section identifies all the major external components of
the switch. Both the front and rear panels are shown,
followed by a description of each panel feature. The indicator
panel is described in detail in the next chapter.
Front Panel
The figure below shows the front panels of the switches.
16-port 10/100M Fast Ethernet Switch
24-port 10/100M Fast Ethernet Switch
LED Indicator Panel
Refer to the next chapter for detailed information
about each of the switch’s LED indicators.
 Auto-MDI/MDIX Jacks:
These jacks supports automatic MDI/MDIX crossover
detection function gives true ‘plug and play’ capability
without the need of confusing crossover cables or crossover
ports.

14
With the Auto-MDI/MDIX function, you just need to
plug-in the network cable to the hub directly and no
need to care if the end node is NIC (Network Interface
Card) or switches and hubs.

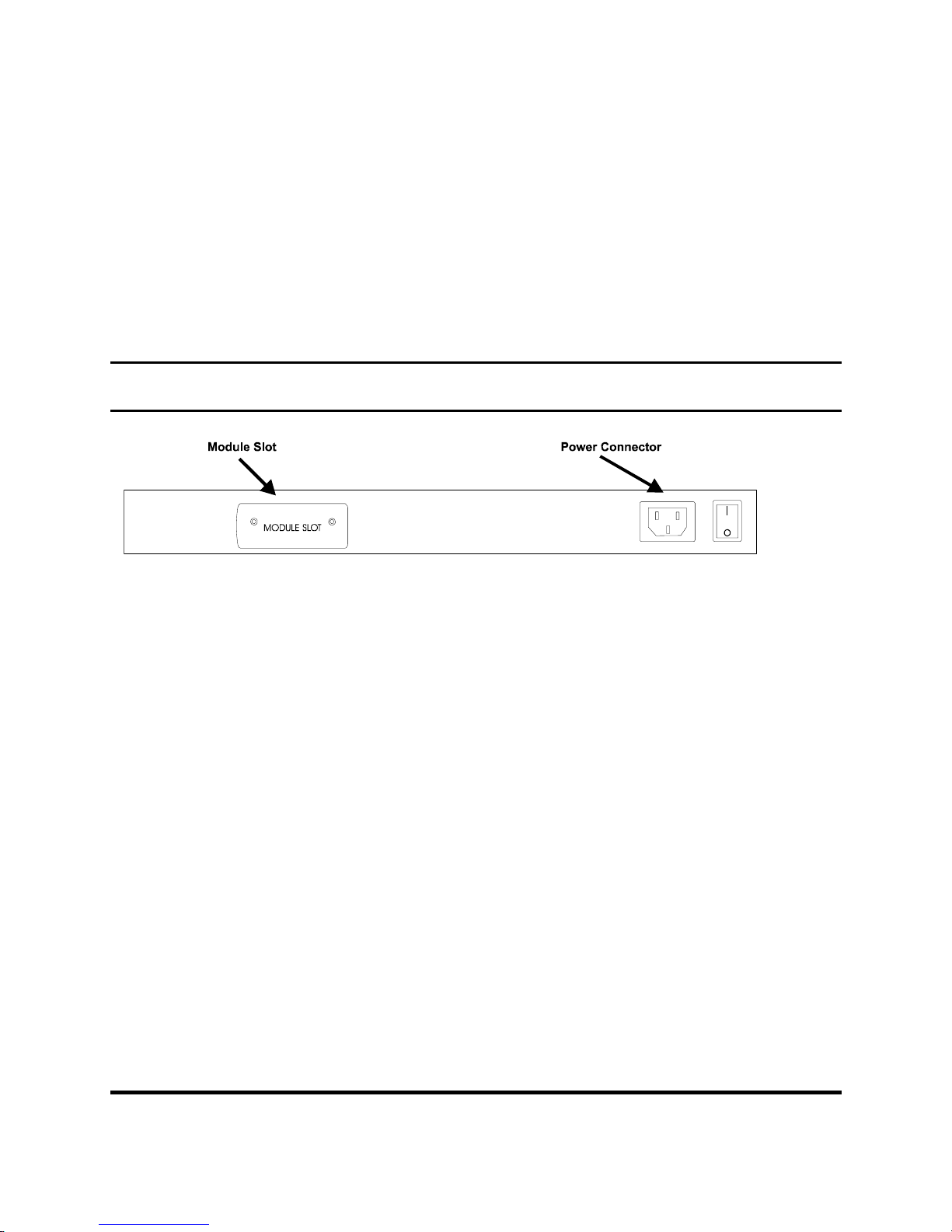

Rear Panel
LevelOne 16/24-Port 10/100Mbps Fast Ethernet Switch
Module Slots:
Used to install module options for 100BASE-FX
connection.
AC Power Connector:
For the power cord.

15
LED Indicators
Power Indicator (PWR)
This LED lights green when the switch is receiving
current; if not, power is off.
100M Link/Activity, 10M Link/Activity
(100M LINK/ACT
(green)
, 10LINK/ACT
(yellow)
)
This indicator light green when the port is connected to a
100Mbps Fast Ethernet station, if the indicator blinking
green will be transmitting or received data on the
100Mbps network. Otherwise, if the indicator light amber
when the port is connected to a 10Mbps Ethernet station,
if the indicator blinking amber will be transmitting or
received data on the 10Mbps network.
100BASE-FX Module Indicator
(green)
The FX Link/Rx, indicate a good link to a module
installed.
Full/Half Duplex, 10/100M Collision
( 10/100M FDX
(green) ,10/100M COL (blinking) )
This LED indicator lights green when a respective port is
in full duplex (FDX) mode. Otherwise, it is OFF for half
duplex (HDX) operations. It blinking green when
collisions are occurring on the respective port.

16
CONNECTING THE SWITCH
This chapter describes how to connect the Switch to your
Fast Ethernet network.
PC to Switch
A PC can be connected to the Switch via a two-pair Category
3, 4, 5 UTP/STP straight cable. The PC (equipped with a RJ-
45 10/100Mbps phone jack) should be connected to any of the
16 ports (1x - 16x) for the 16-Port model, 24 ports (1x - 24x)
for the 24-Port model.
The LED indicators for PC connection dependent on the LAN
card capabilities. If LED indicators are not light after
making a proper connection, check the PC LAN card, the
cable, the Switch conditions and connections.
The following are LED indicator possibilities for a PC to
Switch connection:
1. The “100M LINK/ACT, 10M LINK/ACT” LED
indicator light green for hookup to 100Mbps speed or
light amber for hookup to 10Mbps speed.
2. The “10/100M FDX, 10/100M COL LED” indicator
depends upon LAN card capabilities for full-duplex or
half-duplex.
