Leviton Decora ODS15-ID Operation manual

PRODUCT DATA
ODS15-ID
Leviton Mfg. Co., Inc. Lighting & Energy Solutions
201 N. Service Rd. Melville, NY 11747-3138 Tech Line: 1-800-824-3005 Fax: [phone] www.leviton.com/les
© 2011 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
ODS15
Decora®Wall Switch PIR Occupancy
Sensor with Self-Adaptive Technology
BASIC OPERATION
The ODS15-ID uses passive infrared (PIR) detec-
tion technology to monitor a room for occupancy
through a segmented Fresnel lens. This special-
ized lens divides the field-of-view into sensor
zones. When a person passes into or out of a
sensor zone, the sensor detects motion and
switches the lights ON. The lights will remain ON
as long as there is an occupant moving through
the sensor zones.
A delayed-OFF time adjustment prevents the
lights from switching OFF when the space is
occupied. In order to keep the lights ON, a person
must pass through a sensor zone at least once
during the selected delayed-OFF time interval. An
LED indicator blinks each time the unit detects
activity in the sensor zones. When the space
being monitored by the sensor is unoccupied for
the length of time chosen as the delayed-OFF
interval, the unit will beep 3 times. Ten seconds
after the last warning beep, the unit will switch
the lights OFF.
APPLICATIONS
Leviton’s Cat. No. ODS15-ID Wall Switch Passive
Infrared (PIR) Occupancy Sensor is used to provide
automatic lighting control for energy savings and
convenience in a variety of commercial applica-
tions, including:
• Small offices • Heavier loads
• Private Restrooms • Lounges
• Storage areas • Classrooms
• Conference rooms
The ODS15-ID can be used for automatic switching
of incandescent lamps and low-voltage lighting
with electronic and magnetic ballasts. The unit
also features a manual override switch that can
be used to keep lights OFF while an area is occu-
pied, which may be desired in conference rooms
and other areas during slide or film presentations.
The unit installs in place of a single-pole wall
switch and fits in a standard wall box. The unit
requires a ground connection.
1

PRODUCT DATA
ODS15
FEATURES
• Fits in standard wallbox and replaces single-pole
wall switch; ground connection required. Gangable
with other units.
• Low-profile design eliminates obtrusive “scanning-
device” look. Elegant Decora wallplates comple-
ment any interior for sleek aesthetics; uses Decora
wallplates and coordinates with Leviton’s popular
line of Decora wiring devices.
• 180° field-of-view provides approximately 2100
square feet of coverage suitable for small offices,
conference rooms, class rooms, stock rooms, loung-
es, private restrooms and a variety of commercial
areas.
• Convenient pushbutton provides manual-ON/OFF
light switching at any time.
• Two dual element PIR sensors used to widen detec-
tion range.
• Segmented Fresnel lens provides optimum sensitivity
and performance. Designed with an extensive “minor
motion” area where even slight body movements will
be detected.
• Vandal resistant PIR lens.
• Patented blinders - horizontal field-of-view may
be adjusted between 180° and 60° of arc by using
integral blinders located on either side of the lens.
No masking tape required.
• Manual-ON/auto-OFF mode for installations where
manual ON switching is required but auto-OFF switch-
ing is still desired for CEC Title 24 energy savings.
• To comply with Title 24, red LED indicator light
flashes when PIR sensor detects motion to verify
detection is active.
• Time Delay - In adapting mode, the time delay can
be configured from 30s (test mode), 5, 10, and 20
minutes. In non-adapting mode, the delay can be
configured from 5, 10, 20, and 30 minutes.
• Light Sensor adjustable Ambient Light Override
ranges from approxi-mately 2Fc (20LUX) to 500+FC
(5000+LUX) to prevent lights from turning ON auto-
matically during periods of ample natural light,
increasing energy savings.
• Light sensor enables the load hold-OFF feature once
level has been set.
• Self-adjusting delayed-OFF time interval compen-
sates for real-time occupancy patterns, preventing
unnecessary ON/OFF switching.
• Exclusive Walk-Through feature provides increased
energy savings by not leaving the lights ON for an
extended period after only momentary occupancy.
• Vacancy Confirmation, when the time out expires
and the relays turn OFF a 30 second vacancy con-
firmation exists to turn the relays back ON.
• False detection circuitry.
• Presentation Mode feature for slide or film presen-
tations allows pushbuttons to turn lights OFF and
keep them OFF while the room is occupied.
• Additional manual service switch provided for
installer to force lights to hold-OFF or hold-ON during
installation
• Beep Warn - unit beeps 3 times after delayed-OFF
time expires, then waits 10 seconds before turning
lights OFF.
• Exclusive Levition H.I.S. Circuitry. Specifically
designed to handle today’s high inrush electronic
ballast loads and offer unmatched durability and
service.
• One unit can be used for 120V through 277V light-
ing. Compatible with both electronic and magnetic
ballasts.
• Relay switches at the zero crossing point of the AC
power curve to ensure maximum contact life and
compatibility with electronic ballasts.
• No neutral design in optional for retrofit applications

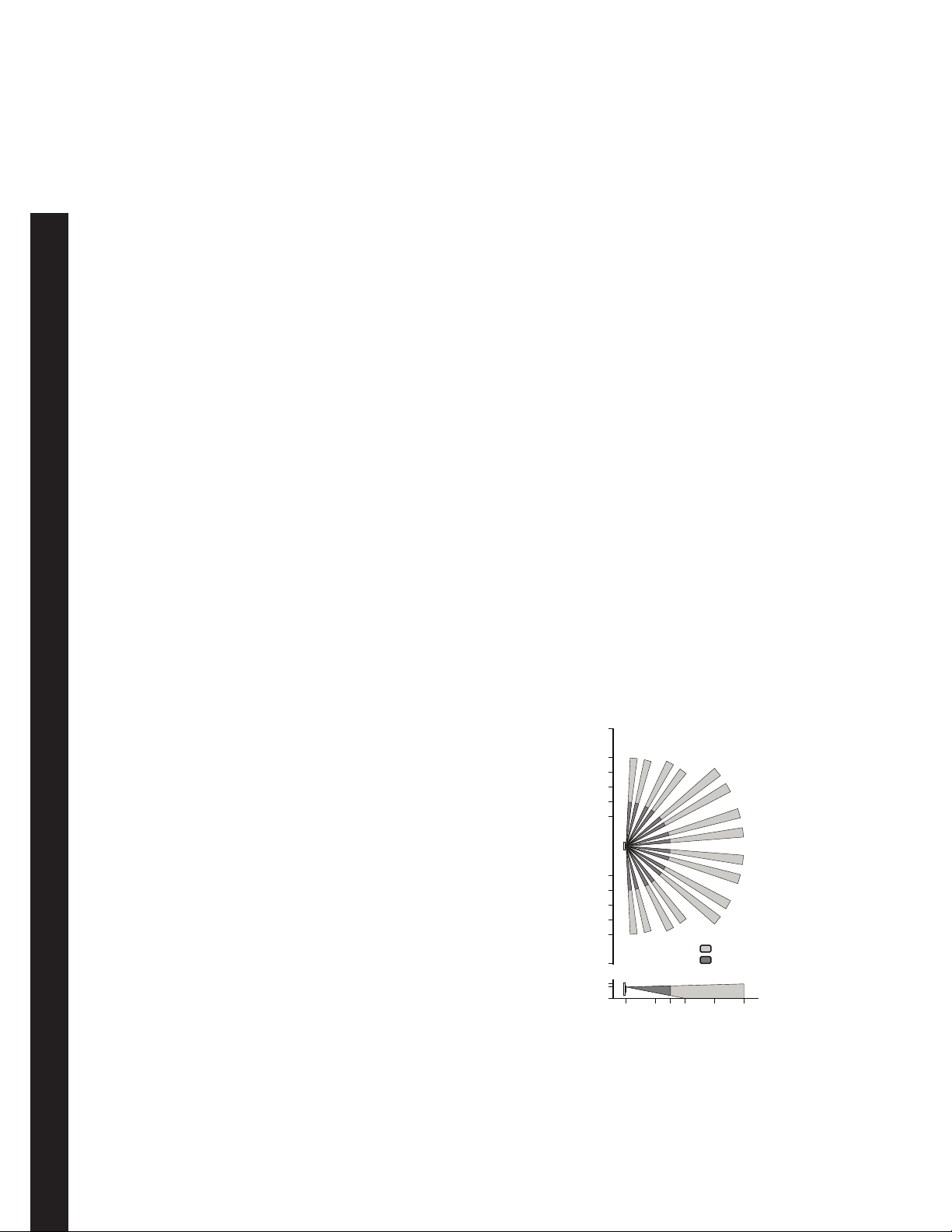

FIELD-OF-VIEW
The ODS15-ID provides a 180° field of view with
a maximum coverage area of approximately 2100
square feet. The maximum sensing distance in front
of the sensor is 40 feet, and at each side is 30 feet.
The “minor motion” zone detects relatively small
body movements and allows the lights to stay ON
even though a person may not be moving or walking
around the room. The remainder of the field-of-view,
the “major motion” zone, exhibits a lesser degree of
sensitivity and requires larger movements.
ODS15-ID
Field-of-View (in feet)
TO P VIEW
SIDE VIEW
ODSXX-ID
15 40
0
0
15
15
30
30
40
40
4
MinorMotion,IR
MajorMotion,IR
5
0
TO P VIEW
SIDE VIEW
ODSXX-ID
15 40
0
0
15
15
30
30
40
40
4
MinorMotion,IR
MajorMotion,IR
5
0

Leviton Mfg. Co., Inc. Lighting & Energy Solutions
201 N. Service Rd. Melville, NY 11747-3138 Tech Line: 1-800-824-3005 Fax: [phone] www.leviton.com/les
© 2011 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
ODS15
DIMENSIONAL DIAGRAMS
BOTTOM
AUTO
ON
OFF
1.75 
(44.4 mm)
1.30
(33.0 mm)
2.61 (66.3 mm)
4.06 (103.2 mm)
0.48 (12.6 mm)
1.35 
(34.4 mm)
2.60 (66.2 mm)
AUTO ON
OFF
BOTTOM
BLINDERS
RANGE
TIME LIGHT
10 20
30
47
10
47
10
MountingYoke
Vandal
Resistant
PIR Lens
LED Window
& Light Sensor
Pushbutton
Service Switch
Control Panel,
Cover Removed
Patented Blinders
Hot (Black)
Load
ODS10/15
Black
Green
Ground
Blue
Line
120-230-277VAC,
50/60Hz
Neutral (White)
Black
White
Note: Ground must be connected
ODS10/15 Two-Location Control
WIRING DIAGRAMS
Hot (Black)
Load
ODS10/15
Black
Green
Ground
Blue
Blue
Green
Ground
Line
120-230-277VAC,
60H z
Neutral (White)
Black White
Black
Note: Ground must be connected
ODS10/15 Single Location Control
3

PRODUCT DATA
LEVITON SPECIFICATION SUBMITTAL
JOB NAME: CATALOG NUMBERS:
JOB NUMBER:
G-8319B/K11-tb
REV NOV 11
Leviton Manufacturing Co., Inc. Lighting & Energy Solutions
201 N. Service Rd. Melville, NY 11747-3138 Tech Line: 1-800-824-3005 Fax: [phone] www.leviton.com/les
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9 • Telephone: [phone] • FAX: [phone]
Leviton S. de R.L. de C.V.
Lago Tana 43, Mexico DF, Mexico CP 11290 • Tel. [phone] • FAX: [phone] • www.leviton.com.mx
Visit our Website at: www.leviton.com/les
© 2011 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
ODS15
INSTALLATION
The ODS15-ID is preset to deliver optimum perfor-
mance in a wide variety of applications without requir-
ing any adjustments during installation. Exclusive
self-adjusting operating features will automatically
compensate for real-time occupancy patterns to pro-
vide maximum convenience and energy savings. The
unit may replace a single-pole wall switch mounted in
a standard wallbox. The unit must be properly ground-
ed in order to operate. The unit’s integral blinders
may be used to restrict the field-of-view to prevent
unwanted detection of hallway traffic. It should be
positioned at least 6 feet away from HVAC registers.
The switch located under the push-button provides
three operational setting: “ON” holds the lighting
load ON (motion detection not active), “OFF” discon-
nects the lighting load from the power for relamping
purposes, and “AUTO” activates automatic motion
detection. Note that whenever the unit is powered
up, it will take approximately 1 minute to begin normal
operation.
To indicate color, add suffix to the end of the catalog number.
White (-W) , Ivory (-I), Light Almond (-T), Gray (-G), and Ebony (-E).
*NAFTA compliant and Made in USA models available.
ORDERING INFORMATION
CAT. NO.* DESCRIPTION
ODS15-ID Decora Wall Switch Occupancy Sensor,
with self-adjusting features
SPECIFICATIONS
ELECTRICAL
Line Voltage 120-230-277 VAC
Power
Consumption
120V - 120mW;
277V - 280mW
Operational
Frequency
50/60Hz
Wire
Designation
Line—Black, Load—Blue, Ground—Green
No Neutral Required
Load Rating Fluorescent: 1800VA @ 120V 4000VA @ 277V
Incandescent: 1800W @ 120V
Motor: 1/4 HP @ 120V
ENVIRONMENTAL
Operating
Temperature
Range
32°F to 122°F (0°C to 50°C)
Storage
Temperature
Range
14°F to 185°F (-10°C to 85°C)
Relative
Humidity
20% to 90% non-condensing
OTHER
Listings UL Listed/CSA Certified
Complies with California Title 24 Energy Code
Complies with FCC Regulations, NOM
Warranty Limited Five-Year Warranty
