Leviton Decora Smart DG15S User manual

Getting Started Guide
Cat. No. DG15S
SWITCH
WEB VERSION

WEB VERSION

3
See the complete line of Zigbee enabled
dimmers, switches and plug-ins
leviton.com/decorasmart
Welcome to the
Decora Smart™ family of
Zigbee®enabled devices
WEB VERSION

4
CALL
1-800-824-3005 (USA)
1-800-405-5320 (Canada)
ONLINE
leviton.com/decorasmart
CHAT
leviton.com
EMAIL
[e-mail]
Welcome
We are here to help
The Decora Smart™Switch
with Zigbee®technology
is designed for use with
modern Zigbee hubs.
Using mesh networking
technology Zigbee provides
quick, reliable, secure
communication to a wide
variety of smart products.
Add your switch to a Zigbee
hub to control it with your
smartphone or a
voice interface.
WEB VERSION

5
5
Your switch works with:
Your Decora Smart switch with
Zigbee technology is compatible
with a wide variety of load types.
Your switch should not be used
with aluminum wire. To ensure
proper communication do not use
metal wallplates.
If you have further questions,
please contact technical services
at [e-mail]
for more information.
5
RATINGS
LED / CFL 5A, 600W - 120VAC, 60Hz
Resistive 15A - 120VAC, 60Hz
Incandescent/Halogen 1800W - 120VAC, 60Hz
Fluorescent 1800VA - 120VAC, 60Hz
8A (277VAC)
Inductive 1800VA - 120VAC, 60Hz
Motor 1/2 HP - 120VAC, 60Hz
Operating Temp 0°C - 40°C (32°F - 104°F)
Operating Humidity 0-90% non-condensing
NETWORK
Zigbee Zigbee 3.0 Certified
WEB VERSION

6

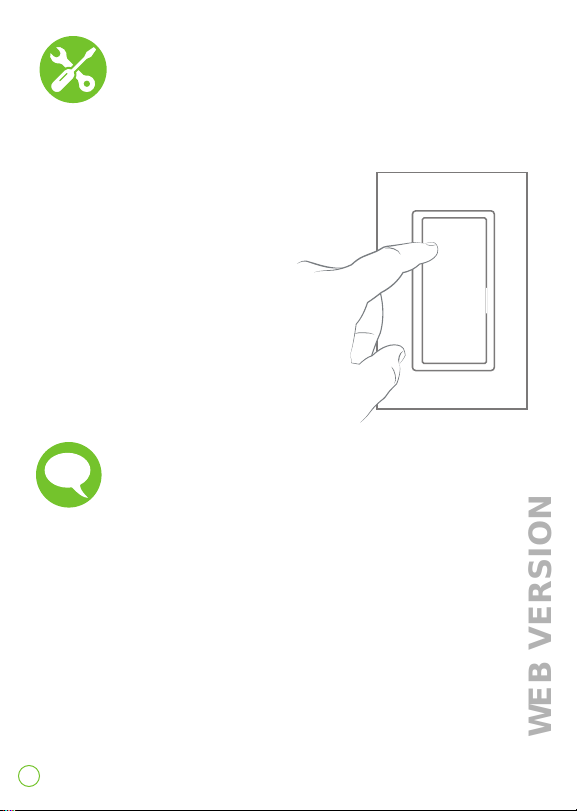

Features
Rocker
Manually
turn light on.
The bottom
of the paddle
turns the light off.
Status light
Illuminates when
load is off.
WEB VERSION

7

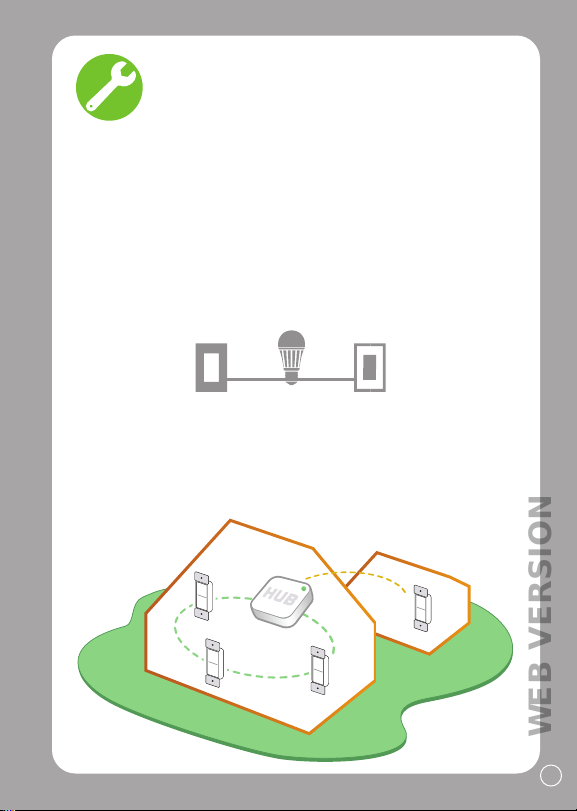

Before you install
Installation requires electrical knowledge.
If you are unsure of any steps, consult an electrician.
Things to consider:
•If light(s) are controlled from more than one location,
you will need a DD0SR-1 remote. See the DD0SR-1
installation instructions for wiring instructions.
•Zigbee is a mesh network. It must be installed within
30 ft of hub or another Zigbee 3.0 compliant device.
NOTE: Communication through
exterior surfaces will likely
reduce transmission distances.
WEB VERSION

8

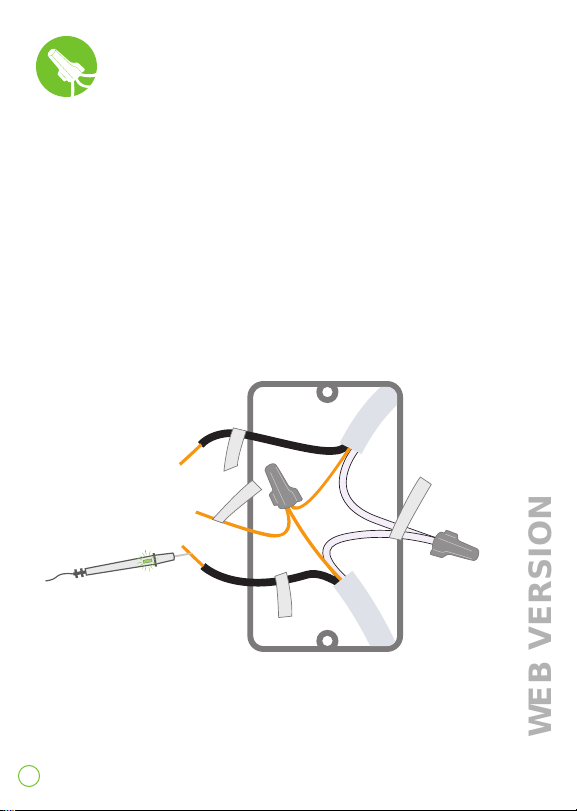

Check your wall box:
WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn off power at
the circuit breaker.
1. Remove wallplate and disconnect switch.
2. Ensure disconnected wires are not touching.
3. Restore power. Carefully test wires with voltage tester to find
the hot wire.
4. Turn off power at the circuit breaker.
5. Mark the following wires:
Identify your wires
If your wall box looks different,
consult an electrician.
two or
more white
(neutral) wires
a hot (line) wire
(find with voltage tester)
a load wire
a copper ground
NEUTRAL
HOT
LOAD
GROUND
WEB VERSION

9
1. Work on only one connection at a time.
2. Connect wires as shown.
3. Secure wire connections with an electrical connector.
Wire your switch
If your wall box looks different,
consult an electrician.
BK
YL/RD RD
WH
HOT
GROUND
NEUTRAL
LOAD
WEB VERSION

10

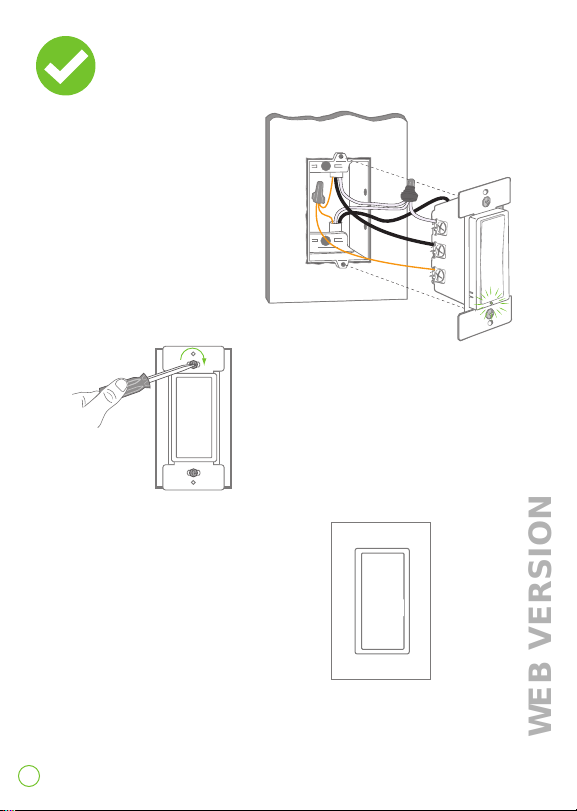

Test and install
1. Restore power. Status
light should flash green
indicating your switch is
ready to be enrolled.
Turn off power at circuit
breaker before completing
the switch installation.
2. Gently push wires into wall
box. Screw switch to box.
3. Snap on Decora®wallplate.
Restore power.
Congratulations!
Your Decora Smart switch
is ready to control your lights.
