Leviton Decora Standard 5226 User manual

Single Pole Switch with Pilot Light
Standard Style Cat. No. 5226
Decora Style Cat. No. 5626
Switch Rated: 15A-120VAC – Pilot Light Rated: 1/4W-125VAC
INSTALLATION INSTRUCTIONS
WARNINGS AND CAUTIONS:
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• To avoid fire, shock or death, TURN OFF POWER at circuit breaker or fuse. Test that
power is off before wiring.
• Use these devices only with copper or copper clad wire. With aluminum wire use only
devices marked CO/ALR or CU/AL.
• NOTE: The following diagrams apply to both Standard Style and Decora Style
Combination Devices.
Standard Style Switch
Cat. No. 5226
Pilot Light
Single Pole
Tools needed to install Switch:
• Slotted, Phillips, or Robertson Screwdriver
• Wire Cutters
INSTALLING SWITCH:
NOTE: Use check boxes when Steps are completed.
WARNING: To avoid fire, shock, or death;
TURN OFF POWER at circuit breaker or
fuse and test that power is off before wiring!
Step 1
/./&&
/./&&
/./&&
/./&&
/./&&
/./&&
/./&&/./&&
/./&&
/./&&
/./&&
/./&&
Identify Wall Box Wiring:
To install this combination switch, the
following wires must be present inside
wall box.
Step 2 NOTE: Ground connections may differ in your
application. Ensure the device is properly
grounded to system. If the wiring in the
wall box does not resemble any of these
configurations, consult a qualified electrician.
Prepare Wires:
Remove 5/8" (1.6 cm) of insulation from
each wire in the wall box.
Step 3
PK-93609-10-00-0A
Decora Style Switch
Cat. No. 5626
Single Pole
Pilot Light
SINGLE LINE HOT
(Common Feed)
1. Line (Hot-System)
2. Neutral
3. Ground
4. Load - Single Pole
Strip 5/8"
(1.6 cm)
Strip Gage
5/8"
(1.6 cm)
http://waterheatertimer.org/How-to-wire-Cooper-277-pilot-light-switch.html

LIMITED 2 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper
use for two years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option, if within such two year period the product is returned prepaid, with proof of
purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes
and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused,
or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and
fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited
to two years. Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform
this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise. PK-93609-10-00-0A
• For technical assistance contact us at 1-800-824-3005
• Visit our website at www.leviton.com
Product Information
Installing your Switch:
COMMON FEED (Single Line Hot)
Single pole switch controls light(s).
Pilot light is ON when switch is ON.
Step 4
" !

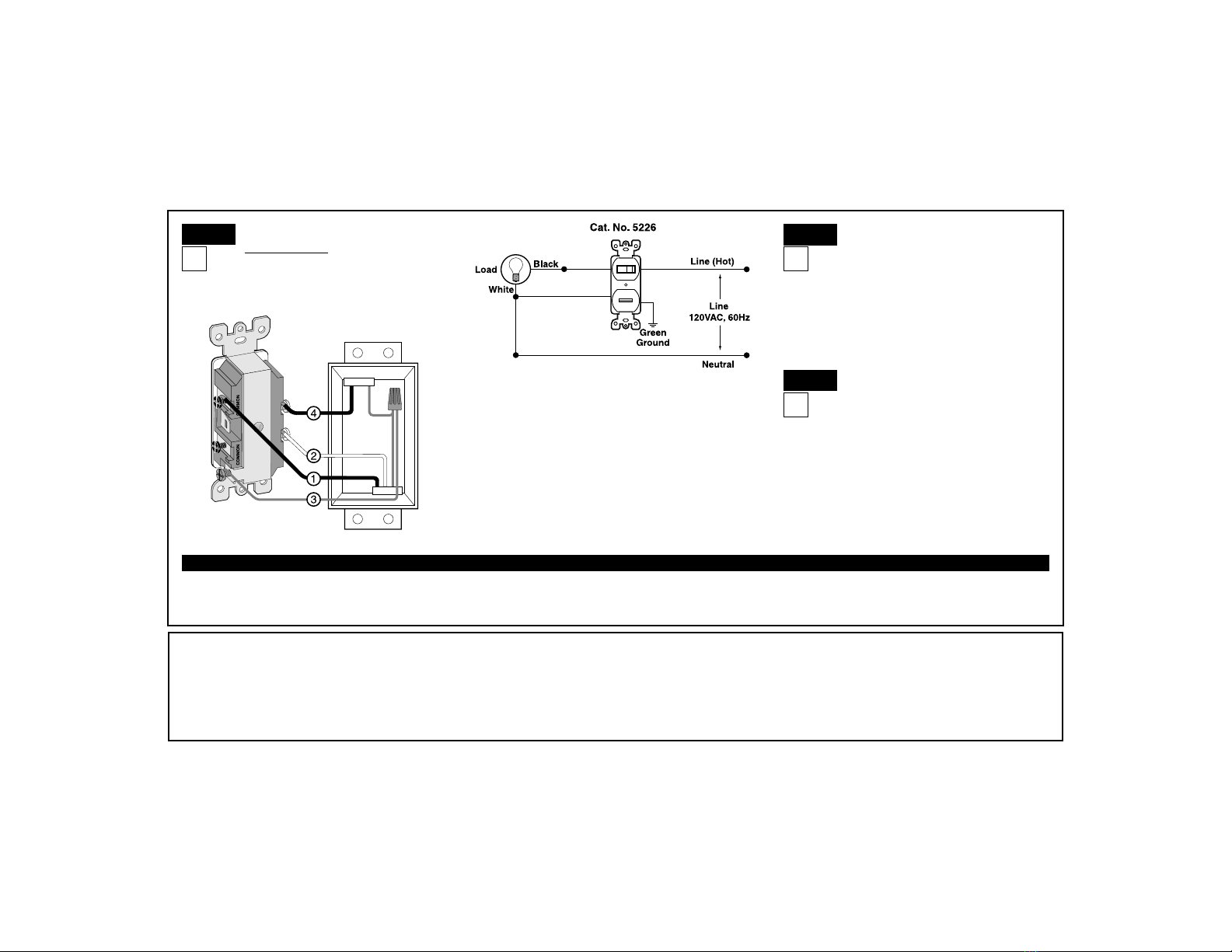

Connect wires per WIRING DIAGRAM as follows:
• Loop wires clockwise 3/4 turn around terminal screws.
• Green or bare copper wall box wire (Ground) to Green
screw.
• Black wall box wire (LINE HOT) to either Black screw
(Common).
• Remaining black wall box wire (Load) to Brass screw (A1).
• Neutral wire to Silver screw (B1).
• Tighten screws over wire loops with a force of 12-14 in.-lbs.
of torque. Terminal screws accept up to #12 AWG copper
or copper clad wire.
Complete Installation:
Step 5
• Carefully position all wires to provide
room in wall box for switch. Mount
switch into wall box with mounting
screws supplied.
• Attach wallplate (sold separately) and
restore power. INSTALLATION IS
COMPLETE.
Test Installation:
RESTORE POWER AT CIRCUIT
BREAKER OR FUSE.
Step 6
• Operate toggle (rocker) several times:
Light(s) and Pilot Light should turn on
and off simultaneously.
NOTE: If light(s) or Pilot light do not work properly,
TURN OFF POWER and re-check wiring
connections. If light(s) still do not work,
consult a qualified electrician.
