THEATRICAL LIGHTING

SOLUTION PACKAGE

complete, versatile and cost effective

Stage Lighting Package Guide 900-1500 Seats

3 Dimming System

3 Lighting Control Console

3 Architectural Control Stations

3 Power Distribution Equipment

3 Lighting Fixtures

3 Accessories

INSIDE 1st ap

This guide is intended to illustrate a lighting system capable of providing basic stage

lighting for a large theatrical facility or school auditorium. The equipment shown in this

brochure represents just a small fraction of the total Leviton offering. This particular

selection and layout represents a balance between professional quality and budget-

ary considerations.

The package can be ordered as is, or modiﬁed as required to suit speciﬁc applications.

If, after reviewing this information you have further questions please contact your lo-

cal Leviton Lighting Control Representative for further

assistance in putting together

a system that meets the needs for your facility.

The following products are used in these packages:

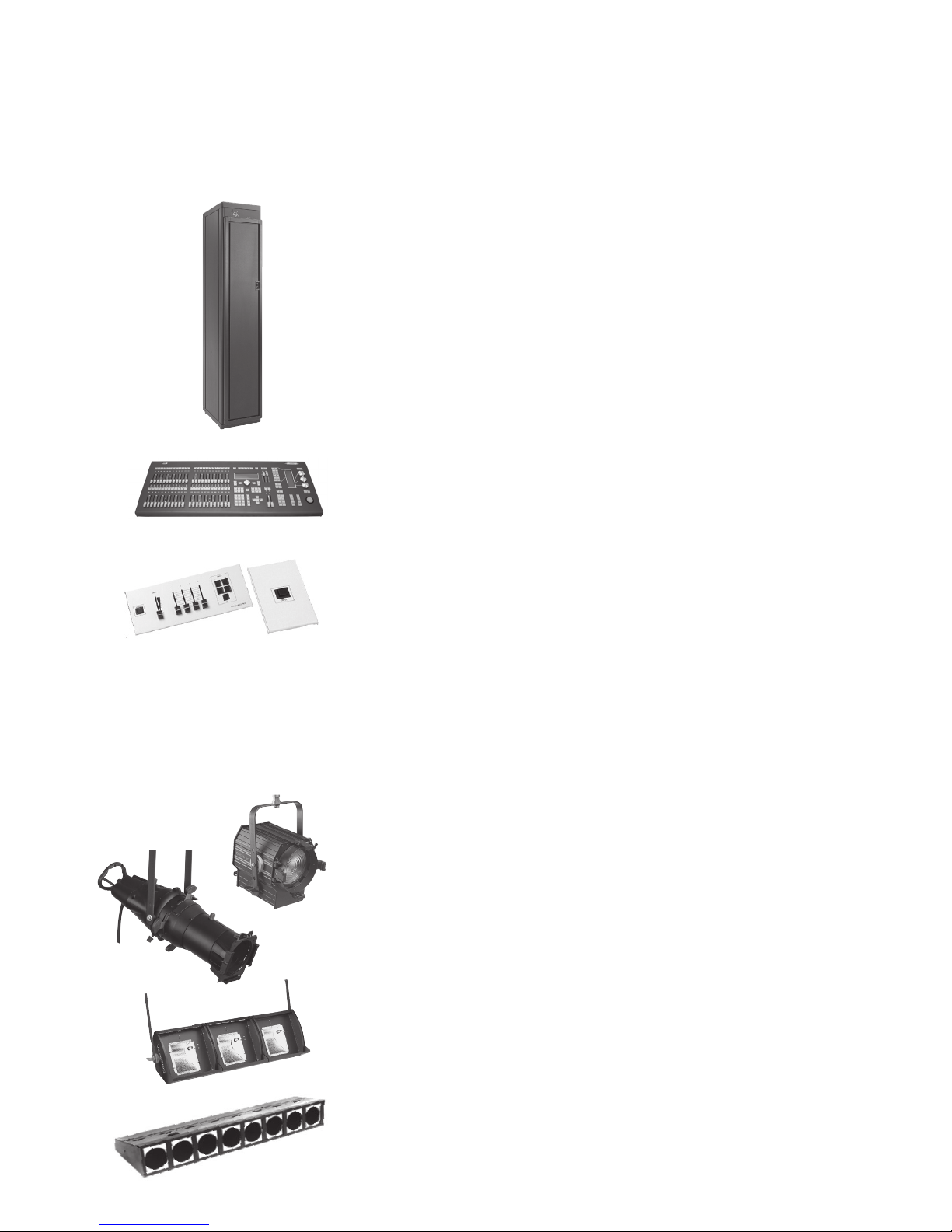

DIMMER RACK

This equipment is used to control the power delivered to your ﬁxtures. The dimmers

in the rack can be controlled by either the theatrical control console or house/stage

lighting control stations. The professional grade i-Series Dimming Racks offers control

of up to (96) 20A circuits using high-density, professional grade dual dimmer modules.

CONTROL CONSOLE

The control console is used to control the dimmers during production. The Piccolo Scan

console offers 4 working modes allowing it to adapt to any situation. The unit func-

tions as a quick-to-learn manual two scene or full function preset memory board with

automatic playback. Additionally (256) attribute channels are available for operating

automated lighting devices.

ARCHITECTURAL/STAGE LIGHTING CONTROL

Remembrance - These stations provide easy to operate controls for general house and

stage lighting. Stations have both manual control and preset storage and playback with

programmable fade times. Simple pushbutton stations are provided for entry doors. In

this application they provide convenient lighting control for non-technical users. Sta-

tions can be programmed to operate selected lighting loads to save energy and lamp

life when the full capability of the lighting system is not required for the activity.

POWER DISTRIBUTION EQUIPMENT

Connector Strips - These wireways provide power outlets along the ﬁxture mounting

pipes. Each outlet is labeled with its dimmer rack circuit number. To allow the upmost

in ﬂexibility and moderate future expansion, we have provided more available loca-

tions for power than the number of lighting ﬁxtures initially provided.

Plug-In Boxes - Floor, wall, and pipe mounted plug-in boxes with up to (6) outlets with

circuit labels. Each provided with mounting hardware appropriate to the application.

FIXTURES

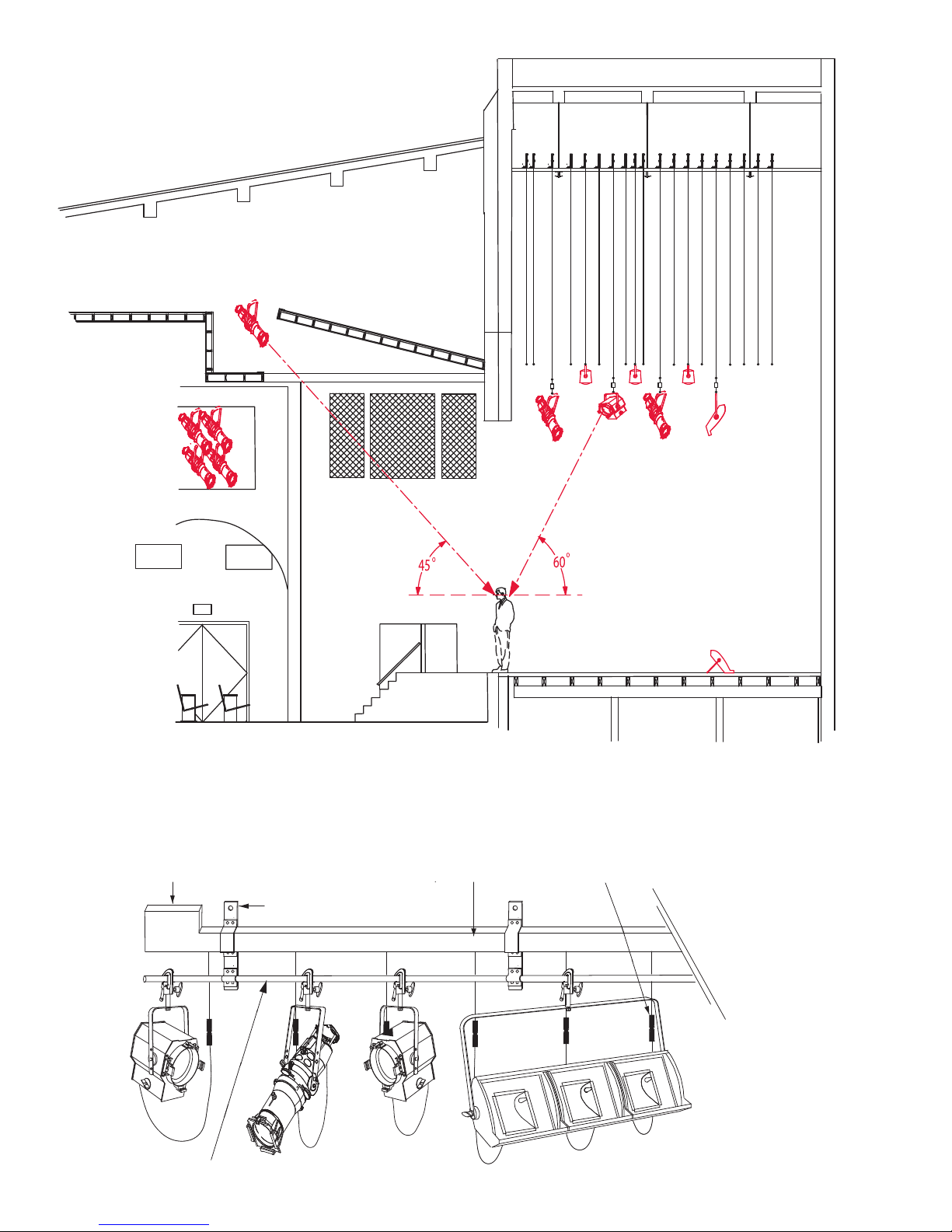

6” Fresnel - This ﬁxture offers a “soft” quality of wash light with control of beam di-

ameter from narrow to wide. Generally used for shorter throws. In this application it is

being used for stage wash lighting from overhead lighting pipes.

LEO Ellipsoidal Spotlight - This unit provides excellent deﬁnition and shape control

over the beam pattern and focus. In this application the ﬁxture is being used as a

front light for longer throw applications. The unit also has the ability to project picture

“Gobo” images.

Far Cyc Cyclorama Backdrop Light provides a high intensity even ﬁeld of light over the

vertical surface of a cyclorama. The cyclorama is often used to represent an exterior

scene and is lit blue. It is essential these units provide a even wash of high intensity col-

ored light in order to successfully convey the illusion. Careful placement coupled with

the asymmetric reﬂector design gives the even ﬁeld required to accomplish the task.

Borderlight - When the action calls for wash of saturated color to cover the stage his

unit comes into play. It is often provided with primary color glass roundels which al-

low for the blending of deep color washes. In addition white full stage washes can be

provided to support music concerts where musicians are trying to read sheet music on

Power Distribution Equipment stage.

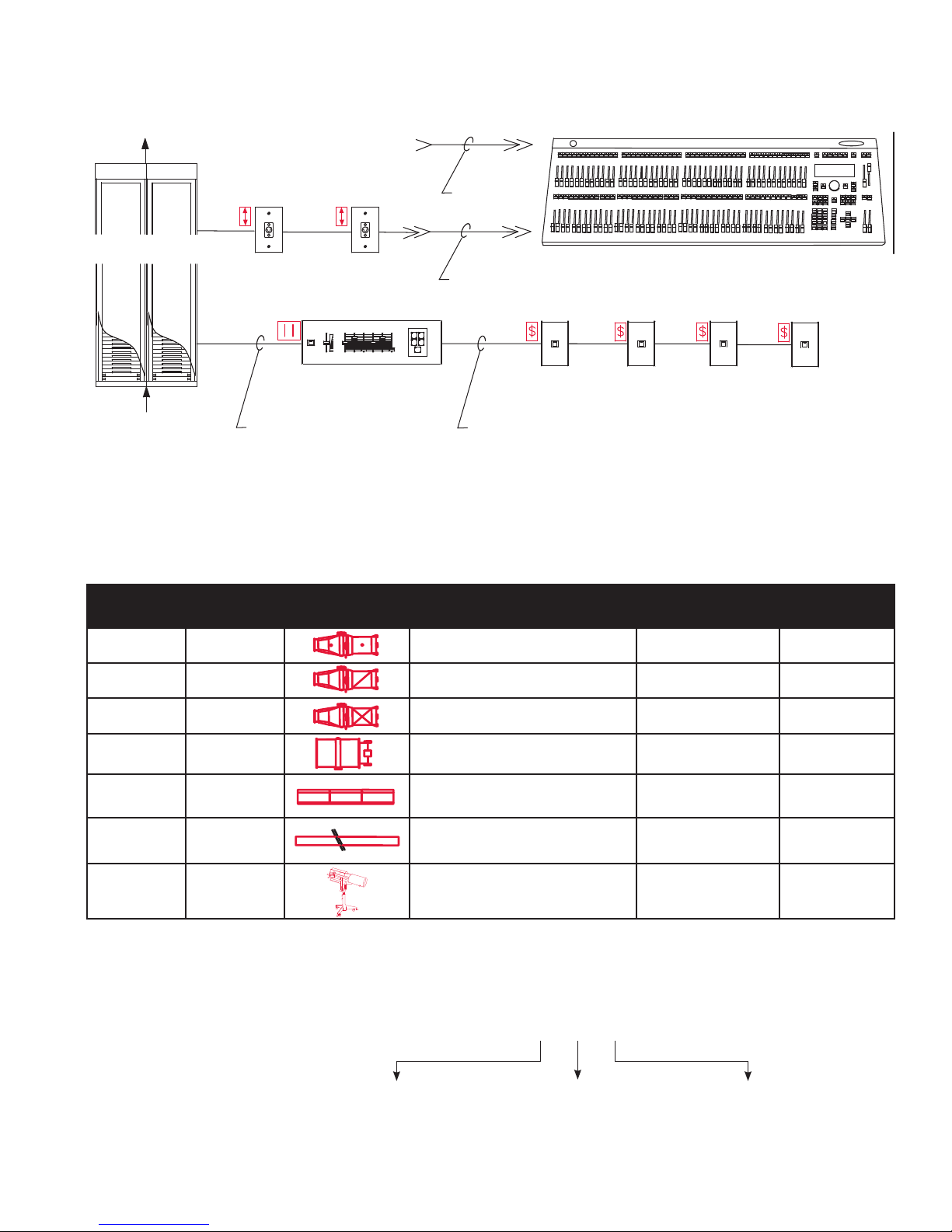

EQUIPMENT INFORMATION

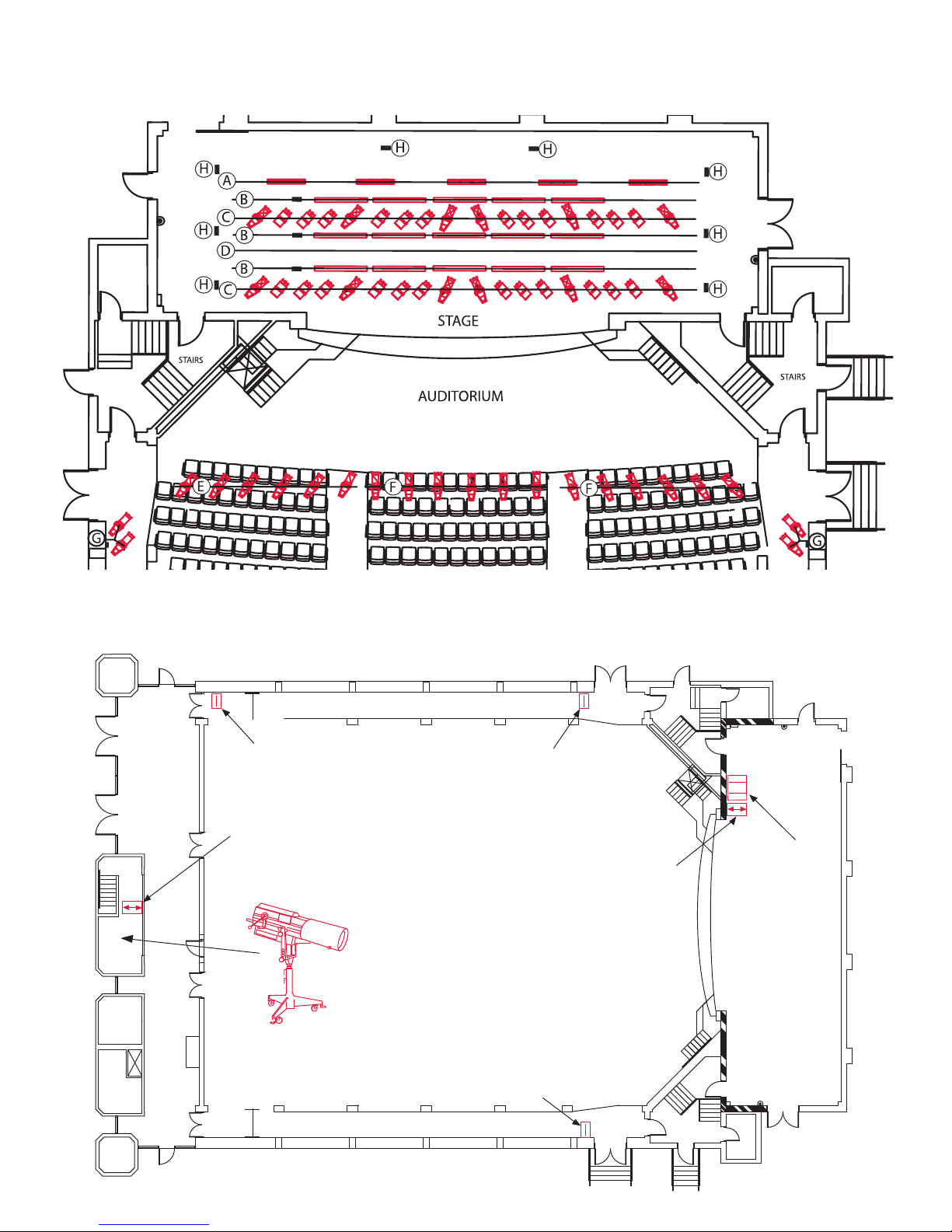

PROCENIUM STAGE LIGHTING LAYOUT FLOOR PLAN

Approximate Stage Size : 35’− 45’ Wide Procenium x 26’−30’ Deep Stage

STAIRS

LOBBY

AUDITORIUM STAGE

CONTROL

ROOM

LYCIAN FOLLOW SPOTLIGHT

LOCATED IN CONTROL BOOTH

ENTRY STATION
