ARCTIC SILVER 93T-XXXX-09 TREADMILL
Customer Support Services
PARTS MANUAL revised 12 Mar 2008

2
Miscellaneous ................................................................................................3
Console, Overlay Assembly, and Overlay................................................................4
Console Components........................................................................................5
Uprights and Handrails .....................................................................................6
Ergo Bar with Heart Rate Assembly ......................................................................7
Rear End Caps, and Cup Holders..........................................................................8
Motor Cover, Front Cover, End Caps, and Tinsel.......................................................9
On-off Switch, Access Plate, and Grommets ......................................................... 10
Belt, Deck and Rear Roller............................................................................... 11
Lift Frame, Lift Motor, and IEC Receptacle........................................................... 12
Idler Arm Assembly ....................................................................................... 13
Leg Leveler Assembly..................................................................................... 14
Front Roller Assembly .................................................................................... 15
Drive Motor Assembly..................................................................................... 16

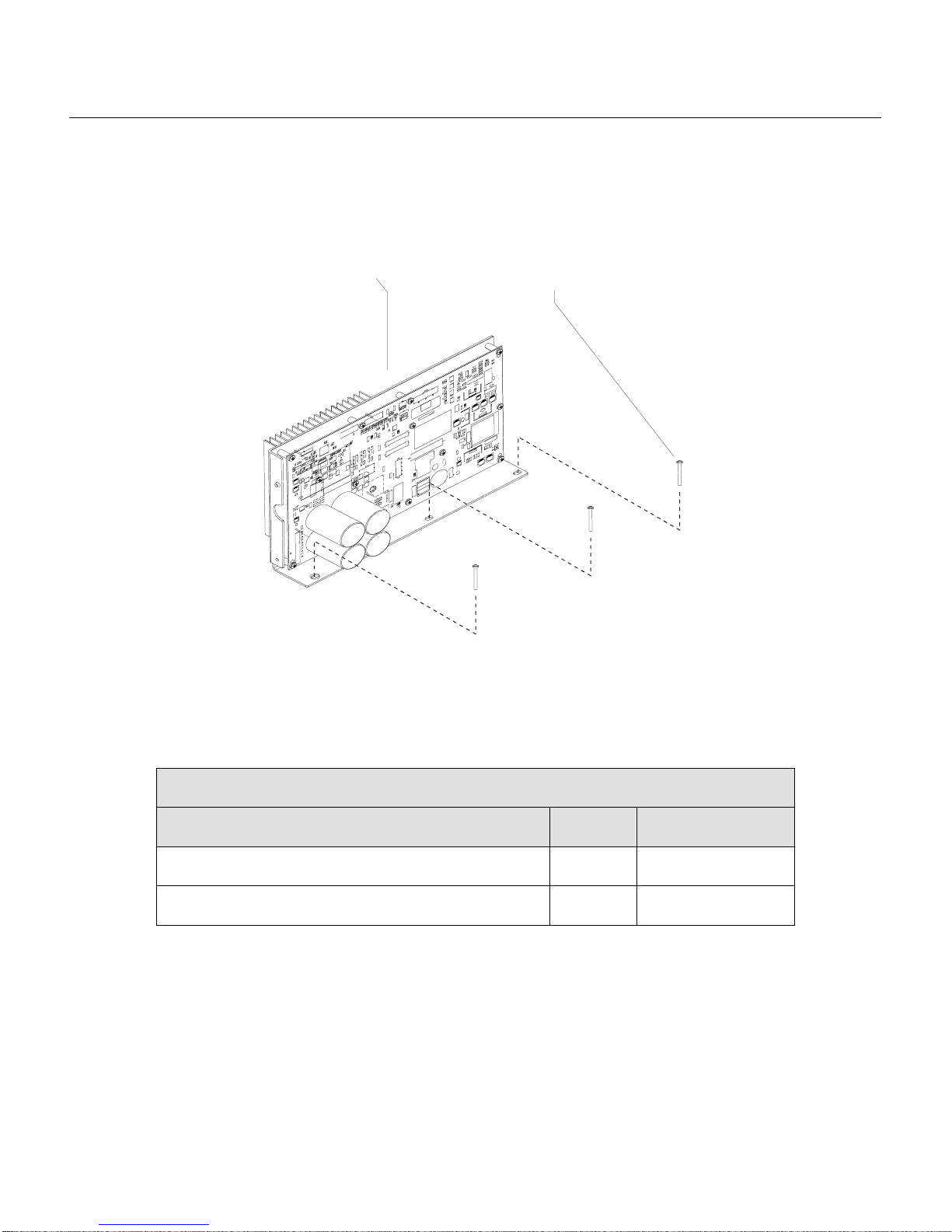

DSP Controller Assembly ................................................................................. 17
Line Cords and Line Cord Options ...................................................................... 18

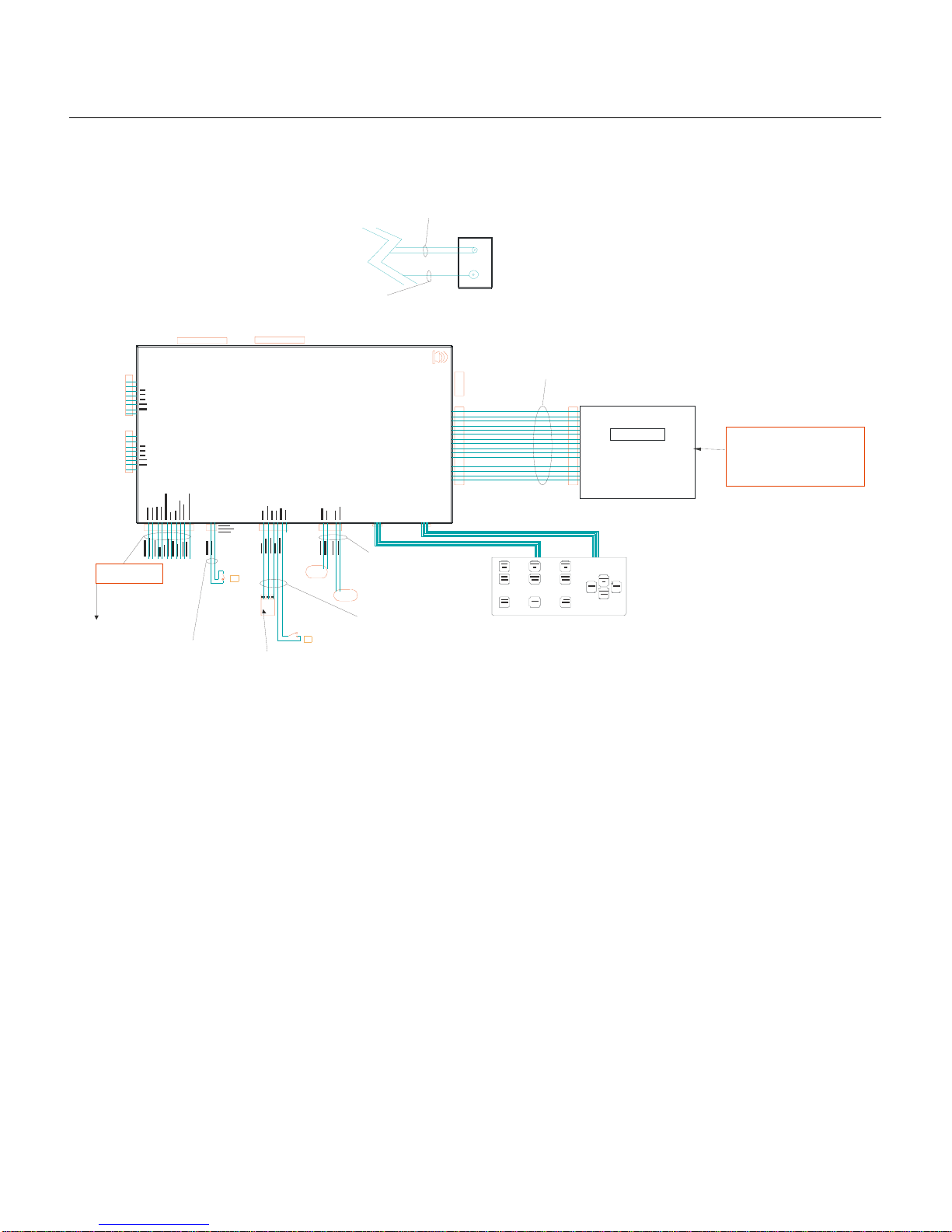

Block Diagrams ............................................................................................ 19
ARCTIC SILVER 93T 93T-XXXX-09
Contents S/N TTL100000 and up

3
ARCTIC SILVER 93T 93T-XXXX-09
Miscellaneous S/N TTL100000 and up
Description Part No.
OPERATION MANUAL – (ENG)
OPERATION MANUAL – (F/S/P)
OPERATION MANUAL – (G/D/I)
OPERATION MANUAL – (JAP)
M051-00K58-A330
M051-00K58-A331
M051-00K58-A332
M051-00K58-A333
SERVICE MANUAL M051-00K58-A256
ACCESS PANEL ASSY.
CONSISTS OF:
1) 120” POWER EXT. CABLE
2) CONNECTOR MTG. PLATE
3) F-TYPE ADP CONNECTOR
4) F-TYPE PANEL CONNECTOR
AK58-00329-0000
AK32-00078-0001
0K58-01392-0000
0017-00021-2810
0017-00021-2846
COAX CABLE AK32-00020-0002
ARCTIC SILVER TOUCH UP PAINT FOR
FRAME:
SPRAY CAN
.5 OZ BOTTLE W/APPLICATOR
.33 OZ PEN
FOR INK TRANSFER DECALS:
.6 OZ BOTTLE
.6 OZ PEN
0017-00008-0204
0017-00008-0205
0017-00008-0206
0017-00008-0210
0017-00008-0211
HARDWARE BAG AK58-00226-0000
NOTE: When this model is ordered with an attachable LCD TV, it becomes a model 93TER-XXXX-09.
See Entertainment parts list LCD-0XXX-02 for the part numbers and descriptions for the attachable
LCD TV, remote, and hardware for this product. Model 93T-XXXX-09 comes with both Lifepulse
sensors and telemetry for reading heart rate.

4
ARCTIC SILVER 93T 93T-XXXX-09

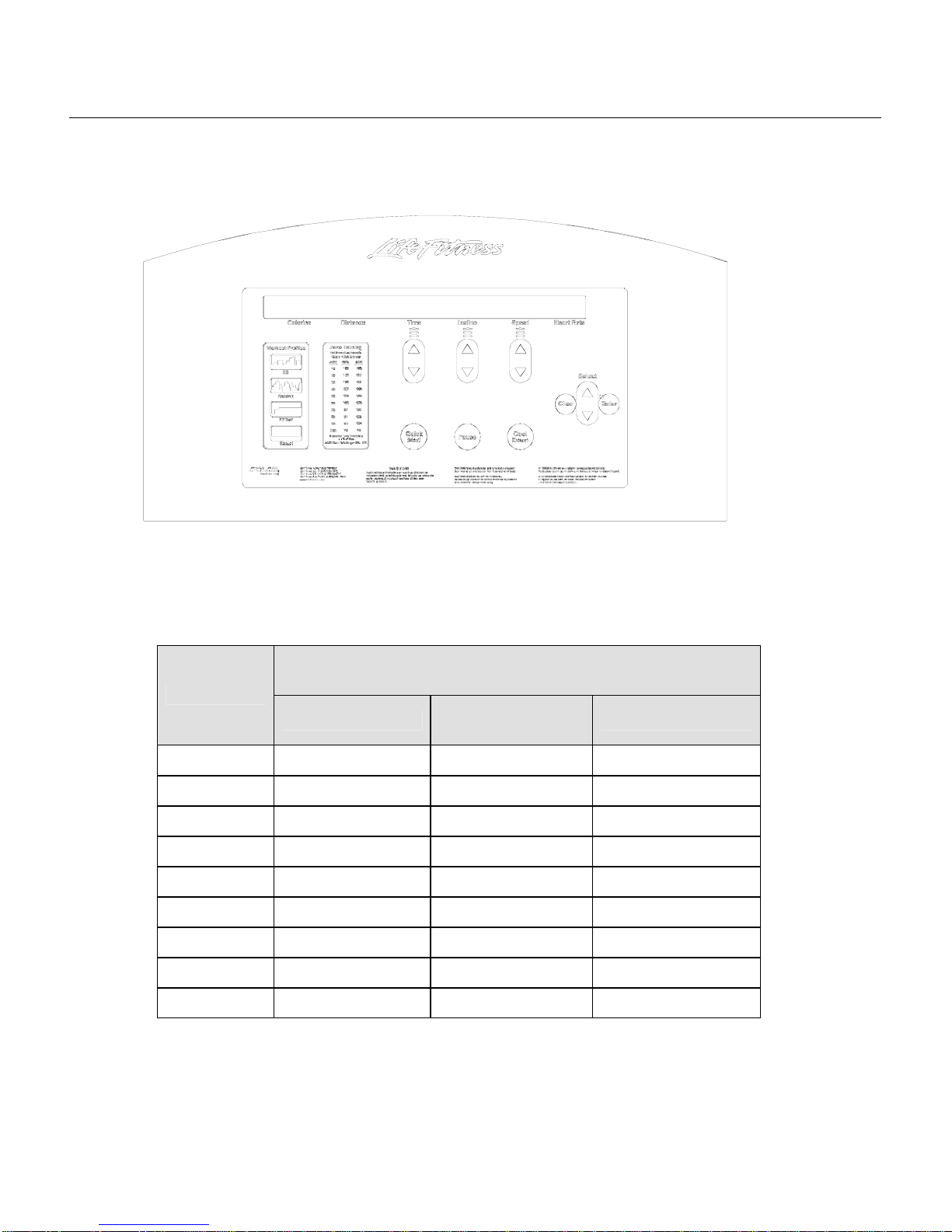

Console, Overlay Assembly, and Overlay S/N TTL100000 and up
Part No.
Language Console Overlay/Bezel
Assembly Overlay
ENG/ENG AK58-00481-0001 AK58-00526-0001 0K58-01432-0001
ENG+MET AK58-00481-0002 AK58-00526-0001 0K58-01432-0001
GERMAN AK58-00481-0003 AK58-00526-0003 0K58-01432-0003
SPANISH AK58-00481-0004 AK58-00526-0004 0K58-01432-0004
JAPANESE AK58-00481-0006 AK58-00526-0006 0K58-01445-0006
FRENCH AK58-00481-0007 AK58-00526-0007 0K58-01432-0007
ITALIAN AK58-00481-0008 AK58-00526-0008 0K58-01432-0008
DUTCH AK58-00481-0009 AK58-00526-0009 0K58-01432-0009
PORUGUESE AK58-00481-0010 AK58-00526-0010 0K58-01432-0010

5
ARCTIC SILVER 93T 93T-XXXX-09

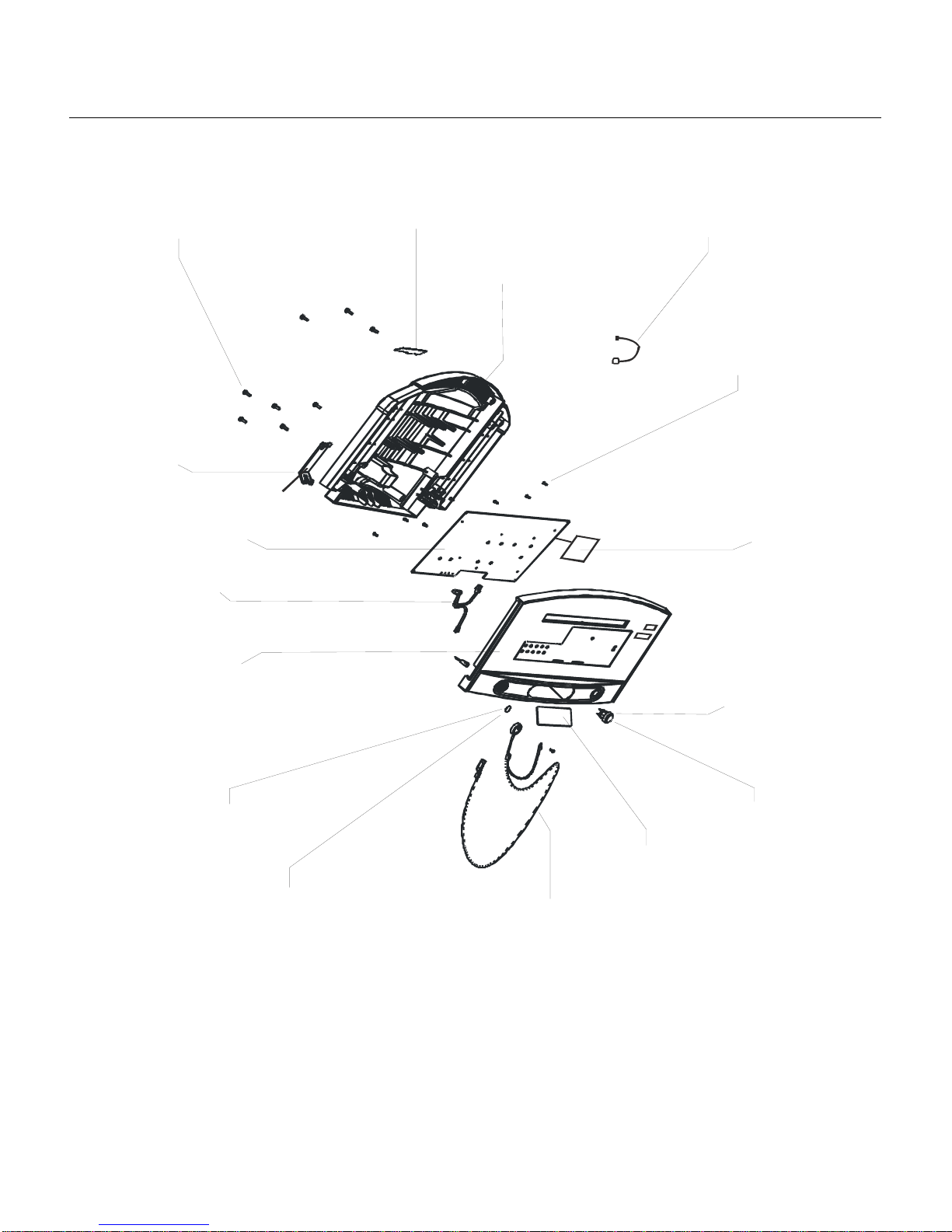

Console Components S/N TTL100000 and up
10-32X 8 PHL PAN
1 ST BZ B (8)
0017-00101-1288 DECAL: CONSOLE; REAR
0K58-01357-0000
BEZEL: CASE; CONSOLE;
FRONT; STEALTH; 93T; JAP
0K58-01273-0002 (JAP only)
0K58-01273-0003 (ENG)
Accessory Cover
0K58-01280-0000
6-19X 6 PHL PAN
PLT G5 ZN B (13)
0017-00101-1275
PROG CONS PCB ASSY:
A084-92185-A011 (JAP only)
A084-92184-A009 (ENG)
CBL-ASSY: POLAR/E-STOP
AK58-00237-0000
SWITCH: STOP; ROUND
0K58-01321-0000
PAD: RUBBER; CD-TRAY
0K58-01359-0000
DISC MAGNET
0K40-01070-0000 STOP-SW & TETHER ASSY
AK58-00322-0000
POLAR PCB W/HEADER
AK39-00064-0000
PCB-ASSY: H/R; (JAP only
)
SIDE-CONSOLE B
B084-92255-B000
CBL-ASSY: (JAP only)
SIDE-CONSOLE
AK58-00031-0000
CASE: CONSOLE; REAR
0K58-01272-0000
TAPE: ADHESIVE
0K39-01044-0000
SWITCH: MICRO;
GOLD; 150GR
0017-00032-0185

6
ARCTIC SILVER 93T 93T-XXXX-09

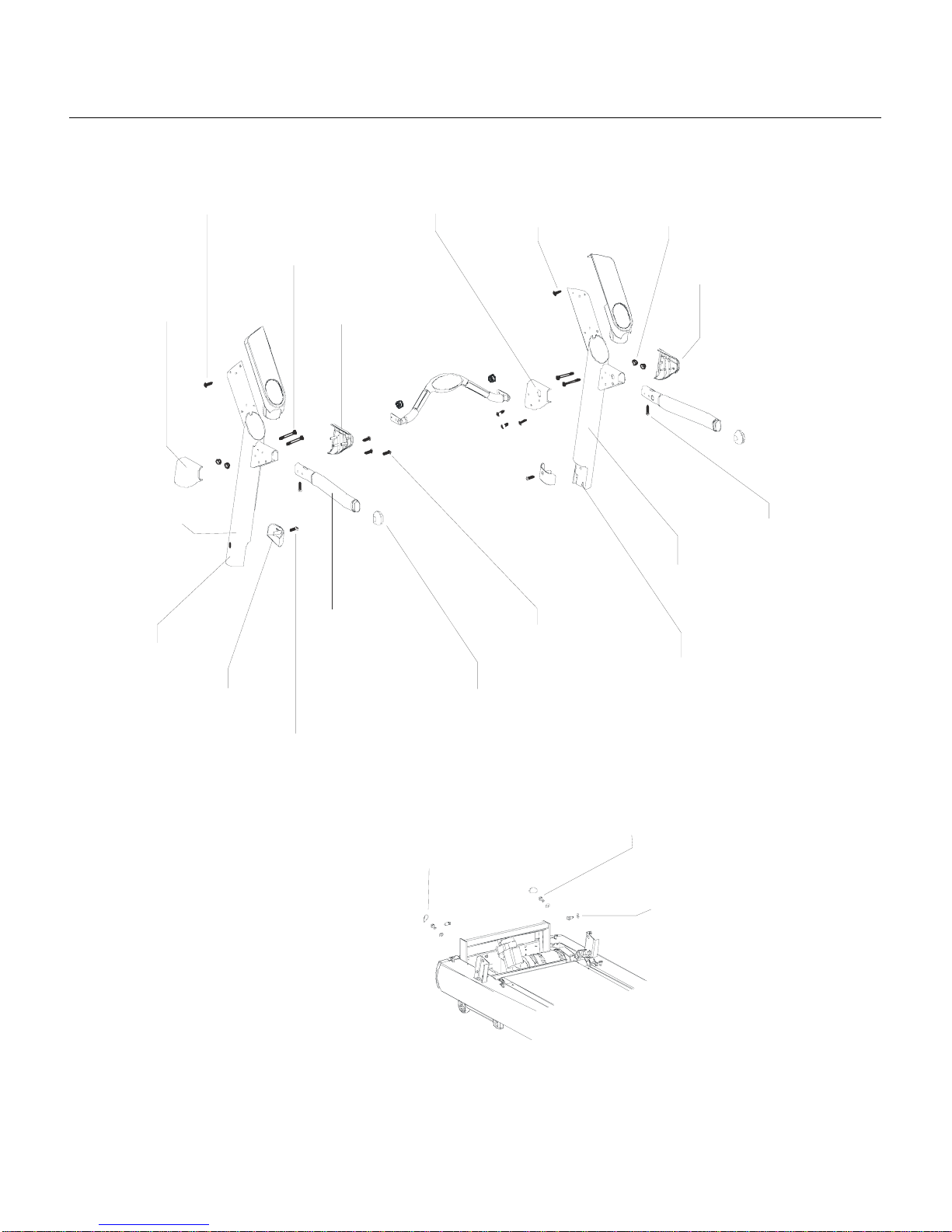

Uprights and Handrails S/N TTL100000 and up
Handrail Hex Nuts (4)
0017-00103-0327
Handrail-Assy: Boxed
AK58-00256-0000
Top RT Handrail Boot
0K58-01303-0001
Console/Cup Holder
Mounting Screws (8)
0017-00101-1780
Bottom RT
Handrail Boot
0K58-01304-0001
Handrail Mounting
Screws (4)
0017-00101-1774
Handrail Boot
Screws (6)
0017-00101-1770
Bottom LT
Handrail Boot
0K58-01304-0002
Console Mounting
Screws (4)
0017-00101-1773
Top LT Handrail Boot
0K58-01303-0002
Handrail Screws (2)
0017-00101-1773
Handrail Tube Caps (2)
0K58-01396-0000
Upright, RT
AK58-00311-0003
Upright, LT
AK58-00311-0004
Upright Tube Caps (2)
0K58-01302-0000
Upright Tube
Cap Screws (2)
0017-00101-1772
Grommets (2)
0017-00042-0326
Upright Plugs (2)
0K58-01305-0002
Upright Mounting Screws
0017-00101-1778 (6)
Upright, Plugs (2)
0K58-01305-0002
Upright Mounting Washers
0017-00104-0325 (6)

7
ARCTIC SILVER 93T 93T-XXXX-09
Ergo Bar with Heart Rate Assembly S/N TTL100000 and up
ERGO-BAR OVERMOLD
ASSY: PURCH. D
AK58-00376-0000 8-16X18 PHL PAN
PLT ST BO B (2)
0017-00101-0824
6-18 x 16 PHL PAN
HLS ST ZN B
0017-00101-1277
GASKET: ERGOBAR
0K58-01347-0000
COVER: I/R LENS SENSOR
0K58-01103-0000
Ergo Bar with Heart Rate Assembly
AK60-00147-0000
VMI WSH 8 171-,375-052
FL-D ST BZ B
0017-00104-0411
Heart Rate Sensor Kit
KIT: SERV; MFG; ELECTRODES; LARGE
GK20-00002-0005

8
ARCTIC SILVER 93T 93T-XXXX-09
Rear End Caps and Cup Holders S/N TTL100000 and up
CUP-COVER ASSY, LT
AK58-00247-0002
CUP-COVER ASSY, RT
AK58-00247-0001
10-16X 8 PHL PAN
B ST ZS B
0017-00101-1772
Qty needed: 4
ENDCAP: REAR
0K58-01268-0000
ENDCAP: REAR
0K58-01268-0000

9
ARCTIC SILVER 93T 93T-XXXX-09
Motor Cover, Front Cover, Front End Caps, and Tinsel S/N TTL100000 and up
10-16X 8 PHL PAN
B ST ZS B (4)
0017-00101-1772
GUARD-ASSY: MFG;
RT;3.50 B
AK58-00360-0001
MOTOR-SHROUD ASSY:
MFG; 93Ti CLASSIC
AK58-00625-0000
10-16X 8 PHL PAN
B ST ZB B (4)
0017-00101-1776
GUARD-ASSY: MFG;
LT; 3.50 B
AK58-00360-0002
10-32x10 PHL PAN
MS ST ZS B (4)
0017-00101-1771
FRONT-PANEL
W/MEDALLION ASSY
AK58-00272-0000
MEDALLION-ASSY:
PURCH;LF-BUG B
AK58-00245-0000
ENDCAP: FRONT
0K58-01267-0000
ENDCAP: FRONT
0K58-01267-0000
10-16X 8 PHL PAN
B ST ZS B (4)
0017-00101-1772
SPRING: EXTENSION; TINSEL
0017-00009-0901
TINSEL:
0K58-01102-0001
8-32X 6 SLT HXW
TT ST ZN B
0017-00101-0975
RAIL: ANTI-SLIP;
STEALTH-GREY
0K58-01376-0000

10
ARCTIC SILVER 93T 93T-XXXX-09

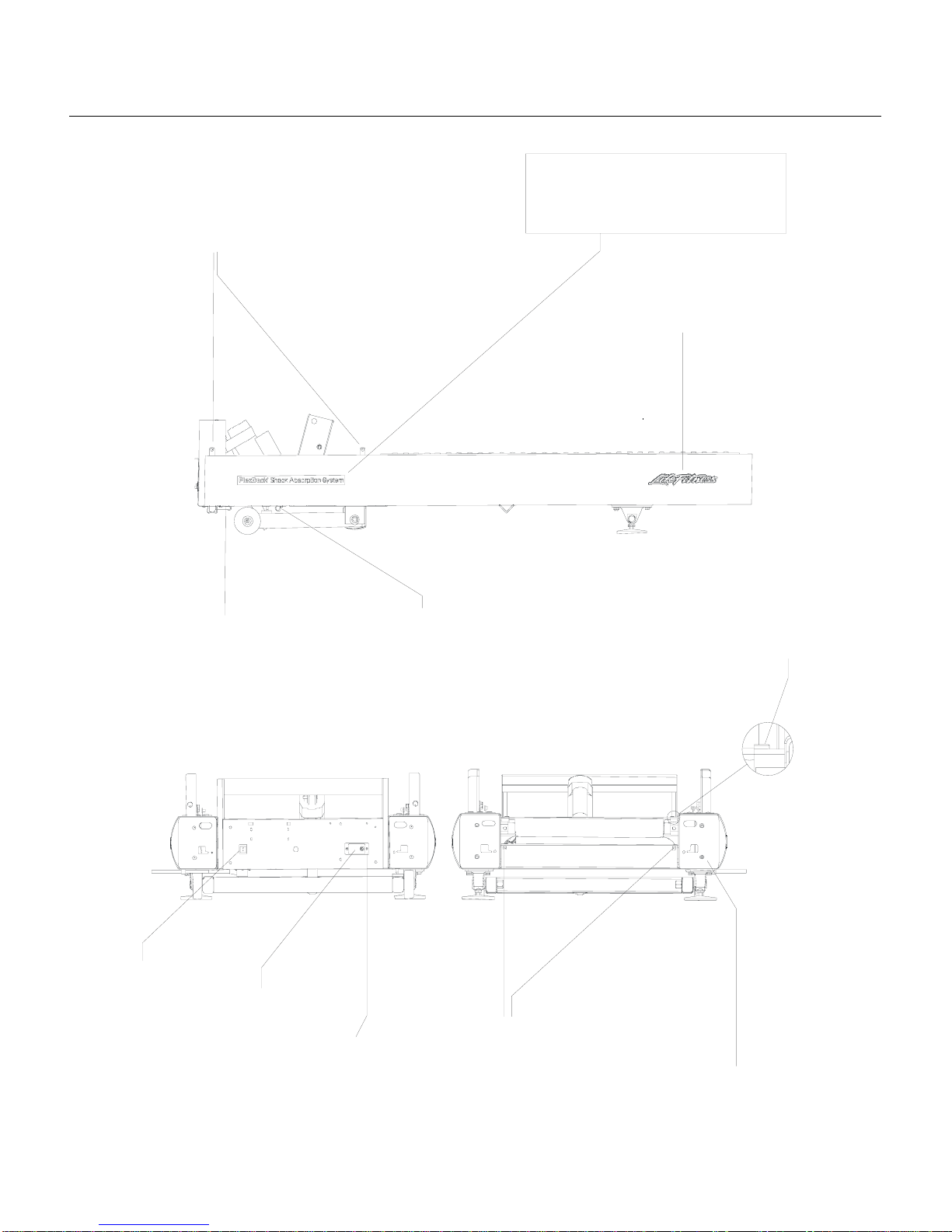

On-Off Switch, Access Plate, and Grommets S/N TTL100000 and up
20-22
IN
WITH
FRONT VIEW
SWITCH: ROCKER;
22A DPST
0017-00032-0198
BACK VIEW
ACCESS-PLATE ASSY
AK58-00329-0000 GROMMETS:
NYLON; SCREW ( 2 )
0017-00042-1147 GROMMETS: PLASTI; .
130/.005 S/C#13-B
(8; 4 front, 4 rear)
0017-00042-0326
CLIP: WIRE; PUSH-
MTG; 3/4"; S/C#80-B
0017-00042-0840
CLAMP: WIRE; 5/8"
0017-00042-1072
Note: the ink transfer decal can
be retouched but it cannot be
replaced in the field.
(see service bulletin GN05032101N )
DECAL: FRAME; LF-LOGO
0K60-01193-0000
GROMMET: PLASTI; .
130/.005 S/C#13-B ( 2 )
0017-00042-0326
8-32X 6 PHL PAN
TT ST PH B ( 2 )
0017-00101-0162
GROMMET: PLASTI; .
130/.005 S/C#13-B ( 4 )
0017-00042-0326

11
ARCTIC SILVER 93T 93T-XXXX-09

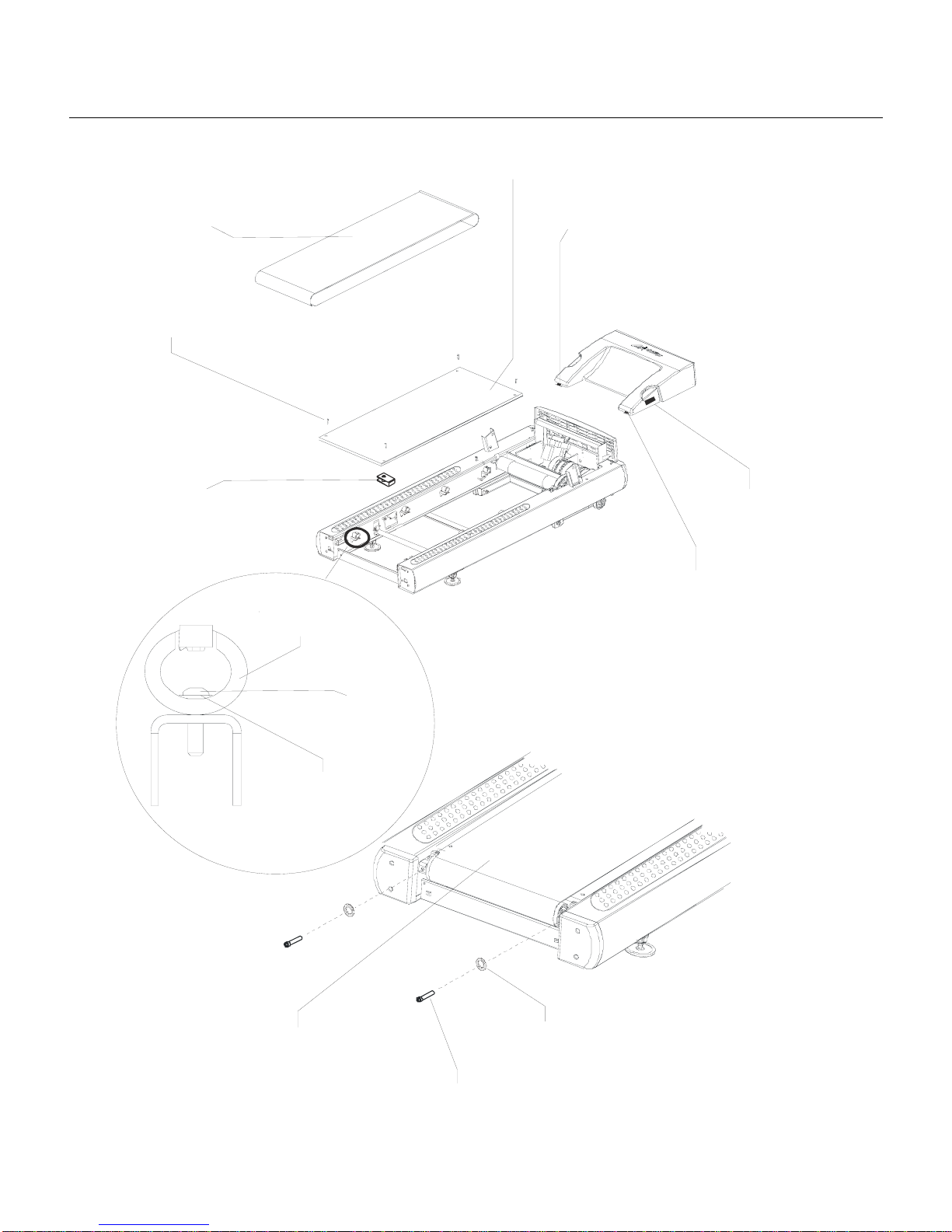

Belt, Deck and Rear Roller S/N TTL100000 and up
DECK: TREADMILL; WAXLESS
0K65-01263-0000
1/4 -20x20 HXS FLT L
CS ST ZB B (4)
0017-00101-1775
SPRING: TECSPAK,
BLACK S/C-B (8)
0K40-01026-0002
LBL: BELT-LIMIT; RT.
M051-00K58-A100
LBL: CAUTION;
HI-VOLT;ENG+FRN B
M051-00K58-A014
BELT: WALKING; BLK;
W/LOGO; NP7131 C
0K58-01400-0000 LBL: BELT-LIMIT; LT.
M051-00K58-A101
ROLLER: REAR; 3.5"
0K58-01002-0000
Rear Roller Adjusting Bolt (2)
3/8 -16X48 HEX SOC L CS ST SS B
0017-00101-1880
NUT 1/4 -20 TINNERMAN
D ST ZN B (4)
0017-00103-0198
1/4 -20X16 HXS BUT
L CS G8 BO B (8)
0017-00101-1652
WSH 255-.562-046
FL-D ST ZN B (8)
0017-00104-0072
VMI WSH 390-, 880-120 (2)
FL-0 ST BZ B
0017-00104-0334

12
ARCTIC SILVER 93T 93T-XXXX-09
Lift Frame , Lift Motor, and IEC Receptacle S/N TTL100000 and up
Cotter Pin
0017-00007-020
8
Clevis Pin
0017-00007-0214 Lift Motor
0K58-01062-0000
Lock Nuts (2)
0017-00103-0285
Hex Screws (2)
0017-00101-1777
Flat Washers (2)
0017-00104-0259
Bronze Sleeves (2)
0K58-01089-0000
Line Cord Clip
0017-00042-0840
Lift Frame
0K58-01066-0000
Lock Nut
0017-00103-0025
Lift Motor Hex Bolt
0017-00101-1021
Vinyl Cap
0017-00042-1075
Wheels (2)
0K58-01071-0000
Phillips Screws (2)
0017-00101-1612
Washers (2)
0017-00104-0189
Lift Frame End Caps (4)
0017-00042-1076
Frame Screws (2)
0017-00101-1723
Frame Screws *
0017-00101-1723
Line-Cord Socket Brkt *
0K58-01419-0000
Line Cord
(see line
cord page)
Lower Receptacle Brkt
0K58-01420-0000
Frame Screws (2)
0017-00101-1723
IEC Receptacle *
0017-00003-0949
COVER: PIVOTS;
LIFT-FRAME (2)
0K58-01322-0000
* RECEPTACLE-ASSY:
MFG; RECESS B
AK58-00514-0000

13
ARCTIC SILVER 93T 93T-XXXX-09
Idler Arm Assembly S/N TTL100000 and up
Idler Arm Assembly
AK58-00053-0002 Idler Pin
0017-00007-0248
Idler Spring Damper
0K26-02055-0000
Idler Spring
0k58-01085-0000
Wire Clamp
0017-00042-1072
Screw
0017-00101-1193
Limit Switch
0017-00032-0195
Limit Switch Cable
AK58-00027-0000
Motor Pulley
0K58-01057-0001
Allen Screw
0017-00101-0333
Grommet
0017-00042-0326
Drive Belt
0K58-01114-0000
Idler Pulley
0K26-01731-0000
Threaded Idler
0K58-01084-0002
Lock Nut: Idler
0017-00103-0324
Shaft
Anti Static Brush
0K58-01263-0001
Tinsel Bracket Screw(2)
0017-00101-1193
Circuit Breaker, 2 amp
0017-00003-0626
Circuit Breaker, 4 amp
0017-00003-0095
Circuit Breaker Clip
0017-00003-0671
Plug (for units without
circuit breakers)
0017-00042-1053

14
ARCTIC SILVER 93T 93T-XXXX-09

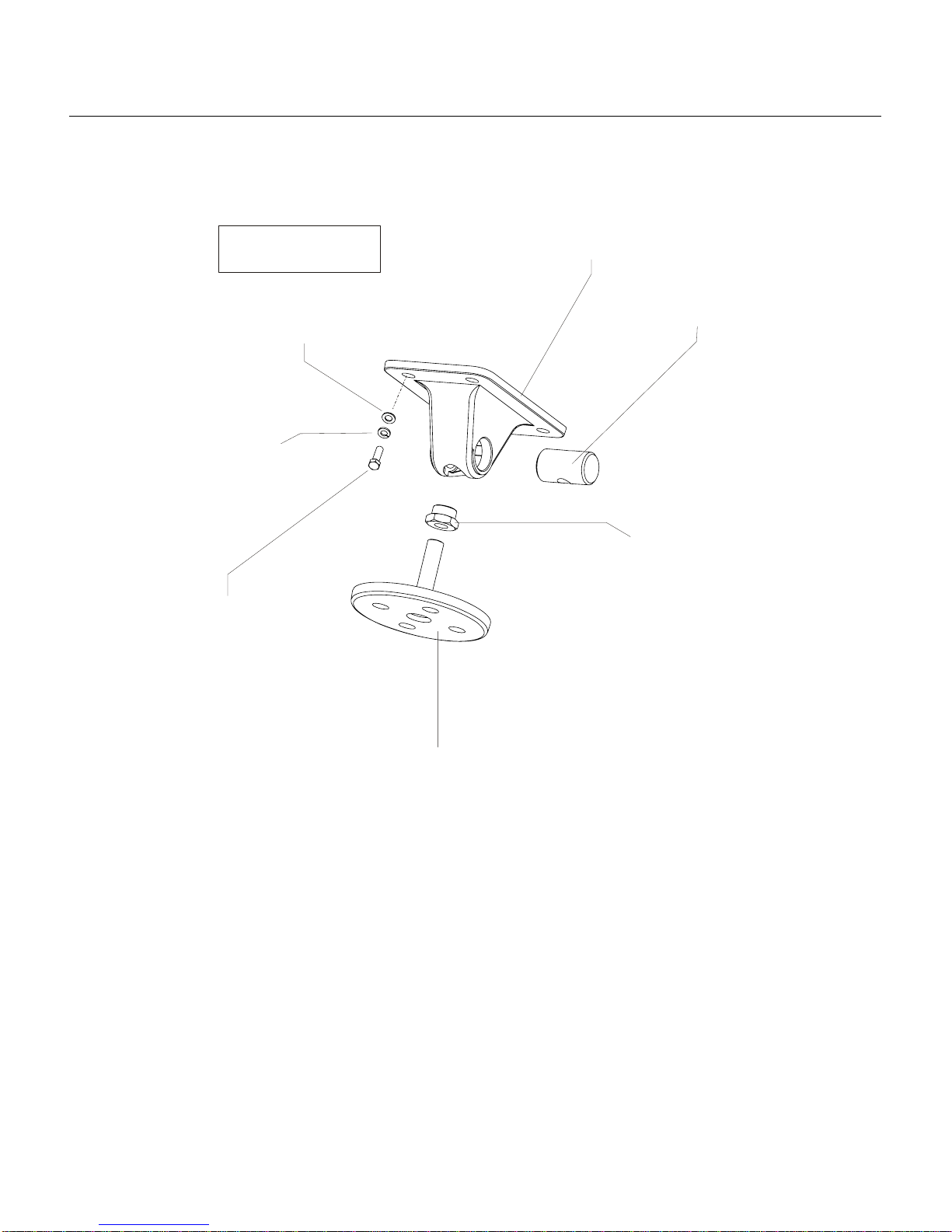

Leg Leveler Assembly S/N TTL100000 and up
Bracket Leveler
0K58-01083-0000
Pivot Pin
0K58-01098-0000
Leveling Foot
0K58-01110-0000
Stop Nut
0K58-01099-0000
3/8-16x20 UNS HEX
CS G5 BZ B
0017-00101-1627
Lock Washers (4)
0017-00104-0333
Flat Washers (4)
0017-00104-0190
Leg Leveler Assembly
AK58-00370-0000

15
ARCTIC SILVER 93T 93T-XXXX-09

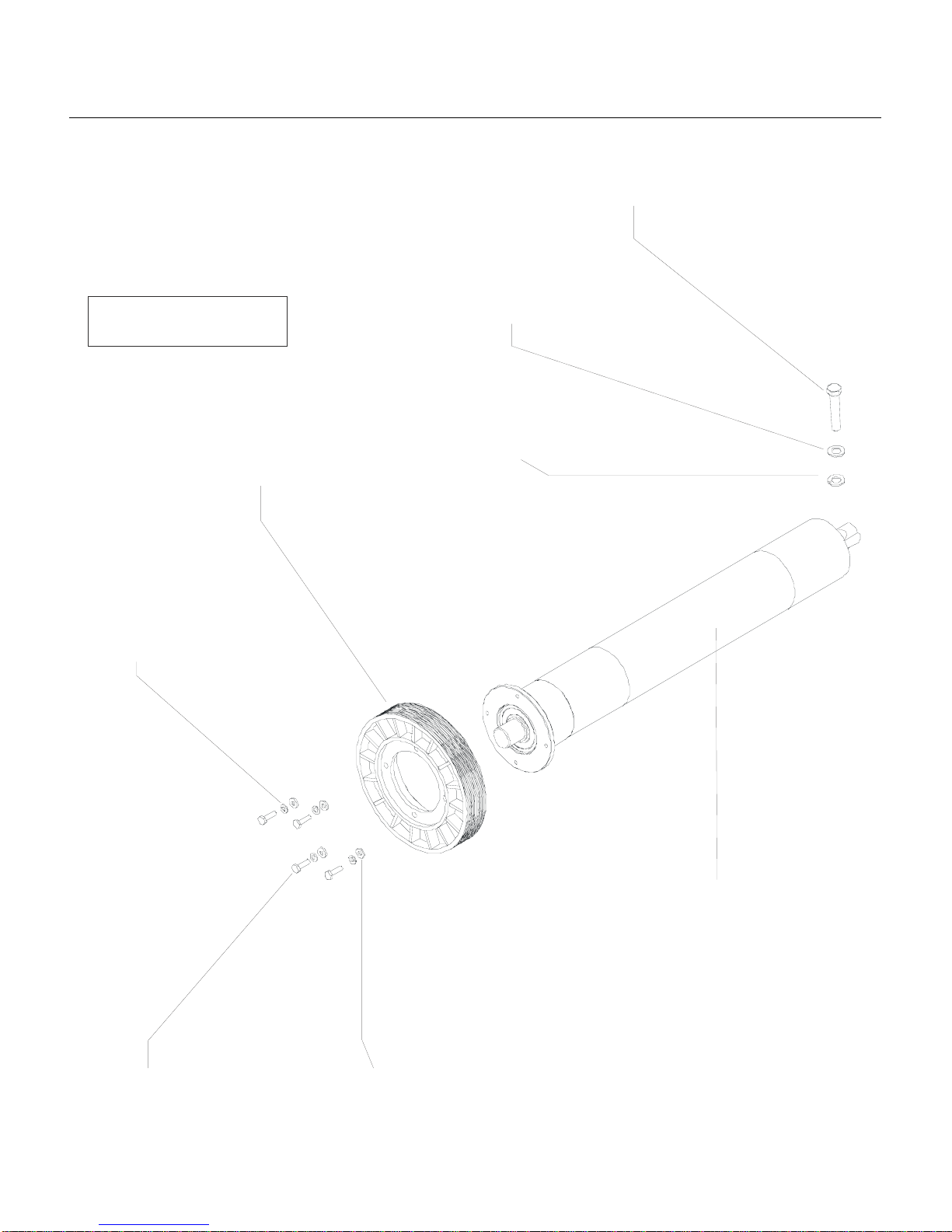

Front Roller Assembly S/N TTL100000 and up
Poly-V Pulley, 8-inch
0K58-01105-0000
Hex Bolts (3)
0017-00101-1632 Flat Washers (3) 0017-00104-0330
Lock Washer (3)
0017-00104-0005
Flat Washer
0017-00104-0043
Mounting Bolt
0017-00101-0974
ROLLER: FRONT; 3.5"
0K58-01001-0001
Front Roller Assembly
AK58-00066-0000
Lock Washer
0017-00104-0006

16
ARCTIC SILVER 93T 93T-XXXX-09
Drive Motor Assembly S/N TTL100000 and up
Poly-VPulley
0K58-01057-0001
Locking Nuts (4)
0017-00103-0027
InsulatingShoulder Washers (4)
0K58-01255-0000
InsulatingPads (2)
0K58-01256-0001 Flywheel, Cast Iron
0K58-01092-0004
Flywheel Bolt
0017-00101-1885
Setscrews (2)
0017-00101-0333
The key is part of the drive motor
only (not available separately).
Washers (4)
0017-00104-0409
Tapered Shaft DriveMotor Assembly
AK58-00171-0002

17
ARCTIC SILVER 93T 93T-XXXX-09
DSP Controller Assembly S/N TTL100000 and up
DSP Controller Assembly
Part Description Voltage Part No.
KIT: SERV; MFG; DSP CONTROLLER 100-120; LED 100-120 GK58-00002-0118
KIT: SERV; MFG; DSP CONTROLLER 200-240; LED 200-240 GK58-00002-0120
Block Jumpers
(for JW1, JW2, Jw5)
117E-00001-0004
V
MI 10-32x8 PHL PANS
TT ST ZN B
0017-00101-1781

18
ARCTIC SILVER 93T 93T-XXXX-09
Line-Cords and Line Cord Options S/N TTL100000 and up
Optional Line Cords
Description Length
(feet) Part No.
LINE-CORD: 120V; 20A; 12' 0017-00003-0947
LINE-CORD: R/A 120V 8' 0017-00003-0915
LINE-CORD: R/A; NEMA
5-20 144" 12' 0017-00003-0980
LINE-CORD: R/A;
W/PLUG 220/60 7.5' 0017-00003-0981
LINE-CORD: 220V; 15A; 12' 0017-00003-0948
Standard Line Cords
Model # Model Description Part No.
93T-0100-09 93T ENG/ENG 120/60 DOM
93T-0300-09 93T FRN/MET 120/60 DOM
93T-0400-09 93T SPN/MET 120/60 DOM
93T-0800-09 93T POR/MET 120/60 DOM
0017-00003-0974
LINE-CORD: R/A; 96"; W/RECP S/C-C
93T-0103-09 93T ENG+MET 220/60 DOM
93T-0105-09 93T ENG+MET 100/50 DOM
93T-0106-09 93T ENG+MET 200/50 DOM
93T-0705-09 93T JAP/MET 100/50 DOM
93T-0706-09 93T JAP/MET 200/50 DOM
0017-00003-0781
LINE-CORD: R/A; 220V; USA D
93T-0101-09 93T ENG+MET 230/50 CON
93T-0201-09 93T GER/MET 230/50 CON
93T-0301-09 93T FRN/MET 230/50 CON
93T-0401-09 93T SPN/MET 230/50 CON
93T-0501-09 93T ITL/MET 230/50 CON
93T-0601-09 93T DUT/MET 230/50 CON
93T-0801-09 93T POR/MET 230/50 CON
93T-1601-09 93T ENG/TUR 230/50 CON
0017-00003-0696
LINE-CORD: R/A; CEE7; 103" 10A 250V D
93T-0102-09 93T ENG+MET 240/50 UK
93T-0109-09 93T ENG+MET 230/50 UK 0017-00003-0890
LINE-CORD: U.K; R/A
93T-0104-09 93T ENG+MET 240V+ AUS 0017-00003-0996
LINE-CORD: IEC; AUSTRALIAN; 230/50 C

19
ARCTIC SILVER 93T 93T-XXXX-09
Block Diagram S/N TTL100000 and up
10POS.MINIFITJR.CONN.
N.O.
6 PO S. M I CRO FI T .CO NN.
POLAR
RECEIVER PCB
AK39-00064-000
0
NS
2
P1
1 435679810
P11
12 2
P6
31645
NS
10POS. RALIF.CONN.
1
P7
324
P3
4 PO S. M I CRO FI T . CO NN.
P2
12POS.RALIF.CONN.
8 PO S. M O D.PHO NE J ACK
8 PO S. M O D.PHO NE J ACK
8
7
6
5
4
3
6
2
1
8
7
2
5
4
3
1
3POS.
C-GRID.CONN.
DISPLAY
SIDE CONSOLE
7-7 SEGMENT
16POS .SK K100 16POS.S KK100
4POS.INLINEMICRO-FIT
P8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
15
14
13
11
10
9
8
7
P1
P4
*BLACK
*WHITE
*RED
*GREEN
*BROWN
*BLUE
*ORANGE
*YELLOW
*PURPLE
*GRAY
*PINK
*BLACK/WHITE
*BLACK/RED
*BLACK/GREEN
D15
D14
D13
D12
D11
D10
D9
D8
ST5
ST6
ST7
ST8
ST9
ST10
ST11
1
2
3
4
USED ON 97Ti &
93/95T-0705 JAP&
93/95T-0706 JAPONLY
P14
BDM SP1INTERFACE
P5
6
5
12
4
3
2
1
*BLACK/BROWN
COAX VIDEO IN
VOLT ON TV P.S.
ACCESS
PANEL
E STOP
POLAR &
END SESSION LIFE PULSE KEYPADS
MAIN PWR/SCI
CBL-ASSY:
SIDE-CONSOLE
AK58-00031-0000
MESSAGE CENTER
CONSOLE
CSAFE
CARDIOTHEATER 1
CSAFE
CARDIOTHEATER 2
CBL-ASSY:
H/R SENSORS
AK58-00041-0001
CBL-ASSY:
POLAR/E-STOP
AK58-00237-0000
CBL-ASSY:
EMERGENCY-STOP
AK58-00036-0000
TO DSP
CONTROLLER
CBL-ASSY:
PWR EXT; 120"
AK32-00078-0001
CBL-ASSY:
COAX; 120"
AK32-00020-0002

20
ARCTIC SILVER 93T 93T-XXXX-09
Block Diagram - Continued S/N TTL100000 and up
BLACK
RED
BROWN
YELLOW
ORANGE
GRAY
WHITE
GREEN
PURPLE
BLUE
3
891
02
16745
3
7
62
1
0
9
85
4
1
3
1
2
P5
0SWITCH
WHITE
BLACK
RED
3
4
2
1
5120VOU
T
6
AUTOX-FRMR
220/230V
IN
1
2
3
4
100VIN
240VIN
200VIN
CO
M
200-240VONLY
6
5
4
3
2
1
WHITE
BLACK
RED
P11
P13
NEUTRAL
120VIN
230VOUT
12
GREEN/YELLOW
BLACK
RED
WHITE
BLUE
BLUE
4
652
313
2
14
GRN/YLW
BLACK
RED
WHITE
RED
P9
DSP
CONTROLLER
JUMPER;POWER;
LCD-CONS
AK58-00522-0000
CBL-ASSY
CBL-ASSY:CONS
AK58-00034-0001
P7
P12
CBL-ASSY:
ZEROHOME-SWITCH;LCD
AK58-00027-0001
P4
P6
CBL-ASSY:
AUTO-XFRMR;20"
AK58-00527-0000
LIFT
MOTOR
DRIVE
MOTOR
P1
P8
5
3
4
2
1
