ARCTIC SILVER 93Ti TREADMILL
Customer Support Services
PARTS MANUALrev. 31 Jan 2007

ARCTIC SILVER 93Ti 93T-XXXX-08
REFERENCES S/N TTW100000 and up
OPERATION MANUAL – ( ENG )
OPERATION MANUAL – ( F/S/P )
OPERATION MANUAL – ( G/D/I )
OPERATION MANUAL – ( JAP )
M051-00K58-A330
M051-00K58-A331
M051-00K58-A332
M051-00K58-A333
SERVICE MANUAL M051-00K58-A253
ACCESS PANEL ASSY.
CONSISTS OF:
1) 120” POWER EXT. CABLE
2) CONNECTOR MTG. PLATE
3) F-TYPE ADP CONNECTOR
4) F-TYPE PANEL CONNECTOR
AK58-00329-0000
AK32-00078-0001
0K58-01392-0000
0017-00021-2810
0017-00021-2846
COAX CABLE AK32-00020-0002
ARCTIC SILVER TOUCH UP
PAINT FOR FRAME:
SPRAY CAN
.5 OZ BOTTLE W/APPLICATOR
.33 OZ PEN
FOR INK TRANSFER DECALS:
.6 OZ BOTTLE
.6 OZ PEN
0017-00008-0204
0017-00008-0205
0017-00008-0206
0017-00008-0210
0017-00008-0211
HARDWARE BAG AK58-00227-0000
NOTE: When this model is ordered with an attachable LCD TV it
becomes a 93TER-XXXX-08. See the Entertainment parts list
marked LCD-0XXX-02 for the part numbers and descriptions for
the attachable LCD TV, remote and hardware for this product.
The 93T-XXXX-08 comes with both Life Pulse sensors and
Telemetry for reading Heart Rate.

Page
CONSOLE, OVERLAY ASSEMBLY & OVERLAY...........................................................4
CONSOLE COMPONENTS ..............................................................................................5
UPRIGHTS & HANDRAILS ..............................................................................................6
ERGO-BAR W/HR ASSY– AK60-00147-0000 .................................................................7
REAR ENDCAPS & CUP HOLDERS ...............................................................................8
MOTOR COVER, FRONT COVER, ENDCAPS & TINSEL...............................................9
ON-OFF SWITCH, ACCESS PLATE & GROMMETS.......................................................10
BELT, DECK & REAR ROLLER.......................................................................................11
LIFT FRAME, LIFT MOTOR & IEC RECEPTACLE..........................................................12
IDLER ARM ASSEMBLY..................................................................................................13
LEG LEVELER ASSEMBLY.............................................................................................14
FRONT ROLLER ASSEMBLY..........................................................................................15
DRIVE MOTOR ASSEMBLY - 93T-0100-07 ONLY..........................................................16
DRIVE MOTOR ASSEMBLY – ALL OTHER MODELS....................................................17
WAX/LIFT ASSEMBLY FOR - 93T-0100-07 ONLY..........................................................18

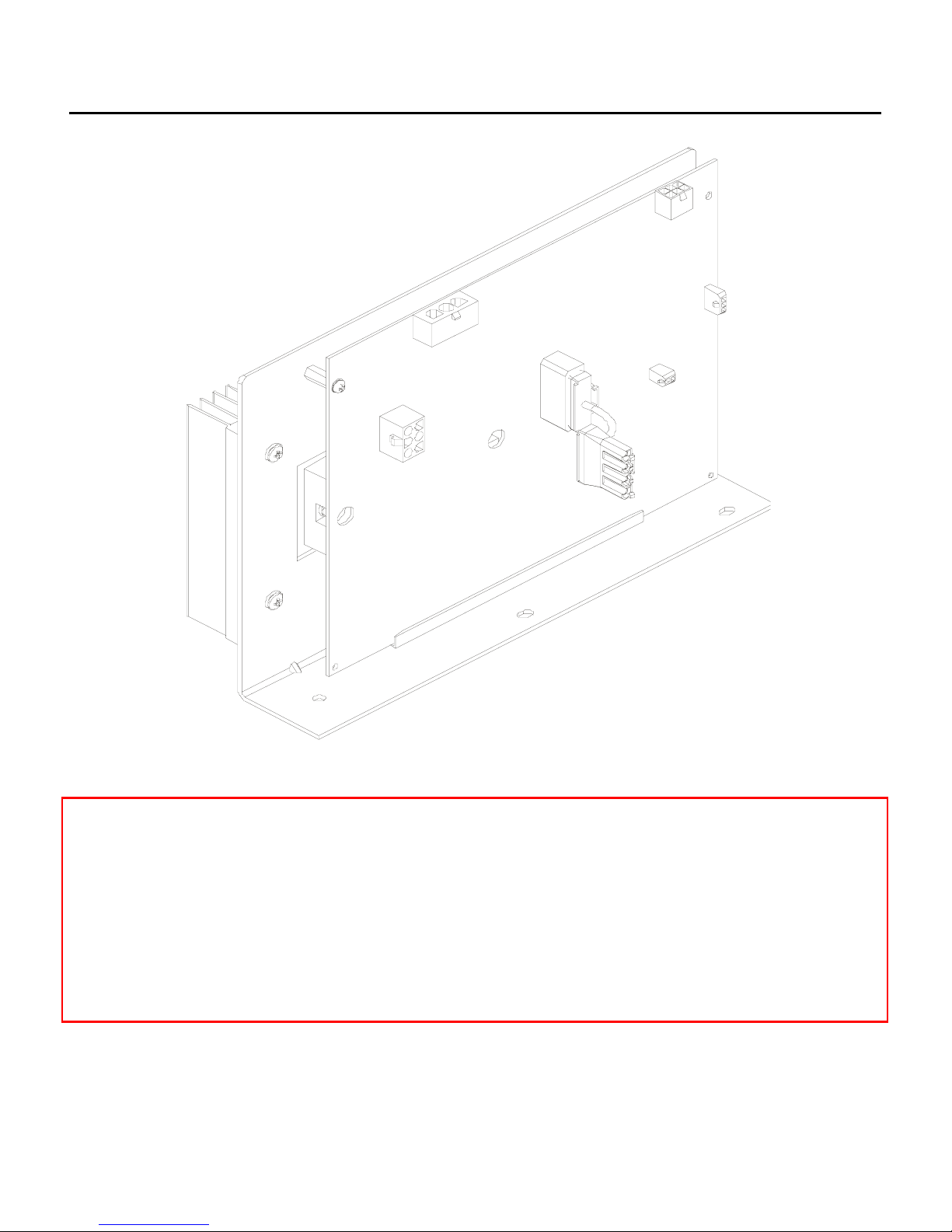

MOTOR CONTROLLER ASSY. – 93T-0100-07 ONLY ....................................................19
DSP-CONTROLLER ASSEMBLY – ALL OTHER MODELS............................................20
LINE-CORDS & LINE-CORD OPTIONS...........................................................................21
CABLES FOR UNITS BETWEEN 0100 - 0104.................................................................22
CABLES FOR UNITS BETWEEN 0105 - 0300.................................................................23
CABLES FOR UNITS BETWEEN 0301 - 0601.................................................................24
CABLES FOR UNITS BETWEEN 0705 - 1601.................................................................25
ARCTIC SILVER 93Ti 93T-XXXX-08
CONTENTS S/N TTW100000 and up

ARCTIC SILVER 93Ti 93T-XXXX-08

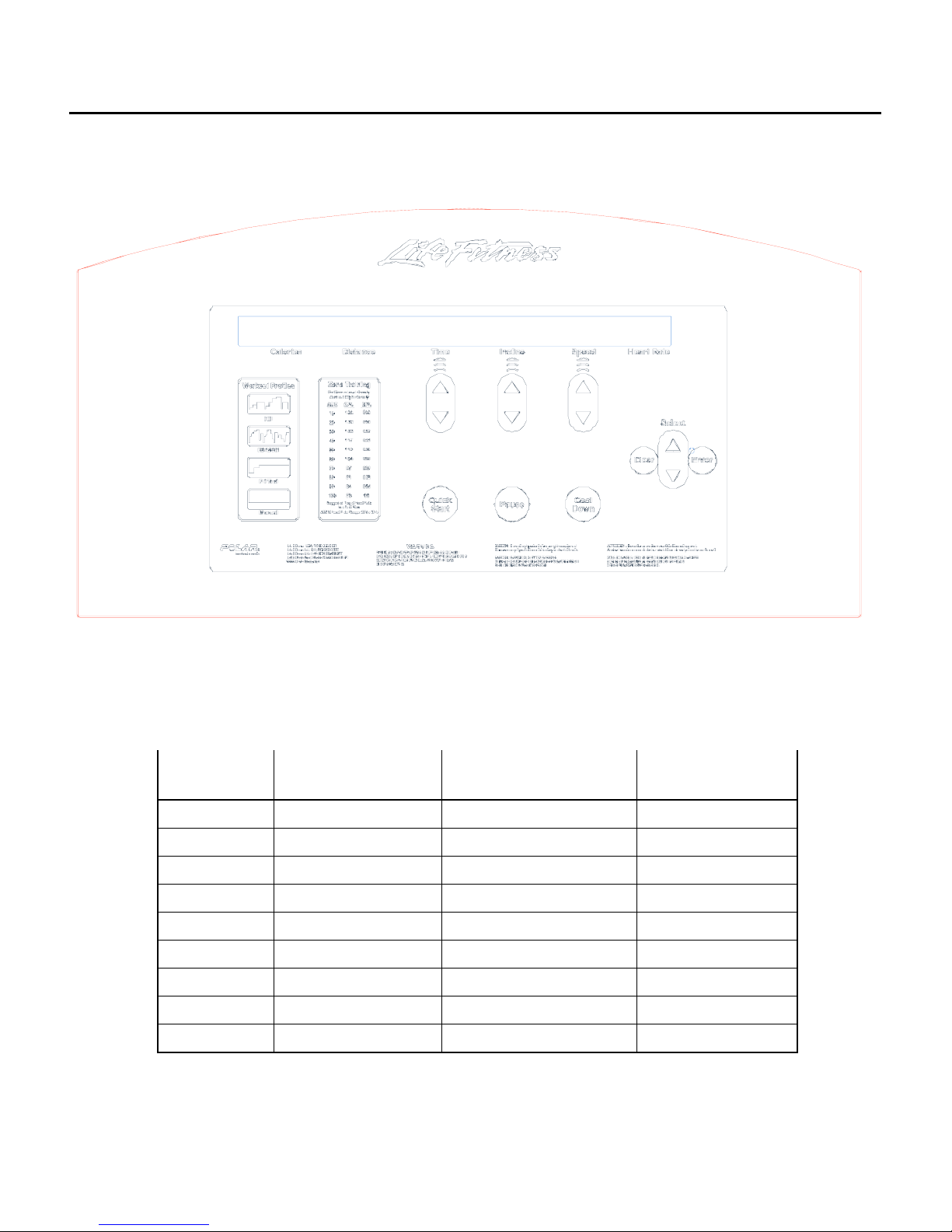

Console, Overlay Assembly & Overlay S/N TTW100000 and up
LANGUAGE CONSOLE OVERLAY/BEZEL ASSY OVERLAY
ENG/ENG AK58-00481-0001 AK58-00526-0001 0K58-01432-0001
ENG+MET AK58-00481-0002 AK58-00526-0001 0K58-01432-0001
GERMAN AK58-00481-0003 AK58-00526-0003 0K58-01432-0003
SPANISH AK58-00481-0004 AK58-00526-0004 0K58-01432-0004
JAPANESE AK58-00481-0006 AK58-00526-0006 0K58-01445-0006
FRENCH AK58-00481-0007 AK58-00526-0007 0K58-01432-0007
ITALIAN AK58-00481-0008 AK58-00526-0008 0K58-01432-0008
DUTCH AK58-00481-0009 AK58-00526-0009 0K58-01432-0009
PORUGUESE AK58-00481-0010 AK58-00526-0010 0K58-01432-0010

ARCTIC SILVER 93Ti 93T-XXXX-08
Console Components S/N TTW100000 and up
Qty needed is 8
10-32X 8 PHL PAN
1 ST BZ B
0017-00101-1288
DECAL: CONSOLE; REA
R
0K58-01357-0000
BEZEL: CASE; CONSOLE;
FRONT; STEALTH; 93T; JAP
0K58-01273-0003 (JAP only)
0K58-01273-0003 (ENG)
Accessory Cover
0K58-01280-0000
Qty needed is 13
6-19X 6 PHL PAN
PLT G5 ZN B
0017-00101-1275
PROG CONS PCB ASSY:
A084-92185-A011 (JAP only)
A084-92184-A009 (ENG)
CBL-ASSY: POLAR/E-STOP
AK58-00237-0000
SWITCH: STOP; ROUND
0K58-01321-0000
PAD: RUBBER; CD-TRAY
0K58-01359-0000
DISC MAGNET
0K40-01070-0000
STOP-SW & TETHER ASSY
AK58-00322-0000
POLAR PCB W/HEADER
AK39-00064-0000
PCB-ASSY: H/R; (JAP only)
SIDE-CONSOLE B
B084-92255-B000
CBL-ASSY: (JAP only)
SIDE-CONSOLE
AK58-00031-0000
CASE: CONSOLE; REAR
0K58-01272-0000
TAPE: ADHESIVE
0K39-01044-0000
SWITCH: MICRO;
GOLD; 150GR
0017-00032-0185

ARCTIC SILVER 93Ti 93T-XXXX-08
Uprights & Handrails S/N TTW100000 and up
Handrail Hex Nut (4)
0017-00103-0327
Handrail-Assy: Boxed; Short
AK58-00259-0001
Top RT Handrail Boot
0K58-01303-0001
Console/Cup Holder
Mounting Screw (8)
0017-00101-1780
Bottom RT
Handrail Boot
0K58-01304-0001
Handrail Mounting
Screw (4)
0017-00101-1774
Handrail Boot
Screws (6)
0017-00101-1770
Bottom LT
Handrail Boot
0K58-01304-0002
Console Mounting
Screw (4)
0017-00101-1773
Top LT Handrail Boot
0K58-01303-0002
Handrail Screw (2
)
0017-00101-1773
Handrail Tube Cap (2)
0K58-01323-0000
Upright, RT
AK58-00311-0003
Upright, LT
AK58-00311-0004
Upright Tube Cap (2)
0K58-01302-0000 Upright Tube
Cap Screw (2)
0017-00101-1772
Grommet (2)
0017-00042-0326
Upright Plug (2)
0K58-01305-0002 Upright Mounting
Screw - 0017-00101-1778 (6)
Washer - 0017-00104-0325 (6)
Upright, Plug (2)
0K58-01305-0002
Handrail Collar (2)
0K58-01348-0000

ARCTIC SILVER 93Ti 93T-XXXX-08
ERGO-BAR W/HR ASSY– AK60-00147-0000 S/N TTW100000 and up
ERGO-BAR OVERMOLD
ASSY: PURCH. D
AK58-00376-0000 8-16X18 PHL PAN
PLT ST BO B
0017-00101-0824
Heart Rate Sensor Kit
KIT: SERV; MFG; ELECTRODES; LARGE
GK20-00002-0005
GASKET: ERGOBAR
0K58-01347-0000
COVER: I/R LENS SENSOR
0K58-01103-0000

ARCTIC SILVER 93Ti 93T-XXXX-08
Rear End Caps & up Holders S/N TTW100000 and up
CUP-COVER ASSY, LT
AK58-00247-0002
CUP-COVER ASSY, R
T
AK58-00247-0001
Qty needed ( 4 )
10-16X 8 PHL PAN
B ST ZS B
0017-00101-177
2
ENDCAP: REAR
0K58-01268-0000
ENDCAP: REAR
0K58-01268-0000

ARCTIC SILVER 93Ti 93T-XXXX-08

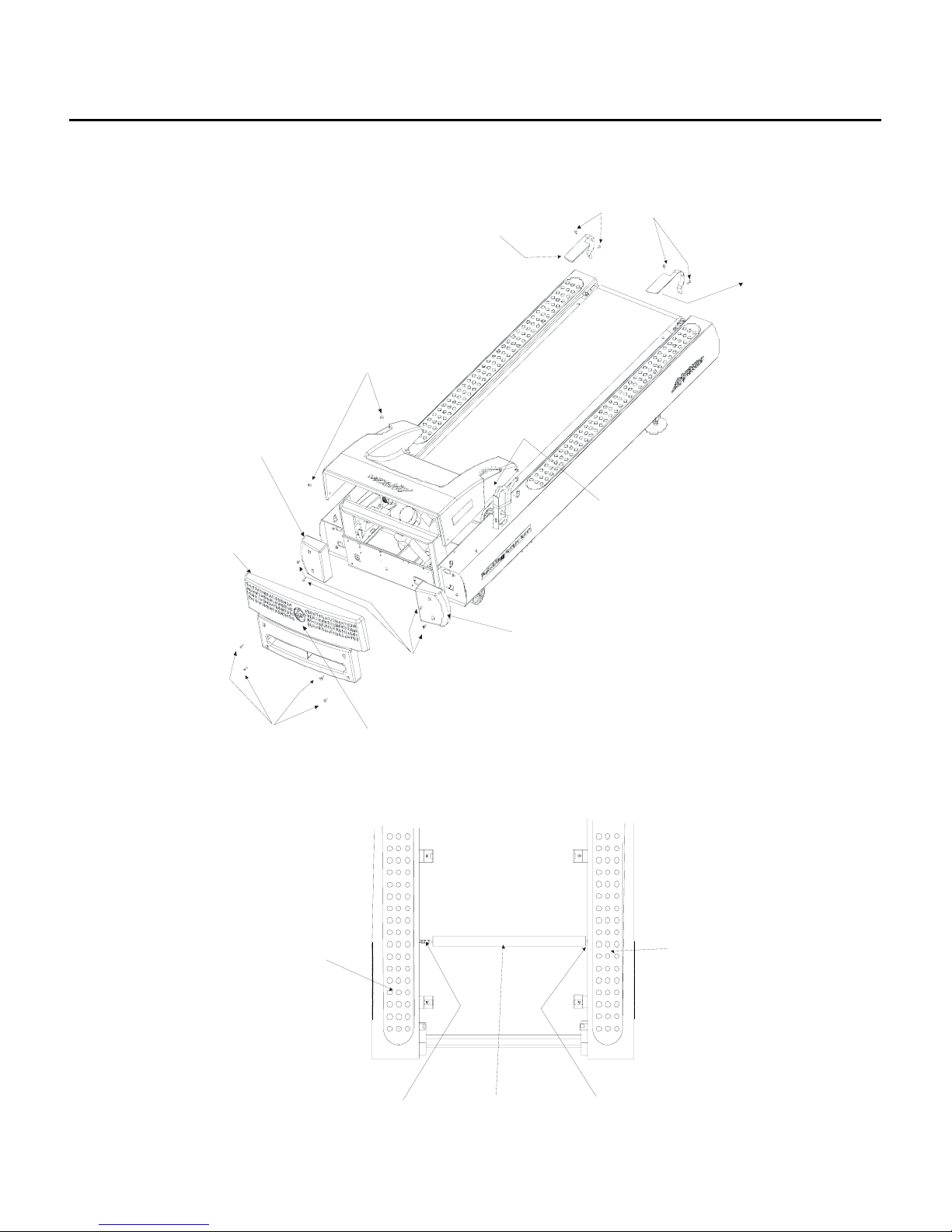

Motor Cover, Front Cover, Front End Caps & Tinsel S/N TTW100000 and up
10-16X 8 PHL PAN
B ST ZS B ( 4 )
0017-00101-1772
GUARD-ASSY: MFG;
RT; 3.50 B
AK58-00360-0001
MOTOR-SHROUD ASSY:
MFG; 93T
AK58-00617-0000
10-16X 8 PHL PAN
B ST ZB B
0017-00101-1776
GUARD-ASSY: MFG;
LT; 3.50 B
AK58-00360-0002
10-32x10 PHL PAN
MS ST ZS B ( 4 )
0017-00101-1771
FRONT-PANEL
W/MEDALLION ASSY
AK58-00272-0000
MEDALLION-ASSY:
PURCH;LF-BUG B
AK58-00245-0000
ENDCAP: FRONT
0K58-01267-0000
ENDCAP: FRONT
0K58-01267-0000
10-16X 8 PHL PAN
B ST ZS B ( 4 )
0017-00101-1772
RAIL: ANTI-SLIP;
STEALTH-GREY
0K58-01376-0000
SPRING: EXTENSION; TINSEL
0017-00009-0901
TINSEL:
0K58-01102-0001
8-32X 6 SLT HXW
TT ST ZN B
0017-00101-0975
RAIL: ANTI-SLIP;
STEALTH-GREY
0K58-01376-0000

ARCTIC SILVER 93Ti 93T-XXXX-08
On-Off Switch, Access Plate & Grommets S/N TTW100000 and up
FRONT VIEW
SWITCH: ROCKER;
22A DPST
0017-00032-0198
BACK VIEW
ACCESS-PLATE ASSY
AK58-00329-0000
GROMMET:
NYLON; SCREW ( 2 )
0017-00042-1147
GROMMET: PLASTI; .
130/.005 S/C#13-B ( 8 )
0017-00042-0326
CLIP: WIRE; PUSH-
MTG; 3/4"; S/C#80-B
0017-00042-0840
CLAMP: WIRE; 5/8"
0017-00042-1072
Ink transfer decal can not
be replaced in the field,
it can only be touched up.
( See SB No. GN05032101N )
DECAL: FRAME; LF-LOGO
0K60-01193-0000
GROMMET: PLASTI; .
130/.005 S/C#13-B ( 2 )
0017-00042-0326
8-32X 6 PHL PAN
TT ST PH B ( 2 )
0017-00101-0162
GROMMET: PLASTI; .
130/.005 S/C#13-B ( 4 )
0017-00042-0326

ARCTIC SILVER 93Ti 93T-XXXX-08
Belt, Deck & Rear Roller S/N TTW100000 and up
DECK: TREADMILL; WAXLESS
0K58-01091-0002
1/4 -20x20 HXS FLT L
CS ST ZB B (4)
0017-00101-1775
SPRING: TECSPAK,
BLACK S/C-B (8)
0K40-01026-0002
LBL: BELT-LIMIT; RT.
M051-00K58-A100
LBL: CAUTION;
HI-VOLT;ENG+FRN B
M051-00K58-A014
BELT: WALKING; BLK;
W/LOGO; NP7131 C
0K58-01400-0000
LBL: BELT-LIMIT; LT.
M051-00K58-A101
ROLLER: REAR; 3.5"
0K58-01002-0000
Rear Roller Adjusting Bolt ( 2 )
3/8 -16X48 HEX SOC L CS ST SS B
0017-00101-1880
NUT 1/4 -20 TINNERMAN
D ST ZN B (4)
0017-00103-0198
1/4 -20X16 HXS BUT
L CS G8 BO B (8)
0017-00101-1652
WSH 255-.562-046
FL-D ST ZN B (8)
0017-00104-0072

ARCTIC SILVER 93Ti 93T-XXXX-08
Lift Frame , Lift Motor & IEC Receptacle S/N TTW100000 and up
Cotter Pin
0017-00007-0208
Clevis Pin
0017-00007-0214
Lift Motor
0K58-01062-0000
Lock Nut (2)
0017-00103-0285
Hex Screw (2)
0017-00101-1777
Flat Washer (2)
0017-00104-0259
Bronze Sleeve (2)
0K58-01089-0000
Line Cord Clip
0017-00042-0840
Lift Frame
0K58-01066-0000
Lock Nut
0017-00103-0025
Lift Motor Hex Bolt
0017-00101-1021
Vinyl Cap
0017-00042-1075
Wheel (2)
0K58-01071-0000
Phillips Screw (2)
0017-00101-1612
Washer (2)
0017-00104-0189
Lift Frame End Cap (4)
0017-00042-1076
Frame Screws
0017-00101-1723
Frame Screws *
0017-00101-1723
Line-Cord Socket Brkt *
0K58-01419-0000
Line-Cord
Lower Receptacle Brkt
0K58-01420-0000
Frame Screws
0017-00101-1723
IEC Receptacle *
0017-00003-0949
* RECEPTACLE-ASSY:
MFG; RECESS B
AK58-00514-0000
COVER: PIVOT;
LIFT-FRAME (2)
0K58-01322-0000

ARCTIC SILVER 93Ti 93T-XXXX-08
Idler Arm Assy. S/N TTW100000 and up
Idler Arm Assembly
AK58-00053-0002
Idler Pin
0017-00007-0248
Idler Spring Damper
0K26-02055-0000
Idler Spring
0k58-01085-0000
Wire Clamp
0017-00042-1072
Screw
0017-00101-1193
Limit Switch
0017-00032-0195
Limit Switch Cable
AK58-00027-0000
Motor Pulley
0K58-01057-0001
Allen Screw
0017-00101-0333
Grommet
0017-00042-0326
Drive Belt
0K58-01114-0000
Idler Pulley
0K26-01731-0000
Threaded Idler
0K58-01084-0002
Lock Nut: Idler
0017-00103-0324
Shaft
Anti Static Brush
0K58-01263-0001
Tinsel Bracket Screw(2)
0017-00101-1193
Plug
0017-00042-1053
(For units not
equipped with
circuit breaker.)

ARCTIC SILVER 93Ti 93T-XXXX-08

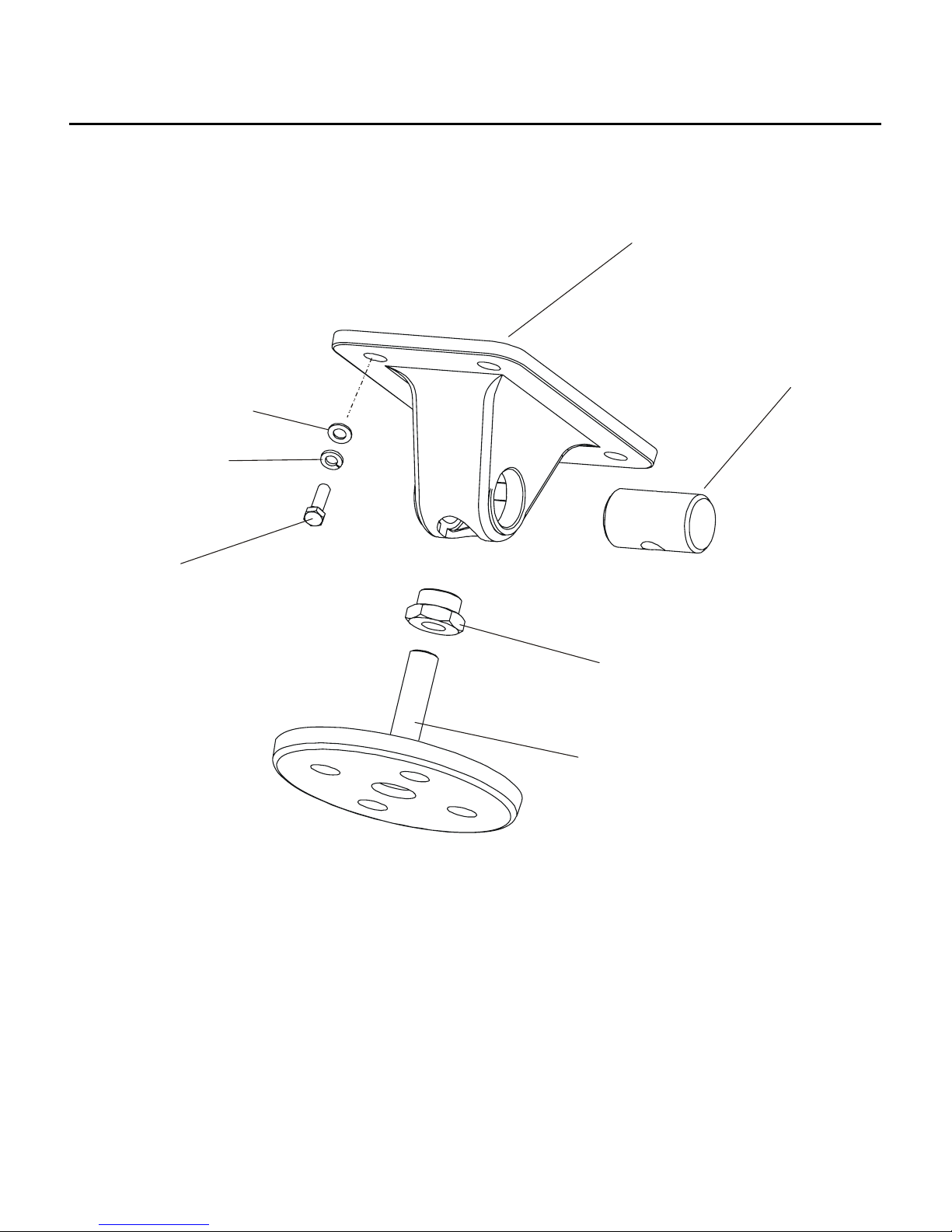

Leg Leveler Assembly – AK58-00370-0000 S/N TTW100000 and up
Bracket Leveler
0K58-01083-0000
Pivot Pin
0K58-01098-0000
Leveling Foot
0K58-01110-0000
Stop Nut
0K58-01099-0000
Hex Nut (4)
0017-00101-1652
Lock Washer (4)
0017-00104-0333
Flat Washer (4)
0017-00104-0190

ARCTIC SILVER 93Ti 93T-XXXX-08
Front Roller Assy.– AK58-00066-0000 S/N TTW100000 and up
Polley V Pulley 8”
0K58-01105-0000
Hex Bolt
0017-00101-1632 Flat Washer
0017-00104-0330
Lock Washer
0017-00104-0005
Flat Washer
0017-00104-0043
Mounting Bolt
0017-00101-0974
ROLLER: FRONT; 3.5"
0K58-01001-0001

ARCTIC SILVER 93Ti 93T-XXXX-08

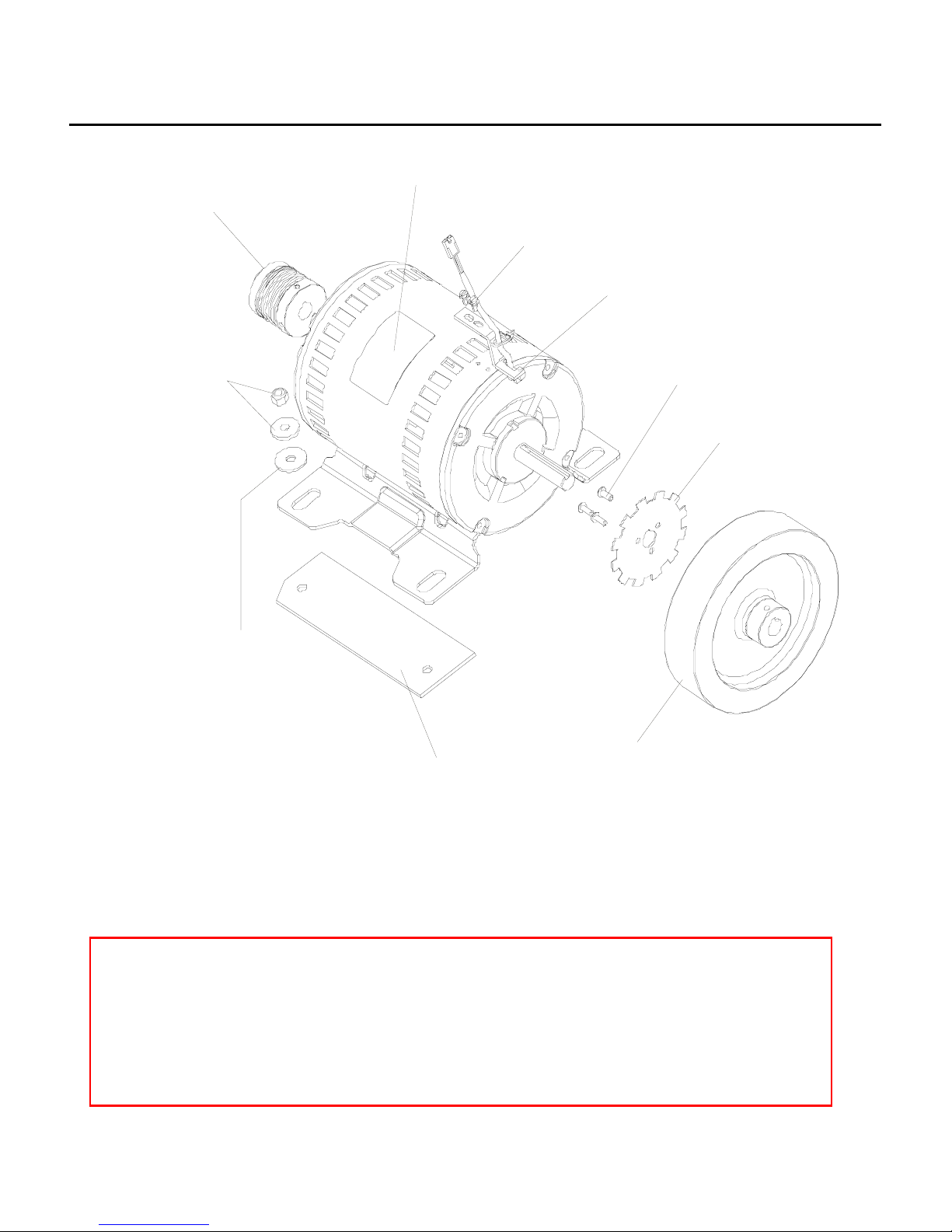

Drive Motor Assembly for 93T-0100-08 only S/N TTW100000 and up
Poly-V Pulley
0K58-01057-0001
Motor w/Caution Label
AK58-00171-0001
Slotted Hex Screw (2)
0017-00101-0975
Speed Sensor Assembly
AK58-00073-0001
Sensor Wheel
Mounting Screw (3)
0017-00101-1631
Sensor Wheel
0K58-01094-0000
Locking Nut (4)
0017-00103-0027
Washer (4)
0017-00104-0409
Insulating Shoulder
Washer (4)
0K58-01255-0000
Insulating Pad (2)
0K58-01256-0001
Flywheel Assembly
AK58-00090-0002
(Assembly includes
Flywheel 0K58-01092-0002
Sensor Wheel and
Mounting Screws)
Please note:
93T-0100-08 Uses above Drive Motor
Components only

ARCTIC SILVER 93Ti 93T-XXXX-08
Drive Motor Assembly S/N TTW100000 and up
Please note: This Drive Motor set-up is to be used on
the following Models Only
93T-0101-08 93T ENG+MET 230/50 CON 93T-0400-08 93T SPN/MET 120/60 DOM
93T-0102-08 93T ENG+MET 240/50 UK 93T-0401-08 93T SPN/MET 230/50 CON
93T-0103-08 93T ENG+MET 220/60 DOM 93T-0501-08 93T ITL/MET 230/50 CON
93T-0104-08 93T ENG+MET 240V+ AUS 93T-0601-08 93T DUT/MET 230/50 CON
93T-0105-08 93T ENG+MET 100/50 DOM 93T-0705-08 93T JAP/MET 100/50 DOM
93T-0106-08 93T ENG+MET 200/50 DOM 93T-0706-08 93T JAP/MET 200/50 DOM
93T-0109-08 93T ENG+MET 230/50 UK 93T-0800-08 93T POR/MET 120/60 DOM
93T-0201-08 93T GER/MET 230/50 CON 93T-0801-08 93T POR/MET 230/50 CON
93T-0300-08 93T FRN/MET 120/60 DOM 93T-1601-08 93T ENG/TUR 230/50 CON
93T-0301-08 93T FRN/MET 230/50 CON
Poly-V Pulley
0K58-01057-0001
Locking Nut (4)
0017-00103-0027
Washer (4)
0017-00104-0409
Insulating Shoulder
Washer (4)
0K58-01255-0000
Insulating Pad (2)
0K58-01256-0001
FLYWHEEL: CAST-IRON;
W/TAPER
0K58-01092-0004
Set Screw(2)
0017-00101-0333
Key is part of Drive
Motor only, can not
get it separate.
TAPERED DRIVE MOTOR
MOTOR-DRIVE ASSY: MFG; W/LBL B
AK58-00171-0002
3/8 -16X16 UNS HXW
L BLT G5 ZN B
0017-00101-1885

ARCTIC SILVER 93Ti 93T-XXXX-08
Wax/Lift Assembly For - 93T-0100-08 ONLY S/N TTW100000 and up
Wax Lift Mounting Screw (3)
0017-00101-1641
Pin Collar Spacer (3)
0017-00042-1070
Wax/Lift PCB
A084-92261-A001
Spacer (3)
0017-00042-1149
Mounting Bracket
0K58-01316-0000
Plastic Grommet (4)
0017-00042-0821
Locking Nut (3)
0017-00103-0052
Motor Capacitor
PCB Assembly
B084-92241-A00
0
Motor Capacitor
PCB Mounting
Screw (4)
0017-00101-1253
PLEASE NOTE:
This is only for
93T-0100-08 ENG/ENG 120/60 DOM UNITS

ARCTIC SILVER 93Ti 93T-XXXX-08
Motor Controller Assy. – 93T-0100-08 ONLY S/N TTW100000 and up
PLEASE NOTE:
This Motor Controller is only used on
93T-0100-08 93T ENG/ENG 120/60 DOM UNITS
AK60-00171-0000 - MTR-CNTRL ASSY: MFG; W/O FERRITE; 100-120; S/C-C

ARCTIC SILVER 93Ti 93T-XXXX-08
DSP-Controller Assy. – ALL OTHER MODELS S/N TTW100000 and up
VOLTAGE PART NUMBER PART DESCRIPTION
100-120 GK58-00002-0118 KIT: SERV; MFG; DSP CONTROLLER 100-120; LED
200-240 GK58-00002-0120 KIT: SERV; MFG; DSP CONTROLLER 200-240; LED
