Life Gear 20270 User manual

MAGNETIC UPRIGHT BIKE
ITEM NO.: 20270
OWNER’S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
prior notice. 2016, March.

1
TABLE OF CONTENTS
WARRANTY ------------------------------------------------------------------------------- 2
IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3
PARTS LIST ------------------------------------------------------------------------------- 4
HARDWARE AND TOOLS PACK ---------------------------------------------------- 6
EXPLODED VIEW ----------------------------------------------------------------------- 7
ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8
HOW TO MOVE THE UPRIGHT BIKE --------------------------------------------- 15
MAINTENANCE -------------------------------------------------------------------------- 15
OPERATING THE COMPUTER ------------------------------------------------------ 16
ADJUSTMENTS -------------------------------------------------------------------------- 17
TROUBLESHOOTING ----------------------------------------------------------------- 18
WARM UP AND COOL DOWN ROUTINE ---------------------------------------- 19

2
ONE YEAR LIMITED WARRANTY
LifeGear Inc. warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that it
has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's
obligation under this warranty is limited to replacing or repairing free of charge, any parts
which may prove to be defective under normal home use. This warranty does not include
any damage caused by improper operation, misuse or commercial application.
From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.
This warranty is offered only to the original owner and is not transferable. Proof of
purchase is required.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase

3
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions should always be followed, including the following important
safety instructions when using this equipment. Read all instructions before using
this equipment.
1. Read all instructions and follow it carefully before using this equipment. Make sure the
equipment is properly assembled and tightened before use.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercises are
recommended.
3. Please make sure all parts are not damaged and fixed well before use. This
equipment should be placed on a flat surface when using. Using a mat or other
covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes
that may catch any part of the equipment; remember to tighten the pedaling straps.
5. Do not attempt any maintenance or adjustments other than those described in this
manual. Should any problems arise, discontinue use and consult your local dealer.
6. Do not use the equipment outdoors.
7. This equipment is for household use only. It is not a commercial model.
8. Only one person at a time should use this equipment.
9. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop
exercising immediately and consult your physician before continuing.
10. Care should be taken in mounting or dismounting the equipment.
11. Do not allow children to use or play on the equipment. Keep children and pets away
from the equipment while in use. This machine is designed for adults use only. The
minimum free space required for safe operation is not less than two meters.
12. The maximum weight capacity for this product is 110 kgs.
WARNING: Before beginning any exercise program consult your
physician. This is especially important for people who are over 35 years old or who
have pre-existing health problems. Read all instructions before using any fitness
equipment. Do not operate this exercise equipment without properly fitted guards,
as the moving parts can present a risk of serious injury if exposed.
CAUTION: Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.

4
PARTS LIST
No. Description Qty No. Description Qty
001 Main Frame 1 026 Sensor with Wire (L=650mm) 1
002 Handlebar Ø22 1 027 Seat Cushion (DD-98-2) 1
003 Handlebar Post Ø50 1 028 Transport Wheel Cap Ø50 2
004 Rear Stabilizer Ø50x1.5Tx480mm 1 029 Rear Stabilizer End Cap Ø50 2
005 Flywheel Ø180 1 030 Flywheel Axle Ø15x90 1
006 Front Stabilizer Ø50x1.5Tx380mm 1 031 Bearing 6203Z 2
007 Tension Control Knob 1 032 Wave Washer Ø19xØ15x0.3T 3
008 Seat Post Knob M12 1 033 Hexagon Nylon Nut M6 1
009 Belt (270/J4) 1 034 Cap Nut M10 4
010 Computer (FB106) 1 035 Carriage Bolt M10x60 4
011 Magnet Plate 1 036 Curve Washer Ø22xØ10.5x1.5T 4
012 Seat Post Bushing 1 037 Curve Washer Ø16xØ8.5x1.5T 6
013L Left Cover 1 038 Washer Ø18.1xØ8.5x1.5T 4
013R Right Cover 1 039 Hexagon Head Bolt M8x20 1
014 Spring Ø20x45xδ2.8 1 040 Cross Recessed Button Head
Tapping Screw ST4.2x25 4
015 Cross Recessed Pan Head
Tapping Screw ST2.9x9.5 2 041 Spring Ø10x50xδ1.0 1
016 Washer Ø35xØ23x2.0T 1 042 Hexagon Nylon Nut M8 4
017 Bearing Nut I 7/8” 1 043 Cross Recessed Countersunk
Head Screw M6x23 1
018 Hexagon Nut 7/8" 1 044 Idler Arm 1
019 Belt Pulley with Crank 1 045 Bearing 6000Z 2
020 Left Foot Pedal (30X) 1 046 Curve Washer Ø18xØ5x1.5T 1
021 Right Foot Pedal (30X) 1 047 Cross Recessed Pan Head Bolt
M5x10 2
022 Bearing Cup Ø55.6x16 2 048 Washer Ø40x2.8T 1
023 Ball Bearing Ø44.5 2 049 Handlebar End Cap Ø22 2
024 Hexagon Socket Pan Head Cap
Bolt M8x15 6 050 Handlebar Foam Grip Ø20xØ26x500 2
025 Seat Post (D38) 1 051 Cross Recessed Truss Head
Tapping Screw ST4.2x20 2

5
PARTS LIST
No. Description Qty No. Description Qty
052 Cross Recessed Pan Head Bolt
M6x12 1 059 Extension Sensor Wire (L=820mm) 1
053 Hand Pulse Sensor with Wire
(L=550mm) 2 060 Cover Cap Ø60 2
054 Tension Cable 1 061 Washer Ø12xØ6.5x1.0T 1
055 Hexagon Nut M6 1 062 Washer Ø24xØ8.5x2.0T 1
056 Washer Ø16xØ6.5x1.5T 1 063 Spring Washer Ø13xØ8.5x3.0T 1
057 Cross Recessed Pan Head Bolt
M5x50 1 064 Self Drilling Screw ST4.2x20 4
058 Bearing Nut II 15/16” 1

6
HARDWARE AND TOOLS PACK
(8) Seat Post Knob
1 PC
Allen Wrench with Phillips Screwdriver
1 PC
Multi Hex Tool with Phillips Screwdriver
1 PC
Multi Hex Tool
1 PC
(34) Cap Nut
4 PCS
(35) Carriage Bolt
4 PCS
(36) Curve Washer
4 PCS

7
6
28
28
34
35
36
23
7
10
47
24
37
49
50
13R
51
59
53
53
53
60
5746
50
22
23
17
16
18
5
9
11
13L
19
20
21
22
23
30
31
31
56
33
39
14
42
44 45
61
48
41
54
58
38
62
59
60
40
40
1
37
26 24
24
37
54
51
27
38
42
25
12
29
4
29
35
32
63
52
8
36
34
55
43
26 15
64
64
64
64
EXPLODED VIEW

8
ASSEMBLY INSTRUCTIONS
STEP 1

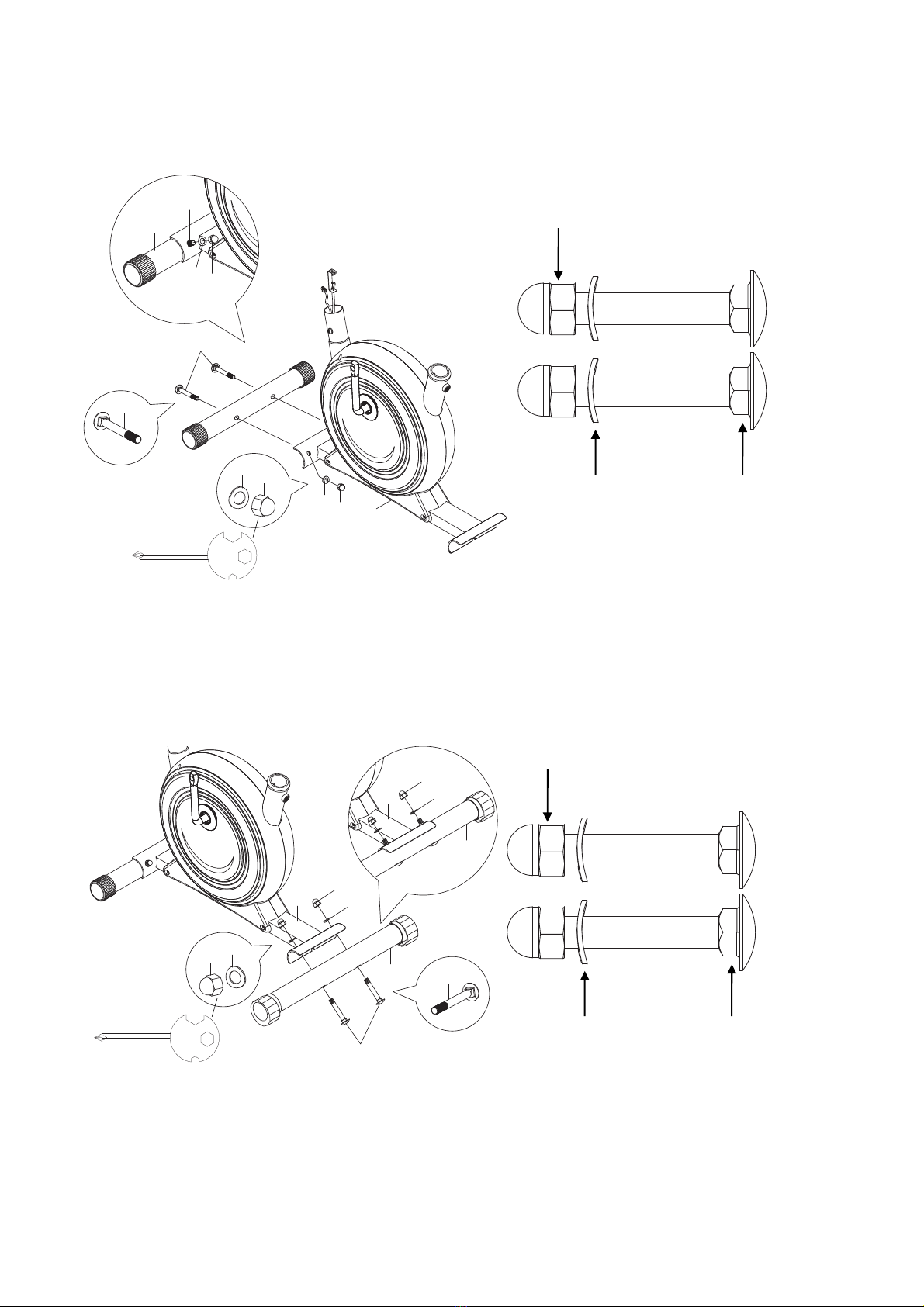

Position the Front Stabilizer (6) in front of the Main Frame (1) and align bolt holes.
Attach the Front Stabilizer (6) onto the front curve plate of the Main Frame (1) with two Cap
Nuts (34), two Carriage Bolts (35), and two Curve Washers (36). Tighten cap nuts with the
Multi Hex Tool with Phillips Screwdriver provided.
STEP 2
Position the Rear Stabilizer (4) behind the Main Frame (1) and align bolt holes.
Attach the Rear Stabilizer (4) onto the rear curve plate of the Main Frame (1) with two Cap
Nuts (34), two Carriage Bolts (35), and two Curve Washers (36). Tighten cap nuts with the
Multi Hex Tool with Phillips Screwdriver provided.
6
34
35
36 1
34
36
35
34
36
6
35
1
(34) Cap Nut
2 PCS
(35) Carriage Bolt
2 PCS
(36) Curve Washer
2 PCS
1
3436
35
4
35
36
34
1
4
36
34
(34) Cap Nut
2 PCS
(35) Carriage Bolt
2 PCS
(36) Curve Washer
2 PCS

9
STEP 3
The Foot Pedals, Pedal Shafts and Pedal Straps are marked “R” for Right and “L” for
Left.
Select the Left Foot Pedal Strap (20) which has L marked on the side of the strap. Snap the
three hole end of the strap onto the inside edge of the Left Foot Pedal (20). Snap the other
end of the strap onto the outside edge of the Left Foot Pedal (20). Select adjustment holes
which allow your foot to be easily removed from the foot pedal.
Use the same procedure to snap the Right Foot Pedal Strap (21) onto the Right Foot Pedal
(21).
STEP 4
Insert the pedal shaft of Left Foot Pedal (20) into threaded hole in the left Crank (19). Turn
the pedal shaft by hand in the counter-clockwise direction until snug.
Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip the
threads.
Tighten the pedal shaft of Left Foot Pedal (20) with the Multi Hex Tool provided.
Insert pedal shaft of Right Foot Pedal (21) into threaded hole in right Crank (19). Turn the
pedal shaft by hand in the clockwise direction until snug. Tighten pedal shaft of Right Foot
Pedal (21) with the Multi Hex Tool provided.
1
19
20
21
Left Foot Pedal Right Foot Pedal
21
20

10
STEP 5
Remove four Hexagon Socket Pan Head Cap Bolts and four Curve Washers from the Main
Frame (1). Remove bolts with the Allen Wrench with Phillips Screwdriver provided.
STEP 6
It is recommended to have a second person assist with this step. One person should hold
the Handlebar Post (3) in place while the other person to insert and connect the wires.

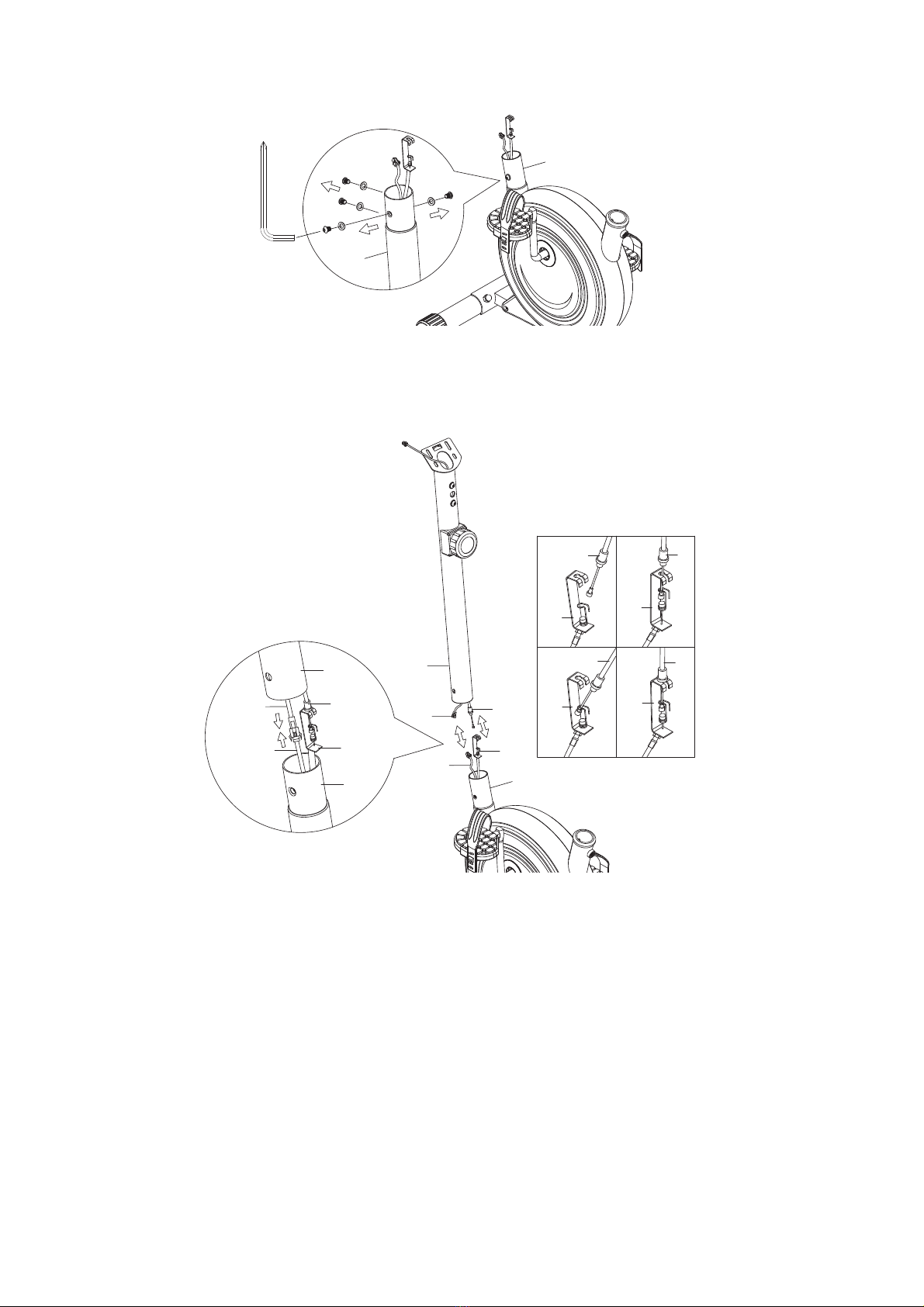

Connect the Sensor Wire (26) from the Main Frame (1) to the Extension Sensor Wire (59)
from the Handlebar Post (3).
Put the cable end of resistance cable of Tension Control Knob (7) into the cable lock of
Tension Cable (54), see Figure A.
Pull the resistance cable of Tension Control Knob (7) up and force it into the slot of metal
bracket of Tension Cable (54), see Figure B.
Insert the metal fitting on the resistance cable of Tension Control Knob (7) into the hole at
the end of the slot in the metal bracket of Tension Cable (54), see Figure C.
Connect the resistance cable of Tension Control Knob (7) to Tension Cable (54) complete,
see Figure D.
1
1
3
59
1
7
26
54
54
26
59
3
1
7
A
B
C
D
54
54
54
54
7
7
7
7

11
STEP 7
Insert the Handlebar Post (3) onto the tube of the Main Frame (1) and secure with four
Hexagon Socket Pan Head Cap Bolts (24) and four Curve Washers (37) that were removed.
Tighten bolts with the Allen Wrench with Phillips Screwdriver provided.
STEP 8
Remove two Hexagon Socket Pan Head Cap Bolts and two Curve Washers from the
Handlebar Post (3). Remove bolts with the Allen Wrench with Phillips Screwdriver
provided.
24 37
37
24
3
1
2437
2437
3
3

12
STEP 9
Insert the Hand Pulse Sensor Wires (53) into the hole on the Handlebar Post (3).
Pull the Hand Pulse Sensor Wires (53) out from the top end of the Handlebar Post (3).
STEP 10
Attach the Handlebar (2) onto the Handlebar Post (3) with two Hexagon Socket Pan Head
Cap Bolts (24) and two Curve Washers (37) that were removed. Tighten bolts with the
Allen Wrench with Phillips Screwdriver provided.
2
53
2
3
53
3
2
53
3
24
37
24
37

13
59
10
2
3
59
53
2
10
53
3
10
STEP 11
Remove two Cross Recessed Pan Head Bolts from the Computer (10). Remove bolts with
the Allen Wrench with Phillips Screwdriver provided.
It is recommended to have a second person assist with this step. One person should hold
the Computer (10) in place while the other person to connect the wires.
Connect the Extension Sensor Wire (59) and Hand Pulse Sensor Wires (53) to the wires that
come from the Computer (10).
STEP 12
Tuck wires into the Handlebar Post (3) and then attach the Computer (10) onto the top end
of the Handlebar Post (3) with two M5x10 Cross Recessed Pan Head Bolts (47) that were
removed. Tighten bolts with the Allen Wrench with Phillips Screwdriver provided.
3
10
47
3
47
10

14

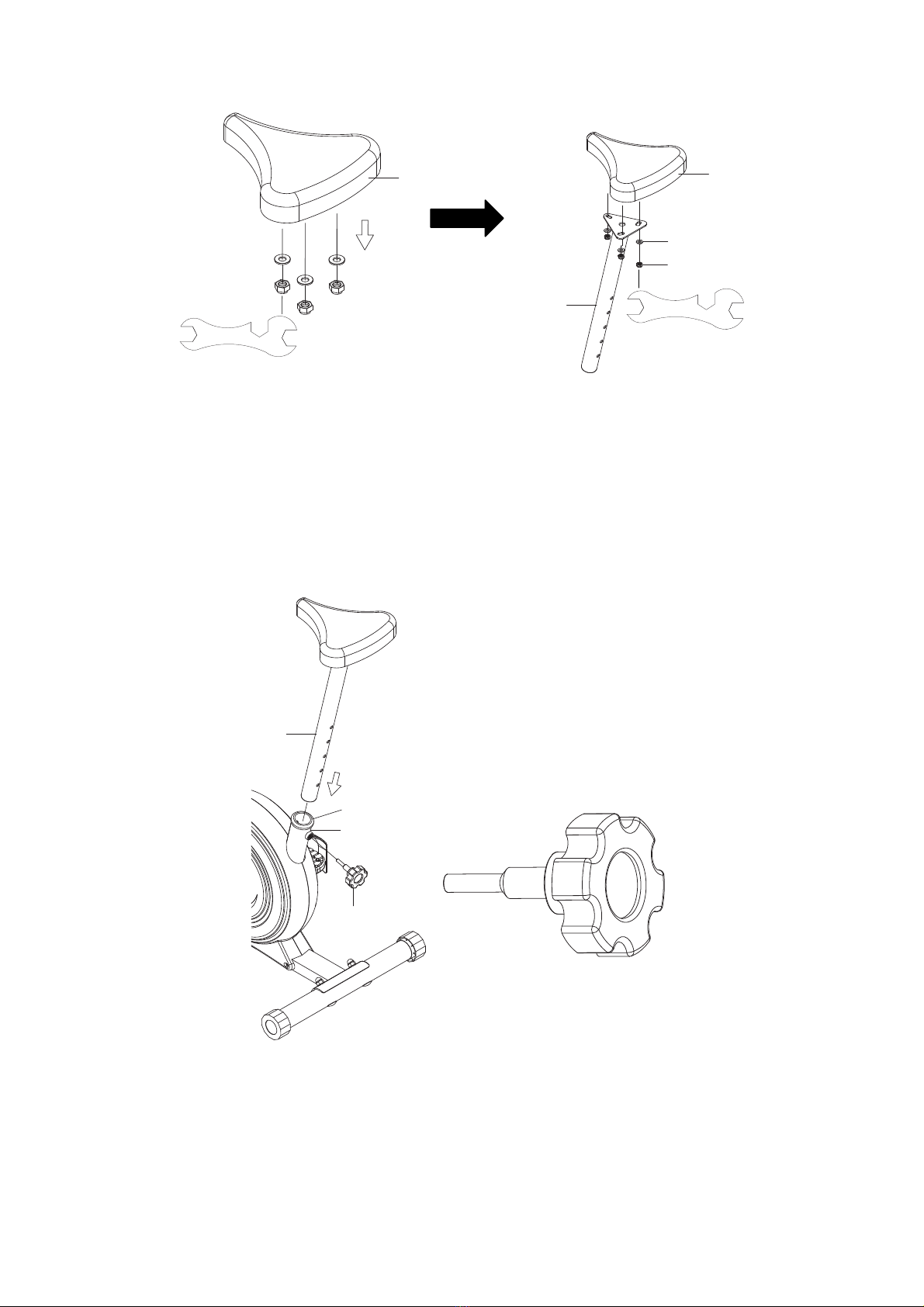

STEP 13
Remove three Hexagon Nylon Nuts and three Washers from underside of the Seat Cushion
(27). Remove hexagon nylon nuts with the Multi Hex Tool provided.
Guide bolts on underside of the Seat Cushion (27) through holes on top of the Seat Post (25),
attach with three removed Hexagon Nylon Nuts (42) and Washers (38). Tighten hexagon
nylon nuts with the Multi Hex Tool provided.
STEP 14
Insert the Seat Post (25) into the Seat Post Bushing (12) of the Main Frame (1) and then
attach the Seat Post Knob (8) onto the tube of the Main Frame (1) by turning it in a clockwise
direction to tighten the Seat Post (25) in the suitable position.
27
27
38
42
25
12
8
25
1
(8) Seat Post Knob
1 PC

15
HOW TO MOVE THE UPRIGHT BIKE
This upright bike has a pair of Transport Wheel Caps on the both ends of the front stabilizer
and can be carefully tilted onto its Transport Wheel Caps for easy moving and storage.
To move the upright bike, firmly grasp the Handlebar with both hands. Next, carefully push
the upright bike down until it rolls freely on the Transport Wheel Caps.
CAUTION: It is suggested you always use the aid of a second person when moving
the upright bike.
MAINTENANCE
Cleaning
The upright bike can be cleaned with a soft clean damp cloth. Do not use abrasives or
solvents on plastic parts. Please wipe your perspiration off the upright bike after each use.
Be careful not to get excessive moisture on the computer display panel as this might cause
an electrical hazard or electronics to fail.
Please keep the upright bike, especially the computer console out of direct sunlight to
prevent screen damage.
Please inspect all assembly bolts, nuts, screws, and pedals on the machine for proper
tightness every week.
Storage
Store the upright bike in a clean and dry environment away from children.
Handlebar
Transport Wheel Cap

16

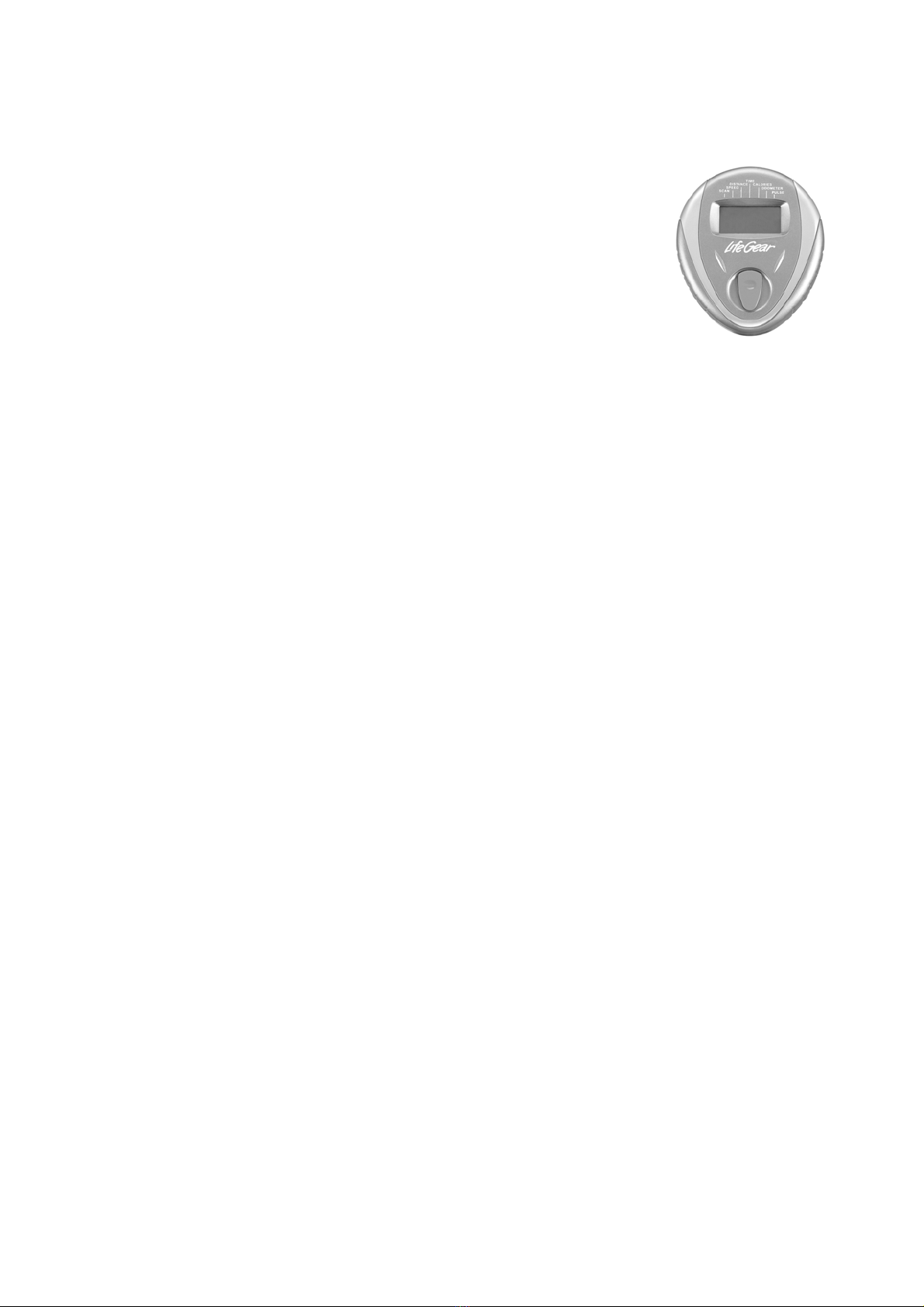

OPERATING THE COMPUTER
USING YOUR COMPUTER
The computer can be activated by pressing the button or by pedaling.
If you leave the equipment idle for 4-5 minutes, the power will turn off
automatically.
BUTTON FUNCTIONS:
Press the button to select the functions of the computer.
Press and hold the button for 3 seconds to reset all data values to zero except the
ODOMETER data values.
COMPUTER FUNCTIONS:
SCAN: Automatically scans each function in sequence with change every 6 seconds.
SPEED: Displays the current training speed.
DISTANCE: Displays the cumulative distance travelled during workout.
TIME: Displays your elapsed workout time in minutes and seconds.
ODOMETER: Displays the total accumulative distance travelled. The ODOMETER data
values can not be clear to zero by pressing and holding the button for 3 seconds. If you
take out the batteries from the computer, the ODOMETER data values will clear to zero.
CALORIES: Displays approximate amount of calories burned during workout.
(This data is a rough guide for comparison of different exercise sessions and should not be
used in medical treatment).
PULSE: Displays your current heart rate figures after you grip the handlebar pulse sensors
with both your hands during exercise. To ensure the pulse readout is more precise, please
always hold on to the handlebar pulse sensors with two hands instead of just with one hand
only when you try to test your heart rate figures.
HOW TO INSTALL THE BATTERIES:
1. Remove the battery cover on the back of the computer.
2. Place two size AAA batteries into the battery housing.
3. Insure batteries are correctly positioned and battery springs are in proper contact with
batteries.
4. Re-install the battery cover.
5. If the display is illegible or only partial segment appears, remove batteries and wait 15
seconds before reinstalling.

17
ADJUSTMENTS

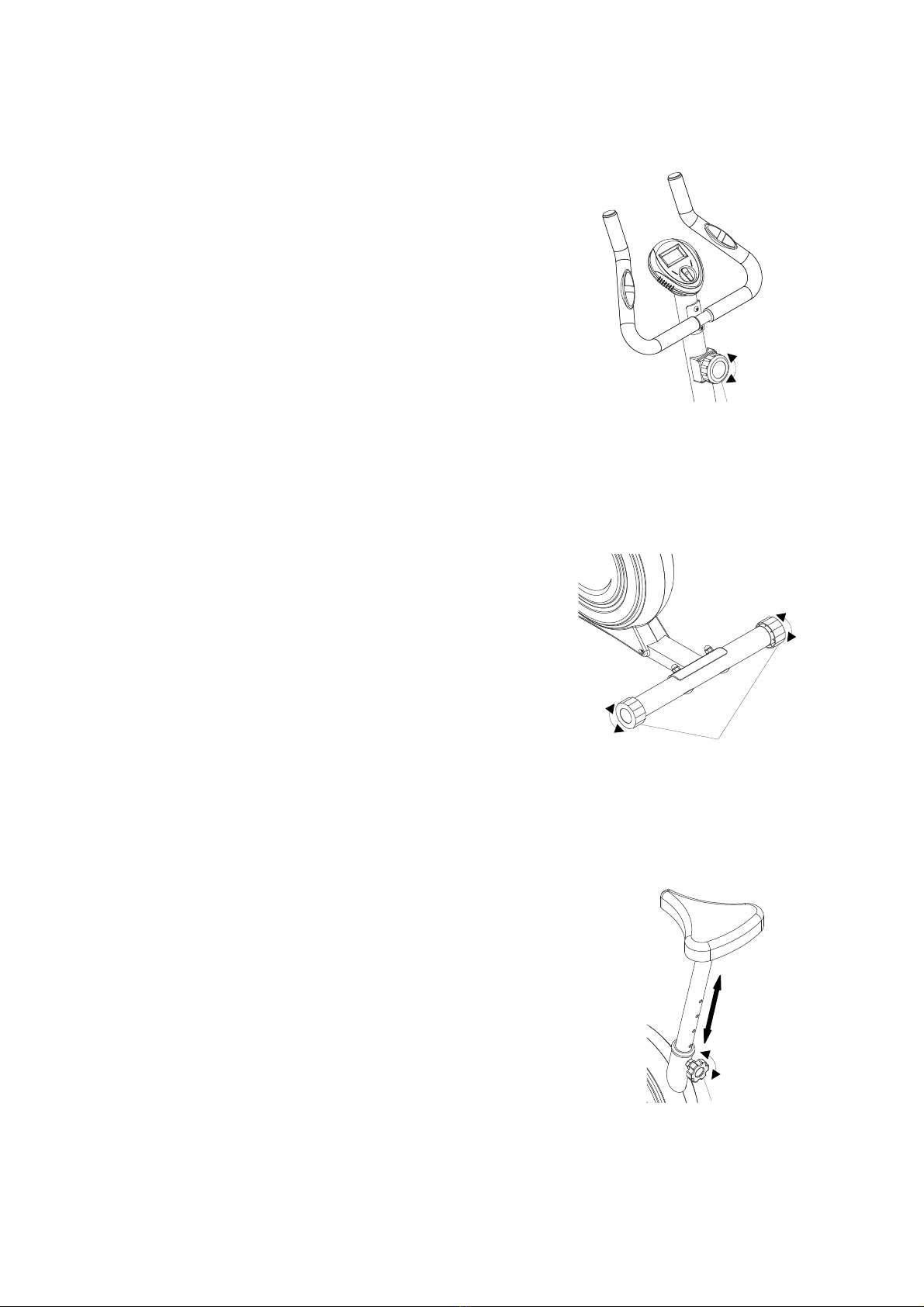

Adjusting the Tension Control Knob
To increase the tension, turn the tension control knob in a
clockwise direction.
To decrease the tension, turn the tension control knob in a
counterclockwise direction.
Adjusting the Rear Stabilizer End Cap
Turn the rear stabilizer end cap on the rear stabilizer as
needed to level the upright bike.
Adjusting the Seat Height
Turn the seat post knob in a counterclockwise direction
until the seat post can be slid up or down and then slide
the seat post up or down direction to the suitable position.
Lock the seat post in place by tightening the seat post
knob in a clockwise direction.
NOTE: Continue to turn the seat post knob until the
seat post is secure before exercising.
Tension Control Knob
Rear Stabilizer End Cap
Seat Post Knob

18
TROUBLESHOOTING
PROBLEM: The upright bike wobbles when in use.
SOLUTION: Turn the rear stabilizer end cap on the rear stabilizer as needed to level the
upright bike.
PROBLEM: There is no display on the computer console.
SOLUTION: Remove the computer console and verify the wires that come from the
computer console are properly connected to the wires that come from the handlebar post.
SOLUTION: Check if the batteries are correctly positioned and battery springs are in proper
contact with batteries.
SOLUTION: The batteries in the computer console may be dead. Replace with new
batteries.
PROBLEM: Partial display on the computer console.
SOLUTION: Open the computer console and check the conductive rubber connectors are in
correct position or not. If not, reset the conductive rubber connectors to the correct
position.
SOLUTION: Open the computer console and check the crystal oscillator or screen glass to
see if they are in good working condition or not. If not, change the new crystal oscillator or
screen glass. Please connect your local dealer for support.
PROBLEM: There is no heart rate reading or heart rate reading is erratic / inconsistent.
SOLUTION: Make sure that the wire connections for the hand pulse sensors are secure.
SOLUTION: To ensure the pulse readout is more precise, please always hold on to the
handlebar grip sensors with both hands instead of just with one hand when you try to test
your heart rate figures.
SOLUTION: Avoid gripping the hand pulse sensors too tight. Try to maintain moderate
pressure while holding onto the hand pulse sensors.
PROBLEM: No Speed.
SOLUTION: Open the covers and check the sensor to see if it is fix firmly or not. If not,
retighten the screws on the sensor.
SOLUTION: Open the covers and check sensor wire to see if it is damage or not. If the
sensor wire is damaged, change the new sensor with wire. Please connect your local
dealer for support.
PROBLEM: The upright bike makes a squeaking noise when in use.
SOLUTION: The bolts may be loose on the upright bike. Please inspect all of the bolts and
tighten any loose bolts.
If the above troubleshooting section does not fix the problem, discontinue use the
upright bike.
PLEASE CONTACT YOUR LOCAL DEALER FOR
SUPPORT.

19
WARM UP AND COOL DOWN ROUTINE
The WARM-UP is an important part of any workout. The purpose of warming up is to
prepare your body for exercise and to minimize injuries. Warm up for two to five minutes
before aerobic exercising. It should begin every session to prepare your body for more
strenuous exercise by heating up and stretching your muscles, increasing your circulation
and pulse rate, and delivering more oxygen to your muscles.
COOL DOWN at the end of your workout, repeat these exercises to reduce soreness in tired
muscles. The purpose of cooling down is to return the body to its resting state at the end of
each exercise session. A proper cool-down slowly lowers your heart rate and allows blood
to return to the heart.
HEAD ROLLS
Rotate your head to the right for one count, you should feel a
stretching sensation up the left side of your neck. Then rotate your
head back for one count, stretching your chin to the ceiling and
letting your mouth open. Rotate your head to the left for one count,
then drop your head to your chest for one count.
SHOULDER LIFTS
Lift your right shoulder toward your ear for one count. Then lift your
left shoulder up for one count as you lower your right shoulder.
SIDE STRETCHES
Open your arms to the side and lift them until they are over your head.
Reach your right arm as far toward the ceiling as you can for one
count. Repeat this action with your left arm.
