Lilin iMEGALITE series User manual

66-IP74LASCSE
MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
Full HD H.264 IP Camera
iMEGALITE series
Instr uction Manual

1
Summary
The iMEGALITE series includes Full HD IP cameras that adopt the latest compression
technologies providing Triple Streaming of H.264 and JPEG in different resolutions.
LILIN’s Triple Streaming technology transmits digital video at various bitrates and
frame rates to suit both high and low bandwidth network environments.
The iMEGALITE series cameras are equipped with progressive mega-pixel CMOS
sensors providing superior video quality. LILIN’s DSP technologies provide Wide
Dynamic Range (WDR), 3D noise reduction, Backlight Compensation (BLC), adjustable
shutter speed, and privacy mask features.
The built-in intelligent video analytics engine enables audio and motion detection. Other
useful features include two-way audio, SD card recording, mobile phone live access,
JPEGs sent as email snapshots, and JPEGs sent to an FTP.
The iMEGALITE series cameras have the latest technologies providing mega-pixel
H.264 video, outstanding DSP capacities, built-in video analytics, and built-in PoE. All
iMEGALITE cameras are ONVIF compliant.
LILIN’s CMX HD software and IP cameras maximize system performance providing an
integrated system solution for migrating to IP Video.

2
Key Features
 Full HD IP cameras capable of recording at 15 FPS
 Supports dual encoding formats of H.264 and JPEG
 Triple Streaming technology, 3 concurrent streams available
 Sense Up+ for low light conditions
 Day or night video quality scheduling
 Audio and motion detection for notification via email or FTP
 Supports 3D DNR, WDR, BLC, adjustable shutter speed and privacy mask
 Two-way audio (for two-way audio models only)
 Bitrate and frame rate adjustable on-the-fly
 Supports Android, iPad, and iPhone mobile live monitoring
 Supports dynamic DNS (DDNS) and network time protocol (NTP)
 Supports PCM/G.711
 Supports ONVIF protocol
 Supports CMX Software HD 3.6
Trademark Acknowledgments
Microsoft, Windows 2000, Windows XP, Windows Vista, Windows 7, ActiveX, and
Internet Explorer are registered trademarks of Microsoft Corporation in the U.S. and/or
other countries.
Java and all Java-based trademarks and logos are trademarks or registered trademarks of
Sun Microsystems, Inc. in the United States and other countries. Flash, Macromedia, and
Macromedia Flash Player are either trademarks or registered trademarks of Adobe
Systems Incorporated in the United States and/or other countries.
Linux and DynDNS are registered trademarks of the respective holders.
Intel, Pentium, and Intel® Core™ 2 Duo are registered trademarks of Intel Corporation.
FFmpeg is a trademark of Fabrice Bellard, originator of the FFmpeg project.
QuickTime and the QuickTime logo are trademarks or registered trademarks of Apple
Computer, Inc., used under license there from.
Other names of companies and their products mentioned in this manual may be
trademarks or registered trademarks of their respective owners.

3
Other References
Mobile phone
For free mobile surveillance, refer to the eMobile document in the product CD or
download the document from our company website.
LILIN Universal ActiveX Control
Sample codes and documents are included in the product CD and can be downloaded
from our company website.
LILIN HTTPAPI
For non-ONVIF integration, please see the LILIN HTTPAPI document. We adopt HTTP
API document for all LILIN IP cameras.
Caution
 Do not drop or strike the equipment
 Do not install the equipment near any naked flames or heat sources
 Do not expose this unit to rain, moisture, smoke or dust environments
 Do not cover the opening of the cabinet with cloth and/or plastic or install this unit in
poor ventilated places. Allow 10cm between this unit and its surroundings
 Do not continue to operate the unit under abnormal conditions such as smoke
detection, strange smell or no display on screen whilst power is turned on
 Do not touch the power connection with wet hands
 Do not damage the power cord or leave it under pressure
 To avoid unnecessary magnetic interference, do not operate this unit near magnets,
speaker systems, etc.
 All connection cables should be grounded properly

4
Table of Content
Chapter 1 System Overview...............................................................................................6
Chapter 2 Before accessing IP cameras ..............................................................................7
Chapter 2-1 Configuring IP addresses using IP scan utility..............................................7
Chapter 2-2 Configuring IP addresses using HTML page ................................................7
Chapter 2-3 Internet browser settings & software components required...........................8
Chapter 2-4 Login............................................................................................................9
Chapter 3 H.264 Full HD IP camera network features......................................................10

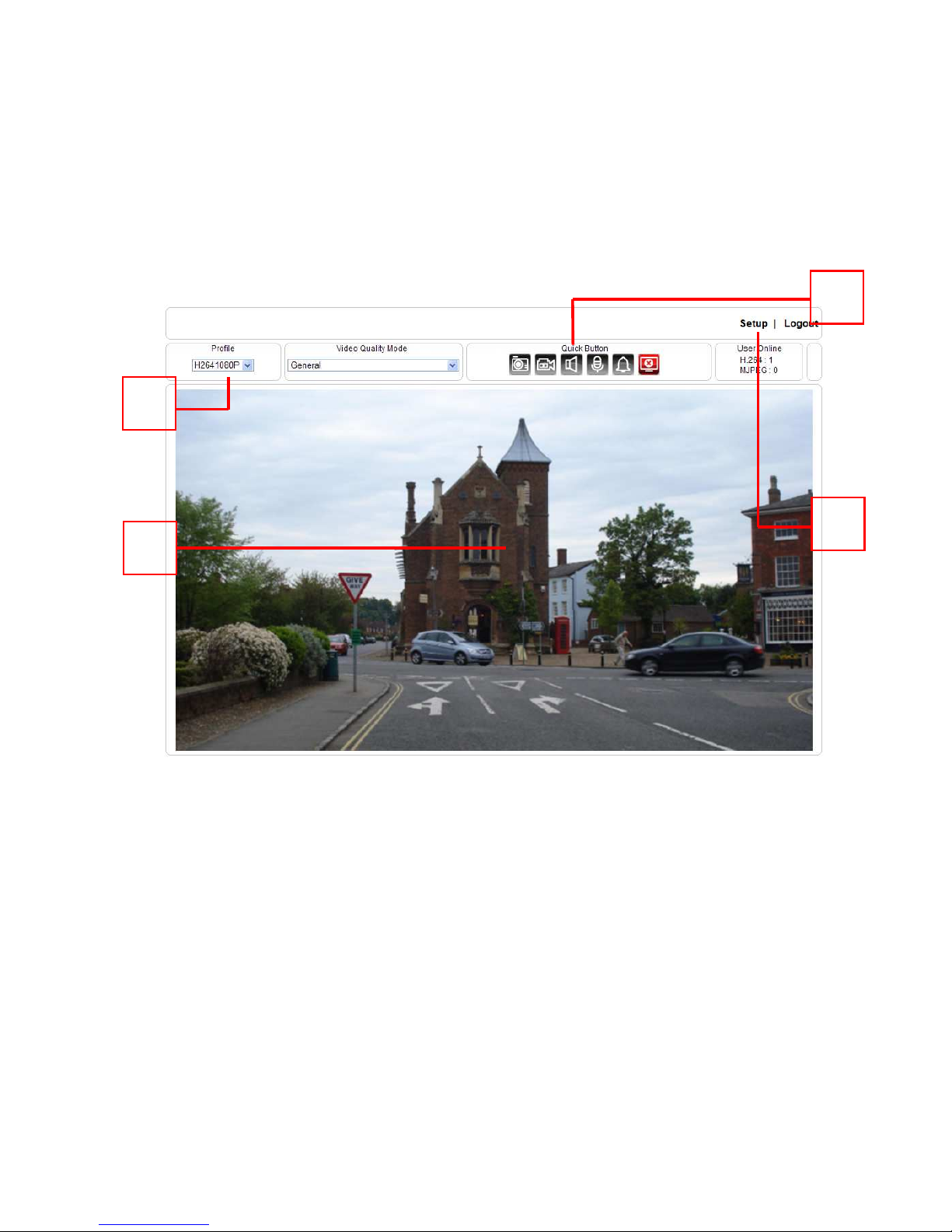

Chapter 3-1 IP Camera Operational HTML ...................................................................10
Chapter 3-2 IP Camera Main Controls...........................................................................12
Chapter 3-2-1 Two-way Audio.................................................................................12
Chapter 3-2-2 Record in a Local PC.........................................................................12
Chapter 4 Basic Settings................................................................................................... 13
Chapter 4-1 Configuration .............................................................................................13

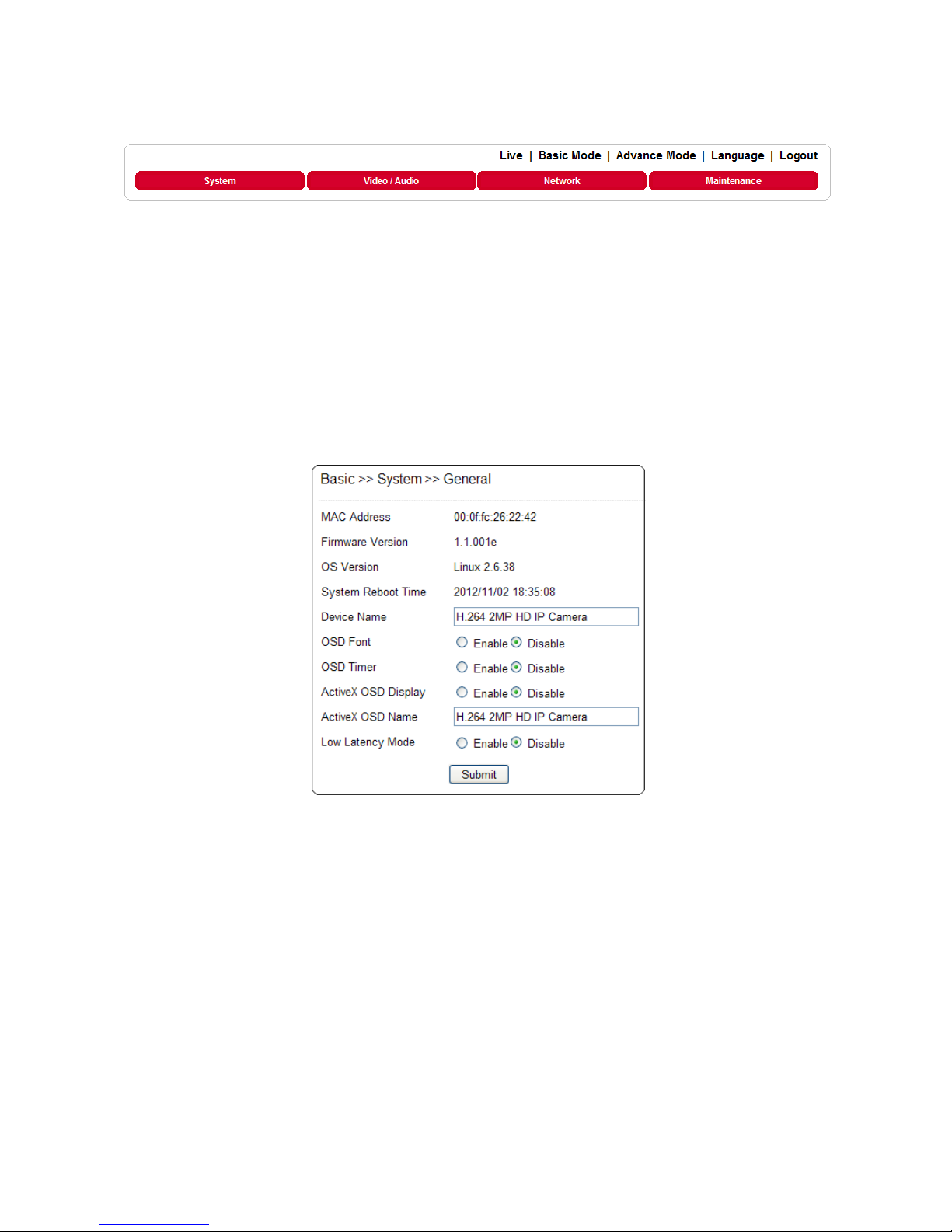

Chapter 4-2 System Settings ..........................................................................................13

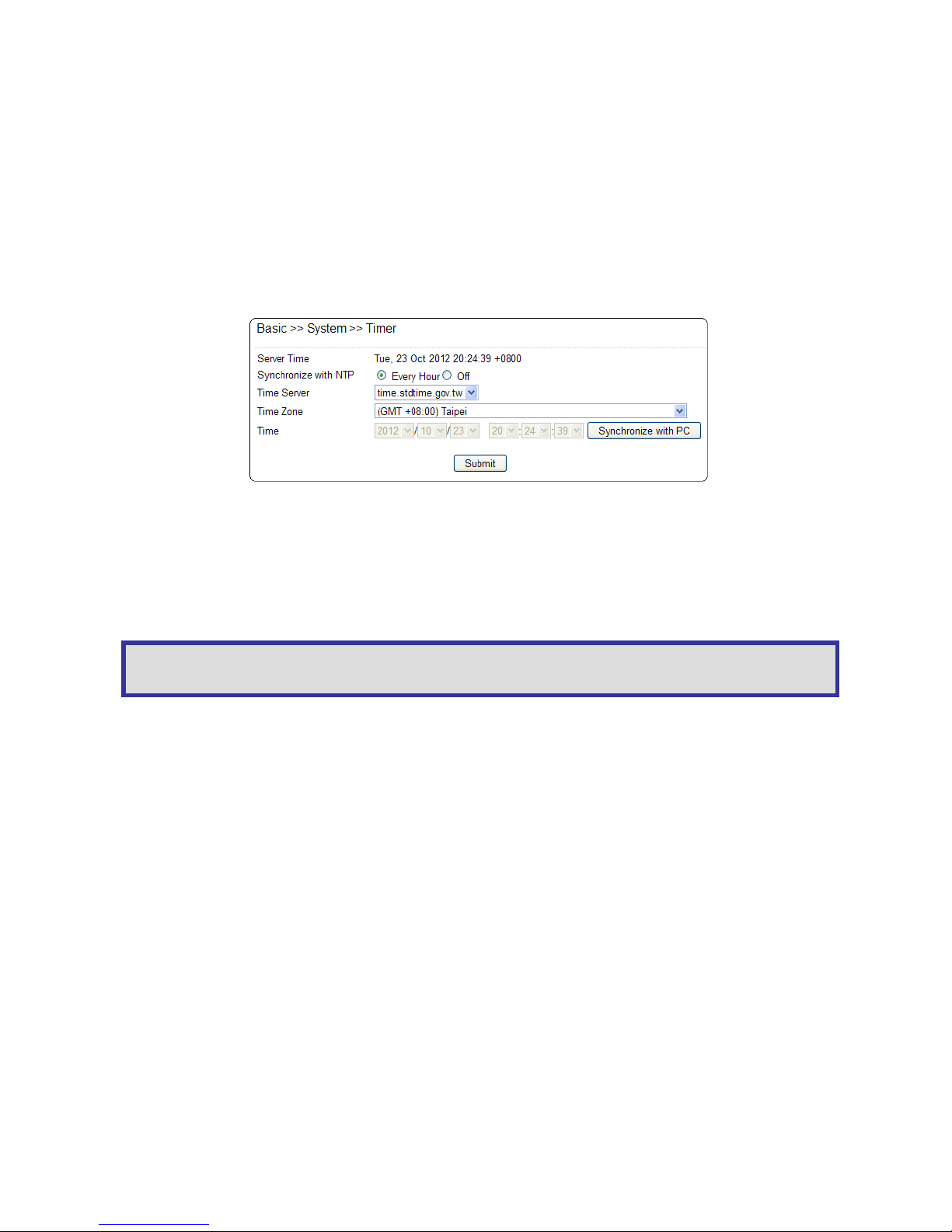

Chapter 4-3 Timer..........................................................................................................14

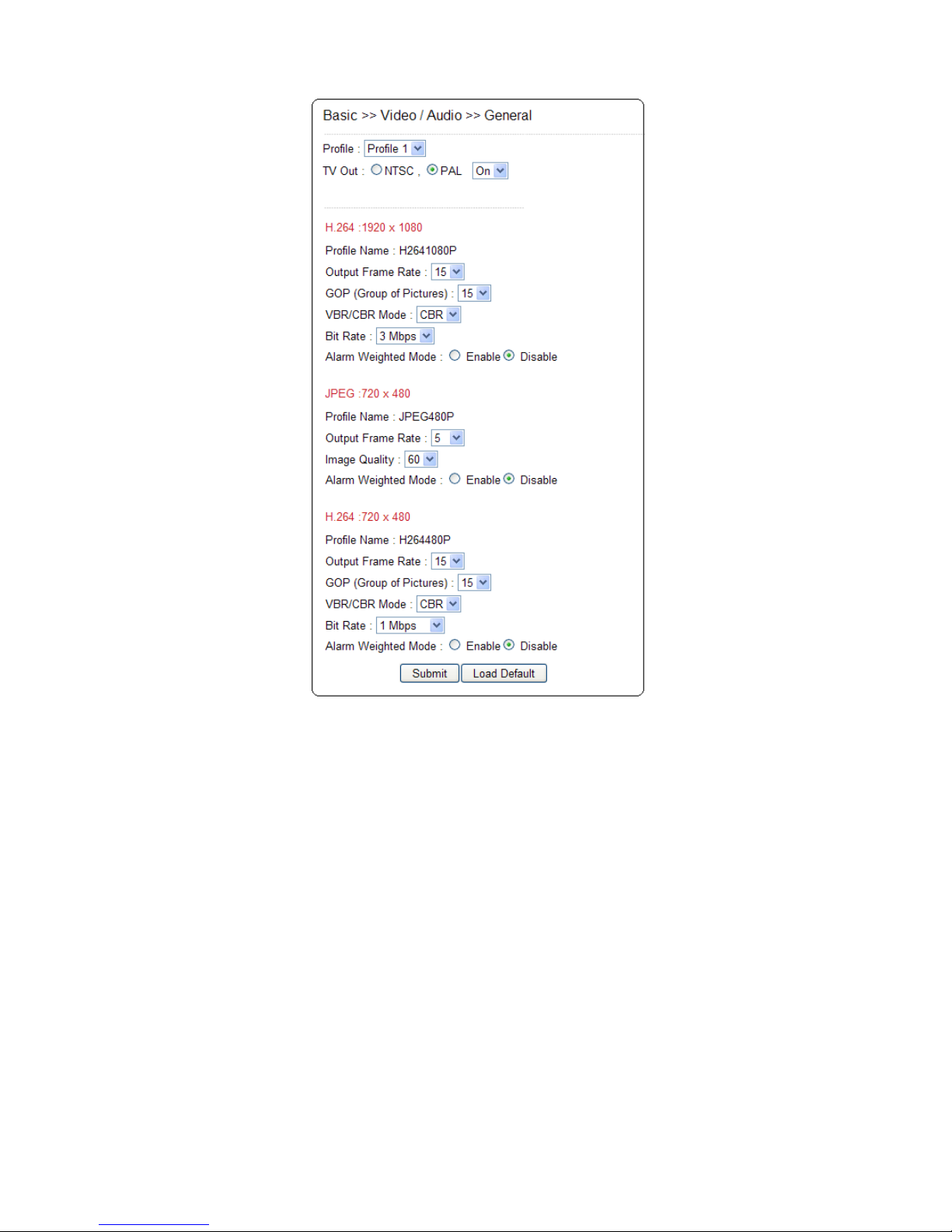

Chapter 4-4 Video / audio settings.................................................................................14

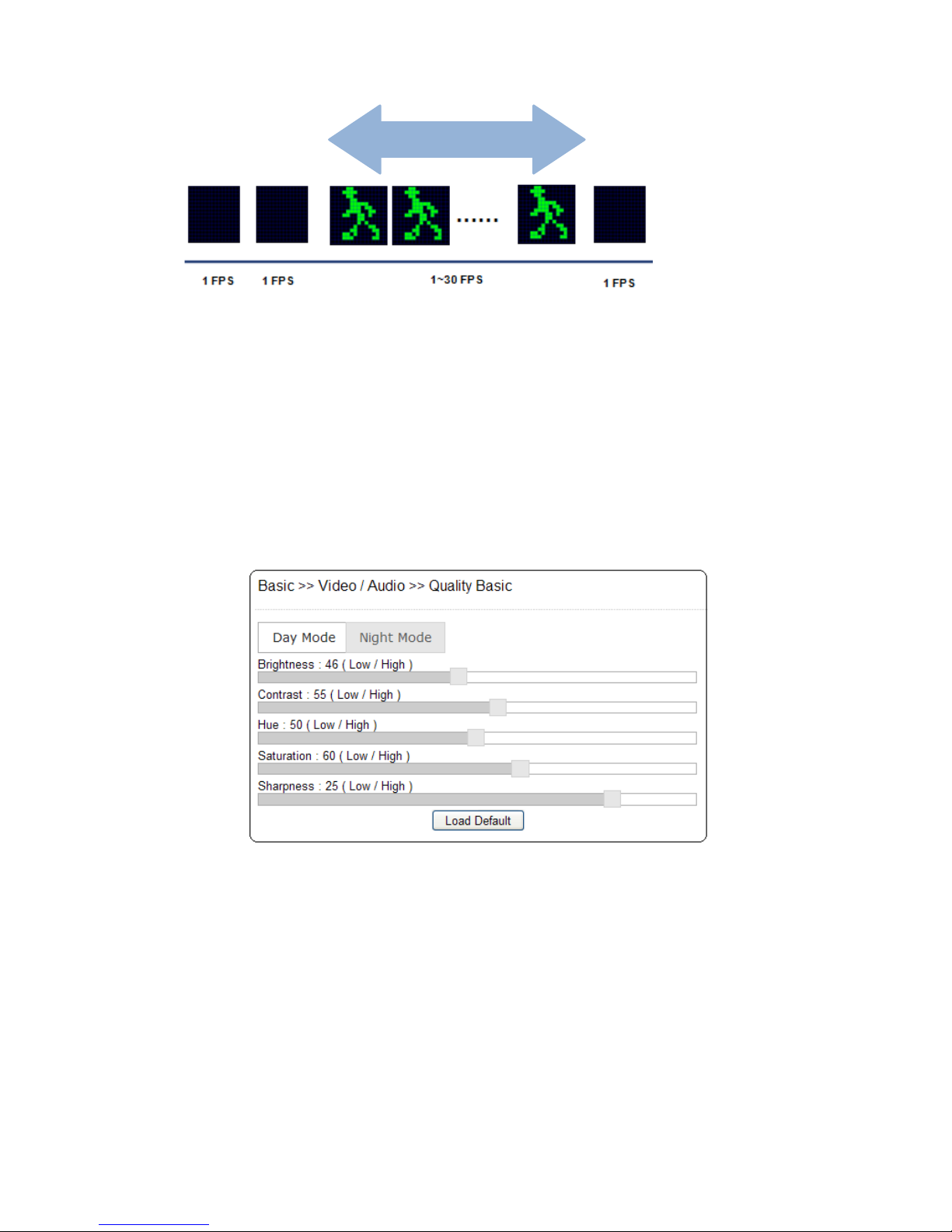

Chapter 4-4-1 Weighted Mode .................................................................................15
Chapter 4-5 Basic Quality.............................................................................................. 16
Chapter 4-6 Network Settings........................................................................................16
Chapter 4-6-1 DHCP Setting....................................................................................17

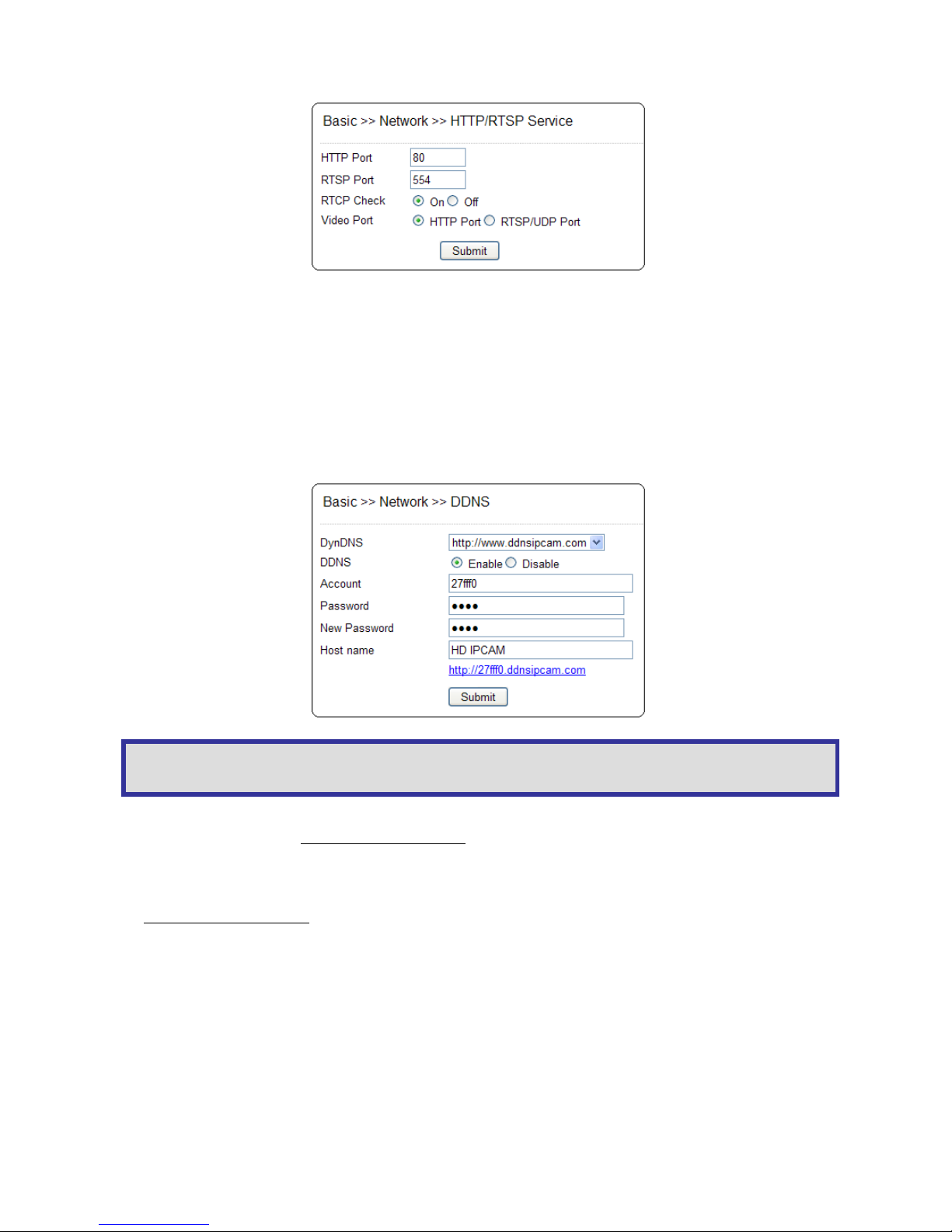

Chapter 4-7 HTTP & RTSP Service...............................................................................17
Chapter 4-8 DDNS Settings...........................................................................................18

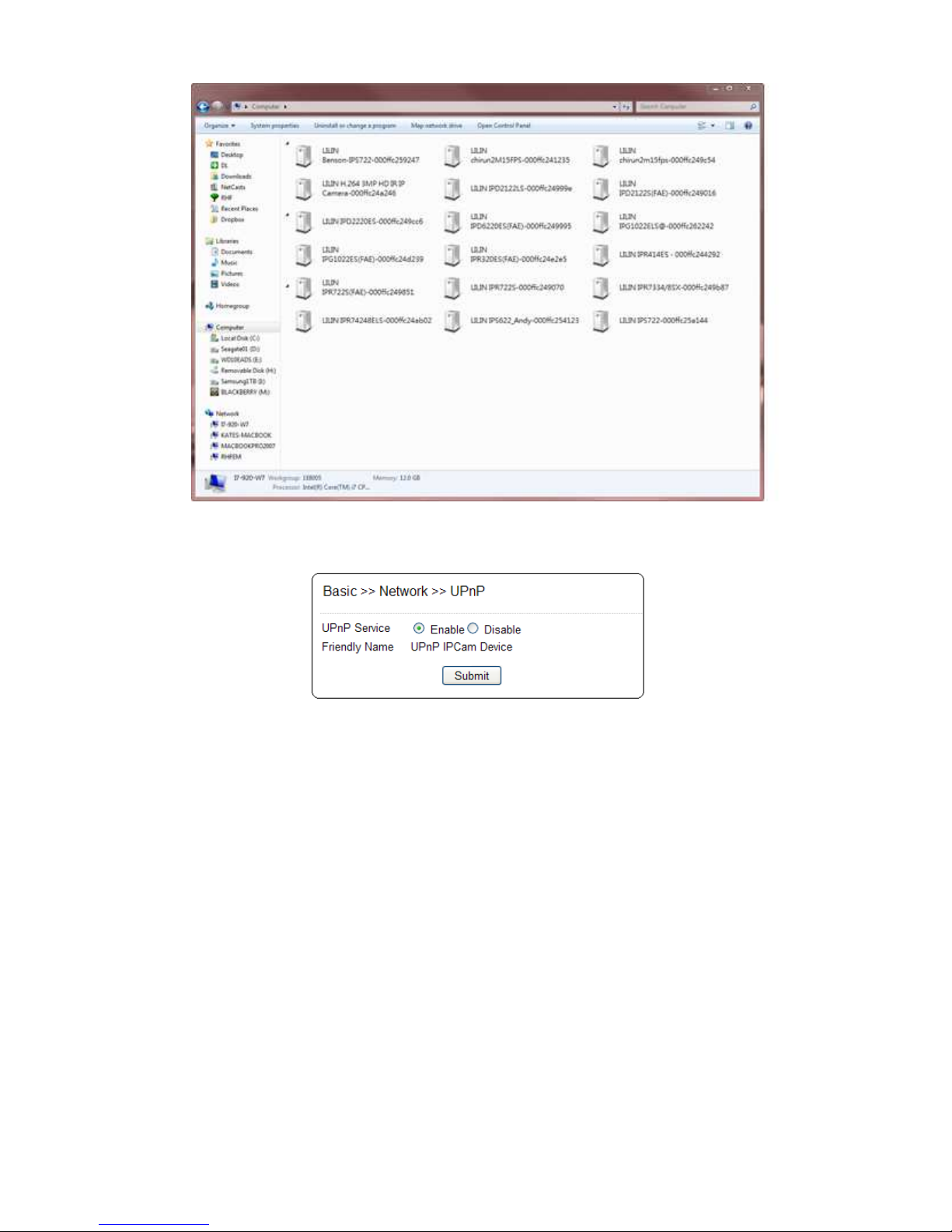

Chapter 4-9 UPnP Settings.............................................................................................18
Chapter 4-10 Maintenance.............................................................................................19
Chapter 5 Advance Settings .............................................................................................21
Chapter 5-1 System Settings ..........................................................................................21
Chapter 5-1-1 User Setting.......................................................................................21
Chapter 5-1-2 System Log........................................................................................21
Chapter 5-2 Advance Video and Audio Settings............................................................22

5
Chapter 5-2-1 Advance Video Setting ...................................................................... 22
Chapter 5-2-2 Sense Up+ .........................................................................................23
Chapter 5-2-3 IR Cut Removable .............................................................................24
Chapter 5-2-4 Video Privacy Mask...........................................................................24
Chapter5-2-5 Audio Setting......................................................................................25
Chapter 5-3 IP Network Advance ..................................................................................25
Chapter 5-4 Event..........................................................................................................25
Chapter 5-4-1 Motion Alarm, or Audio Detection Event .......................................... 26
Chapter 5-4-2 Motion Area.......................................................................................26
Chapter 5-4-3 Audio Detection Event.......................................................................27
Chapter 5-4-4 Alarm Input Detection Event .............................................................27
Chapter 5-4-5 Network Loss Detection Event........................................................... 28
Chapter 5-5 Notification ................................................................................................ 28
Chapter 5-5-1 FTP Notification................................................................................28
Chapter 5-5-2 SMTP Email Notification ..................................................................29
Chapter 5-5-3 Event Triggering SD Card Recording ................................................30
Chapter 5-5-4 SD Card Recording Setting................................................................30
Appendix....................................................................................................................... 31
Advance Network DDNS and PPPoE Technologies................................................. 31
SD Card Compatibility List......................................................................................31
Specification..................................................................................................................32

6
Chapter 1 System Overview
Chapter 1-1 System Requirements
The IP camera’s Full HD H.264 video compression technology provides high
compression rate and superior video quality. However, the performance highly depends
on both the CPU computational power of the users PC and the network bandwidth for
transmitting video streaming. The following sections specify the system requirements for
running a Full HD H.264 IP camera.
Chapter 1-2 Software Requirements
Merit LILIN Universal ActiveX software components are required for web interface
displaying JPEG or H.264 Full HD video. When you first login to the IP camera using
Internet explorer, a security warning dialog box will appear for LILIN Universal ActiveX.
Click “Install” to download.

7
Chapter 2 Before accessing IP cameras
Before accessing the IP camera, make sure that the camera’s RJ-45 network, audio, and
power cables are properly connected. To set the IP address, consult your network
administrator. The default IP address for each IP camera is 192.168.0.200. Users can use
the default IP address to verify the camera’s network connection.
Chapter 2-1 Configuring IP addresses using IP scan utility
To configure an IP address using the IP scan utility, copy the IP scan application from the
installation CD to your local PC. Alternatively, you can execute the IP scan software
from the installation CD directly. The IP scan utility can also be downloaded from our
company website. To change an IP address, subnet mask, gateway, or HTTP port, follow
the steps below:
 Run the IP scan utility
 Click “Refresh”. All available devices will be listed in the device list
 Select the device item from the device list
 To edit or modify addresses, subnet mask, gateway, or HTTP port, use the box
 Click “Apply” to configure the settings
 Click “Refresh” to verify the settings
Chapter 2-2 Configuring IP addresses using HTML page
To change an IP address using a HTML page, type the default IP address (192.168.0.200)

8
into the Internet browser and follow the steps below:
 Login to the H.264 Full HD IP camera using default username “admin” and default
password “pass”
 Click the “Basic Mode” configuration hyperlink
 Click the “Network->General” hyperlink
 To edit or modify addresses, subnet mask, gateway, or HTTP port, use the edit box
 Click “Submit”
Chapter 2-3 Internet browser settings & software components required
Make sure your Internet browser allows signed ActiveX plug-in to run on your PC. Set
“Download Signed ActiveX plug-in controls” to “Prompt” and “Run ActiveX control
and plug-in” to “Enable”. You can set this by Internet
Explorer->Tools->Options->Security Settings.
Once complete, you can access the IP camera’s live video by inserting the default IP
address into your Internet explorer browser. A security warning dialog box will appear.
Click “OK” to download the ActiveX directly from the IP camera.

9
Chapter 2-4 Login
There are several levels of user authentication including administrator and guest.
The usernames and passwords areas follows:
Administrator Viewer
Username admin guest
Password pass guest
To login to the IP camera, type the username and password into the HTML login page
and click “Submit”.
