Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
2 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
3 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
Introduction
Dear Customer,
We thank you for having chosen a LIPCO Reversing Harrow. We
hope that you will be happy with your choice.
In order that your LIPCO Reversing Harrow Type UF will serve you
well for many years, we ask you to pay close attention to the
operating instructions which you will find in this manual. This will help
you to prevent breakdowns and accidents resulting from non-
observance of the operating instructions, for which our company will
not accept responsibility.
This Instruction and Maintenance Manual is to be considered an
integral part of the machine itself and therefore it must always
accompany the machine when it is sold, even in the event of its sale
to third parties.
If you keep this manual in a safe place and in good condition, you -
and whoever must use the machine - will be able to have a complete
reference on hand at all times.
Note:
The illustrations, descriptions and specifications in this manual are
not binding. LIPCO reserves the right to make modifications without
notice.

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
4 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
Contents page
Introduction 3
Contents 4
1. Designated use 5
2. Warning signs attached to the machine 6
3. Safety regulations 7
4. Accident prevention 9
5. Construction features 11
6. Preparation 12
7. Technical data 13
8. Connection to the engine driven machine 14
9. Adjustment of working depth / roller adjustment 15
10. Maintenance 16
11. Replacement of cutting blades 19
12. After use 20
13. Disposal after end of lifetime of the machine 20
14. Notices 21
15. Guarantee 22
16. EC Declaration of conformity 23

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
5 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
1. Designated use
The LIPCO Reversing Harrow UF, when connected to engine-driven
machines from 7.5 to 9.5 kW, is designed to till and level the ground
in a single operation, thus preparing it for seeding.
Any other use for purposes other than those described here is
considered contrary to the designated use. The manufacturer cannot
be held liable for damage resulting from such use; the risk for such
use lies entirely with the user.
Operating the unit within the limits of its designated use also means
following the instructions for operation, transport and maintenance
described by the manufacturer.
Any work, maintenance and repair on the LIPCO Reversing Harrow
UF must be carried out by persons who are familiar with the unit and
have been informed about possible risks!
The relevant accident prevention regulations as well as the other
generally recognised maintenance, safety, industrial medicine and
road traffic rules and instructions must be observed.
The manufacturer cannot held liable for damage resulting from
unauthorised modifications of the LIPCO Reversing Harrow UF.

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
6 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
2. Warning signs attached to the machine
Before starting operation, the personnel must have
read the operating and safety instructions and must
observe them.
Before commencing maintenance and repair work,
switch off the engine and pull the key.
With the drive switched on and the motor running,
maintain sufficient distance to rotating tools.
With the motor running, there is a risk of parts being
hurled away –maintain safety distance.
Do not reach into rotating tools.

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
7 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
3. Safety regulations
The operation of machines containing rotating or moving tools
always bears risks. Please always follow the safety regulations:
Before starting operation, the personnel must have read the
operating and safety instructions and observe them.
Never remove or alter the safety devices!
Do not touch rotating or moving parts!
Never lie down beneath the unit for repair or control purposes
when the unit has not been carefully secured before!
Use the machine only in technically perfect condition!
For maintenance work switch off the device!
Maintain safety distance! (Take note of the danger sign on the
side of the machine)
Any work, maintenance and repair on the LIPCO Reversing
Harrow must be carried out by persons who are familiar with the
unit and have been informed about possible risks!
The relevant accident prevention regulations as well as the other
generally recognised maintenance safety, industrial medicine
and road traffic rules and instructions must be observed.
The warnings and signs attached to the unit give important
information on safe operation; observing these instructions
ensures your safety!

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
8 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
Do not wear wide or loose clothes (e.g. scarves)!
When working with the machine, you must wear safety shoes.

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
9 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
4. Accident prevention
Most accidents that occur during work, maintenance or transport of a
machine are due to non-observance of the most elementary rules of
accident prevention.
It is, therefore, necessary that all licensed users (relatives,
employees, colleagues) read and observe the rules given below and
written on the adhesive labels of the machine itself:
Turn off the engine of the engine-driven machine, before carrying
out any adjustments, maintenance or cleaning on the machine!
Prior to any work on the machine, it should be placed on level
and solid ground! When working with the unit lifted, always
secure the unit mechanically by means of adequate supporting
elements!
In order to achieve the highest possible performance of the
LIPCO Reversing Harrow, it must always be in perfect condition.
Maintenance and repairs must be carried out by trained persons
only! Spare parts must at least comply with the technical
requirements specified by the manufacturer! This is only
guaranteed for LIPCO original spare parts!
Before each use, screws and nuts, especially those of the cutting
blades and the drive, must be checked to ensure they are firmly
tightened!
Before starting up, please make sure that no people or animals
are in the vicinity!
Take special caution when working alongside roads or pathways!
Do not leave the machine running without supervision!
During service or repair work, make sure that no one can start up
the machine accidentally!
Do not wear wide or loose clothes (e.g. scarves)!
Do not, for any reason, climb onto the machine during operation!

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
10 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
Never work without machine protection!
Do not act with any objects on the machine during operation!

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
11 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
5. Construction features
The LIPCO Reversing Harrow, when connected to any type of
engine-driven machine from 7.5 to 9.5 kW, is capable of tilling and
levelling the ground in a single operation, thus preparing it for
seeding. Its outstanding feature is that stones, clods, old lawn, etc.
are dug into the ground.

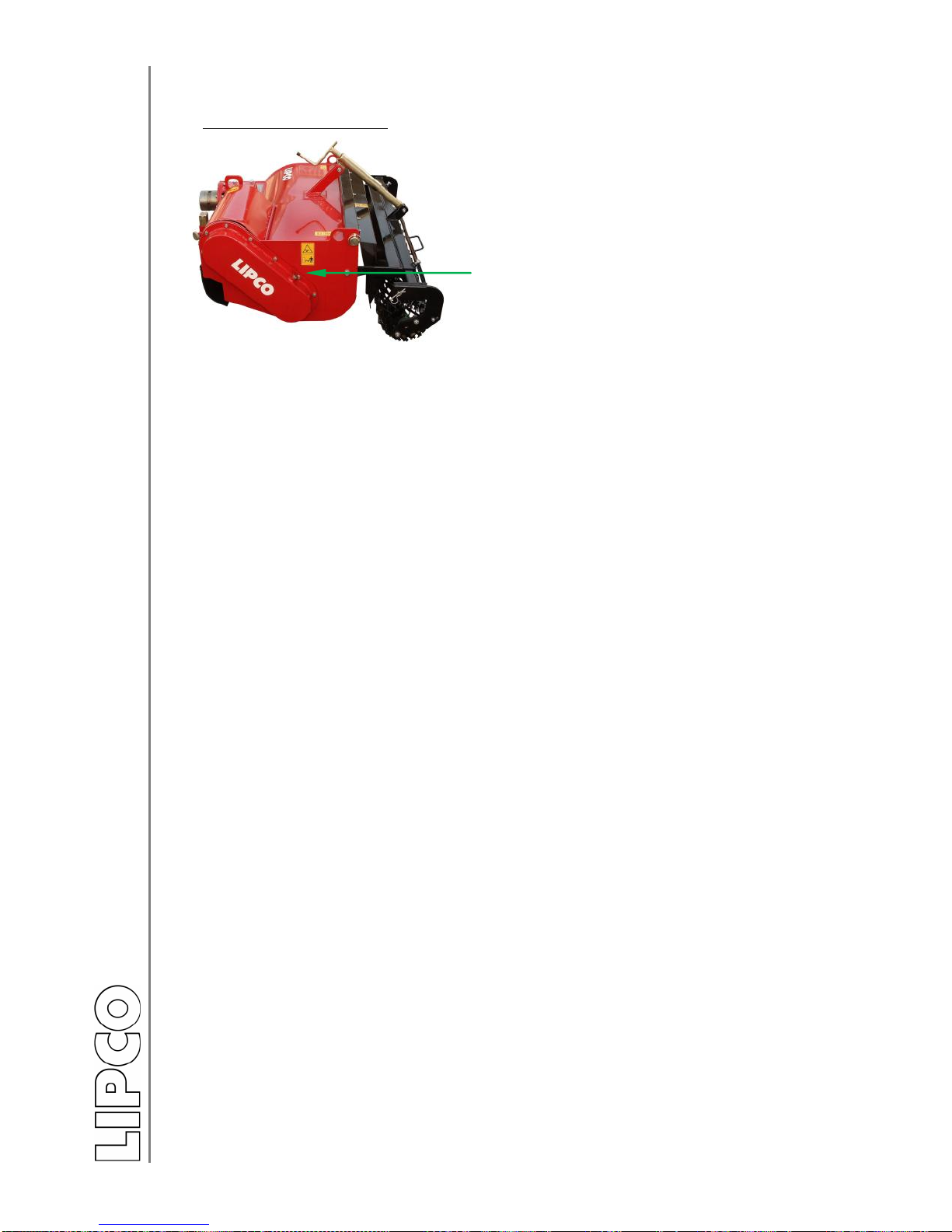

As can be seen in the figure, the LIPCO Reversing Harrow is
equipped with a grid roller, which makes it possible to adjust the
working depth of the cutter and to ram the earth. (Fig. 1 Ref. A) The
fine pulverization of the earth is achieved by means of the rake (Fig.
1 Ref. B).
The machine is also equipped with a lateral roller adjustment,
enabling to work right to the edge, for example on path borders.
The LIPCO Reversing Harrow is equipped with an overload coupling,
a so-called star ratchet (Fig. 2). This will limit the torque in case of
overload. The noise produced in this process serves as warning
signal.
Attention! When the rattling noise of the locking body is heard,
the power takeoff shaft has to be turned off!
C
B
A
Fig. 1
Star ratchet
Fig. 2

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
12 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
6. Preparation
Make sure that the unit is in perfect working order and that all
safety devices are in place!
Check the oil level in the angular gear! (See chapter "10.
Maintenance")
Check the lubrication in the chain drive! Run the machine for a
short time, in order to distribute the grease evenly. (See chapter
"10. Maintenance")
Check whether all screws are tightened, especially important are
the screws of the cutter blades and the drive flange!

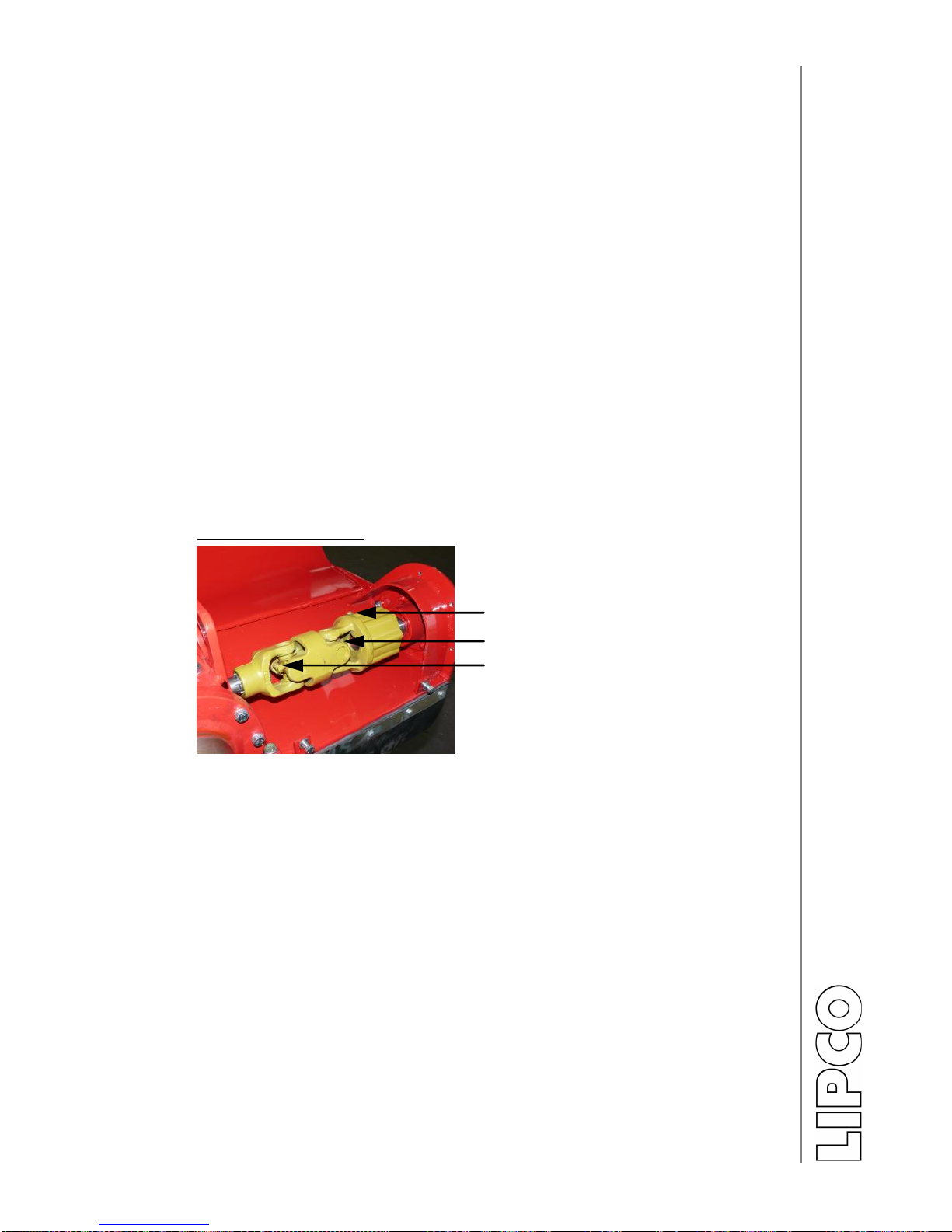

Lubricate overload coupling (star ratchet Fig. 3) and universal
joint shaft of the drive prior to startup and then every 8 working
hours.

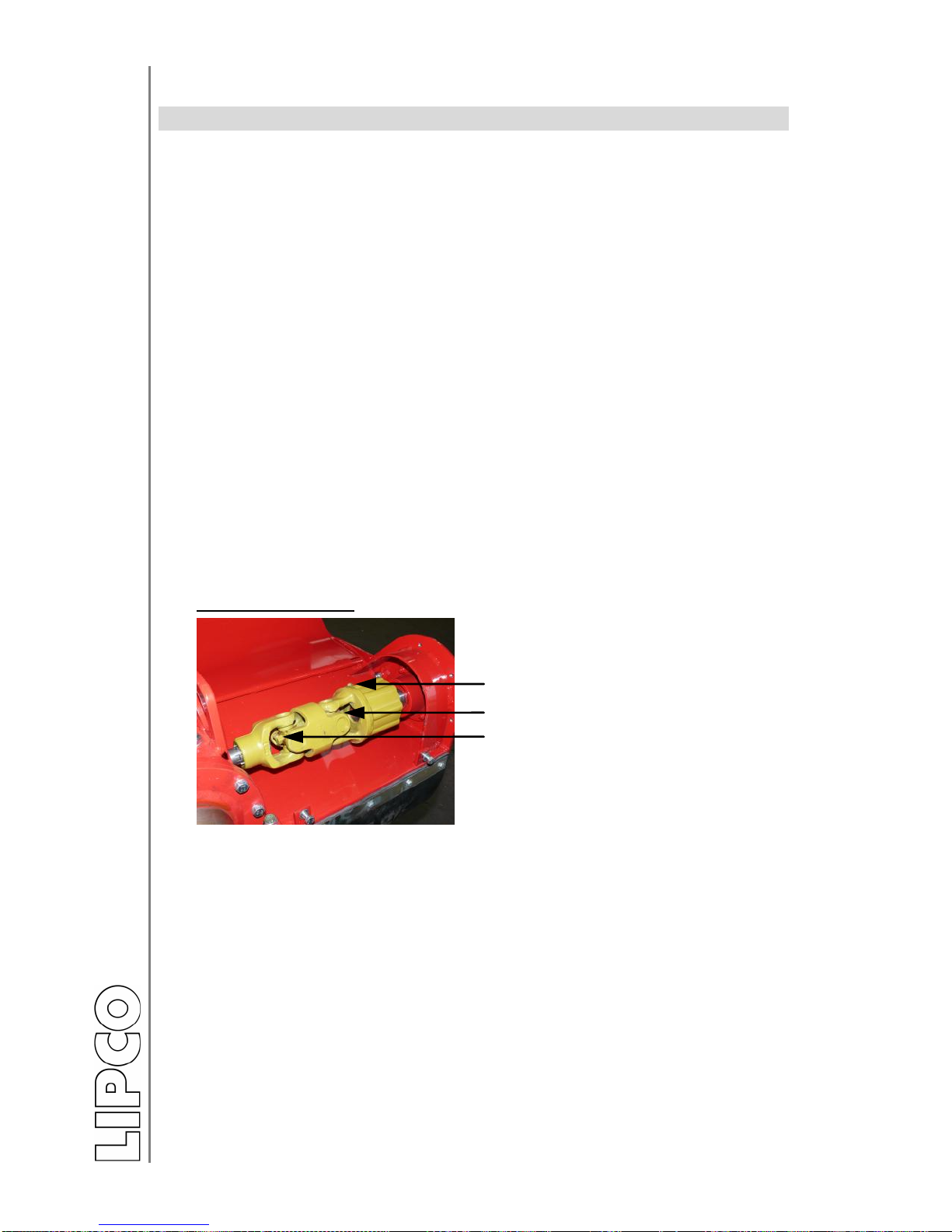

To do so, you must open the protective hood (Fig. 1 Ref. C).
Lubricating point:
Lubricating nipples (3x)
Star ratchet
Joint
Joint
Fig. 3

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
13 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
7. Technical data
Type
Weight
(kg)
Required
drive power
(kW)
Number of
discs/blades
UF 70-L
115
7,5
5
10
UF 80-L
153
8,0
6
12
UF 90-L
170
9,0
7
14
UF 100-L
183
9,5
8
16
Main dimensions
L
B
H
UF 70-L
1000
880
580
UF 80-L
1050
1090
630
UF 90-L
1050
1230
630
UF 100-L
1050
1310
630
The Reversing Harrow is designed for a maximum working depth of
15 cm.
Attention:
The working direction must be regarded !
Working against the above specified working direction can cause
heavy damages on the machine, for which LIPCO denies any
responsibility!
Remarks about noise and vibration:
It is not expected, that the values for noise and vibration of these
attachment unit will exceed the values of the engine-driven machine.
Measured values at 3600 rpm:
Noise: 86 dbA
Vibration: 5.2 –8.4 m/sec²
Working direction

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
14 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
8. Connection to the engine driven machine

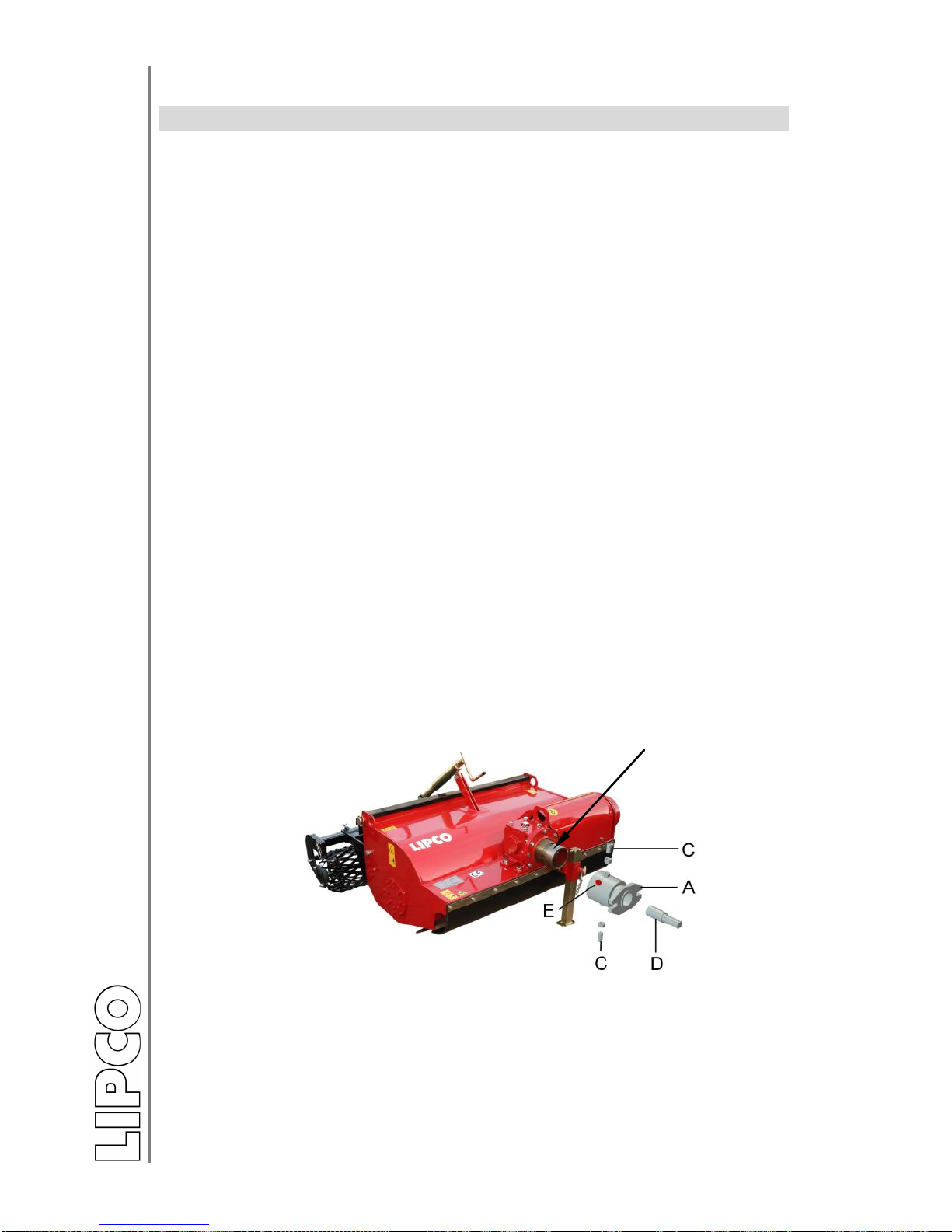

Before attaching the machine flange (Fig. 4, Ref. A) corresponding to
the type of engine-driven machine you have, it is recommended
spreading grease on the outer diameter of the machine hub (Fig. 4,
Ref. B). Then insert the flange with its two threaded pins (Fig. 4, Ref.
C) and the two lock nuts. To attach the flange to the hub, proceed as
follows:
Screw the threaded pins in as far as possible and then unscrew
them by one turn. Tighten the lock nuts. After this operation,
make sure that the flange oscillates freely without squeezing or
blocking.
After having greased the connecting shaft (Fig. 4, Ref. D), insert
it on the machine shaft of the Reversing Harrow. When these
steps are complete, move the engine-driven machine close to
the unit. Ensure the toothed wheel work of the connecting shaft
engages correctly with the power takeoff shaft of the engine-
driven machine and the flange has a centred contact with the
engine-driven machine. Then secure the connection between the
engine-driven machine and the unit.
Before commencing work, lubricate drive flange on the lubricating
nipple (Fig. 4, Ref. E)!
Fig. 4
B

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
15 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
9. Adjustment of working depth / roller adjustment
Adjustment of working depth:
Spindle for continuous
adjustment
Fig. 5
The working depth is regulated by means of the spindle located
between the roller holder and the machine hood (Fig. 5).
It is important for the operator to leave the machine resting on its
roller while working.

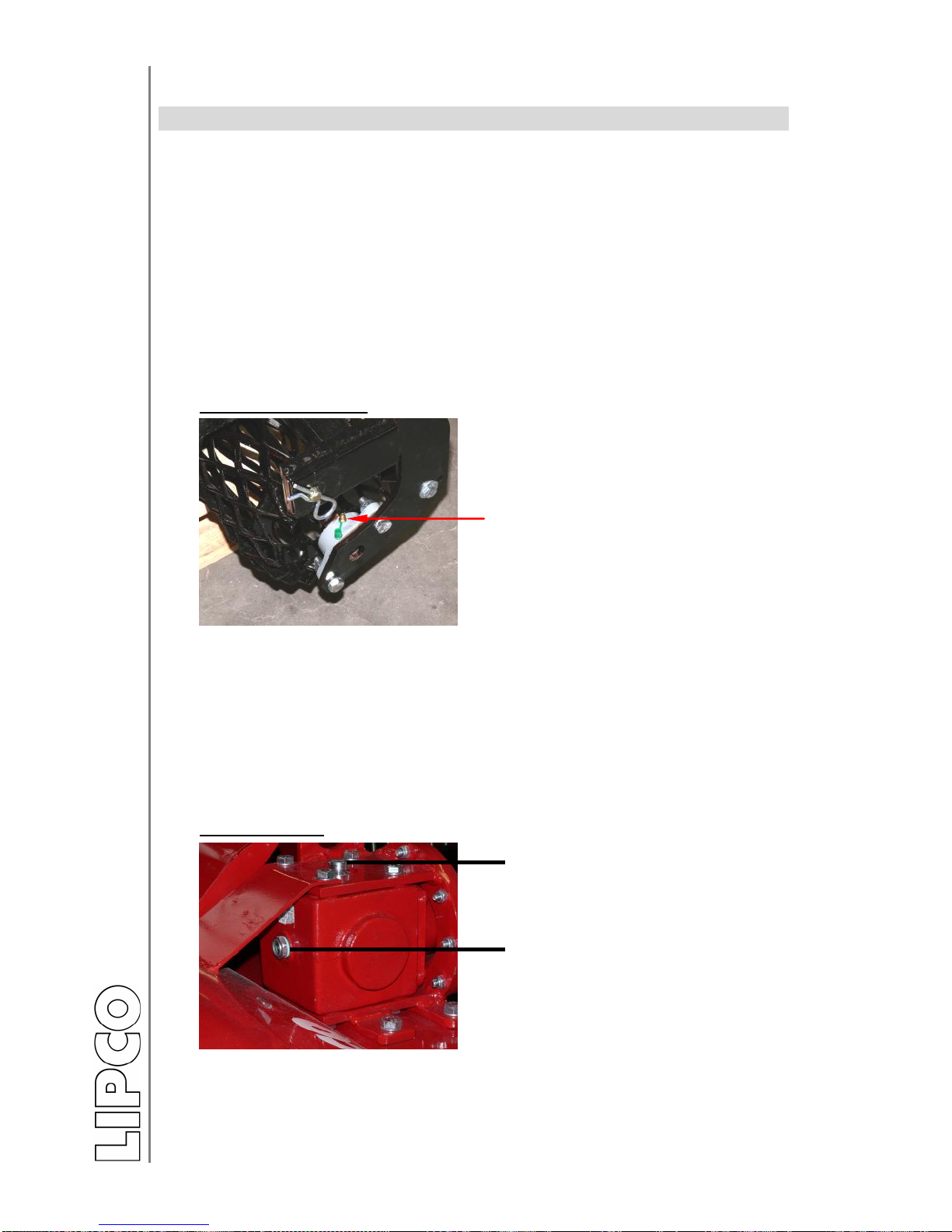

Sidward roller shifting:
Clamping screw
Clamping screw
Fig. 6
The roller of the LIPCO Reversing Harrow can be shifted
sideward (Fig. 6) to enable driving right to the edge of enclosures
or walls. To shift the roller, only the two clamping screws (Fig. 6,
Ref. C) are loosened, the roller is shifted to the desired position
and tightened again.

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
16 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
10. Maintenance
When working on the machine, make sure that the machine is
secured against unintentional tilting! When working with the unit
lifted, always ensure mechanical protection by means of adequate
supporting elements!
Steps to be carried out in order to maintain the machine in good
working condition:
Grease the roller bearings (Fig. 7).
Lubricating points:
Lubricating nipples on both
ends of the roller
Fig. 7
Check the oil level in the angular gear (Fig. 8). Oil level 2-3 cm in
horizontal gear drive position. The first oil change should be
carried out after 30 to 50 operating hours. Further oil changes
after every 200 operating hours or once a year. Use gear oil SAE
90. (Amount of oil 0.3 L)
Angular gear:
Oil plug
Oil gauge glass
Fig. 8

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
17 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
Check whether the cutting blade screws have been tightened.
Damaged screws have to be replaced immediately (see chapter
"11. Replacement of the cutting blades"). Note: Always use the
original steel nuts with fine pitch thread.
The drive flange must be lubricated once a month via the
lubricating nipple provided especially for this purpose and then
turned once to allow the grease to become distributed!
Make sure it runs smoothly. (Fig.4)
Remove drive flange once a year, clean and regrease it.
Lubricate the overload coupling (star ratchet) and universal joint
shaft of the drive every 8 operating hours and after a longer
standstill! (Fig. 9)

Lubricating points:
Lubricating nipple (3x)
Star ratchet
Joint
Joint
Fig. 9
Check the level of lubricant in the chain drive via the
corresponding plug (Fig. 11). This operation must be carried out,
when the machine has already been running for a few minutes,
and the grease has warmed up and become distributed evenly.
Then check the grease level with a dipstick (grease level should
be at least 5 cm, measured from the lowest point of the chain
case to ensure that the chain is always sufficiently lubricated).

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
18 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
Lubricating of chain:
Plug for lubrication of chain
drive.
Fig. 10
If necessary, top up liquid gear grease (based on sodium
bicarbonate - type GP 00).

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
19 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
Storage of the machine
To enable the machine to be
safely put down, it should be
supported on solid horizontal
ground by means of the
height-adjustable swing-out
base.
(Fig. 12)
In the operating state, the
base is swung-in.
(Fig. 13)
11. Replacement of cutting blades
When replacing the cutting blades, make sure that the machine
is secured against unintentional tilting! When working with the
unit lifted, always ensure mechanical protection by means of
adequate supporting elements!
Fig. 14
When replacing them, it is
very important to maintain
the blade arrangement,
especially the direction of
the cutting edge. The
blades must always be
mounted in the cutting
direction towards the
supporting roller.
Fig. 13
Fig. 12

Operating instructions
Reversing harrow UF 70L/ 80L/ 90L/ 100L
20 - 24
LIPCO 110037B-20-E BA UF70L_80L_90L_100L / 29.12.2009
12. After use
If the LIPCO Reversing Harrow UF is to remain unused for a longer
period, it is necessary to carry out the following steps:
Thoroughly wash and dry the LIPCO Reversing Harrow Type
UF!
Check the function of all movable parts. Replace damaged or
worn parts!
Check the screws to ensure they are firmly tightened!
Lubricate the star ratchet!
Check the oil in the angular gear and the grease in the chain
drive, after the machine has already been running for a few
minutes!
Grease all unpainted metal parts to protect them against
corrosion, store the LIPCO Reversing Harrow in a dry place and
cover it, so that it will be ready for use any time.
Attention!
Before using the unit again, follow the instructions in
chapter "10. Maintenance".
13. Disposal after end of lifetime of the machine
The disposal of the machine, machine parts, consumables and
lubricants has to follow the legal laws.
