Lipco UFD 100 User manual

Translation of the original

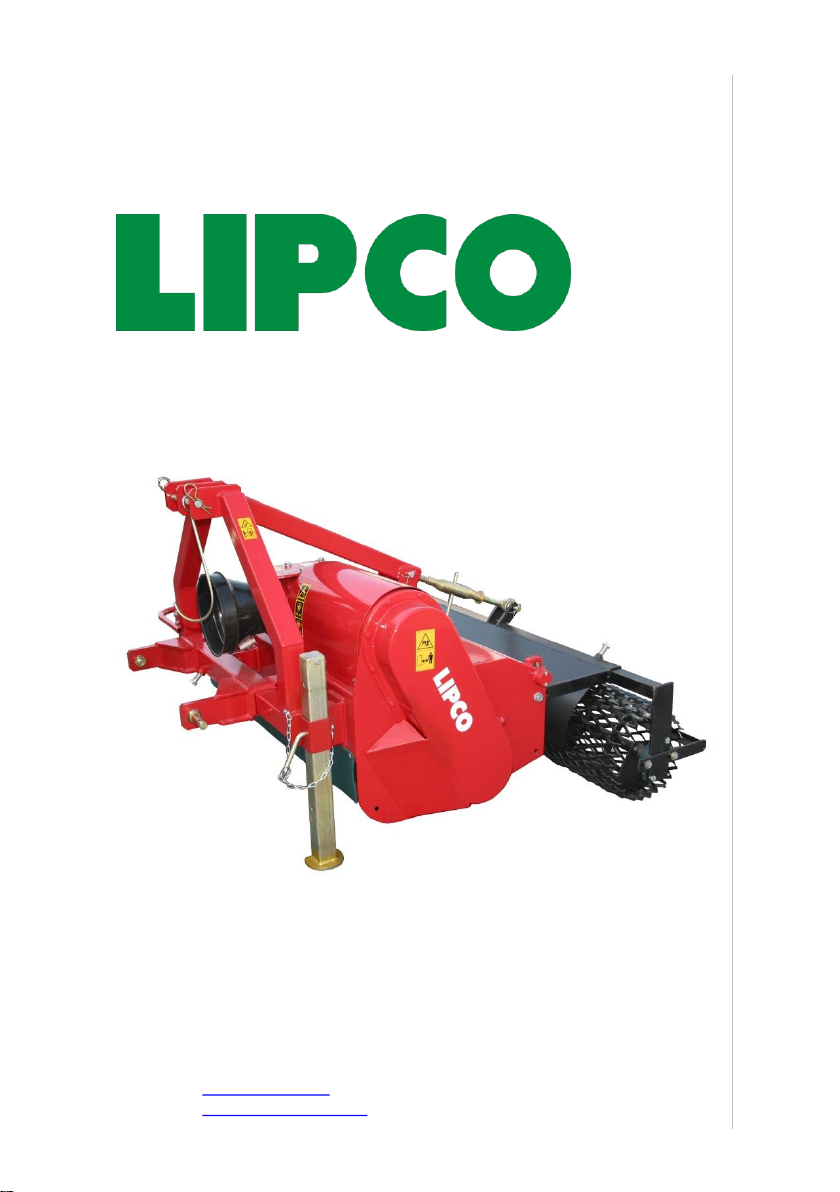

Reversing Harrow UFD 100/110/120/140
instructions
LIPCO GmbH
Am Fuchsgraben 5b
D-77880 Sasbach
Tel.
[phone]
Fax
[phone]
E-Mail
[email protected]
Web
http://www.lipco.com

Original instructions
Reversing Harrow UFD 100/110/120/140
2 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
1. Introduction
Dear Customer,
We thank you for having chosen a LIPCO Reversing Harrow. We
hope that you will be happy with your choice.
In order that your LIPCO Reversing Harrow Type UFD will serve you
well for many years, we ask you to pay close attention to the
operating instructions which you will find in this manual. This will help
you to prevent breakdowns and accidents resulting from non-
observance of the operating instructions, for which our company will
not accept responsibility.
This Instruction and Maintenance Manual is to be considered an
integral part of the machine itself and therefore it must always
accompany the machine when it is sold, even in the event of its sale
to third parties.
If you keep this manual in a safe place and in good condition, you -
and whoever must use the machine - will be able to have a complete
reference on hand at all time.
Note:
The illustrations, descriptions and specifications in this manual are
not binding. LIPCO reserves the right to make modifications without
notice.

Original instructions
Reversing Harrow UFD 100/110/120/140
3 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
2. Contents
2. Contents 3
3. Designated use 4
4. Warning signs attached to the machine 5
5. Safety regulations 7
6. Accident prevention 9
7. Design Features 11
8. Preparation 12
9. Technical Data 13
10. Connection of the machine to the tractor 14
11. Connecting the universal joint shaft 14
12. Adjustment of working depth 17
13. Maintenance 18
14. Replacement of the cutting blades 20
15. Storage after use 20
16. Guarantee 21
17. Notices 22
18. EC Declaration of Conformity 23

Original instructions
Reversing Harrow UFD 100/110/120/140
4 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
3. Designated use
The LIPCO Reversing Harrow UFD, when connected to engine-
driven machines from 13 to 38 kW, is designed to till and level the
ground in a single operation, thus preparing it for seeding.
Any other use for purposes other than those described here is
considered contrary to the designated use. The manufacturer cannot
be held liable for damage resulting from such use; the risk for such
use lies entirely with the user.
Operating the unit within the limits of its designated use also means
following the instructions for operation, transport and maintenance
described by the manufacturer.
Any work, maintenance and repair on the LIPCO Reversing Harrow
must be carried out by persons who are familiar with the unit and
have been informed about possible risks!
The relevant accident prevention regulations as well as the other
generally recognized maintenance, safety, industrial medicine and
road traffic rules and instructions must be observed.
The manufacturer cannot be held liable for damage resulting from
unauthorized modifications of the LIPCO Reversing Harrow UFD.
•Using public roads and highways
Before using public roads and highways, make sure the
combination of tractor and LIPCO Reversing Harrow UFD
or the
combination of machines complies with the regulations of the
Road Traffic Act (allowed total weight, allowed axle loads,
lighting, warning signs, etc.). It may be necessary to transport
the LIPCO Reversing Harrow UFD
on a platform wagon.

Original instructions
Reversing Harrow UFD 100/110/120/140
5 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019

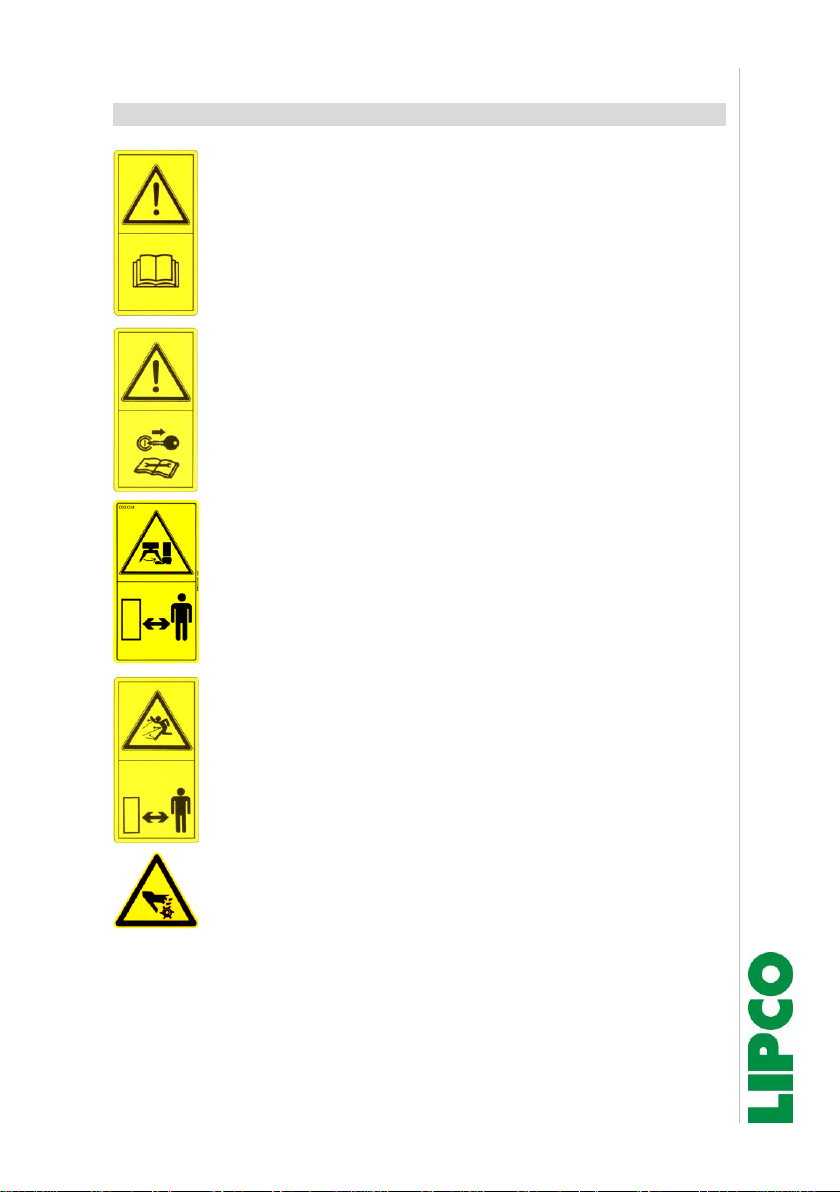

4. Warning signs attached to the machine
Before starting operation, the personnel must have
read the operating and safety instructions and must
observe them.
Before commencing maintenance and repair work,
switch off the engine and pull the key.
With the drive switched on and the tractor motor
running, maintain sufficient distance to rotating tools.
With the motor running, there is a risk of parts being
hurled away –maintain safety distance.
Do not reach into rotating tools.

Original instructions
Reversing Harrow UFD 100/110/120/140
6 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019

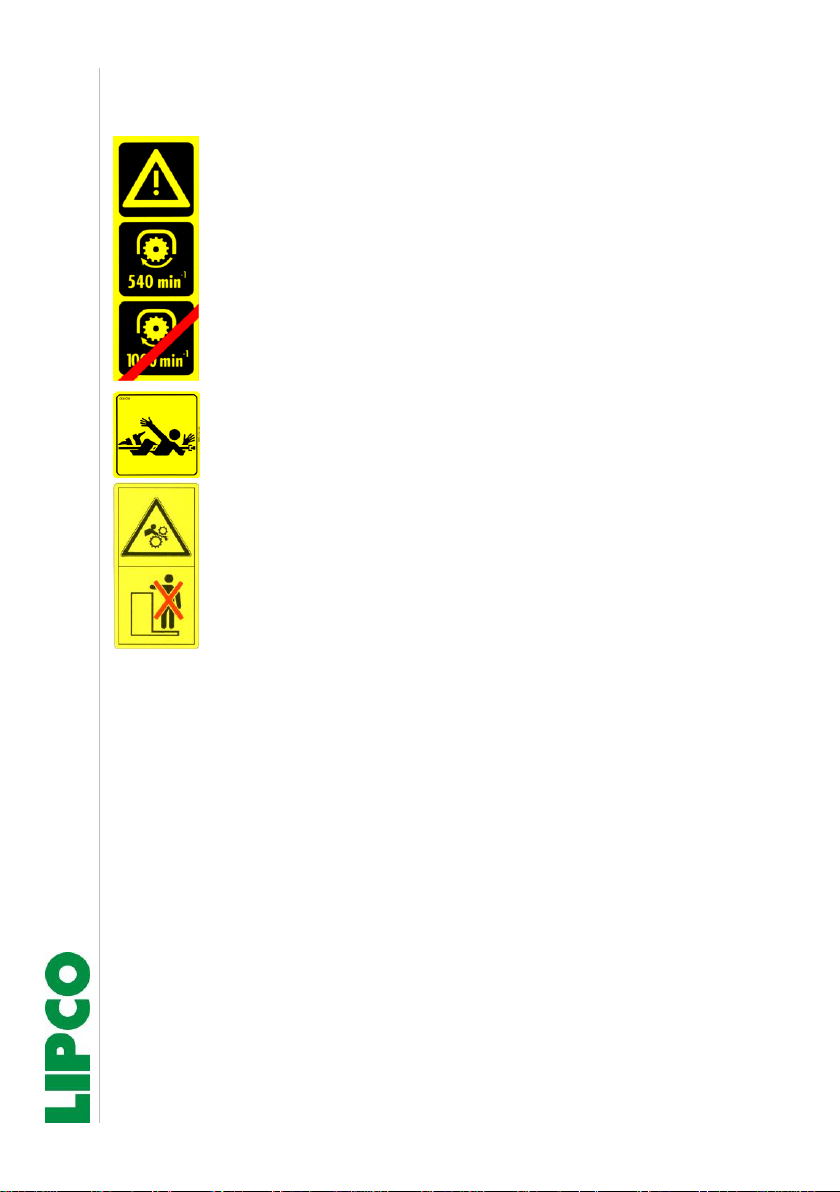

Operate reversing harrow onlythe unit at specified
speed! (540 U/min.)
Never reach between the rotating universal joint
shaft.
Do not climb onto the machine while the engine is
running.

Original instructions
Reversing Harrow UFD 100/110/120/140
7 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
5. Safety regulations
The operation of machines containing rotating or moving tools
always bears risks. Therefore, you should always follow the safety
regulations:
•Before starting operation, the personnel must have read the
operating and safety instructions and observe them.
•Never remove or alter the safety devices!
•Do not touch rotating or moving parts!
•Never lie down beneath the unit for repair or control purposes
when the unit has not been carefully secured beforehand!
•Only use universal joint shafts in perfect condition and with
overload protection!
•For maintenance work switch off the device!
•Do not exceed the prescribed speed (540 rpm) when operating
the unit!
•Maintain safety distance! (Attach danger sign on the side of the
machine)
Attention!
Do not enter the working area when the universal joint shaft
is rotating! In case of contact there is an increased risk of
accidents. For your own safety, do not wear wide or loose
clothes (e.g. scarves)!
•Any work, maintenance and repair on the LIPCO Reversing
Harrow must be carried out by persons who are familiar with the
unit and have been informed about possible risks!

Original instructions
Reversing Harrow UFD 100/110/120/140
8 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
•The relevant accident prevention regulations as well as the other
generally recognized maintenance, safety, industrial medicine
and road traffic rules and instructions must be observed.
•The warnings and signs attached to the unit give important
information on safe operation; observing these instructions
ensures your safety!

Original instructions
Reversing Harrow UFD 100/110/120/140
9 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
6. Accident prevention
Most accidents that occur during work, maintenance or transport of a
machine are due to non-observance of the most elementary rules of
accident prevention.
It is, therefore, necessary that all licensed users (relatives,
employees, colleagues) read and observe the rules given below and
written on the adhesive labels of the machine itself:
•Turn off the universal joint shaft and the engine of the tractor
before carrying out any adjustments, maintenance or cleaning!
•In order to achieve the highest possible performance of the
LIPCO Reversing Harrow, it must always be in perfect condition.
Maintenance or repairs must be carried out by trained persons
only. Spare parts must at least comply with the technical
requirements specified by the manufacturer! This is only
guaranteed for LIPCO
original spare parts!
•Before each use, the suspension bolts of the three-point
suspension, the nuts and the screws, especially those of the
cutting blades, must be checked to ensure they are firmly
tightened!
•Before starting up, please make sure that no people or animals
are in the vicinity!
•Take special caution when working alongside roads or pathways!
•Do not leave the machine running without supervision!
•Before commencing maintenance and repair work, switch off the
engine and pull the key!
•Do not wear wide or loose clothes (e.g. scarves)!

Original instructions
Reversing Harrow UFD 100/110/120/140
10 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
•Do not transport any persons or objects on the unit during work
or transport on the road!
•Only work with completely protected drive, i.e. joint shaft with
complete shaft protection and supplementary protection on
tractor and unit. Make sure the joint shaft connections engage
safely!
•Attach the holding chain of the joint shaft in order to avoid a
rotation of the joint shaft protection.
•Do not, for any reason, climb onto the machine during operation!
•Do not act with any objects on the machine during operation!
•Never use the machine without the roller or stone retaining grid
panels, since these provide protection to the machine against
rotating tools!
•When adjusting the rollers, always turn off the tractor engine and
carry out such adjustments in conditions of absolute safety!
•When carrying out work on the machine, it should be placed on
level ground or on a stable support! When working with the unit
lifted, always secure the unit mechanically by means of adequate
supporting elements!

Original instructions
Reversing Harrow UFD 100/110/120/140
11 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
7. Design Features
The LIPCO Reversing Harrow Type UFD is the only machine that,
when connected to any type of engine-driven machine from 13 to 38
kW, is capable of tilling, levelling, and preparing the earth for seeding
in a single operation. Its outstanding feature is that stones, clods, old
lawn, etc. are dug into the ground.
As a standard, the LIPCO Reversing Harrow is equipped with an
overload coupling, a so-called sliding clutch. Sliding clutches limit
short-term torque peaks during operation, e.g. when a stone gets
jammed. The friction clutch is adjustable; to do so, remove the
protective hood (Fig. 1). Increasing or reducing the spring force will
adjust the friction clutch (Fig. 2). Ensure that all screws are evenly
tightened.

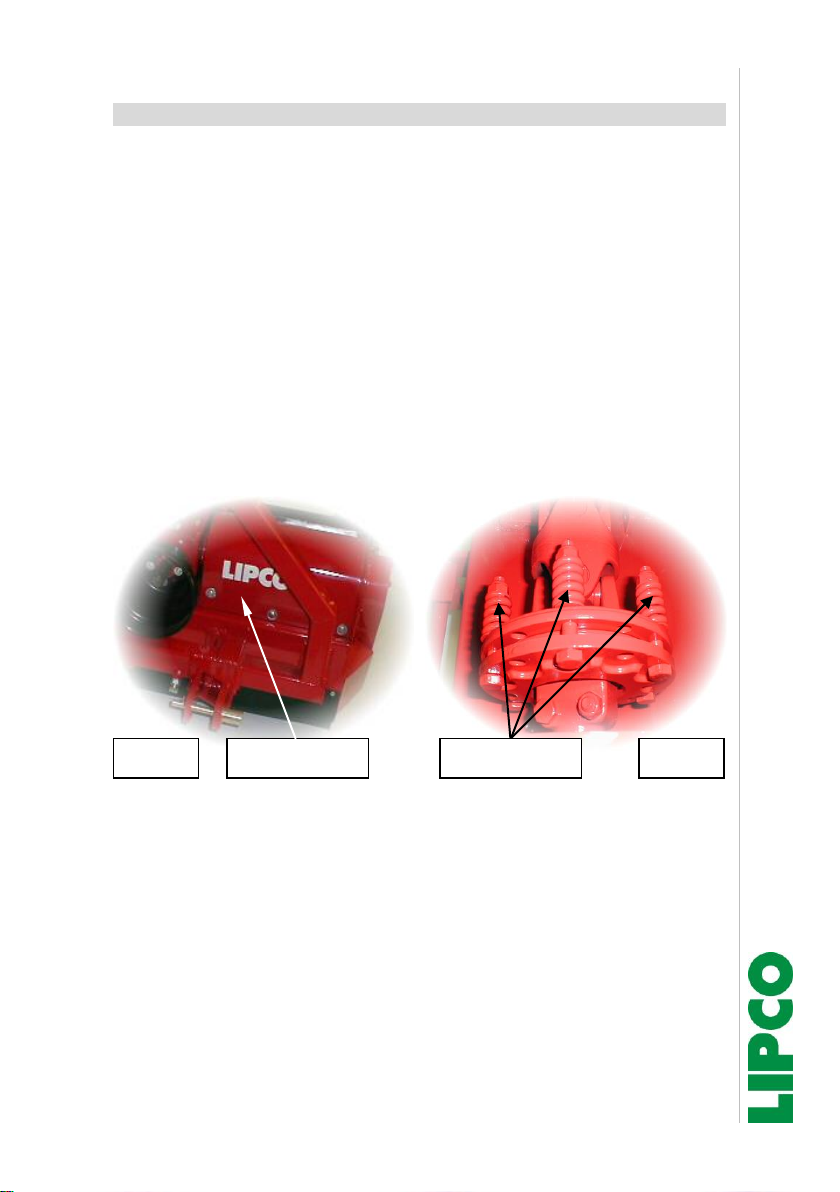

Fig. 1
Protective hood
Fig. 2
Adjustment

Original instructions
Reversing Harrow UFD 100/110/120/140
12 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
8. Preparation
•Before using the unit, check whether all accident protection
devices on tractor, machine and joint shaft are attached correctly
and are in functioning order. Before operating the unit, it is
imperative to replace or install damaged or missing components!
•Check the oil level on the angular gear!
•Check the grease level in the chain case!
•Make sure that all screws are tightened, and all elements are in
perfect working order!
Attention:
Depending on availability, LIPCO Reversing Harrow can be
equipped with cardan shafts from different manufacturers
(Walterscheid or Wiesler ..etc.).
The friction clutch built into the cardan shaft is a safety
component and must be handled with care.
•When using the LIPCO Reversing Harrow machine for the first
time, the PTO shaft operating instructions attached to the PTO
shaft must be removed and read carefully.
When the LIPCO Reversing Harrow is used for the first time /
after a longer stop, the friction clutch must be checked for
functionality.
To do this, the friction clutch must be released, turned by hand
and then tensioned again.
Further details on checking the friction clutch can be found in the
operating instructions of the respective manufacturer.
Note:
If the friction clutch does not function properly, it may cause
serious damage to the machine if it is not released in the event
of an overload.

Original instructions
Reversing Harrow UFD 100/110/120/140
13 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
9. Technical Data
Type
Weight
(kg)
Required
drive power
(kW)
Number of
discs/blades
UFD 100
220
13.5
7
14
UFD 110
285
15
8
16
UFD 120
350
24
8
16
UFD 140
495
37
9
36
Main dimensions
L
B
H
HD
UFD 100
1380
1275
585
925
UFD 110
1380
1375
585
925
UFD 120
1380
1475
585
925
UFD 140
1380
1675
585
925
Attention:
As for the trailer loads and semi-trailer loads, the regulations and
instructions by the traction vehicle manufacturer must be adhered to.
Remarks about noise and vibration:
It is not expected, that the values for noise and vibration of these
attachment unit will exceed the values of the engine-driven machine.

Original instructions
Reversing Harrow UFD 100/110/120/140
14 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
10. Connection of the machine to the tractor
•Before starting the machine and the tractor, check road and
operating safety!
•Persons must never be allowed to stand between the tractor and
the attachment unit without having secured the vehicle against
rolling away by means of the locking brake and / or wheel cocks!
•Never stay in the rotating and pivoting area of the unit!
•In the transport position of the unit, sufficient lateral arresting of
the tractor three-point suspension has to be ensured, in order to
avoid lateral swing-out of the machine!
•Before attaching and removing the unit to the three-point
suspension, place the operating device in the position in which
unintentional lifting and lowering is excluded!
11. Connecting the universal joint shaft
•Only mount and dismount the universal joint shaft when the
power takeoff shaft and the engine have been turned off and the
ignition key pulled!
•When the unit has been coupled to the tractor, check the exact
length of the universal joint shaft.

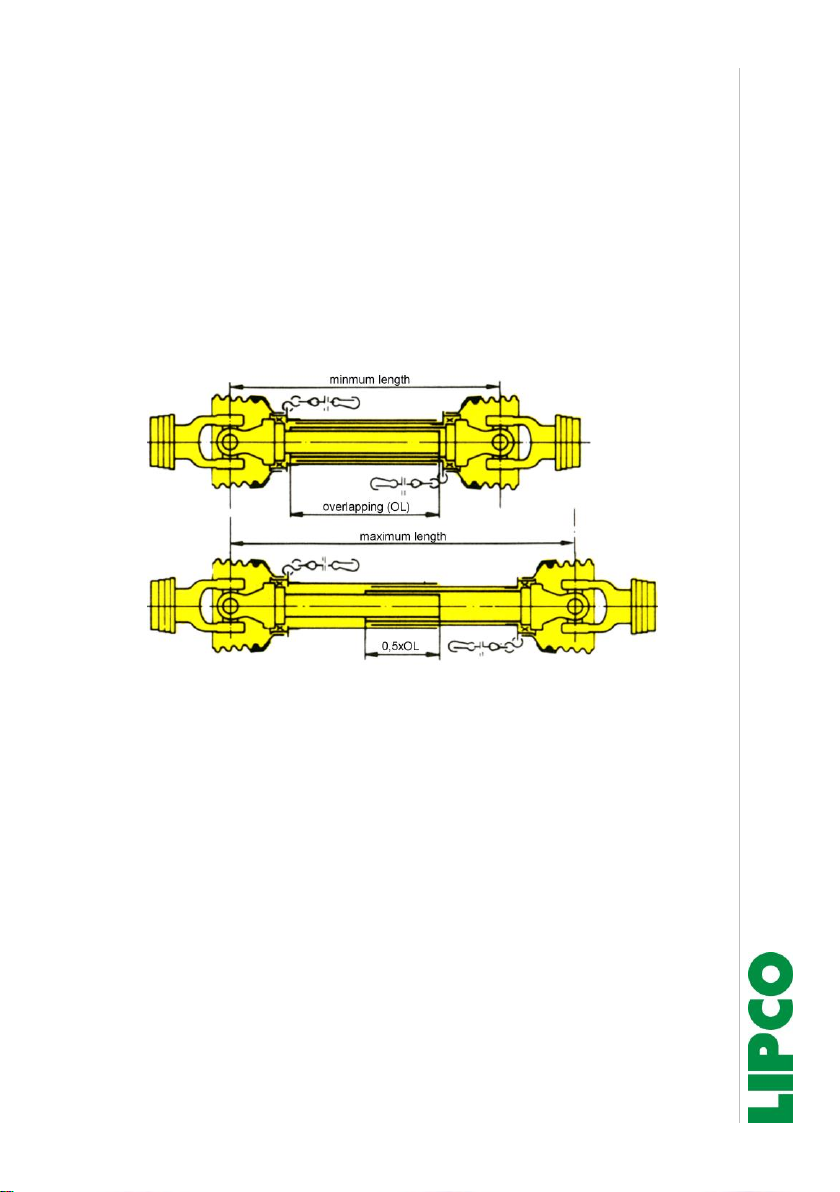

Very important: Highest possible overlapping has to be aimed
at. During operation, the maximum extension of the joint shaft
should be half the sliding profile overlapping (Fig. 3). When
connecting to different tractors, the length must be checked
again.
•Attention!
Press sliding pin and
simultaneously push the joint
shaft onto the power take-off
shaft until the sliding pin
engages.
Fig. 4

Original instructions
Reversing Harrow UFD 100/110/120/140
15 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
•This tractor symbol indicates the tractor side of the joint shaft.
Always attach overload protections (e.g. shear pin coupling) on
machine side!
•Attach the holding chain so that a sufficient pivoting area of the
universal joint shaft is guaranteed in all operating positions.
Never use the holding chain to suspend the universal joint shaft!
•For your own safety, replace the safety devices if they are
damaged or worn. When the machine is not in use, the universal
joint shaft can be hung in the bracket provided for protection.
Fig. 4
•Make sure that, when you mount the universal joint shaft on the
machine, the unit protective cover overlaps the joint shaft
protection in all operating positions!

Original instructions
Reversing Harrow UFD 100/110/120/140
16 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
•Lubricate the universal joint shaft before starting up, see
lubrication plan! See also adequate PTO shaft instructions!
Fig. 5
•Attention!
Only use joint shaft types prescribed by the manufacturer!

Original instructions
Reversing Harrow UFD 100/110/120/140
17 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
12. Adjustment of working depth
Turn the compression link for
roller adjustment (Fig. 6) to
adjust the desired working
depth. It is important for the
machine to rest on its roller
while working.
The LIPCO Reversing Harrow
can be attached eccentrically
by means of the adjustable three-point frame (except for UFD 100).
This is done by loosening the two lock screws and sliding the frame
to the desired position. To lubricate the lateral adjustment, a
lubrication nipple is mounted on the bottom side of the frame (Fig. 7).
As a standard, the LIPCO Reversing Harrow is equipped with a
laterally adjustable roller. In order to adjust the roller, the two lock
screws at the outer tube of the roller holder (Fig. 8 / A) are loosened,
and the roller is shifted into the corresponding direction.
Fig. 6
Compression link for
roller adjustment
Fig. 7
Locking screws
Fig. 8
A
Lubricating nipple

Original instructions
Reversing Harrow UFD 100/110/120/140
18 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
13. Maintenance
Steps to be carried out in order to maintain the machine in good
working condition:
•Check the correct connection of the universal joint shaft and the
safety devices!
Attention:
Depending on availability, LIPCO Reversing Harrow can be
equipped with cardan shafts from different manufacturers
(Walterscheid or Wiesler ..etc.).
The friction clutch built into the cardan shaft is a safety
component and must be handled with care.
•When using the LIPCO Reversing Harrow machine for the first
time, the PTO shaft operating instructions attached to the PTO
shaft must be removed and read carefully.
When the LIPCO Reversing Harrow is used for the first time /
after a longer stop, the friction clutch must be checked for
functionality.
To do this, the friction clutch must be released, turned by hand
and then tensioned again.
More details on checking the friction clutch can be found in the
operating instructions of the respective manufacturer.
Note:
If the friction clutch does not function properly, it may cause
serious damage to the machine if it is not released in the event
of an overload.
•Grease the roller bearings! (Fig. 9)
•Lubricate the lateral adjustment! (Fig. 7)
•Lubricate the universal joint shaft before start-up and every 8
operating hours with proprietary grease and check the smooth
running of the sliding profiles. In winter, the protective tubes have
to be greased in order to avoid freezing! (See lubrication plan
Fig. 5)

Original instructions
Reversing Harrow UFD 100/110/120/140
19 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
•Check the gear oil level in the angular gear via the
corresponding plug. The angular gear should be filled with gear
oil to the lower edge of the filler neck.
•1st oil change after 30-50 operating hours.
•Further oil changes every 200 operating hours or once a year.
Use gear oil SAE 90! (Fig. 10)
•Check whether the cutting blades are tightened, and retighten
the screws, if necessary. Replace damaged screws immediately!
(See chapter "12. Replacement of the cutting blades").
•Check the grease level in the chain case! (Approx. 4-5 cm). Use
liquid gear grease in the chain case! (Fig. 11)
Use sodium-bicarbonate-based liquid gear grease (type GP 00).
•To enable the machine to
be safely put down, it
should be supported on
solid horizontal ground by
means of the height-
adjustable base.
(Fig. 13)
•Secure the supporting base in the uppermost position during soil
cultivation.
Fig. 9
Lubricating
nipplel
Fig. 10
Fig. 11
Filler neck
Plug
Fig. 13
Supporting
base

Original instructions
Reversing Harrow UFD 100/110/120/140
20 - 24
100102-02-EN BA UFD 100_110_120_140 / 09.08.2019
14. Replacement of the cutting blades
When replacing the cutting blades, make sure that the machine is
secured against unintentional tilting! When working with the unit
lifted, always secure the unit mechanically by means of adequate
supporting elements! Turn off the engine and pull the ignition key!
When replacing them, it is very important to maintain the cutting
blade arrangement, especially the direction of the cutting edge. The
blades must always be mounted in cutting direction. (Note: When
replacing cutting blades, it is recommended replacing the screws and
nuts as well! Always use the original screws with fine pitch thread!)
15. Storage after use
If the LIPCO Reversing Harrow UFD is to remain unused for a longer
period, it is necessary to carry out the following steps:
•Thoroughly wash and dry the LIPCO Reversing Harrow!
•Thoroughly check the function of the moving parts, replace any
damaged, worn or deteriorated parts!
•Check whether all screws are tightened!
•Check the oil and lubricant levels!
•Clean and lubricate the universal joint shaft!
•Grease all unpainted metal parts to protect them against
corrosion, cover the LIPCO Reversing Harrow and store it in a
dry place so that it will be ready for use any time.
•Attention!
Before using the unit again, follow the instructions in
chapter "13. Maintenance".
