Solera®5000
Series Awning
OWNER'S MANUAL

Rev: 09.22.21 Page 2 CCD-0004407
Introduction
The Solera® 5000 Series Awning features easy access to an internal motor to steadily operate the awning.
Additionally, the friction joint allows for rain dump and adjustable pitch features, and there is no rafter arm
to lock in place. The friction joint also provides added stability.
Additional information about this product can be obtained from lci1.com/support or by downloading the
free LippertNOW app in Apple App Store® for iPhone® and iPad® and also on Google Play™ for Android™
users. App Store® and iPad® are registered trademarks of Apple Inc. Google Play™ and Android™ are
trademarks of Google Inc.
For information on the assembly or individual components of this product, please visit:
https://support.lci1.com/awnings/
NOTE: Images used in this document are for reference only when assembling, installing and/or operating
this product. Actual appearance of provided and/or purchased parts and assemblies may differ.
TABLE OF CONTENTS
Introduction 2
Safety 3
Operation 4
Extending the Awning 4
Retracting the Awning 4
Adjusting Pitch - All Solera Awnings 5
Troubleshooting 6
Manual Override 6
Maintenance 7
Resources Required 7
Fabric Care 7

Rev: 09.22.21 Page 3 CCD-0004407
Safety
Read and understand all instructions before installing or operating this product. Adhere to all safety labels.
This manual provides general instructions. Many variables can change the circumstances of the instructions,
i.e., the degree of difficulty, operation and ability of the individual performing the instructions. This
manual cannot begin to plot out instructions for every possibility, but provides the general instructions,
as necessary, for effectively interfacing with the device, product or system. Failure to correctly follow the
provided instructions may result in death, serious personal injury, severe product and/or property damage,
including voiding of the Lippert limited warranty.
The “WARNING” symbol above is a sign that a procedure has a safety risk involved and may cause
death or serious personal injury if not performed safely and within the parameters set forth in
this manual.
This manual provides operational procedures for Solera® 5000 Series Awning. Operating the Solera®
5000 Series Awning in any other manner than described may result in personal injury, damage to
the recreational vehicle or the awning assembly as well as voiding the Lippert Components Limited
Warranty.
The “CAUTION” symbol above is a sign that a safety risk is involved and may cause personal injury
and/or product or property damage if not safely adhered to and within the parameters set forth
in this manual.

Rev: 09.22.21 Page 4 CCD-0004407
Operation
NOTE: Some units may not use the Lippert switch (Fig. 1).
Extending the Awning
1. Verify the RV battery is fully charged and connected to the electrical system.
NOTE: if the unit is equipped with a locking latch, be sure to unlock the latch prior to extending the awning.
2. Press and hold EXTEND (Fig. 1A) until the awning is extended completely.
NOTE: Extension is considered complete when the fabric is completely unrolled, the valance is hanging
down from the roll tube and the awning's single polycord is visible between the 9 and 12 o'clock
positions as viewed from the end of the drive head (Fig. 2).
NOTE: The awning fabric should always be above the roll tube. However, if the extend switch is engaged
too long or extend is hit inadvertently instead of retract, the awning will roll up backward. This is not
a defect. To correct the fabric orientation, press the RETRACT button. The awning will then extend to
its correct orientation and normal operation can resume.
Fig. 1
Retracting the Awning
1. Verify the coach battery is fully charged and connected to the electrical system.
NOTE: The awning can be retracted without resetting the pitch.
2. Press and hold RETRACT (Fig. 1B) until the awning is retracted completely.
NOTE: If the unit is equipped with a locking latch, be sure to engage the latch after retracting the awning.
A
B
Tying down the roll tube once the awning is extended will not allow the free-oating support arms
to work as designed and may cause damage to the awning or unit.
Fig. 2
Valance Seam
Roll
Tube
Fabric
Valance
Exposed Roll
Tube Section Awning
Head

Rev: 09.22.21 Page 5 CCD-0004407
Adjusting Pitch - All Solera Awnings
NOTE: The awning will pitch itself to purge the pooling of excess water and may dump a significant
amount of water without notice.
1. Pitch can be set by adjusting the articulating arm to tip one side of the awning to allow water runoff.
2. Extend the awning to desired position.
3. Choose the side of the awning for optimum shade or convenient water runoff. Pull downward on the
joint of the pitch arm until desired pitch is set (Fig. 3). Belleville washers and bolt (Fig. 5A) allow for the
joint to remain in the position set by the operator.
NOTE: Do not push the joints of the articulating arms up past a straight line (Fig. 4). This will put tension on
the gas strut, which can cause the strut to break.
NOTE: The awning can be retracted without resetting the pitch.
NOTE: If the articulating arm does not hold position, it can be tightened by adjusting the bolt (Fig. 5A) in
the center of the articulating arm.
NOTE: When tightening the bolt do not tighten more than ¼turn at a time and do not tighten to the
point of crushing the pitch arm.
NOTE: Existing Belleville washers and bolt are installed in a specific orientation for tensioning. Removal of
these components or modification of the orientation will cause adverse effects on the pitch
arm functionality.
Fig. 3
Pitch
A
Fig. 4
Fig. 5

Rev: 09.22.21 Page 6 CCD-0004407

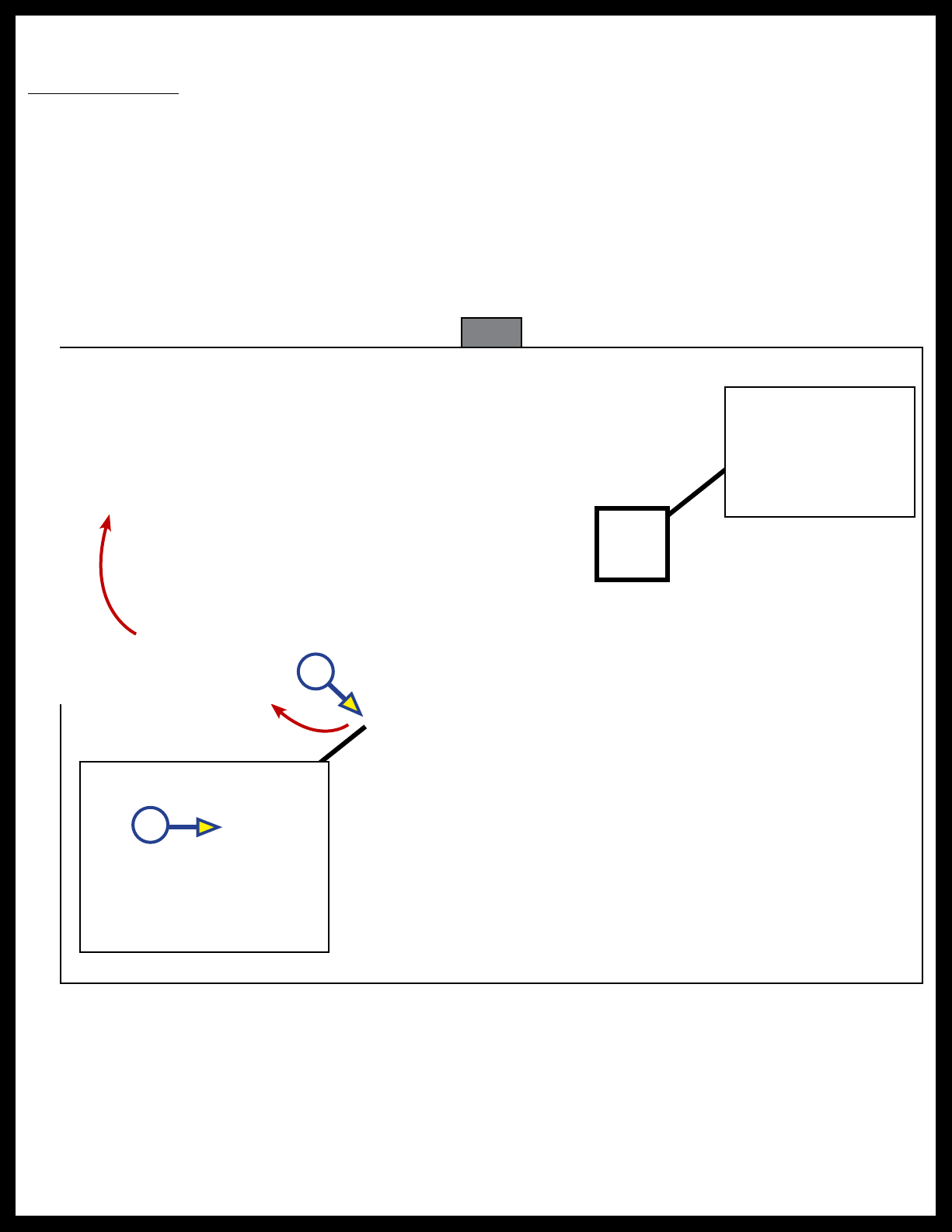

Fig. 6
Troubleshooting
Manual Override
In the event of power loss or motor failure, the awning can be extended or retracted manually. Perform the
following procedure to manually extend or retract the awning.
NOTE: This procedure may also be performed to extend or retract the awning in the event of dry camping
or camping without a battery.
1. Lift the decorative cover (Fig. 6A) by unlatching and lifting cover up from the bottom (Fig. 6B and 6C)
exposing the manual override nut on the motor (Fig. 6D)
NOTE: The drive head assembly is always located on the right side of the awning as it is viewed from
outside of the unit.
A
C
B
D

Rev: 09.22.21 Page 7 CCD-0004407
Maintenance
Resources Required
• 5 gallon bucket
• Clean water
• ¼cup of dish soap
Fabric Care
During incidents of high wind, heavy rain or extended time away from the unit, it is advisable to
retract the awning completely to prevent damage to the awning and the unit.
Over-spray of cleaning solution can cause eye and sensitive skin irritation. Flush aected area
with clean water and seek medical attention, if necessary. Wear eye protection and appropriate
protective clothing to avoid personal injury.
Moving parts can pinch, crush or cut. Keep clear and use caution.
If the awning is retracted while wet, extend the awning and let it dry as soon as conditions allow before
retracting. This will help prevent the formation of mildew and add greatly to the life of the awning.
NOTE: Mildew does not form on the fabric itself, but on the accumulated dust, dirt and grime. Periodically
clean vinyl or woven acrylic fabric using a mixture of ¼cup of dish soap and five gallons of
warm water.
1. Liberally apply the mixture on the top of the fabric and retract the awning for five minutes. This will
apply the mixture to the bottom of the fabric as well.
2. Extend the awning and hose off with fresh water.
3. Repeat if necessary.
4. Allow to dry before retracting.
2. Using a ⁄" socket and cordless power drill, spin the manual override nut clockwise to extend or
counterclockwise to retract the awning. (Fig. 7).
Fig. 7
NOTE: Use caution when extending or retracting the awning manually. The use of a step stool or ladder
may be required to completely extend or retract the awning.
3. When the awning is completely extended or retracted, remove socket or drive device and replace the
decorative cover on drive head assembly.
