LIVARNO LUX 300635 Technical specifications

LED LIGHT
IAN 300635
LED-STRAHLER
Montage-, Bedienungs- und Sicherheitshinweise
LED ZÁŘIČ
Pokyny k montáži, obsluze a bezpečnostní pokyny
LED REFLEKTOR
Pokyny pre montáž, obsluhu a bezpečnostné
pokyny
LED-REFLEKTOR
Navodila za montažo, uporabo in varnostna
navodila
LED LIGHT
Assembly, operating and safety instructions

GB Assembly, operating and safety instructions Page 5
SI Navodila za montažo, uporabo in varnostna navodila Stran 18
CZ Pokyny k montáži, obsluze a bezpečnostní pokyny Strana 32
SK Pokyny pre montáž, obsluhu a bezpečnostné pokyny Strana 45
DE/AT/CH Montage-, Bedienungs- und Sicherheitshinweise Seite 58

A
C
B
D
3
5 46
8 95
8
1
2
7

0m 2m 4m 6m 8m
2m
ca.140°
ca.8m
E
F
10
11

5GB
List of pictograms used............................................ Page 6
Introduction....................................................................... Page 6
Intended use............................................................................ Page 7
Parts description...................................................................... Page 7
Technical data......................................................................... Page 8
Scope of delivery.................................................................... Page 8
General safety instructions.................................. Page 9
Safety instructions for batteries/ rechargeable batteries ..... Page 10
Function................................................................................. Page 11
Installation......................................................................... Page 12
Replacing the batteries ........................................................... Page 13
Setting the lighting duration.................................................... Page 14
Setting the daylight level ........................................................ Page 14
Cleaning and care........................................................ Page 15
Troubleshooting ............................................................ Page 15
Disposal................................................................................ Page 15
Warranty............................................................................. Page 17

6 GB

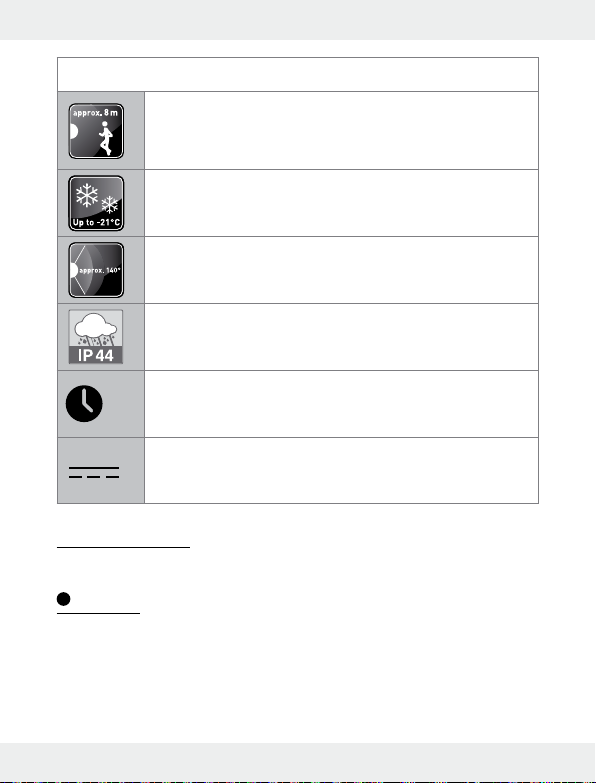

List of pictograms used
Motion detector detection range approx. 8m
(weather dependant)
This product is suitable for extreme
temperature up to -21°C.
Motion detector detection angle approx. 140°
Splashproof (IP44)
LED lifespan
Direct current
LED Light
Introduction
We congratulate you on the purchase of your new product. You have
chosen a high quality product. The instructions for use are part of the
product. They contain important information concerning safety, use
and disposal. Before using the product, please familiarise yourself with

7GB
all of the safety information and instructions for use. Only use the
product as described and for the specified applications. If you pass
the product on to anyone else, please ensure that you also pass on all
the documentation with it.
Intended use
The product is intended to illuminate outdoor areas without electrical
connection, e.g. garden sheds etc. This product is only intended for
private use and is not suitable for commercial use or for use in other
applications.
Not suitable for ordinary lighting in household room
illumination.
This product is suitable for extreme temperature up to -21°C.
Parts description
1Main unit
2LED spotlight
3Motion detector
4Screw (Ø 3.6 x 30mm)
5Mounting plate
6Wall plug (Ø 6 mm)
7Cap
8Battery compartment cover
9Battery compartment
10 Rotary control LUX
11 Rotary control TIME

8 GB
Technical data
Operating voltage: 4 x 1.5V (direct current)
Operating batteries: 4 x 1.5 V (direct current), size C
LEDs: 2 x 4W (LEDs not replaceable)
Motion detector: Range: max. 8m, detection angle:
approx. 140° horizontal, approx. 90° vertical
Degree of protection: IP44 (splash-proof)
Weight: 370 g
Dimensions: approx. 19.4 x 14.5 x 10.5cm
Projected area: max. 19.4 x 14.5cm
Mounting height: max. 2m
Scope of delivery
Check immediately after unpacking that the parts are complete and
that the product is in proper condition.
1 Main unit
4 Batteries (1.5V, size C)
2 Screws (Ø 3.6 x 30mm)
2 Wall plugs (Ø 6 mm)
2 Caps
1 Instructions for assembly and use

9GB
General safety instructions
BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF
WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS
FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS,
PLEASE ALSO INCLUDE ALL THE DOCUMENTS!
This product may be used by children age 8 years and up, as well
as by persons with reduced physical, sensory or mental capaci
ties,
or lacking experience and/or knowle
dge, so long as they are super-
vised or instructed in the safe use of the product and understand
the associated risks. Children should not be allowed to play with
the product. Cleaning and user maintenance should not be per-
formed by children without supervision.
Never leave children unsupervised with the packaging material.
The packaging material represents a danger of suffocation.
Children frequently underestimate the dangers.
DANGER OF SUFFOCATION! Children could swallow and
choke on small included parts (e.g. screws). Keep children away
from the work area during assembly.
Do not use this product if you notice any damage!
The LEDs are not replaceable.
If the LEDs fail at the end of their lives, the entire product must be
replaced.
0.1m
FIRE HAZARD! Fit the product so that it is at least
0.1m away from the material to be illuminated. Exces-
sive heat can result in a fire.

10 GB
Risk Group 2
Product tested against EN62471
CAUTION. Possibly hazardous
optical radiation emitted from
this product. Do not stare at operating
lamp. May be harmful to the eye.
Safety instructions for batteries /
rechargeable batteries
DANGER TO LIFE! Keep batteries /rechargeable batteries out
of reach of children. If accidentally swallowed seek immediate
medical attention.
DANGER OF EXPLOSION! Never recharge non-
rechargeable batteries. Do not short-circuit batteries/
rechargeable batteries and/or open them. Overheating,
fire or bursting can be the result.
Never throw batteries/ rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries/rechargeable batteries.
Risk of leakage of batteries/ rechargeable batteries
Avoid extreme environmental conditions and temperatures, which
could affect batteries/rechargeable batteries, e.g. radiators/
direct sunlight.
If batteries/rechargeable batteries have leaked, avoid contact
with skin, eyes and mucous membranes with the chemicals! Flush

11GB
immediately the affected areas with fresh water and seek medical
attention!
WEAR PROTECTIVE GLOVES! Leaked or damaged
batteries/rechargeable batteries can cause burns on
contact with the skin. Wear suitable protective gloves at
all times if such an event occurs.
In the event of a leakage of batteries/ rechargeable batteries, im-
mediately remove them from the product to prevent damage.
Only use the same type of batteries/rechargeable batteries. Do
not mix used and new batteries/ rechargeable batteries.
Remove batteries/ rechargeable batteries if the product will not be
used for a longer period.
Risk of damage of the product
Only use the specified type of battery/rechargeable battery!
Insert batteries/ rechargeable batteries according to polarity
marks (+) and (-) on the battery/rechargeable battery and the
product.
Clean the contacts on the battery/rechargeable battery and in
the battery compartment before inserting!
Remove exhausted batteries/rechargeable batteries from the
product immediately.
Function
During periods of twilight or darkness, the motion detector 3registers
a change in the angle of heat radiation, triggered by people passing
by the motion detector. When the motion detector recognises a moving
person the light is switched on.

12 GB
Note: The motion detector 3responds to heat radiation. When out-
door temperatures are low, it is more sensitive to body heat than when
outdoor temperatures are warm. Be sure to regulate the sensitivity of
the motion detector over the course of the year.
Note: Regularly clean the motion detector to ensure proper function-
ality (refer to „Cleaning and Care“).
Installation
Note: Remove all packaging materials from the product.
When selecting the mounting location, pay attention to the
following:
Note: The included mounting material is suitable for ordinary
solid concrete or masonry construction. Other wall substrates may
require other fastening materials. Seek specialist advice if necessary.
Note: You will need an electric drill.
CAUTION! RISK OF INJURY! Please read the operating
instructions for your drill.
CAUTION! Ensure that you do not damage any electricity cables
in the wall or ceiling.
1. Make sure the LED spotlights 2illuminate the desired area. You
can move the LED spotlights 2independently in various directions.
2. Depending on the mounting height (ideally at 2m) the motion
detector 3has a detection range of max. 8m with a detection
angle of 140° horizontally and 90° vertically.
3. Be sure the motion detector is not illuminated by street lighting at
night. This can influence the effect.

13GB
Loosen the screw on the bottom of the main unit 1with a suitable
cross-head screwdriver. Remove the mounting plate 5from the
back of the product (Fig. A).
Pay attention to the battery compartment cover 8.
Use the holes of the mounting plate 5intended for the screws to
mark the holes for drilling. Ensure that the arrow on the marking
of the mounting plate is showing vertically upward.
Now drill the mounting holes.
Insert the wall plugs 6into the drilled holes (Fig. B).
Fix the mounting plate 5using the screws 4with a suitable
cross-head screwdriver (Fig. B).
Press the caps 7onto the screws 4.
After mounting, check that the mounting plate 5is fitted securely.
Remove the battery compartment cover 8and insert the batteries,
then close the battery compartment cover 8(refer to “Replacing
the batteries”)
Fit the main unit 1onto the mounting plate 5. Insert the 2 lugs
into the respective slots on the upper side of the mounting plate 5.
Ensure the product is correctly seated.
Secure the main unit 1with the screw on the bottom (Fig. A).
Adjust both LED spotlights 2to your desired angle. The LED spot-
lights 2are independently rotatable and tiltable.
Your product is now ready for use.
Replacing the batteries
Loosen the screw on the bottom of the main unit 1with a suitable
cross-head screwdriver (Fig. A).
Detach the main unit 1from the mounting plate 5(Fig. C).

14 GB
Press the lugs on both sides and remove the battery compartment
cover 8(Fig. D). Be careful as the battery compartment cover is
under tension.

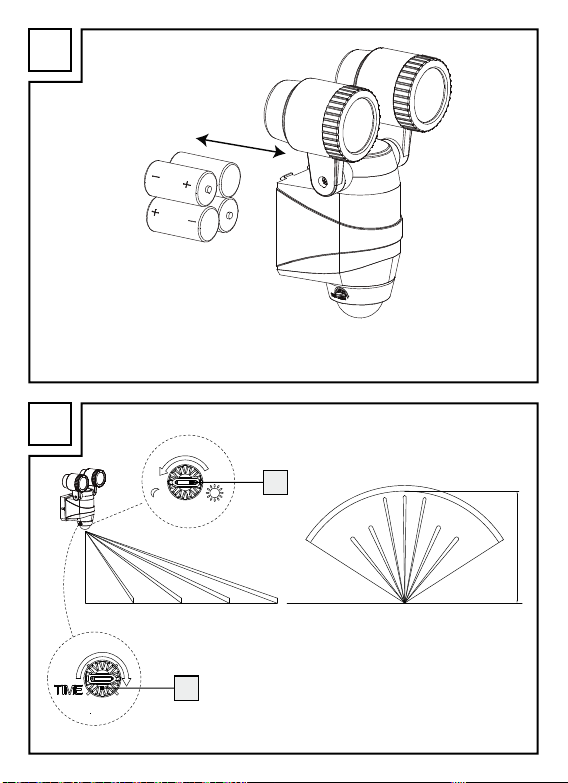

Remove the exhausted batteries from the battery compartment 9
and replace with new batteries of the same type (Fig. E). Be sure
to insert the batteries in correct direction. The correct polarity is
shown inside the battery compartment.
Close the battery compartment cover 8. Ensure that the label
“above” on the marking of the battery compartment cover 8is
showing vertically upward (Fig. D).
Fit the main unit 1onto the mounting plate 5. Insert the 2 lugs
into the respective slots on the upper side of the mounting plate
5. Ensure the product is correctly seated.
Secure the main unit 1with the screw on the bottom (Fig. A).
Setting the lighting duration
Turn the rotary control TIME 11 clockwise to increase the duration
of the illumination. The lighting duration can be adjusted within a
time window of approx. 5 seconds to 7 minutes (Fig. F).
Setting the daylight level
Turn the rotary control LUX 10 clockwise to increase the daylight
level: In the position, the motion detector 3only reacts at night
(at approx. 20lx). In the position, the motion detector also re-
sponds at daylight levels, as long as about 10,000lx are not ex-
ceeded (Fig. F).

15GB
Cleaning and care
Use a slightly dampened, lint-free cloth and mild cleaning agent to
clean.
Regularly check the motion detector 3for dirt.
Regularly clean the motion detector to ensure proper functionality.
Troubleshooting
Problem Cause Solution
The light does
not switch on.
Motion detector 3is dirty Clean motion
detector
Batteries are drained Change batteries
The light flickers. Batteries are almost drained Change batteries
Disposal
The packaging is made entirely of recyclable materials, which you
may dispose of at local recycling facilities.
b
a
Observe the marking of the packaging materials for waste
separation, which are marked with abbreviations (a) and
numbers (b) with following meaning: 1–7: plastics/20–22:
paper and fibreboard/80–98: composite materials.

16 GB
The product and packaging materials are recyclable,
dispose of it separately for better waste treatment. The
Triman logo is valid in France only.
Contact your local refuse disposal authority for more details
of how to dispose of your worn-out product.
To help protect the environment, please dispose of the prod-
uct properly when it has reached the end of its useful life
and not in the household waste. Information on collection
points and their opening hours can be obtained from your
local authority.
Faulty or used batteries /rechargeable batteries must be recycled in
accordance with Directive 2006/66/EC and its amendments. Please
return the batteries/ rechargeable batteries and/or the product to the
available collection points.
Environmental damage through incorrect dis-
posal of the batteries /rechargeable batteries!
Batteries/rechargeable batteries may not be disposed of with the
usual domestic waste. They may contain toxic heavy metals and are
subject to hazardous waste treatment rules and regulations. The chemical
symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury,
Pb = lead. That is why you should dispose of used batteries/recharge-
able batteries at a local collection point.

17GB
Warranty
The product has been manufactured to strict quality guidelines and
meticulously examined before delivery. In the event of product defects
you have legal rights against the retailer of this product. Your legal
rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase.
Should this product show any fault in materials or manufacture within
3 years from the date of purchase, we will repair or replace it – at our
choice – free of charge to you.
The warranty period begins on the date of purchase. Please keep the
original sales receipt in a safe location. This document is required as
your proof of purchase. This warranty becomes void if the product has
been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This war-
ranty does not cover product parts subject to normal wear, thus pos-
sibly considered consumables (e.g. batteries) or for damage to fragile
parts, e.g. switches, rechargeable batteries or glass parts.

18 SI
Legenda uporabljenih piktogramov...........Stran 19
Uvod........................................................................................Stran 19
Predvidena uporaba...............................................................Stran 20
Opis delov...............................................................................Stran 20
Tehnični podatki......................................................................Stran 21
Obseg dobave........................................................................Stran 21
Splošni varnostni napotki.....................................Stran 22
Varnostni napotki za baterije/akumulatorje ........................Stran 23
Delovanje............................................................................Stran 24
Montaža...............................................................................Stran 25
Zamenjava baterij...................................................................Stran 26
Nastavitev trajanja svetenja...................................................Stran 27
Nastavitev dnevne svetlobe ...................................................Stran 27
Čiščenje in nega.............................................................Stran 28
Odprava napak.............................................................Stran 28
Odstranjevanje..............................................................Stran 28
Garancijski list ................................................................Stran 30

19SI
Legenda uporabljenih piktogramov
Doseg zaznavanja senzorja gibanja pribl. 8m
(odvisno od vremena)
Izdelek je primeren za ekstremne temperature do
-21°C.
Kot zaznavanja senzorja gibanja: pribl. 140°
Zaščiteno pred škropljenjem z vodo (IP44)
Življenjska doba LED lučk
Enosmerni tok
LED-reflektor
Uvod
Iskrene čestitke ob nakupu vašega novega izdelka. Odločili ste se za
zelo kakovosten izdelek. To navodilo za uporabo je sestavni del tega
izdelka. Vsebuje pomembna navodila za varnost, uporabo in odstrani-
tev. Preden začnete izdelek uporabljati, se seznanite z vsemi navodili

20 SI
za uporabo in varnostnimi napotki. Izdelek uporabljajte samo tako,
kot je opisano, in samo za navedena področja uporabe. Če izdelek
odstopite novemu lastniku, mu zraven izročite tudi vse dokumente.
Predvidena uporaba
Ta izdelek je namenjen razsvetljavi na prostem, na mestih, kjer ni na
voljo električnih priključkov, kot so npr. vrtne ute itd. Izdelek je prime-
ren le za zasebno uporabo in ne za komercialno ali drugačno
uporabo.
Ta izdelek ni primeren za osvetljavo prostora v
gospodinjstvu.
Izdelek je primeren za ekstremne temperature do -21°C.
Opis delov
1Glavna enota
2LED reflektor
3Senzor gibanja
4Vijak (Ø 3,6 x 30mm)
5Montažna plošča
6Zidni vložek (Ø 6mm)
7Pokrovček
8Pokrov predalčka za baterije
9Predalček za baterije
10 Vrtljivi regulator LUX
11 Vrtljivi regulator TIME
