Lovato Dmg110 User manual

I422 GB I 10 17 31100212

WARNING!

– Carefully read the manual before the installation or use.

– This equipment is to be installed by qualified personnel, complying to current standards, to avoid

damages or safety hazards.

– Before any maintenance operation on the device, remove all the voltages from measuring and supply inputs and short-

circuit the CT input terminals.

– The manufacturer cannot be held responsible for electrical safety in case of improper use of the equipment.

– Products illustrated herein are subject to alteration and changes without prior notice. Technical data and descriptions

in the documentation are accurate, to the best of our knowledge, but no liabilities for errors, omissions or

contingencies arising there from are accepted.

– A circuit breaker must be included in the electrical installation of the building. It must be installed close by the

equipment and within easy reach of the operator. It must be marked as the disconnecting device of the equipment:

IEC /EN 61010-1 § 6.11.2.

– Clean the instrument with a soft dry cloth; do not use abrasives, liquid detergents or solvents.

ATTENZIONE!

– Leggere attentamente il manuale prima dell’utilizzo e l’installazione.

– Questi apparecchi devono essere installati da personale qualificato, nel rispetto delle vigenti normative

impiantistiche, allo scopo di evitare danni a persone o cose.

– Prima di qualsiasi intervento sullo strumento, togliere tensione dagli ingressi di misura e di alimentazione e

cortocircuitare i trasformatori di corrente.

– Il costruttore non si assume responsabilità in merito alla sicurezza elettrica in caso di utilizzo improprio del dispositivo.

– I prodotti descritti in questo documento sono suscettibili in qualsiasi momento di evoluzioni o di modifiche. Le

descrizioni ed i dati a catalogo non possono pertanto avere alcun valore contrattuale.

– Un interruttore o disgiuntore va compreso nell’impianto elettrico dell’edificio. Esso deve trovarsi in stretta vicinanza

dell’apparecchio ed essere facilmente raggiungibile da parte dell’operatore. Deve essere marchiato come il dispositivo

di interruzione dell’apparecchio: IEC/ EN 61010-1 § 6.11.2.

– Pulire lo strumento con panno morbido, non usare prodotti abrasivi, detergenti liquidi o solventi.

ATTENTION !

– Lire attentivement le manuel avant toute utilisation et installation.

– Ces appareils doivent être installés par un personnel qualifié, conformément aux normes en vigueur en

matière d'installations, afin d'éviter de causer des dommages à des personnes ou choses.

– Avant toute intervention sur l'instrument, mettre les entrées de mesure et d'alimentation hors tension et court-circuiter

les transformateurs de courant.

– Le constructeur n'assume aucune responsabilité quant à la sécurité électrique en cas d'utilisation impropre du

dispositif.

– Les produits décrits dans ce document sont susceptibles d'évoluer ou de subir des modifications à n'importe quel

moment. Les descriptions et caractéristiques techniques du catalogue ne peuvent donc avoir aucune valeur

contractuelle.

– Un interrupteur ou disjoncteur doit être inclus dans l'installation électrique du bâtiment. Celui-ci doit se trouver tout

près de l'appareil et l'opérateur doit pouvoir y accéder facilement. Il doit être marqué comme le dispositif

d'interruption de l'appareil : IEC/ EN 61010-1 § 6.11.2.

– Nettoyer l'instrument avec un chiffon doux, ne pas utiliser de produits abrasifs, détergents liquides ou solvants.

UWAGA!

– Przed użyciem i instalacją urządzenia należy uważnie przeczytać niniejszą instrukcję.

– W celu uniknięcia obrażeń osób lub uszkodzenia mienia tego typu urządzenia muszą być instalowane przez

wykwalifikowany personel, zgodnie z obowiązującymi przepisami.

– Przed rozpoczęciem jakichkolwiek prac na urządzeniu należy odłączyć napięcie od wejść pomiarowych i zasilania oraz zewrzeć

zaciski przekładnika prądowego.

– Producent nie przyjmuje na siebie odpowiedzialności za bezpieczeństwo elektryczne w przypadku niewłaściwego użytkowania

urządzenia.

– Produkty opisane w niniejszym dokumencie mogą być w każdej chwili udoskonalone lub zmodyfikowane. Opisy oraz dane

katalogowe nie mogą mieć w związku z tym żadnej wartości umownej.

– W instalacji elektrycznej budynku należy uwzględnić przełącznik lub wyłącznik automatyczny. Powinien on znajdować się w

bliskim sąsiedztwie urządzenia i być łatwo osiągalny przez operatora. Musi być oznaczony jako urządzenie służące do

wyłączania urządzenia: IEC/ EN 61010-1 § 6.11.2.

– Urządzenie należy czyścić miękką szmatką, nie stosować środkow ściernych, płynnych detergentow lub rozpuszczalnikow.

ACHTUNG!

– Dieses Handbuch vor Gebrauch und Installation aufmerksam lesen.

– Zur Vermeidung von Personen- und Sachschäden dürfen diese Geräte nur von qualifiziertem

Fachpersonal und unter Befolgung der einschlägigen Vorschriften installiert werden.

– Vor jedem Eingriff am Instrument die Spannungszufuhr zu den Messeingängen trennen und die Stromwandler

kurzschlieβen.

– Bei zweckwidrigem Gebrauch der Vorrichtung übernimmt der Hersteller keine Haftung für die elektrische Sicherheit.

– Die in dieser Broschüre beschriebenen Produkte können jederzeit weiterentwickelt und geändert werden. Die im

Katalog enthaltenen Beschreibungen und Daten sind daher unverbindlich und ohne Gewähr.

– In die elektrische Anlage des Gebäudes ist ein Ausschalter oder Trennschalter einzubauen. Dieser muss sich in

unmittelbarer Nähe des Geräts befinden und vom Bediener leicht zugänglich sein. Er muss als Trennvorrichtung für das

Gerät gekennzeichnet sein: IEC/ EN 61010-1 § 6.11.2.

– Das Instrument mit einem weichen Tuch reinigen, keine Scheuermittel, Flüssigreiniger oder Lösungsmittel verwenden.

警

告



•

安

装

或

使

用

前

︐

︒

•

本

︐

以

避

免

造

成

︒

•

︐

断

开

所

有

端

子

的

︐

并

短

接

•

建

筑

物

的

IEC /EN 61010-1 § 6.11.2

︒

•

ADVERTENCIA

– Leer atentamente el manual antes de instalar y utilizar el regulador.

– Este dispositivo debe ser instalado por personal cualificado conforme a la normativa de instalación

vigente a fin de evitar daños personales o materiales.

– Antes de realizar cualquier operación en el dispositivo, desconectar la corriente de las entradas de alimentación y

medida, y cortocircuitar los transformadores de corriente.

– El fabricante no se responsabilizará de la seguridad eléctrica en caso de que el dispositivo no se utilice de forma

adecuada.

– Los productos descritos en este documento se pueden actualizar o modificar en cualquier momento. Por consiguiente,

las descripciones y los datos técnicos aquí contenidos no tienen valor contractual.

– La instalación eléctrica del edificio debe disponer de un interruptor o disyuntor. Éste debe encontrarse cerca del

dispositivo, en un lugar al que el usuario pueda acceder con facilidad. Además, debe llevar el mismo marcado que el

interruptor del dispositivo (IEC/ EN 61010-1 § 6.11.2).

– Limpiar el dispositivo con un trapo suave; no utilizar productos abrasivos, detergentes líquidos ni disolventes.

ПРЕДУПРЕЖДЕНИЕ!

– Прежде чем приступать к монтажу или эксплуатации устройства, внимательно ознакомьтесь с одержанием

настоящего руководства.

– Во избежание травм или материального ущерба монтаж должен существляться только квалифицированным персоналом

в соответствии с действующими нормативами.

– Перед проведением любых работ по техническому обслуживанию устройства необходимо обесточить все

измерительные и питающие входные контакты, а также замкнуть накоротко входные контакты трансформатора тока (ТТ).

– Производитель не несет ответственность за обеспечение электробезопасности в случае ненадлежащего использования

устройства.

– Изделия, описанные в настоящем документе, в любой момент могут подвергнуться изменениям или

усовершенствованиям. Поэтому каталожные данные и описания не могут рассматриваться как действительные с точки

зрения контрактов

– Электрическая сеть здания должна быть оснащена автоматическим выключателем, который должен быть расположен

вблизи оборудования в пределах доступа оператора. Автоматический выключатель должен быть промаркирован как

отключающее устройство оборудования: IEC /EN 61010-1 § 6.11.2.

– Очистку устройства производить с помощью мягкой сухой ткани, без применения абразивных материалов, жидких

моющих средств или растворителей.

UPOZORNĚNÍ

– Návod se pozorně pročtěte, než začnete regulátor instalovat a používat.

– Tato zařízení smí instalovat kvalifikovaní pracovníci v souladu s platnými předpisy a normami pro předcházení

úrazů osob či poškození věcí.

– Před jakýmkoli zásahem do přístroje odpojte měřicí a napájecí vstupy od napětí a zkratujte transformátory proudu.

– Výrobce nenese odpovědnost za elektrickou bezpečnost v případě nevhodného používání regulátoru.

– Výrobky popsané v tomto dokumentu mohou kdykoli projít úpravami či dalším vývojem. Popisy a údaje uvedené v katalogu

nemají proto žádnou smluvní hodnotu.

– Spínač či odpojovač je nutno zabudovat do elektrického rozvodu v budově. Musejí být nainstalované v těsné blízkosti přístroje a

snadno dostupné pracovníku obsluhy. Je nutno ho označit jako vypínací zařízení přístroje: IEC/ EN 61010-1 § 6.11.2.

– Přístroj čistěte měkkou utěrkou, nepoužívejte abrazivní produkty, tekutá čistidla či rozpouštědla.

DİKKAT!

– Montaj ve kullanımdan önce bu el kitabını dikkatlice okuyunuz.

– Bu aparatlar kişilere veya nesnelere zarar verme ihtimaline karşı yürürlükte olan sistem kurma normlarına göre

kalifiye personel tarafından monte edilmelidirler

– Aparata (cihaz) herhangi bir müdahalede bulunmadan önce ölçüm girişlerindeki gerilimi kesip akım transformatörlerinede kısa

devre yaptırınız.

– Üretici aparatın hatalı kullanımından kaynaklanan elektriksel güvenliğe ait sorumluluk kabul etmez.

– Bu dokümanda tarif edilen ürünler her an evrimlere veya değişimlere açıktır. Bu sebeple katalogdaki tarif ve değerler herhangi bir

bağlayıcı değeri haiz değildir.

– Binanın elektrik sisteminde bir anahtar veya şalter bulunmalıdır. Bu anahtar veya şalter operatörün kolaylıkla ulaşabileceği yakın

bir yerde olmalıdır. Aparatı (cihaz) devreden çıkartma görevi yapan bu anahtar veya şalterin markası: IEC/ EN 61010-1 § 6.11.2.

– Aparatı (cihaz) sıvı deterjan veya solvent kullanarak yumuşak bir bez ile siliniz aşındırıcı temizlik ürünleri kullanmayınız.

AVERTIZARE!

– Citiţi cu atenţie manualul înainte de instalare sau utilizare.

– Acest echipament va fi instalat de personal calificat, în conformitate cu standardele actuale, pentru a evita

deteriorări sau pericolele.

– Înainte de efectuarea oricărei operaţiuni de întreţinere asupra dispozitivului, îndepărtaţi toate tensiunile de la intrările de

măsurare şi de alimentare şi scurtcircuitaţi bornele de intrare CT.

– Produsele ilustrate în prezentul sunt supuse modificărilor şi schimbărilor fără notificare anterioară.

– Datele tehnice şi descrierile din documentaţie sunt precise, în măsura cunoştinţelor noastre, dar nu se acceptă nicio răspundere

pentru erorile, omiterile sau evenimentele neprevăzute care apar ca urmare a acestora.

– Trebuie inclus un disjunctor în instalaţia electrică a clădirii. Acesta trebuie instalat aproape de echipament şi într-o zonă uşor

accesibilă operatorului. Acesta trebuie marcat ca fiind dispozitivul de deconectare al echipamentului: IEC/EN 61010-1 § 6.11.2.

– Curăţaţi instrumentul cu un material textil moale şi uscat; nu utilizaţi substanţe abrazive, detergenţi lichizi sau solvenţi.

LOVATO ELECTRIC S.P.A.

24020 GORLE (BERGAMO) ITALIA

VIA DON E. MAZZA, 12

TEL. 035 4282111

FAX (Nazionale): 035 4282200

FAX (International): +39 035 4282400

E-mail info@LovatoElectric.com

Web www.LovatoElectric.com

DMG100 – DMG110

DIGITAL MULTIMETER

Operating manual

I422 GB I 10 17 31100212

INDEX Page

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Front button functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Display indications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Displaying measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Table of display pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Navigating between the display pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

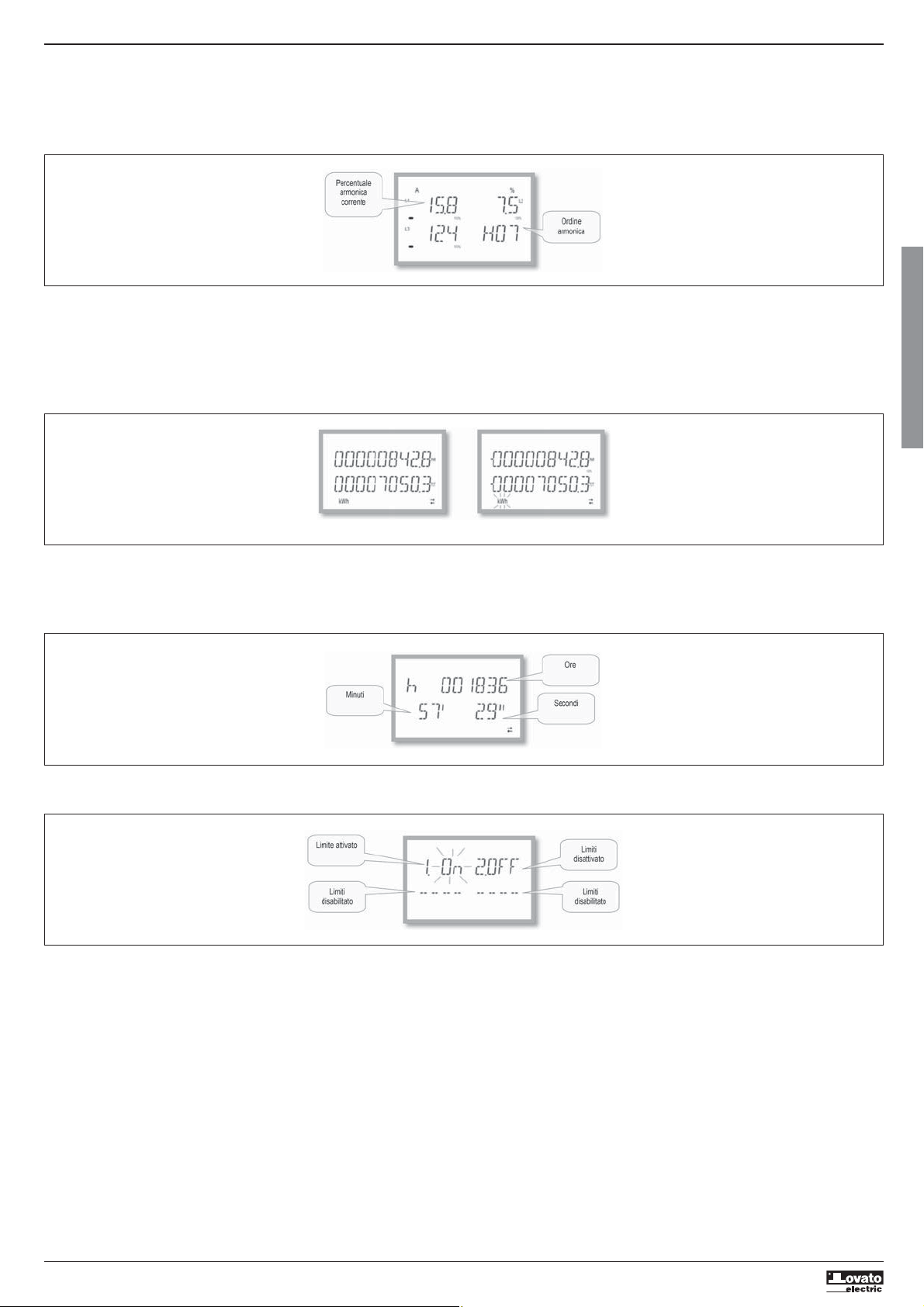

Harmonic analysis indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Energy meter indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Hour counter indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Limit threshold status indication (LIMn) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Alarm indication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Setting parameters (set-up) from the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Parameter table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Commands menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connection test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

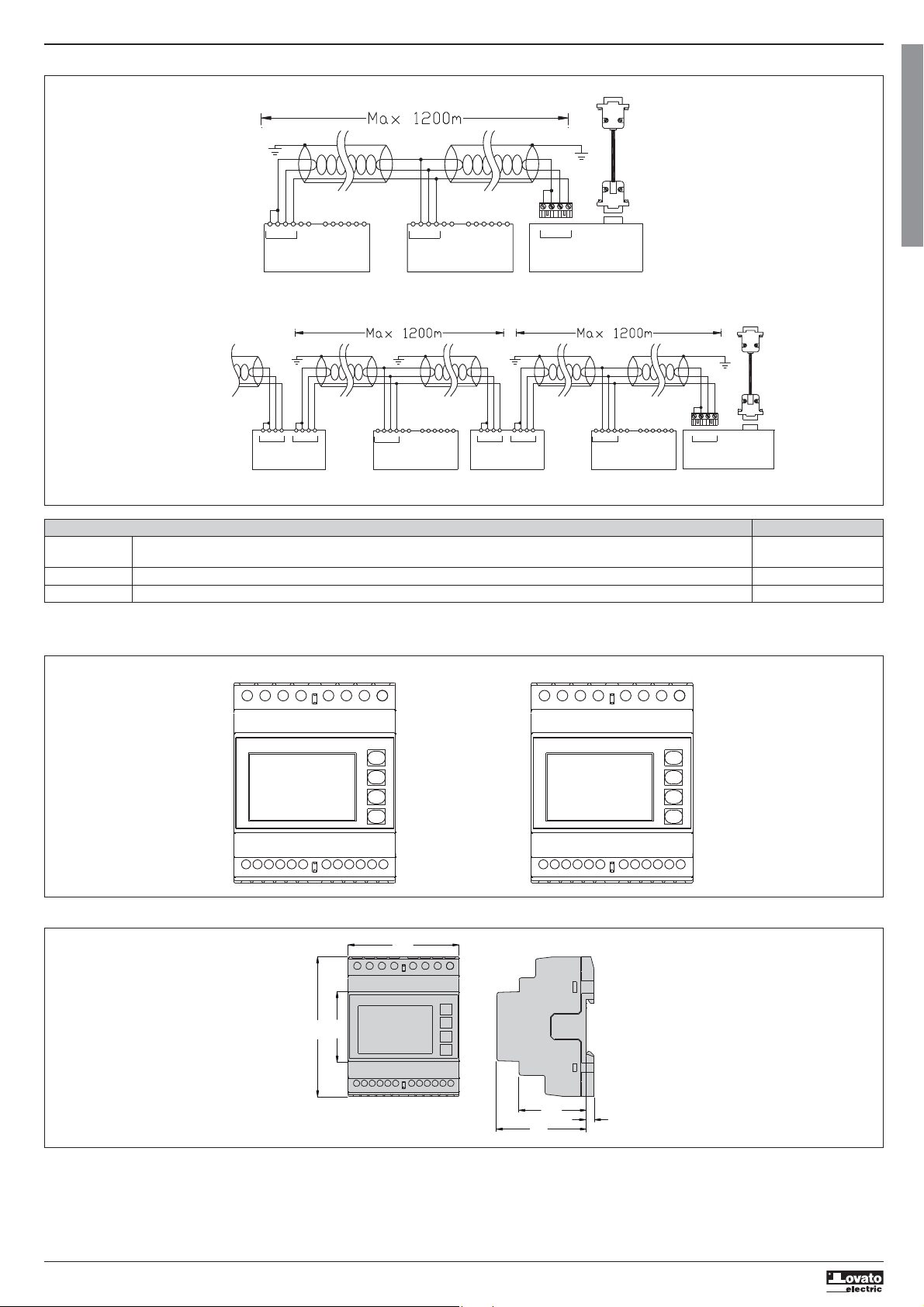

Connection schemes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Terminal layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Mechanical dimensions and panel cut-out (mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Manual revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

INTRODUCTION

DMG100 and DMG110 multimeters are designed to combine the utmost ease of use with a wide range of advanced functions. Despite the extremely limited dimensions of the modular housing (just 4 modules), the

multimeter features the same performance as a high-level device. The backlit LCD display permits a clear and intuitive user interface. The DMG110 also features an isolated RS-485 communication interface with

Modbus protocol to permit supervision.

DESCRIPTION

– Three-phase digital multimeter.

– 4U (72 mm) modular housing for DIN rail.

– Backlit LCD display.

– Versions:

• DMG100 - standard version.

• DMG110 - with built-in RS485 interface.

– 4 navigation buttons for functions and settings.

– High-accuracy true root mean square (TRMS) measurement.

– Vast range of available measurements, including voltage and current THD and harmonic analysis.

– Wide range auxiliary power supply (100–240 VAC).

– 2-level password protection for settings.

– Backup copy of original settings.

– Fitting does not require tools.

– Texts in 6 languages.

FRONT BUTTON FUNCTIONS

MENU button – Used to enter or exit the various display and set-up menus.



and



buttons – Used to scroll between screens, select from available options on the display and change (increase/decrease) settings.

button – Used to scroll sub-pages, confirm selected options and switch between display modes.

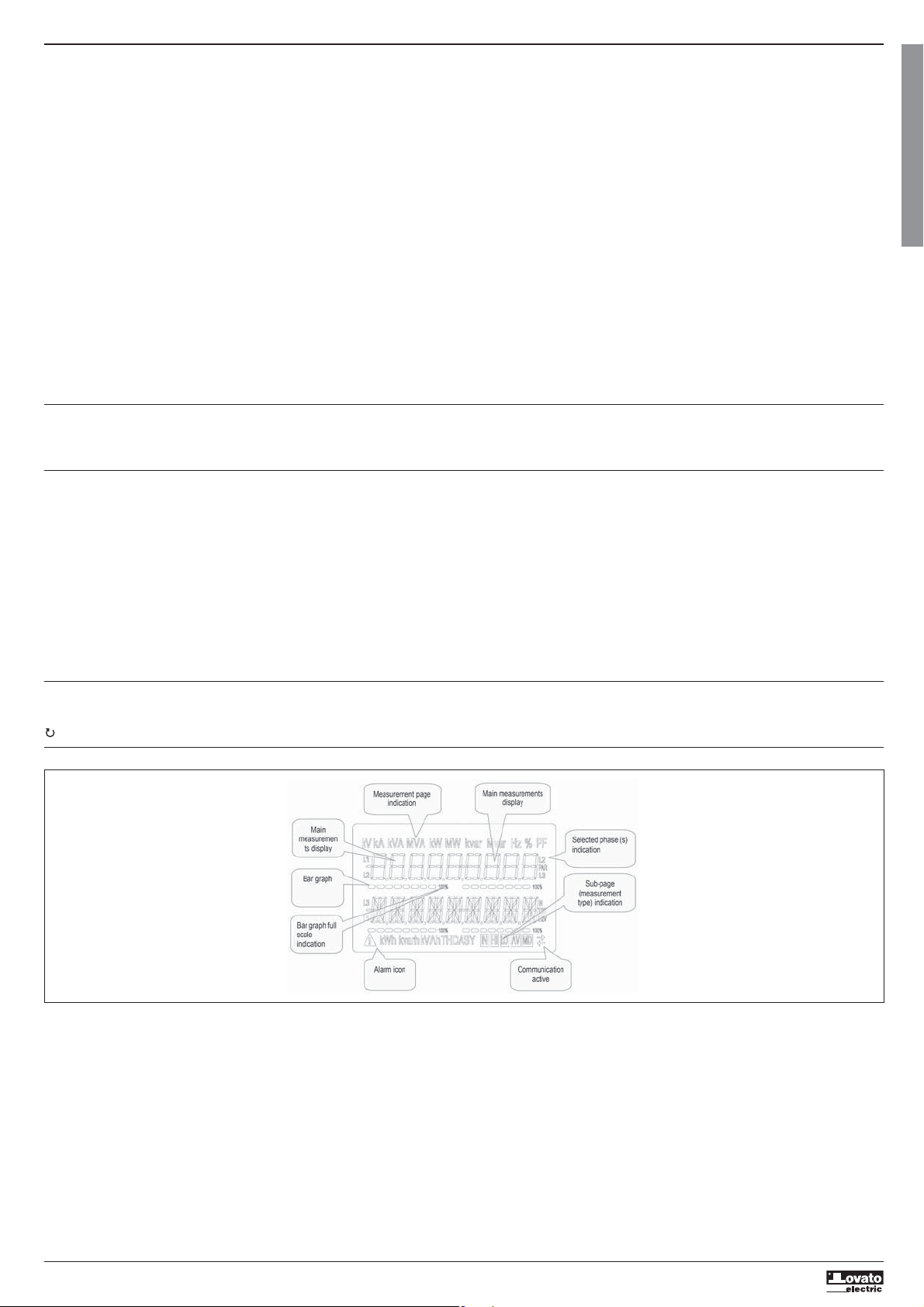

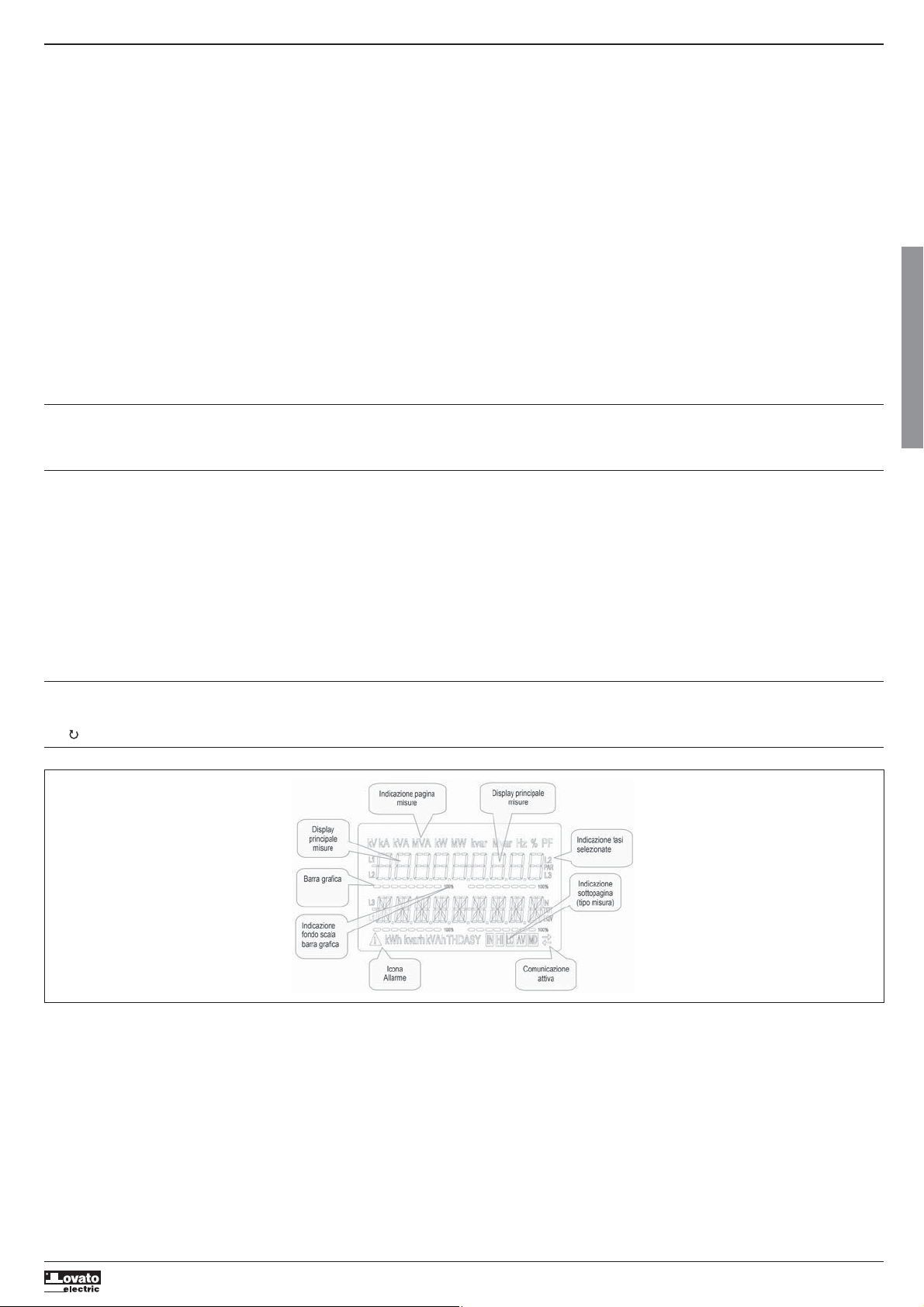

DISPLAY INDICATIONS

I422 GB I 10 17 31100212

DISPLAYING MEASUREMENTS

– The



and



buttons allow the measurement display pages to be scrolled one at a time. The current page can be recognized through the unit of measurement shown in the top part of the display.

– Some measurements may not be displayed, depending on the programming and the connection for the device (for example, if programmed for a system without neutral, the measurements relating to neutral are

not displayed).

– For every page, the button permits access to sub-pages (for example, to display the maximum and minimum values recorded for the selected measurement).

– The sub-page displayed currently is indicated at the bottom right by one of the following icons:

•

IN = Instantaneous value – Current instantaneous value of the measurement, displayed by default every time the page is changed.

•

HI = Maximum instantaneous value – Highest value measured by the multimeter for the corresponding measurement. HIGH values are stored and preserved even in the absence of a power supply. They can be

reset through a dedicated command (see commands menu).

•

LO = Minimum instantaneous value – Lowest value measured by the multimeter from the moment voltage is applied. It is reset with the same command used for the HI values.

•

AV = Average value – Time-integrated (average) value of measurement. Permits display of a measurement with slow variations. See Integration menu.

•

MD = Maximum Demand – Peak integrated value (max demand). Remains stored in non-volatile memory and can be reset with a dedicated command.

– The user can choose the page and sub-page that the display returns to automatically after a certain time has elapsed without the buttons being pressed.

– It is also possible to program the multimeter so that the display always remains that which was last selected.

– For the set-up of these functions, see the P02 – Utility menu.

TABLE OF DISPLAY PAGES

Selection with



and



Selection with

N° PAGE SUB PAGES

1 PHASE-TO-PHASE VOLTAGES - V(L1-L2), V(L2-L3), V(L3-L1), V(LL)EQV HI LO AV

2 PHASE-TO-NEUTRAL VOLTAGES - V(L1-N), V(L2-N), V(L3-N), V(L-N)EQV HI LO AV

3 PHASE AND NEUTRAL CURRENTS - I(L1), I(L2), I(L3), I(N) HI LO AV MD

4 ACTIVE POWER - P(L1), P(L2), P(L3), P(TOT) HI LO AV MD

5 REACTIVE POWER - Q(L1), Q(L2), Q(L3), Q(TOT) HI LO AV MD

6 APPARENT POWER - S(L1), S(L2), S(L3), S(TOT) HI LO AV MD

7 POWER FACTOR - PF(L1), PF(L2), PF(L3), PF(EQ) HI LO AV

8 ACTIVE POWER UNBALANCE - L1-L2, L2-L3, L3-L1 HI LO AV

9 FREQUENCY - Hz HI LO AV

10 ASYMMETRY ASY(VLL) HI LO AV

11 ASYMMETRY ASY(VLN) HI LO AV

12 ASYMMETRY ASY(I) HI LO AV

13 PH-PH VOLTAGE HARM. DISTORTION - THD-V(L1-L2), THD-V(L2-L3), THD-V(L3-L1) HI LO AV

14 VLL HARMONICS H2…H15

15 PH-N VOLTAGE HARMONIC DISTORTION - THD-V(L1),THD-V(L2),THD-V(L3) HI LO AV

16 VLN HARMONICS H2…H15

17 CURRENT HARMONIC DISTORTION - THD-I(L1), THD-I(L2) THD-I(L3) HI LO AV

18 CURRENT HARMONICS H2…H15

19 IMP. ACTIVE ENERGY METERS - kWh+(SYS) PAR - kWh+(SYS) TOT

20 EXP. ACTIVE ENERGY METERS - kWh-(SYS) PAR - kWh-(SYS) TOT

21 IMP. REACTIVE ENERGY METERS - kvarh+(SYS) PAR - kvarh+(SYS) TOT

22 EXP. REACTIVE ENERGY METERS - Kvarh-(SYS) PAR - Kvarh-(SYS) TOT

23 APPARENT ENERGY METERS - kvah(SYS) PAR - kvah(SYS) TOT

24 ENERGY METERS (L1) - kWh+(L1) PAR - kWh+(L1) TOT

25 ENERGY METERS (L2) - kWh+(L2) PAR - kWh+(L2) TOT

26 ENERGY METERS (L3) - kWh+(L3) PAR - kWh+(L3) TOT

27 ENERGY METERS (L1) - kWh-(L1) PAR - kWh-(L1) TOT

28 ENERGY METERS (L2) - kWh-(L2) PAR - kWh-(L2) TOT

29 ENERGY METERS (L3) - kWh-(L3) PAR - kWh-(L3) TOT

30 ENERGY METERS (L1) - kvarh+(L1) PAR - kvarh+(L1) TOT

31 ENERGY METERS (L2) - kvarh+(L2) PAR - kvarh+(L2) TOT

32 ENERGY METERS (L3) - kvarh+(L3) PAR - kvarh+(L3) TOT

33 ENERGY METERS (L1) - kvarh-(L1) PAR - kvarh-(L1) TOT

34 ENERGY METERS (L2) - kvarh-(L2) PAR - kvarh-(L2) TOT

35 ENERGY METERS (L3) - kvarh-(L3) PAR - kvarh-(L3) TOT

36 HOUR COUNTER - hhhhhh mm ss TOT PAR

37 LIMIT THRESHOLD - LIM1–LIM2–LIM3–LIM4

38 ALARMS - ALA1–ALA2–ALA3–ALA4

39 INFO-REVISION-SERIAL NO. - MODEL, REV SW, REV HW, SER. No.

Note: The pages highlighted in grey in the above table may not be displayed if the function or parameter that controls them is not enabled. For example, if no alarm is programmed, the corresponding page is not

displayed.

I422 GB I 10 17 31100212

Phase-to-phase voltages

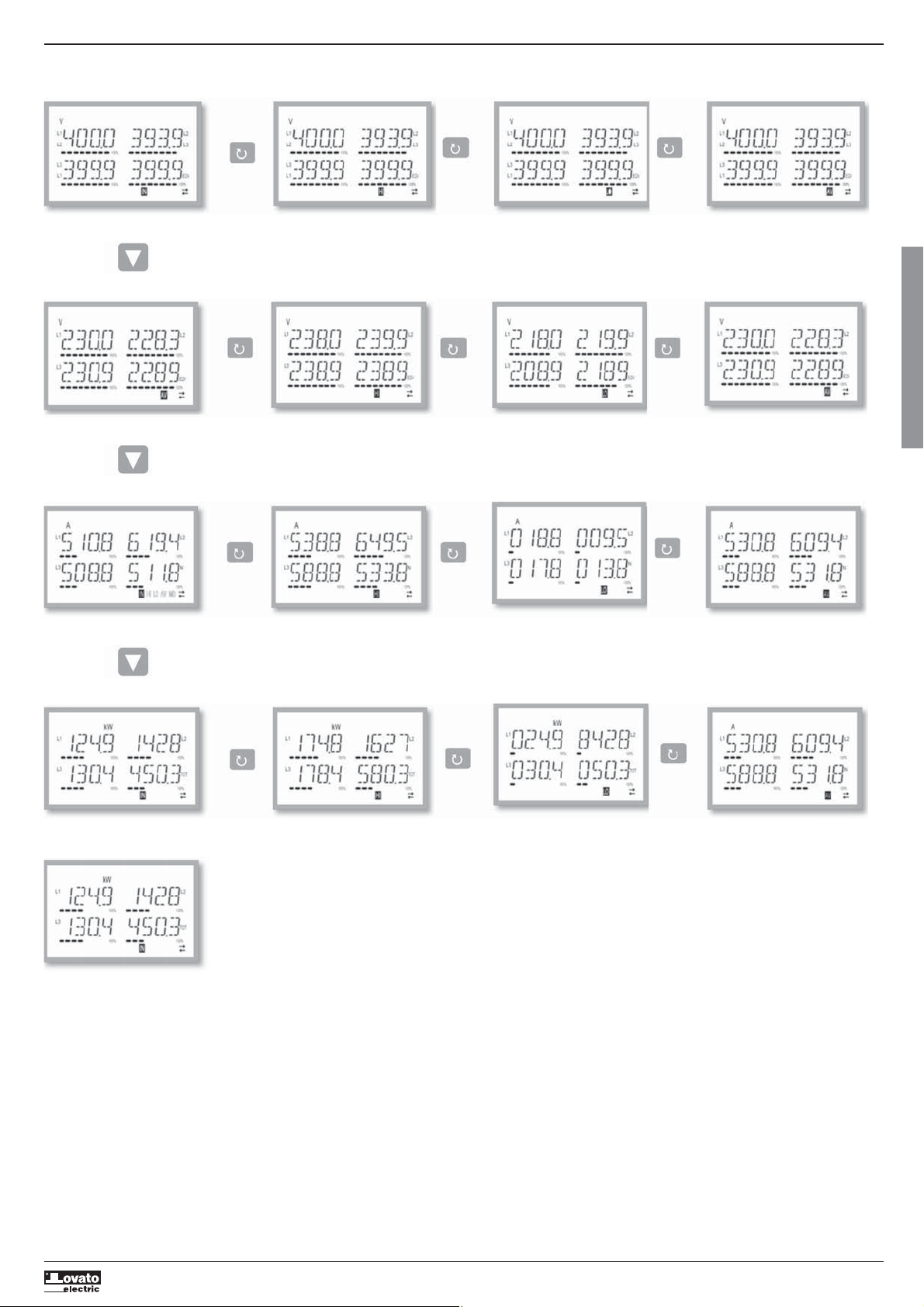

NAVIGATING BETWEEN THE DISPLAY PAGES

IN = Instantaneous value HI = Highest value LO = Lowest value AV = Average value

Phase-to-neutral voltages

IN = Instantaneous value HI = Highest value LO = Lowest value AV = Average value

Phase and neutral currents

IN = Instantaneous value HI = Highest value LO = Lowest value AV = Average value

Active power phase and total

IN = Instantaneous value HI = Highest value LO = Lowest value AV = Average value

MD = Max Demand value

I422 GB I 10 17 31100212

HARMONIC ANALYSIS INDICATION

– The DMG100-110 features harmonic phase analysis up to the 15th order for the following measurements:

•

phase-to-phase voltages

•

phase-to-neutral voltages

•

currents

– To activate harmonic analysis, parameter P02.12 must = THD/HAR.

– With P02.12 = THD, only the THD of the above measurements is displayed.

ENERGY METER INDICATION

– There are five dedicated pages for energy meters.

•

Imported and exported active energy

•

Inductive or capacitive reactive energy

•

Apparent energy.

– Each page displays the total and partial value (can be reset from commands menu).

– If the unit of measurement is displayed continuously, it means that the meter is for imported energy (positive). Display of exported (negative) energies can be enabled as well by setting parameter P02.09 to ON.

These energies are highlighted by the flashing of the unit of measurement, and are displayed after the imported energies by pressing



– If display of energy by individual phase is enabled (P02.10=ON), three independent additional pages, one per phase, will be displayed for each power, including total and partial energy.

HOUR COUNTER INDICATION

– If the hour counter is enabled (see menu P05), the DMG100-110 displays the hour counter page, with the format indicated in the figure:

LIMIT THRESHOLD STATUS INDICATION (LIMX)

– If the limit thresholds are enabled (see menu P08), the DMG100-110 displays the page, with the corresponding status and the format indicated in the figure:

– With limit threshold activated, the word ON flashes, while if it is deactivated the word OFF is constant. If no limit threshold is programmed, dashes are displayed.

Imported active energy Exported active energy

I422 GB I 10 17 31100212

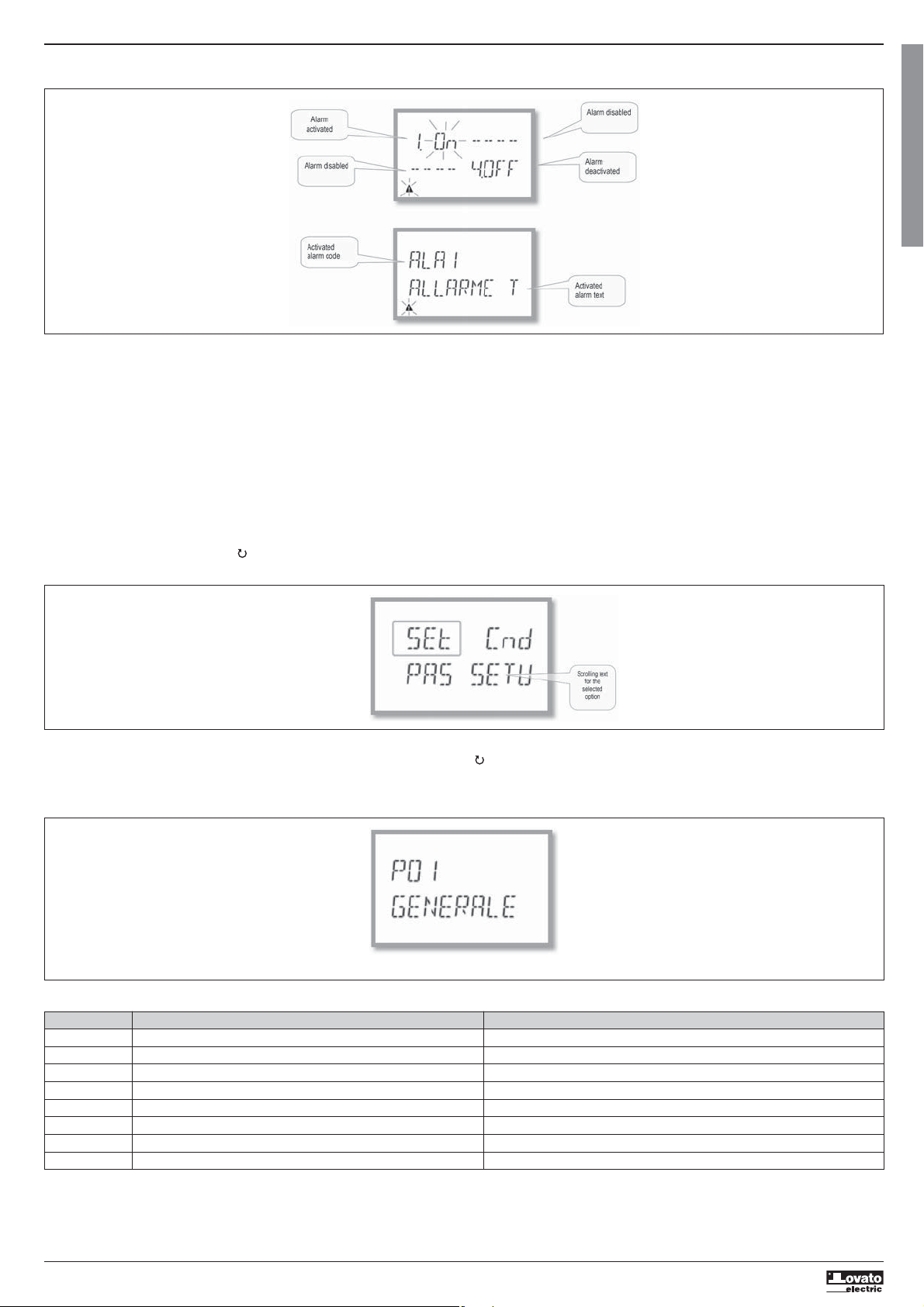

ALARM INDICATION

– If alarms are enabled (see menu P09), the DMG100-110 displays the page, with the corresponding status and the format indicated in the figure:

– With Alarm activated, the word ON flashes with the triangle symbol, while if it is not activated the word OFF is constant.

– If no alarm is programmed, dashes are displayed. After about 3 s, the scrolling text of the alarm programmed in parameter P09.n.05 appears.

– With several alarms active, the text of the corresponding alarm alternates on the display.

– Dedicated parameter P02.14 for the utility menu can be used to make the display backlighting flash in the event of an alarm to highlight the presence of the fault.

– The alarm reset method depends on parameter P09.n.03. This determines whether it can be automatic, on the disappearance of the alarm conditions, or requires manual intervention through the commands menu

(C.07).

SETTING PARAMETERS (SETUP) FROM THE FRONT PANEL

– From the standard measurement display, press MENU to call up the main menu, then select SET and press to access the settings menu.

– The display indicates the first menu level P.01 at the top left of the display, with selection 01 flashing.

– Select the desired menu (P.01, P.02, P.03) using the



buttons. During selection, the alphanumeric display scrolls a brief description of the currently selected menu.

– To exit and return to the measurement display, press MENU.

MAIN MENU

To access the main menu:

– Press the MENU button. The main menu is displayed (see figure), with the available options:

• SET – Access to the set-up menu

• CMD – Access to the commands menu

• PAS – Password entry

– The selected option flashes. Descriptive text for the selection scrolls in the alphanumeric display.

– If the password needs to be set, the menu opens with the option PAS already selected.

– Press



to select the desired option, then to confirm.

– To return to the measurement display, press MENU again.

Code MENU DESCRIPTION

P01 GENERAL Specifications of the system

P02 UTILITY Language, brightness, display, etc.

P03 PASSWORD Enablement of protected access

P04 INTEGRATION Measurement integration times

P05 HOUR COUNTER Enablement of hour counter

P07 COMMUNICATION Communication ports (DMG110)

P08 LIMIT THRESHOLDS (LIMn) Measurement thresholds

P09 ALARMS (ALAn) Alarm messages

– The following menu lists the available menus:

Setup: menu selection

I422 GB I 10 17 31100212

– Press to access the selected menu.

– At this point the sub-menu (if applicable) and sequential parameter number can be selected, again using the buttons as follows:

Back Increase/decrease Next

– Once the desired parameter number is set, switches to parameter value edit mode, with the parameter shown in the alphanumeric display.

– Pressing





changes the parameter within the permitted range.

– Pressing



and



simultaneously restores the factory default value.

– Pressing



and simultaneously sets the minimum possible value, while pressing



and sets the maximum.

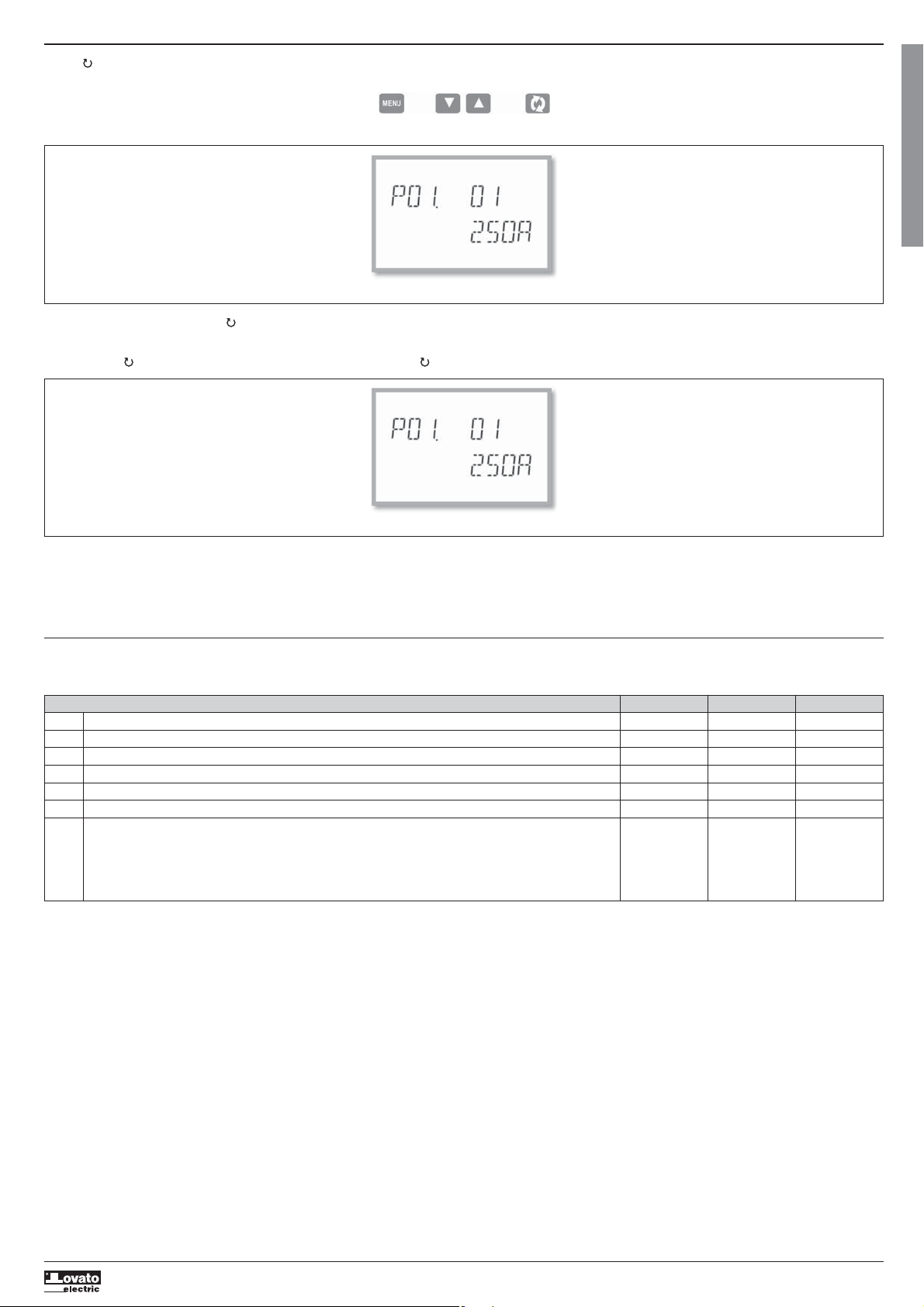

Set-up: selecting the parameter number

– Pressing MENU stores the parameter and returns to the previous level, i.e. parameter selection.

– Press MENU several times to exit and save the parameters. The device will reboot.

– Alternatively, from within programming, holding down MENU continuously for three seconds saves changes and exits directly.

– If no buttons are pressed for two minutes, the set-up menu is abandoned automatically and the system returns to the standard display without saving the parameters.

– Remember that, solely for the data that can be edited using the buttons, a backup copy can be made in the DMG100-110’s EEPROM. If required, this data can be restored to the working memory. The backup and

date restore commands are in the commands menu.

PARAMETER TABLE

– All available programming parameters are indicated in the following table. For each parameter the range of possible settings and factory default are shown, in addition to an explanation of the parameter’s function.

The description of the parameter visible on the display may in some cases vary from that indicated in the table due to the limited number of characters available. The parameter code is a valid reference in any case.

Setting the parameter value

M01 - GENERAL UdM Default Range

P01.01 CT primary A 5 1-10000

P01.02 CT secondary A 5 1-5

P01.03 Rated voltage V 400 50-500000

P01.04 Use VT OFF OFF-ON

P01.05 VT primary V 100 50-500000

P01.06 VT secondary V 100 50-500

P01.07 Wiring configuration L1-L2-L3-N L1-L2-L3-N

L1-L2-L3

L1-L2-L3-N BIL

L1-L2-L3 BIL

L1-N-L2

L1-N

P01.01 – Rated current of CT primary winding.

P01.02 – Current of CT secondary winding.

P01.03 – Rated voltage of system.

P01.04 – Program as ON if VTs are used. If programmed as OFF, the next two parameters are ignored.

P01.05 – Rated voltage of VT primary winding.

P01.06 – Rated voltage of VT secondary winding.

P01.07 – Set in accordance with the connection scheme adopted. See Connection Schemes at the end of the manual.

I422 GB I 10 17 31100212

M02 - UTILITY UdM Default Range

P02.01 Language English English

Italiano

Francais

Espanol

Portuguese

Deutsch

P02.02 High backlight level % 100 0-100

P02.03 Low backlight level % 30 0-50

P02.04 Low backlight delay s 30 5-600

P02.05 Default page return s 60 OFF / 10-600

P02.06 Default page VL-L VL-L / VL-N …

P02.07 Default sub-page INST INST / HI / LO /

AVG / MD

P02.08 Display update time s 0.5 0.1 – 5.0

P02.09 Exported energy measure OFF OFF-ON

P02.10 Phase energy measure OFF OFF-ON

P02.11 Asymmetry measure OFF OFF-ON

P02.12 THD/harmonic measure OFF OFF-THD-THD/HAR

P02.13 Power unbalance measurement OFF OFF-ON

P02.14 Backlight flash when in alarm OFF OFF-ON

P02.05 – If set to OFF, the display always remains on the page where the user left it. If set to a value, after this time the display returns to the page set with P02.06.

P02.06 – Number of the page that the display returns to automatically once the time P02.05 since a button was last pressed has elapsed.

P02.07 – Type of sub-page that the display returns to after P02.05 has elapsed.

P02.09 – Enables the measurement and display of exported energies (generated in the mains).

P02.10 – Enables the measurement and display of energies by individual phase.

P02.11 – Enables the measurement and display of voltage and current asymmetry.

P02.12 – Enables the measurement and display of voltage and current THDs (% Harmonic Distortion).

P02.13 – Enables the calculation and display of phase power unbalance.

P02.14 – When there is an alarm, the display’s backlight flashes to highlight the fault.

M03 - PASSWORD UdM Default Range

P03.01 Enable passwords OFF OFF-ON

P03.02 User level password 1000 0-9999

P03.03 Advanced level password 2000 0-9999

P03.01 – If set to OFF, password management is disabled and there is free access to settings and the commands menu.

P03.02 – With P03.01 active, value to specify to activate user-level access. See Password Access section.

P03.03 – As P03.02, with reference to advanced-level access.

M04 - INTEGRATION UdM Default Range

P04.01 Integration mode Shift Fixed

Shift

Bus (DMG110)

P04.02 Power integration time min 15 1-60

P04.03 Current integration time min 15 1-60

P04.04 Voltage integration time min 1 1-60

P04.05 Frequency integration time min 1 1-60

P04.01 – Integrated measurement calculation mode selection.

Fixed = The instantaneous measurements are integrated for the time set. Each time that the time set elapses, the integrated measurement is updated with the result of the latest integration.

Shift = he instantaneous measurements are integrated for a time = 1/15 of the time set. Each time this interval elapses, the oldest value is replaced with the new value calculated. The integrated

measurement is updated every 1/15 of the time set, considering a time-shift window that includes the last 15 values calculated, equivalent in length to the time set.

Bus = As fixed mode, but the integration intervals are dictated by synchronisation messages sent on the serial bus. (110)

P04.02 – Average (AVG) measurement integration time for active, reactive and apparent power.

P04.03, P04.04, P04.05 – Average (AVG) measurement integration time for the corresponding values.

M05 - HOUR COUNTER UdM Default Range

P05.01 Hour counters general enable ON OFF-ON

P05.02 Partial hour counter enable ON OFF-ON-LIMx

P05.03 Channel number (x) 1 1-4

P05.01 – If Off, the hour counters are disabled and the hour counter measurement page is not displayed.

P05.02 – If OFF, the partial hour counter is not incremented. If ON, it is incremented when the multimeter is supplied. If linked to one of the internal variables (LIMn), it is incremented only when this condition is true.

P05.03 – Channel number (x) of any internal variable used in the previous parameter. Example: If the partial hour counter needs to count the time that a measurement is above a certain threshold, defined by LIM3,

program LIMx in the previous parameter and specify 3 in this parameter.

I422 GB I 10 17 31100212

M07 - COMMUNICATION (DMG110 only) UdM Default Range

P07.01 Serial node address 01 01-255

P07.02 Serial speed bps 9600 1200

2400

4800

9600

19200

38400

57600

115200

P07.03 Data format 8 bit – n 8 bit, no parity

8 bit, odd

8bit, even

7 bit, odd

7 bit, even

P07.04 Stop bits 1 1-2

P07.05 Protocol Modbus RTU Modbus RTU

Modbus ASCII

P07.n.01 – Serial address (node) for the communication protocol.

P07.n.02 – Communication port bitrate.

P07.n.03 – Data format. 7-bit settings available for ASCII protocol only.

P07.n.04 – Number of stop bits.

P07.n.05 – Communication protocol selection.

M08 - LIMIT THRESHOLDS (LIMn, n=1..4) UdM Default Range

P08.n.01 Reference measure OFF OFF- (measures)

P08.n.02 Function Max Max – Min –

Min+Max

P08.n.03 Upper threshold 0 -9999 - +9999

P08.n.04 Multiplier x1 /100 – x10k

P08.n.05 Delay s 0 0.0 – 1000.0

P08.n.06 Lower threshold 0 -9999 - +9999

P08.n.07 Multiplier x1 /100 – x10k

P08.n.08 Delay s 0 0.0 – 1000.0

P08.n.09 Normal status OFF OFF-ON

P08.n.10 Latch OFF OFF-ON

Note: this menu is divided into 4 sections, for limit thresholds LIM1..4

P08.n.01 – Defines which multimeter measurement the limit threshold is applied to.

P08.n.02 – Defines the function of the limit threshold. It can be:

Max = LIMn active when measurement exceeds P08.n.03. P08.n.06 is the reset threshold.

Min = LIMn active when measurement is below P08.n.06. P08.n.03 is the reset threshold.

Min+Max = LIMn active when measurement is above P08.n.03 or below P08.n.06.

P08.n.03 and P08.n.04 – Define the upper threshold, which results from multiplying value P08.n.03 by P08.n.04.

P08.n.05 – Trip delay on upper threshold.

P08.n.06, P08.n.07, P08.n.08 – as above, with reference to the lower threshold.

P08.n.09 – Permits inversion of the status of limit threshold LIMn.

P08.n.10 – Defines whether the threshold is stored and must be reset manually (ON) or is reset automatically (OFF).

M09 - ALARMS (ALAn, n=1..4) Default Range

P09.n.01 Alarm source OFF OFF-LIMx

P09.n.02 Channel number (x) 1 1-4

P09.n.03 Latch OFF OFF-ON

P09.n.04 Priority Low Low - High

P09.n.05 Text ALAn (text: 16 characters

Note: this menu is divided into 4 sections, for alarms ALA1..4

P09.n.01 – Signal that causes the alarm. It can be when a threshold (LIMx) is exceeded.

P09.n.02 – Channel number (x), with reference to the previous parameter.

P09.n.03 – Defines whether the alarm is stored and must be reset manually (ON) or is reset automatically (OFF).

P09.n.04 – If the alarm has a priority of high, its activation switches the display to the alarm page automatically and it is displayed with the alarm icon. If instead it is set to low priority, the page does not change and

it is displayed with the ‘information’ icon.

P09.n.05 – Free text for alarm. 16 characters max.

I422 GB I 10 17 31100212

Code COMMAND ACCESS LEVEL DESCRIPTION

C.01 RESET HI-LO User / Advanced Resets the HI and LO values of all measurements

C.02 RESET MAX DEMAND User / Advanced Resets Max Demand values for all measurements

C.03 RESET PARTIAL ENERGY METERS User / Advanced Resets partial energy meters

C.04 RESET PARTIAL HOUR COUNTER User / Advanced Resets partial hour counters

C.07 RESET ALARMS User / Advanced Resets alarms with latch

C.08 RESET LIMITS User / Advanced Resets limit thresholds with latch

C.11 RESET TOTAL ENERGY METER Advanced Resets total and partial energy meters

C.12 RESET TOTAL HOUR COUNTERS Advanced Resets total hour counters

C.13 PARAMETERS TO DEFAULT Advanced Restores all settings to factory default values

C.14 PARAMETER BACKUP Advanced Saves a backup copy of the settings

C.15 PARAMETERS RESTORE Advanced Reloads the settings from the backup copy

C.16 WIRING TEST Advanced Runs the test to check that the DMG is connected correctly.

See Connection Test section

COMMANDS MENU

– The commands menu permits the execution of occasional operations such as resetting measurements, meters, counter, etc.

– If the advanced-access password has been entered, the commands menu can also be used to perform some automatic operations that are useful for configuring the instrument.

– The following table indicates the functions available through the commands menu, divided by required access level.

– Once the desired command is selected, press to execute it. The instrument will request confirmation. Pressing again will execute the command.

– To cancel the execution of a selected command, press MENU.

– To abandon the command menu, press MENU.

CONNECTION TEST

– The connection test permits verification of the correct installation of the multimeter.

– In order to run the test, the multimeter must be connected to an active system with the following conditions:

• three-phase system with all phases present (V > 50VAC PH-N)

• minimum current flow in each phase > 1% of the CT full scale set

• positive flow of energies (i.e. a normal system where the inductive load draws power from the supply)

– To launch the test, enter the commands menu and select command C.16, according to the instructions in the Commands Menu section.

– The test permits verification of the following:

• reading of the three voltages

• phase sequence

• voltage unbalance

• reverse polarity of one or more CTs

• mismatch between voltage/current phases

– If the test is not passed, the display shows the reason for the failure.

I422 GB I 10 17 31100212

CONNECTION SCHEMES

AUX SUPPLY

VOLTAGE

V1 VNV2 V3

CURRENT

110...250VDC

100...240VAC

TA/CT1

TA/CT2

TA/CT3 A

---

S2S1

RS485

A B

S2S1

I3I2

S1 S2 S1 S2

AUX SUPPLY

VOLTAGE

V1 VNV2 V3

110...250VDC

100...240VAC

TA/CT1

TA/CT2

---

S2S1

RS485

CURRENT

S2S1

I3I2

S1 S2 S1 S2

3-phase connection whit or without neutral

P01.07 = L1-L2-L3-N L1-L2-L3

2-phase connection

P01.07 = L1-N-L2

AUX SUPPLY

VOLTAGE

V1 VNV2 V3

110...250VDC

100...240VAC

TA/CT1

---

RS485

CURRENT

S2S1

S1 S2 S1 S2

AUX SUPPLY

VOLTAGE

V1 VNV2 V3

CURRENT

110...250VDC

100...240VAC

TA/CT1

---

RS485

A B

S2S1

S1 S2 S1 S2

Single-phase connection

P01.07 = L1-N

Balanced 3-phase connection whit or without neutral

P01.07 = L1-L2-L3-N-BIL L1-L2-L3-BIL

AUX SUPPLY

VOLTAGE

V1 VNV2 V3

CURRENT

110...250VDC

100...240VAC

TA/CT1

TA/CT2

---

S2S1

RS485

A B

S2S1

I3I2

S1 S2 S1 S2

AUX SUPPLY

VOLTAGE

V1 VNV2 V3

CURRENT

110...250VDC

100...240VAC

TA/CT1

TA/CT3 A

---

S2S1

RS485

A B

S2S1

I3I2

S1 S2 S1 S2

ARON connection 3-phase without neutral

P01.07 = L1-L2-L3

ARON connection 3-phase without neutral

P01.07 = L1-L2-L3

AUX SUPPLY

VOLTAGE

V1 VNV2 V3

CURRENT

110...250VDC

100...240VAC

TA/CT1

TA/CT2

TA/CT3 A

---

S2S1

RS485

A B

S2S1

S1 S2 S1 S2

TV/VT

AUX SUPPLY

VOLTAGE

V1 VNV2 V3

CURRENT

110...250VDC

100...240VAC

TA/CT1

TA/CT2

TA/CT3 A

---

S2S1

RS485

A B

S2S1

I3I2

S1 S2 S1 S2

TV/VT

3 phase connection with neutral via VT

Set P01.04, P01.05 and P01.06

P01.07 = L1-L2-L3-N

3 phase connection without neutral via VT

Set P01.04, P01.05 and P01.06

P01.07 = L1-L2-L3

NOTES

1. Recommended fuses:

aux supply and measure inputs voltage: F1A (fast).

2. S2 terminals are internally interconnected.

3. Class 1 CTs should be used. In case of DMG110 and VLN>300V, class 2 CTs must be installed.

I422 GB I 10 17 31100212

PC-DMG110 CONNECTION VIA RS485 INTERFACE

DMG110 n°1

DMG110 n°31

ABTR

RS485

TR SGAB

RS485

PX1

SGBTR A

DMG110

RS485

TR ABSG

PX1

BTR A SG BTR A SG TR SG

SGBA TR A B

PX1

Device addresses n° 1-30

PX1

TR SGAB SGAB

DMG110

Device addresses n° 31-60

up to 255 devices

Repeat this wiring diagram

Set as repeaterSet as repeater

Cable

51C4

Interface converter

RS232/485

Interface

converter

RS232/485

Interface

converter

RS232/485

Interface converter

RS232/485

Cable

51C4

Remote control

Order Description Weight (kg)

codes

4PX1 RS232/RS-485 galvanically isolated converter drive 220…240 Vac supply. 0.600

51C4 PC- RS232/RS-485 converter drive connection cable, length 1.80 metres. 0.147



RS232/RS-485 galvanically isolated bench converter drive, 38,400 Baud-rate max., automatic or manual TRANSMIT line supervision, 220…240 Vac ±10% supply (or 110…120 Vac on request).

TERMINAL LAYOUT

S1 S2

I1 I2S2

S1 S1 S2

A1 A2 V2V1 V3 VN

S1 S2

I1 I2S2

S1 S1 S2

A1 A2

V2V1 V3 VN

MECHANICAL DIMENSIONS AND PANEL CUT-OUT (mm)

43.7

58 5

DMG100 DMG110

I422 GB I 10 17 31100212

TECHNICAL CHARACTERISTICS

Supply

Rated voltage Us 100 - 240V



110 - 250V=

Operating voltage range 90 - 264V



93.5 - 300V=

Frequency 45 - 66Hz

Power consumption/dissipation DMG100 0.5W – 1.5VA

DMG110 0.8W – 2.2VA

Immunity time for microbreakings DMG100 >= 40ms

DMG110 >= 30ms

Recommended fuses F1A (fast)

Voltage input

Max. rated voltage Ue 600 VAC L-L (346 VAC L-N)

Measuring range 90…720 V L-L (50...415 VAC L-N)

Frequency range 45…65 Hz

Measurement type True root mean square (TRMS)

Measurement input impedance L-N - L-L > 8MΩ

Connection method Single-phase, two-phase, three-phase with or

without neutral or balanced three-phase system

Recommended fuses F1A (fast)

Current inputs

Rated current Ie 1 A



or 5 A



Measuring range For 5 A scale: 0.025 - 6 A



For 1 A scale: 0.025 – 1.2 A



Input type Shunt supplied by an external current transformer

(low voltage). 5 A max.

Measurement type Root mean square (RMS)

Overload capacity +20% Ie

Overload peak 50 A for 1 second

Burden (per phase) ≤0.6 VA

Measurement accuracy

Measuring conditions

Temperature +23 °C ±2 °C

Voltage (phase to neutral) ± 0.5% (50…415 V



) ±0.5 digit

Voltage (phase to phase) ± 0.5% (90…720 V



) ±0.5 digit

Current (CT /5) ± 0.5% (0.1…1.2In) ±0.5 digit

Active energy Class 1 (IEC/EN 62053-21)

Reactive energy Class 2 (IEC/EN 62053-23)

Additional errors

Temperature 0.05%/°K per V, A, W

Insulation

Rated insulation voltage Ui 600 V



Rated impulse withstand voltage Uimp 9.5 kV

Power frequency withstand voltage 5.2 kV

Ambient conditions

Operating temperature -20 - +60°C

Storage temperature -30 - +80°C

Relative humidity <80% (IEC/EN 60068-2-78)

Maximum pollution degree 2

Overvoltage category 3

Measurement category III

Climatic sequence Z/ABDM (IEC/EN 60068-2-61)

Shock resistance 15g (IEC/EN 60068-2-27)

Vibration resistance 0.7g (IEC/EN 60068-2-6)

Auxiliary supply and voltage input connections

Type of terminal Screw (fixed)

Number of terminals 4 for voltage inputs / 2 for Aux supply

Conductor cross section (min… max) 0.2 - 4.0 mm2(24 - 12 AWG)

Tightening torque 0.8Nm (7lbin)

Current Input and RS485 (DMG110 only) connections

Terminal type Screw (fixed)

Number of terminals 6 for CT connection / 4 for RS485 connection

Conductor cross section (min… max) 0.2 – 2.5 mmq (24 - 12 AWG)

Tightening torque 0.44 Nm (4 lbin)

Housing

Version 4 modules (DIN 43880)

Mounting 35mm DIN rail (EN60715) or by screw using

extractible clips

Material Polyamide RAL7035

Degree of protection IP40 on front / IP20 terminals

Weight 300g

Certifications and compliance

Certifications obtained cULus, RCM, EAC

Comply with standards IEC/EN 61010-1, IEC/EN 61010-2-030,

IEC/EN 61000-6-2, IEC/ EN 61000-6-3,

UL 61010-1, CSA C22.2 n° 61010-1,

UL 61010-2-030, CSA 22.2 n° 61010-2-030

UL Marking Use 75°C min copper (CU) conductor only

AWG Range: 18 - 12 AWG stranded or solid

Field Wiring Terminals Tightening Torque: 4.5lb.in

Flat panel mounting on a Type 1 enclosure



Auxiliary supply from a system with a phase-neutral voltage ≤300V

MANUAL REVISION HISTORY

REV. DATE NOTES

00 26/01/2015 First release

01 19/03/2015 Change of range for P08.n.05 and P08.n.08
